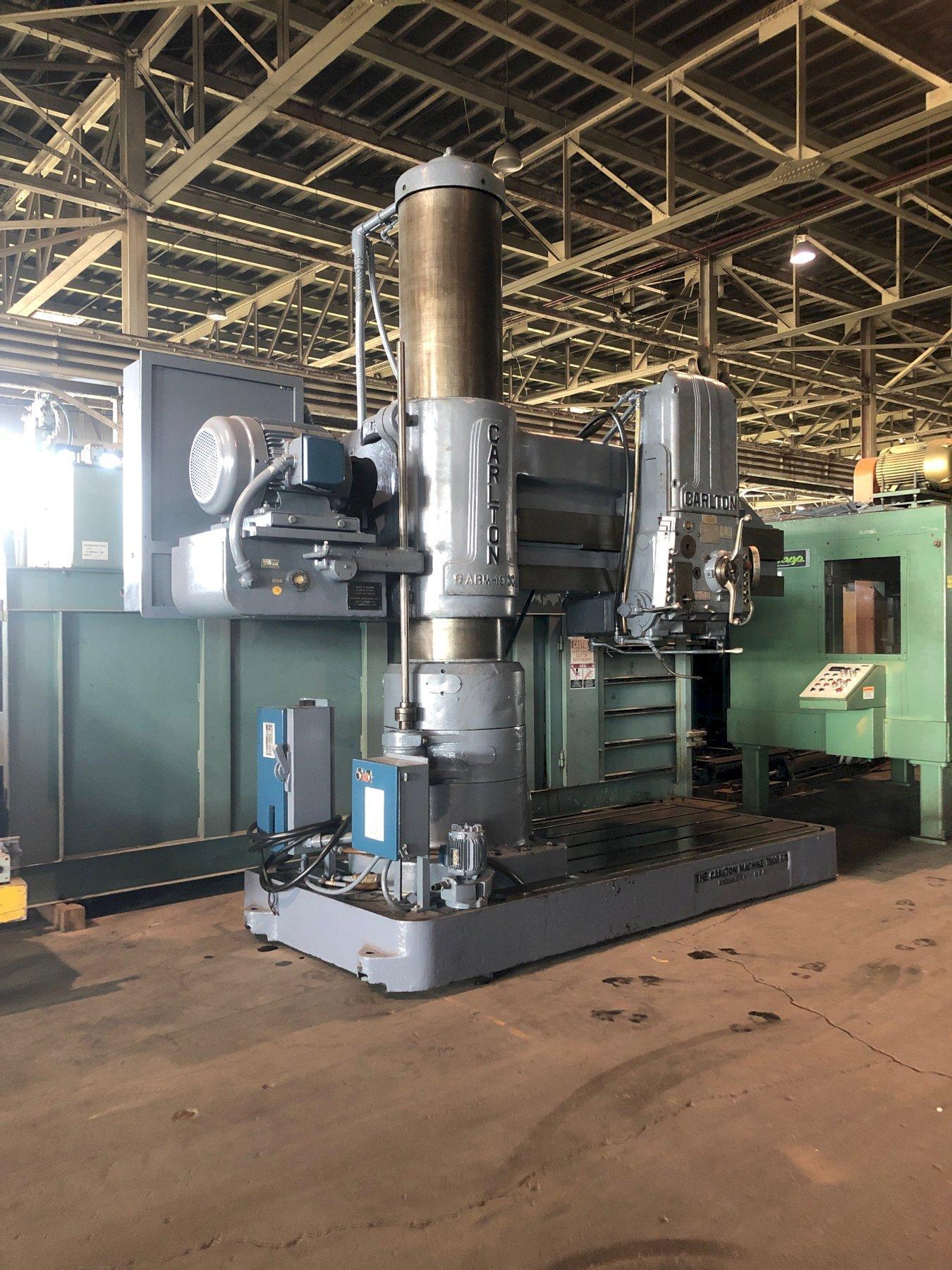

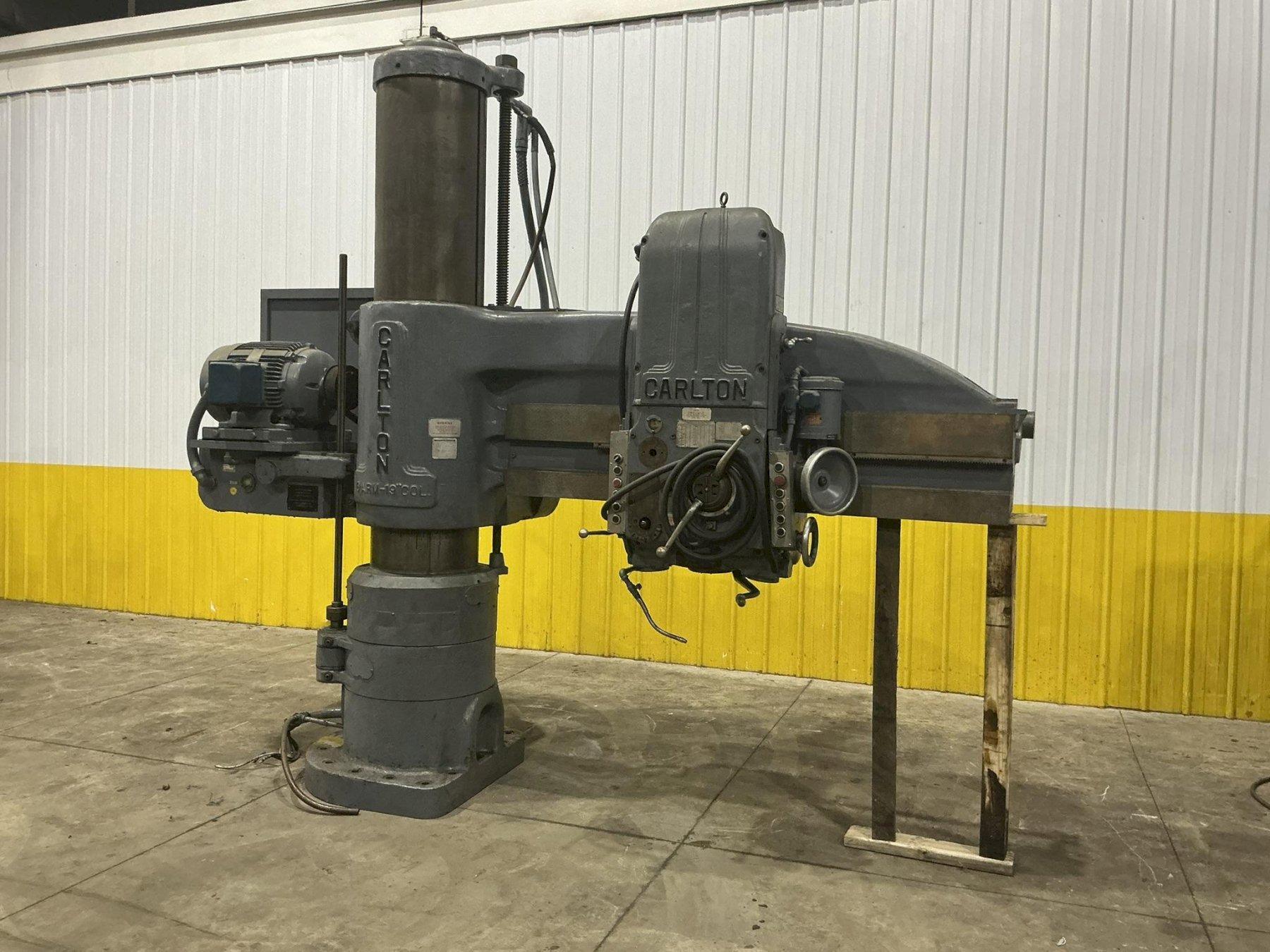

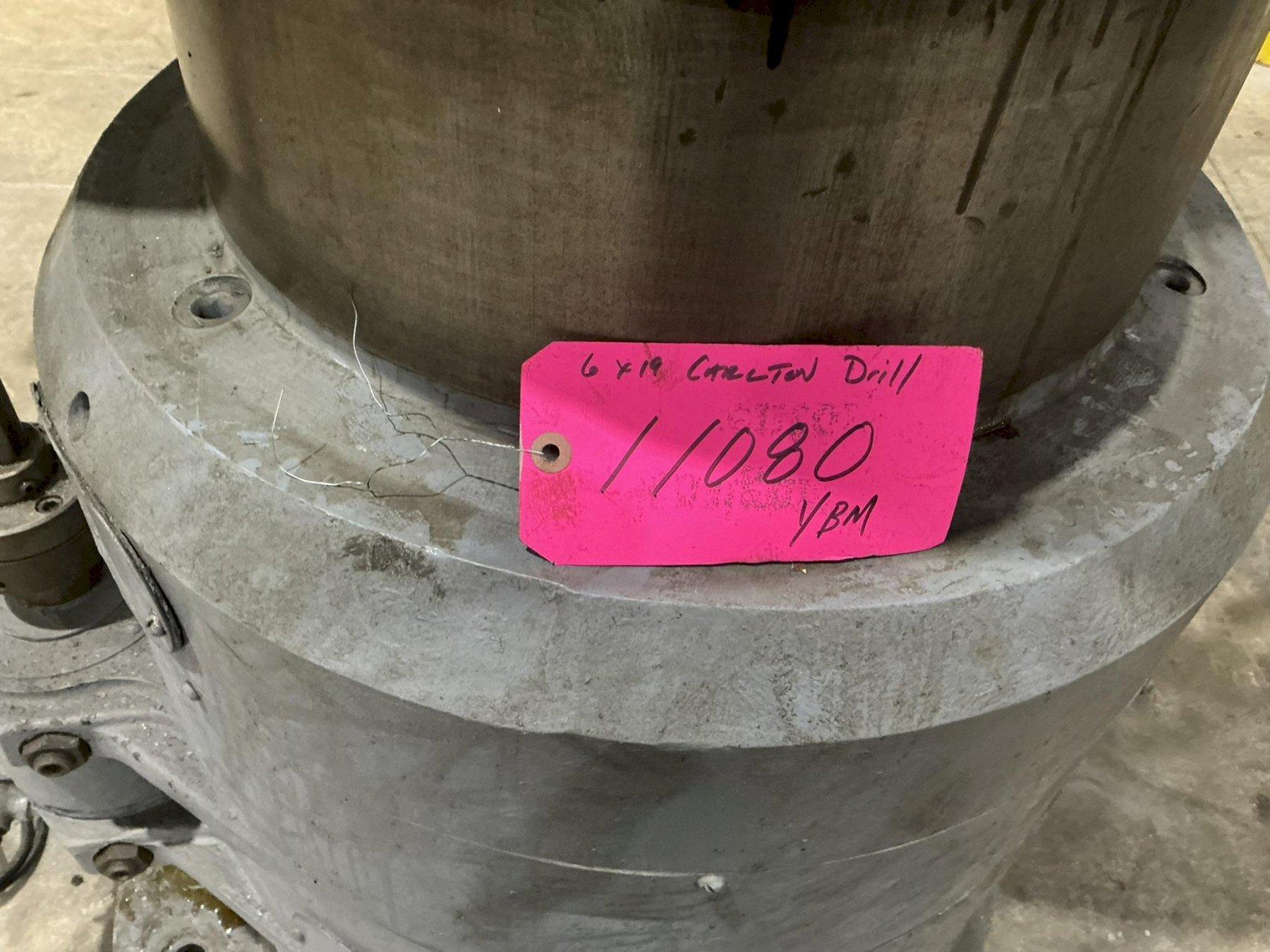

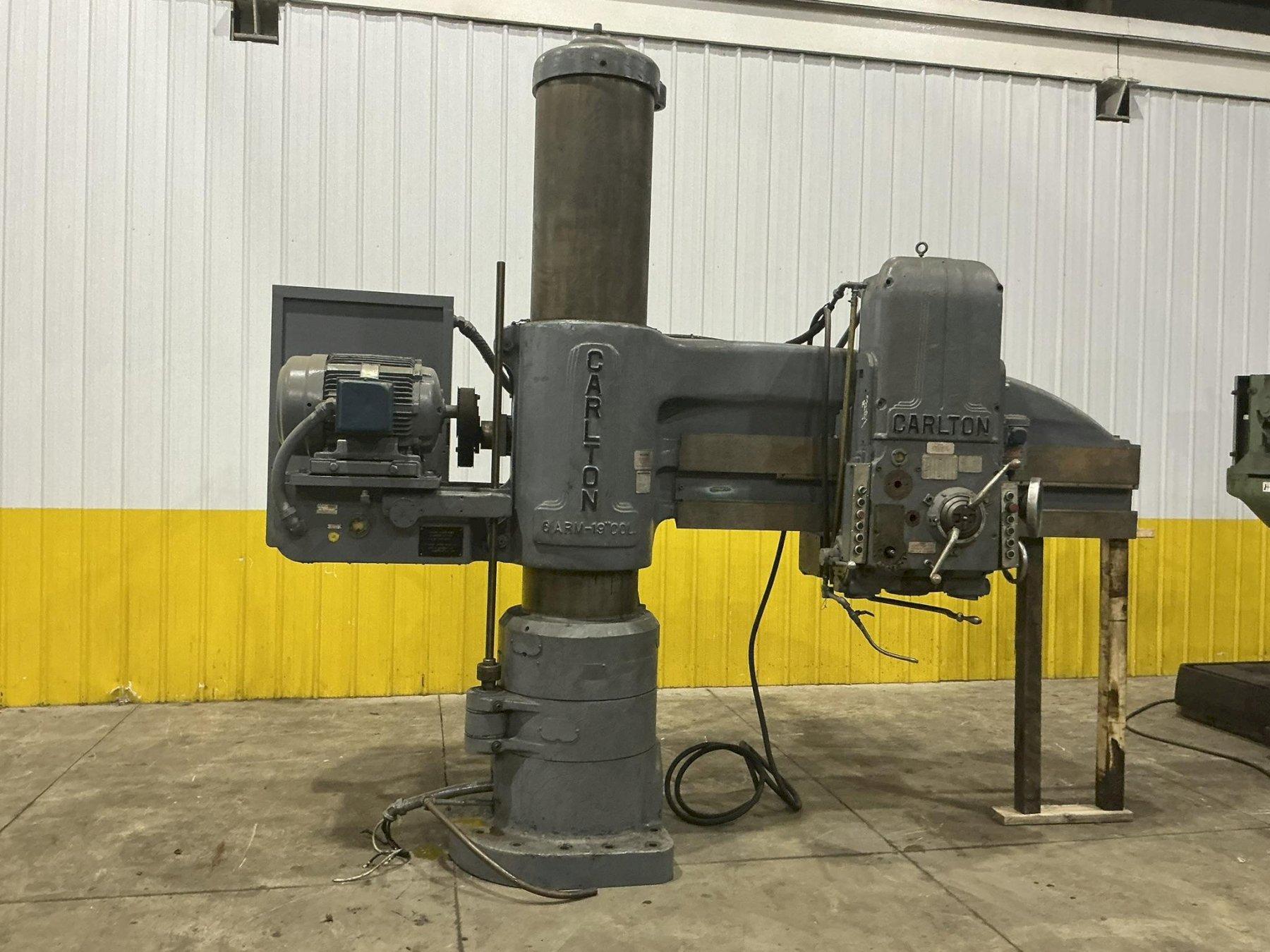

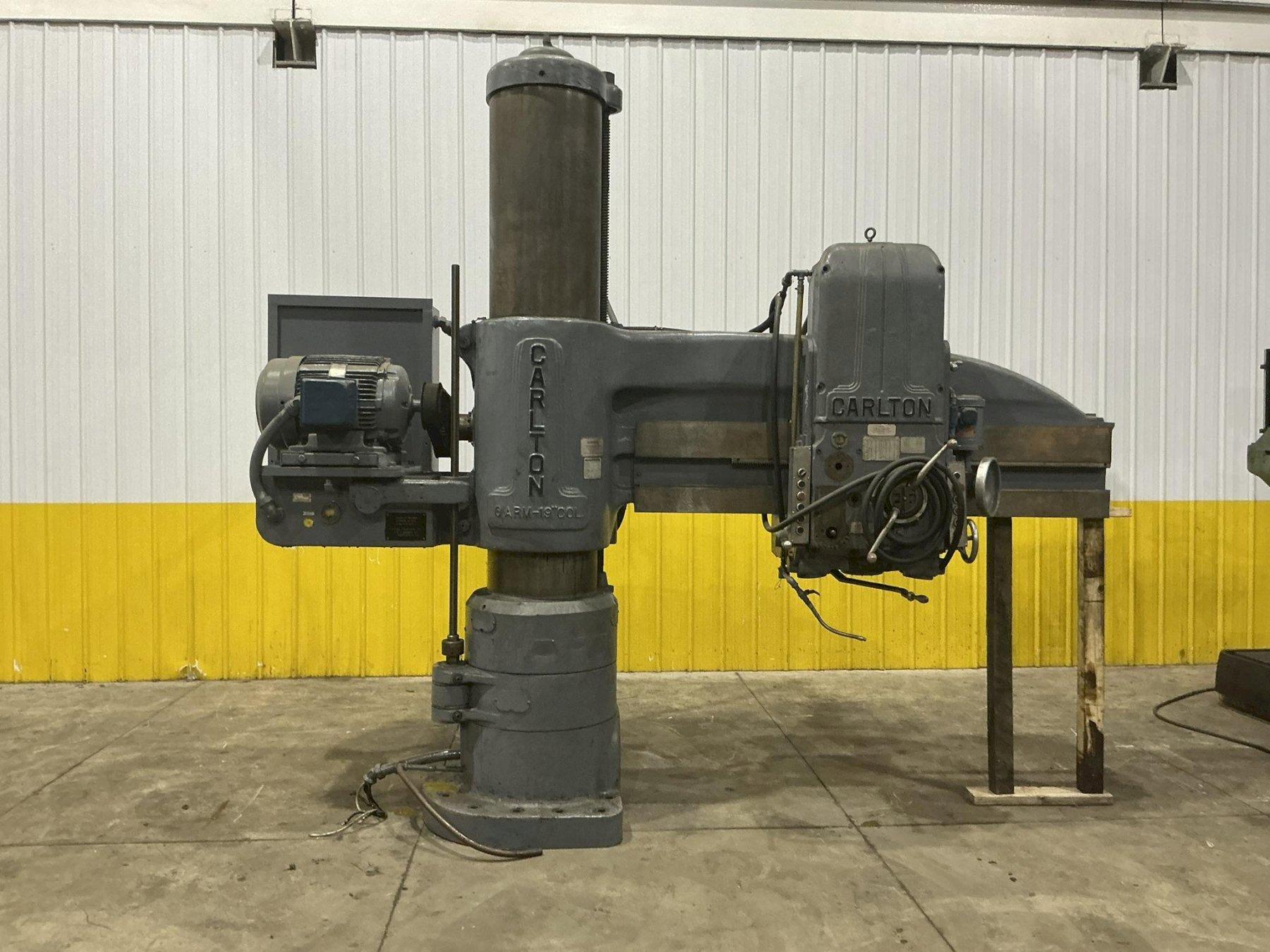

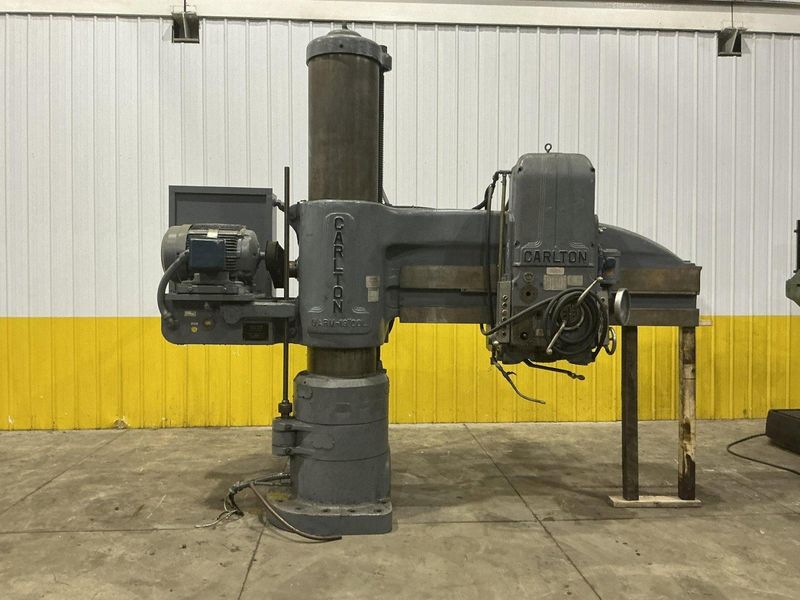

6' X 19" CARLTON HEAVY DUTY RADIAL DRILL: STOCK #11080

Stock

11080

Model

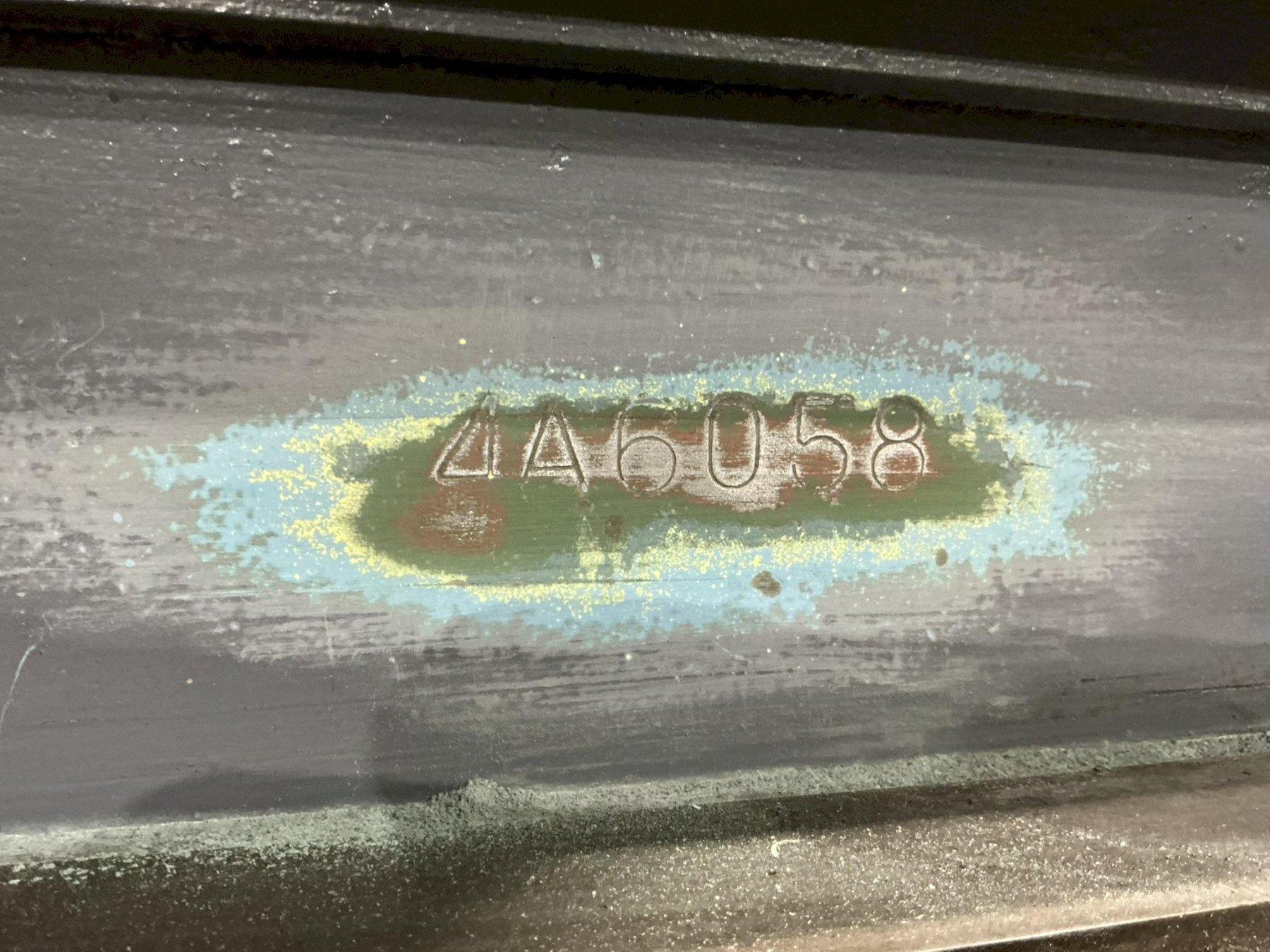

4A

Dealer Location

Ohio

Spec Sheet

Dimensions - 158"-053"-143"


MAXIMUM SWING IN GAP ---------------------- 45"

MODEL 4A

** FEATURING 3000 RPM SPINDLE AND 50 HP MOTOR **

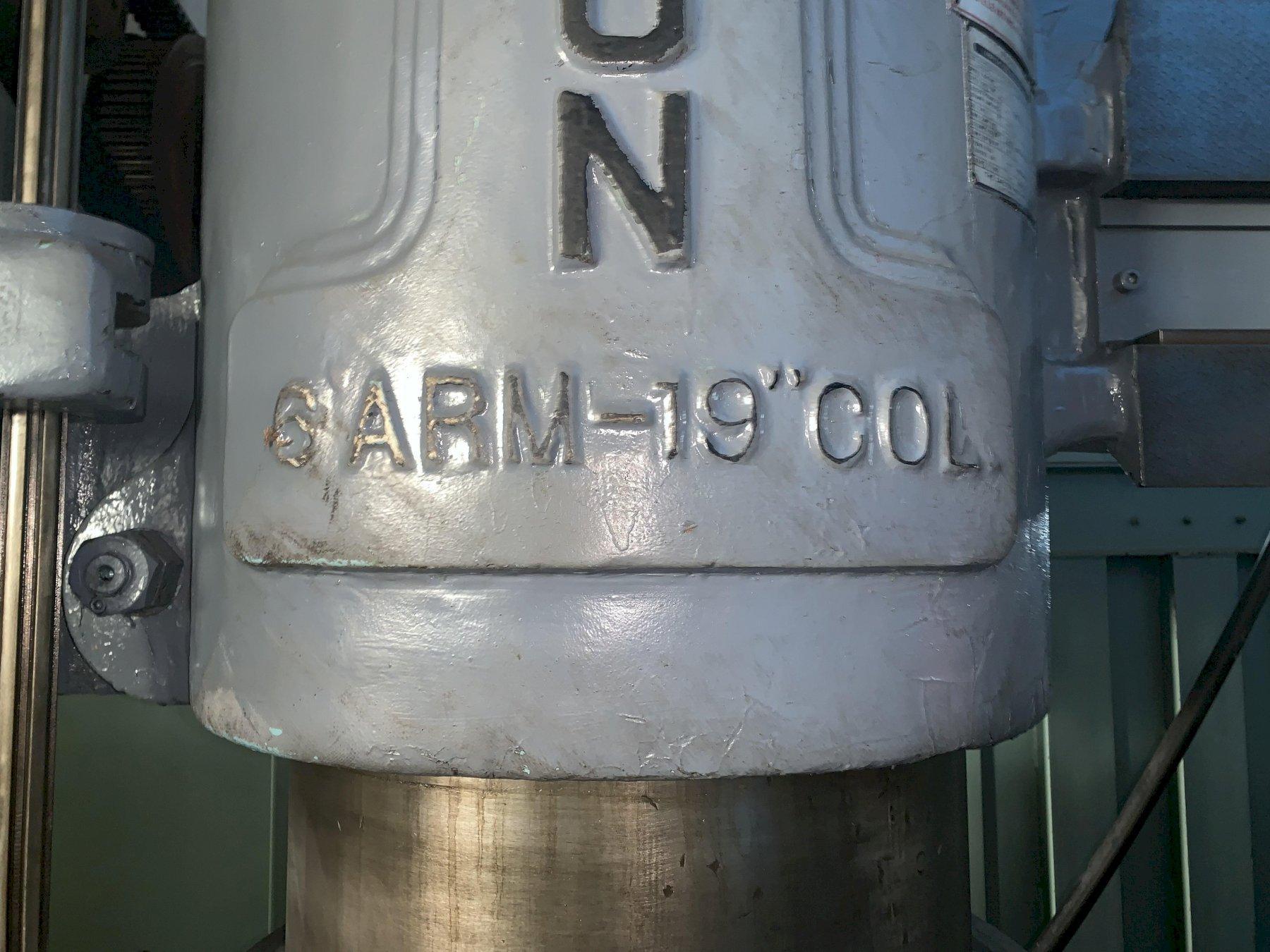

ARM LENGTH -------------------------------- 6'

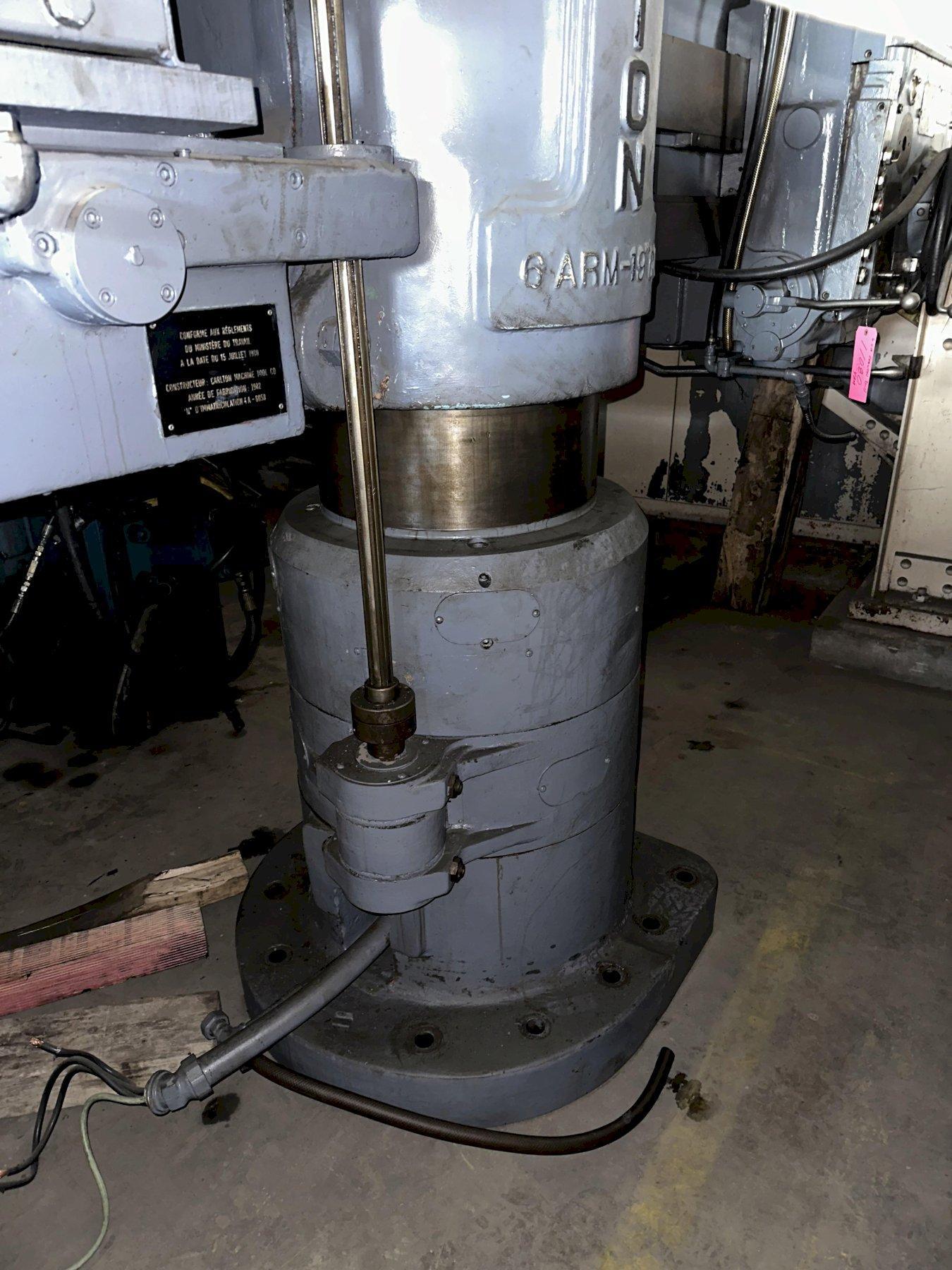

COLUMN DIAMETER --------------------------- 19"



FACE OF COLUMN TO CENTER OF SPINDLE:

  MINIMUM --------------------------------- 13-1/4"

  MAXIMUM --------------------------------- 72"

SPINDLE TO BASE ---- ( MINIMUM ) ---------- 14-1/2"

SPINDLE TO BASE ---- ( MAXIMUM ) ---------- 6'6"

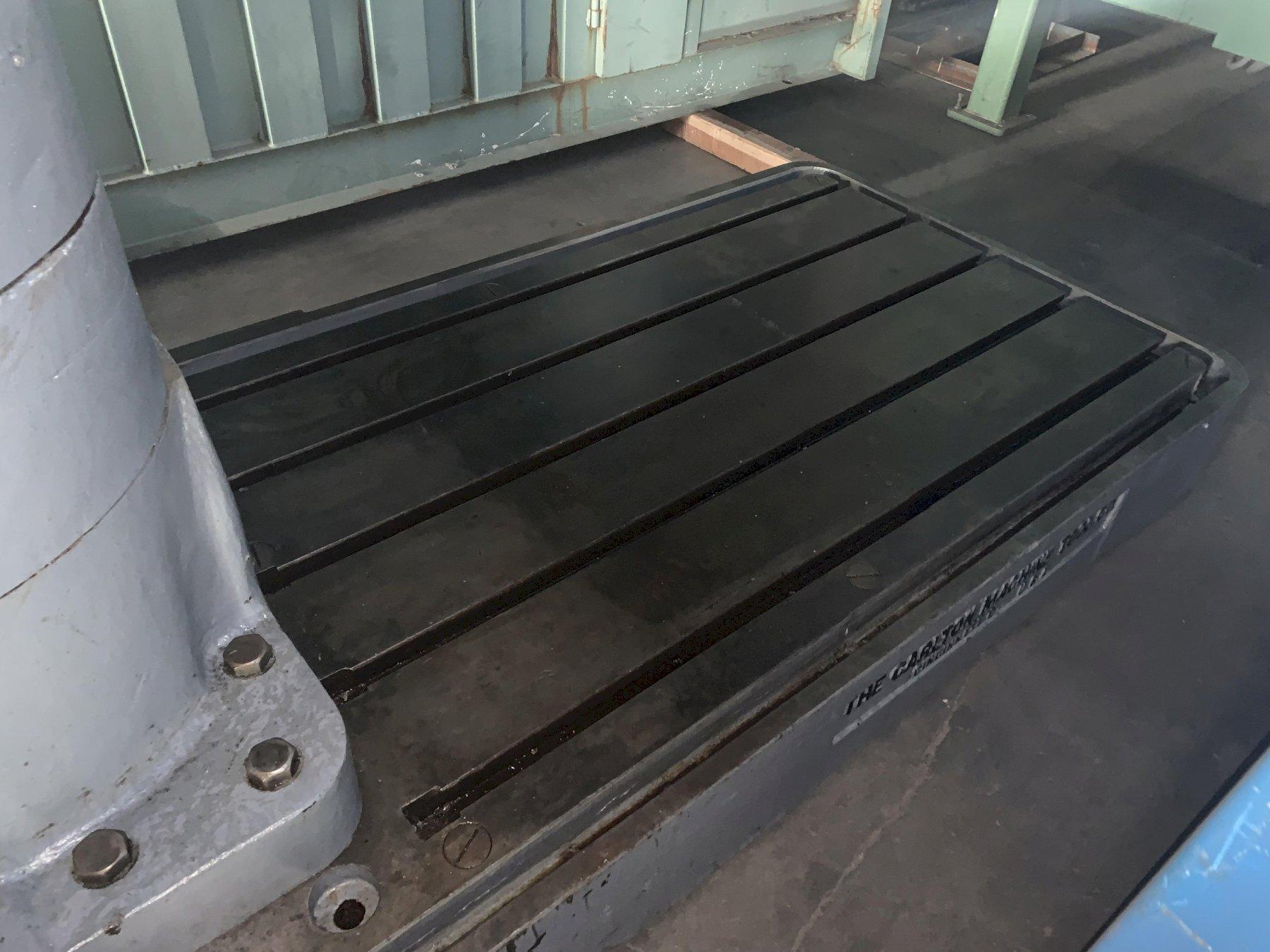

WORKING SURFACE OF BASE ------------------- 50" X 77"

QUILL DOWN TRAVEL -- ( MANUAL ) ----------- 20"

TAPER IN SPINDLE -------------------------- #6 MORSE

SPINDLE SPEEDS ----- ( 36 ) --------------- 30 TO 3000 RPM

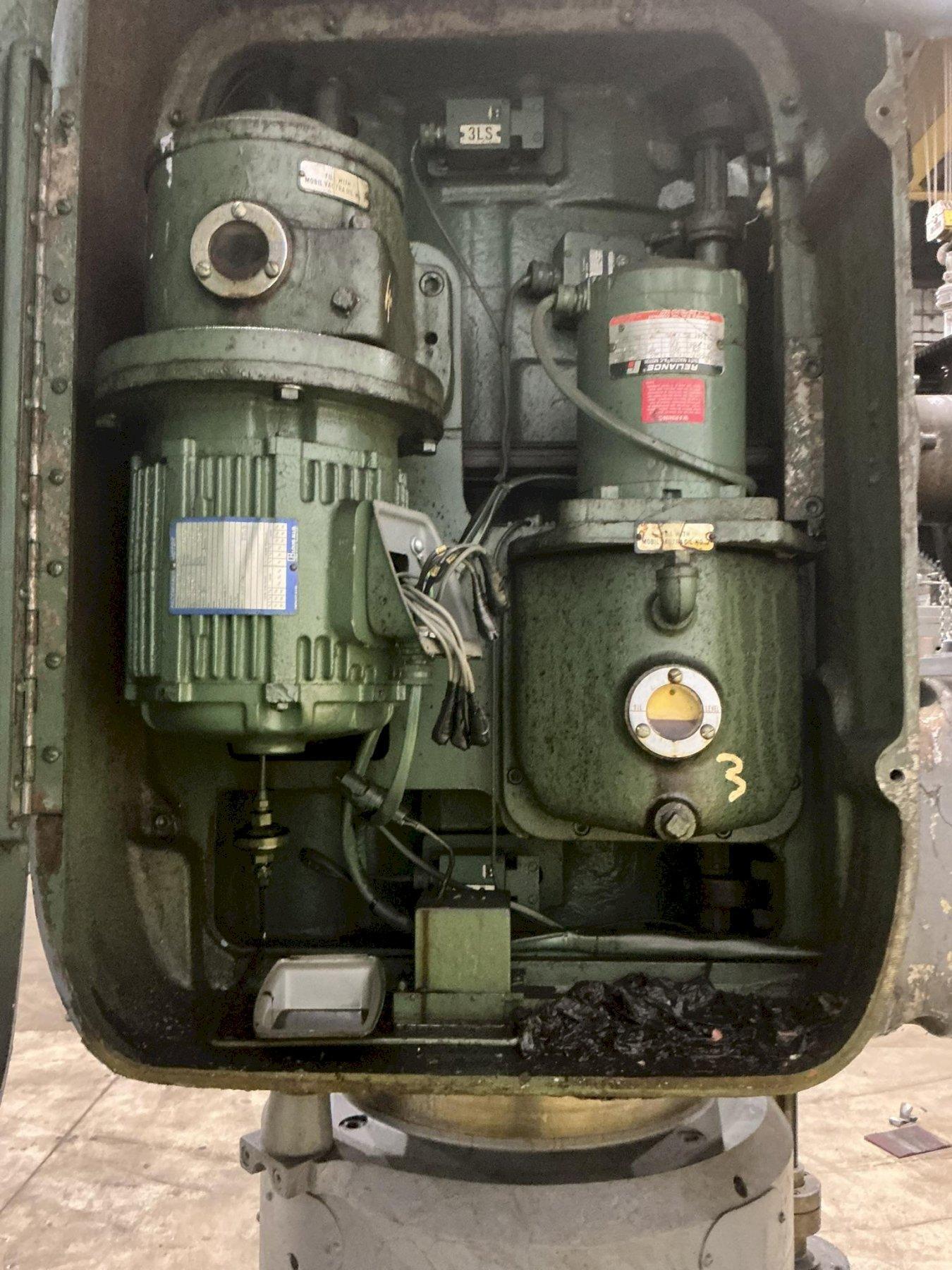

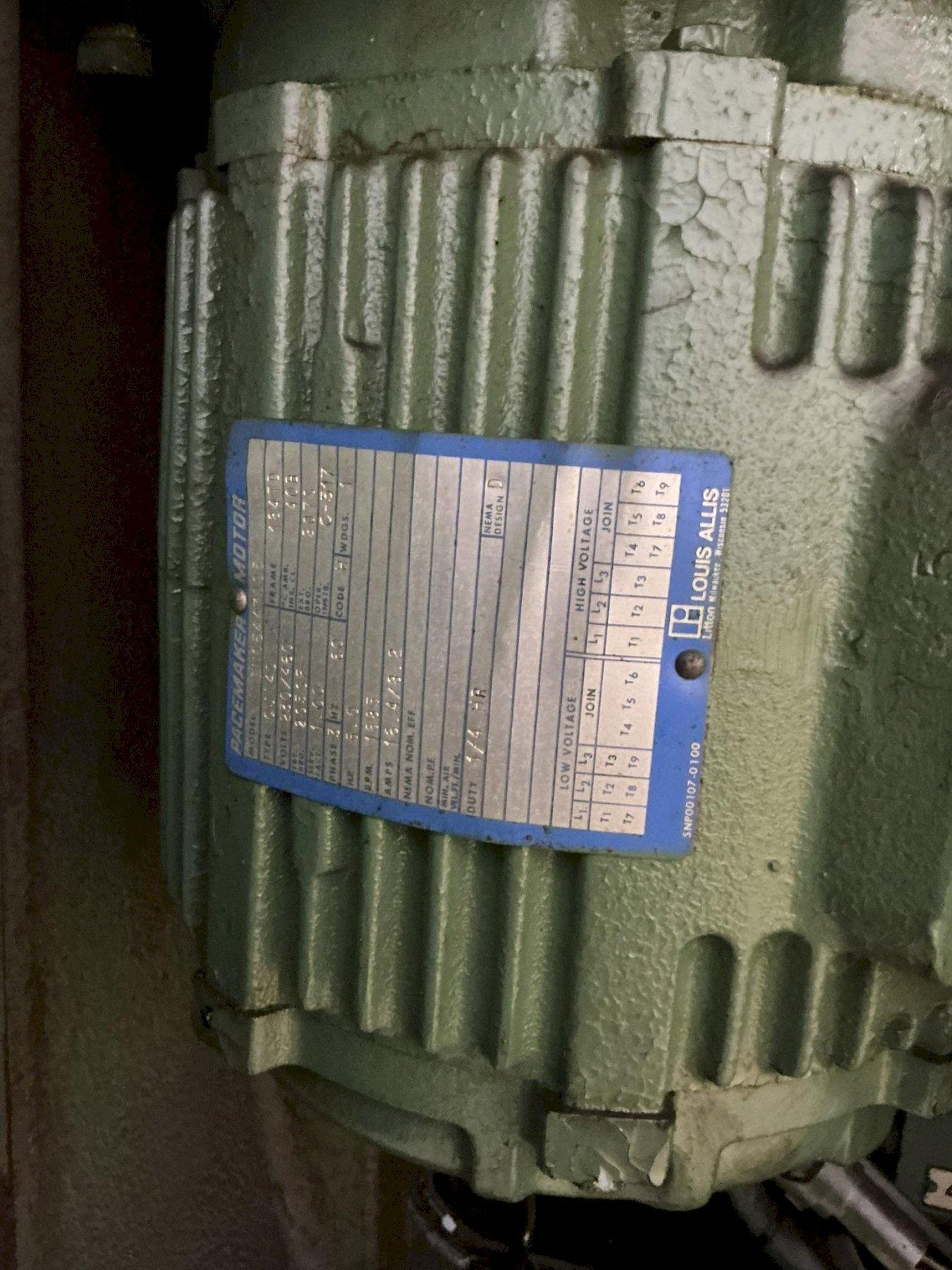

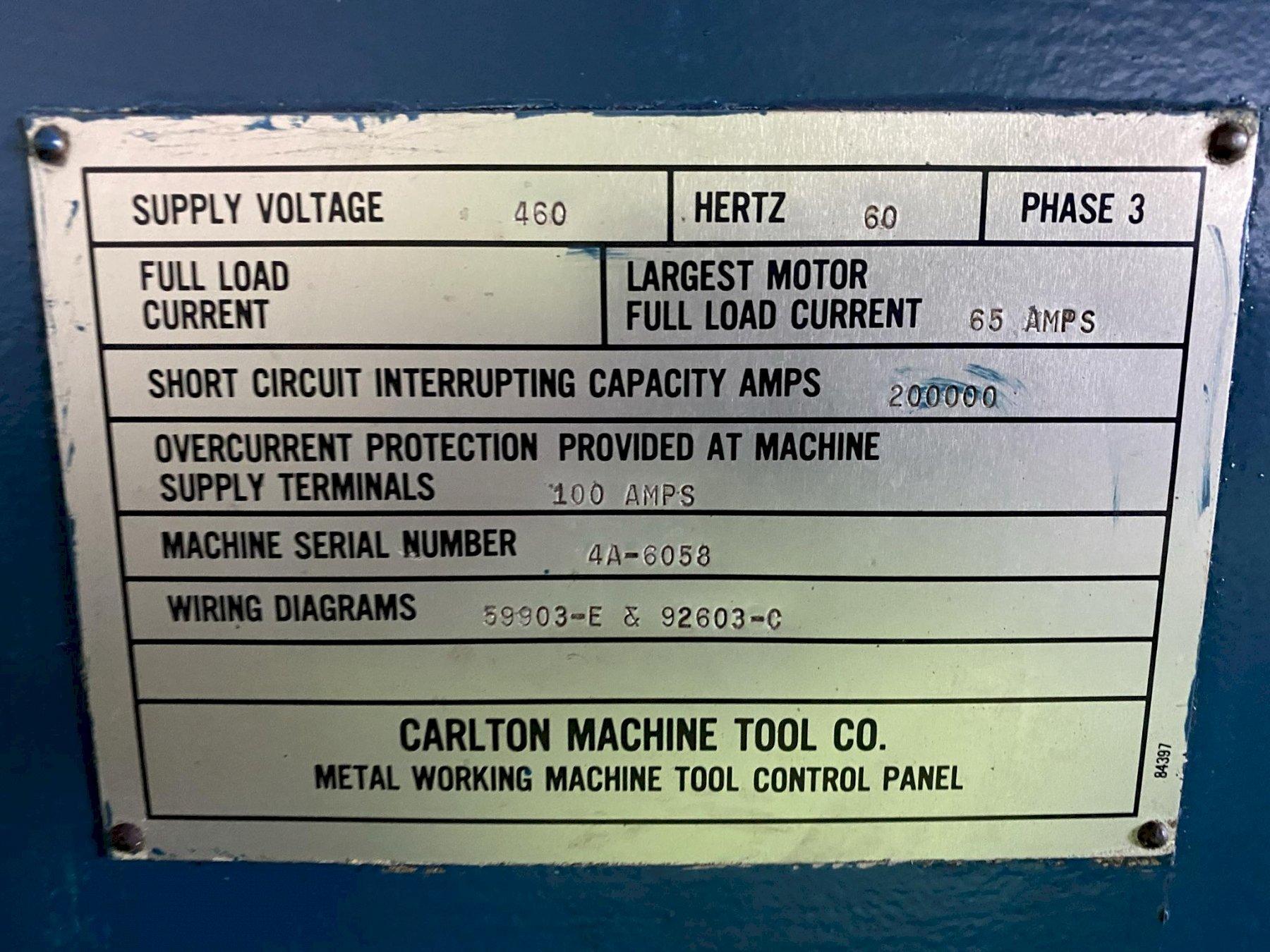

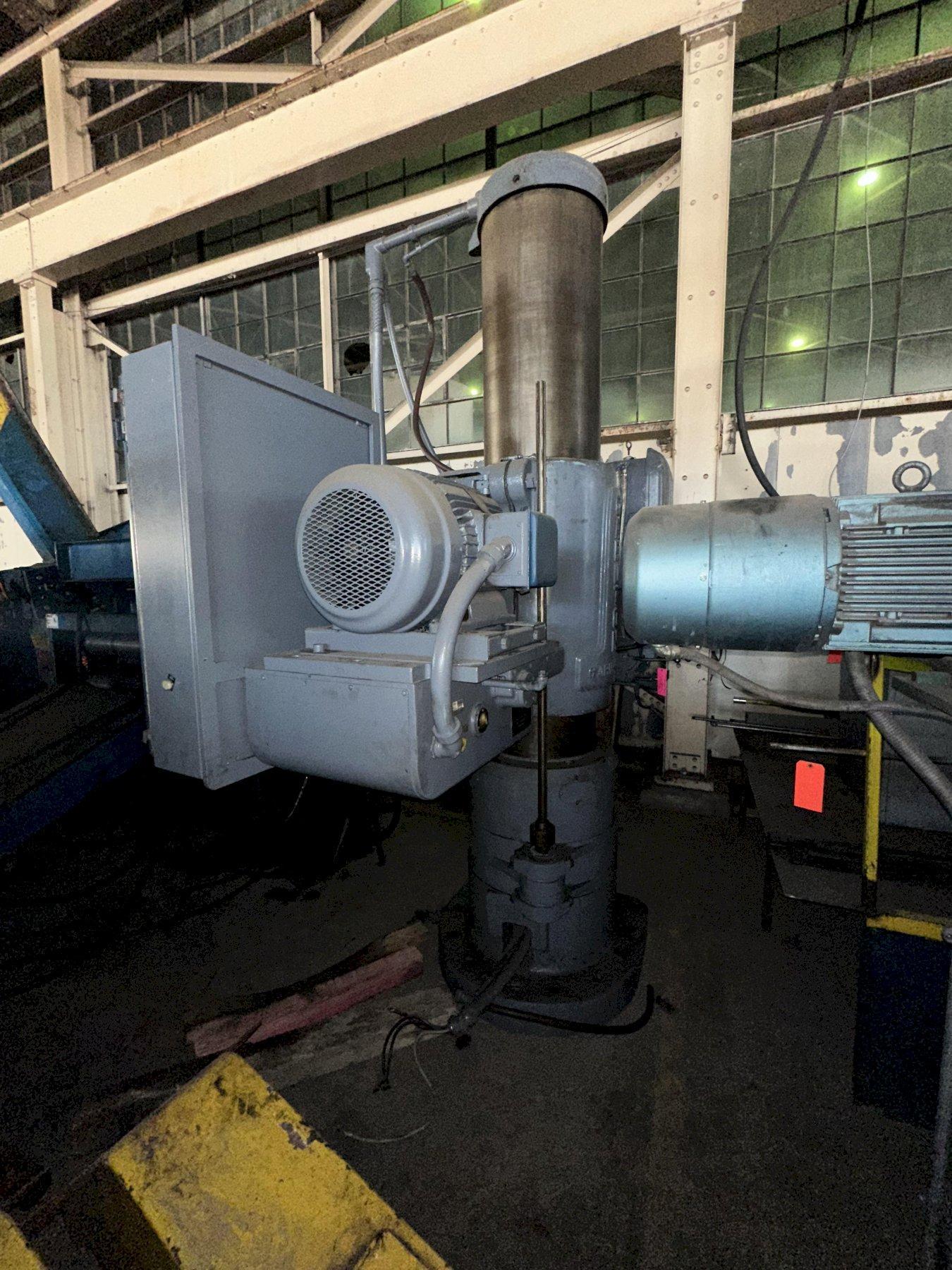

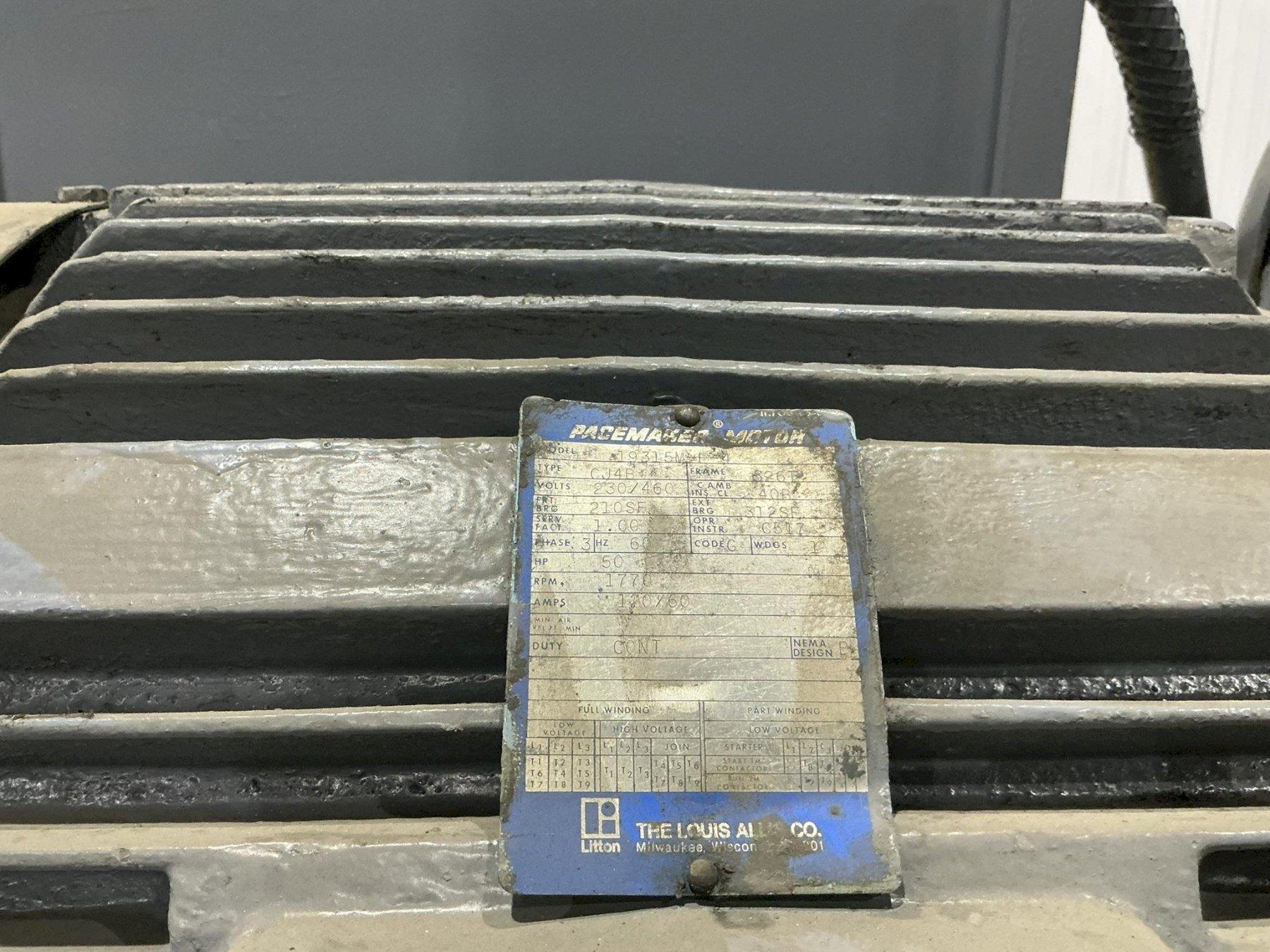

MAIN DRIVE MOTOR -------------------------- 50 HP A.C. 230/460/3/60





EQUIPPED WITH ---

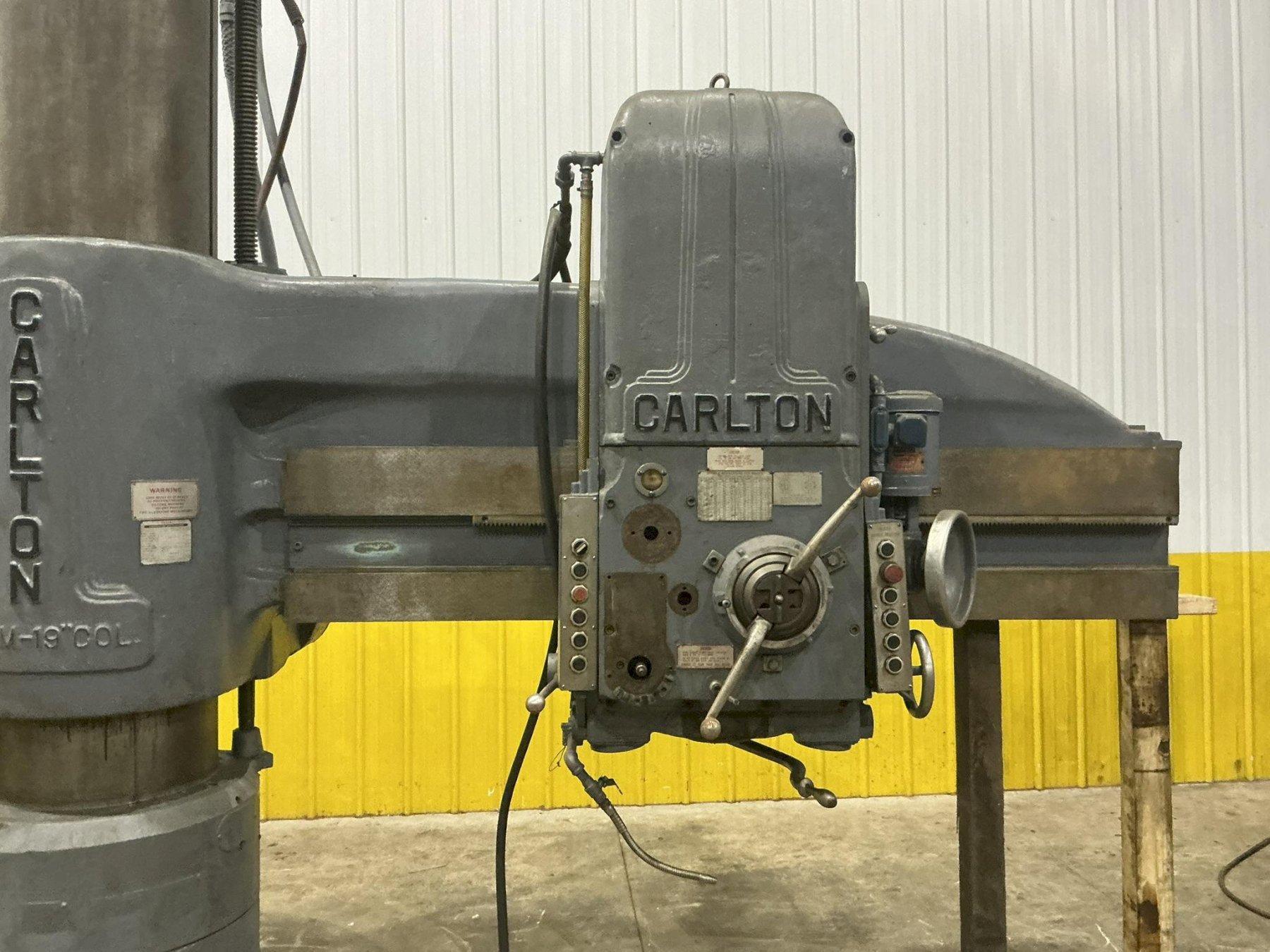

MANUAL QUILL DOWNFEED

POWER CLAMPING TO HEAD AND COLUMN

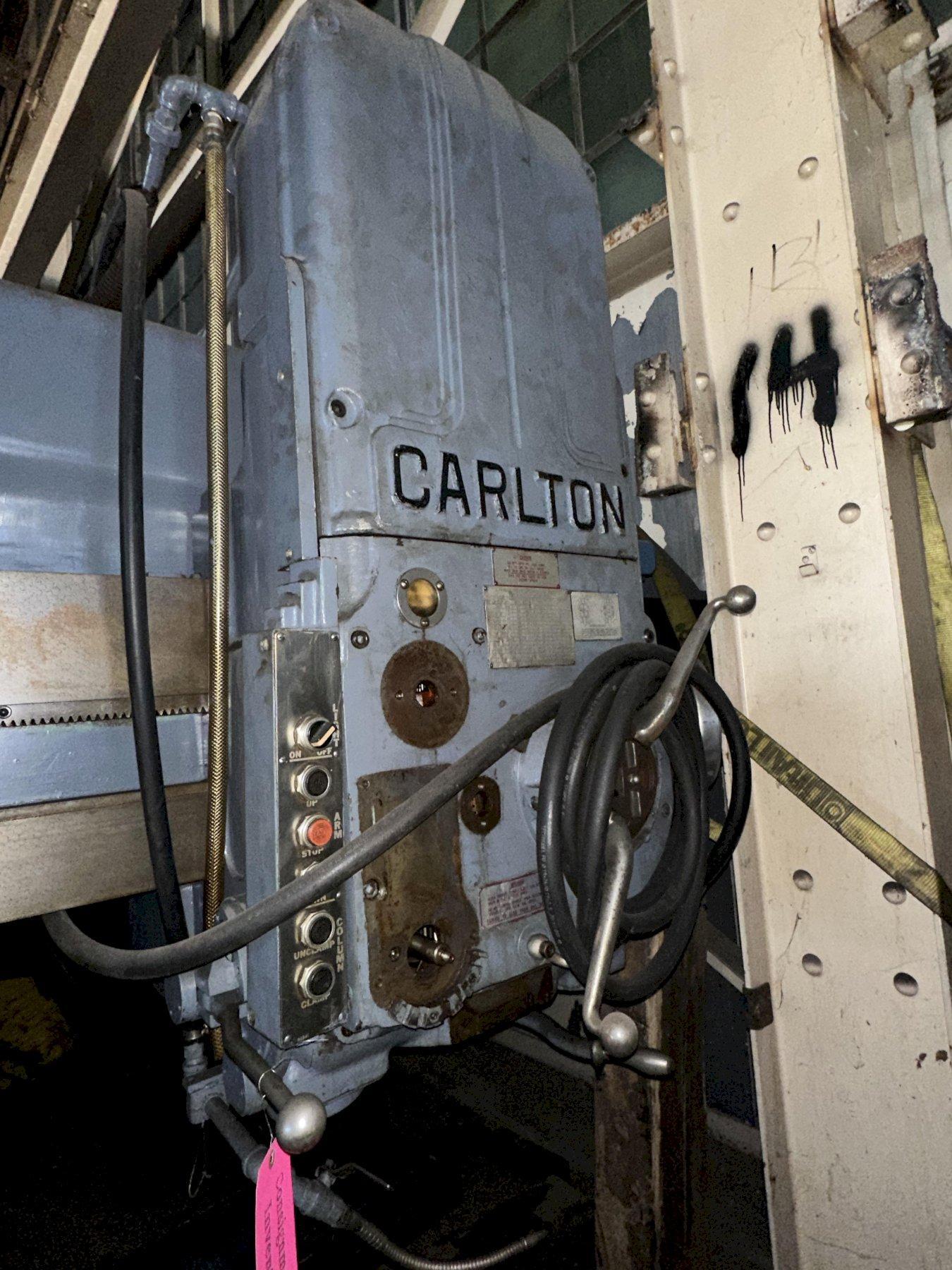

RAPID TRAVERSE TO HEAD

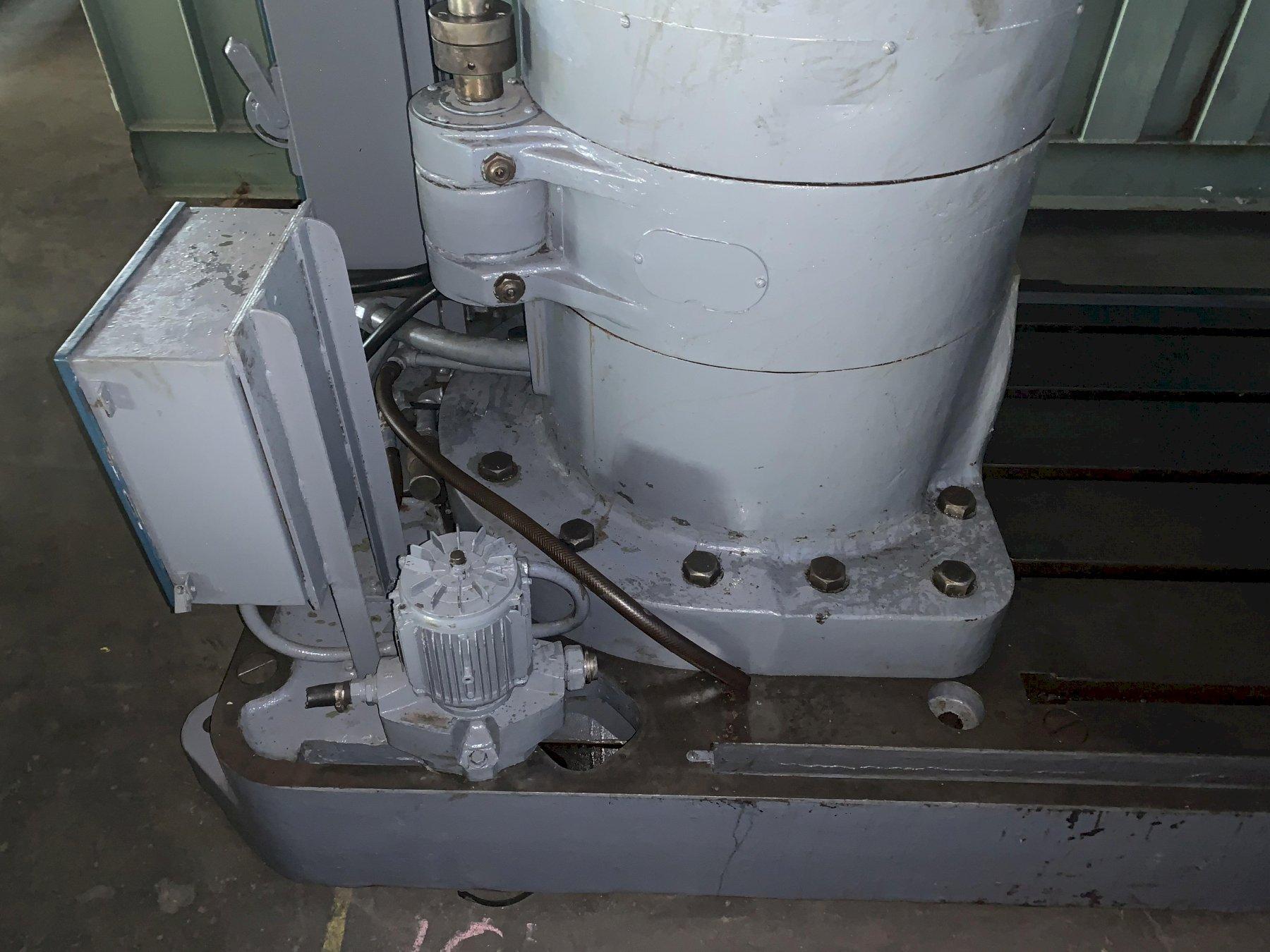

MOTORIZED COOLANT PUMP
