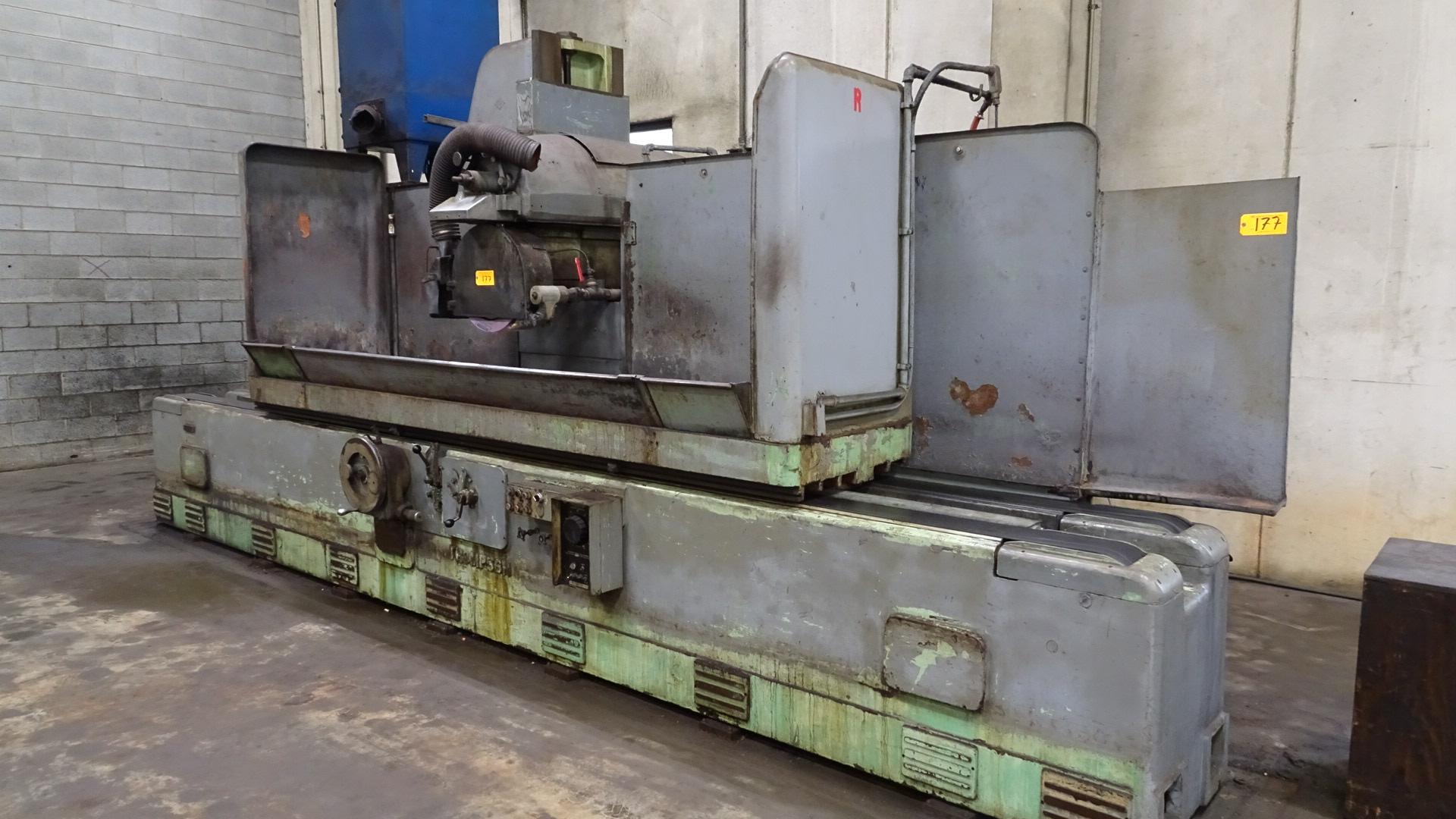

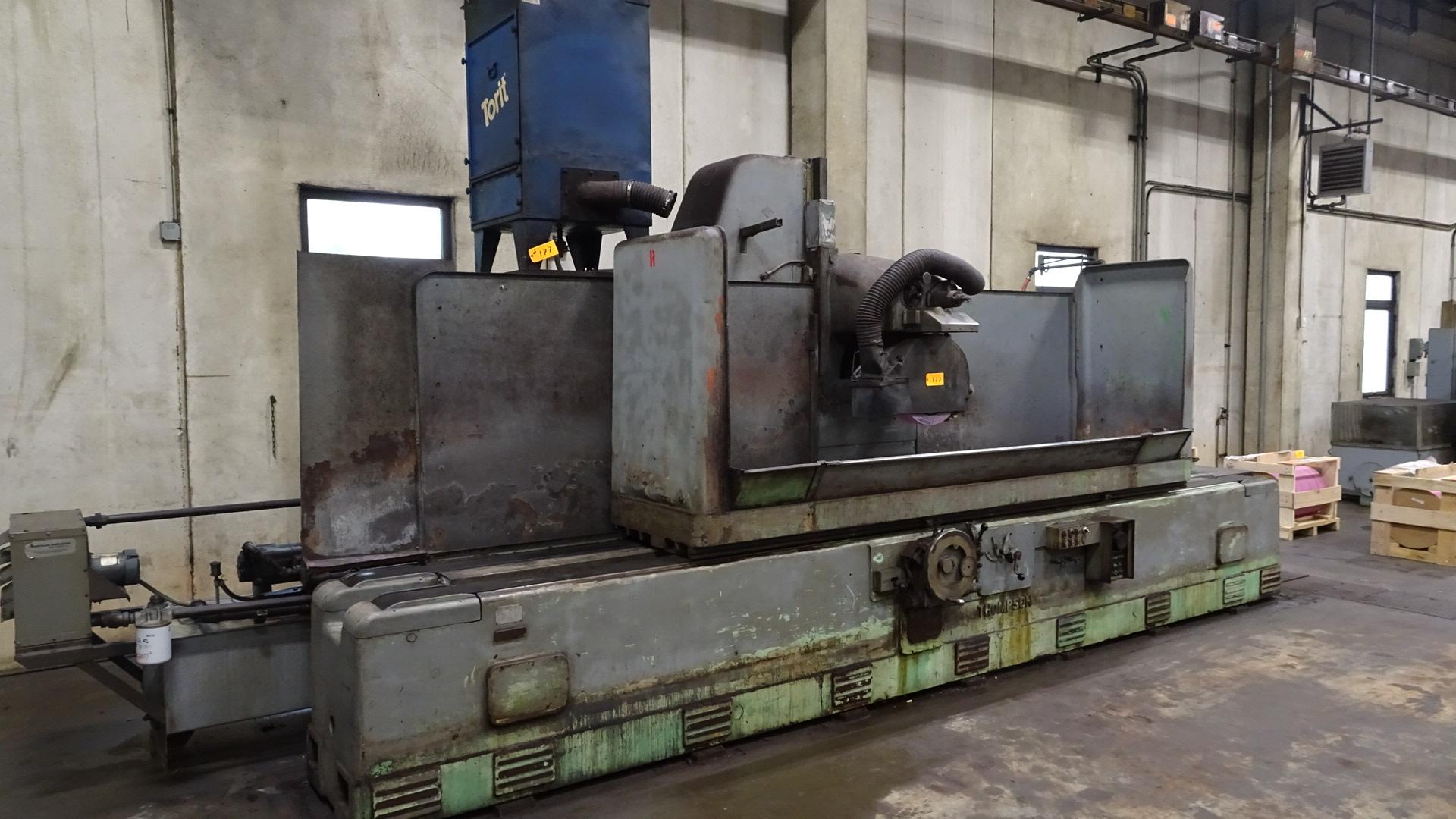

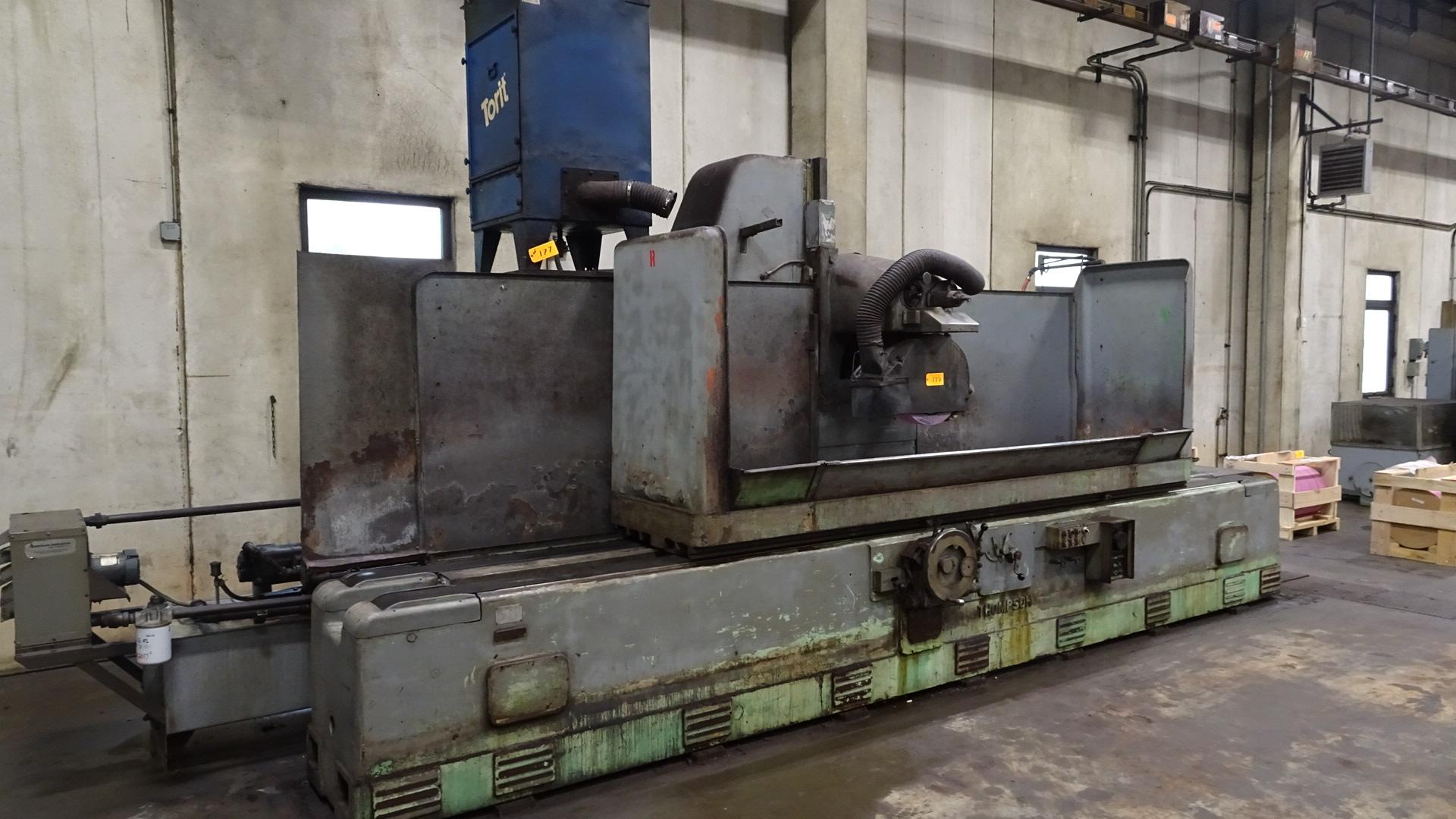

24" X 96" THOMPSON MODEL #C HYDRAULIC SURFACE GRINDER: STOCK #10225

Stock

10225

Model

TYPE C

Dealer Location

Ohio

Spec Sheet



SERIAL ................................ 8C-616479

MODEL ................................. TYPE C

GRINDER WORK CAPACITY ................. 96" X 24" X 16" HIGH

WHEEL SIZE ............................ 20" X 6" X 12"

TABLE TRAVEL .......................... 108"

CHUCK SIZE ............................ (2) 48" X 24" X 4-7/8"

SPINDLE SPEED ......................... 1200 RPM

TABLE FEEDS ........................... 10 TO 100 FPM

INCREMENTAL DOWNFEED .................. .0002 TO .004 IPR

AUTOMATIC CROSS FEED .................. YES

POWER ELEVATION ....................... YES

OVER THE WHEEL DRESSER ................ YES

CHUCK CONTROLS WITH NEUTROFIER ........ YES

COOLANT ............................... YES

TABLE BED WAY COVERS .................. YES

HYDRAULIC MOTOR ....................... 10 HORSEPOWER

SPINDLE MOTOR ......................... 30 HORSEPOWER
