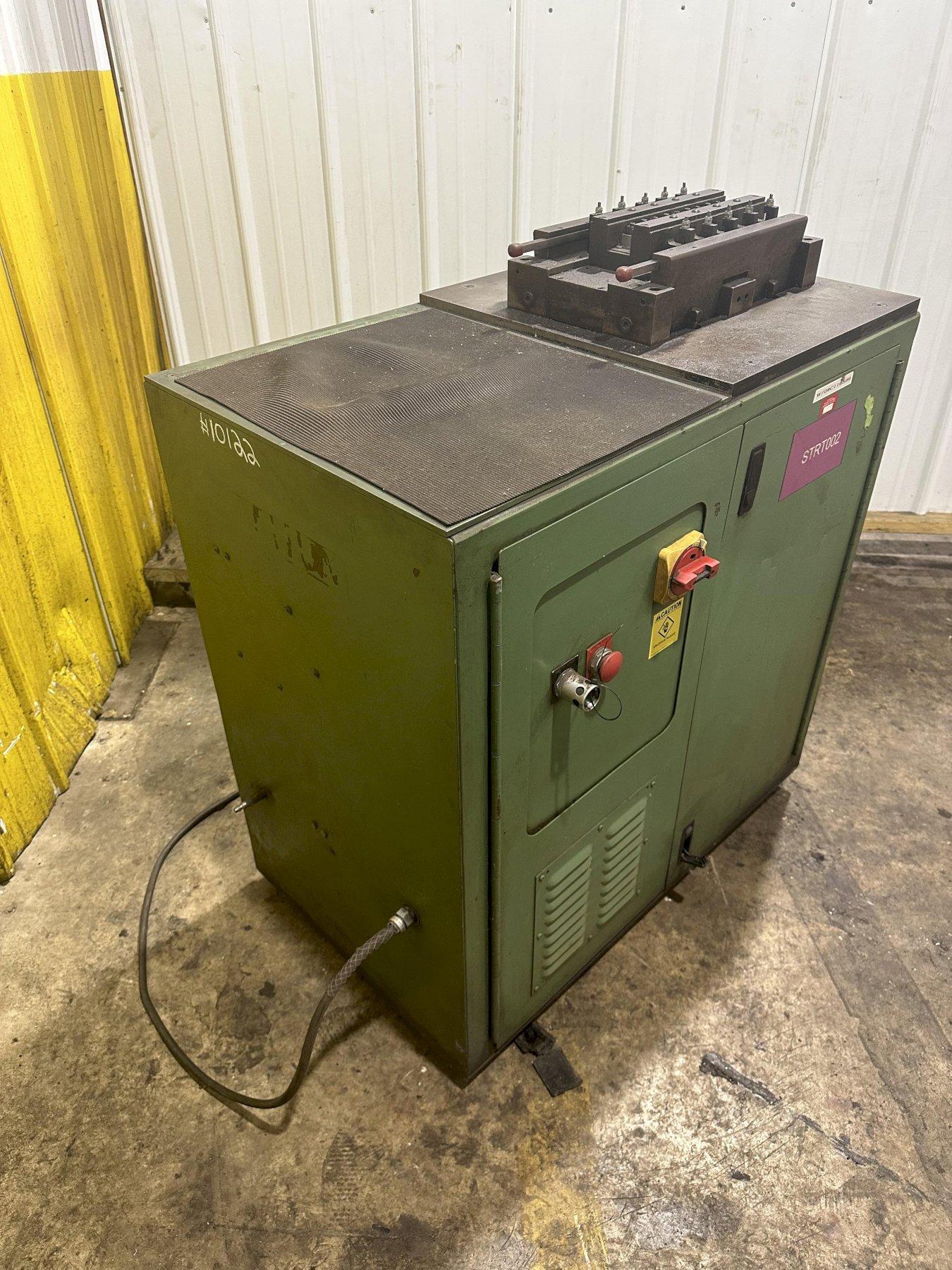

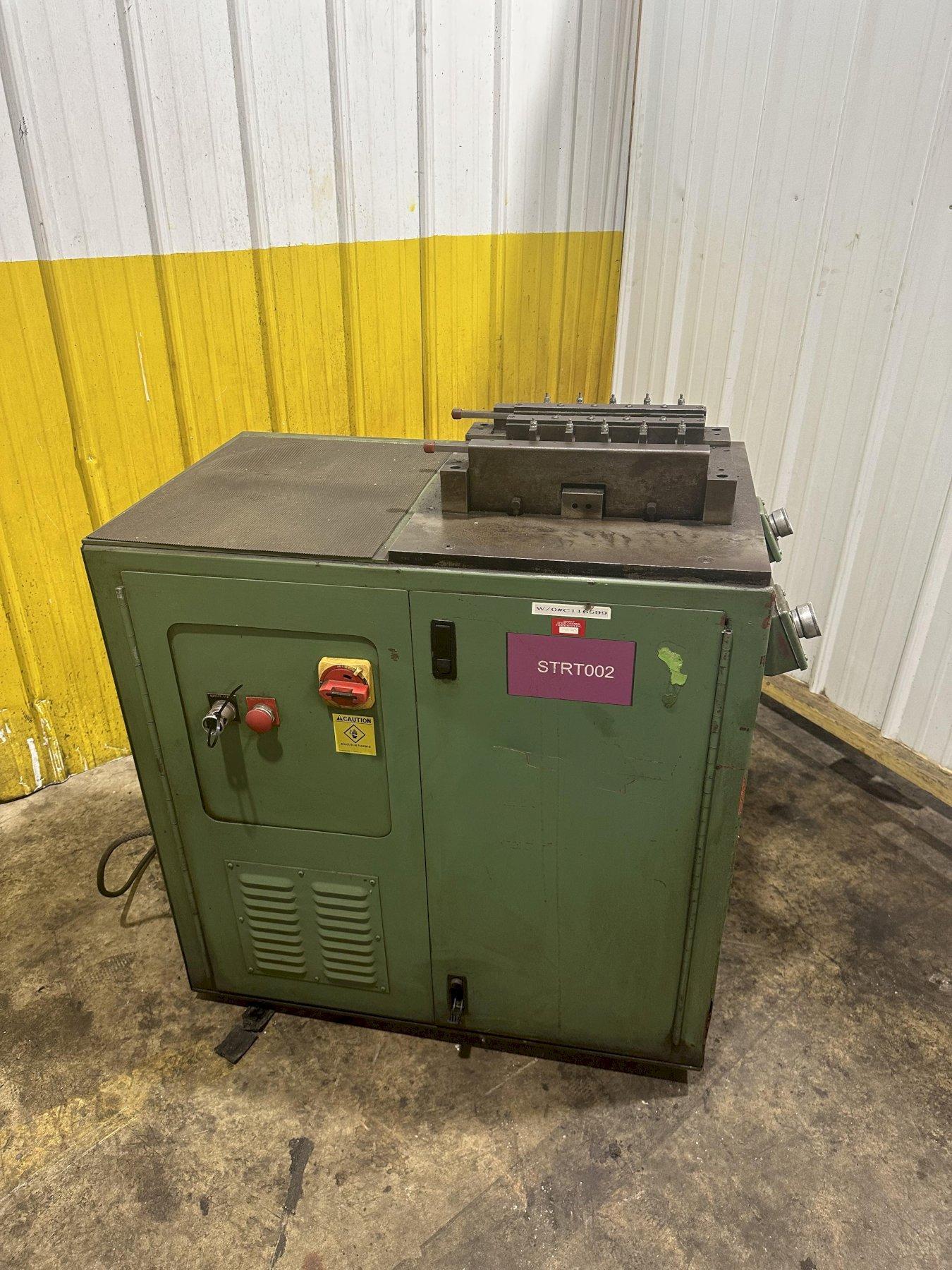

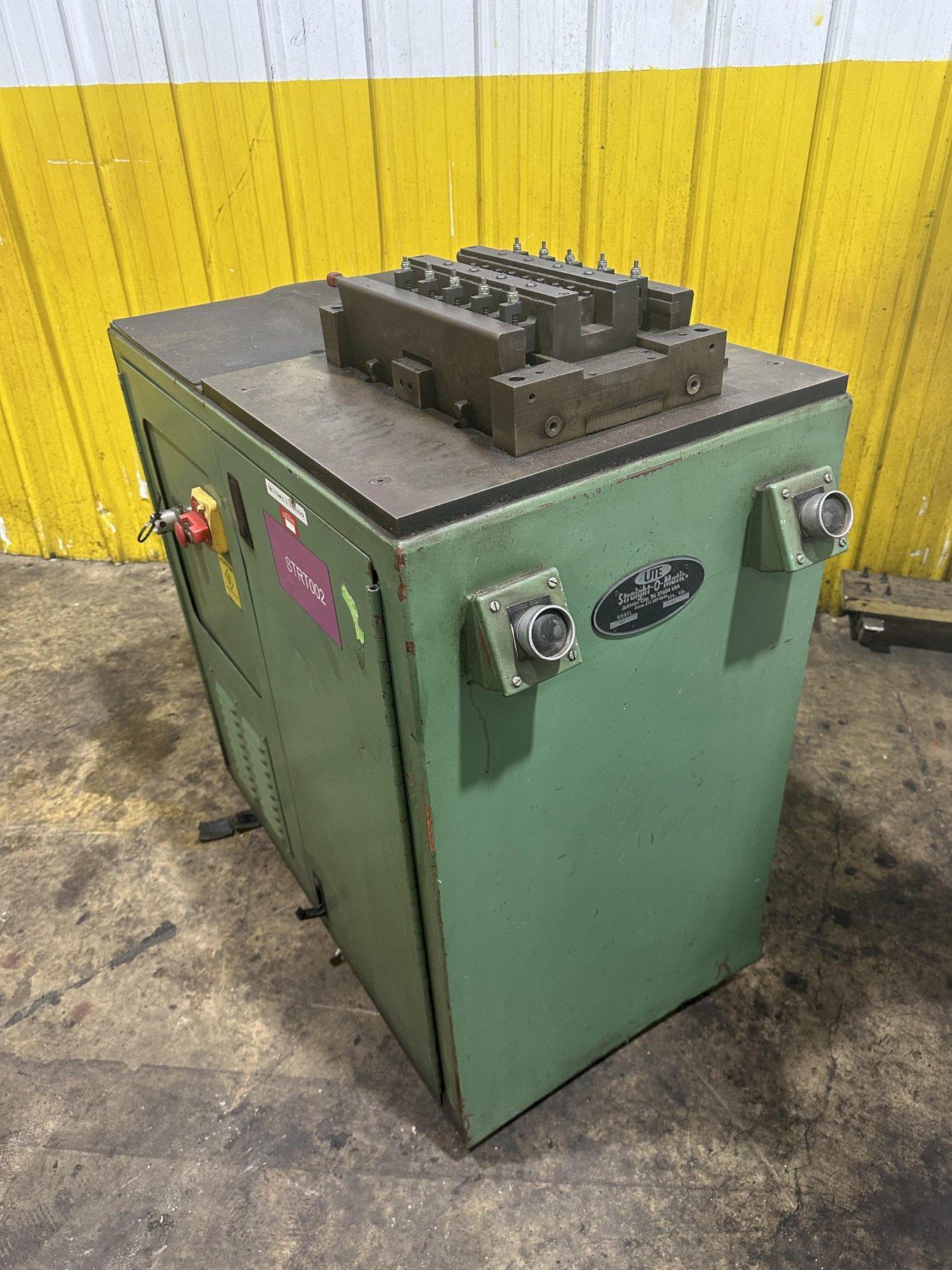

16" UTE "STRAIGHT-O-MATIC" MODEL 250 BLADE & PART CORRECTIVE STRAIGHTENER: STOCK #10122

Stock

10122

Model

STRAIGHT-O-MATIC 250

Dealer Location

Ohio

Spec Sheet

Dimensions - 35" x 22" x 38"
Weight - 1000 pounds

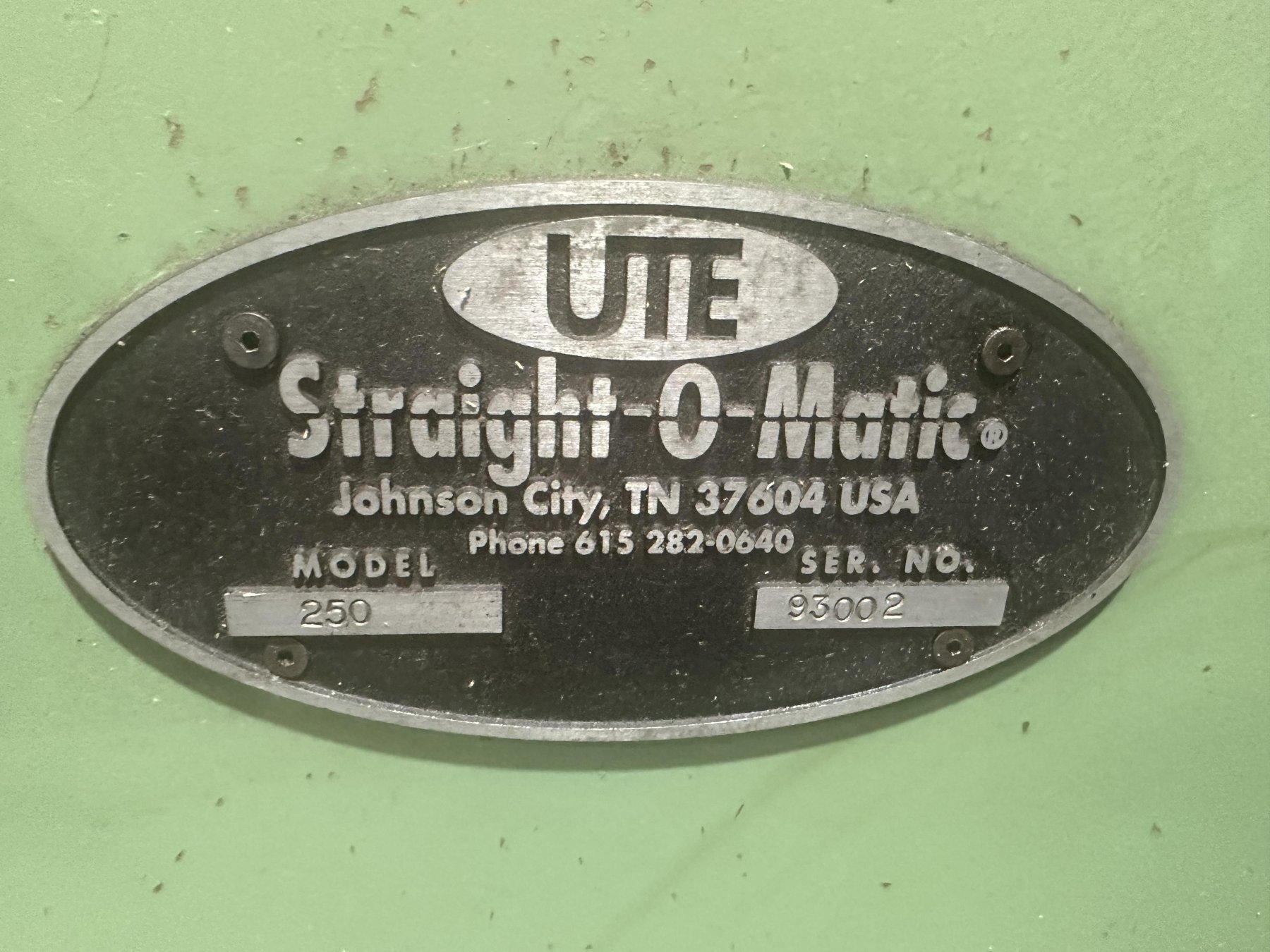

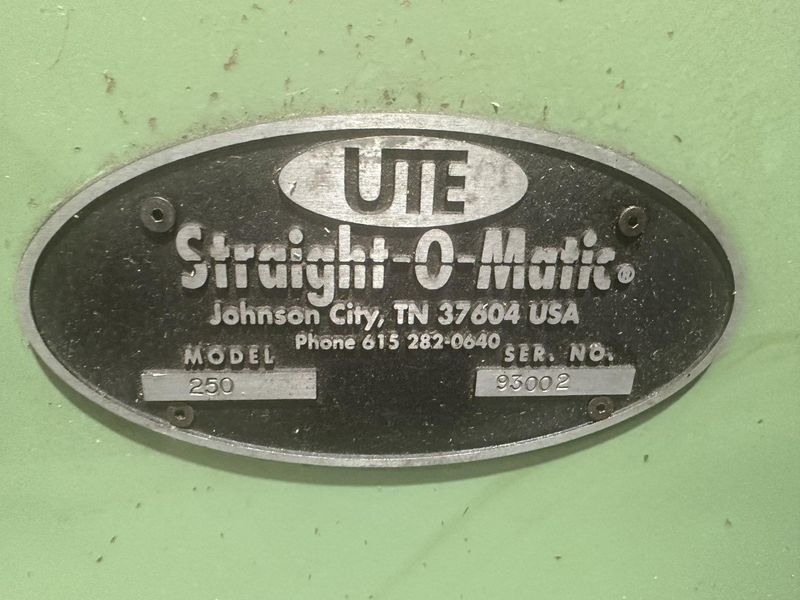

SERIAL ............. 93002
MODEL .............. 250 STRAIGHT-O-MATIC
CAPACITY ........... 16" LENGTH
PRODUCTION RATE .... 400-800 PARTS PER HOUR

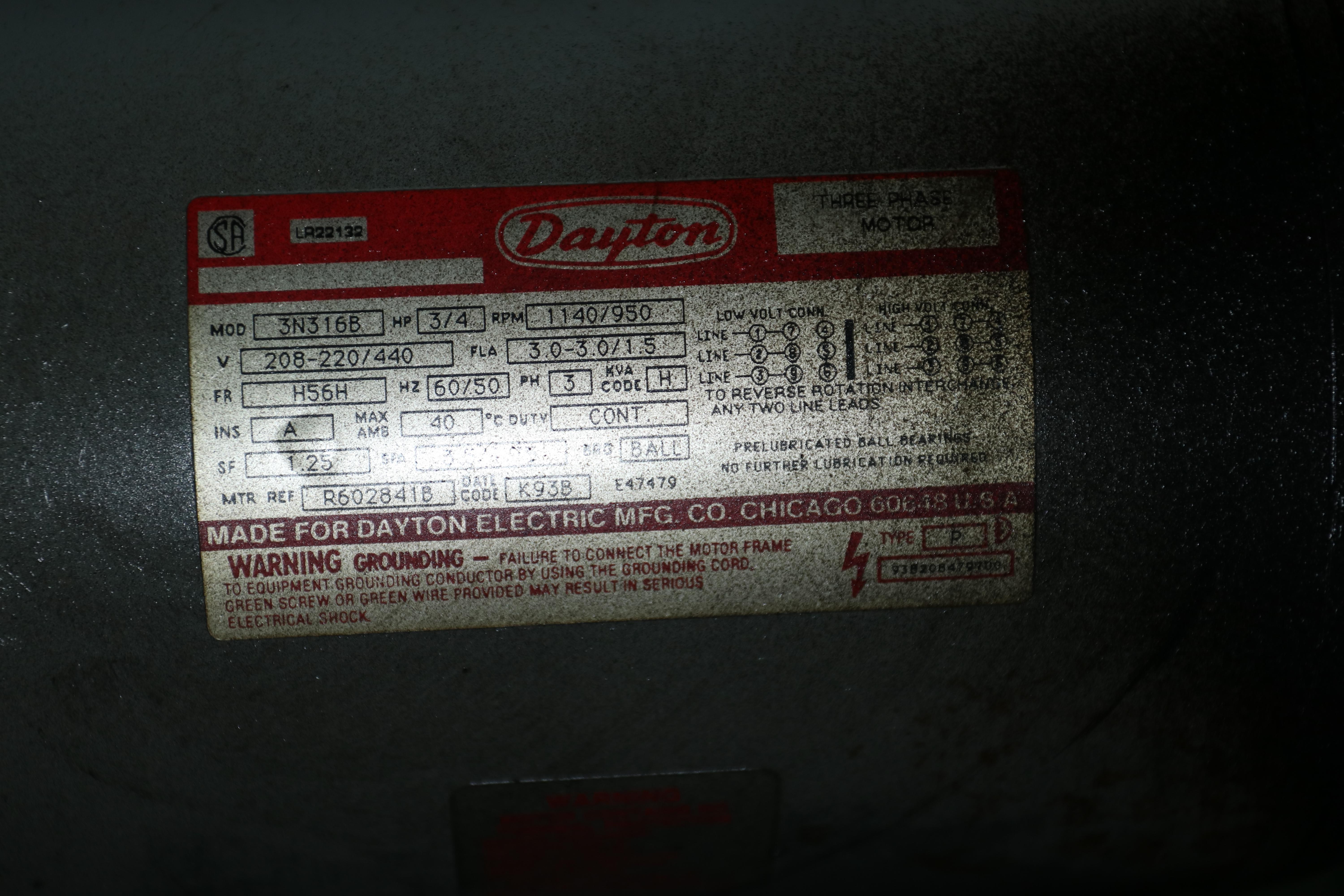

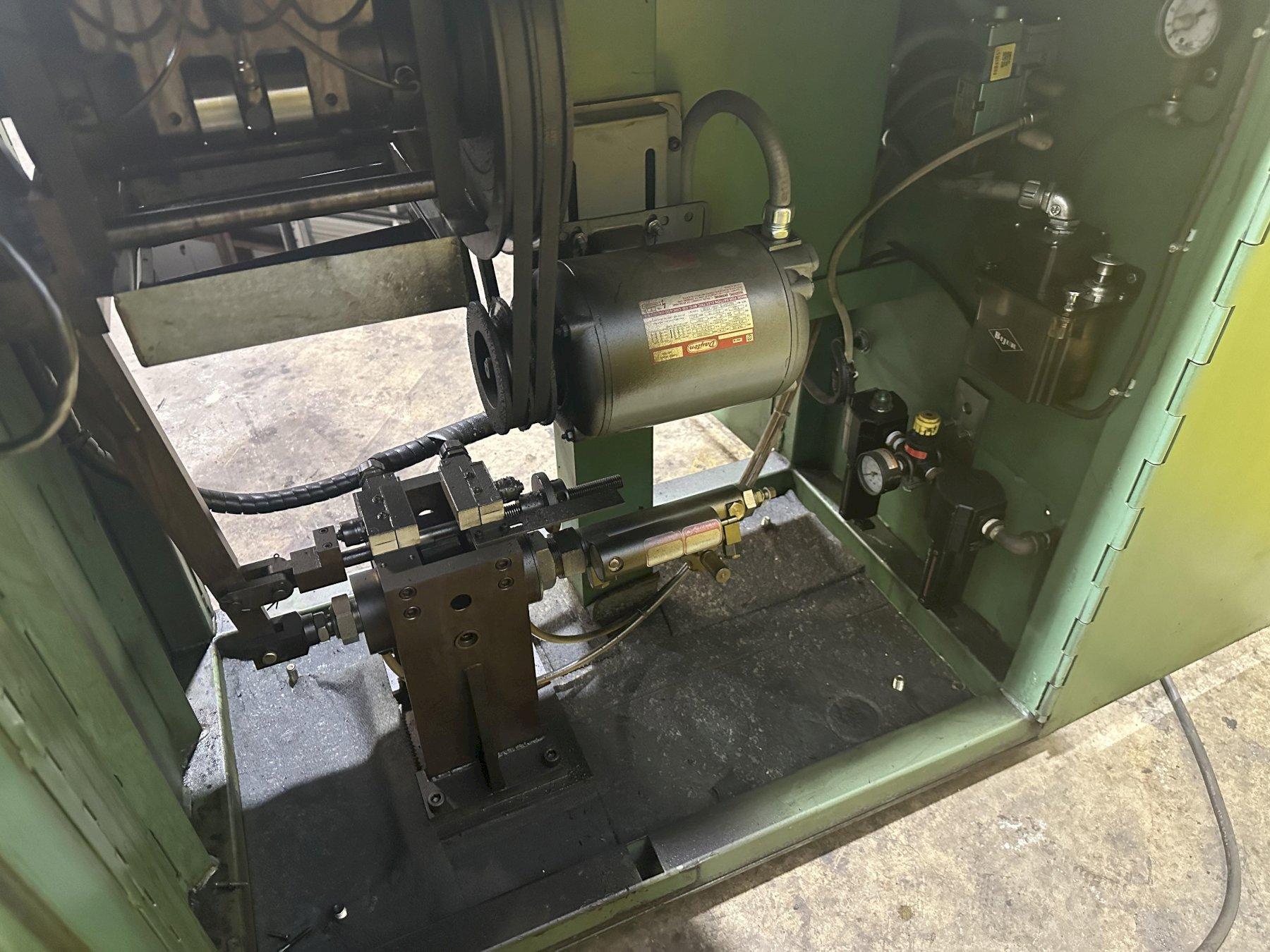

MOTOR .............. 3/4 HP

REPLACEMENT NEW PRICE: $36,500

The Model 250 Straight-O-Matic system is designed to straighten flat or irregularly shaped metal parts, stampings, bars, forgings, or castings — with or without offsets or projections, before or after heat treating. It performs substantially higher production rates than required for hand or press straightening, and can be run by unskilled operators.

Parts can be out of straightness in varying amounts and at different locations and will be brought within the same straightness tolerance. No measuring before or after is required, other than occasional quality control check. The straightening action of the machine moves the parts beyond their elastic limit — and brings them back to a straight condition. This also stress relives the parts so that they retain their straightness.

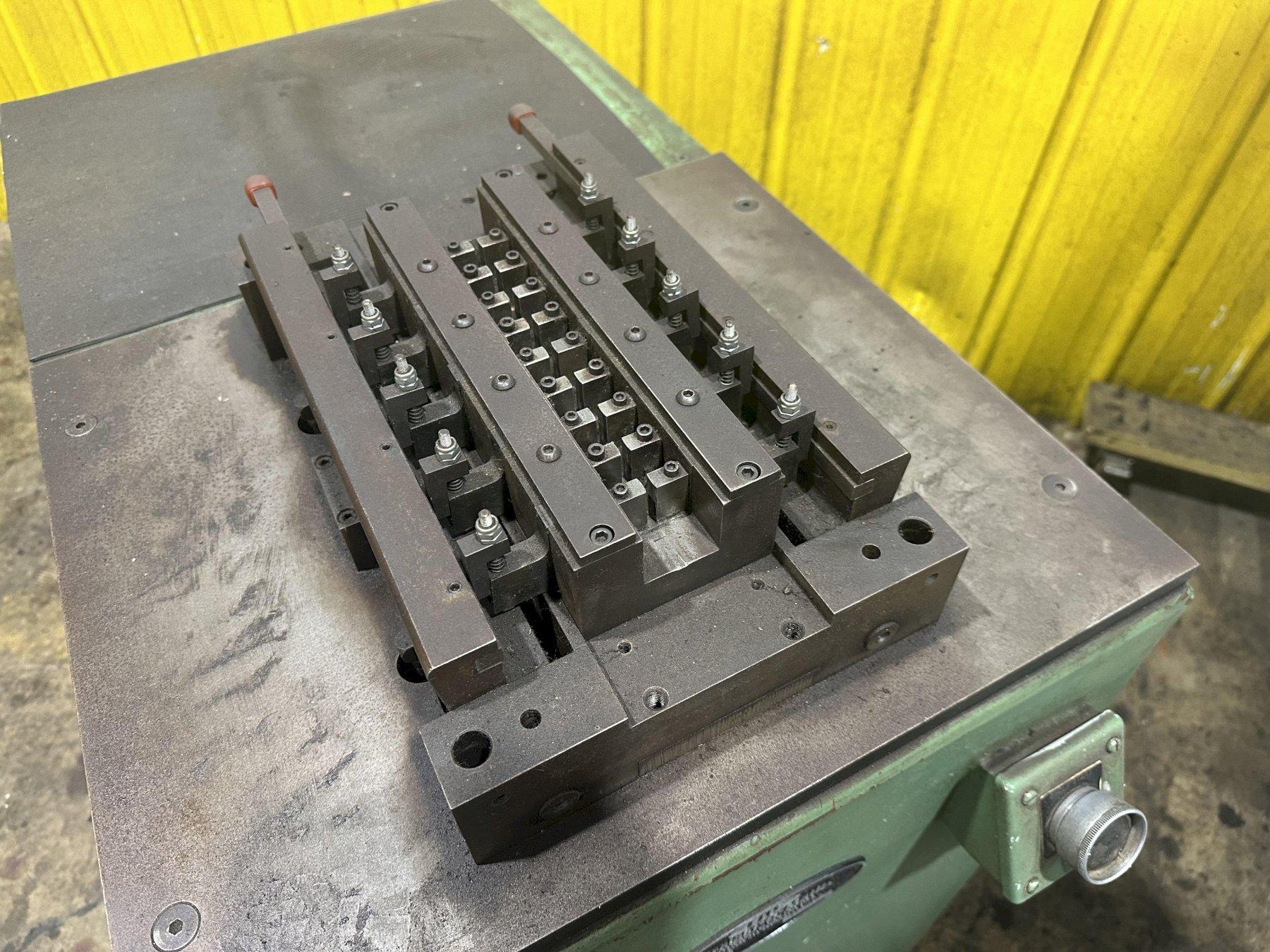

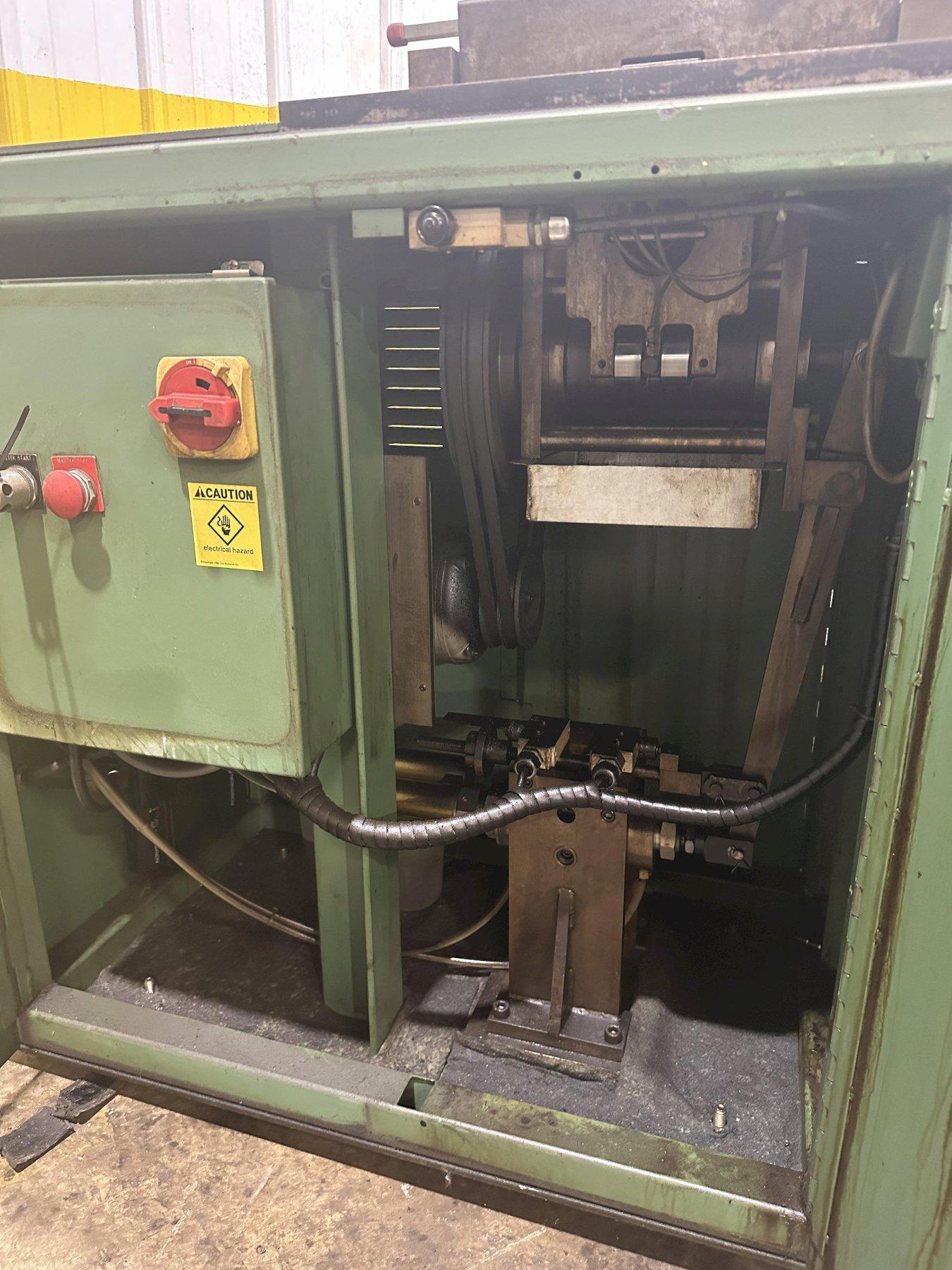

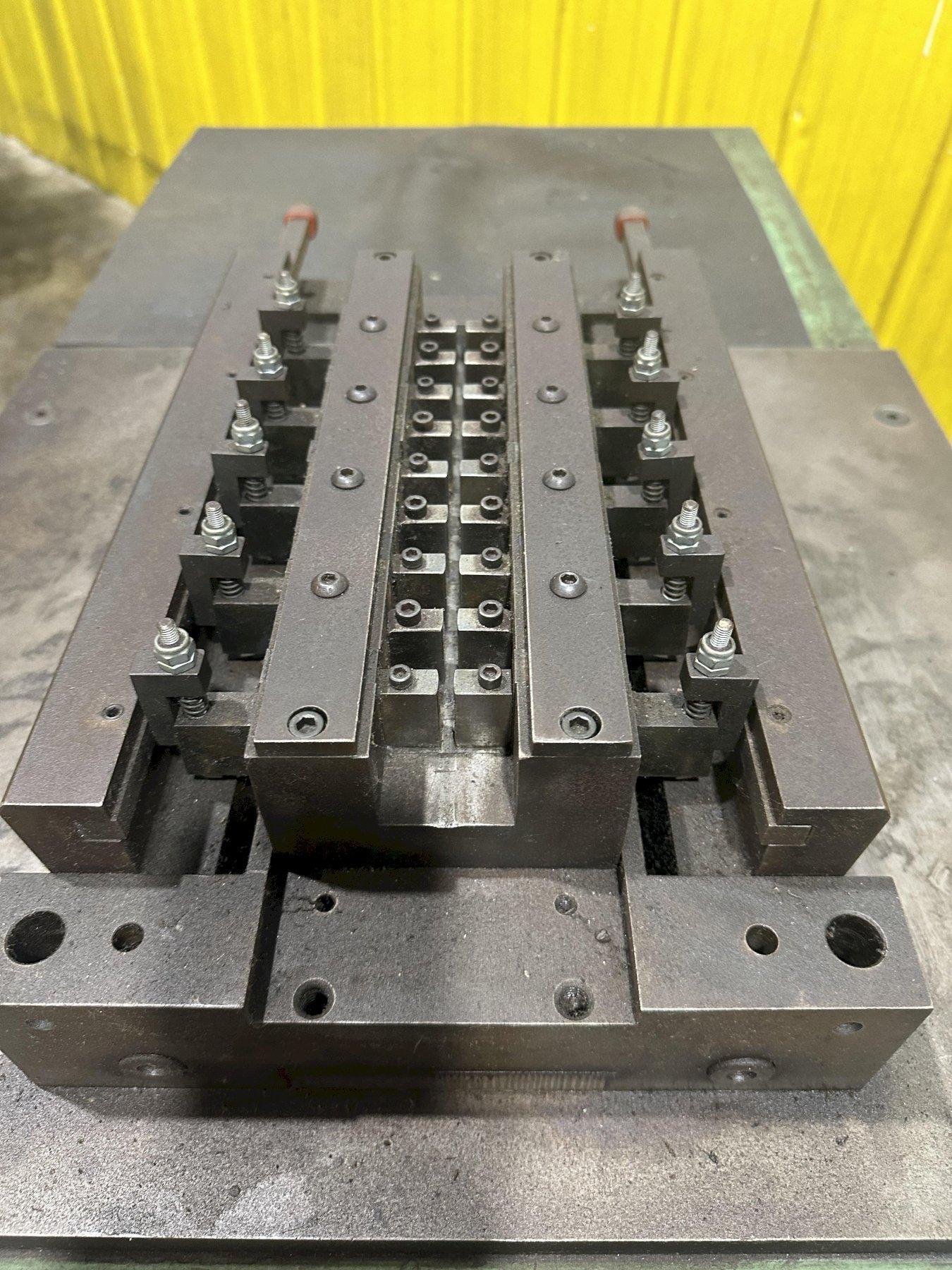

The Model 250 Straight-O-Matic system consists of basic machine with adjustable tooling stations that will accommodate a variety of parts. The side plates of the machine are actuated by rotary cams, which transmit alternate reciprocal strokes to the tooling stations.
