Microcut 140RF, Ram Type, X-314", Y-125", Z-31", W-27", 2,500 RPM, #50 ISO, TSC, 60-ATC, Fanuc 31i-MB, New, #30871

Manufacturer

MICROCUT

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

30871

Model

HBM 140RF

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30871

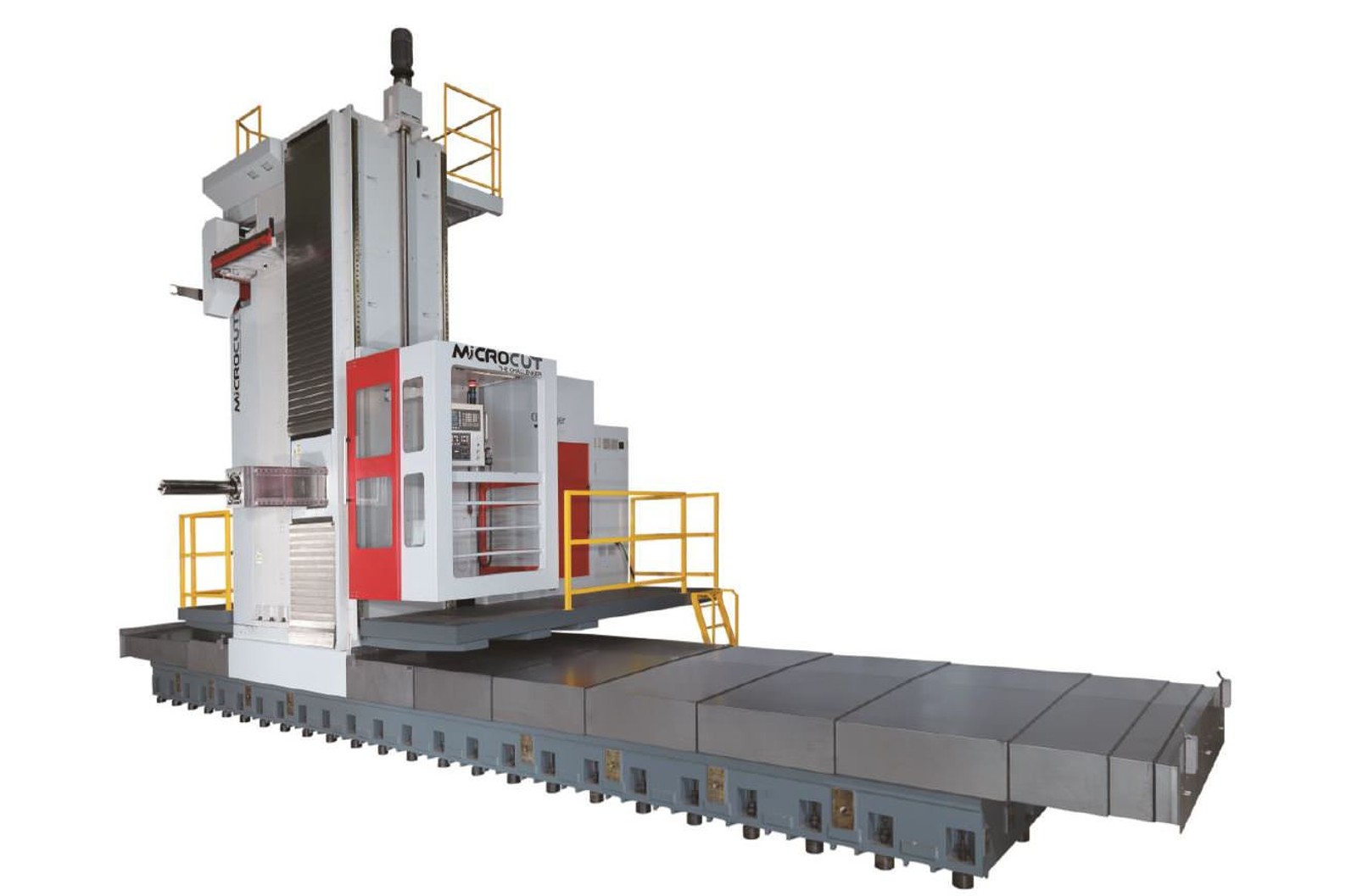

Microcut 140RF Floor Type CNC Boring Mill with Ram

FEATURES:
Fanuc 31i-MB CNC Control
60-Station Automatic Tool Changer
Coolant Through Spindle

CAPACITIES:
Quill Diameter ......................... 5.51"
Ram Cross Section ...................... 14.96" x 15.74"
Spindle Taper .......................... #50 ISO
Spindle Speeds, Variable (2) Step ...... 2,500 RPM
Vertical Travel of Head, Y-Axis ........ 125.98"
Horizontal Column Travel, X-Axis ....... 314.96"
Ram Travel, Z-Axis ..................... 31.49"
Quill Travel, W-Axis ................... 27.55"
Total Axial Travel ..................... 59.05"
Feeds X/Y/Z/W Axes ..................... 196 IPM
Rapids X/Y/Z/W Axes .................... 393 IPM
Spindle Motor .......................... 49 HP / 60 HP

EQUIPPED WITH:
Fanuc 31i-MB CNC Control
60-Station Automatic Tool Changer
Coolant Through Spindle
Precision Ground Ballscrews
Heavily Ribbed Cast Iron Components
Hardened Box Ways on Y-Axis Column
Roller Type Linear Guide ways with Rack and Pinion on X-Axis
Telescopic Way Covers
CE Declaration of Conformity for EU Countries
