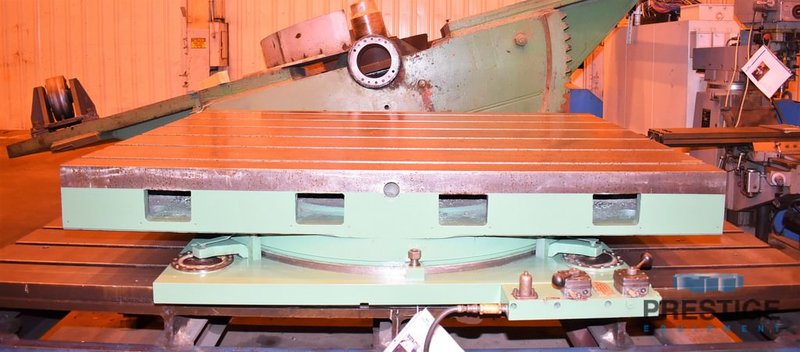

60" X 84" Giddings & Lewis Air Lift Rotary Table, 25,000 Lb Capacity, 4-Position Shot Pin, #31108

Manufacturer

Gidding & Lewis

Category

Tables

Type

TABLES, ROTARY

Stock

31108

Model

Air Lift

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #31108

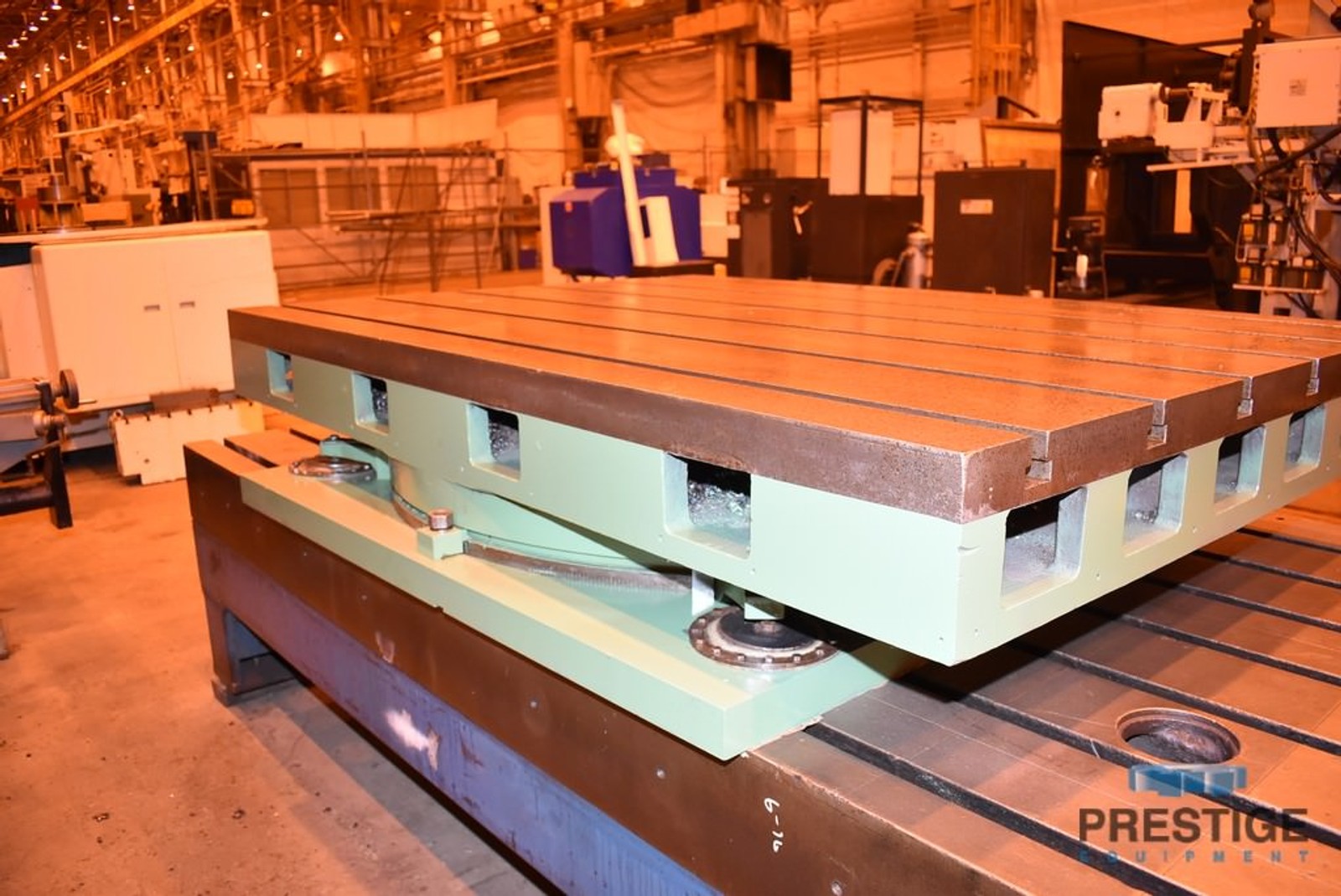

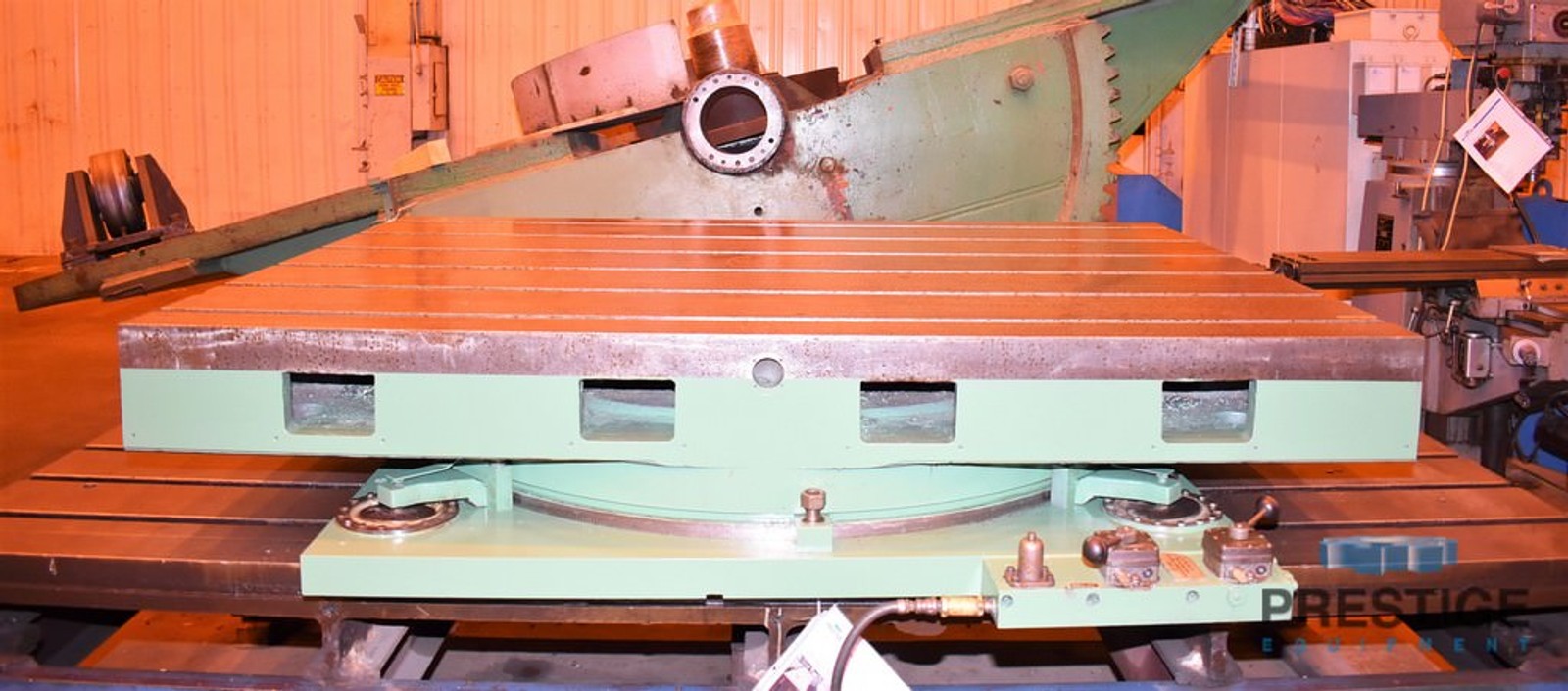

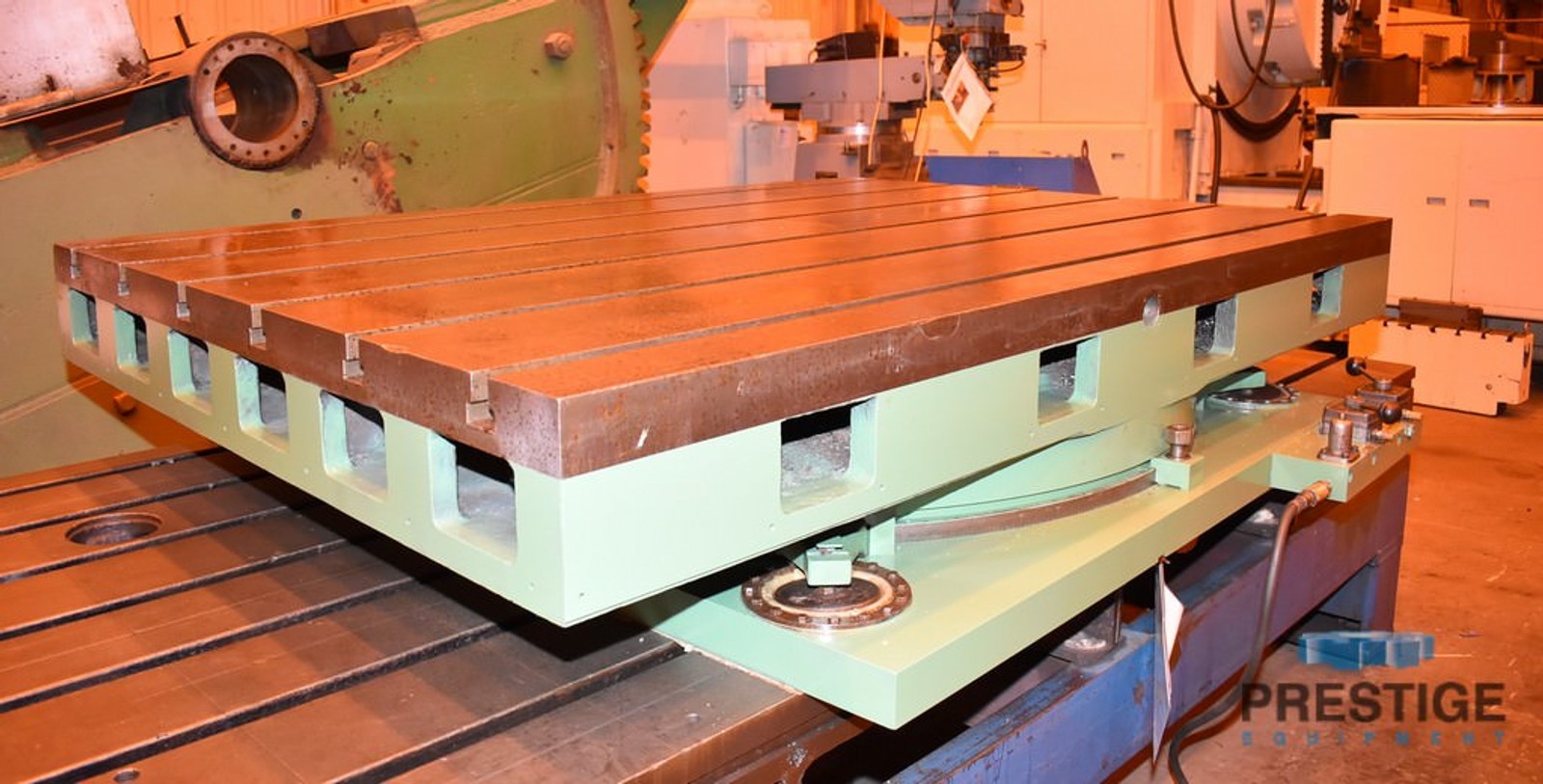

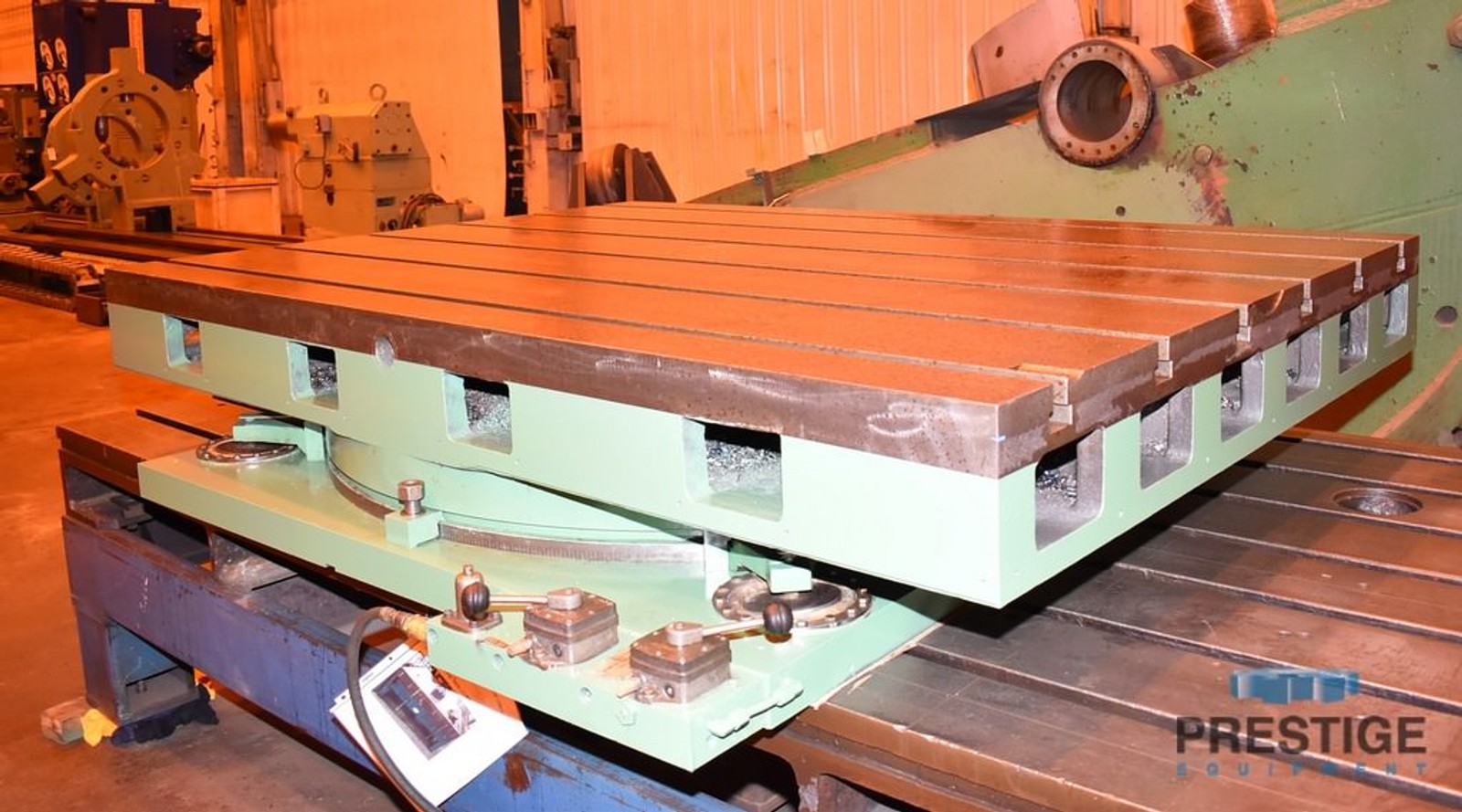

60" x 84" Giddings & Lewis Air Lift Rotary Table

SPECIFICATIONS:
Table Size ............................ 60" X 84"
Table Height Overall .................. 16"
Number Of T-Slots ..................... 6
Width Of T-Slots, Top ................. 1"
Width Of T-Slots, Bottom .............. 1.875"
Depth Of T-Slots, Overall ............. 2"
Distance Between T-Slot Centers ....... 10"
Weight Capacity ....................... 25,000 LBS
Shot Pin Locations (degrees) .......... 90,180,270,360
Table Base Dimensions ................. 60" x 66"
Table Weight .......................... 10,300 lbs

EQUIPPED WITH:

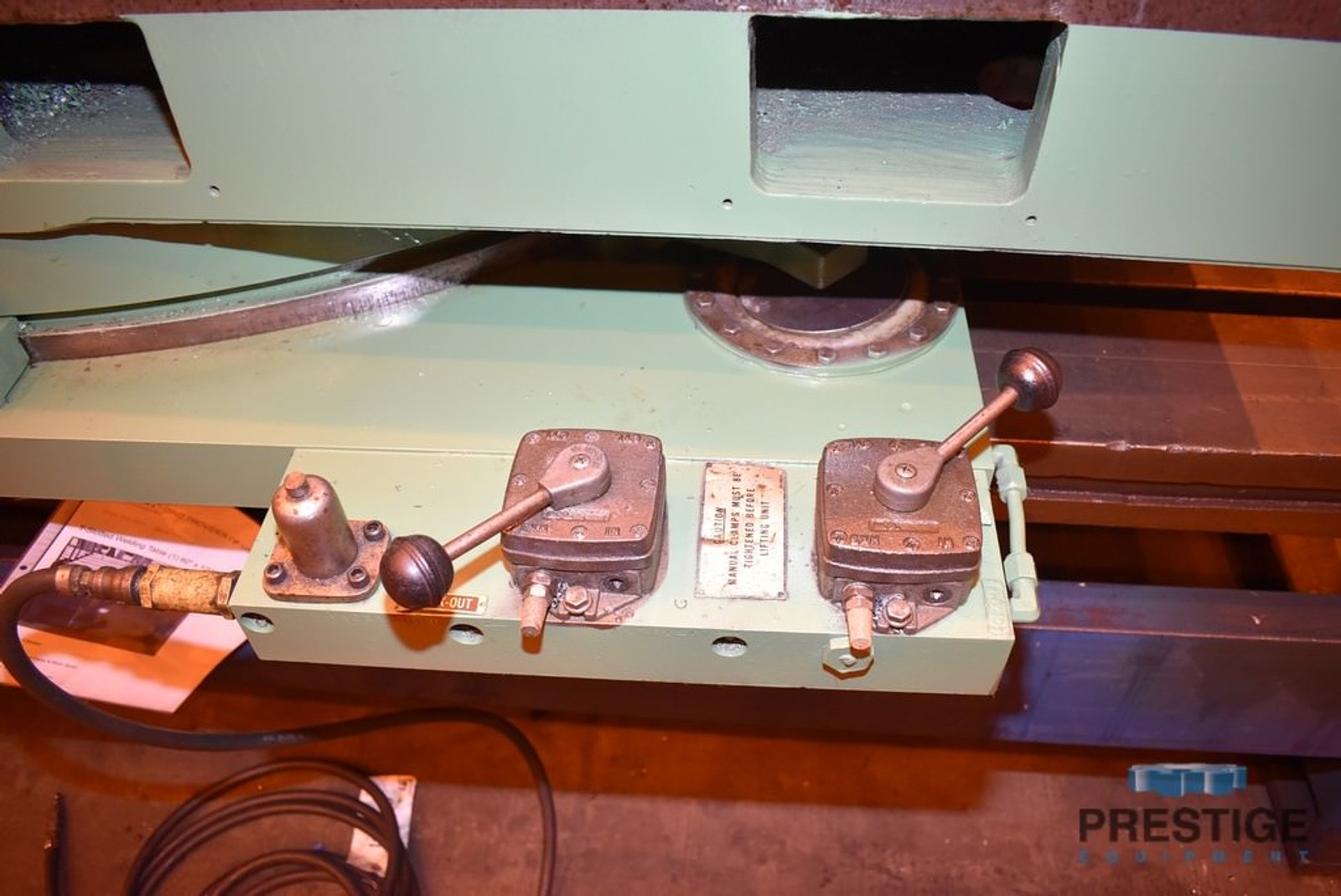

Air Clamp
4-Positive Stop,Shot Pins
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway

NOTE:
Inspect In Our Philadelphia PA Warehouse
