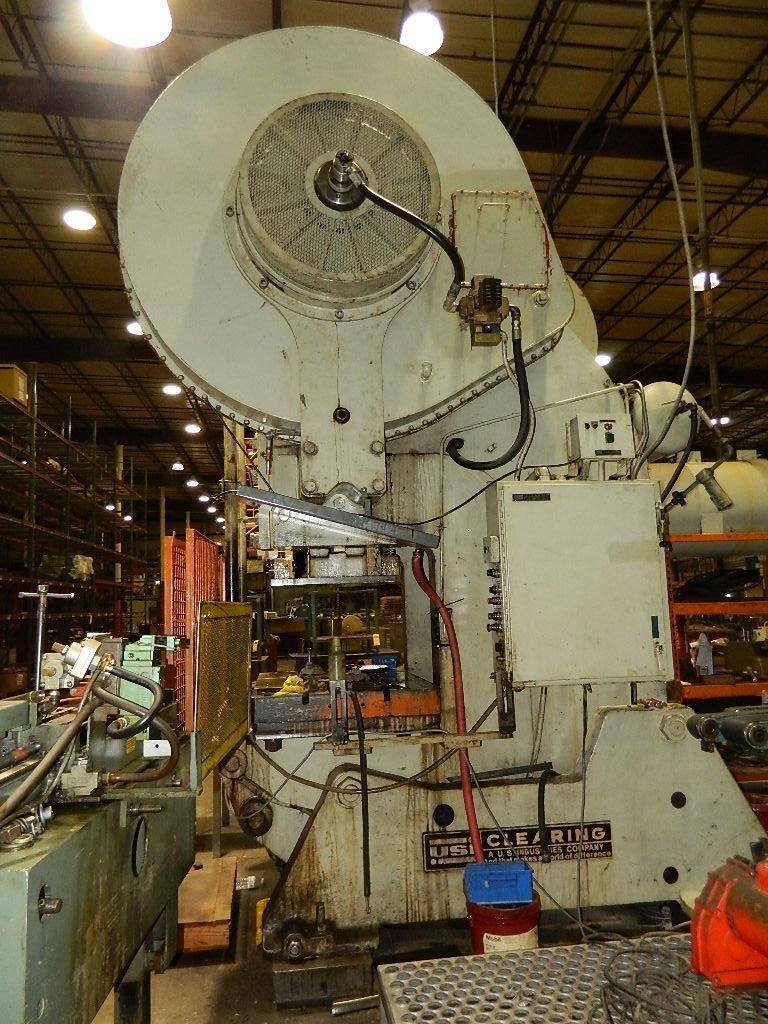

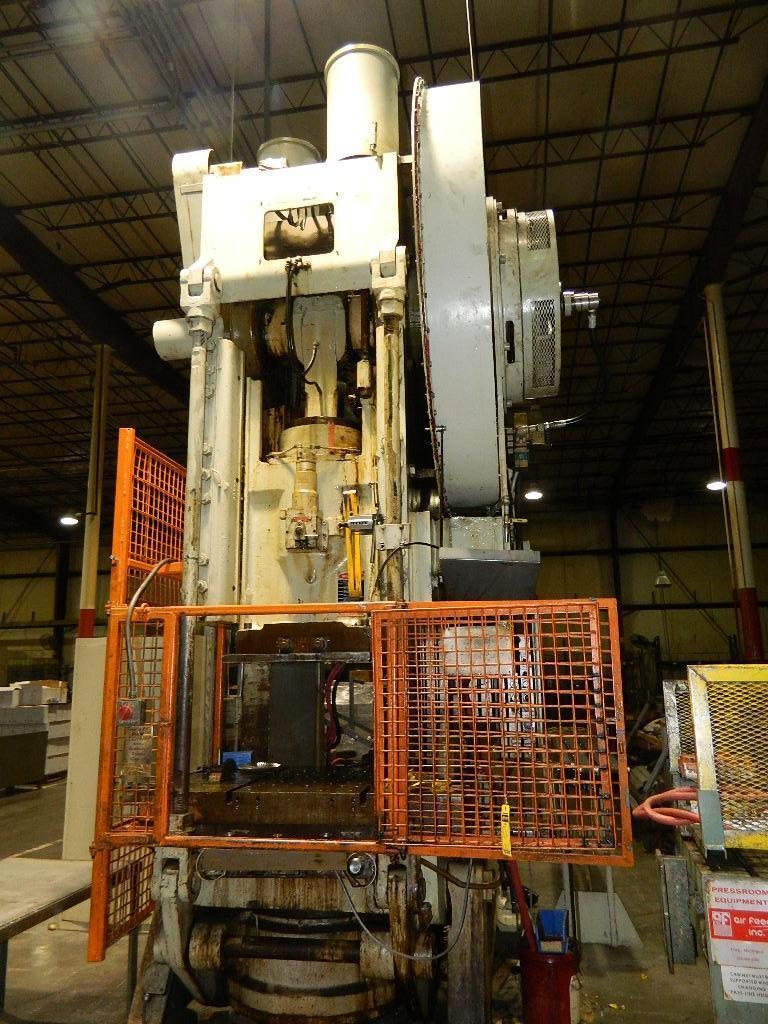

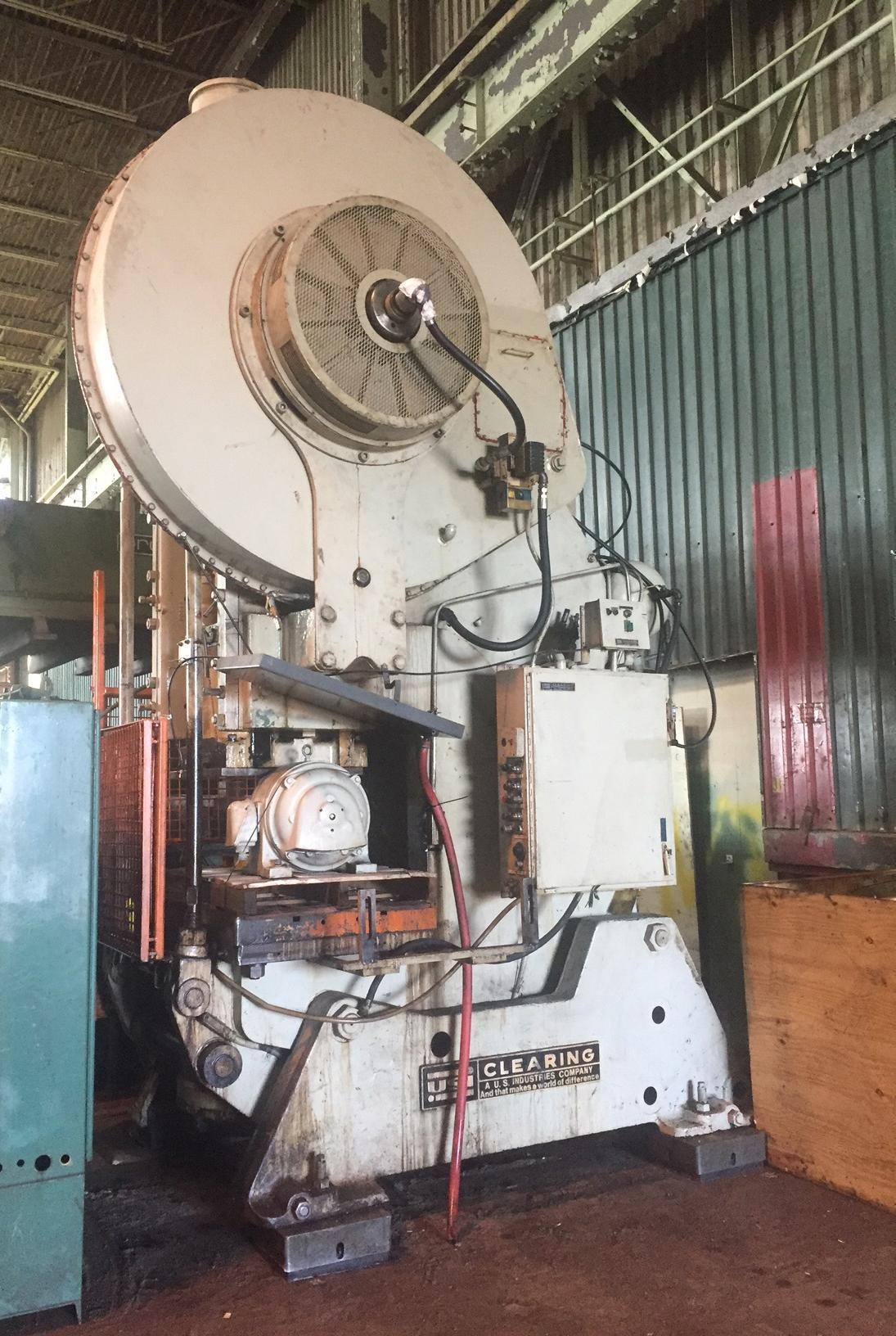

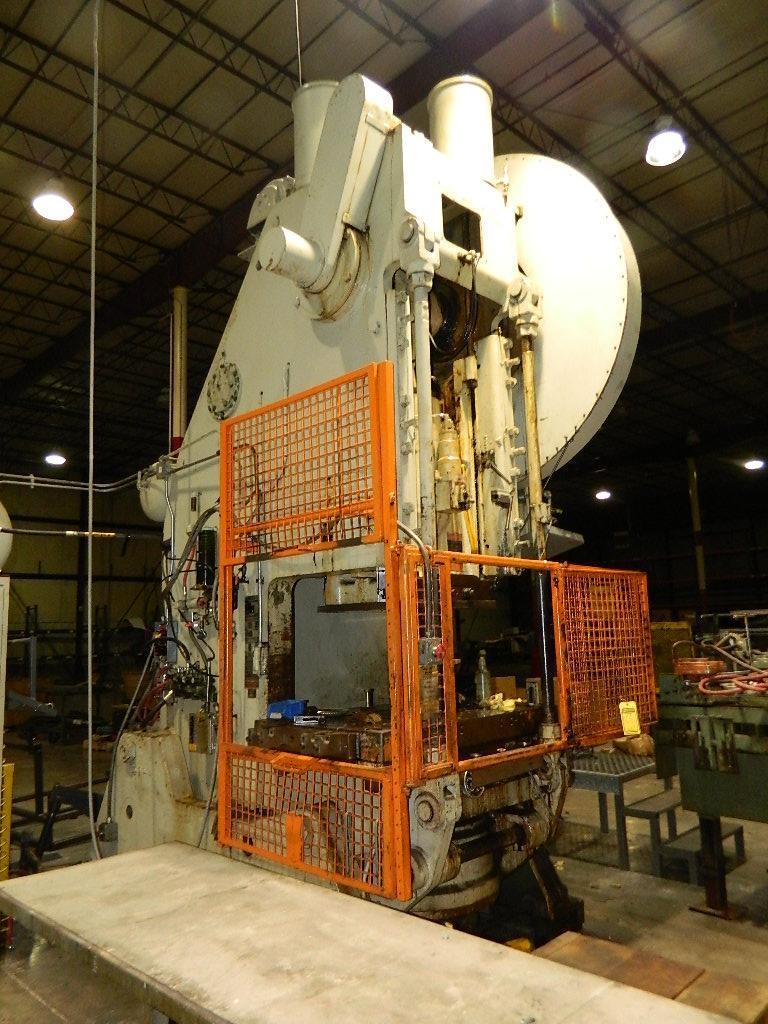

200 TON CLEARING MODEL 200-P-701-081 OBI PRESS: STOCK #67259

Manufacturer

Category

Presses

Type

PRESSES, O.B.I., BACK GEARED, (Single Crank)

Stock

67259

Model

0200

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ....................... 54-2284
MODEL ........................ 200-P-701-081
CAPACITY ..................... 200 TON
AREA OF BED .................. 54" X 35"
AREA OF T SLOTTED RAM ........ 24" X 24"
BOLSTER T SLOTTED ............ 54" X 35" X 4-3/4"
STROKE ....................... 8"
RAM ADJUSTMENT (MOTORIZED) ... 5"
SHUT HEIGHT (SDAU) ........... 23-1/2"
STROKES PER MINUTE ........... 32 SPM
WIDTH OF HOLE IN BACK ........ 32"
THROAT ....................... 18"
CUSHION ...................... 33 TON WITH 5" STROKE
PASSLINE TO TOP OF BOLSTER ... 42", 48" W/ LEVELING PADS
AUTO LUBE SYSTEM ............. TRABON
AIR CLUTCH & BRAKE ........... YES
AIR COUNTER BALANCES ......... YES
INCH, SINGLE & CONTINUOUS .... YES
TIE ROD FRAME ................ YES
DUAL PALM BUTTONS ............ YES
GEAR RUNS IN OIL ............. YES
MOTOR ........................ 20 HORSEPOWER
