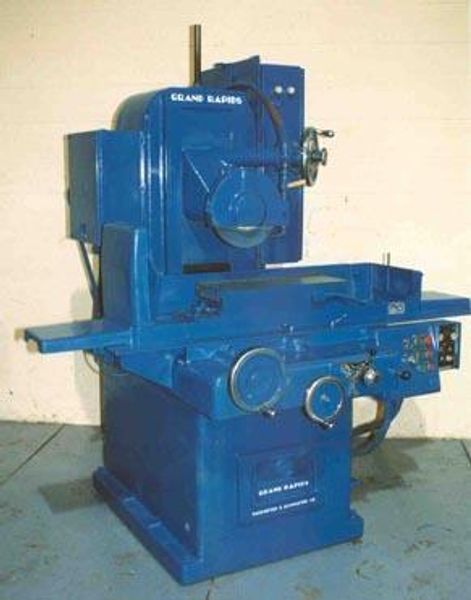

8" X 24" GRAND RAPIDS HORIZONTAL SURFACE GRINDER: STOCK #9863

Manufacturer

GRAND RAPIDS

Category

Grinding Machines

Type

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Stock

9863

Model

08 X 024

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ...................................... 350433
MODEL #350
CAPACITY .................................... 8" X 24"
MAXIMUM UNDER WHEEL ......................... 15"
HYDRAULIC TABLE TRAVEL ...................... 1/4 TO 150 FPM
AUTOMATIC CROSS TRAVEL (AT TABLE REVERSE) ... 0" TO 1/2"
LONGITUDINAL TABLE TRAVEL ................... 29"
CROSS TABLE TRAVEL .......................... 9-1/4"
DIAMETER OF GRINDING WHEEL .................. 12"
WIDTH OF GRINDING WHEEL ..................... 1"
VERTICAL MOVEMENT OF WHEEL HEAD ............. 16"
SPINDLE SPEEDS .............................. 2000 & 2400 RPM
MAGNETIC CHUCK .............................. 8" X 24" X 4"
ELECTROMATIC VARIABLE HOLD MAGNETIC CHUCK CONTROLER
INCREMENTAL OR CONTINIOUS CROSS FEED
POWER SPINDLE ELEVATION
3 HORSEPOWER SPINDLE MOTOR
1-1/2 HORSEPOWER HYDRAULIC SYSTEM MOTOR
