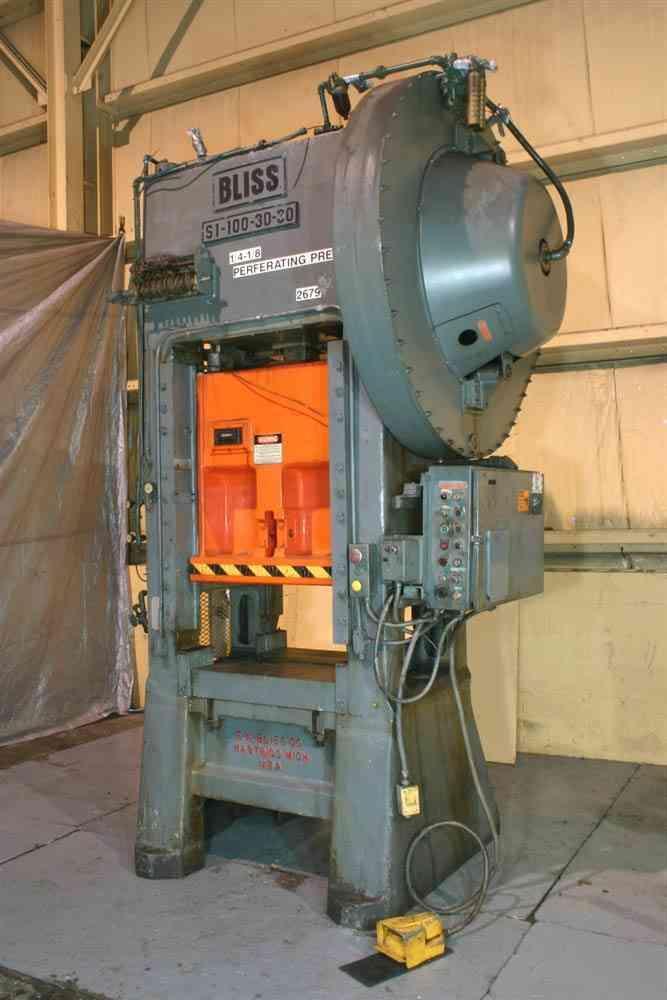

100 TON BLISS STRAIGHT SIDE SINGLE CRANK PRESS: STOCK 52813

Manufacturer

BLISS

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

52813

Model

0100

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................................. 55871
NEW ..................................... 1966
MODEL ................................... S1-100
CAPACITY ................................ 100 TON
STROKE OF SLIDE ......................... 2-1/2"
SHUT HEIGHT, SDAU, ...................... 18-3/4"
SLIDE ADJUSTMENT ........................ 6" POWER
THICKNESS OF BOLSTER .................... 4-3/4"
PASS LINE HEIGHT TO TOP OF BOLSTER ...... 37"

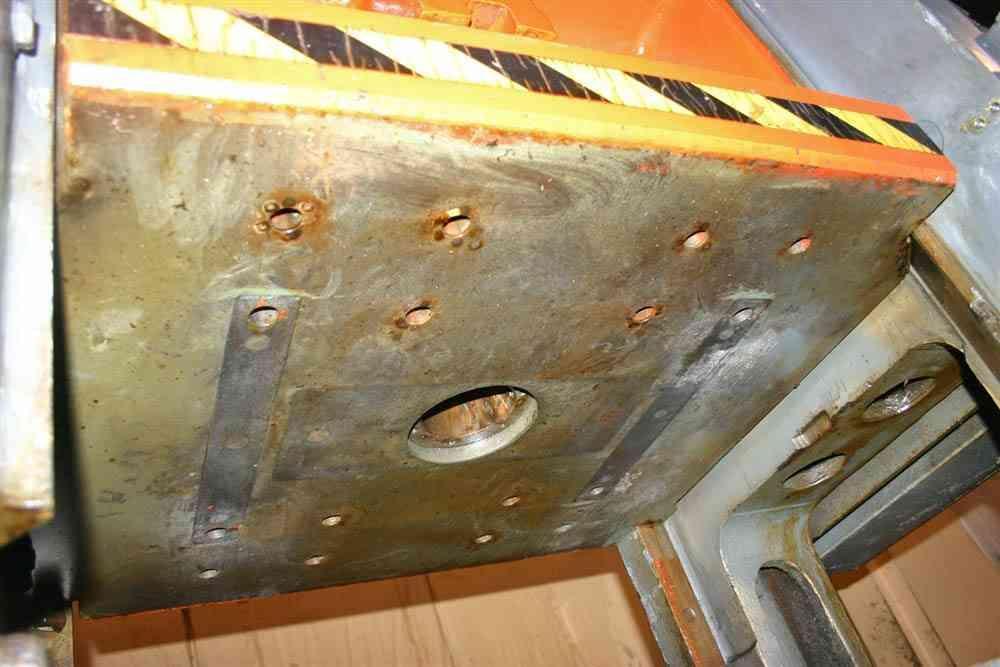

AREA OF BED ............................. 30" X 30"
HOLE IN BED ............................. 12" X 12"
AREA OF SLIDE ........................... 30" 30"
WINDOWS ................................. 19" X 15"
STROKES PER MINUTE ...................... 34
AIR CLUTCH .............................. YES
AIR BRAKE ............................... YES
AUTOMATIC LUBE .......................... YES
ELECTRIC FOOT TRIP ...................... YES
GEAR RUNS IN OIL ........................ YES
MOTOR ................................... 10 HORSEPOWER
