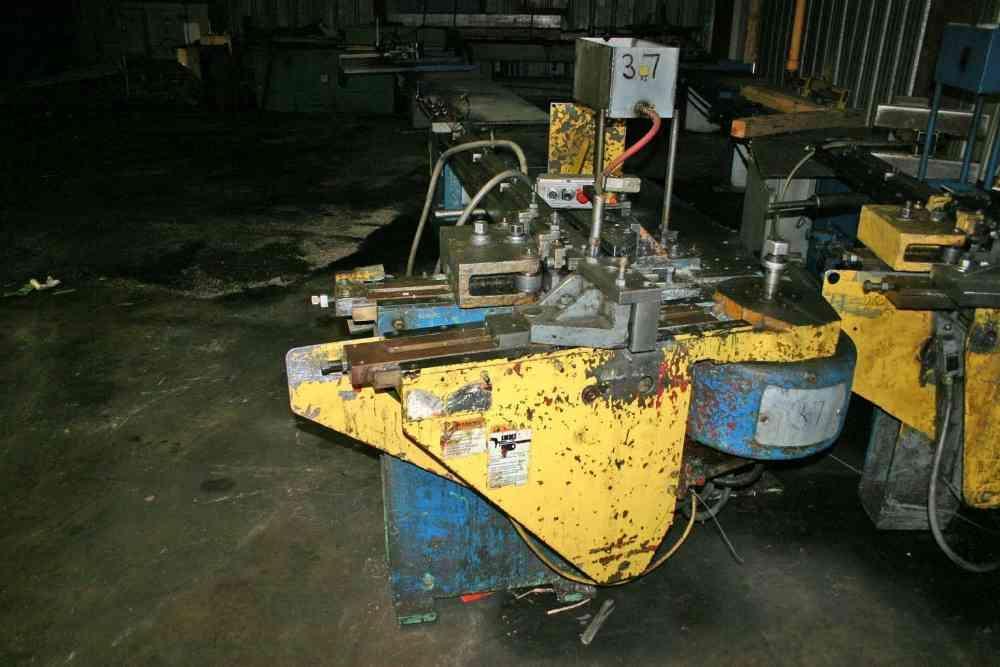

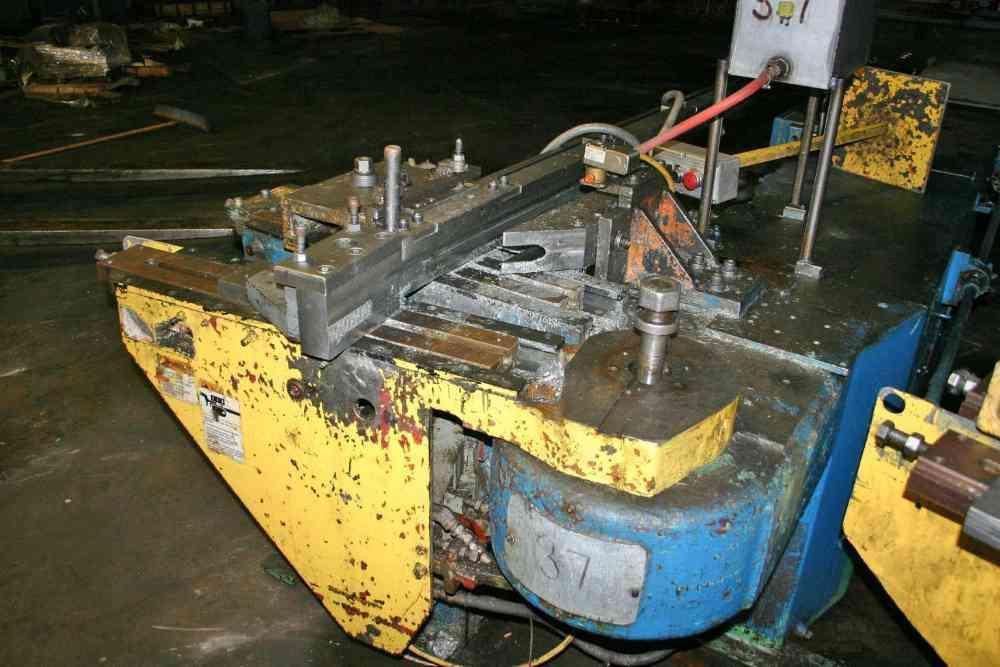

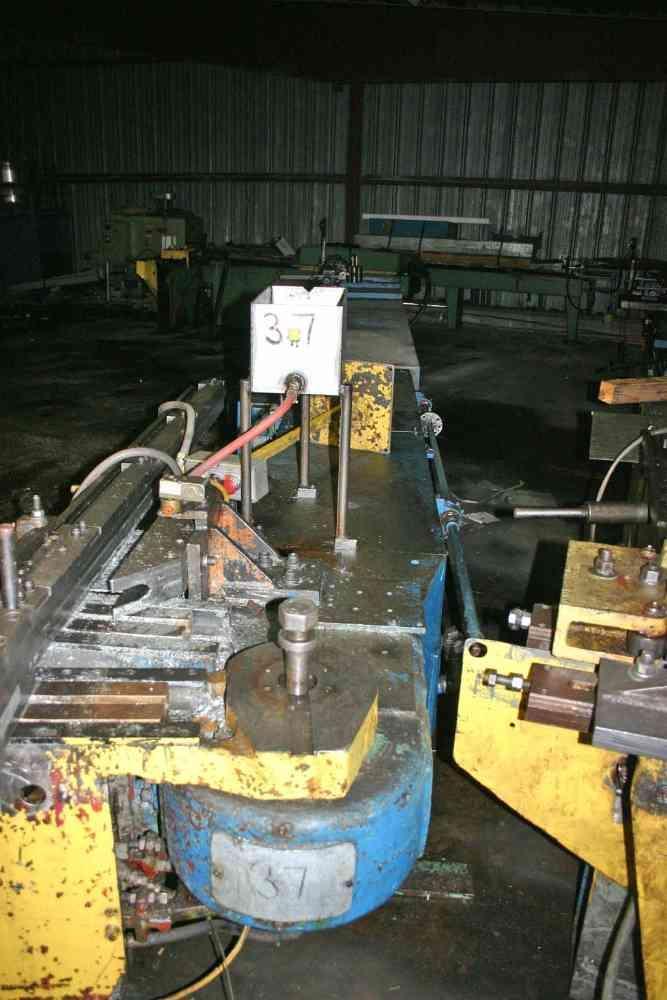

3' PINES MODEL #2 HORIZONTAL TUBE BENDER: STOCK #52443

Manufacturer

Category

Tube Machinery

Type

TUBE BENDERS

Stock

52443

Model

3'

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL ............................... #2
 EXTRA HEAVY PIPE IPS ................ 3"
 NON FERROUS TUBING YP ............... TO 12,000 PSI 3-1/2" X .188
 NON FERROUS TUBING YP ............... TO 25,000 PSI 3-1/2" X .120
 STEEL TUBING YP ..................... TO 40,000 PSI 3-1/2" TO .083
 STEEL BAR ROUND YP .................. TO 40,000 PSI 1-7/8" DIA
 MAXIMUM TUBE LENGTH ................. 20'9" OVER MANDREL APPROX
 EXTENSION TABLE W/HYD PUSH CYCLE .... 14'4"
 MAXIMUM RADIUS ...................... 12"
 BENDING ARM ......................... 30"
 BENDING ARM SPEED ................... 5.5 RPM
 STROKE OF MANDREL ................... 18"
 HYDRAULIC MANDREL EXTRACTOR ......... YES
 (3) BUTTON PEDESTAL CONTROL ......... YES
 8 POSITION DEGREE TURRET OF BEND SELECTOR
 COUNTER CLOCKWISE ROTATION .......... YES
 MOTOR ............................... 7-1/2 HP / 220/440 / 3 / 60
