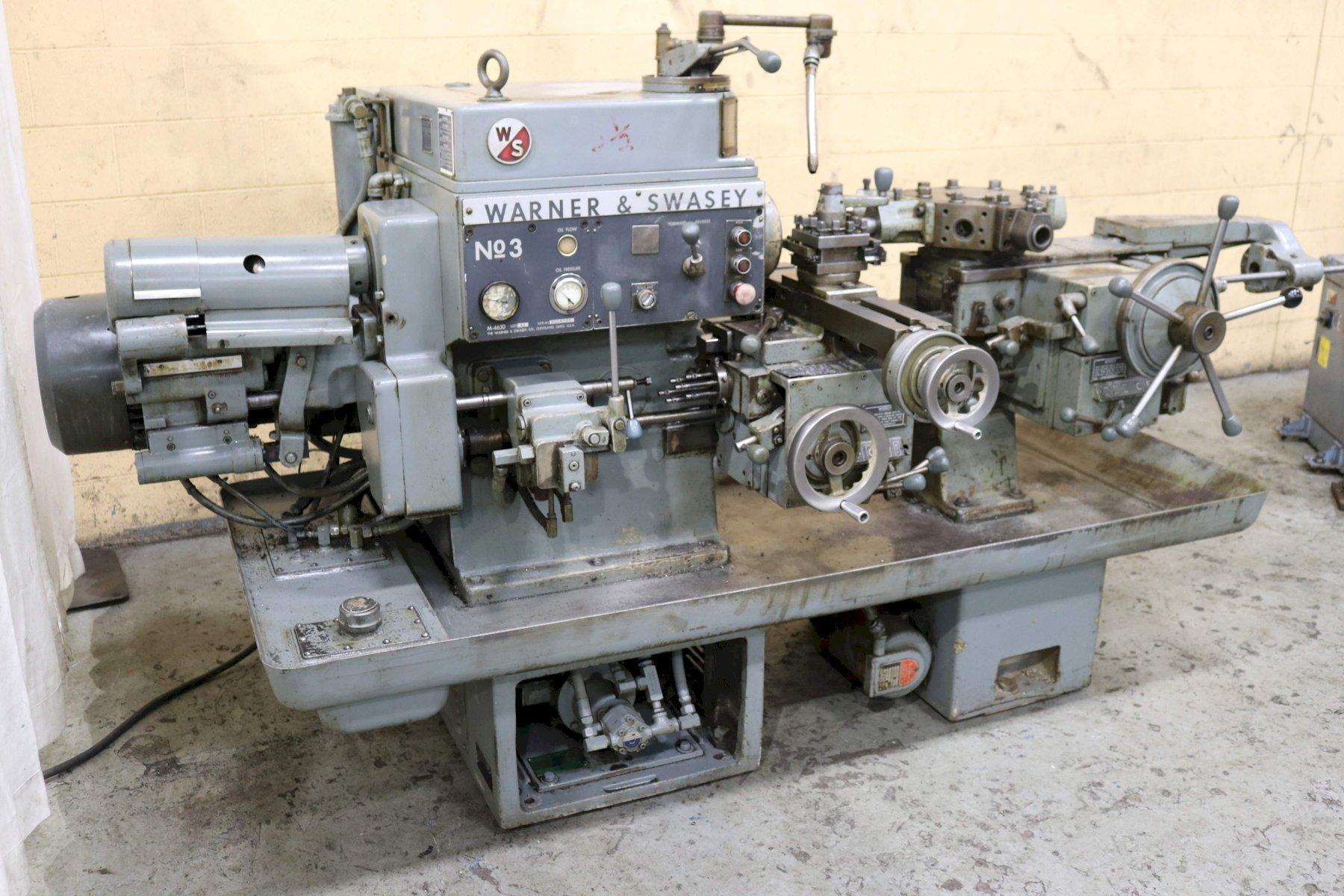

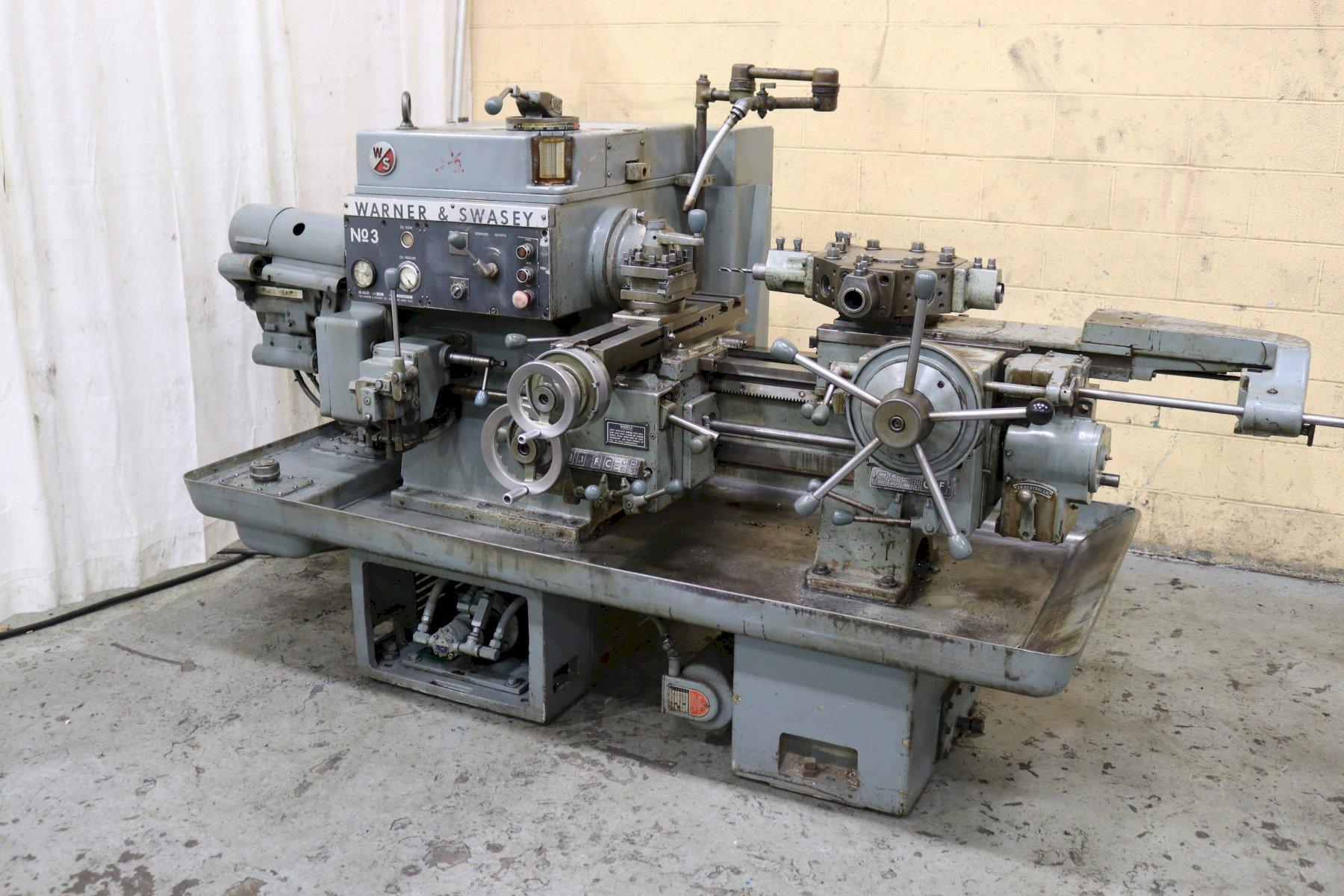

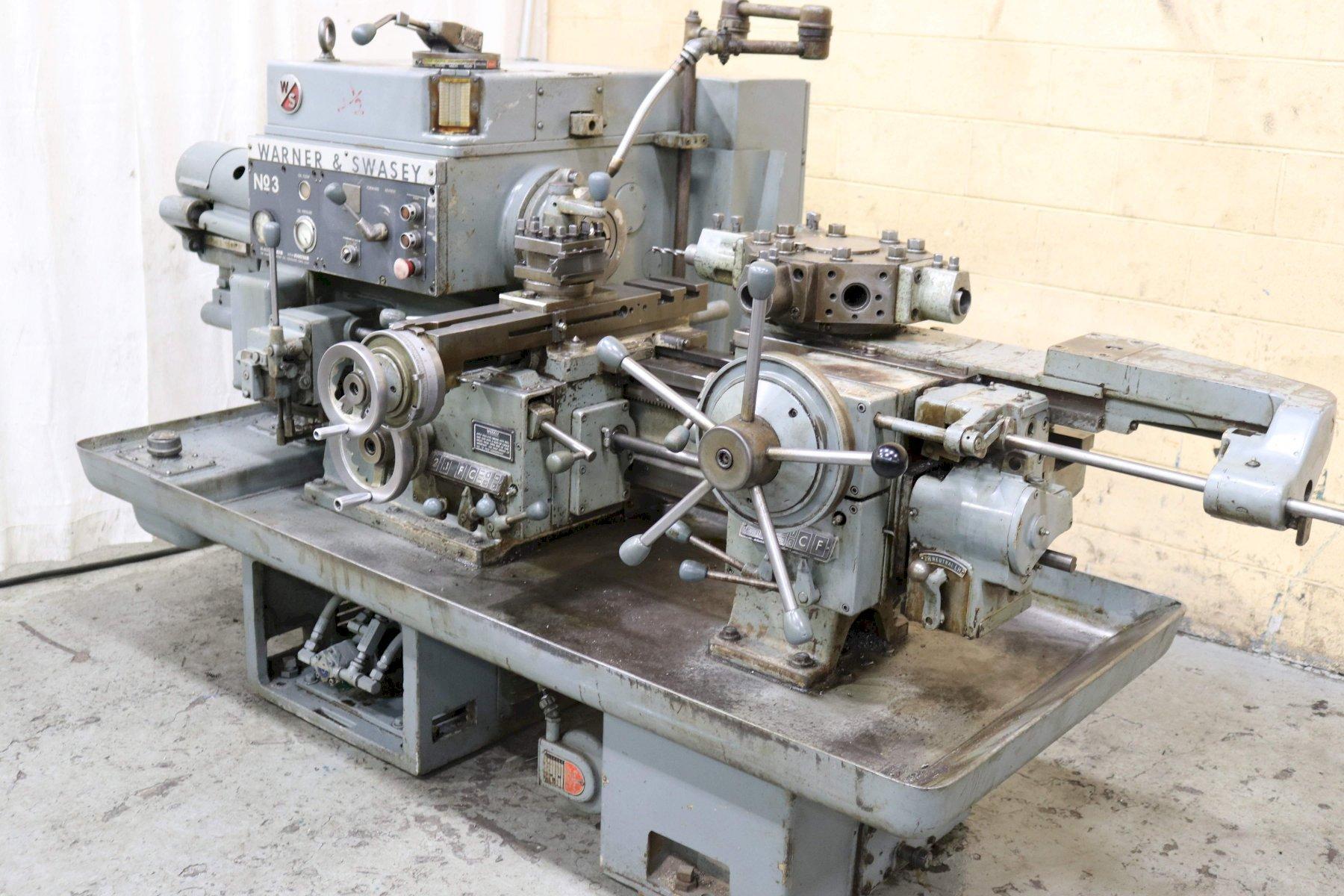

#3 WARNER & SWASEY MODEL # 4630 TURRET LATHE: STOCK #72581

Manufacturer

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

72581

Model

3

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................................. 2554218

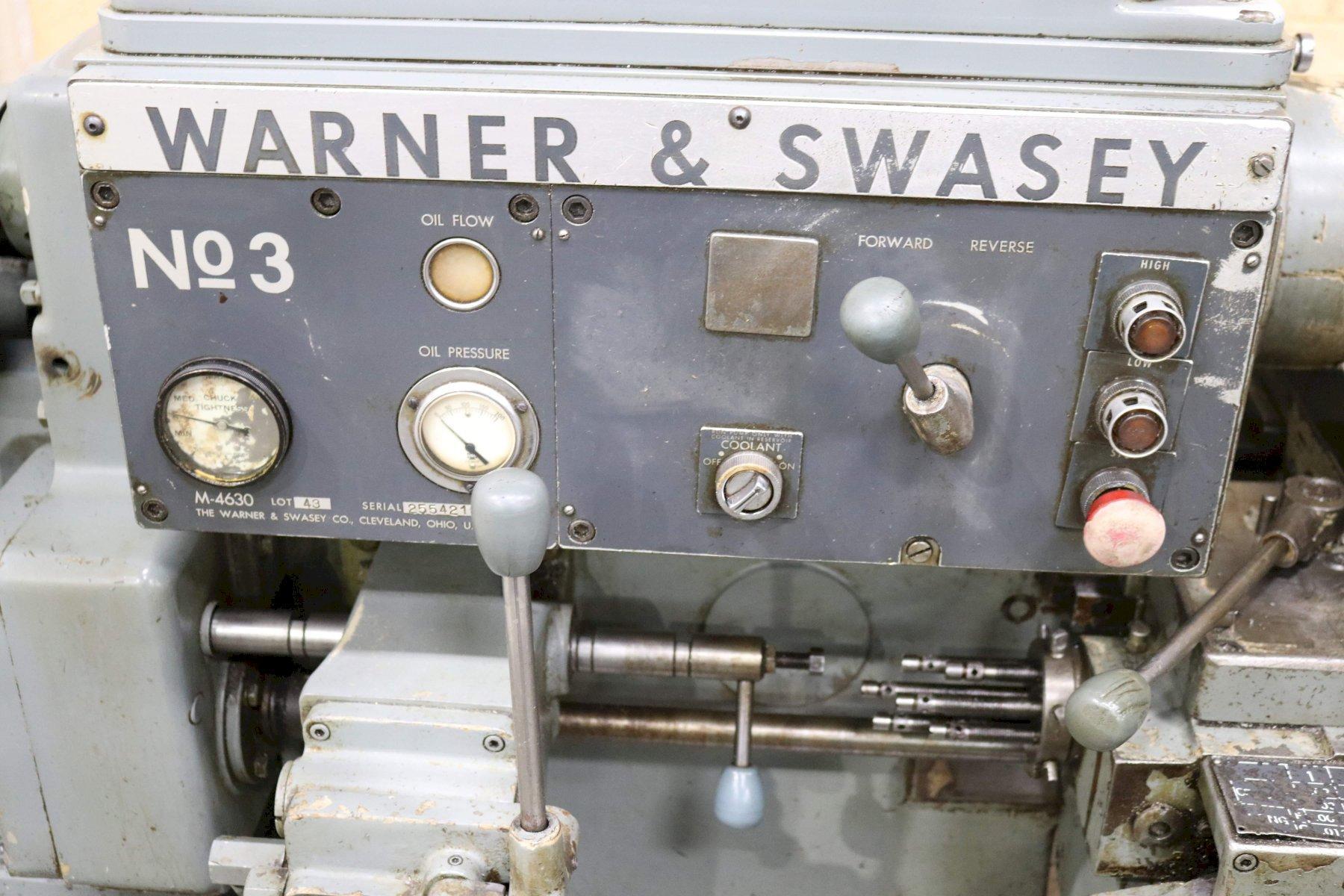

MODEL ................................... 3 (M-4630) SQUARE HEAD
YEAR .................................... 1973
SWING OVER BED .......................... 15-3/8"
SWING OVER CROSS SLIDE .................. 7"
DISTANCE SPINDLE NOSE TO TURRET FACE .... 26-7/8"

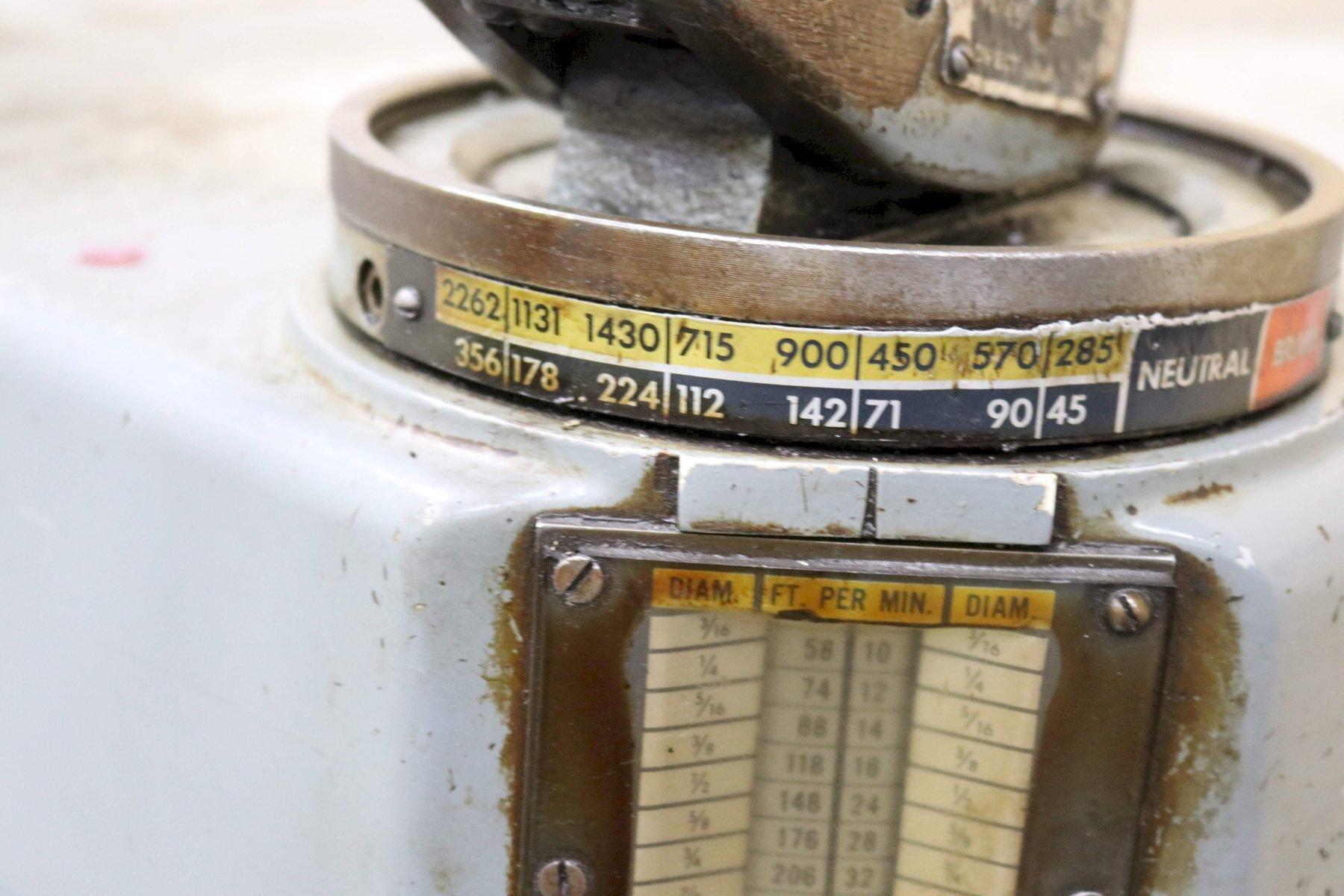

SPINDLE SPEEDS .......................... (16) 45 TO 2262 RPM
LONGITUDINAL FEEDS ...................... (6) .003 TO .029 IPR
CROSS FEEDS ............................. (6) .002 TO .020 IPR
TURRET FEEDS ............................ (6) .003 TO .032 IPR
DIAMETER OF SPINDLE HOLE ................ 1-27/32"
COLLET NOSE ............................. 1YES
BAR FEED ................................ YES
COOLANT.................................. YES
FLANGE TOOL HOLDER ...................... 3
HORSEPOWER MAIN MOTOR ................... 10
