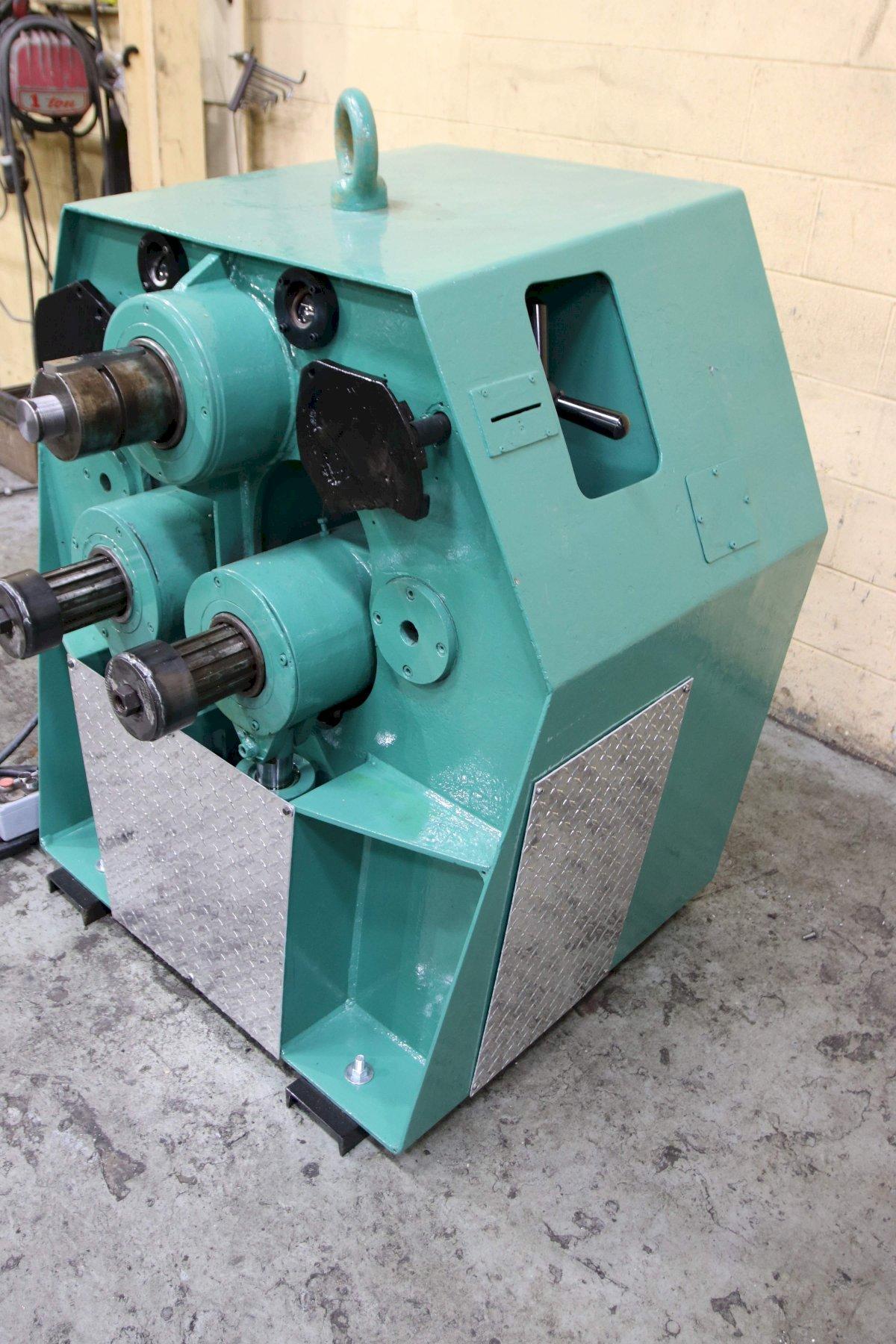

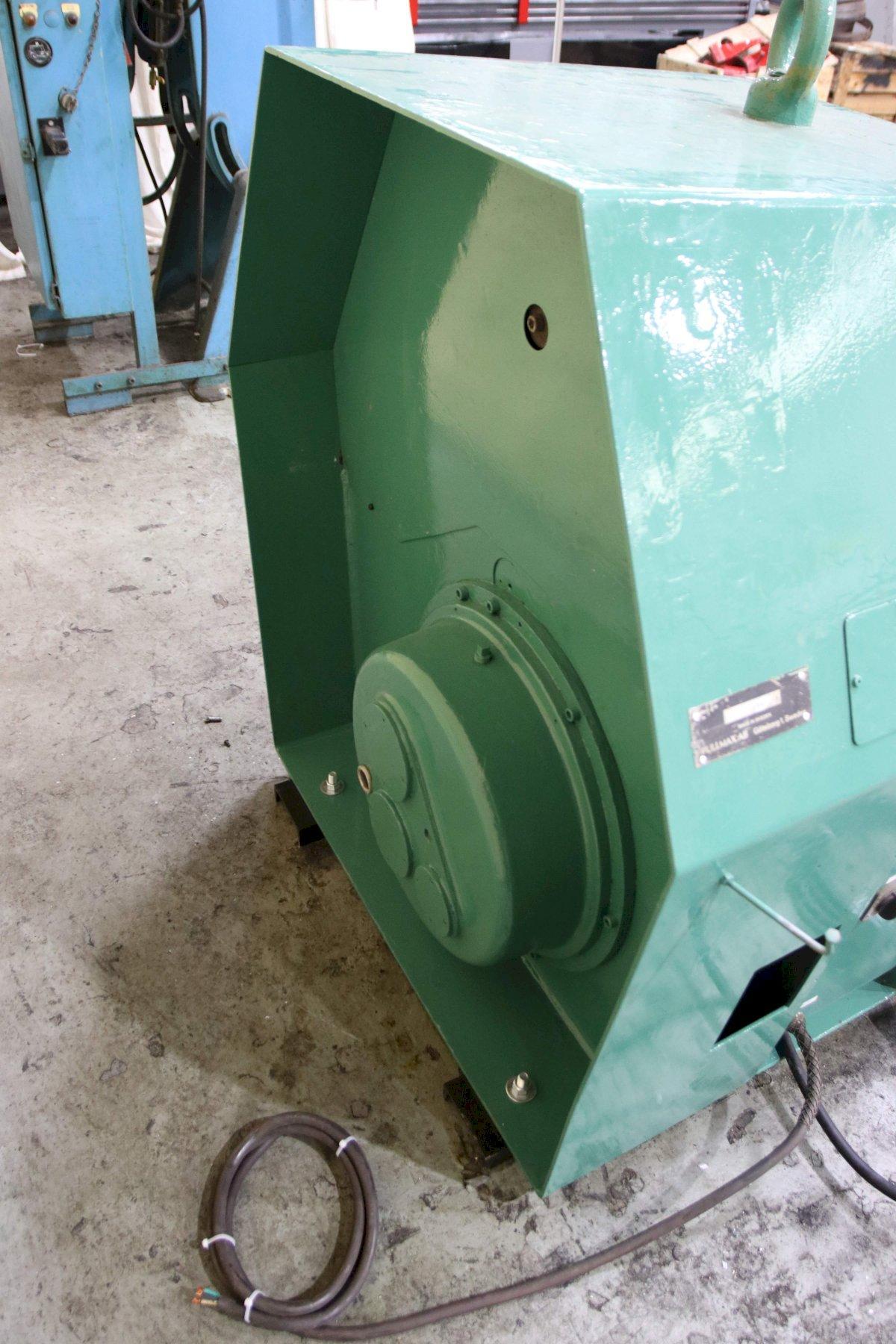

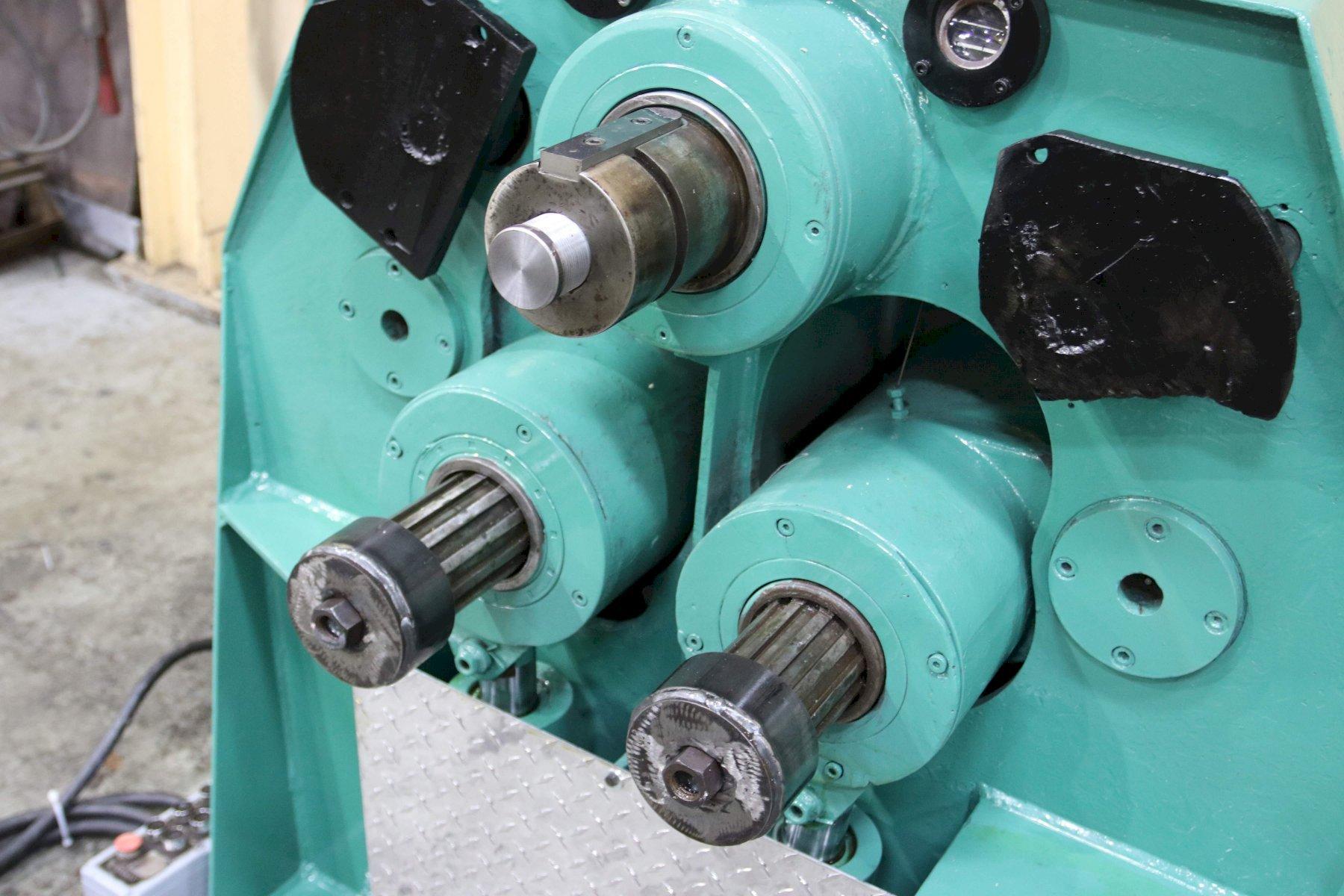

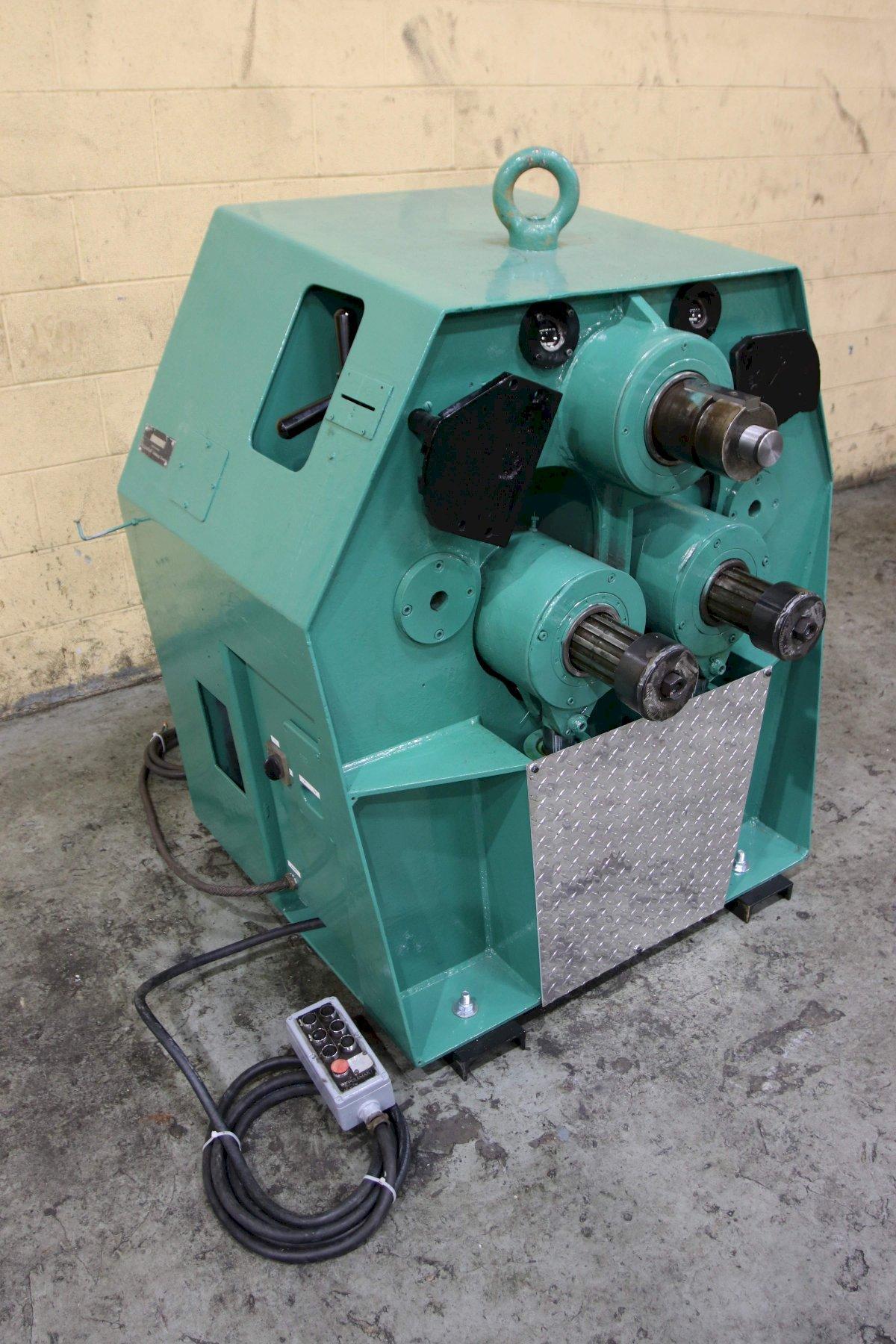

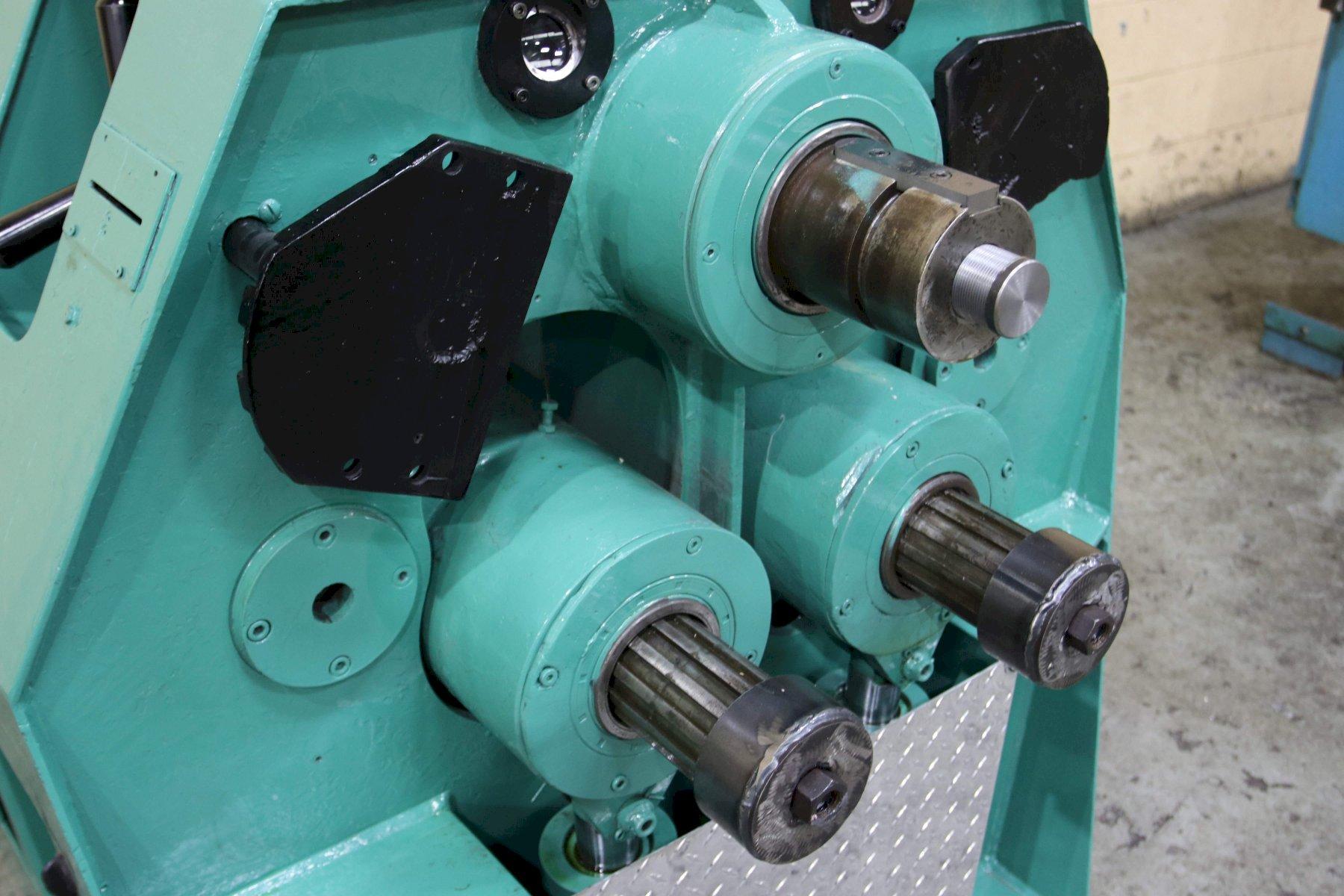

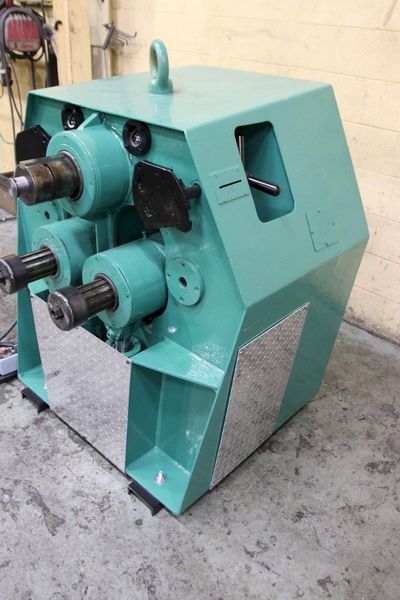

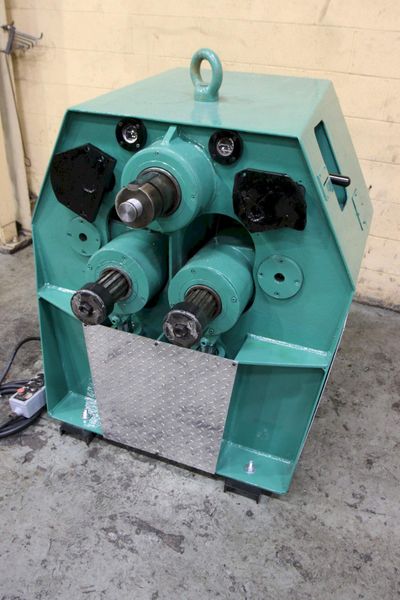

3' X 3' X 3/8' PULLMAX MODEL #Z31 ANGLE ROLL: STOCK 71512

Manufacturer

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

71512

Model

3 X 3 X 3/8 Z31

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL 58690-16
MODEL Z31
VERTICALLY OR HORIZONTALLY WITH LEG-IN/LEG-OUT ATTACHMENT
ANGLES LEG OUT: 3" X 3" X 3/8" - MINIMUM DIAMETER 36"
ANGLES LEG IN: 2.5" X 2.5" X 3/8" - MINIMUM DIAMETER 48"
MINIMUM ANGLE LEG OUT: 1" X 1" X ¼" - MINIMUM DIAMETER 18"
MINIMUM ANGLE LEG IN: 1" X 1" X ¼" - MINIMUM DIAMETER 18"
FLATS ON EDGE: 3" X 9/16" - MINIMUM DIAMETER 20"
MINIMUM FLATS ON EDGE: 1" X ¼" - MINIMUM DIAMETER 14"
FLATS ON FLATS: 5" X 1" - MINIMUM DIAMETER 16"
MINIMUM FLATS ON FLATS: 2" X 3/8" - MINIMUM DIAMETER 14"
SQUARES: 1-3/4" - MINIMUM DIAMETER 16"
ROUNDS: 1-1/2" - MINIMUM DIAMETER 16"
STANDARD STEEL PIPE: 2" - MINIMUM DIAMETER 28"
MINIMUM STANDARD STEEL PIPE: 7/8" - MINIMUM DIAMETER 12"
BEAMS ON FLANGES: 5" X 3" - MINIMUM DIAMETER 40"
CHANNELS FLANGES OUT: 5" X 1-3/4" - MINIMUM DIAMETER 32 »
DIAMETER OF ANGLE ROLLS : 9-13/16
BENDING ROLLS RPM : 10.2
FEED SPEED : 26 FPM
