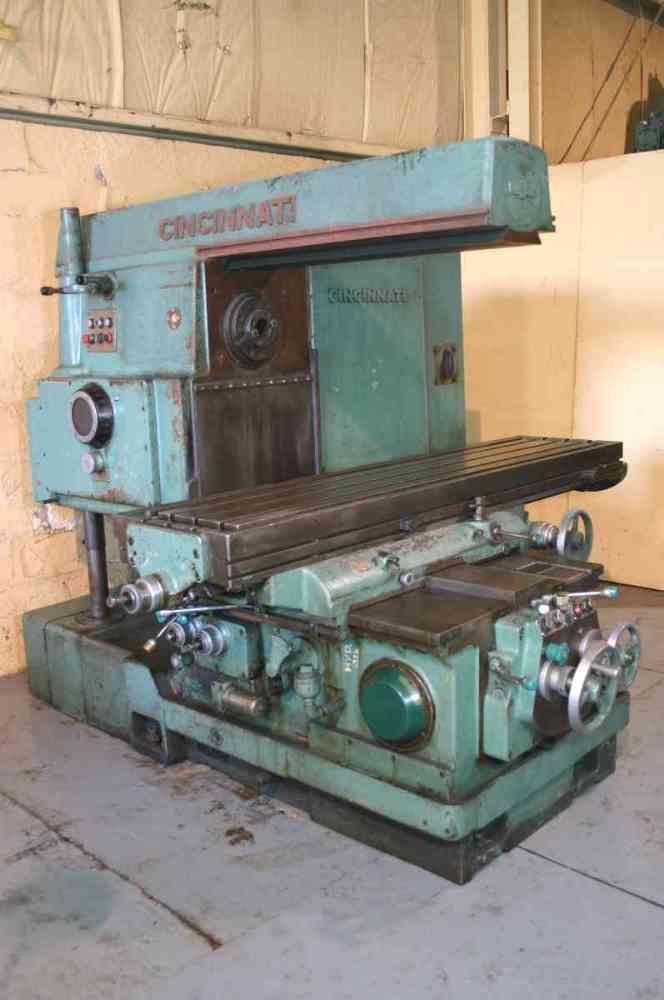

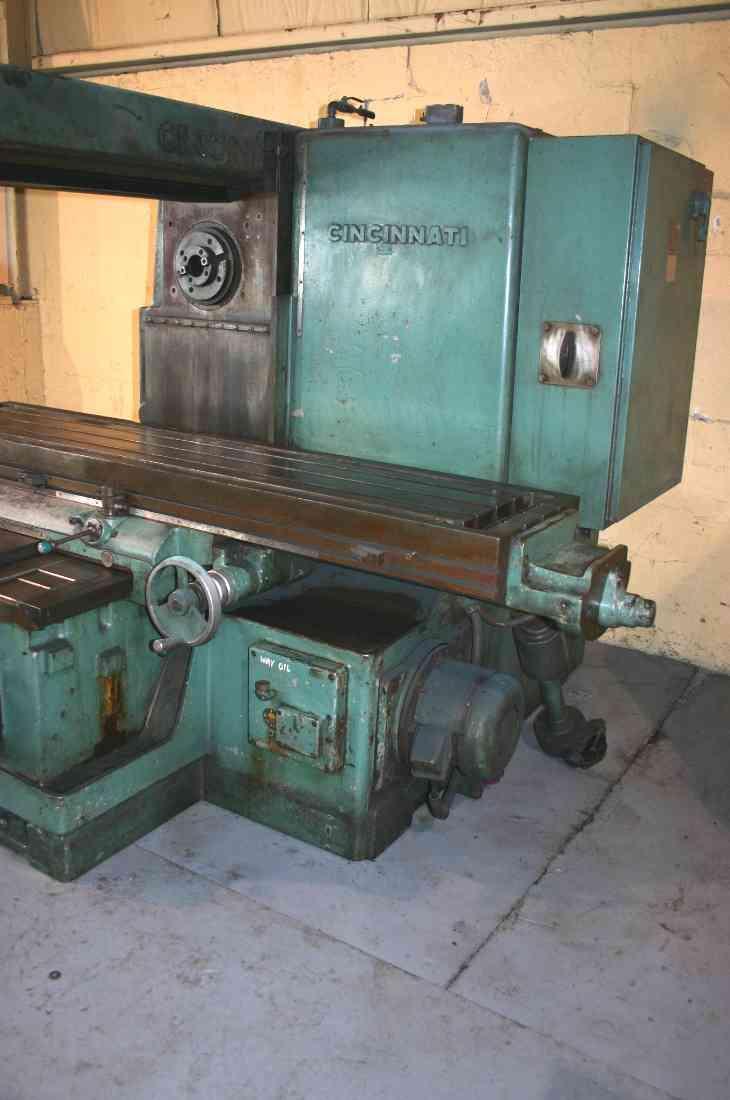

CINCINNATI MODEL #425-20 HORIZONTAL MILL: STOCK #13666

Manufacturer

Cincinnati

Category

Milling Machines

Type

MILLERS, PLAIN, HORIZONTAL

Stock

13666

Model

425-20

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .............................. 9J44H5P-2
MODEL ............................... 425-20 VERCIPOWER
AREA OF TABLE ....................... 86-1/2" X 20"
SPINDLE SPEEDS ...................... (24) 14 TO 1400 RPM
LONGITUDINAL & CROSS TABLE FEEDS .... (32) 3/8 TO 90 IPM
VERTICAL TABLE FEEDS ................ (32) 3/16 TO 45 IPM
LONGITUDINAL TABLE TRAVEL ........... 42"
CROSS TABLE TRAVEL .................. 18"
VERTICAL TRAVEL OF SPINDLE CARRIER .. 24"
CENTER OF SPINDLE TO TABLE .......... 3" MIN, 27" MAX
SPINDLE TAPER ....................... #50 NS
TABLE RAPID TRAVERSE ................ 150 IPM
COOLANT ............................. YES
FEED MOTOR, HORSEPOWER .............. 5
SPINDLE MOTOR, HORSEPOWER ........... 25
