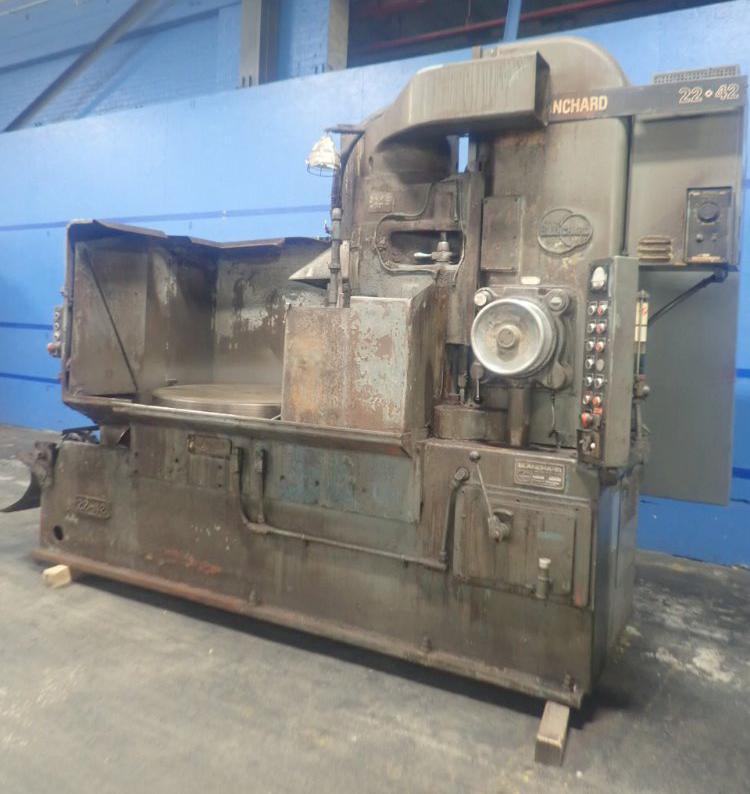

42" BLANCHARD MODEL 22-42 ROTARY SURFACE GRINDER STOCK: #72561

Manufacturer

BLANCHARD

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

72561

Model

42

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................................. 15597
MODEL ................................... 22-42
YEAR NEW ................................ 1983

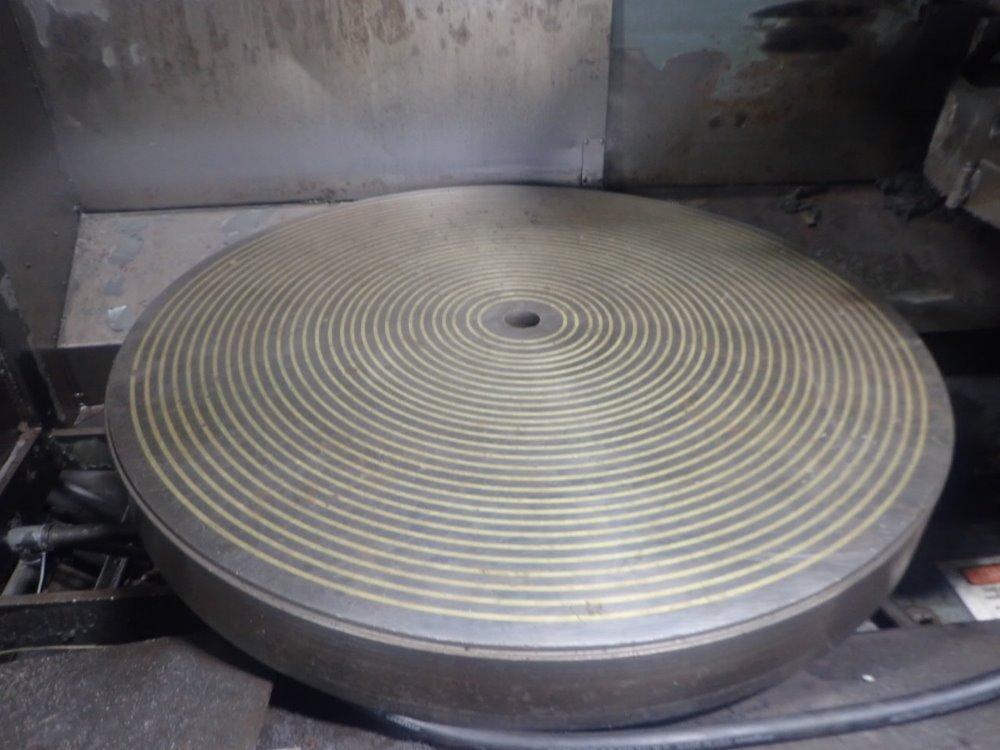

TABLE CHUCK DIAMETER .................... 42"
MAXIMUM WORK SWING ...................... 48"
MAXIMUM WORK HEIGHT ..................... 24"
TABLE SPEEDS ............................ (6) 6 TO 33 RPM
POWER DOWNFEED RANGE .................... .004 TO .080 IPR
SEGMENTED GRINDING WHEEL DIAMETER ....... 22"
SWING-AWAY GRINDING WHEEL DRESSER ....... YES
MICROMETER CALIPER ATTACHMENT ........... YES
LUBRICATION SYSTEM ...................... TRABON

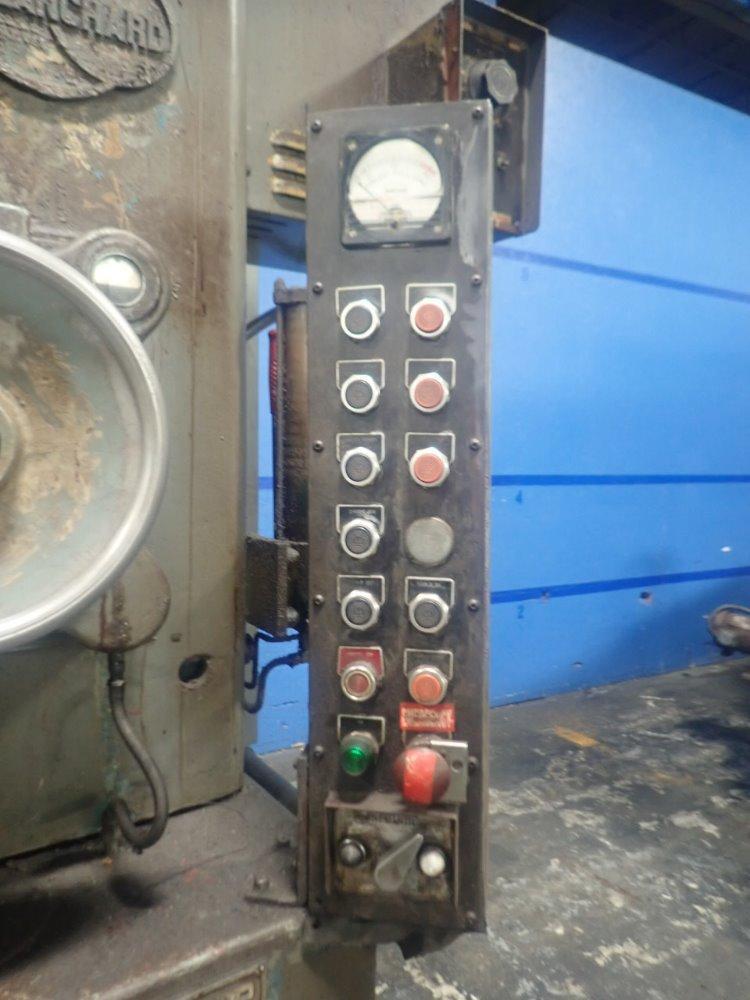

ELECTRO-MAGNETIC TABLE CHUCK CONTROLS ... YES
CHUCK LIFE .............................. 3/8"
CONVEYOR IN BASE ........................ YES
COOLANT ................................. YES
GRINDING SPINDLE MOTOR .................. 50 HORSEPOWER
