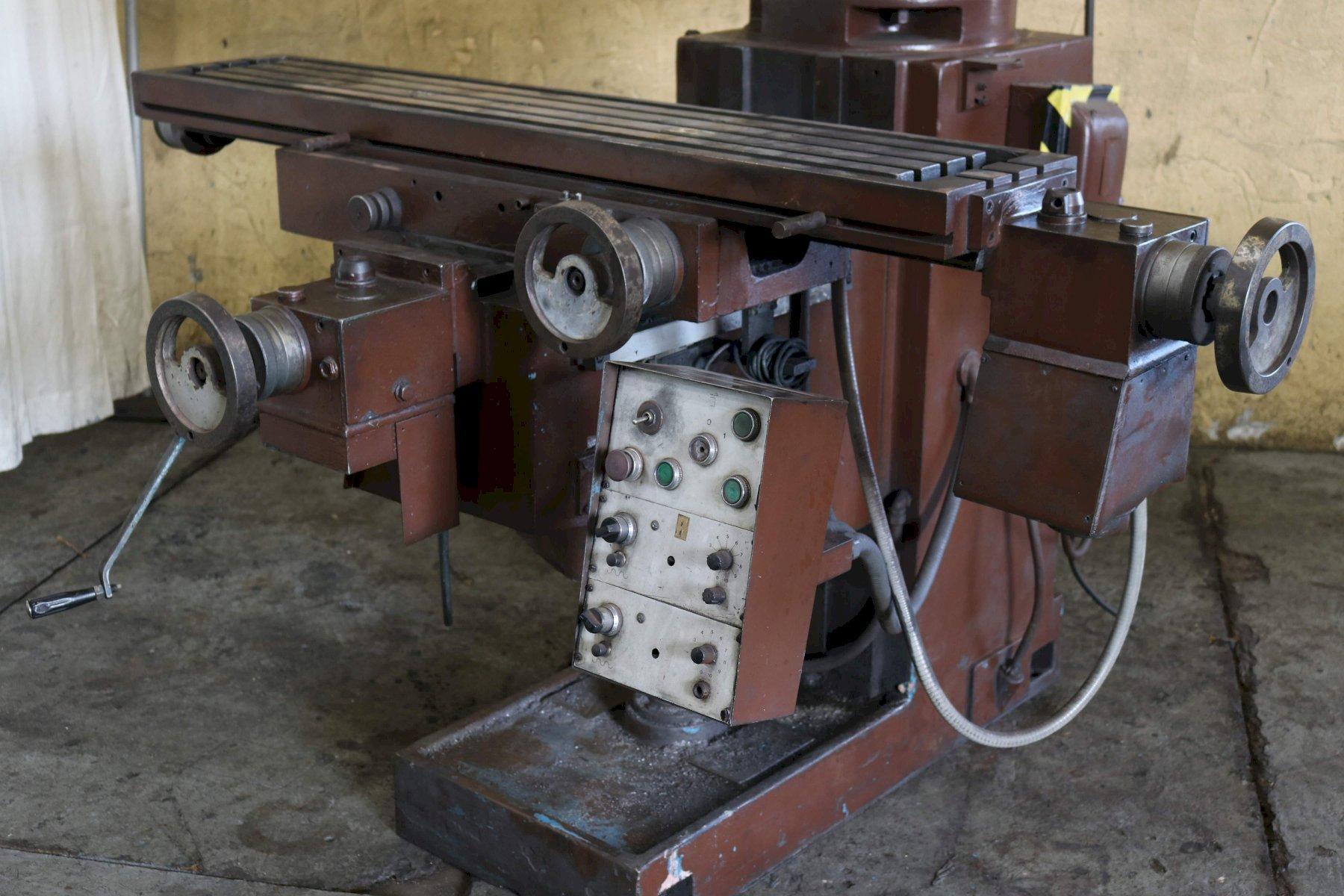

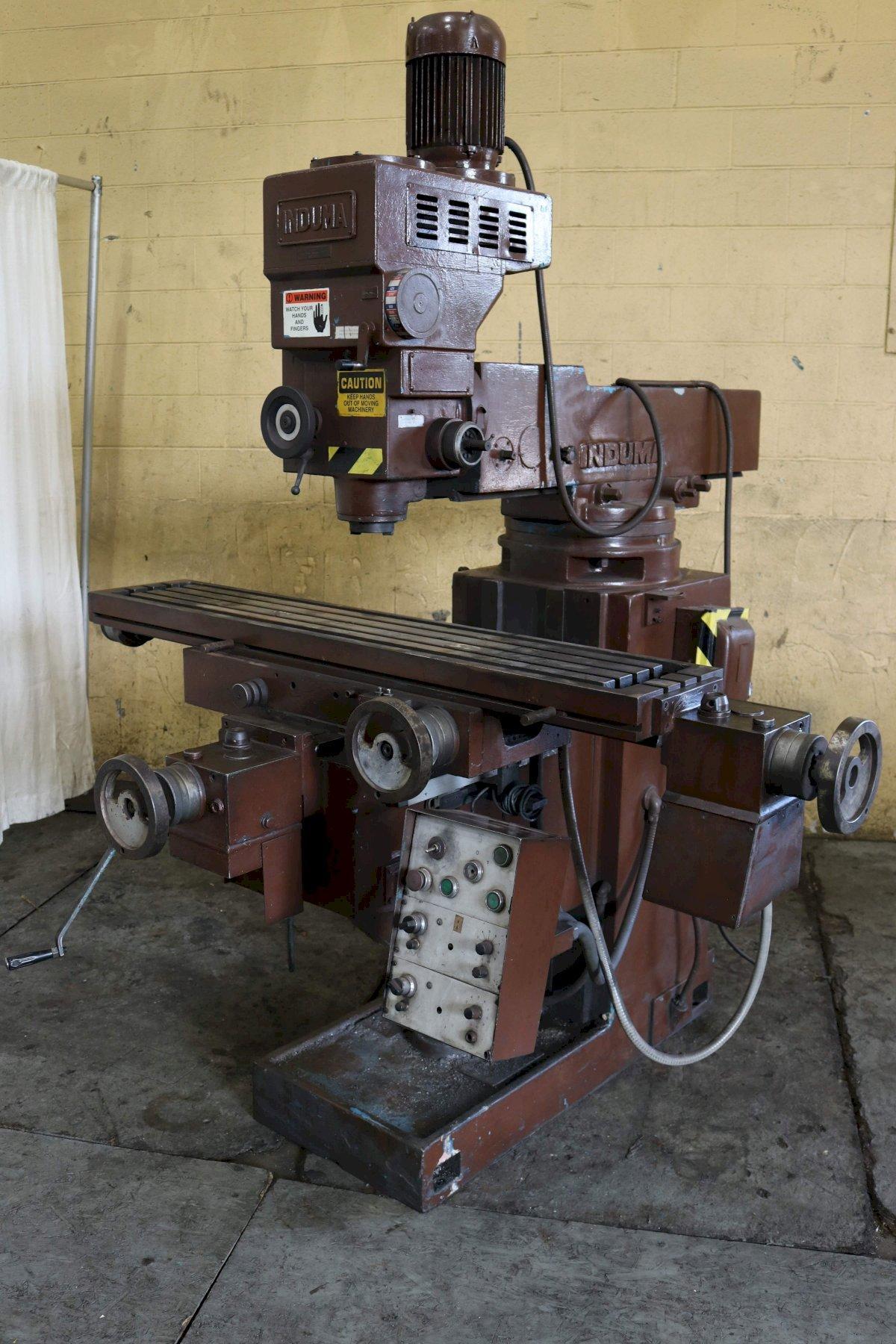

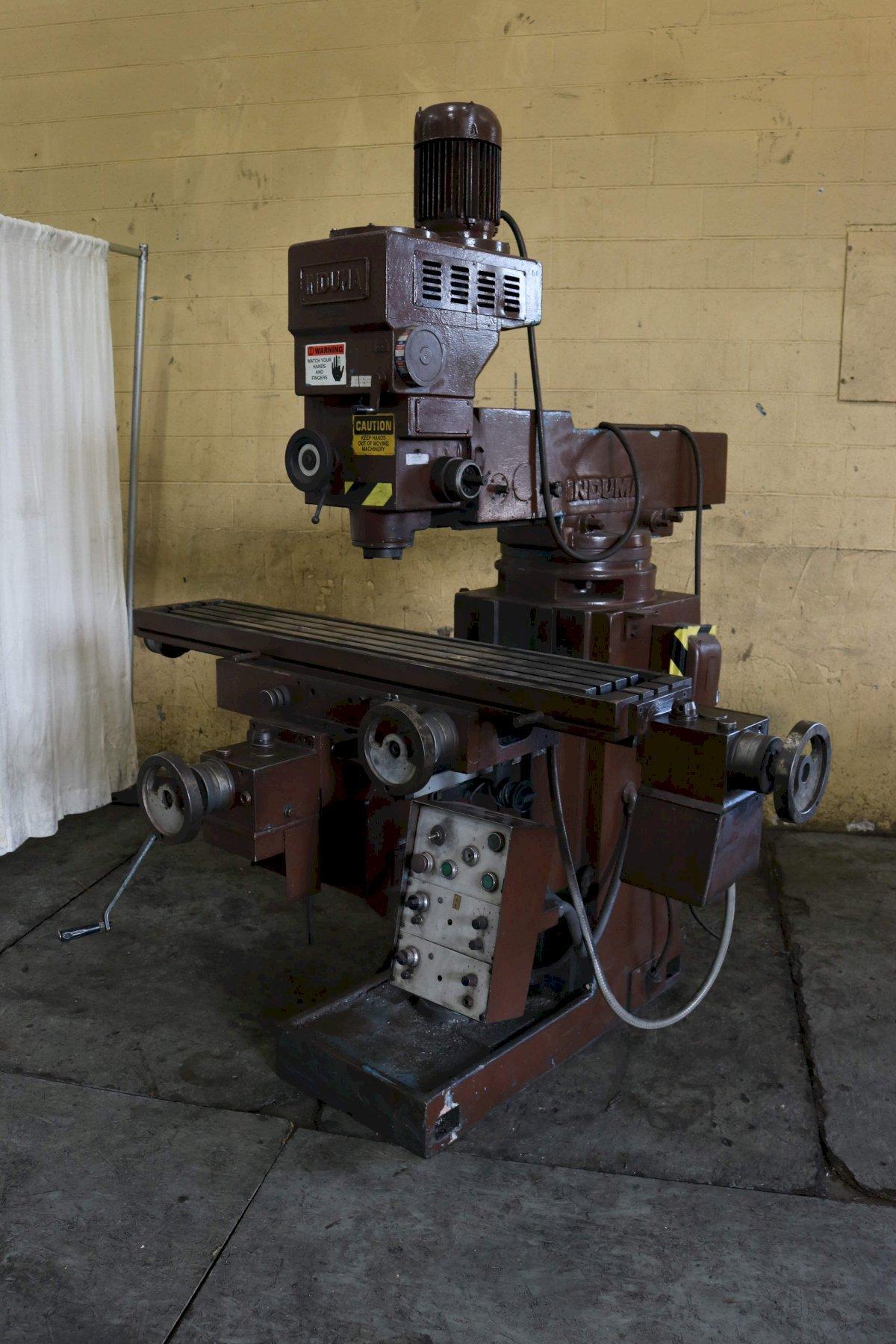

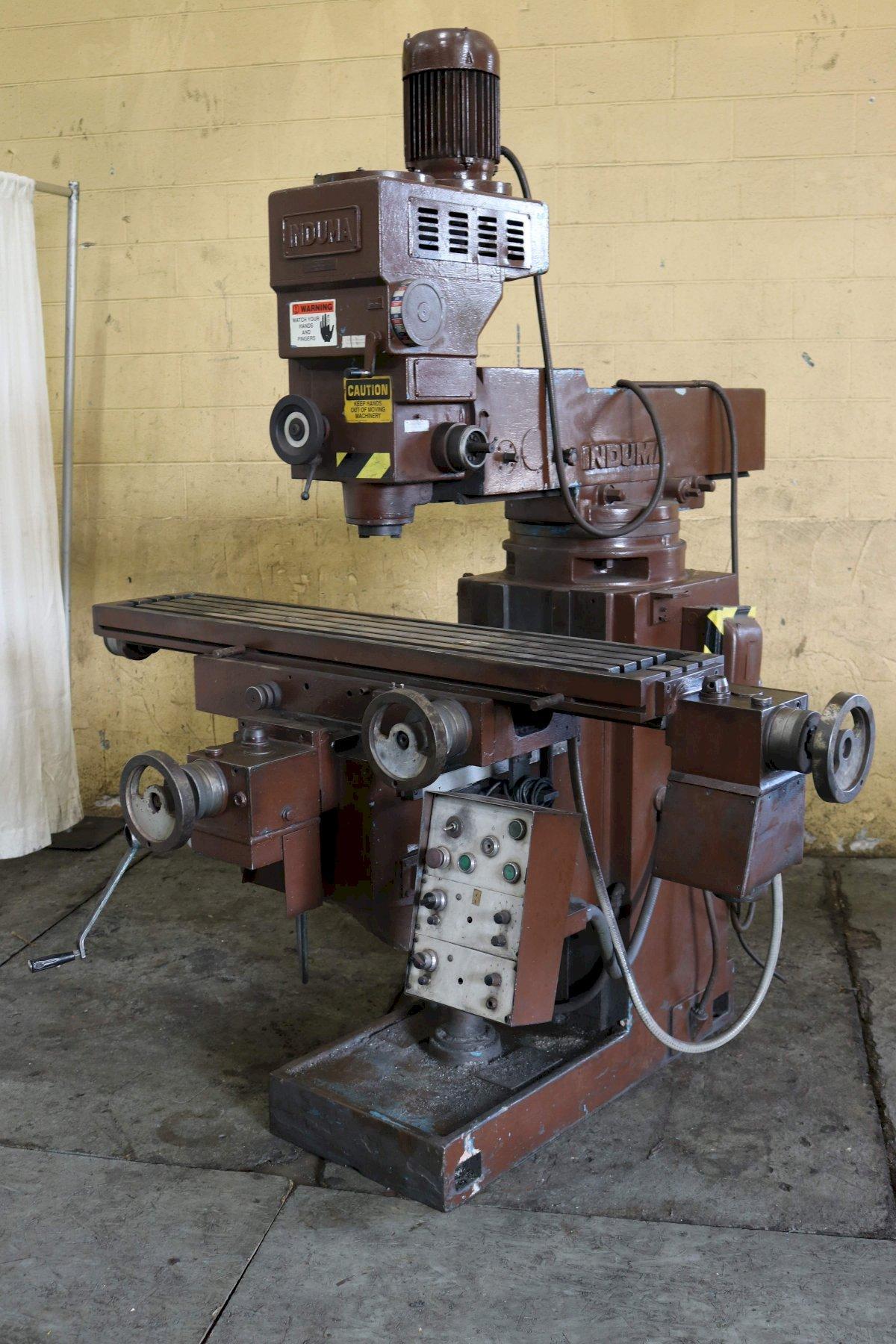

4HP INDUMA MODEL #4SA RAM TYPE VERTICAL MILL: STOCK #73329

Manufacturer

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

73329

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

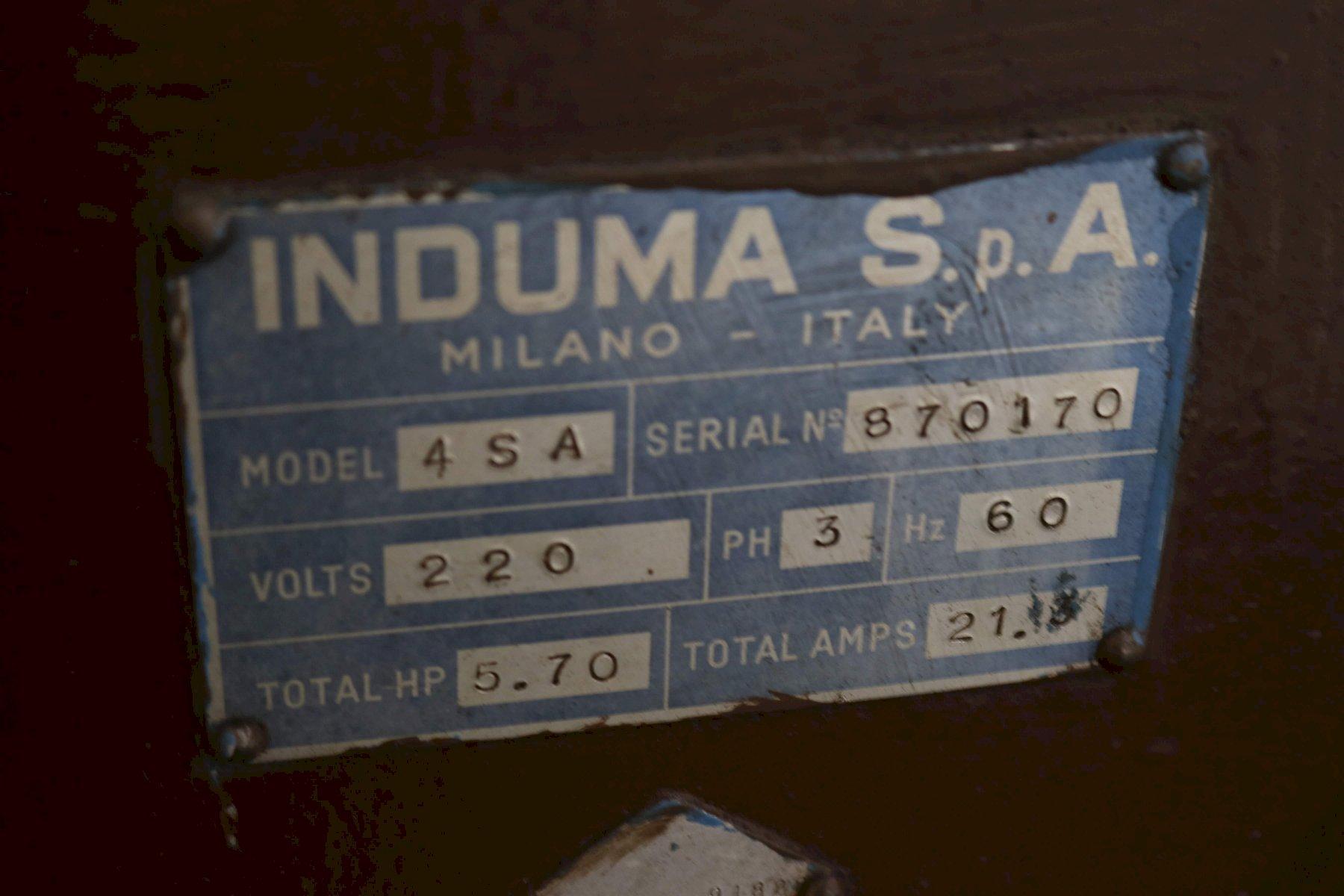

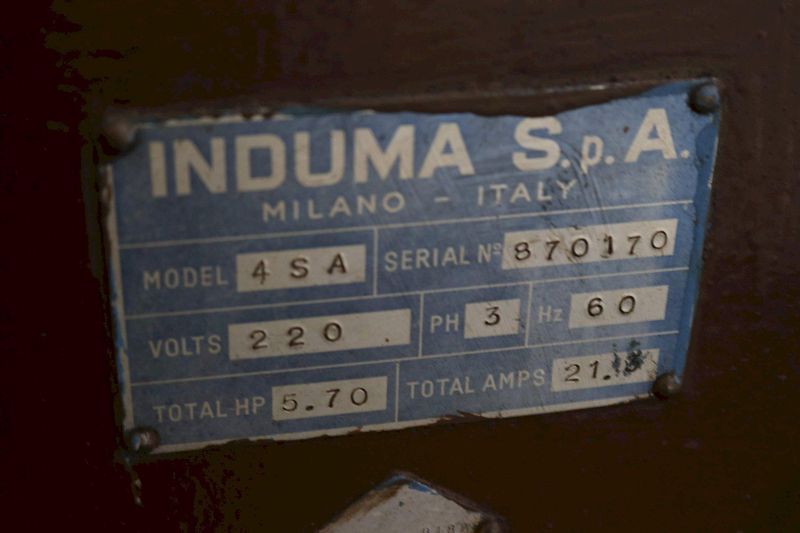

SERIAL ................................. 870170
MODEL .................................. 4SA

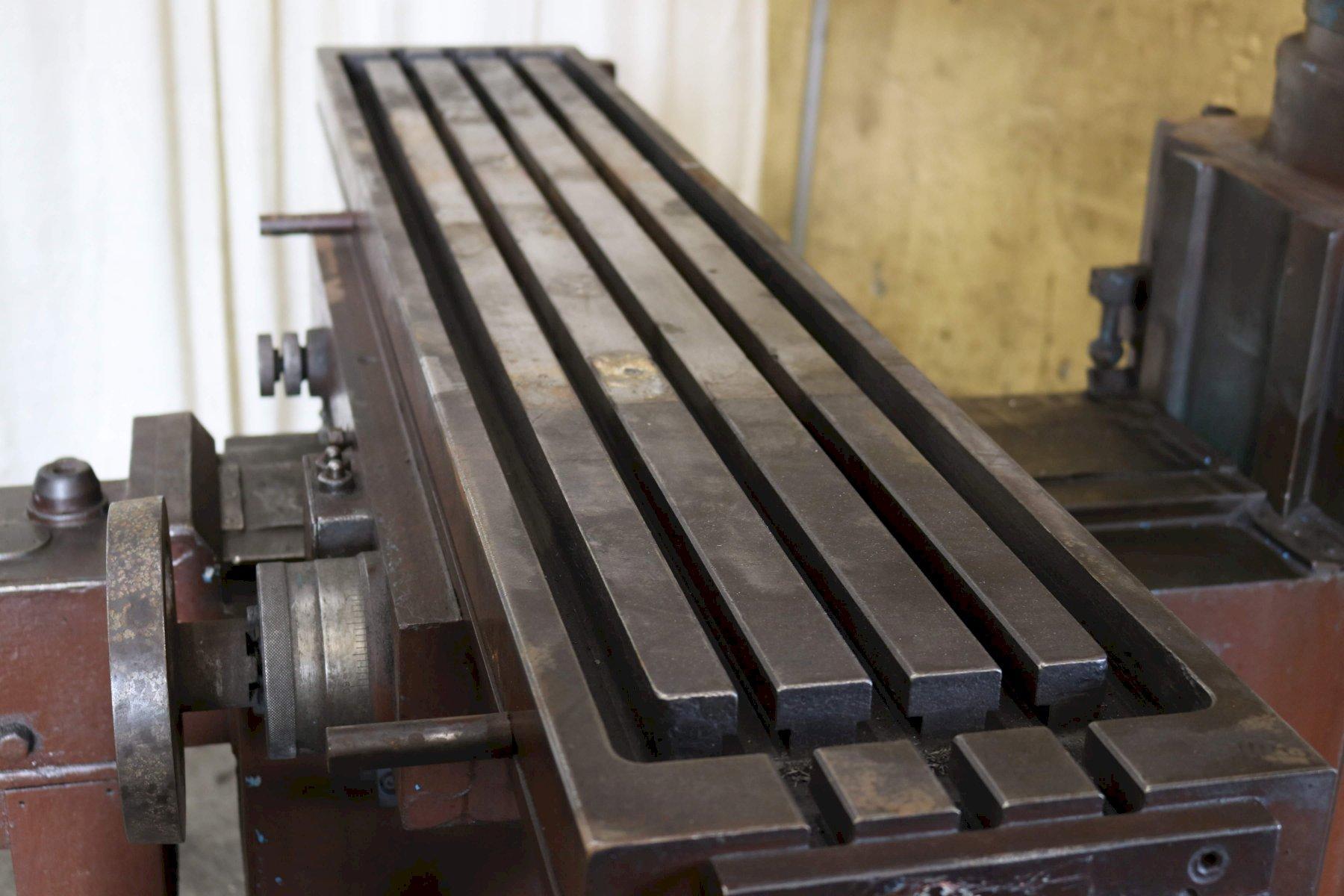

AREA OF TABLE .......................... 58" X 11"
SPINDLE SPEEDS ......................... 80 TO 3600 RPM (VARIABLE)
POWER LONGITUDINAL FEED ................ 3/4 TO 24 IPM
POWER CROSS FEED ....................... 3/4 TO 24 IPM
LONGITUDINAL TRAVEL .................... 36"
CROSS TRAVEL ........................... 15"
VERTICAL TRAVEL OF KNEE (POWERED) ...... 16"
QUILL TRAVEL ........................... 5"
QUILL FEEDS ............................ 001 005 & 015 IPR

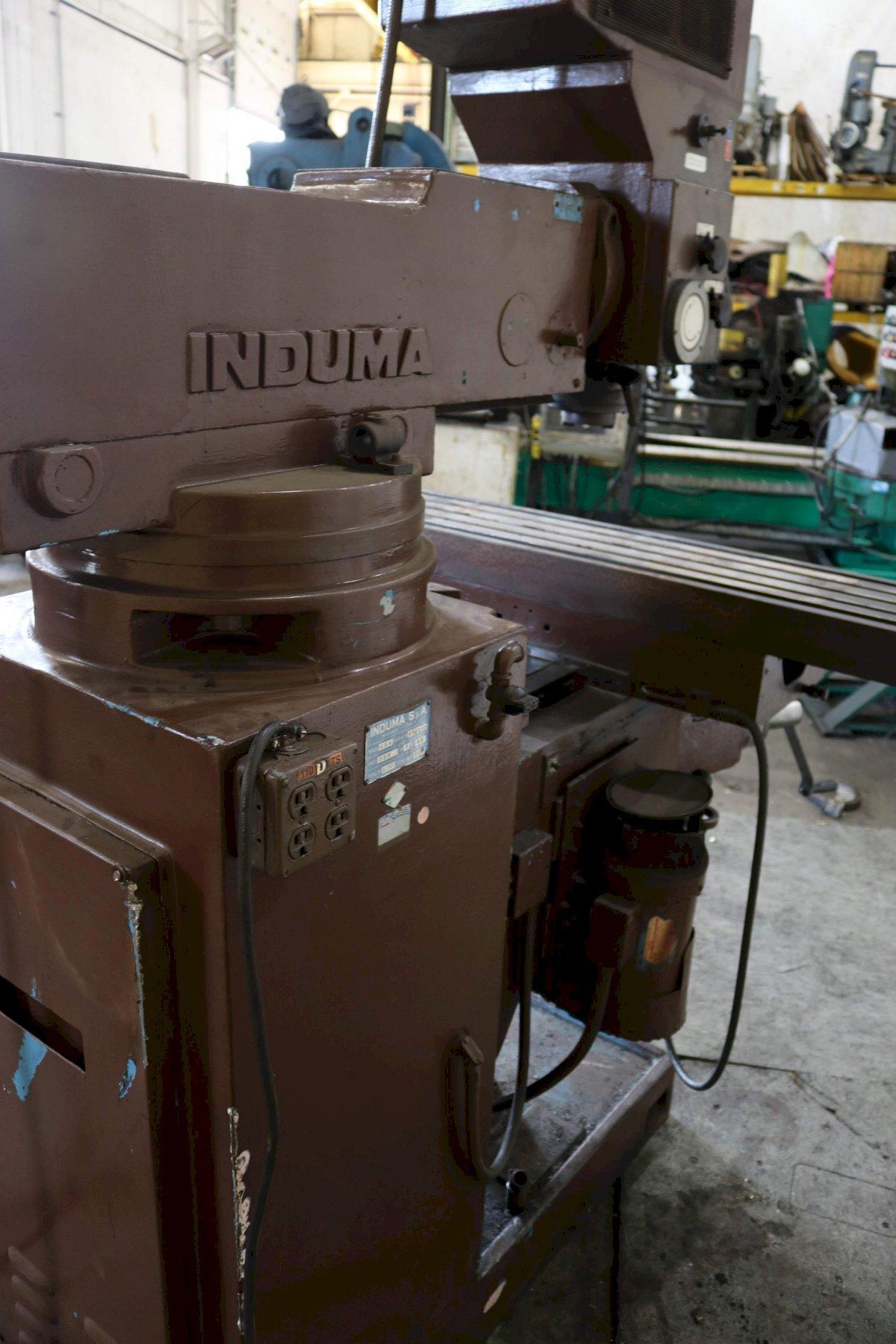

HORIZONTAL TRAVEL OF RAM ON BASE ....... 16"
DEPTH OF THROAT ........................ 2" MINIMUM / 25" MAXIMUM
SPINDLE TO TOP OF TABLE ................ 10" MINIMUM / 24" MAXIMUM
TAPER IN SPINDLE ....................... #30 TAPE

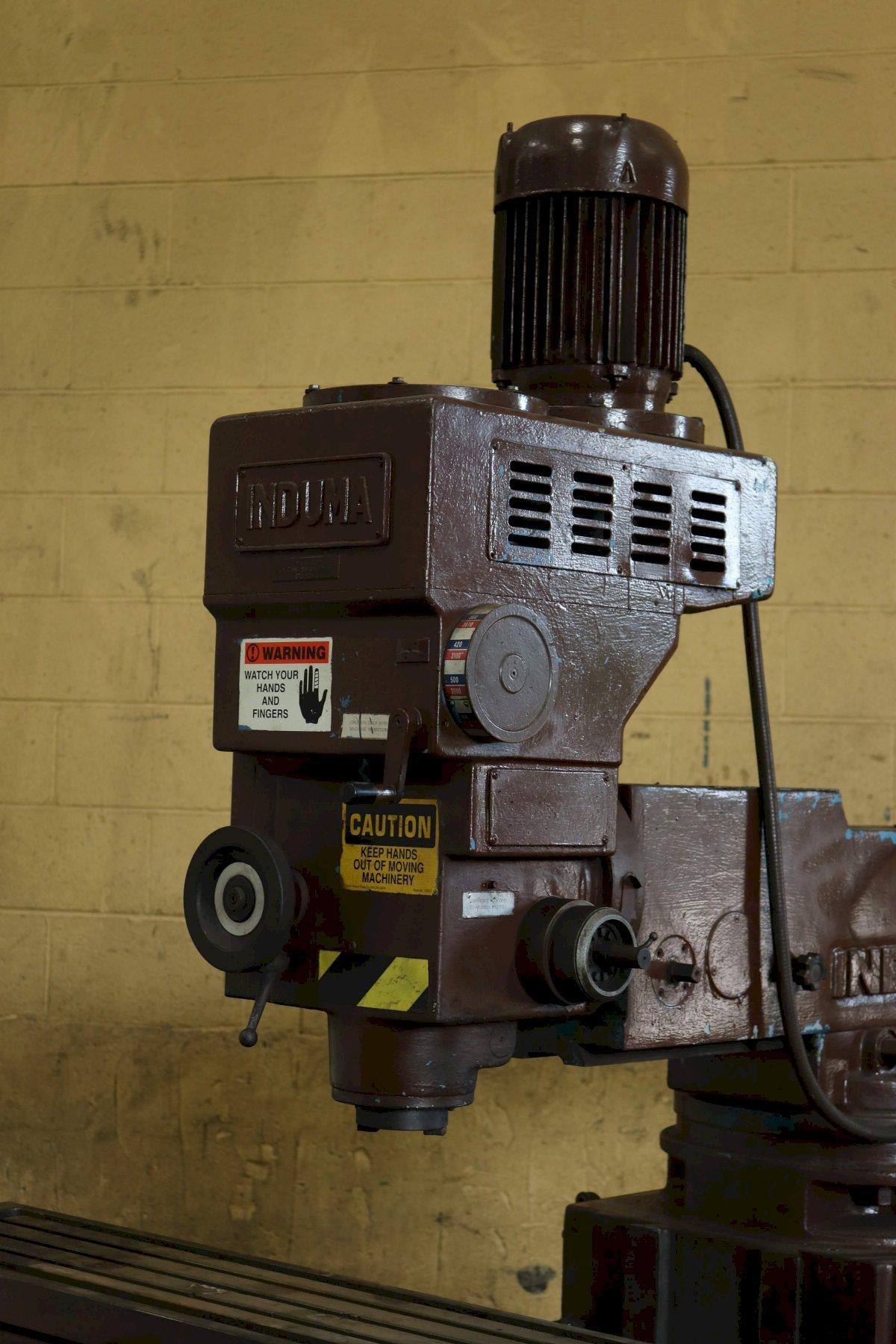

HORSEPOWER SPINDLE MOTOR ............... 4
