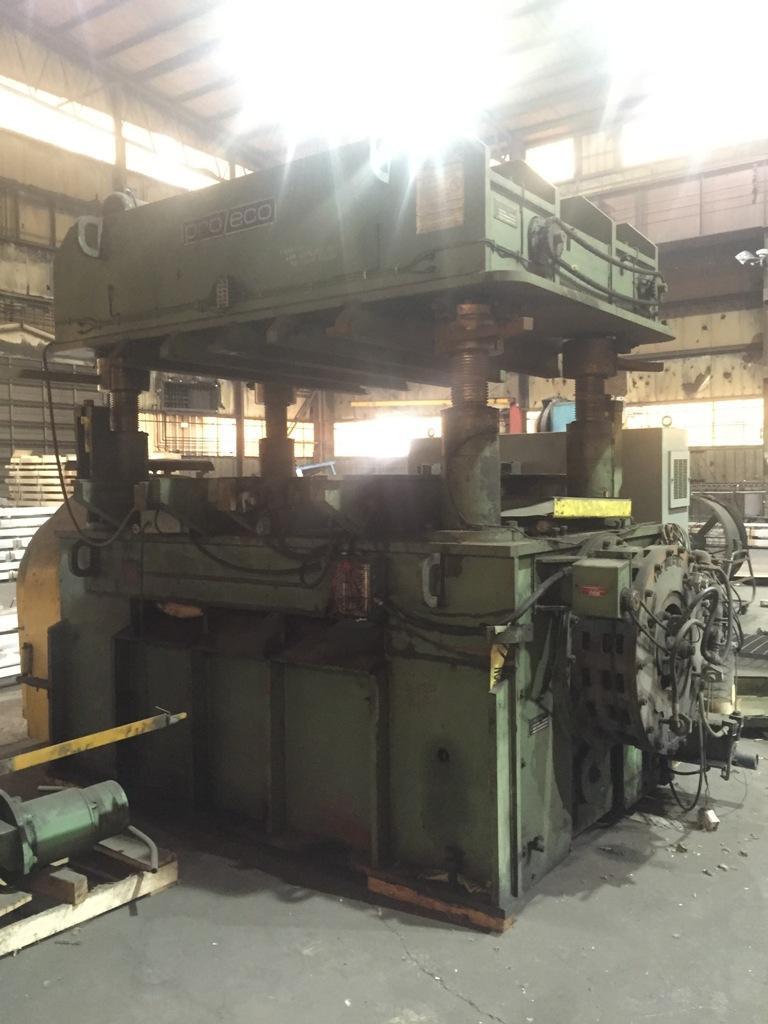

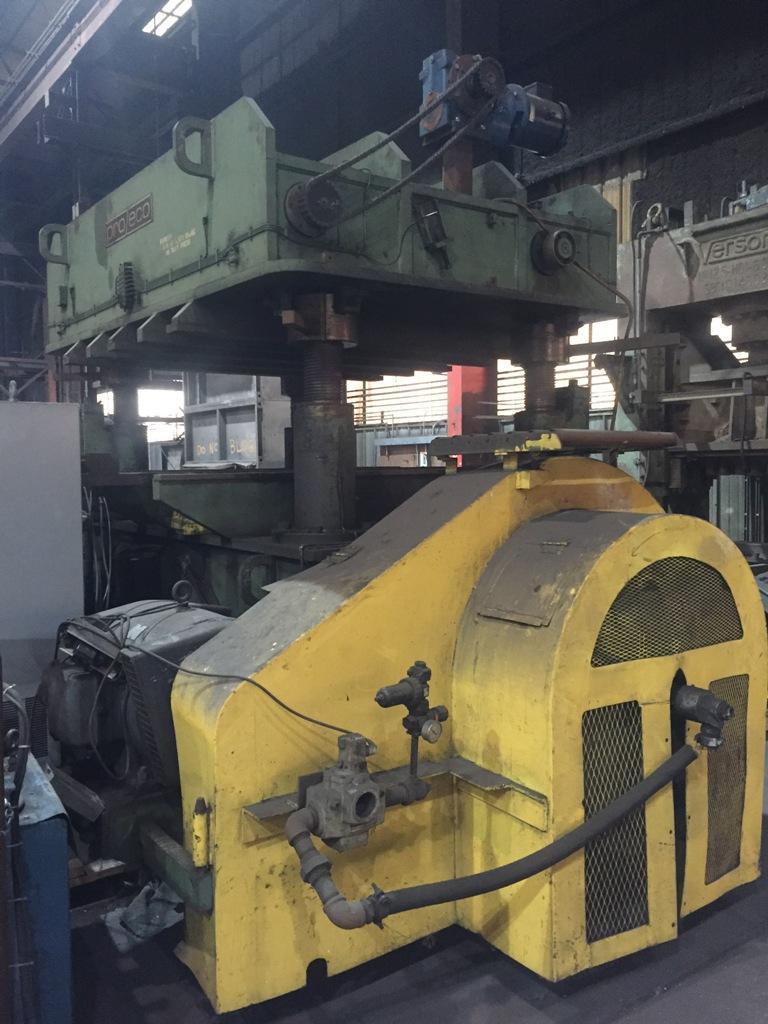

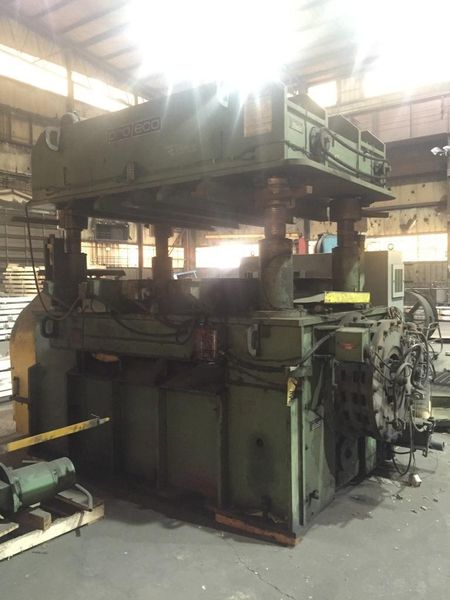

500 TON PRO ECO 4 POST CUTOFF PRESS: STOCK 65983

Manufacturer

Category

Presses

Type

PRESSES, CUT-OFF

Stock

65983

Model

0500

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

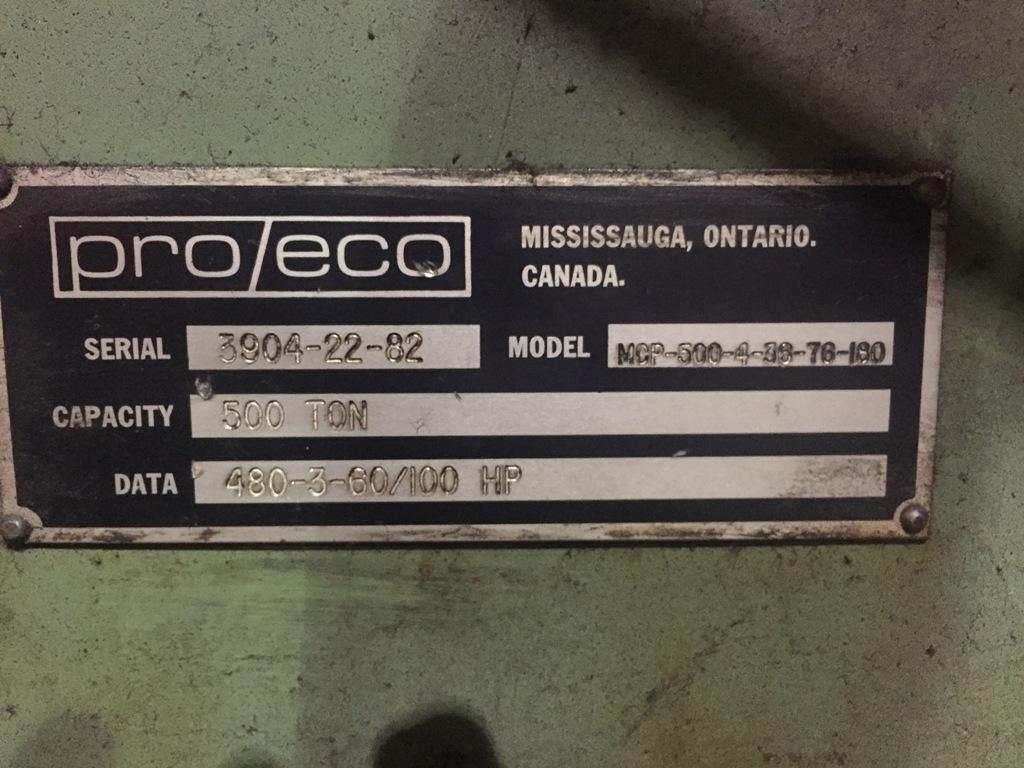

SERIAL .................... 3904-22-82
MODEL ..................... MCP-500-4-36-76-180
CAPACITY .................. 500 TON
STROKE .................... 4"
SHUT HEIGHT ............... 13"
SHUT HEIGHT ADJUSTMENT .... 10" (POWERED SCREW)
CRANK SPEED ............... 180 RPM
MAX CUTS PER MIN .......... 20
CLUTCH & BRAKE ............ WICHITA ATD336 & ATD232H
LUBE SYSTEM ............... AUTO GREASE PUMP FROM PRESS TIMER
DIE SPACE ................. 36" X 76"
DIE CLEARANCE ............. 23"
DISTANCE BETWEEN POSTS .... 78" X 23"
AC MOTOR .................. 100HP/480/3/60
