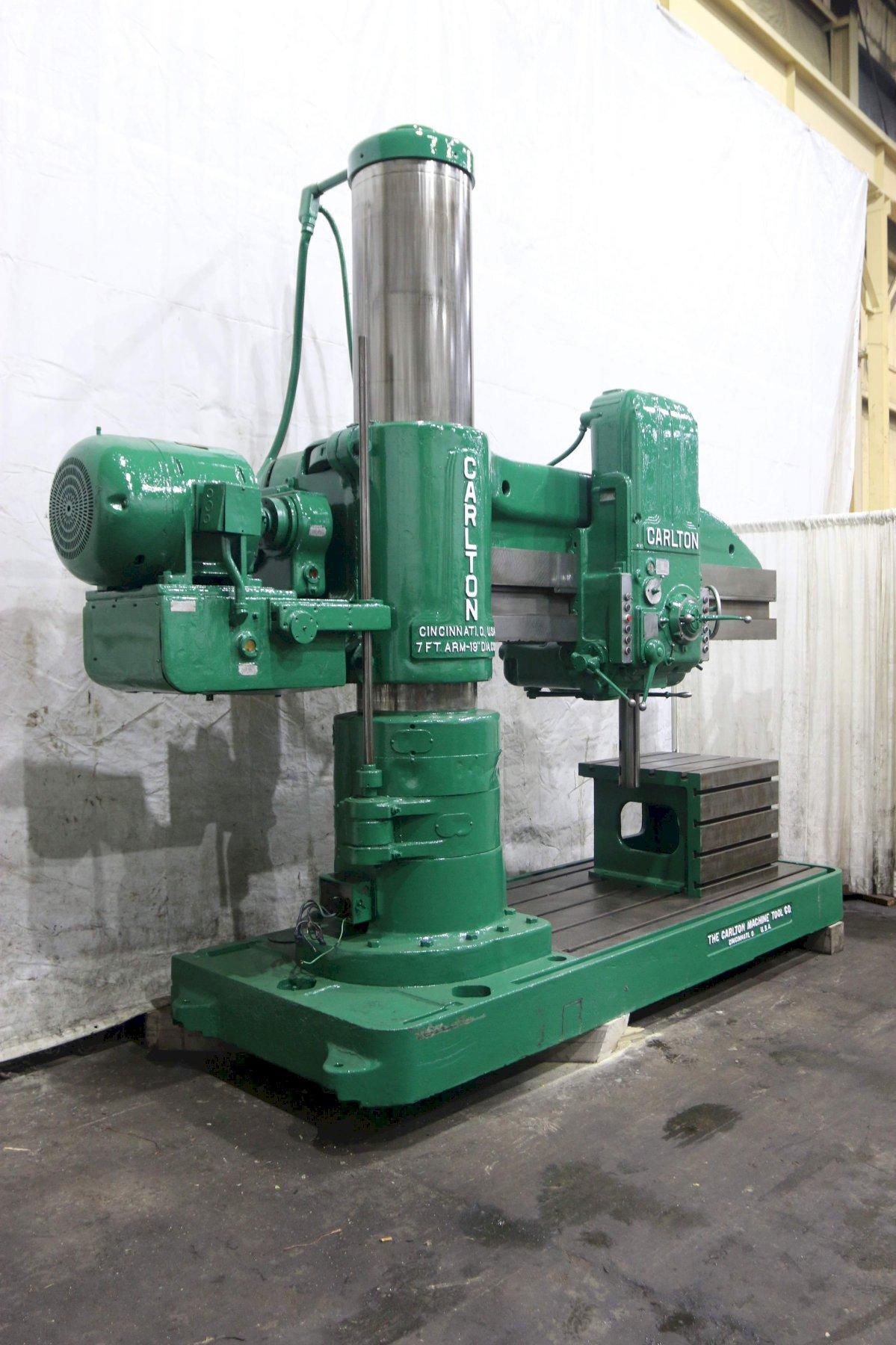

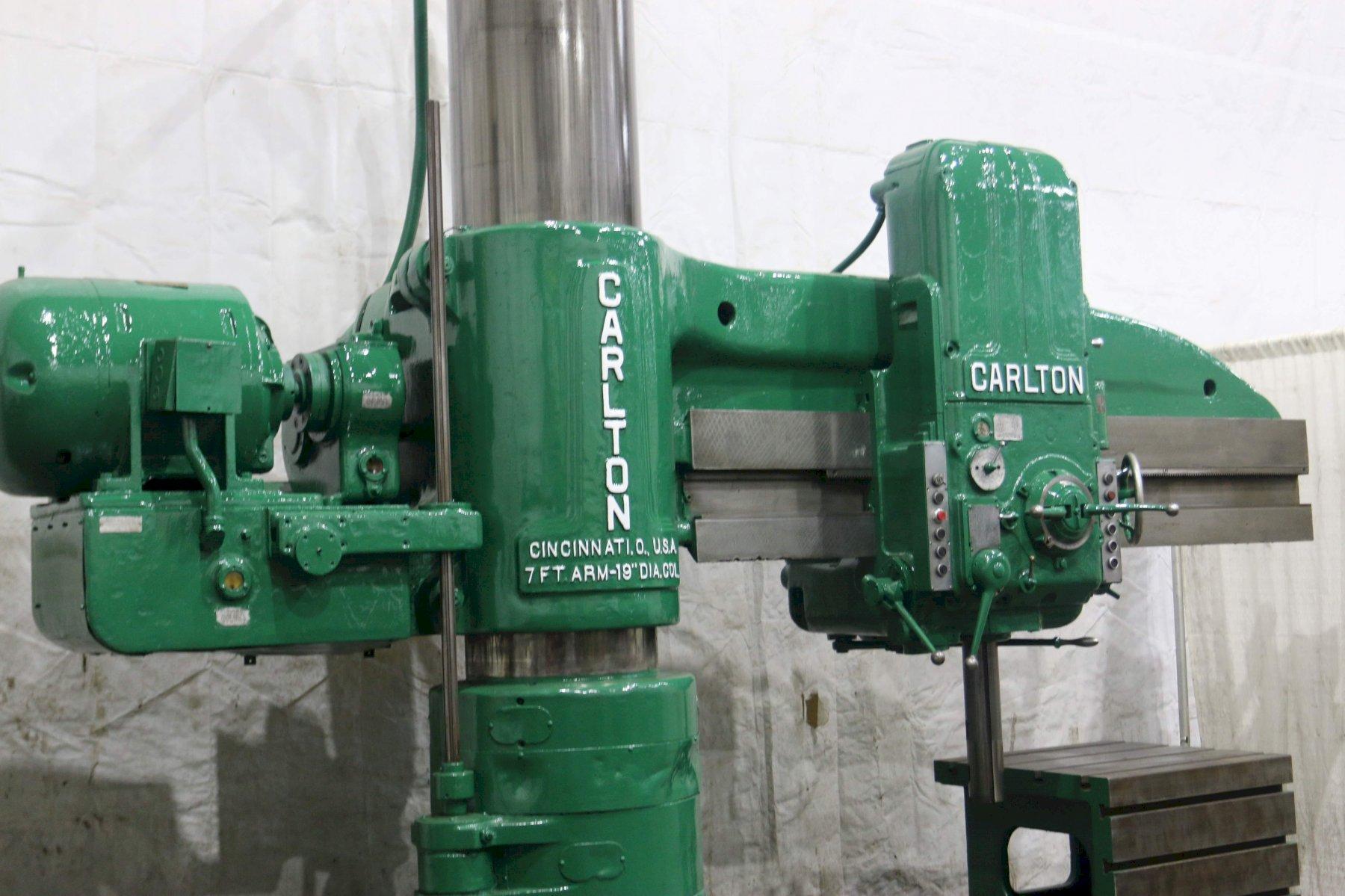

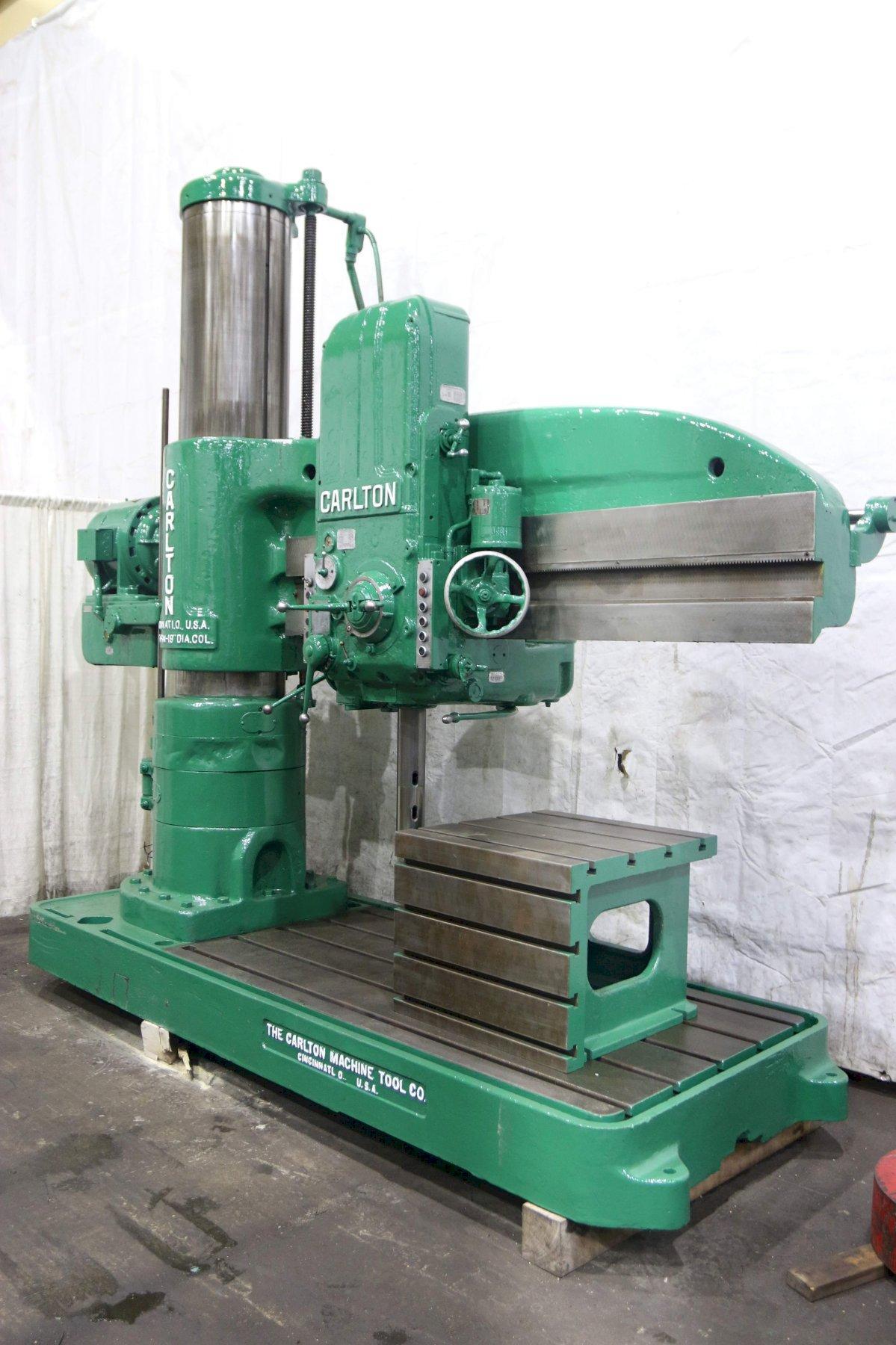

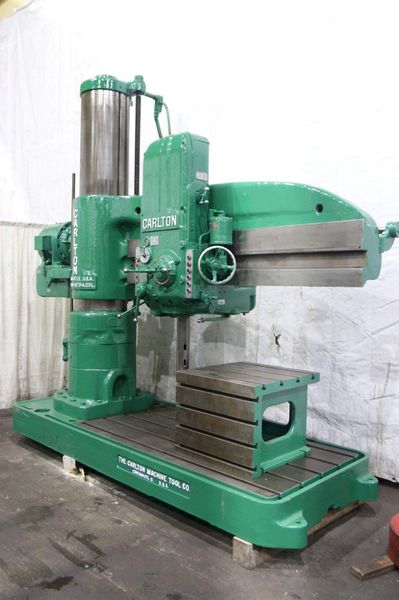

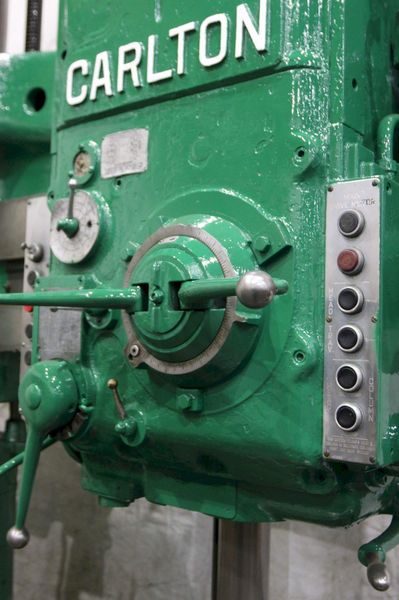

7' X 19' CARLTON MODEL #4A RADIAL DRILL: STOCK #70385

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

70385

Model

07 X 19

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ......................... 4A3211
MODEL .......................... 4A
SPINDLE SPEEDS ................. (36) 10 TO 1000 RPM
FEEDS .......................... (18) .004 TO .125
THREADS ........................ 8, 11-1/2, 14, 18 TPI
AREA OF BASE ................... 88" X 50" T SLOTS
DISTANCE SPINDLE TO BASE ....... 14-1/2" TO 68"
DISTANCE SPINDLE TO COLUMN ..... 13-1/4" TO 72"
SPINDLE STROKE ................. 20"
DIAMETER OF SPINDLE ............ 4"
SPINDLE TAPER .................. #6MT
POWER CLAMPING ................. HEAD & COLUMN
POWER TRAVEL ................... HEAD TRAVERSE & ARM ELEVATION
MOTOR .......................... 20 HP
