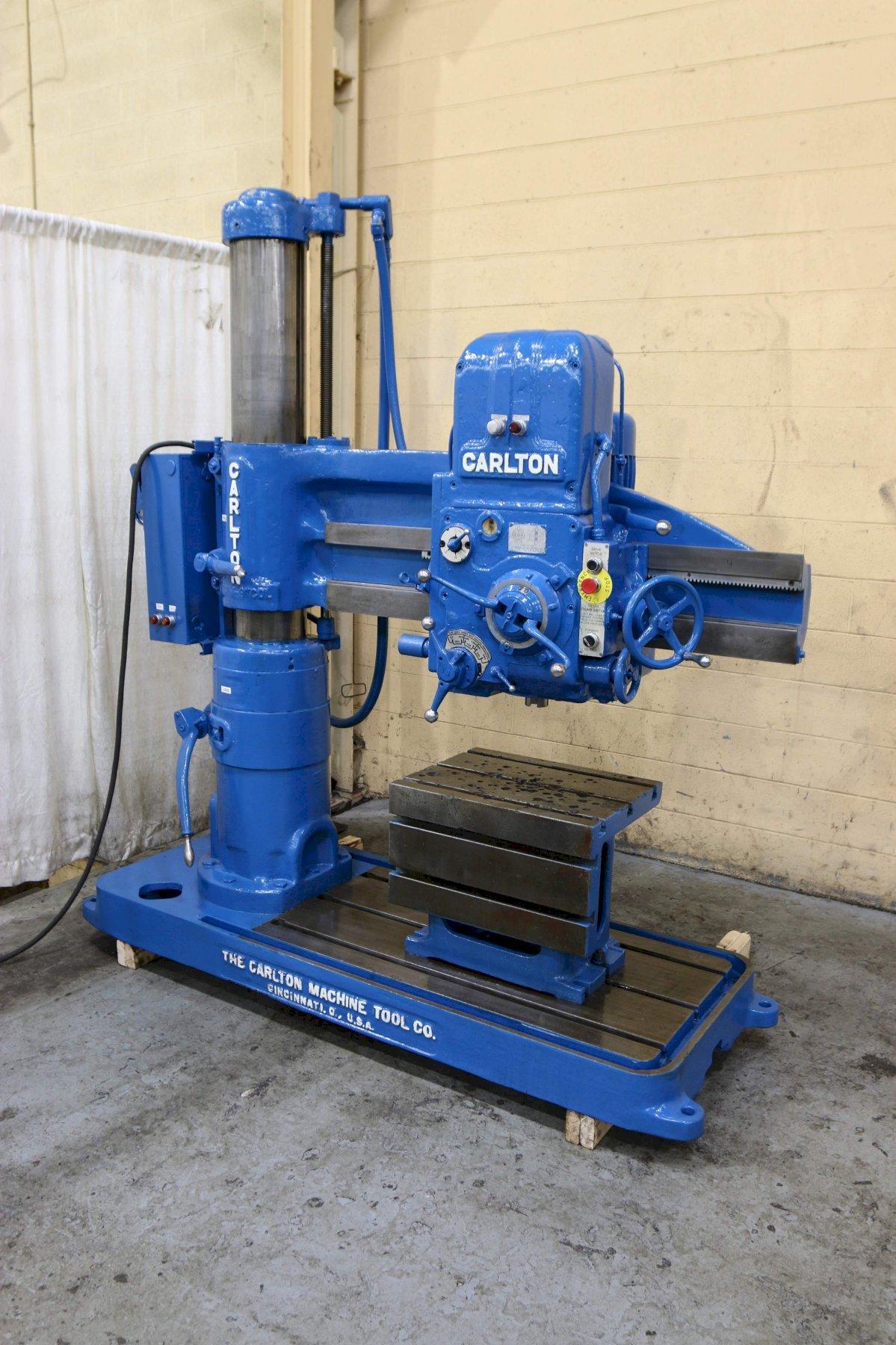

4' X 9" CARLTON MODEL #0A RADIAL DRILL: STOCK #69816

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

69816

Model

04 X 09

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................ 0A1003
MODEL ............................. 0A
SIZE .............................. 4' X 9"
ARM LENGTH ........................ 4'
COLUMN DIAMETER ................... 9"
SPINDLE SPEEDS .................... (12) 80 TO 1500 RPM
FEEDS ............................. (6) .006 TO .025 IPR
DIAMETER OF SPINDLE ............... 2-1/2"
SPINDLE TAPER ..................... #4 MT
SPINDLE TRAVEL .................... 12"
AREA OF BASE ...................... 53" X 31"
COLUMN TO SPINDLE ................. 9" TO 48"
SPINDLE TO BASE ................... 14" TO 53"
COOLANT ........................... YES
POWER ELEVATION ................... YES
SPINDLE MOTOR ..................... 5 HORSEPOWER
