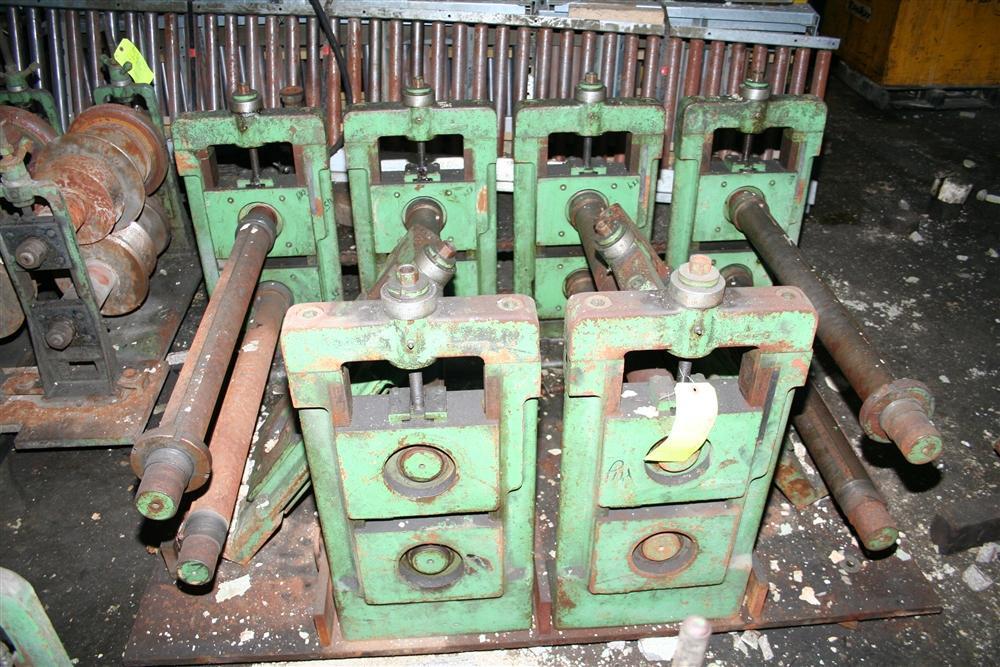

ASC RAFTED ROLL FORMING HEADS: STOCK #50401

ASC RAFTED ROLL FORMING HEADS: STOCK #50401

ASC RAFTED ROLL FORMING HEADS: STOCK #50401

Manufacturer

Category

Type

Stock

50401

Model

12 X 3

Dealer Location

Ohio

Request a Quote

View Contact Information

Specifications
Files & Videos

Spec Sheet

SPINDLE DIAMETER ............................ 3"
MAXIMUM BETWEEN SHOULDERS ................... 30"
NOMINAL WIDTH ............................... 28"
HORIZONTAL DISTANCE BETWEEN STANDS........... 16"
CENTER OF LOWER SPINDLE TO BASE ............. 7"
VERTICAL CENTERS ............................ 9" MINIMUM - 12" MAXIMUM
MICROMETER SCREW ADJ ........................
NOTE: MAXIMUM OPENING COULD BE INCREASED AS SPACERS
COULD BE INSTALLED BETWEEN CAPS & STANDS
