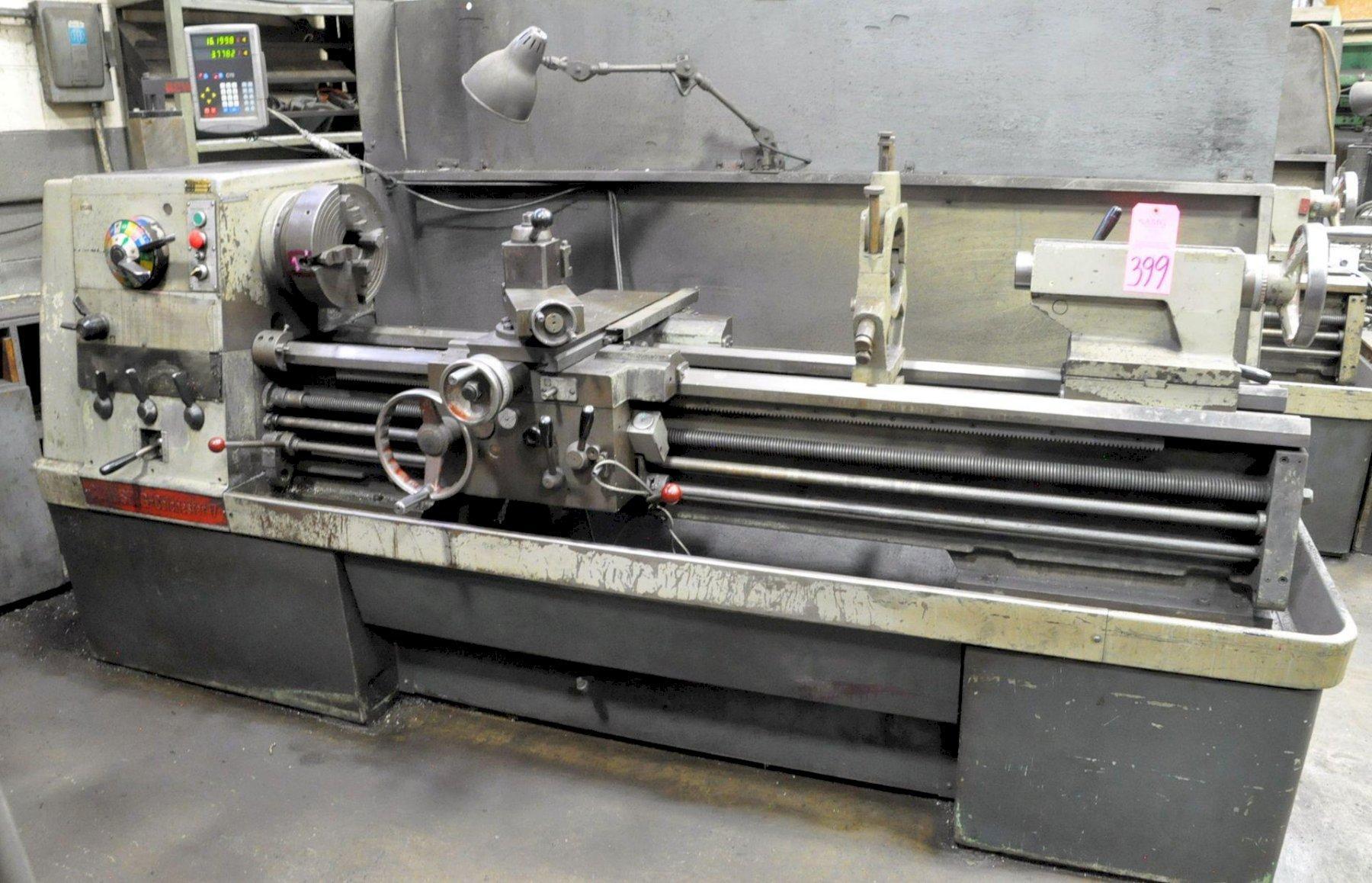

17" X 60" CLAUSING COLCHESTER ENGINE LATHE: STOCK #73741

Manufacturer

CLAUSING COLCHESTER

Category

Lathes

Type

LATHES, ENGINE

Stock

73741

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ......................... 7-0218/13864
MODEL .......................... 17 COLCHESTER
SWING OVER WAYS ................ 17"
SWING OVER CROSS SLIDE ......... 10-1/2"
DISTANCE BETWEEN CENTERS ....... 60"
SPINDLE SPEEDS ................. (16) 20 TO 1600 RPM
FEEDS LONGITUDINAL ............. (45) .002 TO .032 IPR
THREADS (ENGLISH) .............. (38) 2 TO 72 TPI
THREADS (METRIC) ............... (40) .4 TO 14 MMPI
CROSS FEEDS .................... .001 TO .016

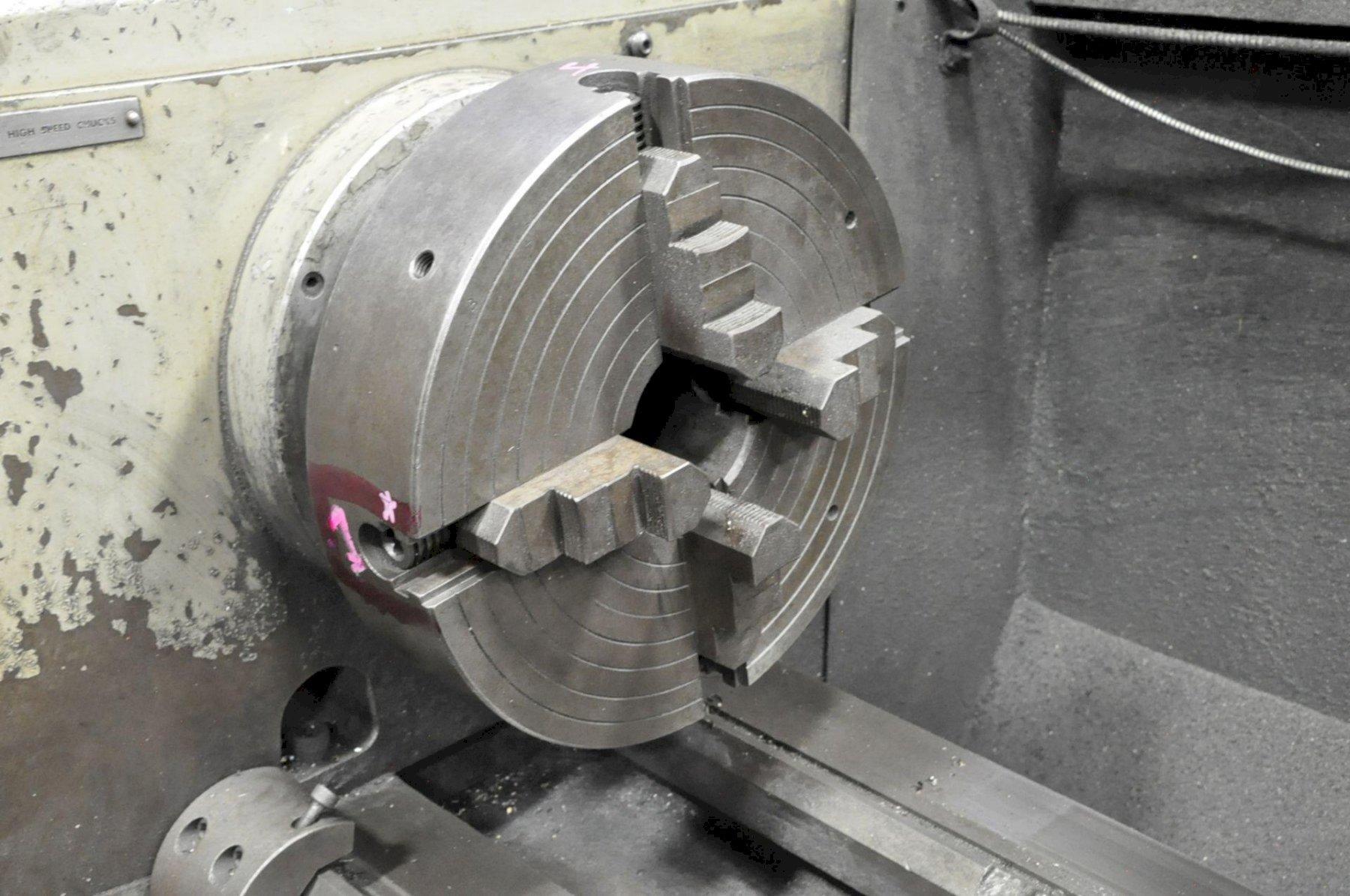

CHUCK .......................... 12" 4 JAW
DIAMETER OF SPINDLE HOLE ....... 3"

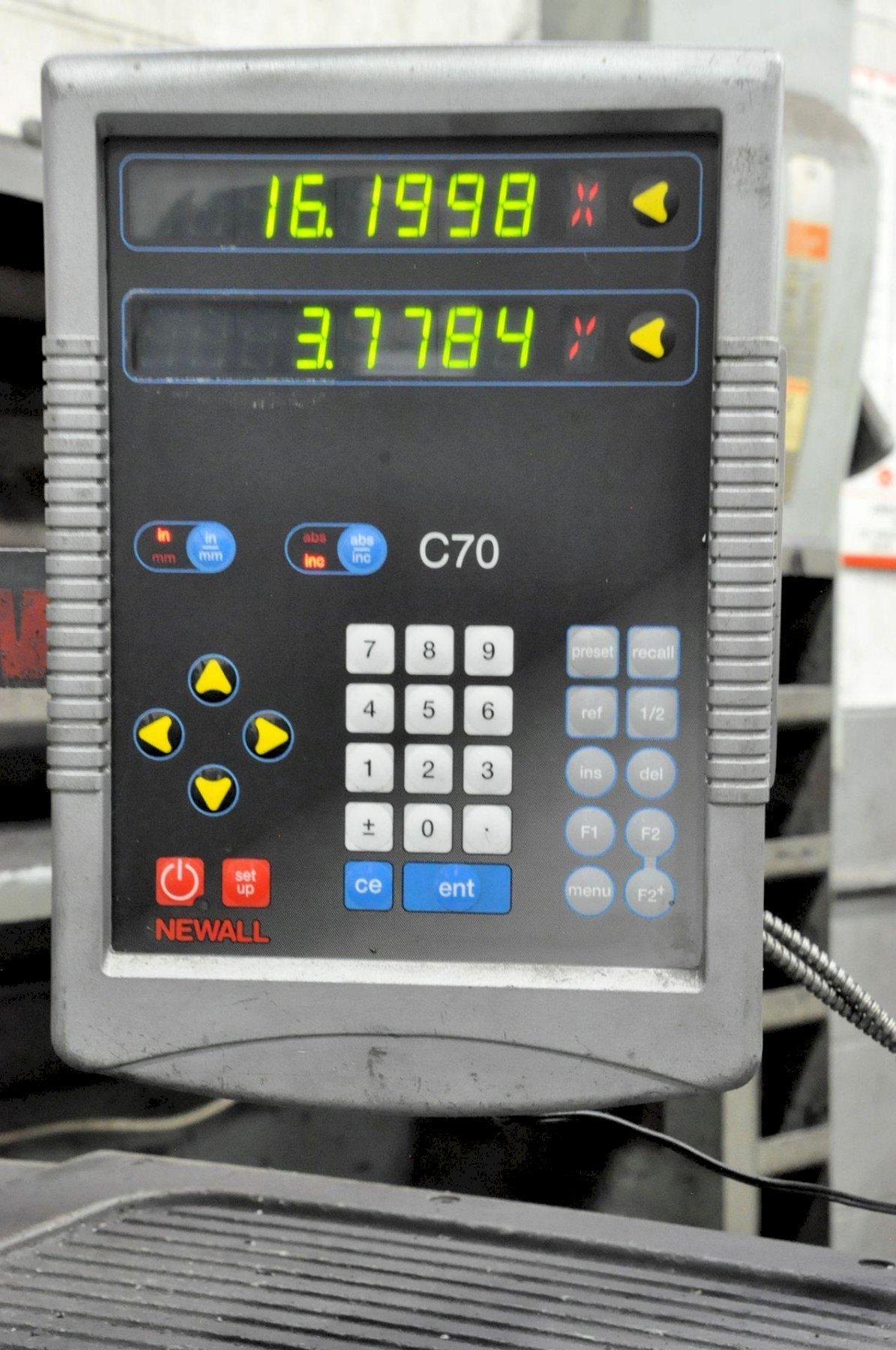

DIGITAL READOUTS 2 AXIS ........ NEWALL C70
STEADY REST .................... 3 POINT
TAPER IN TAIL STOCK ............ #5 MT
THREAD DIAL .................... YES
HARDENED WAYS .................. YES
FORWARD & REVERSING ............ YES
COOLANT ........................ YES
MOTOR, HORSEPOWER .............. 10​
