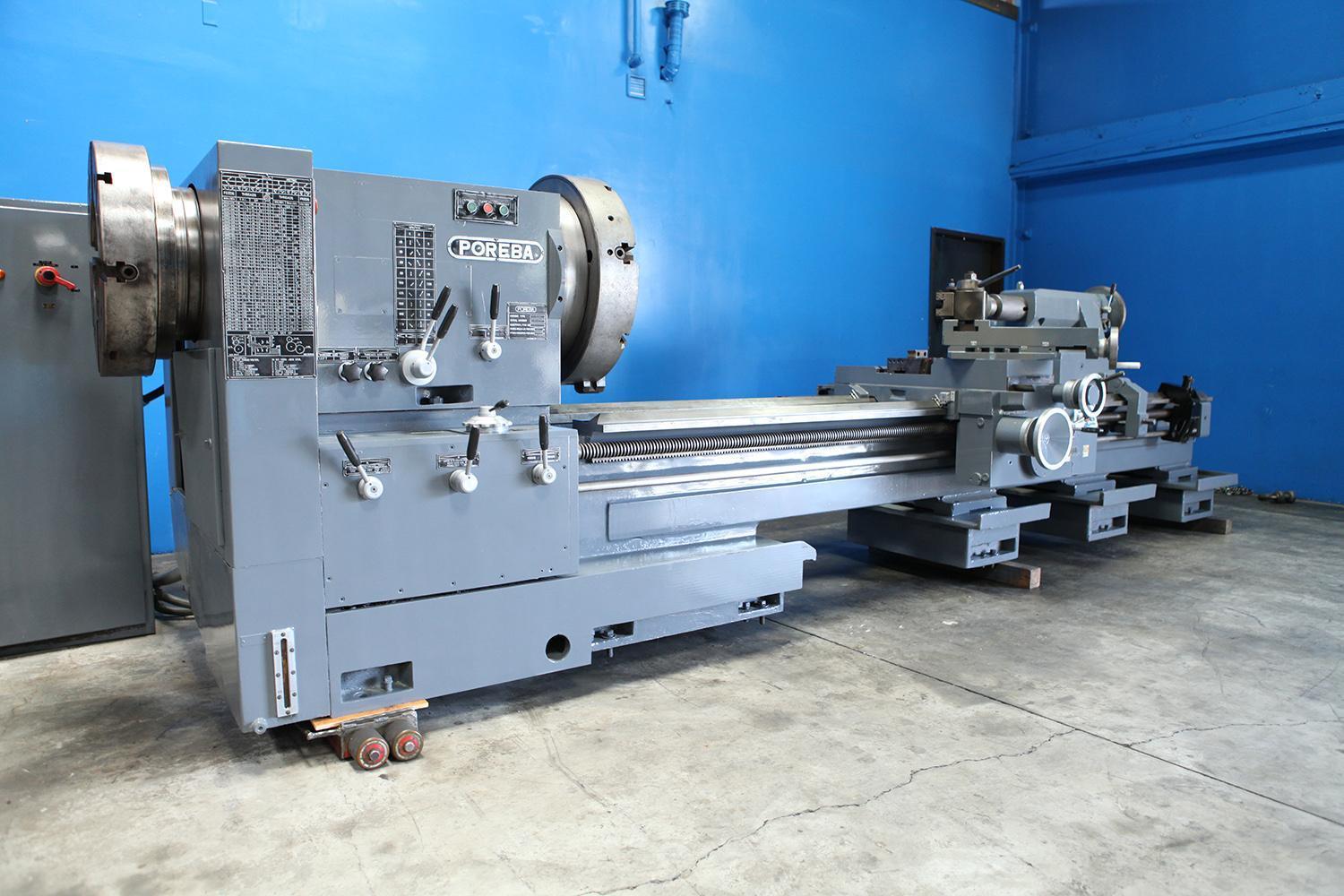

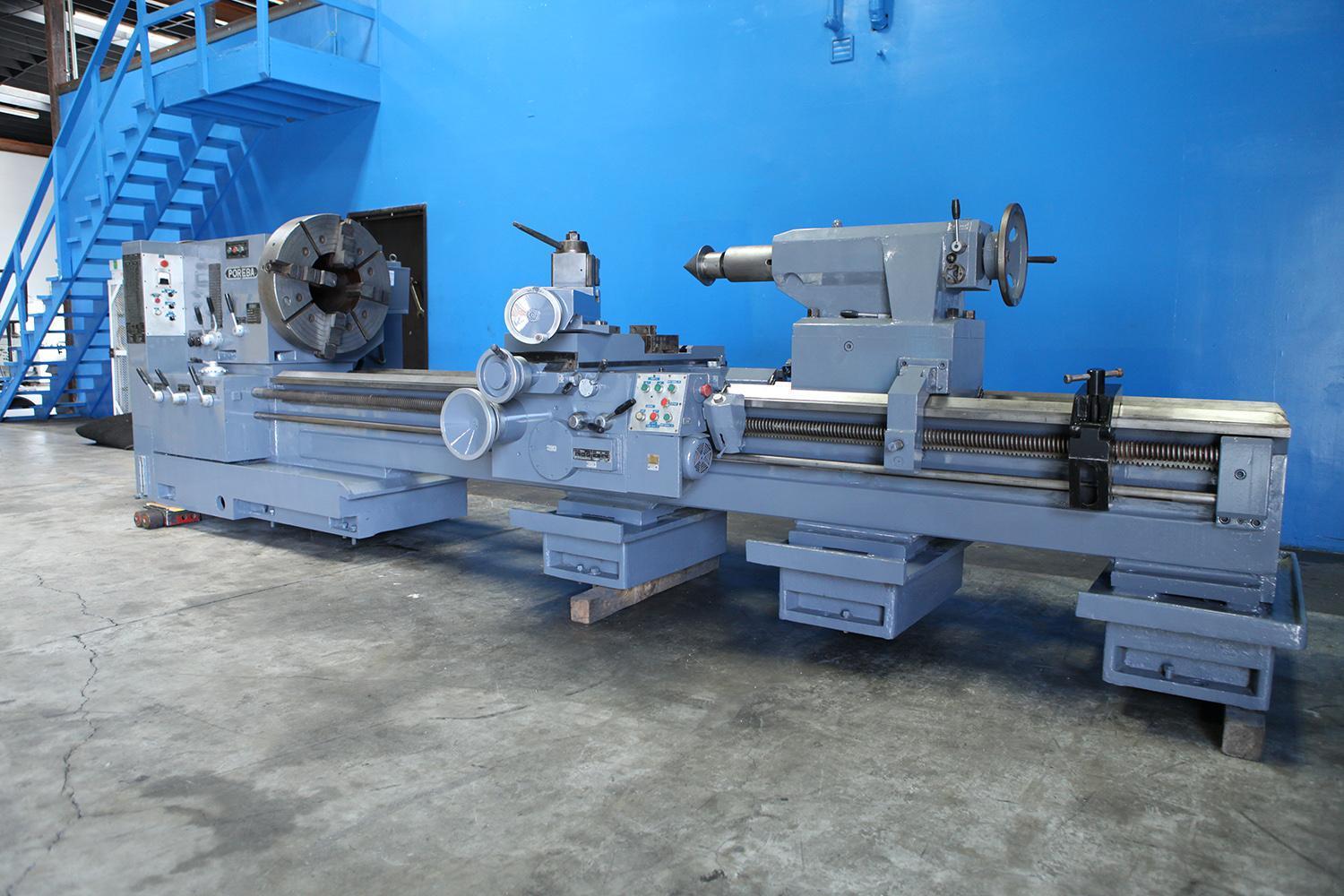

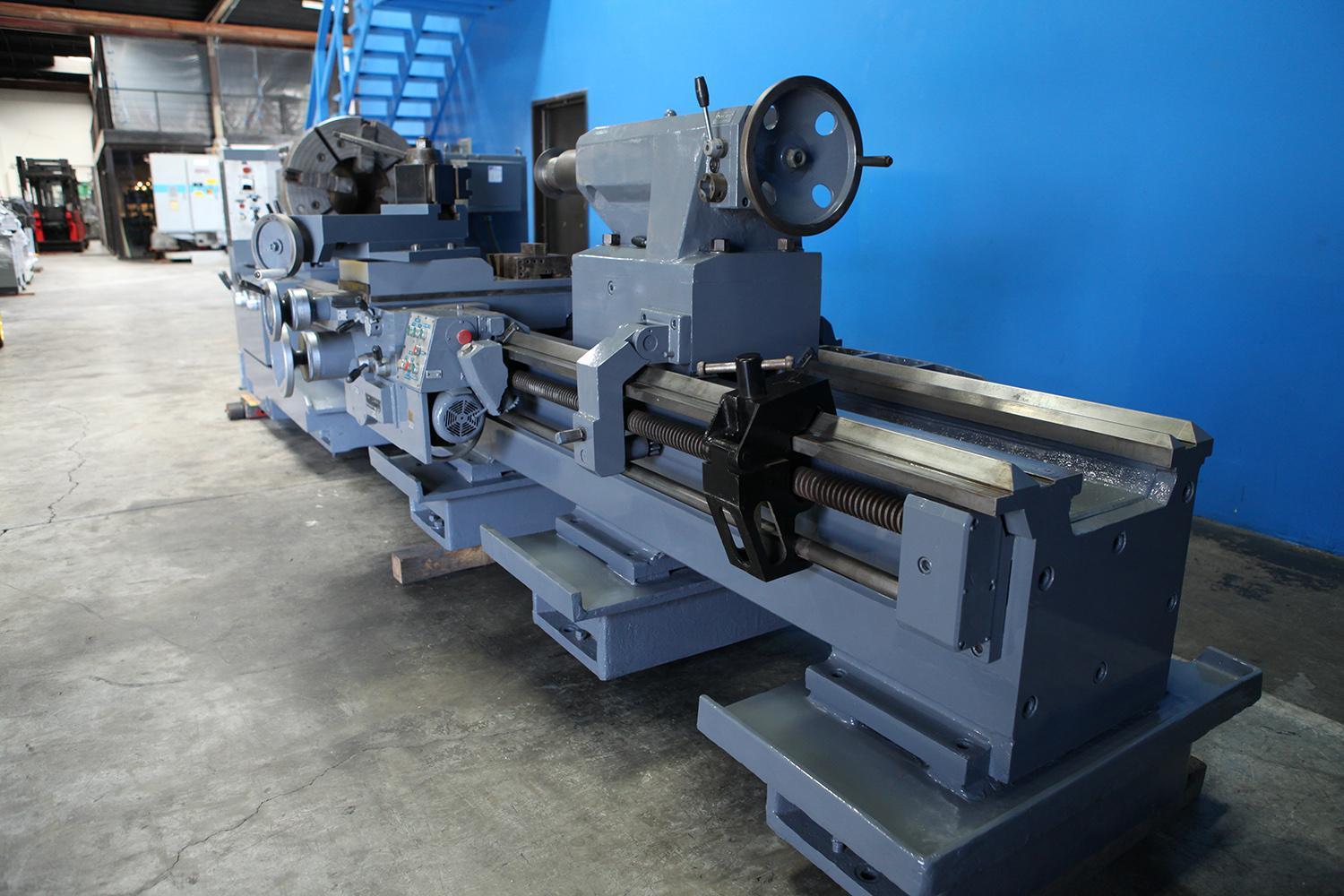

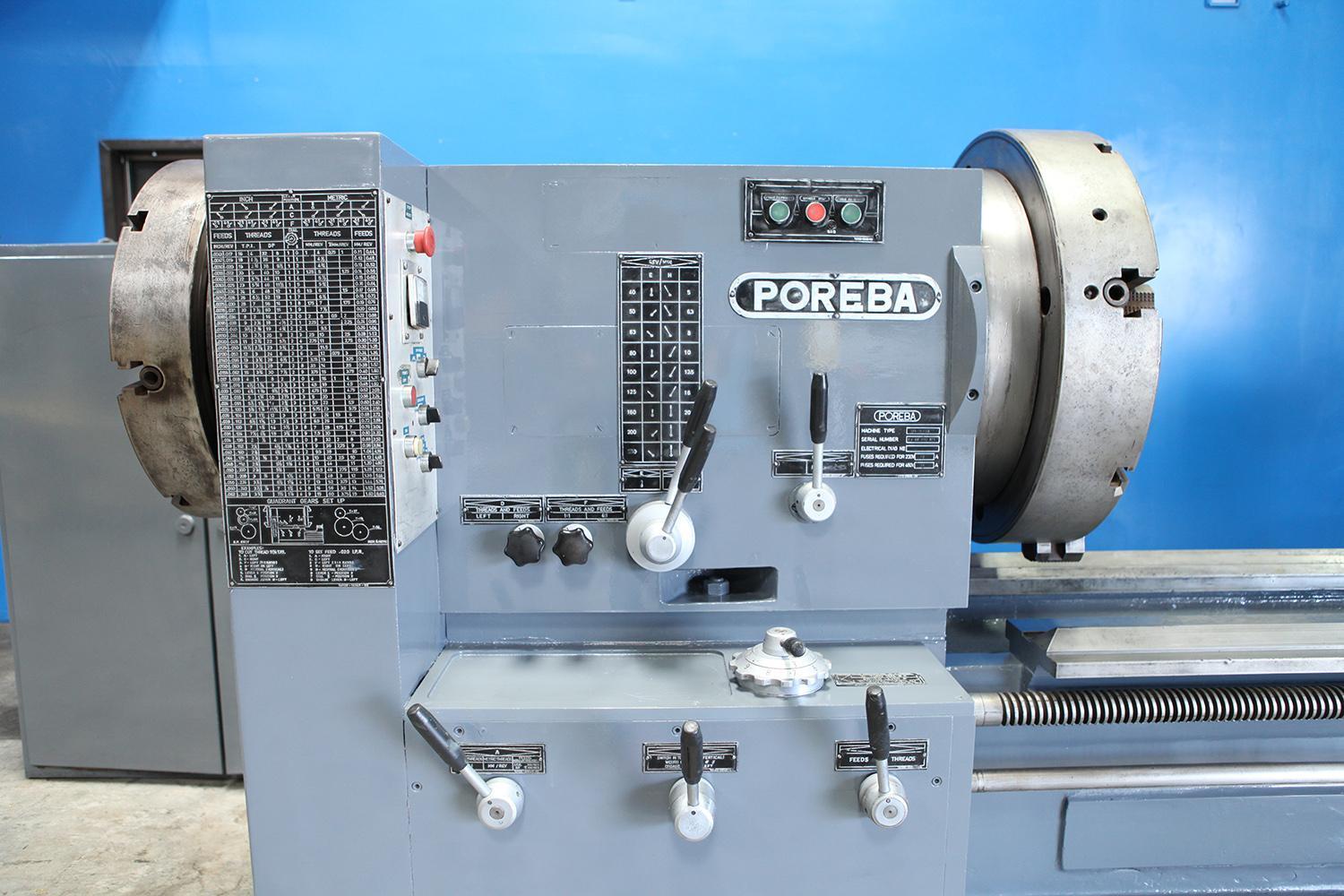

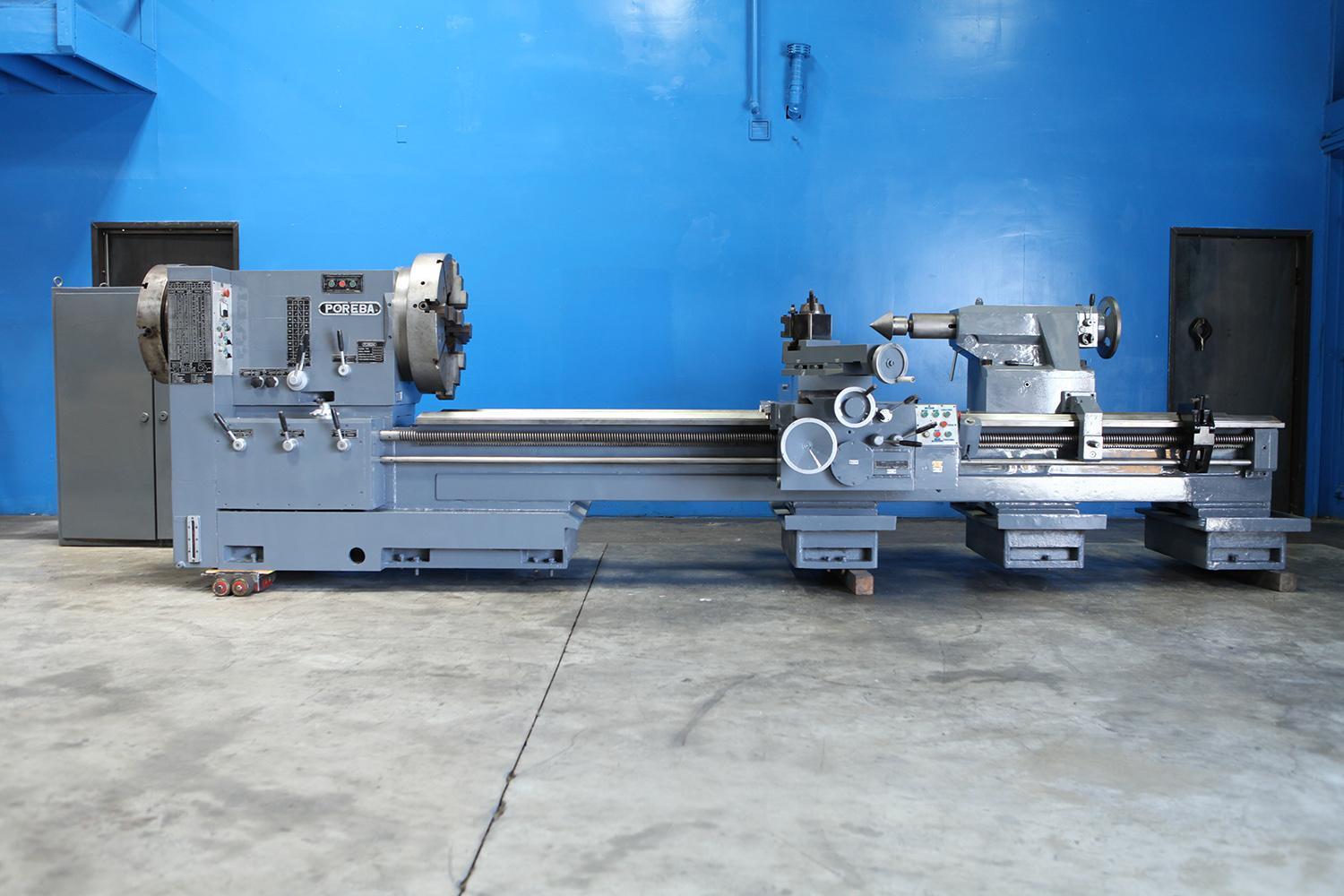

36' X 120' POREBA HOLLOW SPINDLE 12.5' HOLE ENGINE LATHE: STOCK 62621

Manufacturer

Category

Lathes

Type

LATHES, ENGINE

Stock

62621

Model

36 X 120 HOLLOW

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ...................... 0080-1197-021
MODEL ....................... TPL-90/3M
YEAR BUILT .................. 1980
SWING OVER BED .............. 36"
SWING OVER CROSS SLIDE ...... 25-1/2"
DISTANCE BETWEEN CENTERS .... 120"
SPINDLE SPEEDS .............. (36) 5 TO 250 RPM
SPINDLE NOSE ................ A1- 20
HOLE THROUGH SPINDLE ........ 12-1/2"
THREADING, INCH ............. (54) 1/2 TO 16 TPI
THREADING, METRIC ........... (72) 1 TO 60 MM
FEEDS ....................... (60) 0.0021" TO 0.248"
CROSS SLIDE TRAVEL .......... 18-1/2"
TAILSTOCK QUILL TAPER ....... #6 MT
TAILSTOCK QUILL TRAVEL ...... 11-3/4"
CHUCK, FRONT ................ 28" 4 JAW
CHUCK, REAR ................. 24" 4 JAW
TAPER ATTACHMENT ............ YES
RAPID TRAVERSE .............. 4 WAY
HORSEPOWER .................. 30
