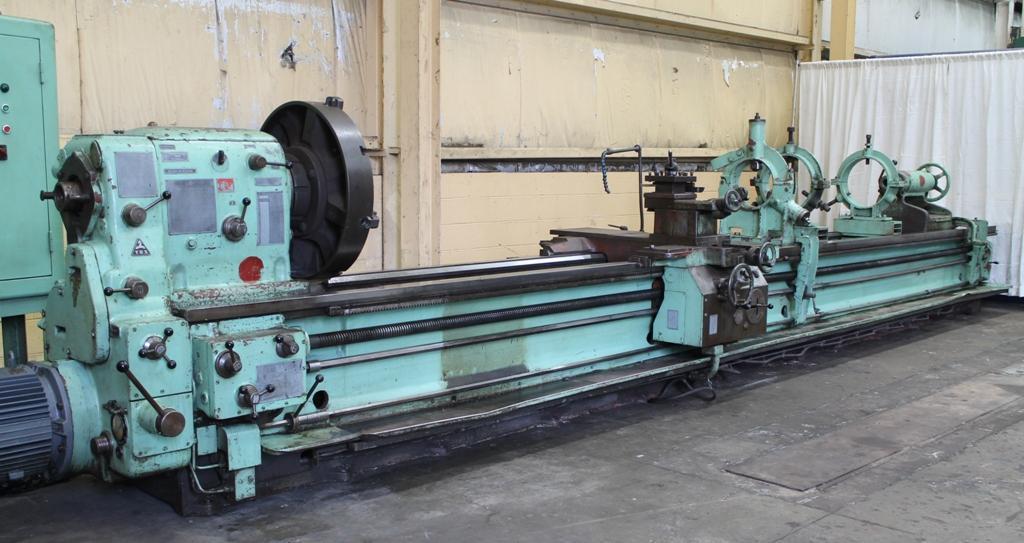

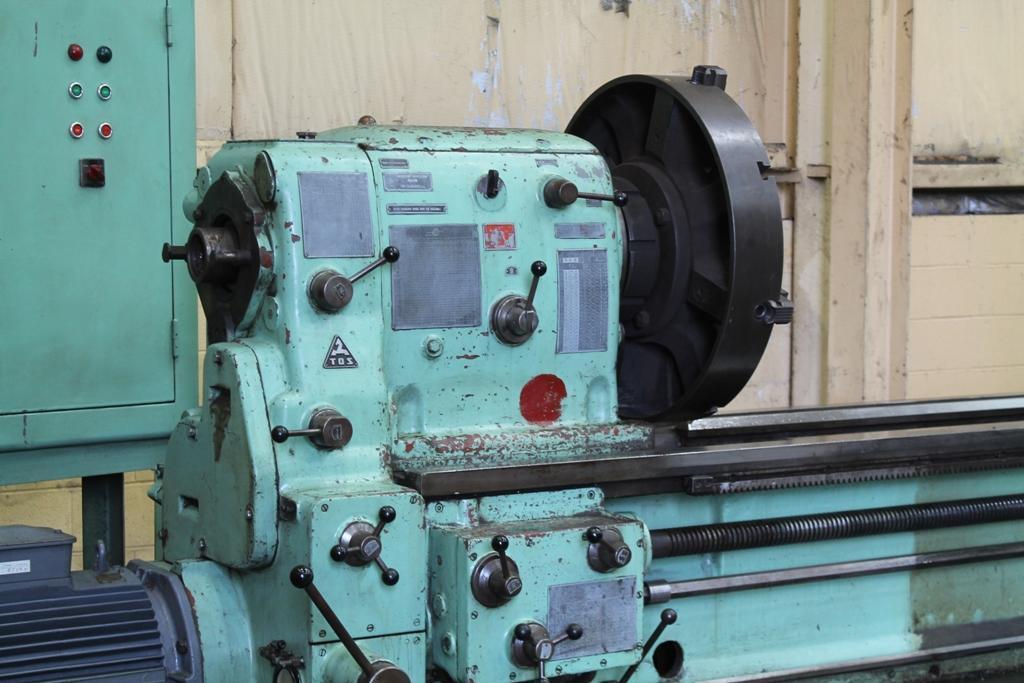

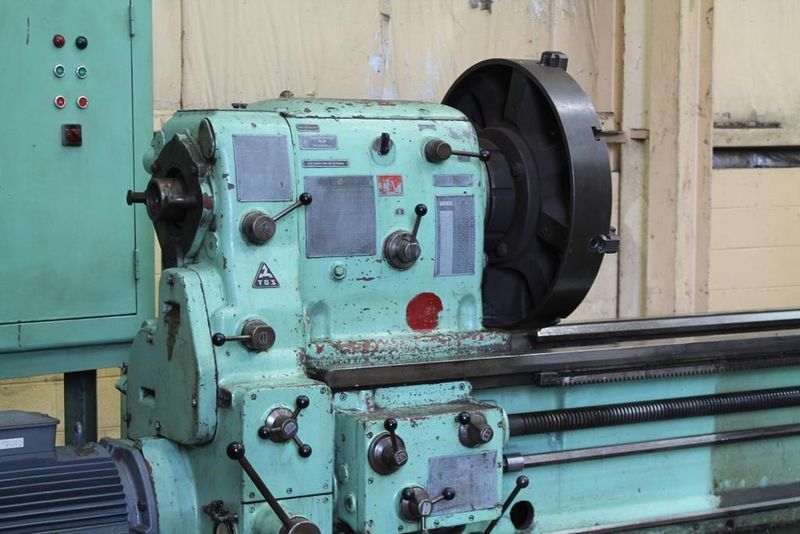

36" X 255" TOS ENGINE LATHE: STOCK #62590

Manufacturer

TOS

Category

Lathes

Type

LATHES, ENGINE

Stock

62590

Model

36 X 255

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL .............................. 0423124

MODEL ............................... SU-90A

SWING OVER WAYS ..................... 35.4331"

SWING OVER CROSS SLIDE .............. 23.315"

DISTANCE BETWEEN CENTERS ............ 255"(21'3")

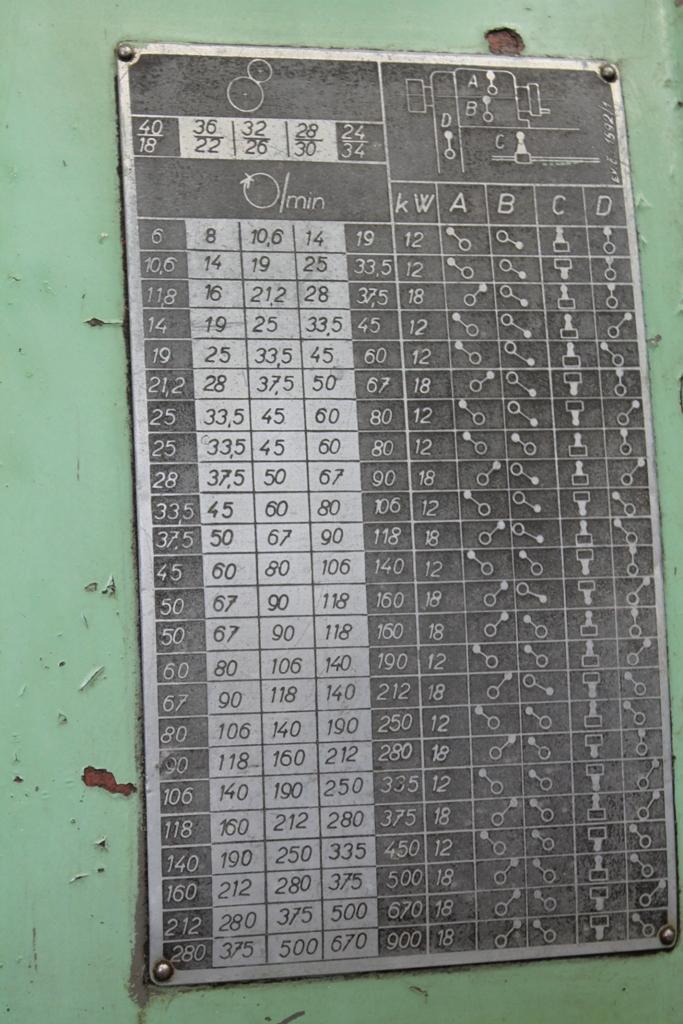

SPINDLE SPEEDS ...................... (30) 6 TO 900 RPM

FEEDS (METRIC) ...................... (41) 0.064 TO 6 MM

FEEDS (ENGLISH) ..................... (41) .0029 TO .088 IPR

THREADS ............................. (48) 7/8 TO 48 TPI

METRIC THREADS ...................... (48) 0.219 TO 48 MM PITCH

DIAMETER OF SPINDLE HOLE ............ 2-1/2"

TAPER ATTACHMENT .................... YES

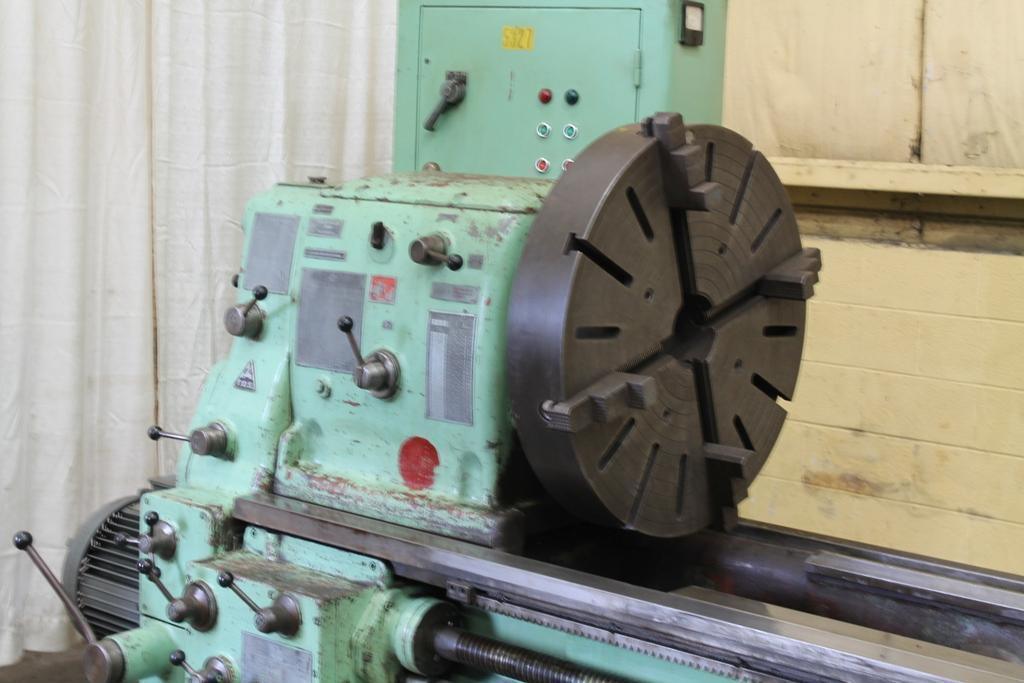

CHUCK ............................... 30" 4-JAW CHUCK

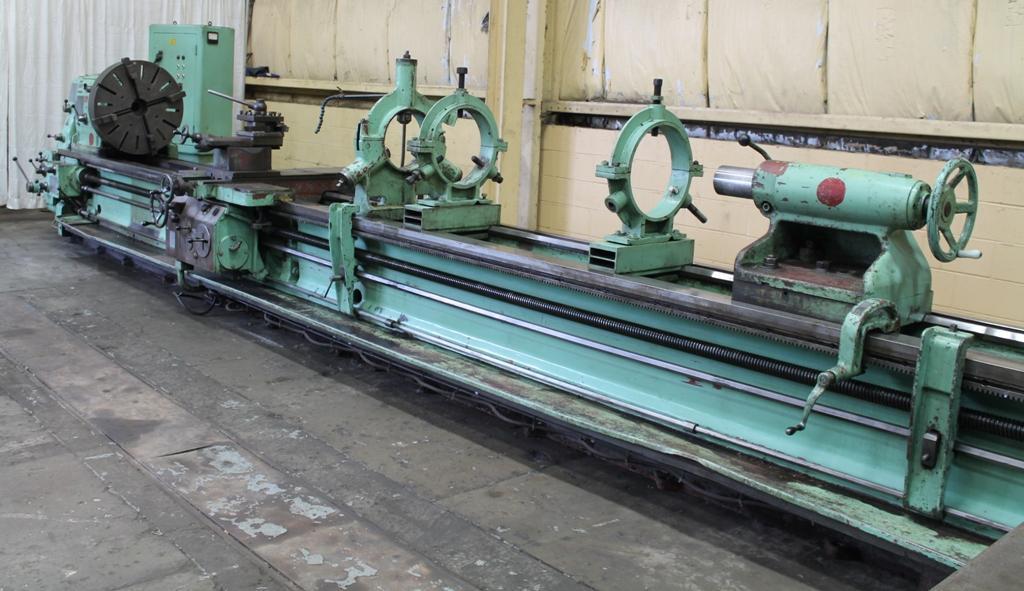

STEADY RESTS ........................ 12" ROLLER

STEADY REST ......................... (2) 15" 3 POINT

RAPID TRAVERSE ...................... 4 WAY

THREAD DIAL ......................... YES

HARD WAYS ........................... YES

COOLANT WITH CHIP PANS .............. YES

SPINDLE DRIVE MOTOR ................. 25 HORSEPOWER
