MIGHTY VIPER DZ-3240 , X-120", Y-94.5", Z-42", 125" x 80" Table, CAT #50, 40 ATC M730 CNC Control, 2007, #31342

Manufacturer

MIGHTY VIPER

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

31342

Model

DZ-3240

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31342

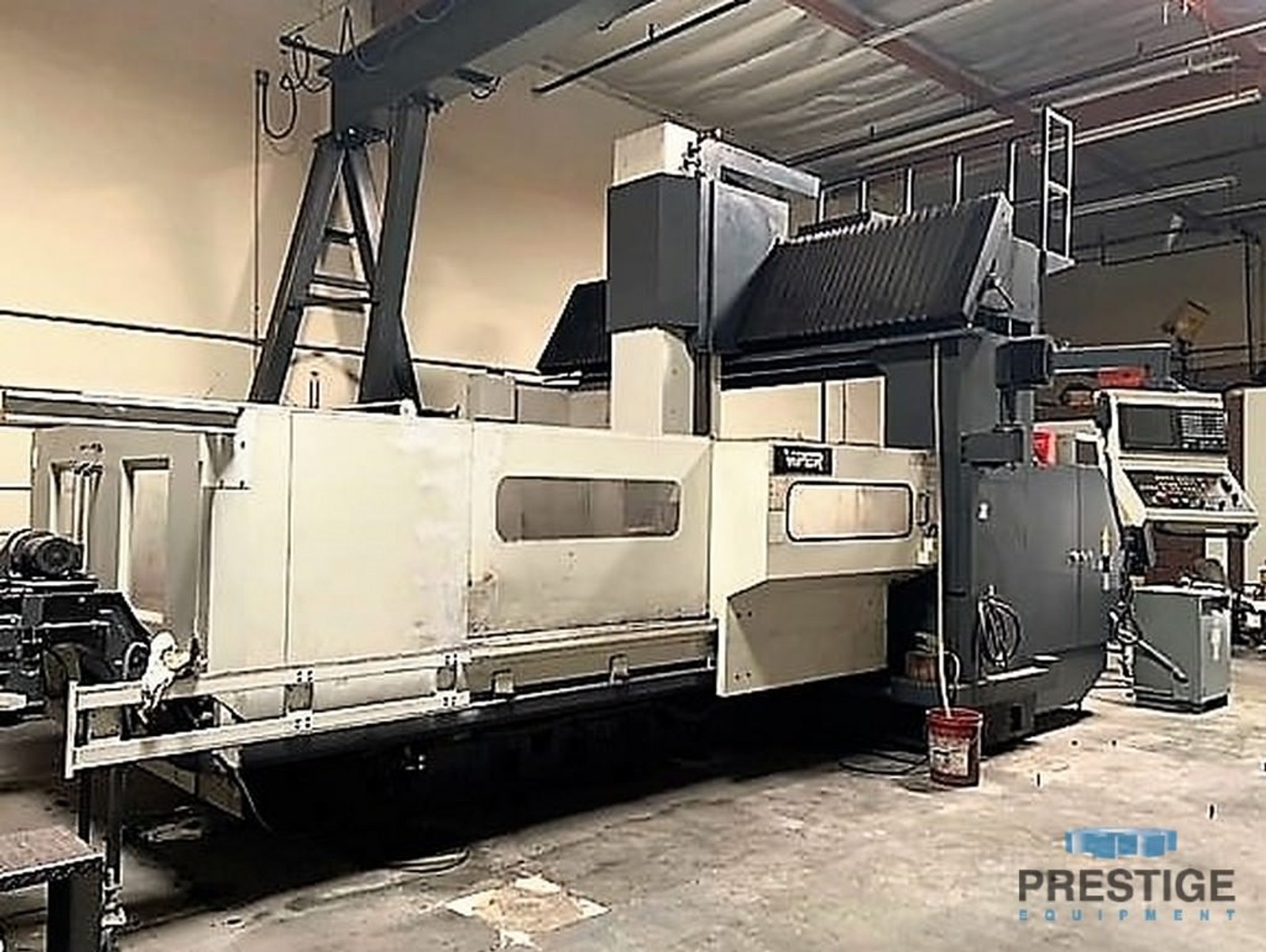

MIGHTY VIPER DZ-3240 CNC Double Column Vertical Machining Center

FEATURES:

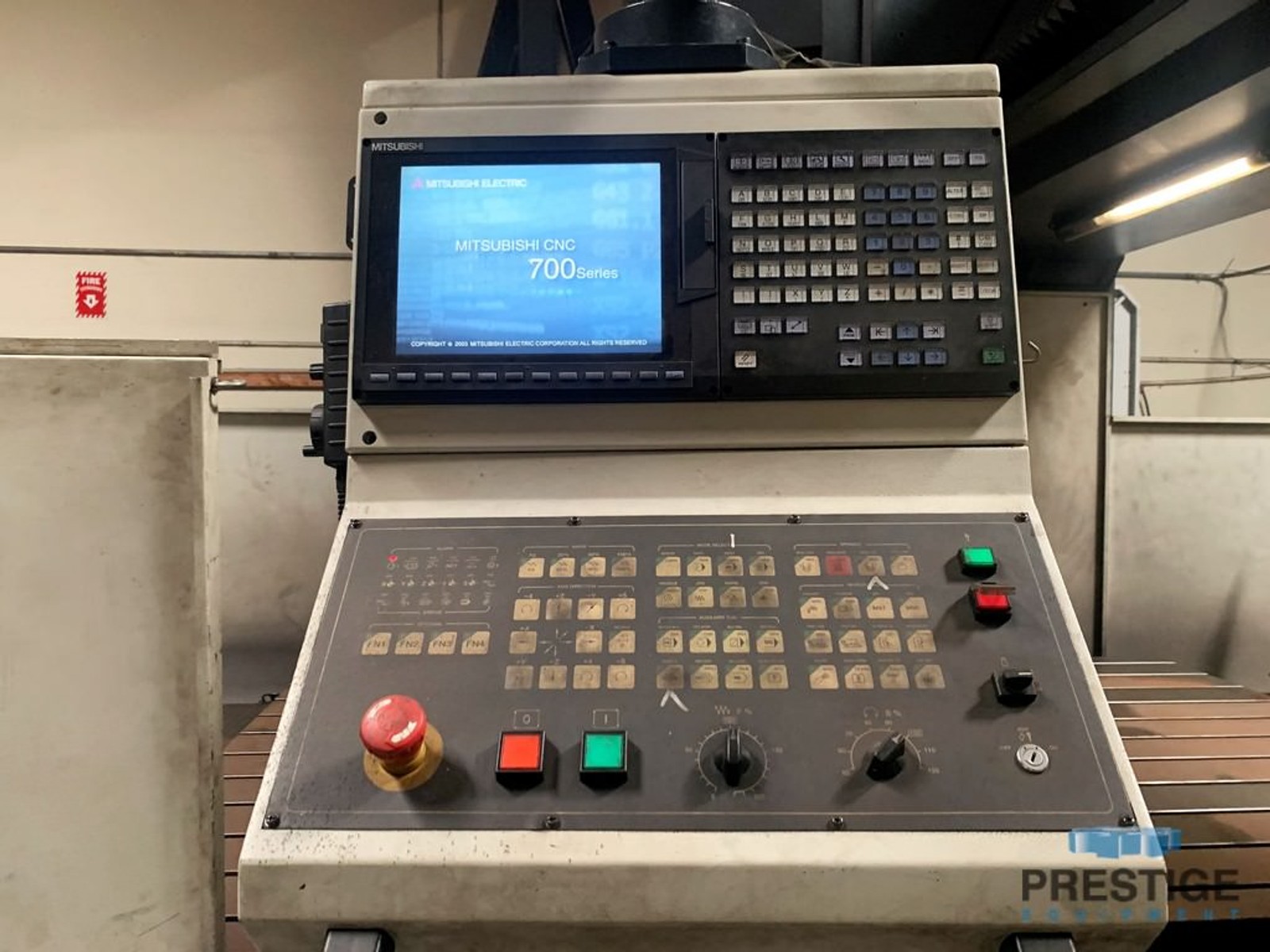

Mitsubishi M730 CNC Control
40 Station Automatic Tool Changer

SPECIFICATIONS:
X-Axis, Table Travel .................. 120.08"
Y-Axis, Spindle Head Travel ........... 94.49"
Z-Axis, Vertical Travel ............... 42.13"
Distance Between Columns .............. 98.82"
Distance Spindle Nose to Table ....... 15.35"-57.48"
Table Size ............................ 125.98" x 80.31"
Table Capacity ........................ 24,250 Lbs.
Spindle Taper ......................... CAT #50
Maximum Spindle Speed ................. 6000 RPM
Spindle Motor ......................... 30 HP
Cutting Feed Rate ..................... 0.34-196.8 IPM
Rapid Traverse (X,Y,Z0 ................ 393 IPM

EQUIPPED WITH:
Mitsubishi M730 CNC Control
40 Station Automatic Tool Changer
Plumbed for Coolant Thru Spindle
Auto Lubrication System
Work Light
Spindle Oil Cooler
Coolant System
Chip Conveyor

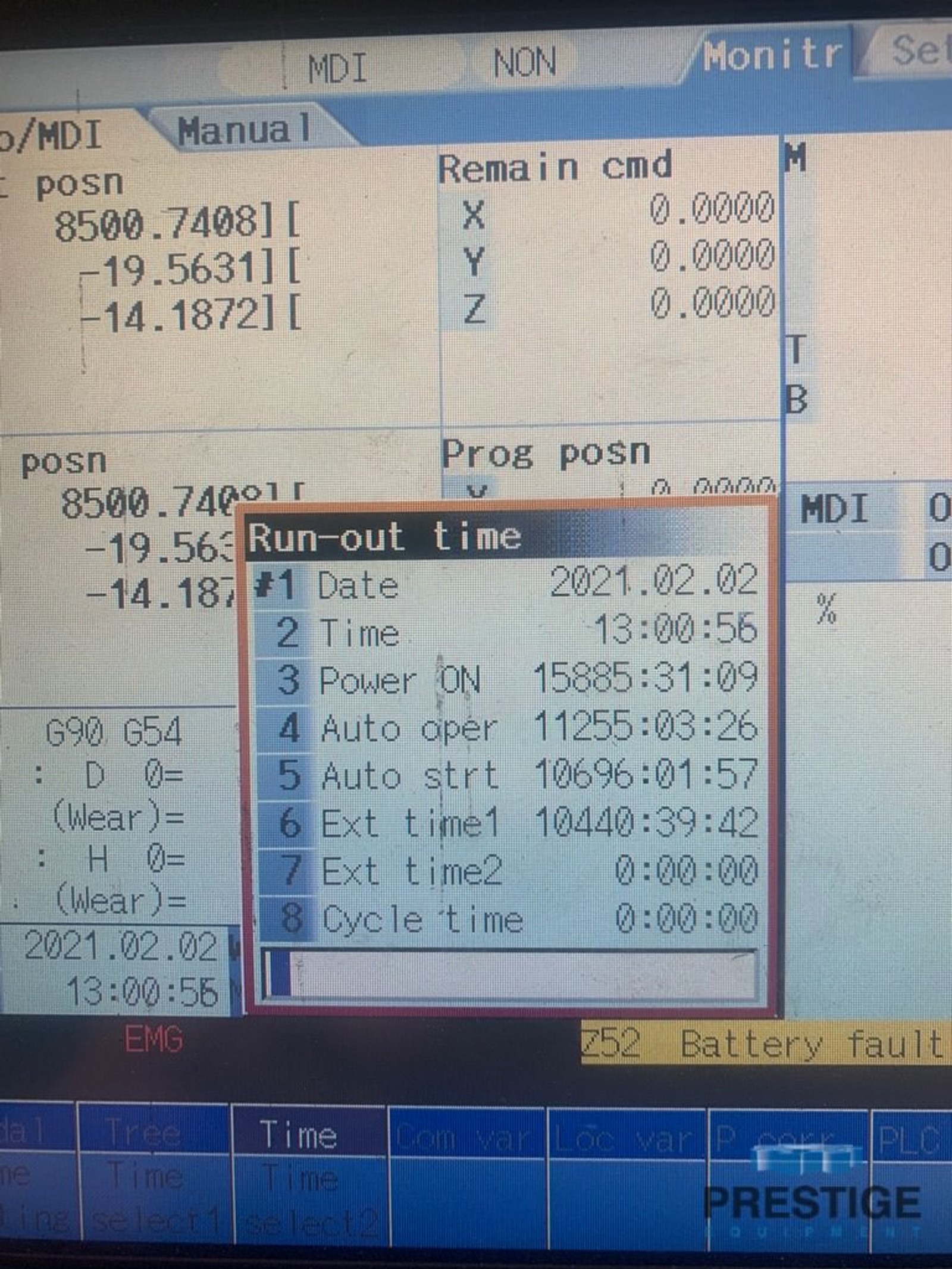

HOURS:
Power On: 15,885
