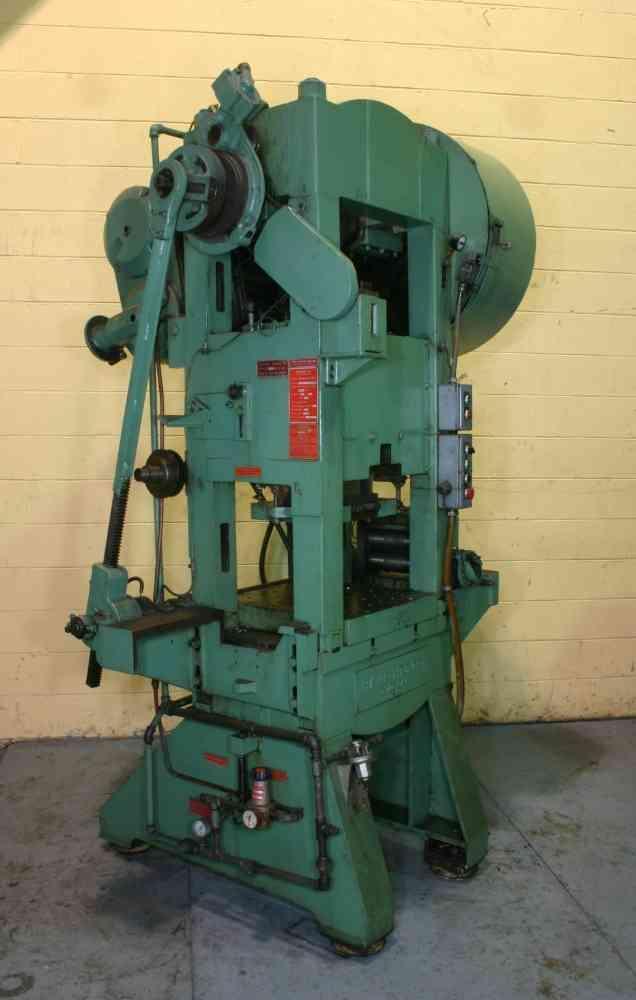

25 TON HAVIR HIGH SPEED STRAIGHT SIDE SINGLE PRESS: STOCK #51868

Manufacturer

Category

Presses

Type

PRESSES, STRAIGHT SIDE, SINGLE CRANK, (Single Action)

Stock

51868

Model

0025

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................................. H659TF108X206
CAPACITY ................................ 25 TONS
STROKE .................................. 1"
SHUT HEIGHT (SDAU) ...................... 10-1/4"
ADJUSTMENT .............................. 2-1/2"
STROKES PER MINUTE (VARIABLE) ........... 100 TO 400
BED AREA ................................ 20" X 20-1/2"
RAM AREA ................................ 15" X 14-1/2"
BED BOLSTER SIZE ........................ 20" X 20-1/2" X 1-7/8"
WINDOW WIDTH ............................ 12"
ROLL FEED LENGTH (VARIABLE) ............. 0 TO 7"
FLOOR TO BED ............................ 35"
AIR CLUTCH & BRAKE ...................... YES
AIR COUNTERBALANCES ..................... YES
FLOOR STANDING TIE-ROD FRAME ............ YES
INCH - SINGLE - CONTINUOUS CONTROLS ..... YES
BIJUR LUBE SYSTEM ....................... YES
MOTOR ................................... 5 HORSEPOWER
