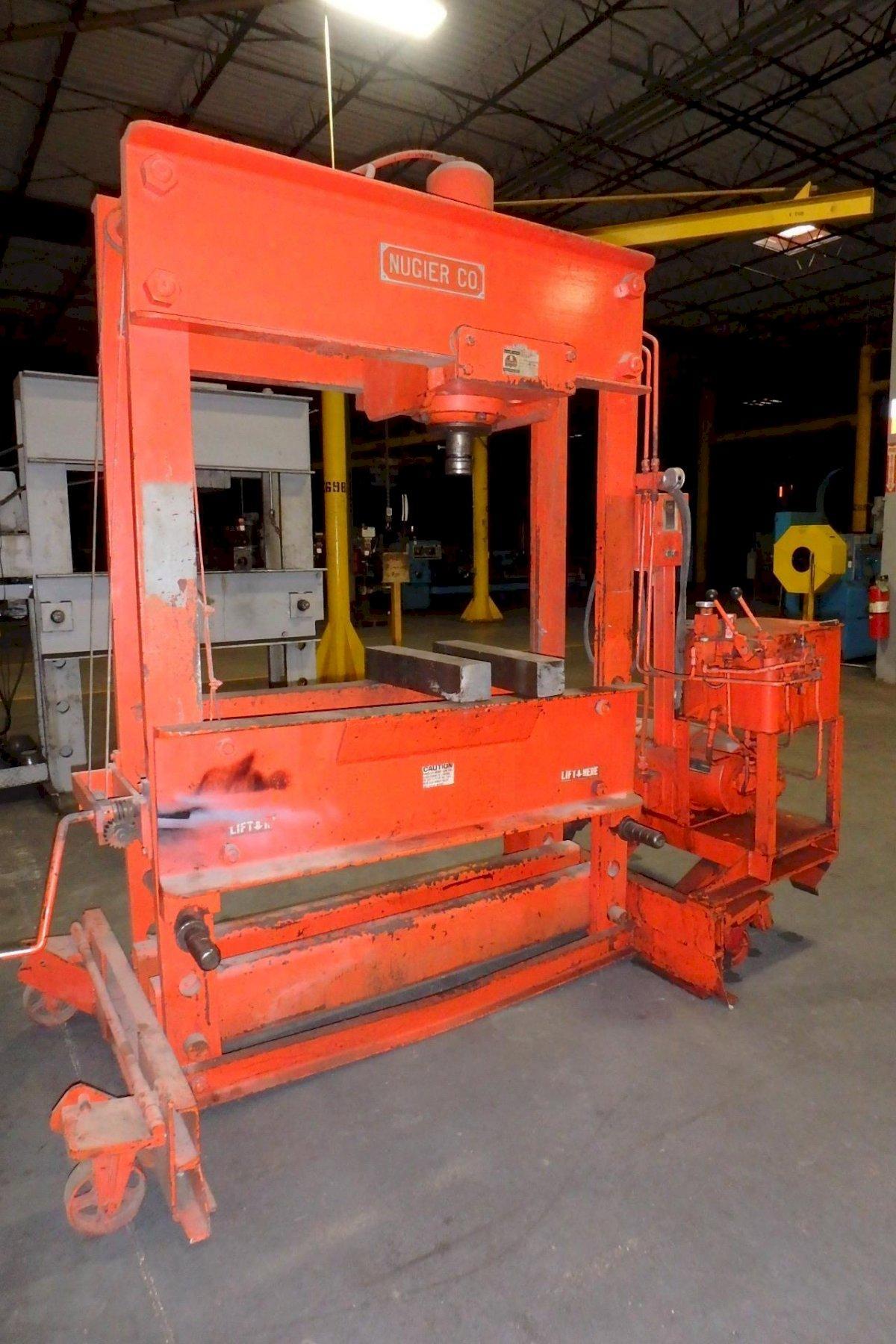

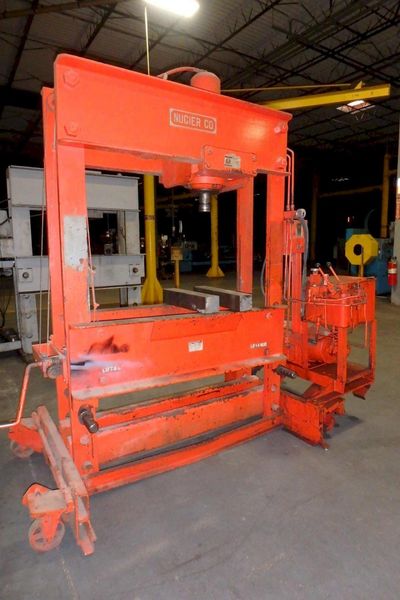

100 TON NUGIER H FRAME PRESS: STOCK: #73754

Manufacturer

NUGIER

Category

Presses

Stock

73754

Model

H-100

Dealer Location

Ohio

Spec Sheet

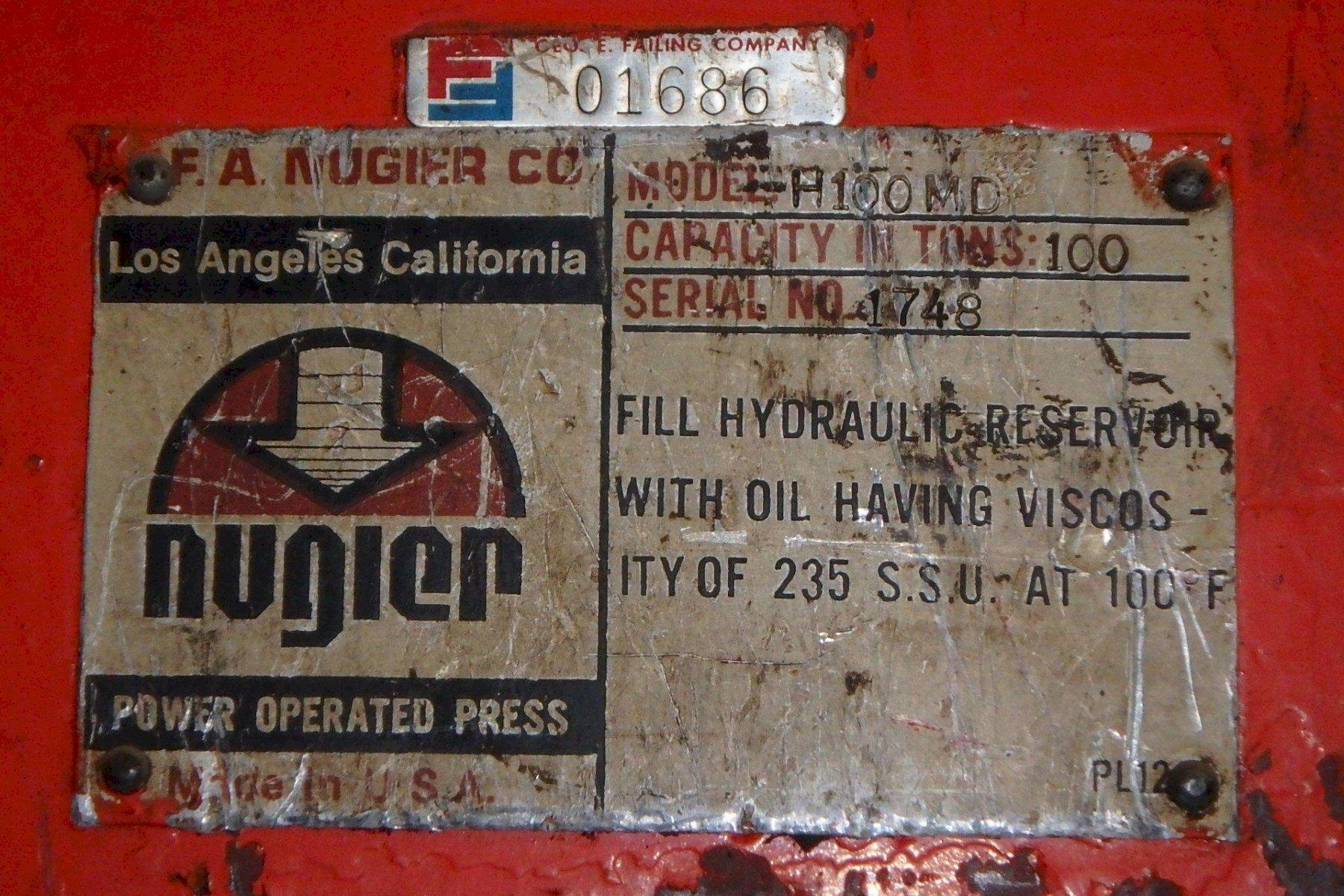

SERIAL . ........................... 1748

MODEL .............................. H-100 MD

CAPACITY ........................... 100 TON

STROKE ............................. 14"

DISTANCE RAM TO TABLE .............. 0" MINIMUM TO 36" MAXIMUM

RAM SPEEDS ADVANCED ................ 33 IPM

RAM SPEED NO LOAD .................. 19.6 IPM

RAM SPEED HALF CAPACITY ............ 15.9 IPM

RAM SPEED FULL CAPACITY ............ 14.3 IPM

CYLINDER ROD DIAMETER .............. 3-1/4"

DISTANCE BETWEEN HOUSING ........... 48"

DISTANCE BETWEEN TABLE CHANNELS .... 16-1/4"

OVERALL TABLE AREA ................. 58" X 23-1/2"

ADJUSTABLE TABLE HEIGHTS ........... 6" INCREMENTS

DUAL HAND LEVER .................... YES

HEAD TRAVELS LEFT & RIGHT .......... 31"

PORTABLE ON WHEEL .................. YES

MOTOR .............................. 10 HORSEPOWER
