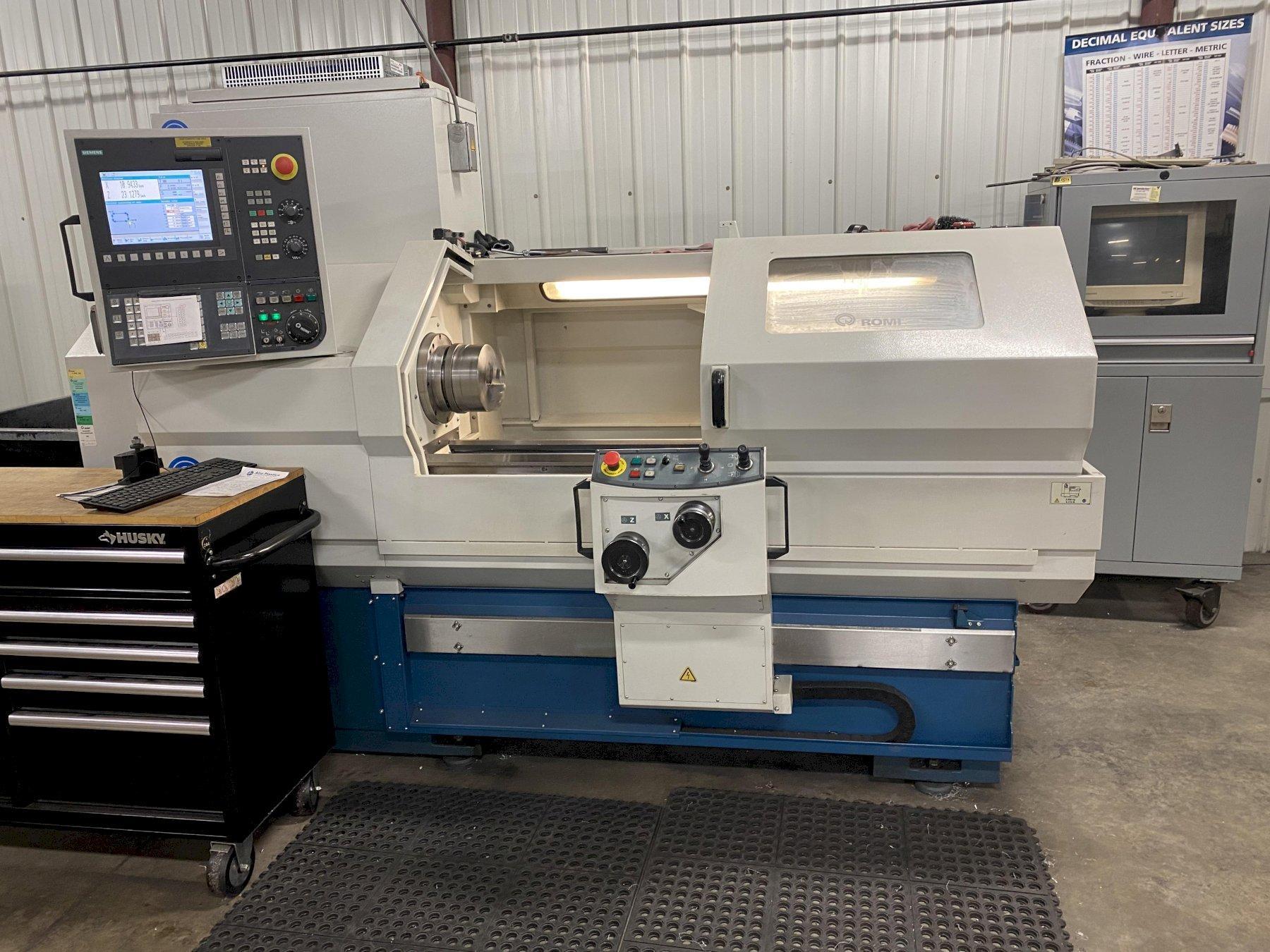

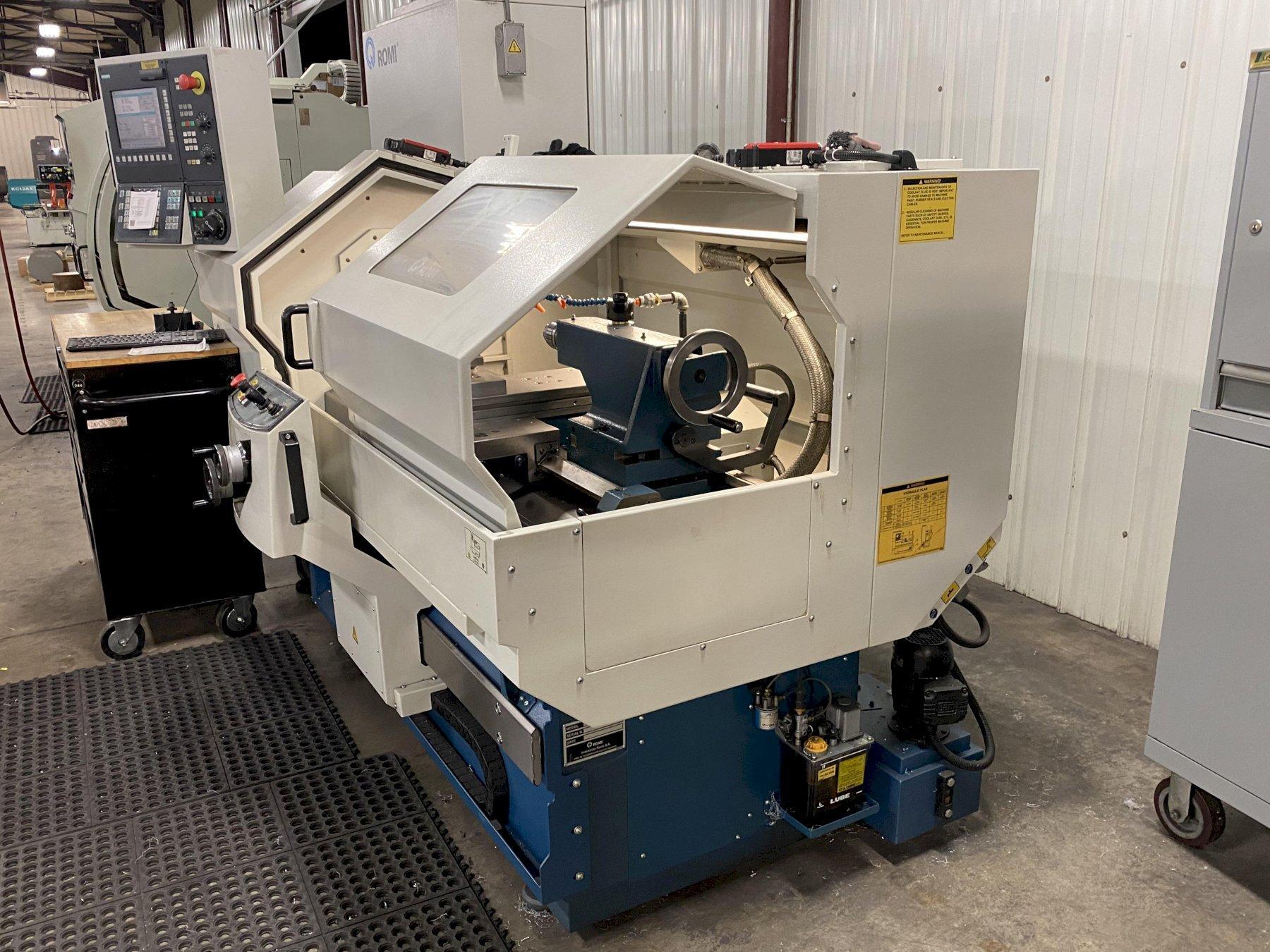

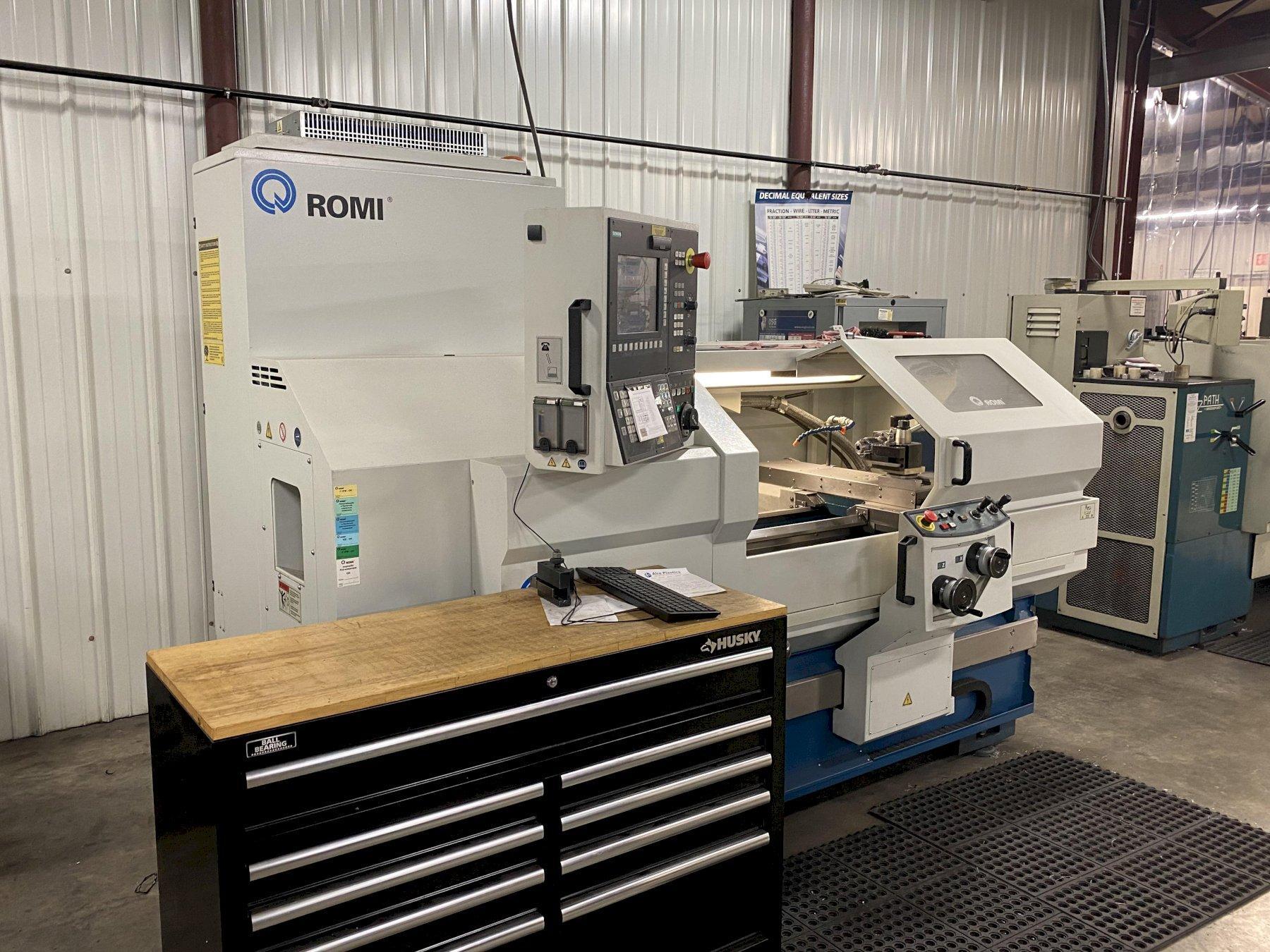

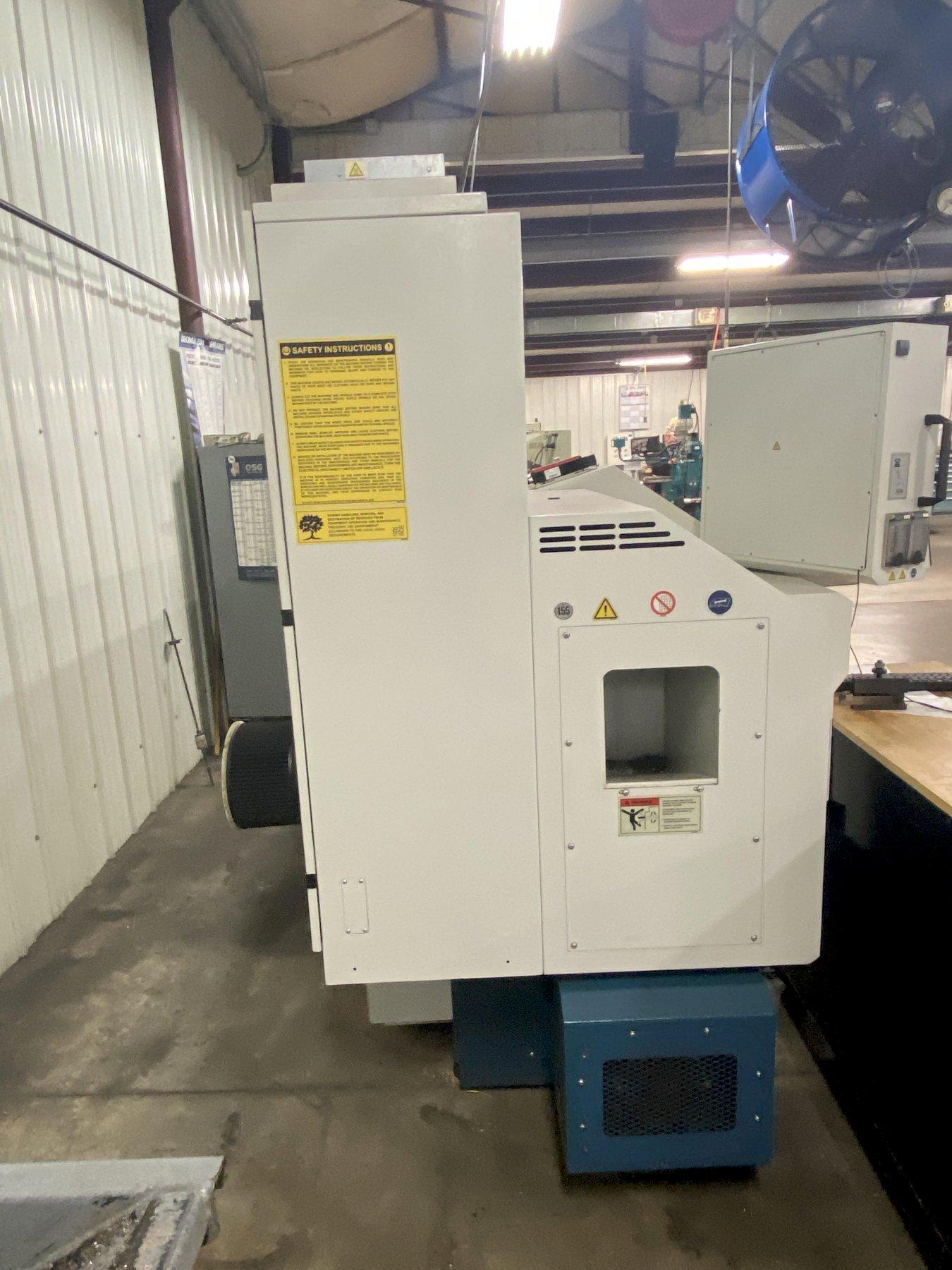

17" X 39" ROMI MODEL #C420 CNC TEACH ENGINE LATHE, NEW 2013: STOCK #14423

Manufacturer

ROMI

Category

Lathes

Type

LATHES, WHIRLING, CNC

Stock

14423

Model

17" X 39" C420

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

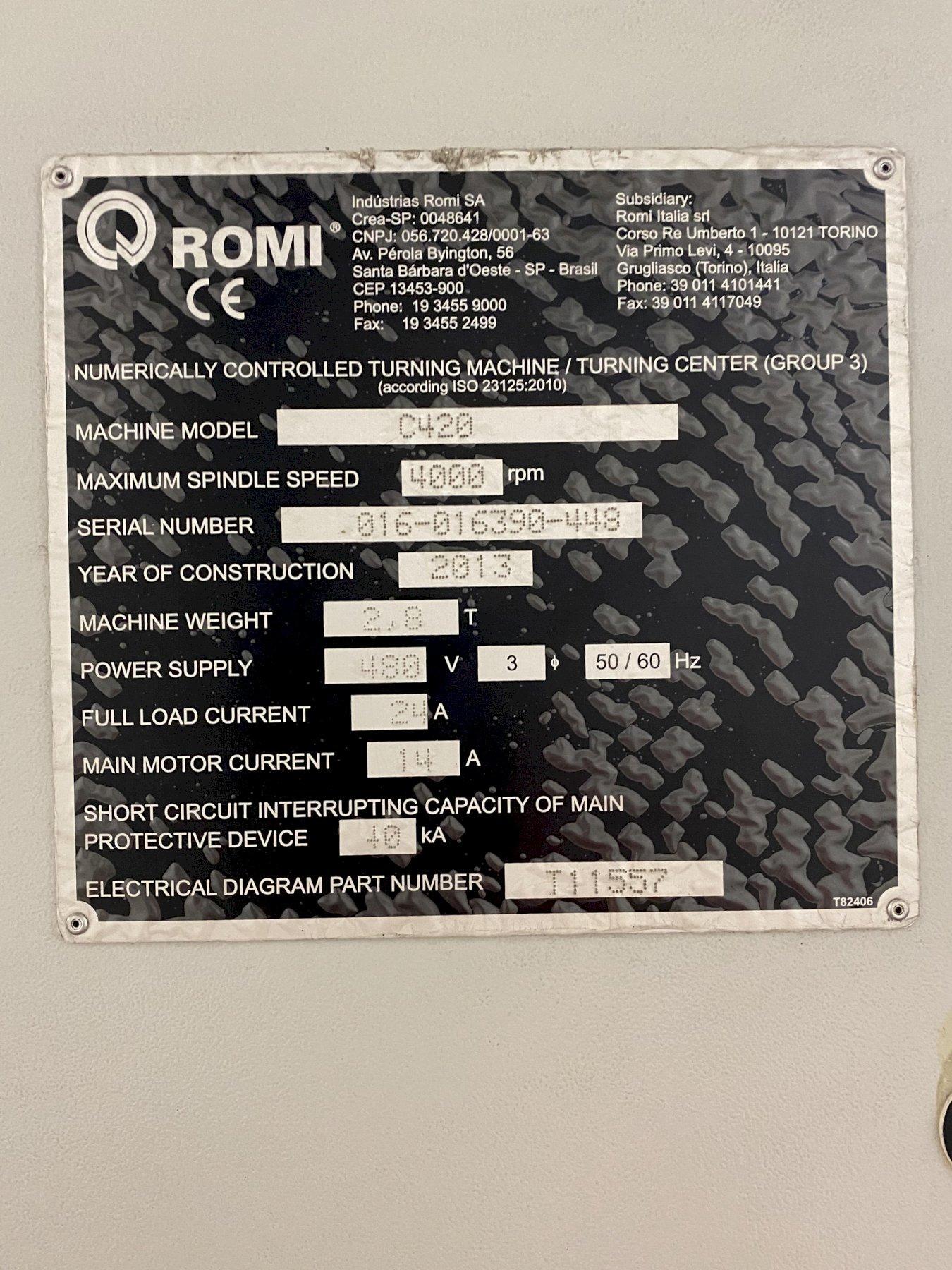

SERIAL ................................ 016-016390-448
NEW ................................... 2013
Model ................................. C420
Height of centers ..................... 8.5″
Distance between centers .............. 39″
Swing over bed ........................ 17″
Swing over cross slide ................ 7.85″

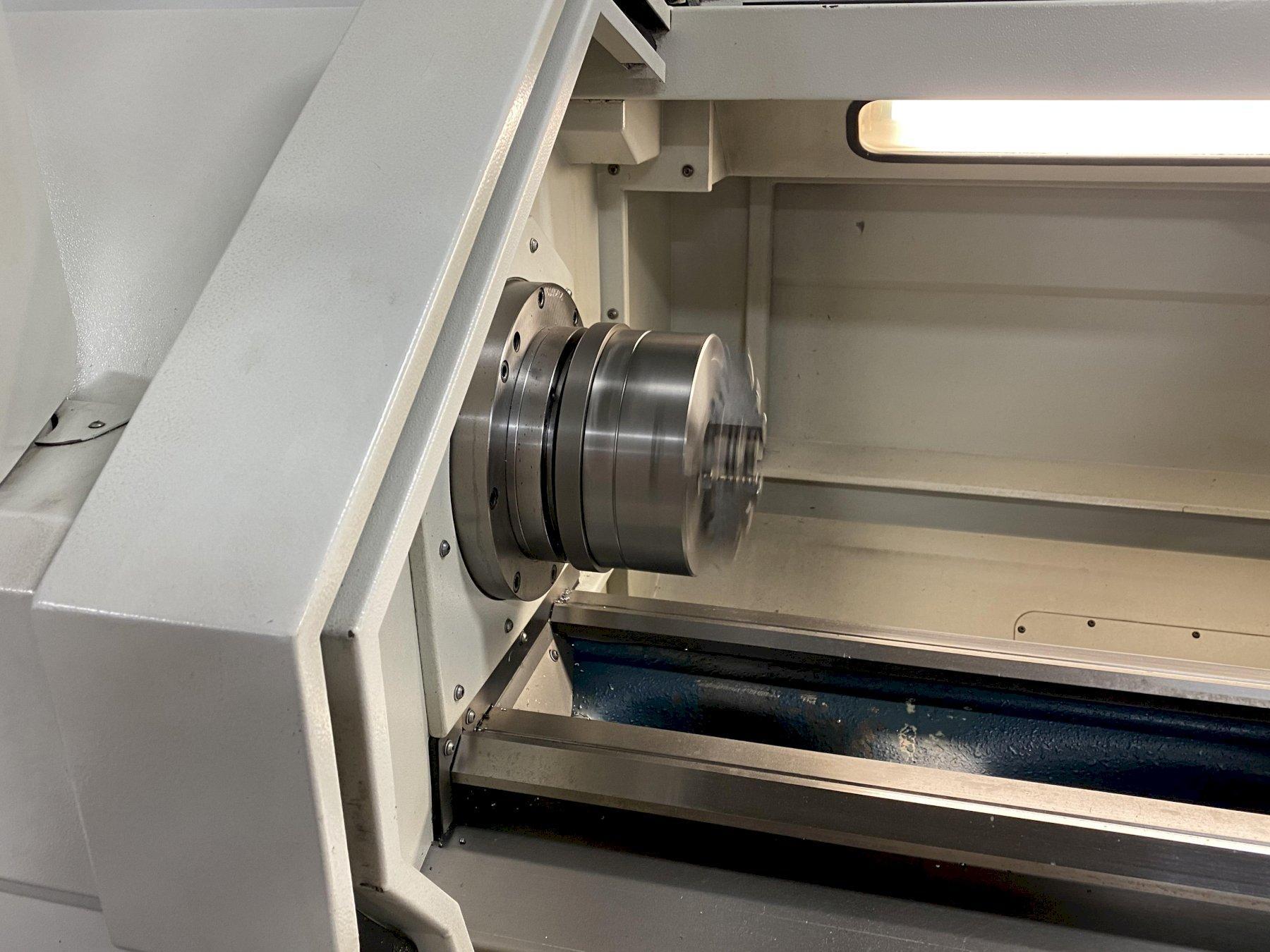

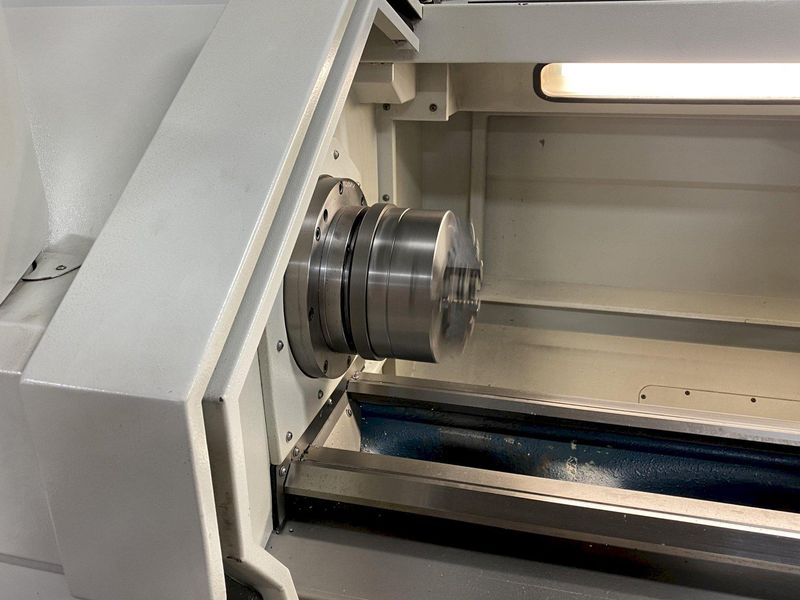

Main spindle nose ..................... A2-5″
Max. spindle speeds ................... 4.000 rpm
AC main motor ......................... 12.5 hp / 9 kw

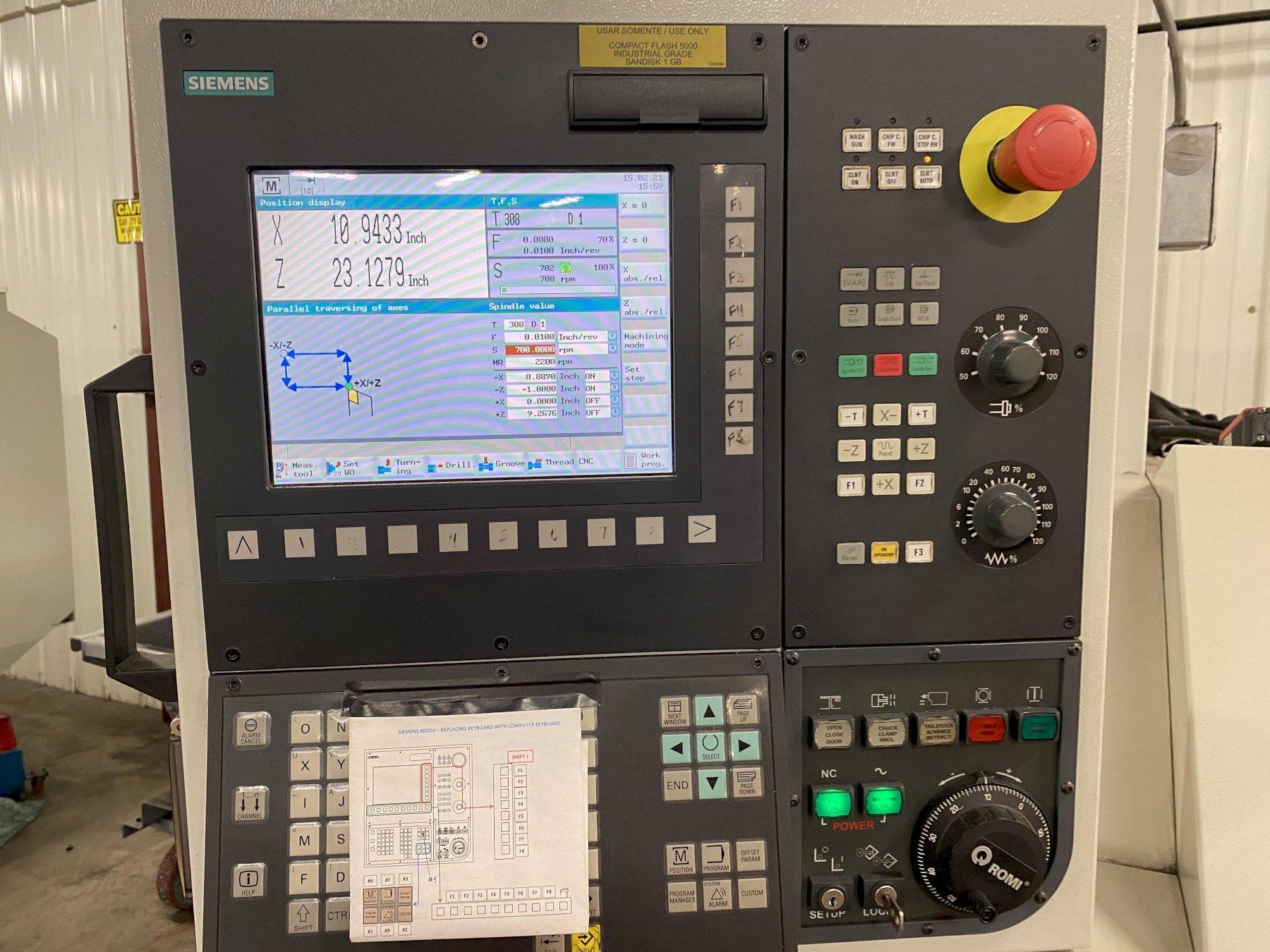

Siemens 802 DSL control
Travel (X axis)mm (in) ................ 220 (8.66)
Travel (Z Axis mm (in) ................ 565  (22.24)
Bed • Width mm (in) ................... 305 (12.00) • Height mm (in) - 350 (13.77)
Spindle nose ASA ...................... A2-5"
Spindle hole diameter mm (in) ......... 53 (2.08)
Speed range rpm ....................... 4-4,000
Rapid traverse (Z axis) m/min (ipm) ... 10 (393.70
Rapid traverse (X axis) m/min (ipm) ... 10 (393.70)
