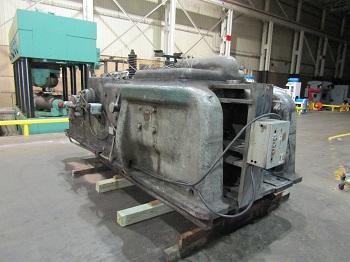

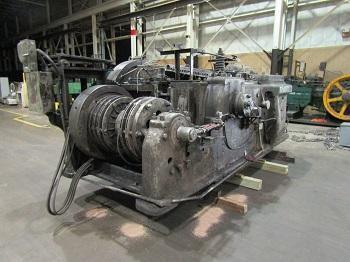

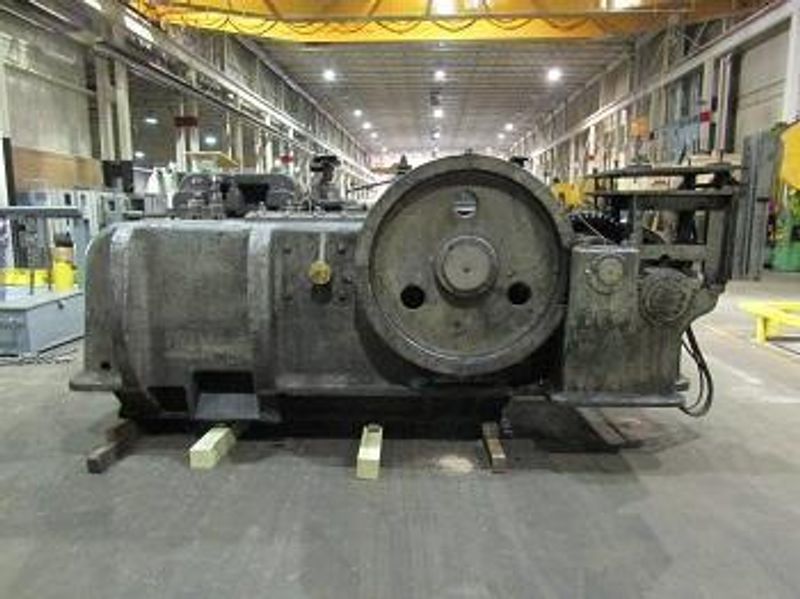

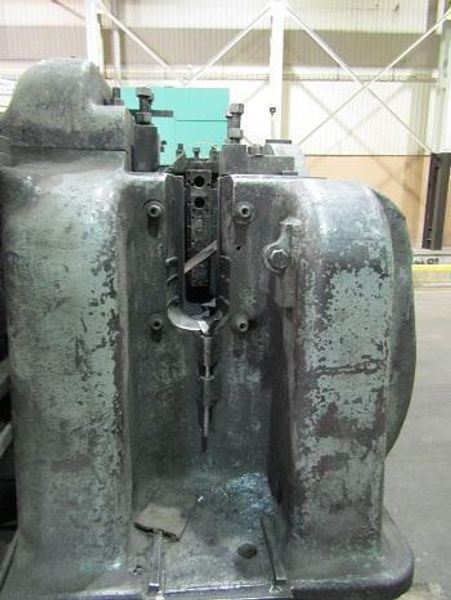

3" HILL ACME MODEL #XN FORGING UPSETTER: STOCK 14178

Manufacturer

HILL-ACME

Type

UPSETTERS

Stock

14178

Model

3"

Dealer Location

Ohio

Spec Sheet

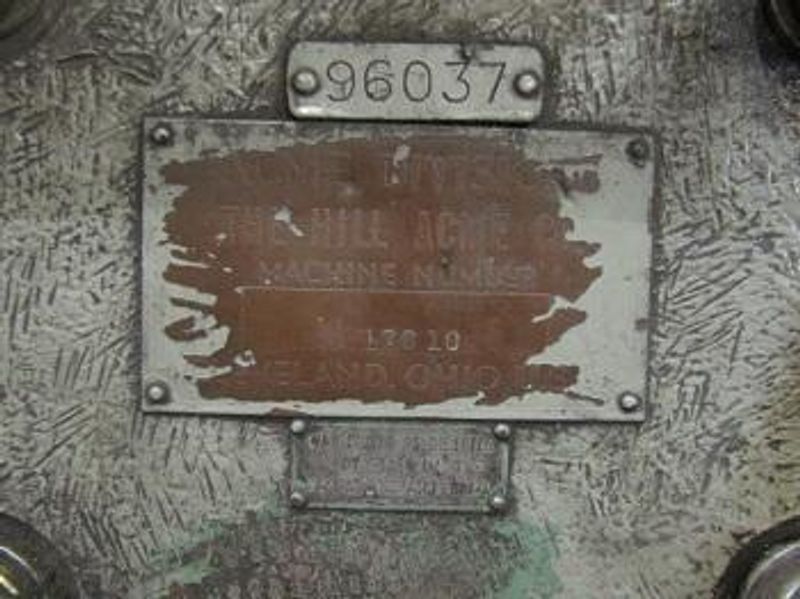

SERIAL ...................... M17010
DIE DEPTH ................... 22"
DIE WIDTH ................... 14"
DIE LENGTH .................. 19-1/4"
DIE OPENING ................. 5"
TOOL HOLDER POCKET WIDTH .... 5"
STOCK GATHER ................ 7-5/8"
HOLD ........................ 2"
STROKE ...................... 12"
HEADER SLIDE LENGTH ......... 80"
FORGING PRESSURE ............ 630 TONS
MOTOR ....................... 30 HP
