Doosan 110S 4.33", X-78", Y-59", Fanuc 31i CNC, 40 ATC, TSC, 55" x 63" B-Axis Table, 2011, #31461

Manufacturer

DOOSAN

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

31461

Model

110S

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #31461
Doosan 110S 4.33" CNC Table Type Horizontal Boring Mill

FEATURES:

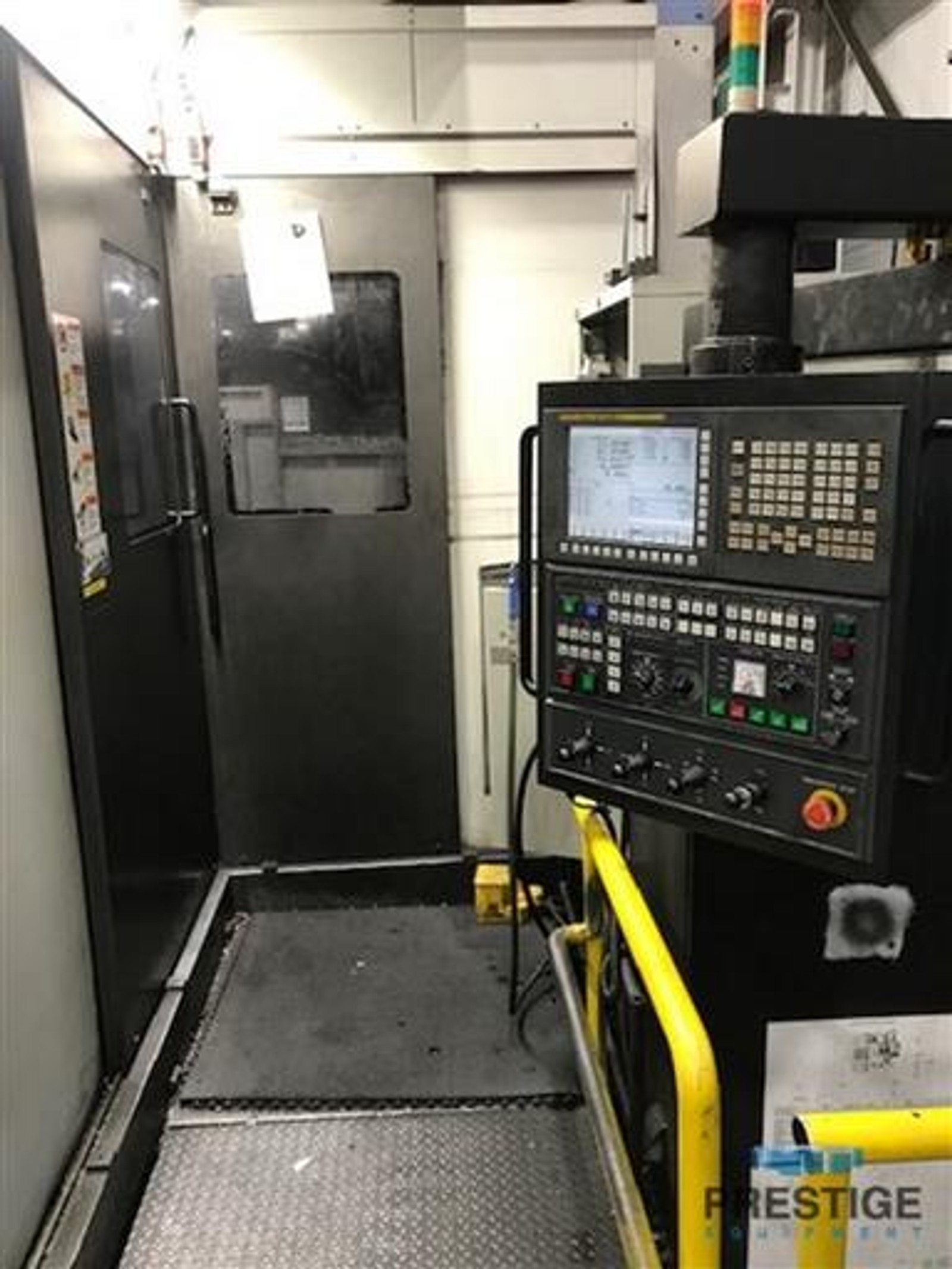

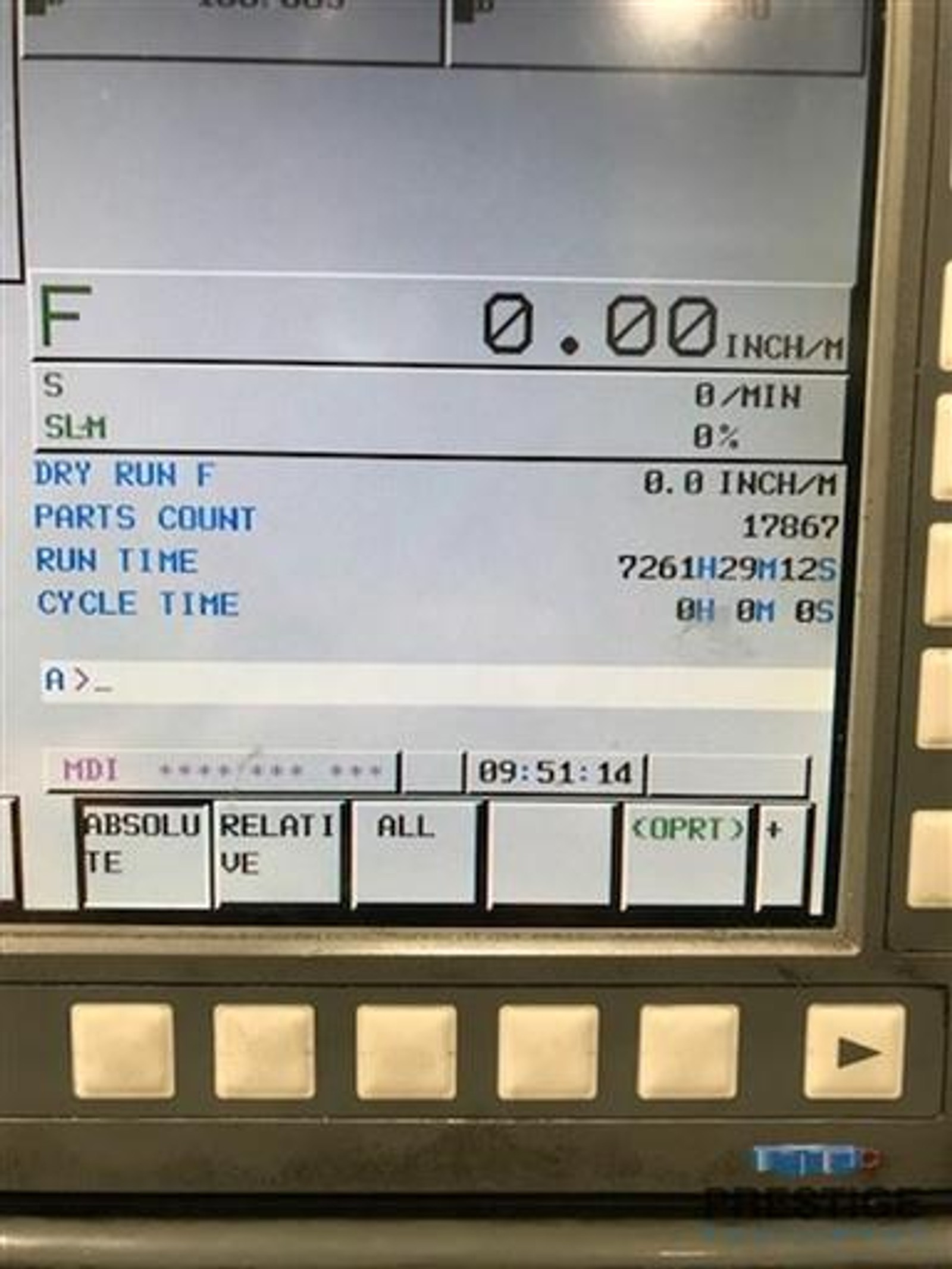

Fanuc 31i CNC Control

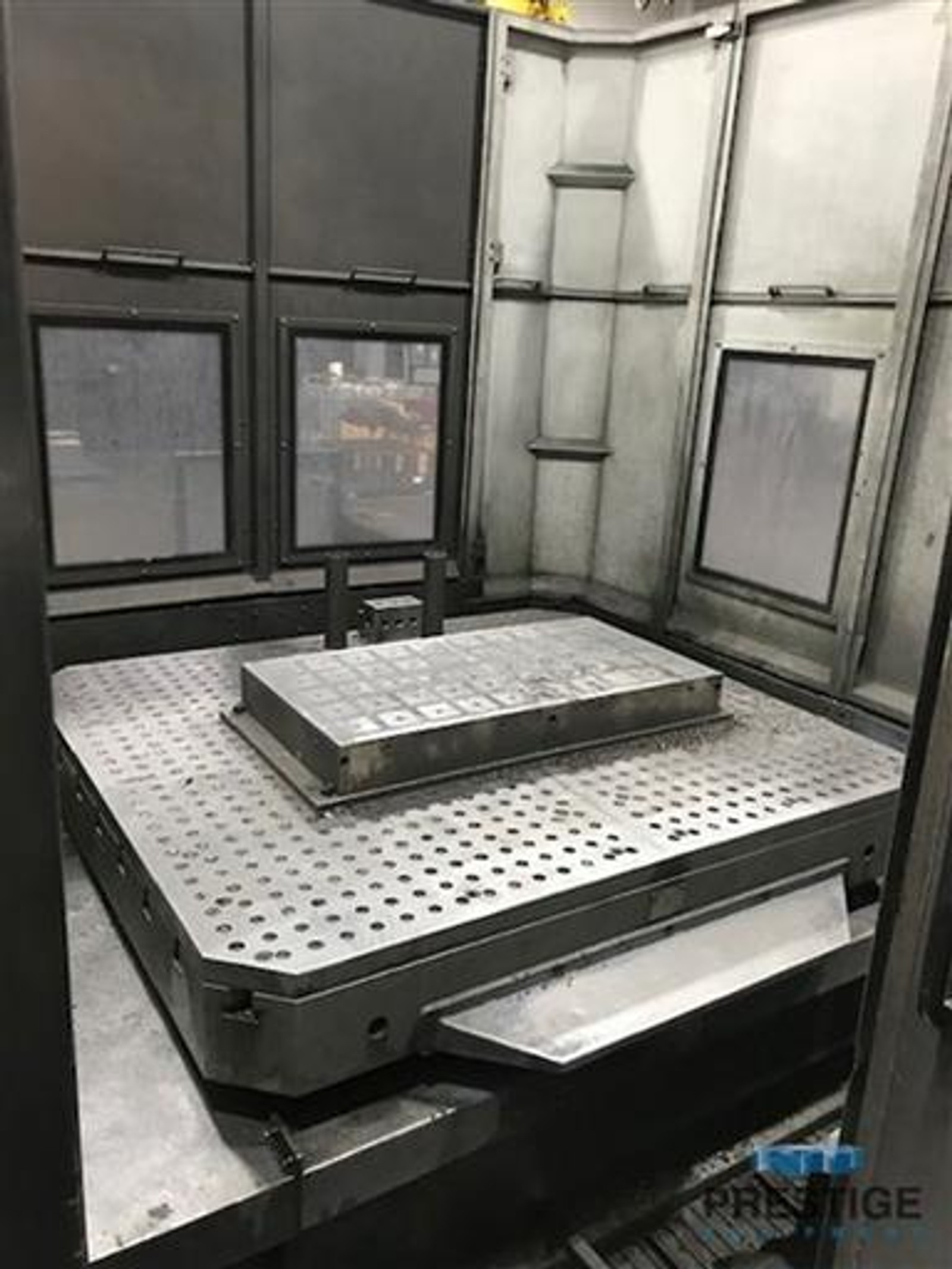

Built In B-Axis Rotary Table

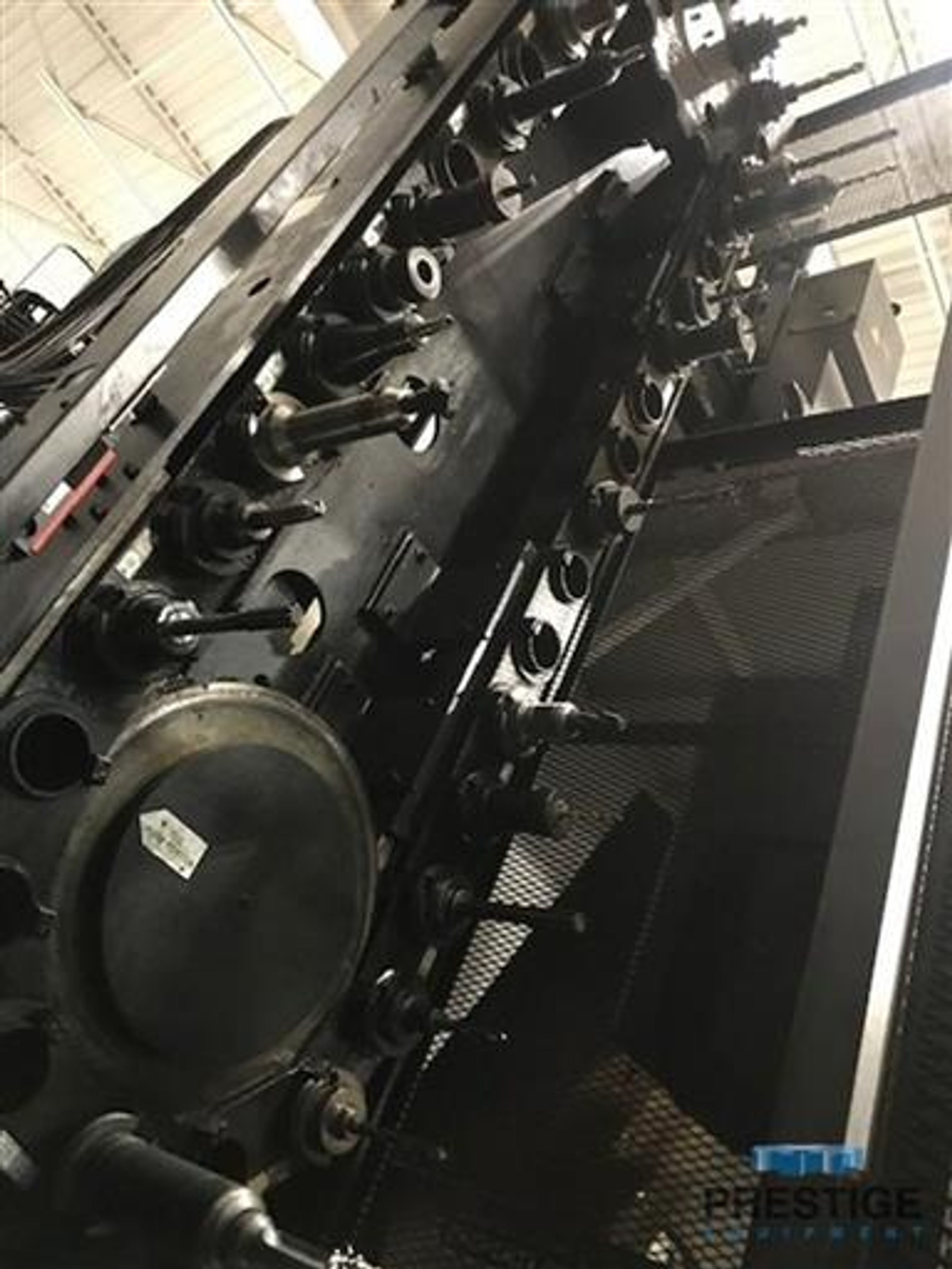

40-Station Automatic Tool Changer
Coolant Through Spindle

CAPACITY:
Spindle Diameter ...................... 4.33"
Spindle Taper ......................... #50
Vertical Headstock Travel,Y-Axis ...... 59.05"
Table Cross Travel, X-Axis ............ 78.74"
Spindle Travel, W-Axis ................ 19.68"
Column Infeed Travel, Z-Axis .......... 47.24"
Table Size, B-Axis .................... 55" x 63"
Rotary Table Weight Capacity .......... 15,500 Lbs.
B-Axis Table Rotation ................. .001 Degree
Maximum Spindle Speeds ................ 3,000 RPM
Main Motor ............................ 35 HP/29 HP
Rapid Traverse Rate (All Axes) ........ 473 IPM
Floor Space ........................... 233" x 209 x 160"
Estimated Machine Weight .............. 53,000 Lbs.

EQUIPPED WITH:
Fanuc 31i CNC Control
B-Axis Built In Rotary Table
40-Station Automatic Tool Changer
Coolant Thru Spindle
Remote Hand Held MPG
Chip Conveyor

NOTE:
Inspect in Plant Under Power
