96" x 144" Giddings & Lewis Air Lift Index Table, 8-T-Slots, 4 x 90 Deg. Shot Pin, 1/2 Deg Scale, 75,000 lb Cap, # 31357

96" x 144" Giddings & Lewis Air Lift Index Table, 8-T-Slots, 4 x 90 Deg. Shot Pin, 1/2 Deg Scale, 75,000 lb Cap, # 31357

Name: 96" x 144" Giddings & Lewis Air Lift Index Table, 8-T-Slots, 4 x 90 Deg. Shot Pin, 1/2 Deg Scale, 75,000 lb Cap, # 31357
Brand: GIDDINGS & LEWIS
SKU: 31357

Manufacturer

GIDDINGS & LEWIS

Spec Sheet

Reference #31357

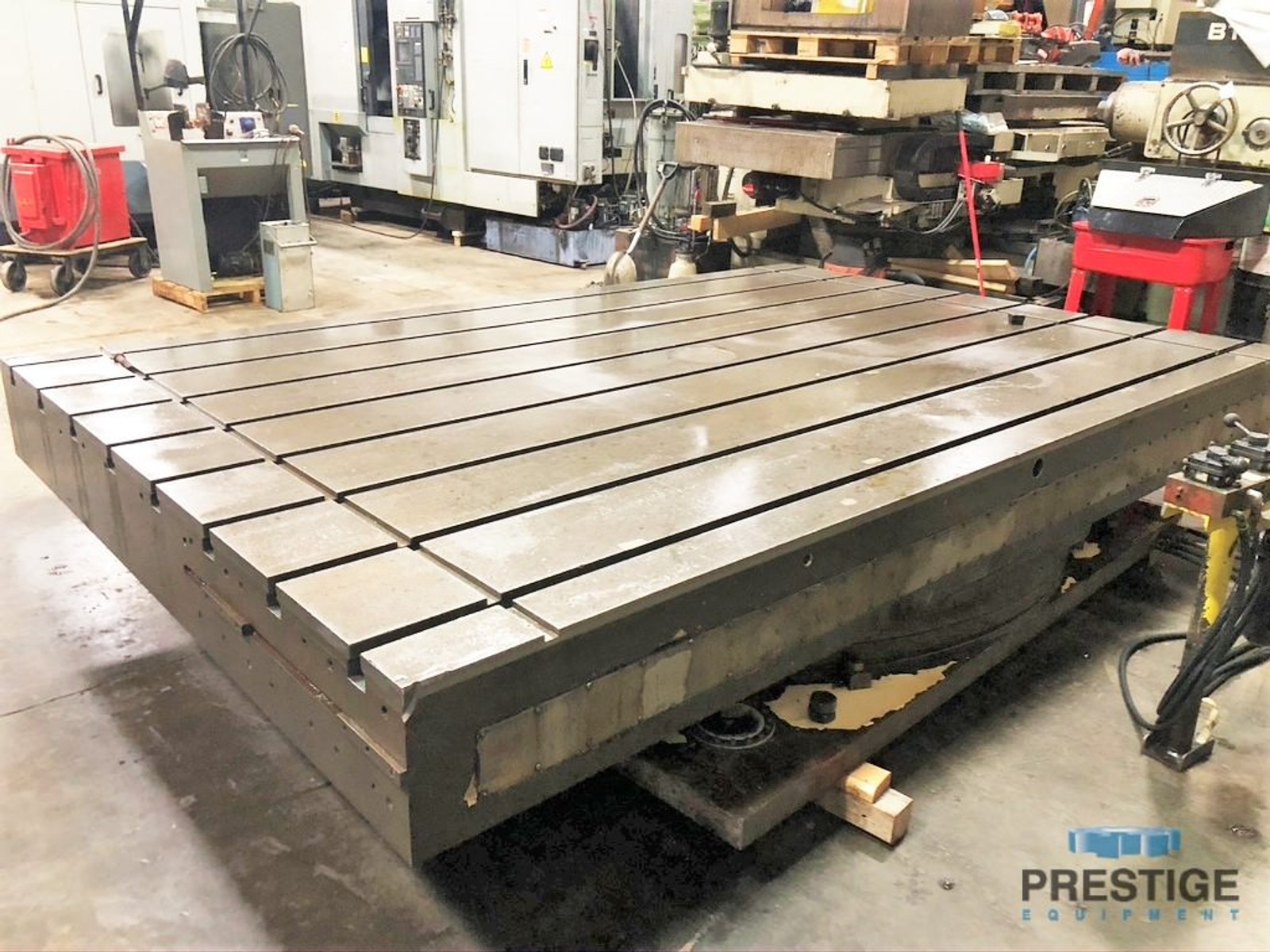

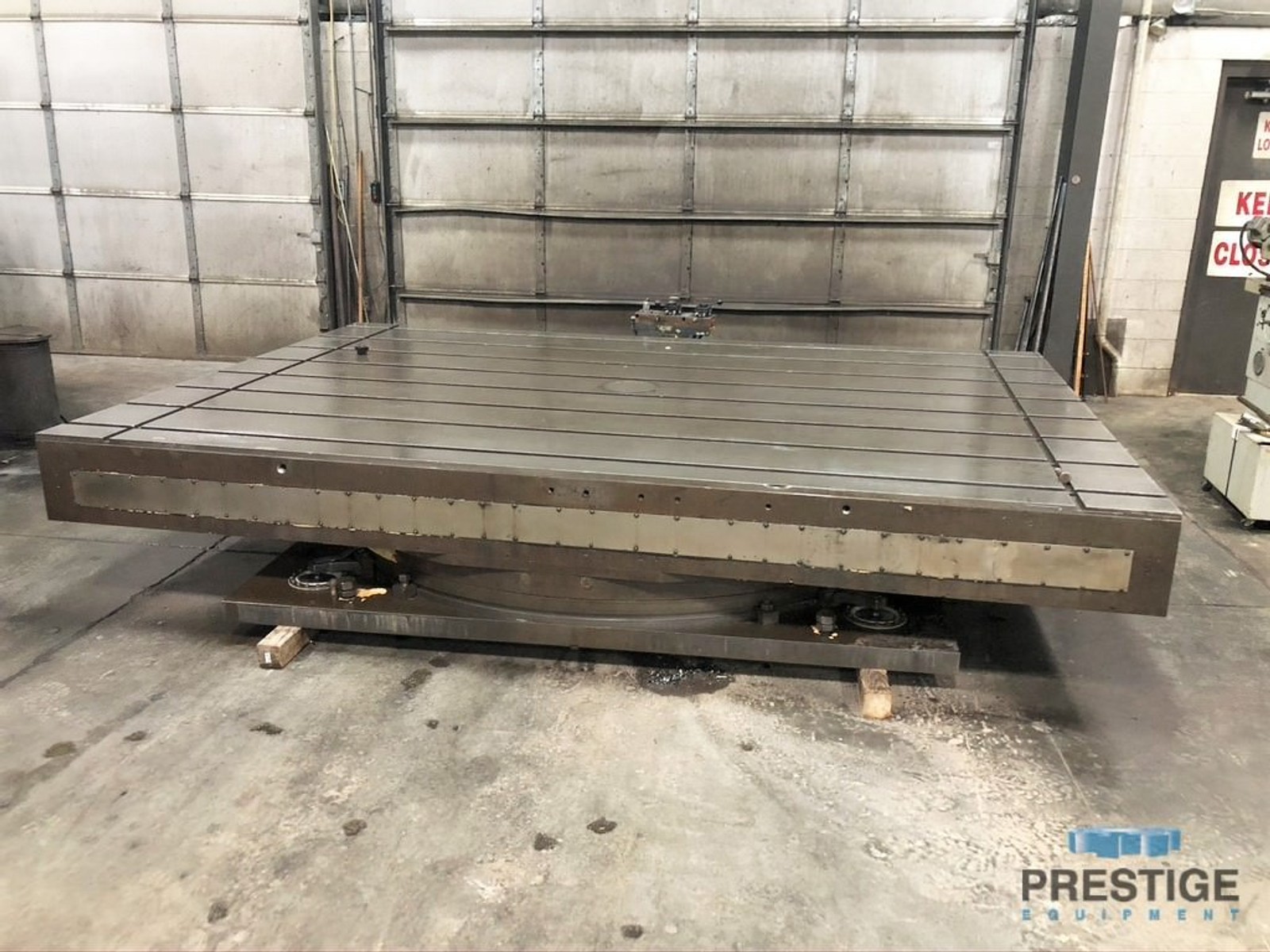

Giddings & Lewis 96" x 144" Airlift Rotary Table

FEATURES:
Remote Pendant Control

SPECIFICATIONS:
Table Size ............................ 96" X 144"
Table Height Overall .................. 28"

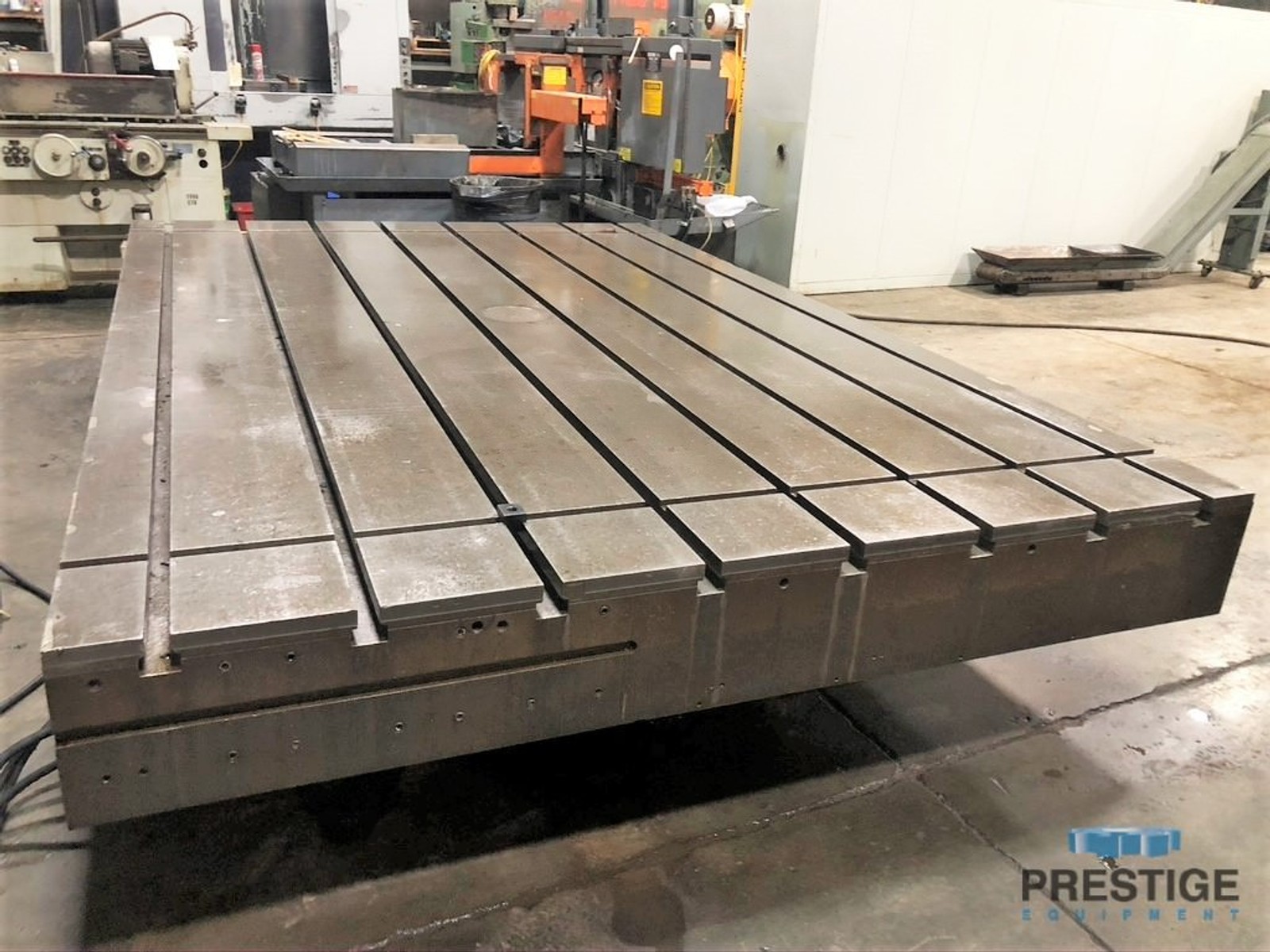

Number Of T-Slots ..................... 8
Width Of T-Slots, Top ................. 1.25"
Width Of T-Slots, Bottom .............. 2.25"
Depth Of T-Slots, Overall ............. 2.5"
Distance Between T-Slot Centers ....... 12"
Center Keyway Width ................... 1 1/4"
Cross Key Slots ....................... 5
Center Bore Diameter .................. 8"
Weight Capacity ....................... 75,000 LBS
Shot Pin Locations (degrees) .......... 90,180,270,360
Table Base Dimensions ................. 84" x 84"
Table Weight .......................... 39,000 lbs

EQUIPPED WITH:

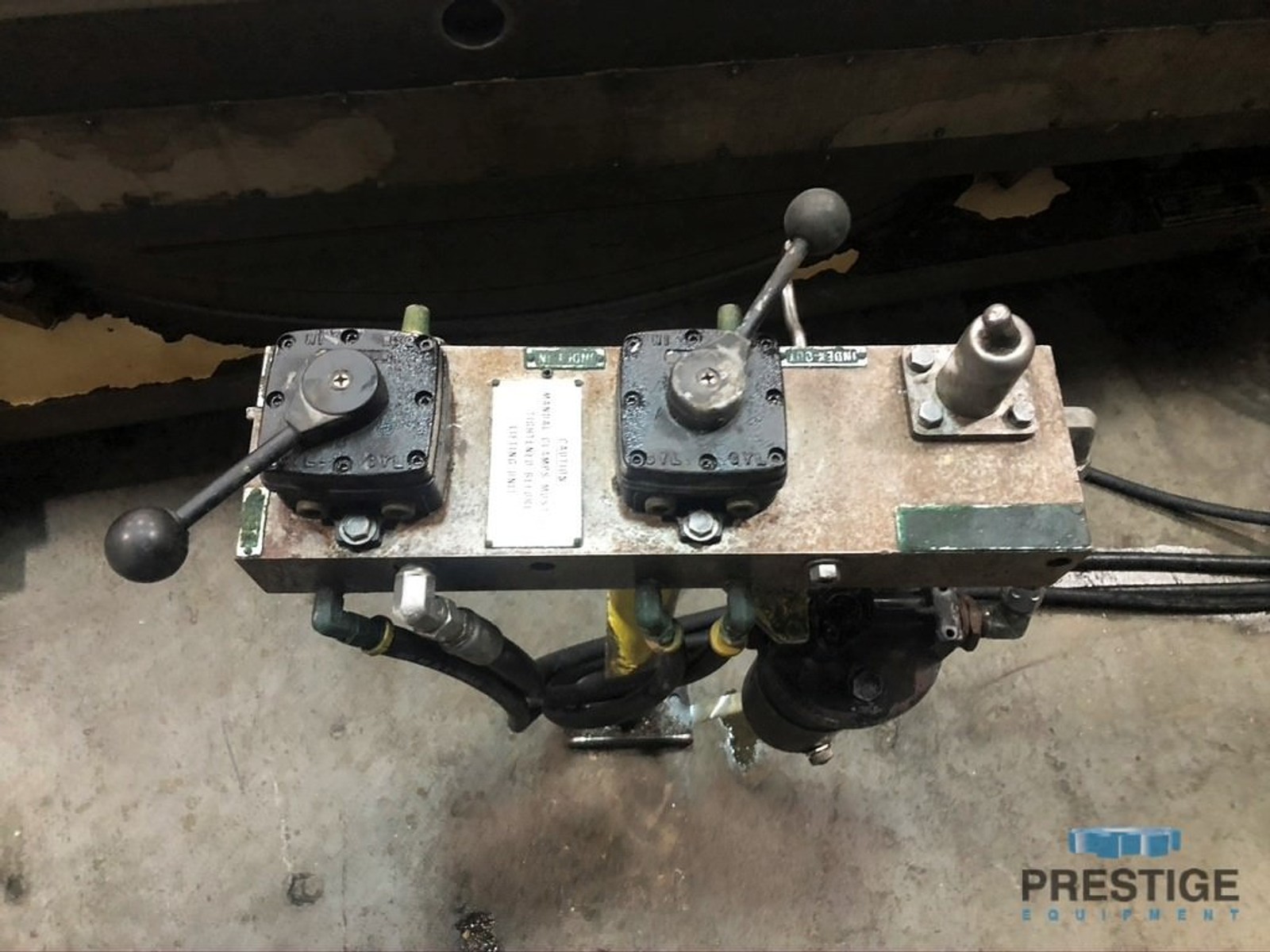

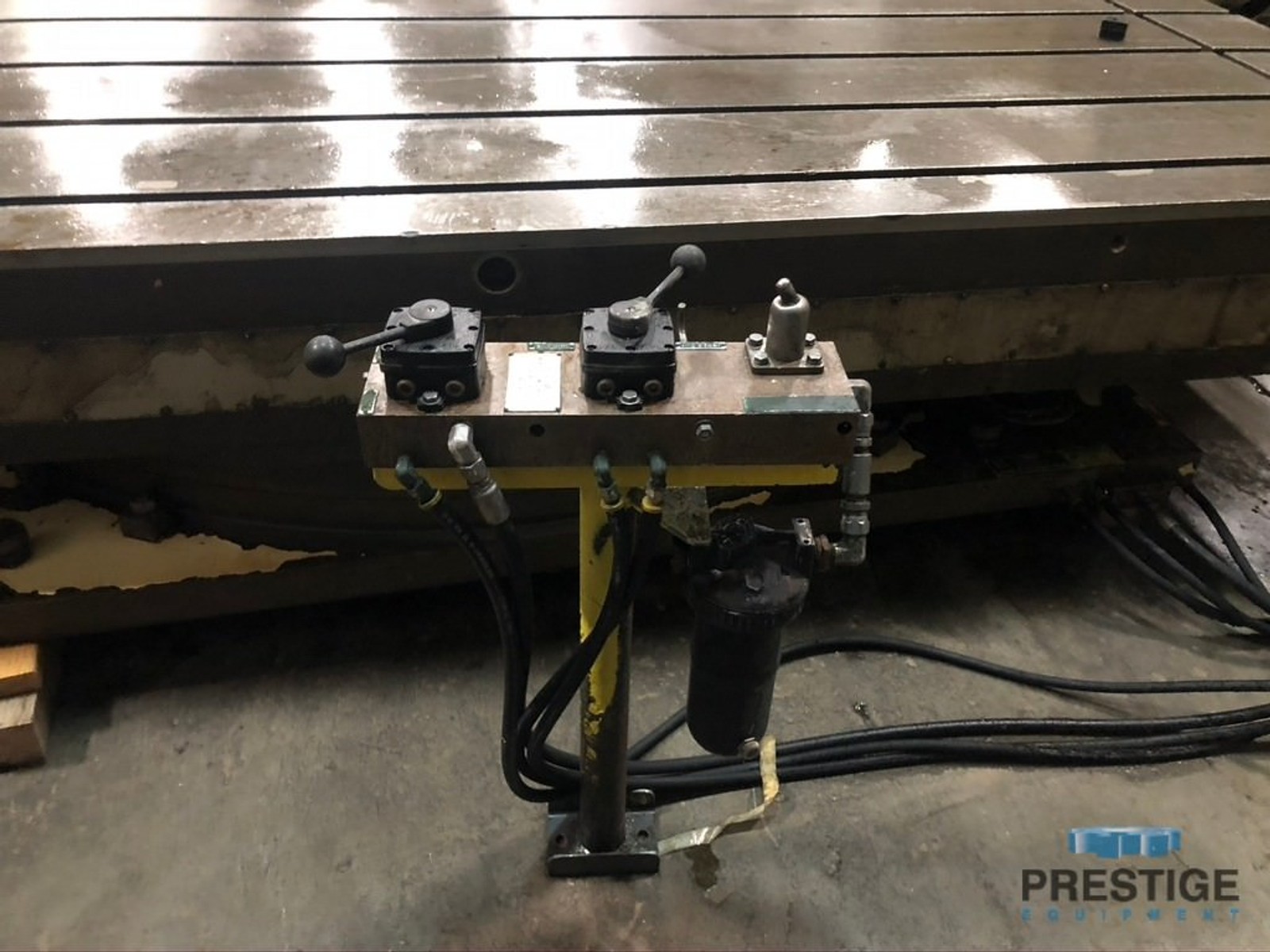

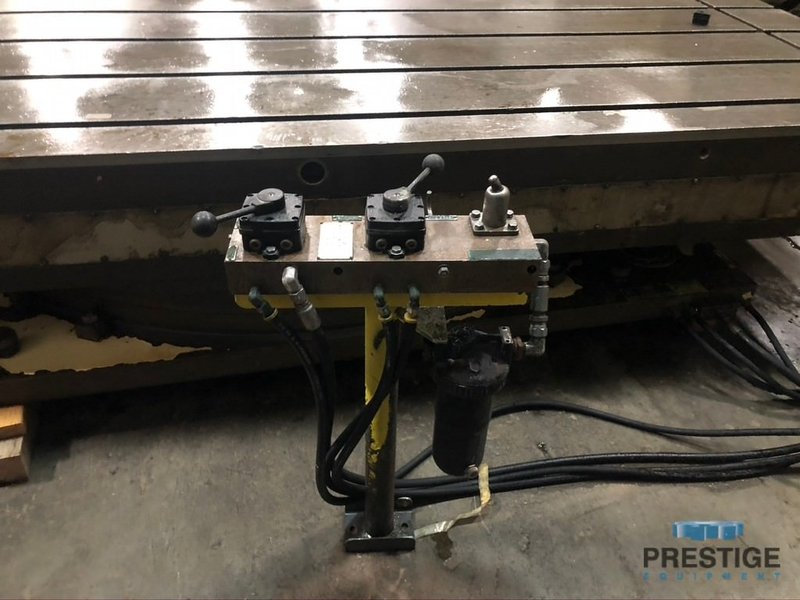

Remote Pendant
Air Clamp
4-Positive Stop, Shot Pins
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway
Center Bore In Table Platen
