Gleason 645, 14.88" Outer Core, 35 Deg. Spiral Angle, 1.5 DP, 23.5" Centers, 5" Hole, 18" Cutter Dia, Auger, #31071

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, (Spiral/Hypoid)

Stock

31071

Model

645

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31071

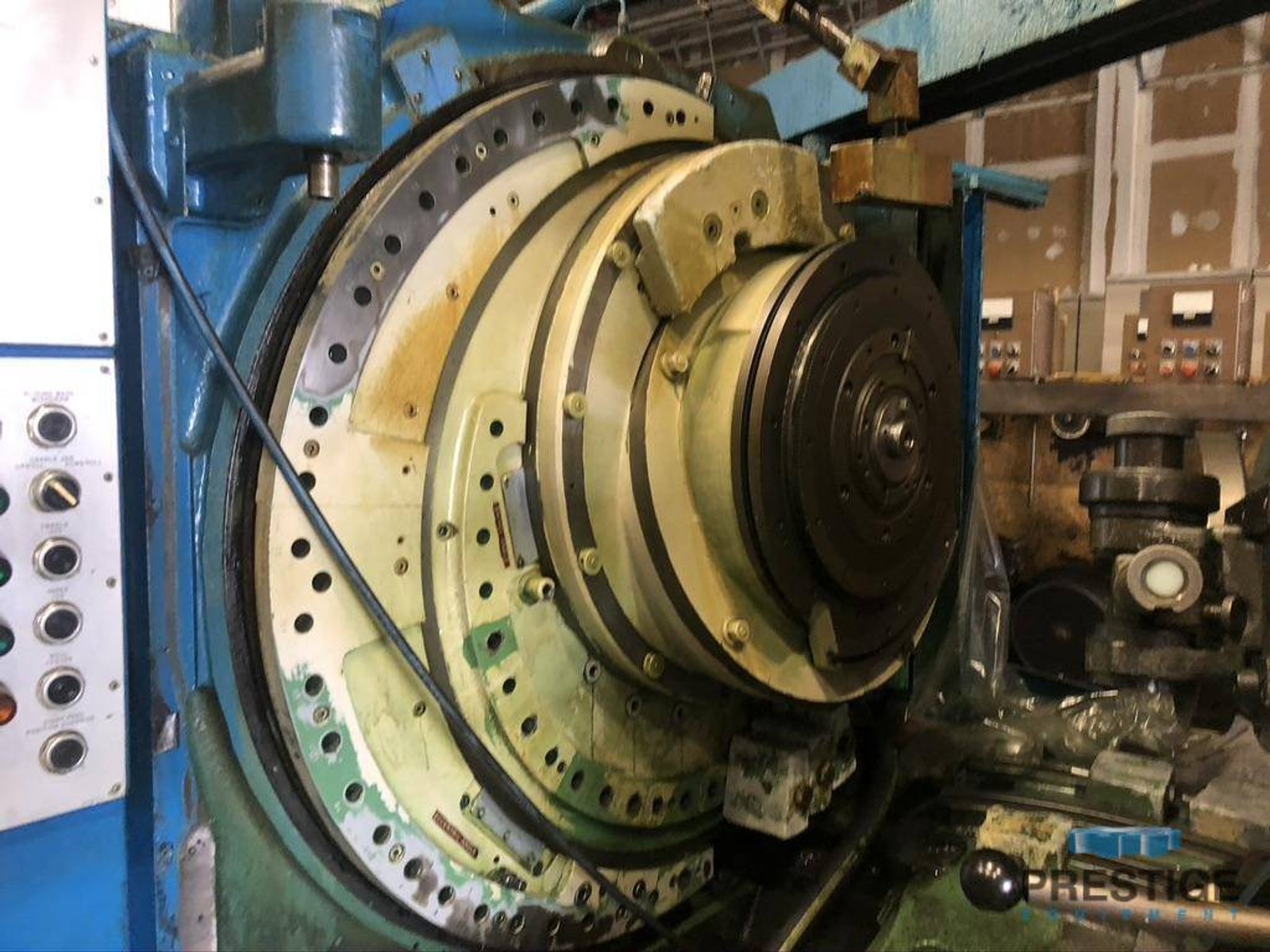

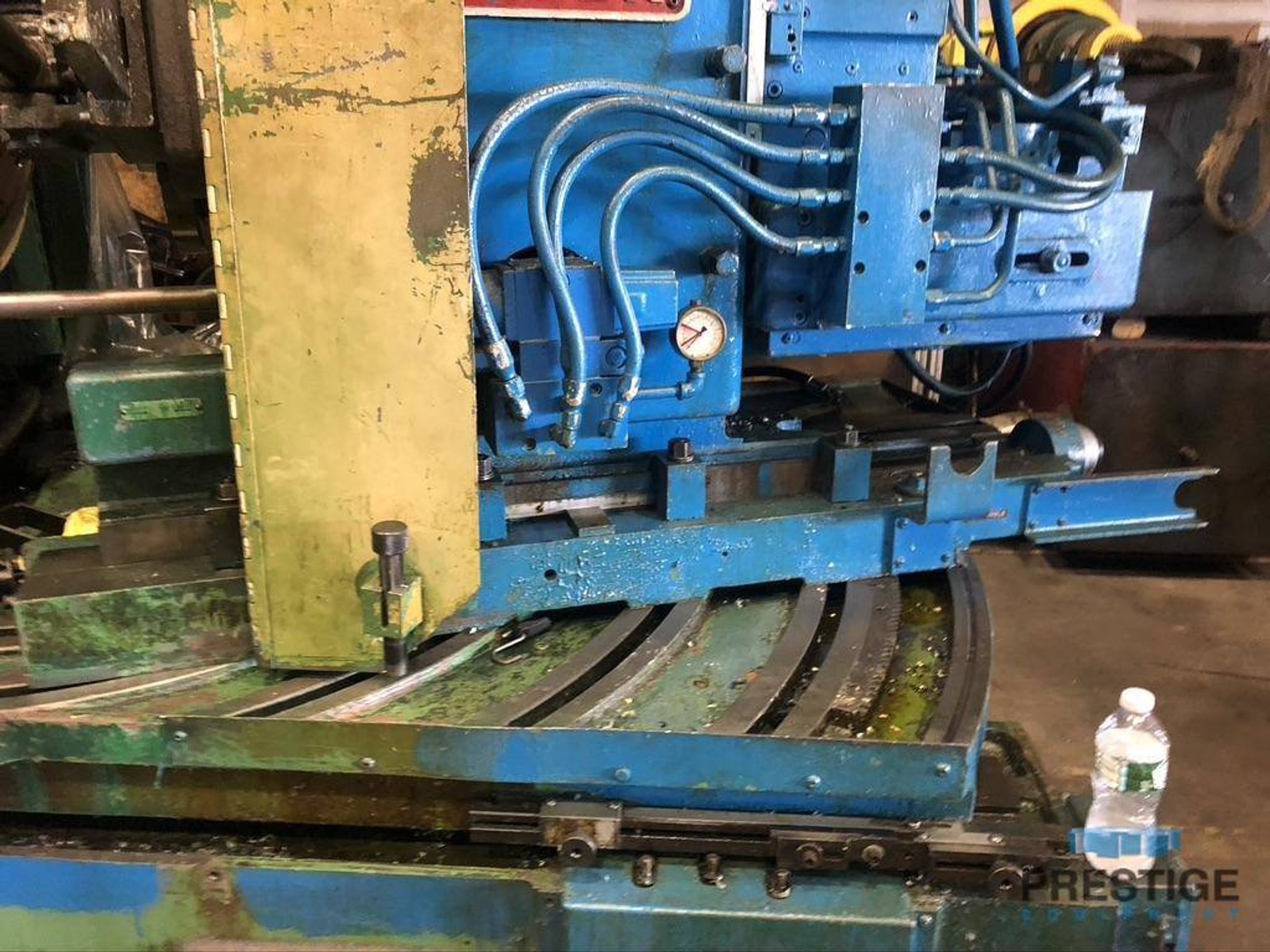

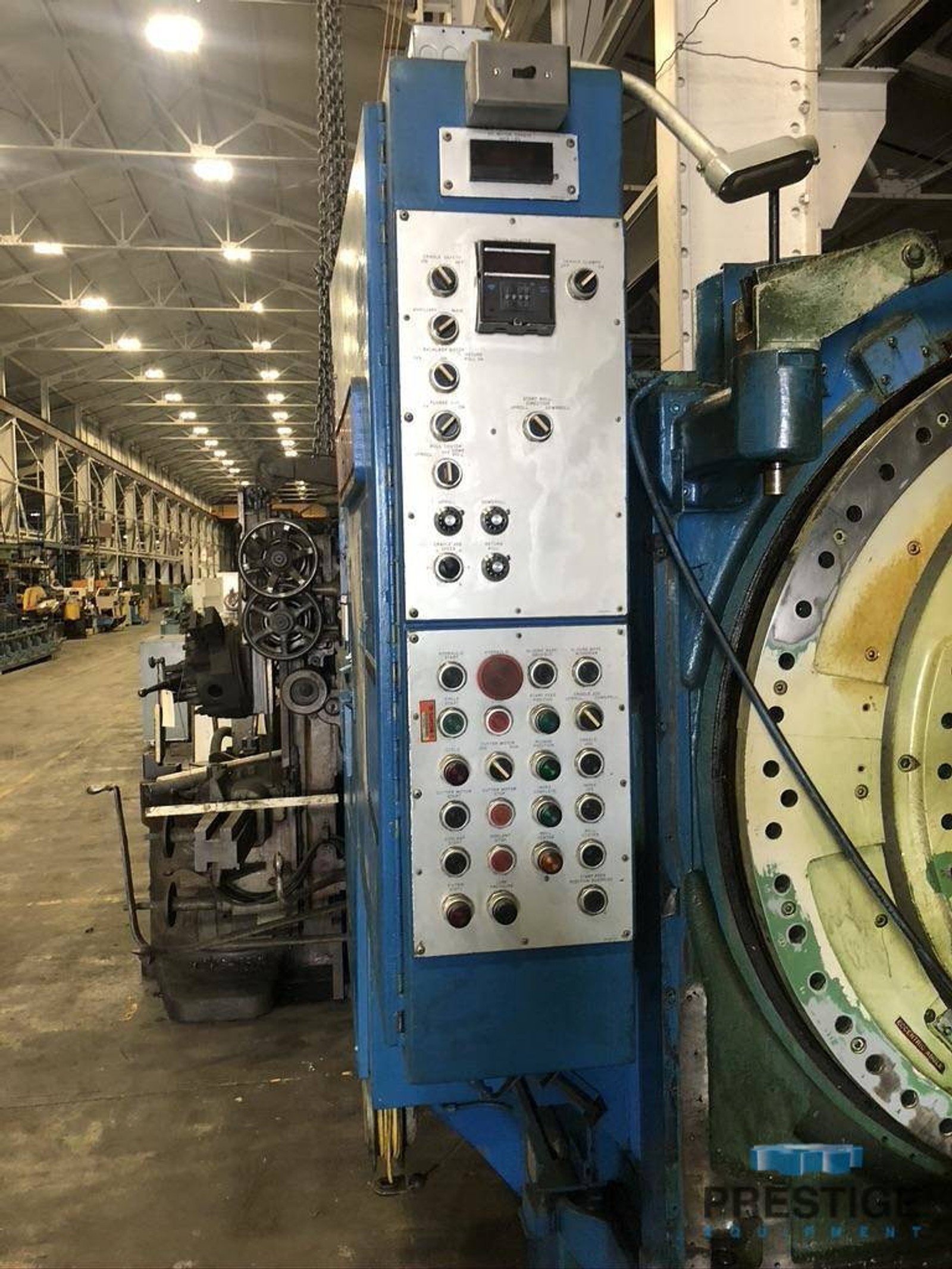

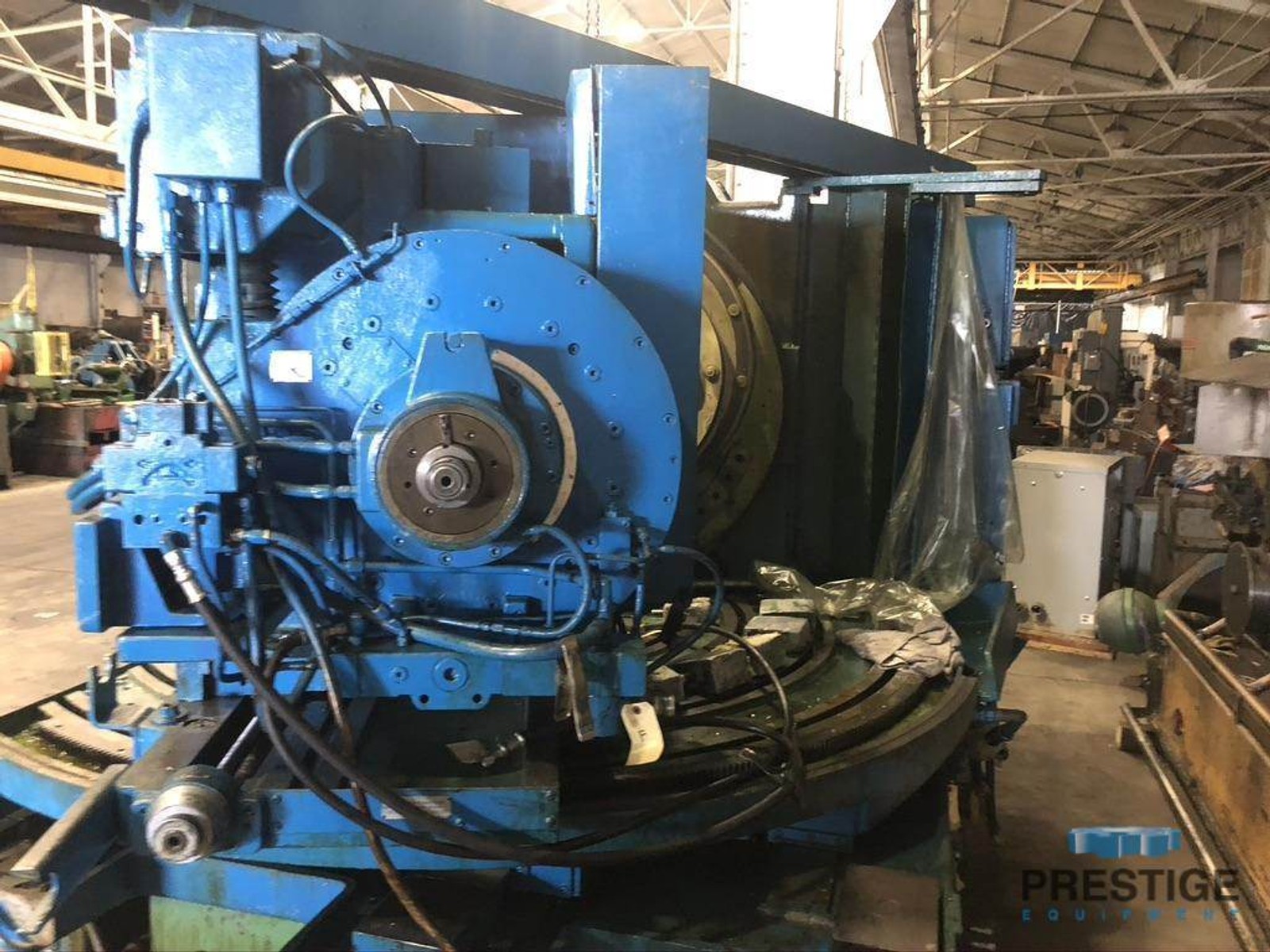

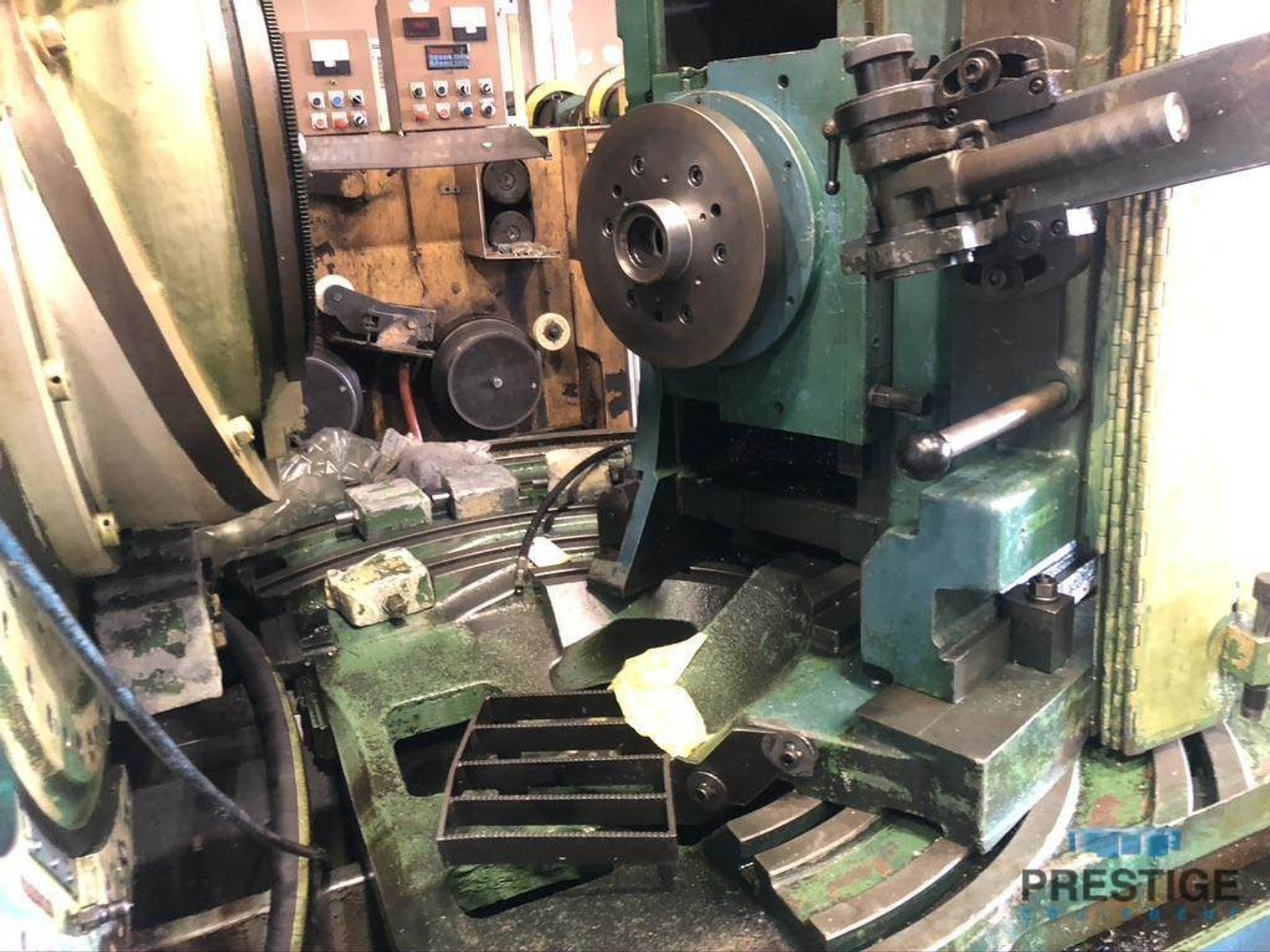

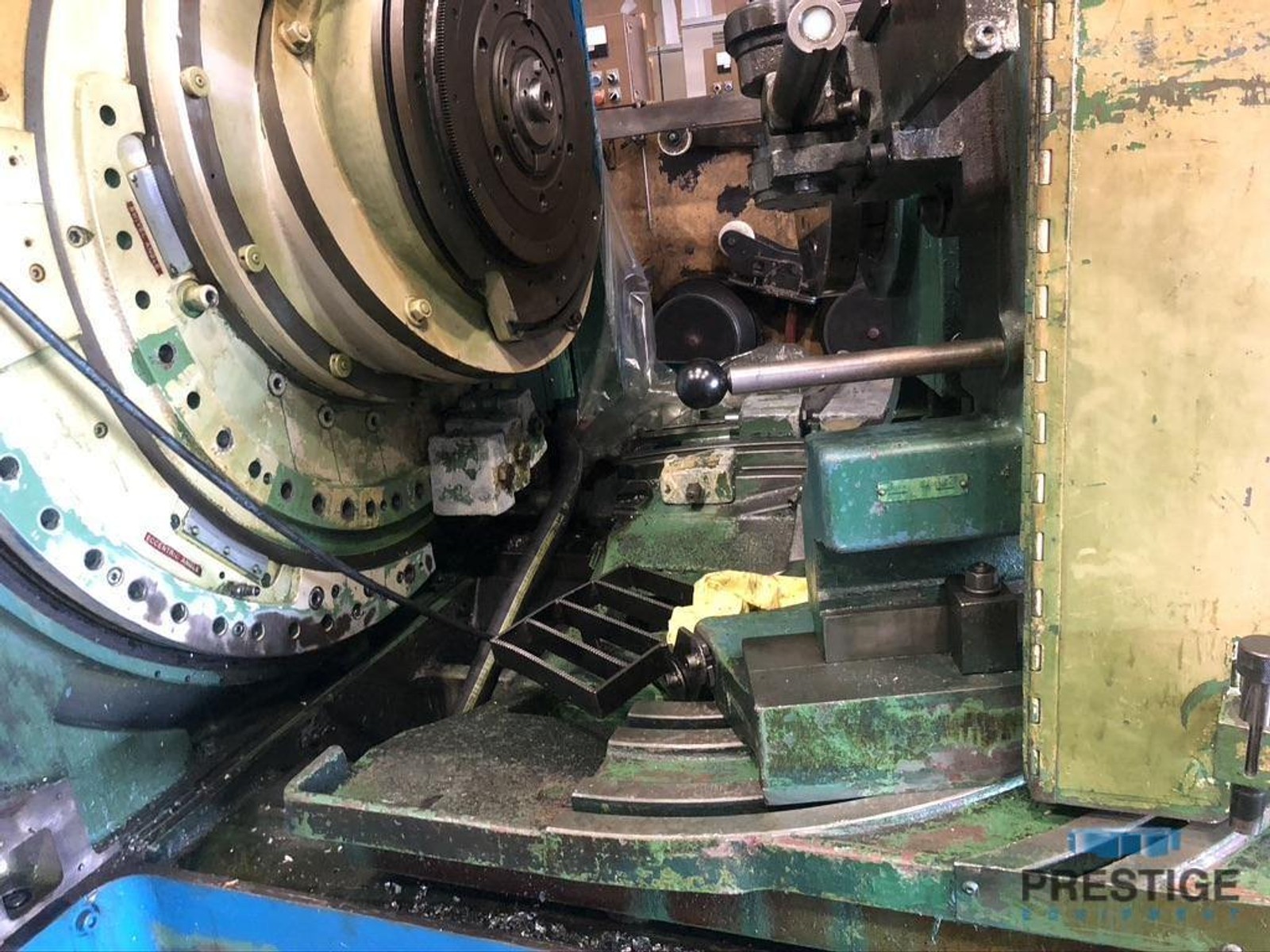

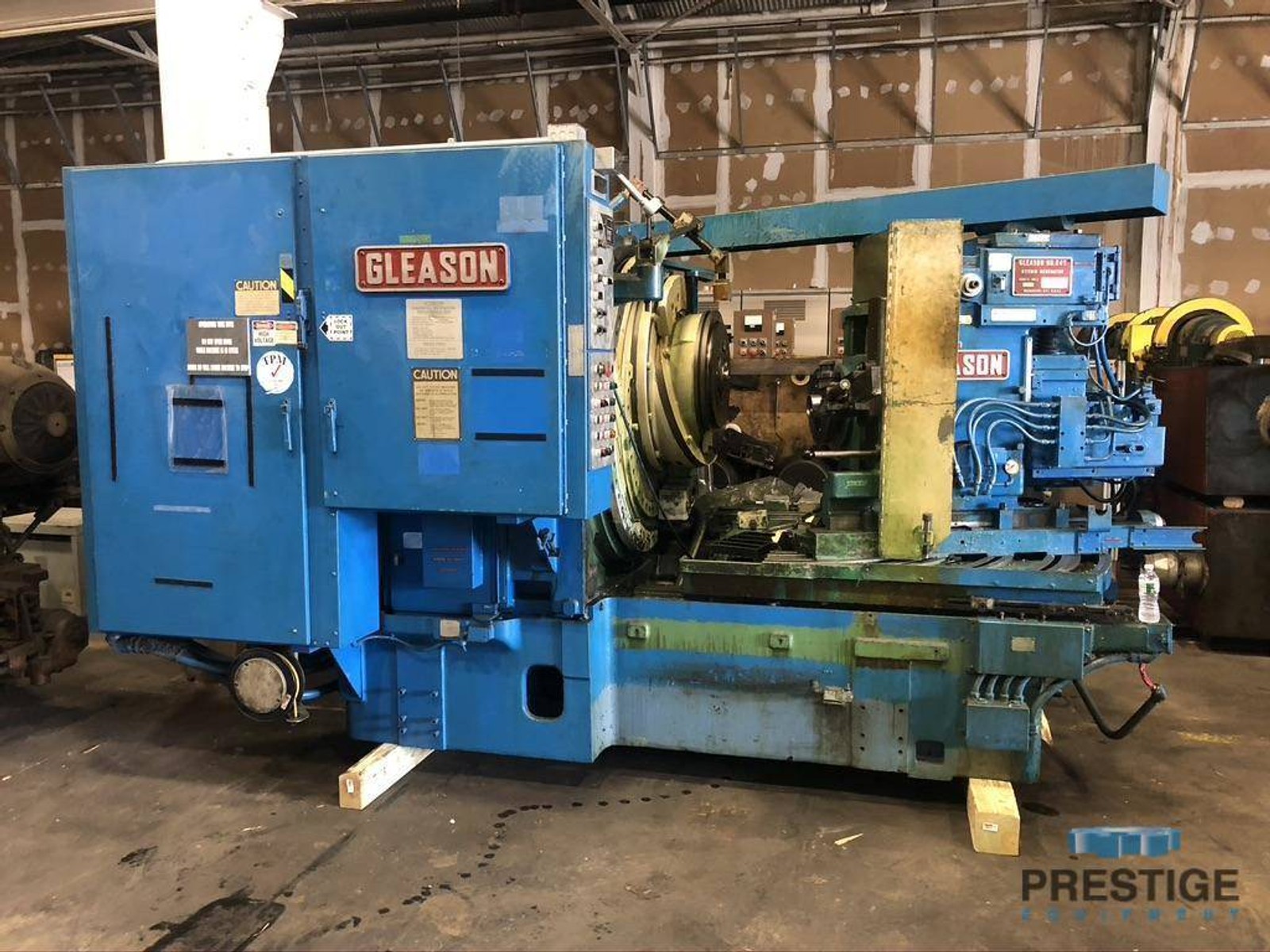

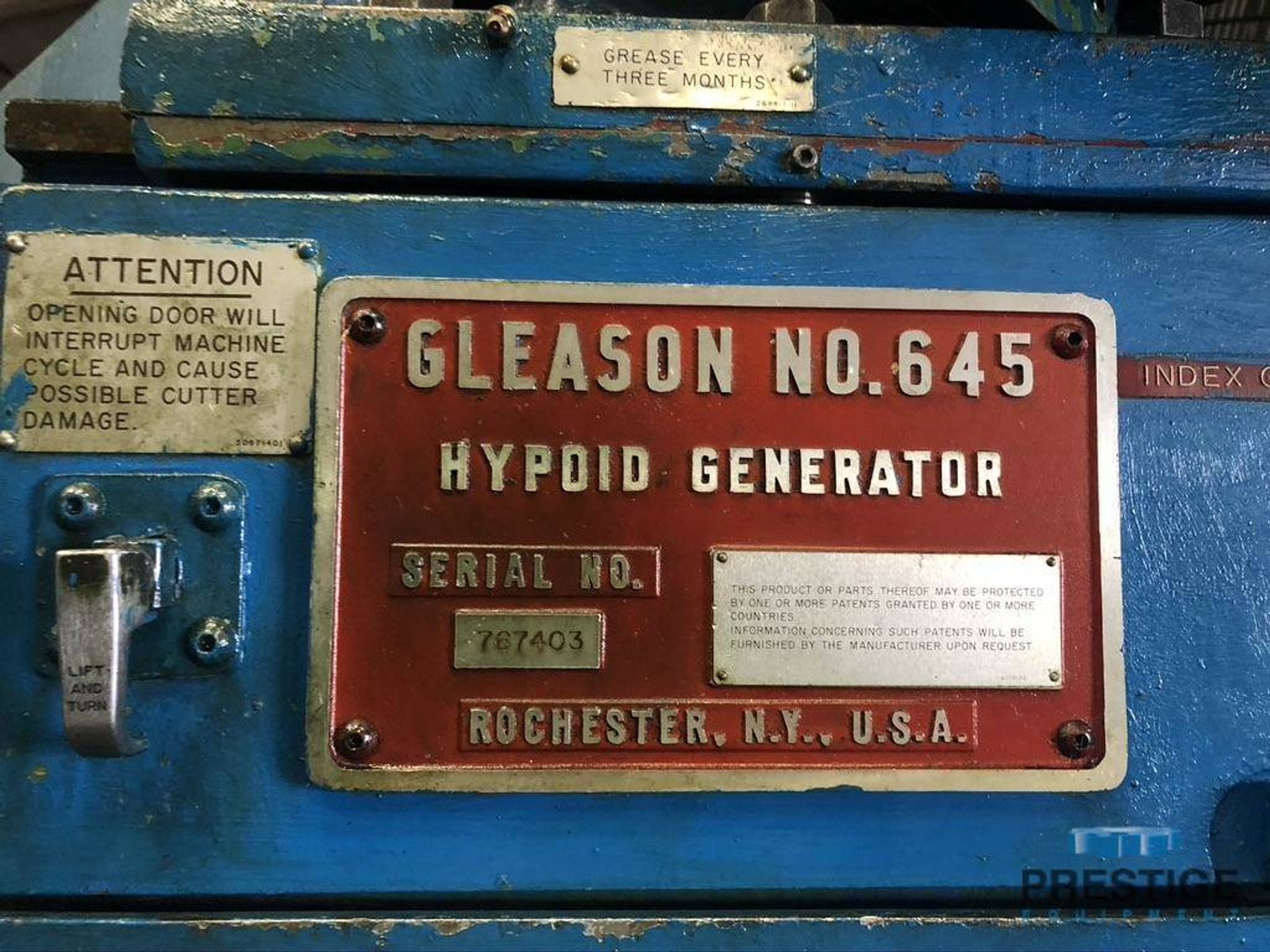

Gleason Model 645 Hypoid Gear Generator

SPECIFICATIONS:
Outer Core ............................ 14.22", 14.05", 14.88"
Spiral Angle .......................... 29.75", 30 Deg, 35 Deg.
Cutter Diameter ....................... 12", 16", 18"
Extreme Ratio ......................... 10:1
Root Angle Range ...................... -8/+90 Degree
Maximum Radial Setting ................ 10.50"
Coarsest Pitch ........................ 1.5 DP
Full Depth ............................ 1.25"
Face Width Max. ....................... 4.60"
Index Range ........................... 5-80 Inclusive
Work Spindle, Dia. Of Taper Hole ...... 6" At Large End
Taper/Ft .............................. 3/4"
Taper/Depth ........................... 6"
Hole Through Spindle .................. 5"
Cutter Diameter ....................... 9", 12", 16", 18"
Work Head Offset Above Center ......... 4.5"
Work Head Offset Below Center ......... 4.5"
Machine Center To Spindle Nose ........ 23.5"
Cutter Speeds/Feeds ................... 19-167 RPM
Electrics ............................. 460V
Weight ................................ 55,000 Lbs.

EQUIPPED WITH:
Stock Divider
Chip Auger
Hydraulic System
Coolant

LOCATION:
Bridgeport, CT
