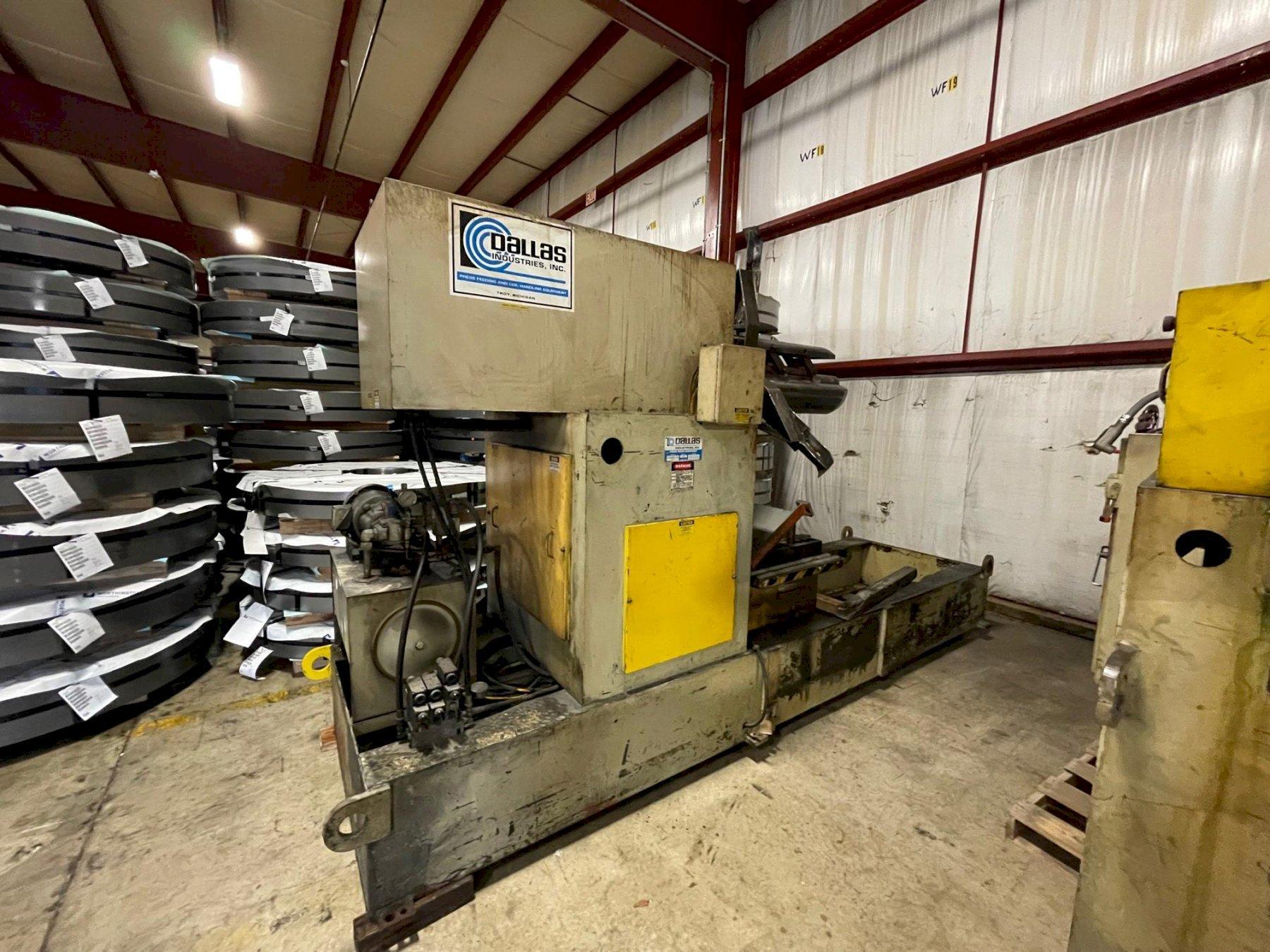

10,000 lbs x 36" Dallas Coil Reel and Powered Straightener

Manufacturer

DALLAS

Category

Coil Processing Equipment

Type

COIL REELS & STRAIGHTENERS (Combination)

Stock

2676

Model

DJR-10,000 & DPS-3 1/2-7-36

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 10000 pounds
Coil Width - 36 inches
Coil Thickness - .125 inches


Preliminary Specifications
10,000 lbs Coil Capacity
36" Max. Coil Width
.135" x 30" Wide Material Thickness
.195" x 18" Wide Material Thickness
72" Max Coil O.D.
20-24" Coil I.D. Range

Equipment and Features

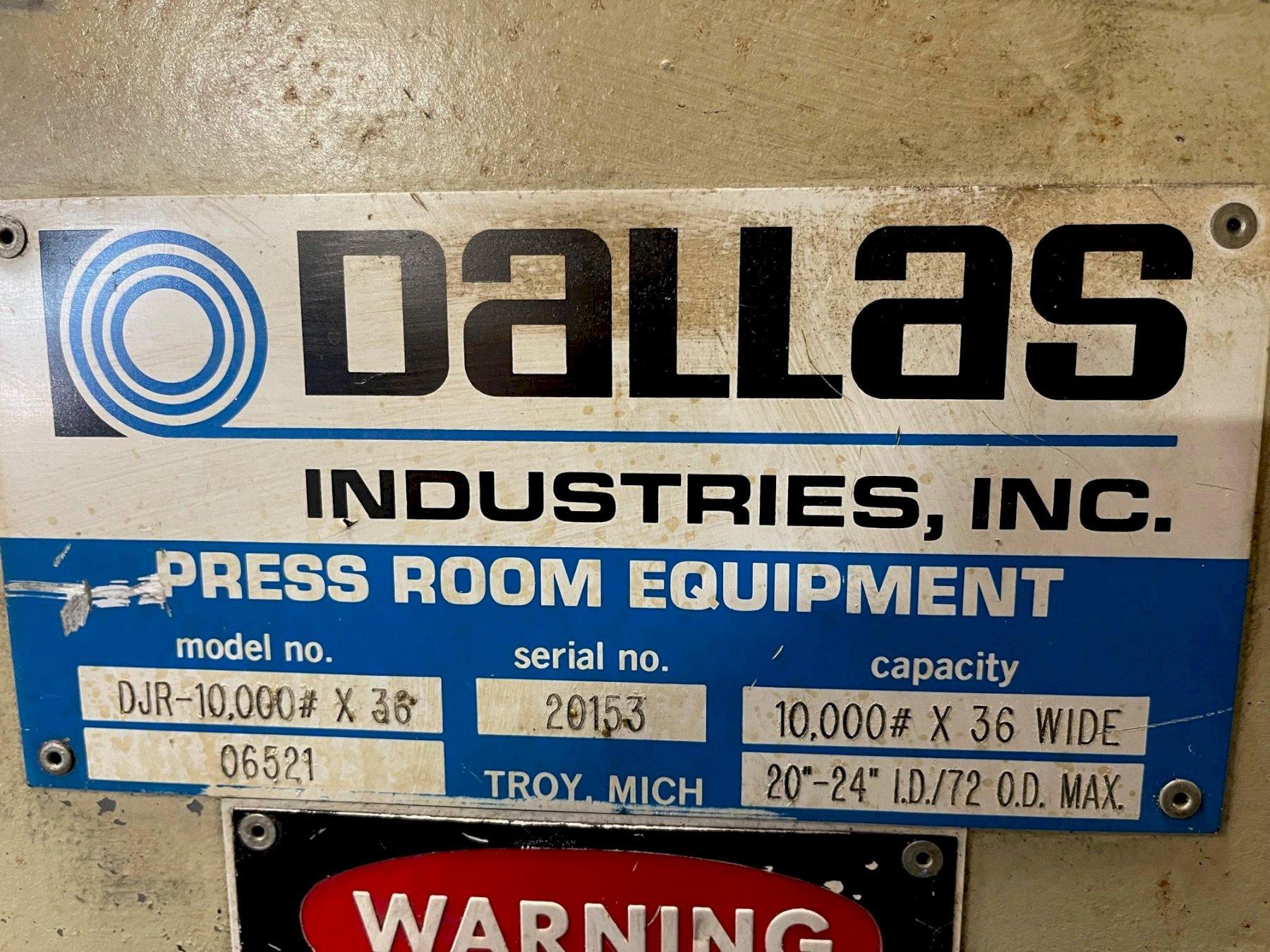

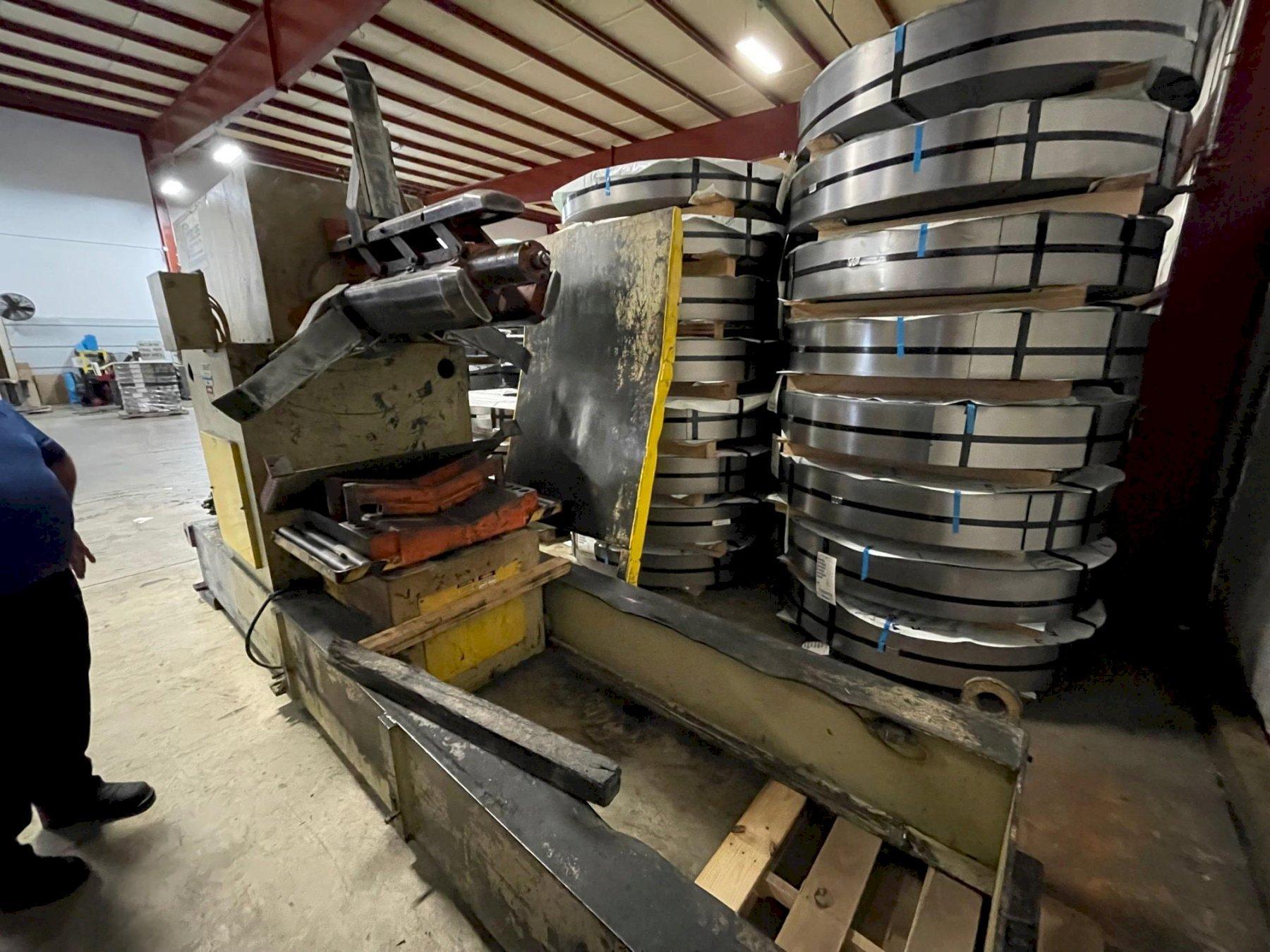

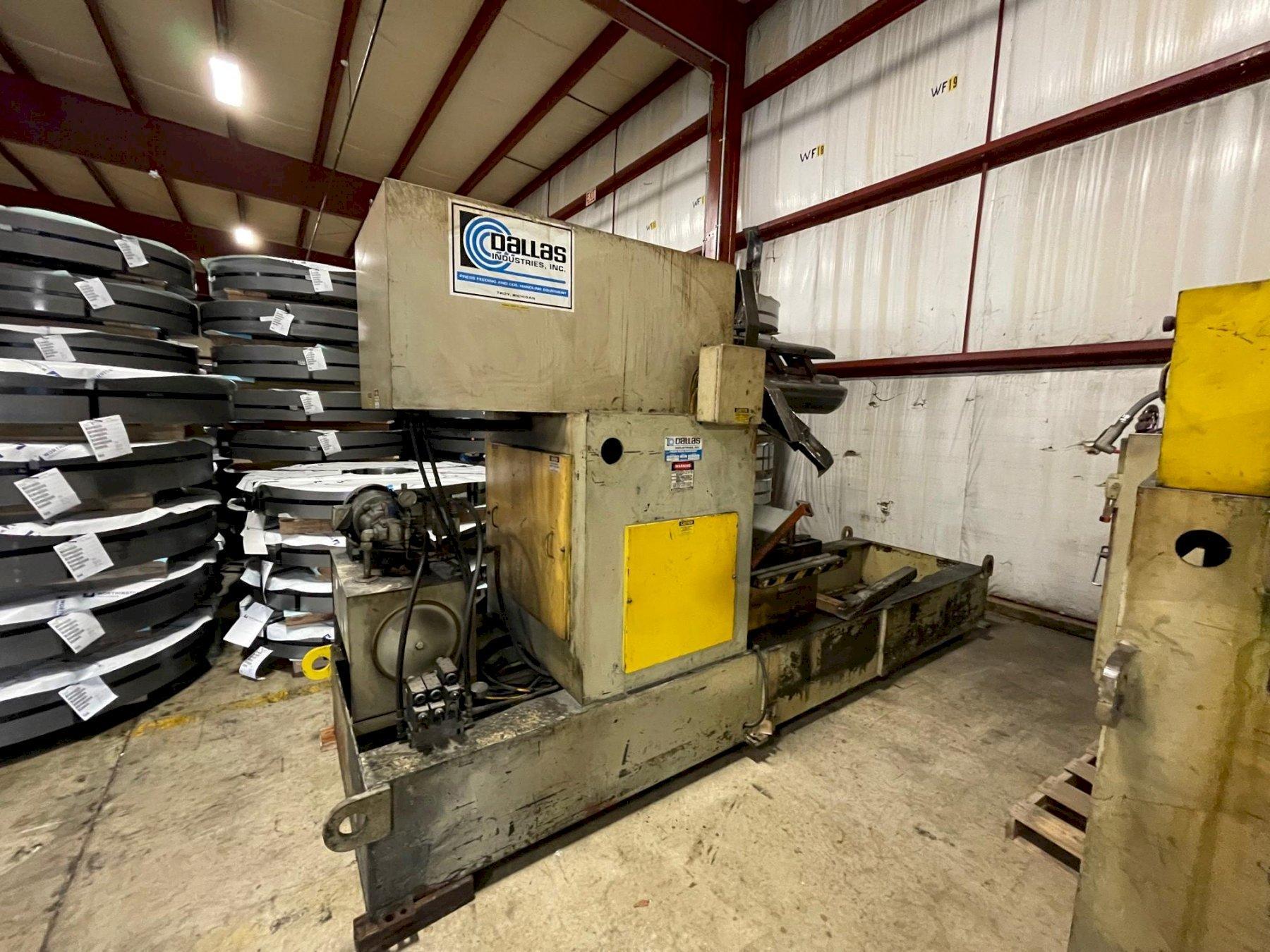

Dallas Industries Pull Off Coil Reel with Coil Car Model No# DJR-10,000 x 36
Serial Number 20153
Three Leaf Mandrel with Hydraulic Expansion
Full Set of Coil Keeper Arm
Air Brake Mounted on Main Spindle
Thread Drive for jog forward and reverse
Clock Spring Guard
Adjustable pull off tensioning
Powered Lift and Travel Coil Car

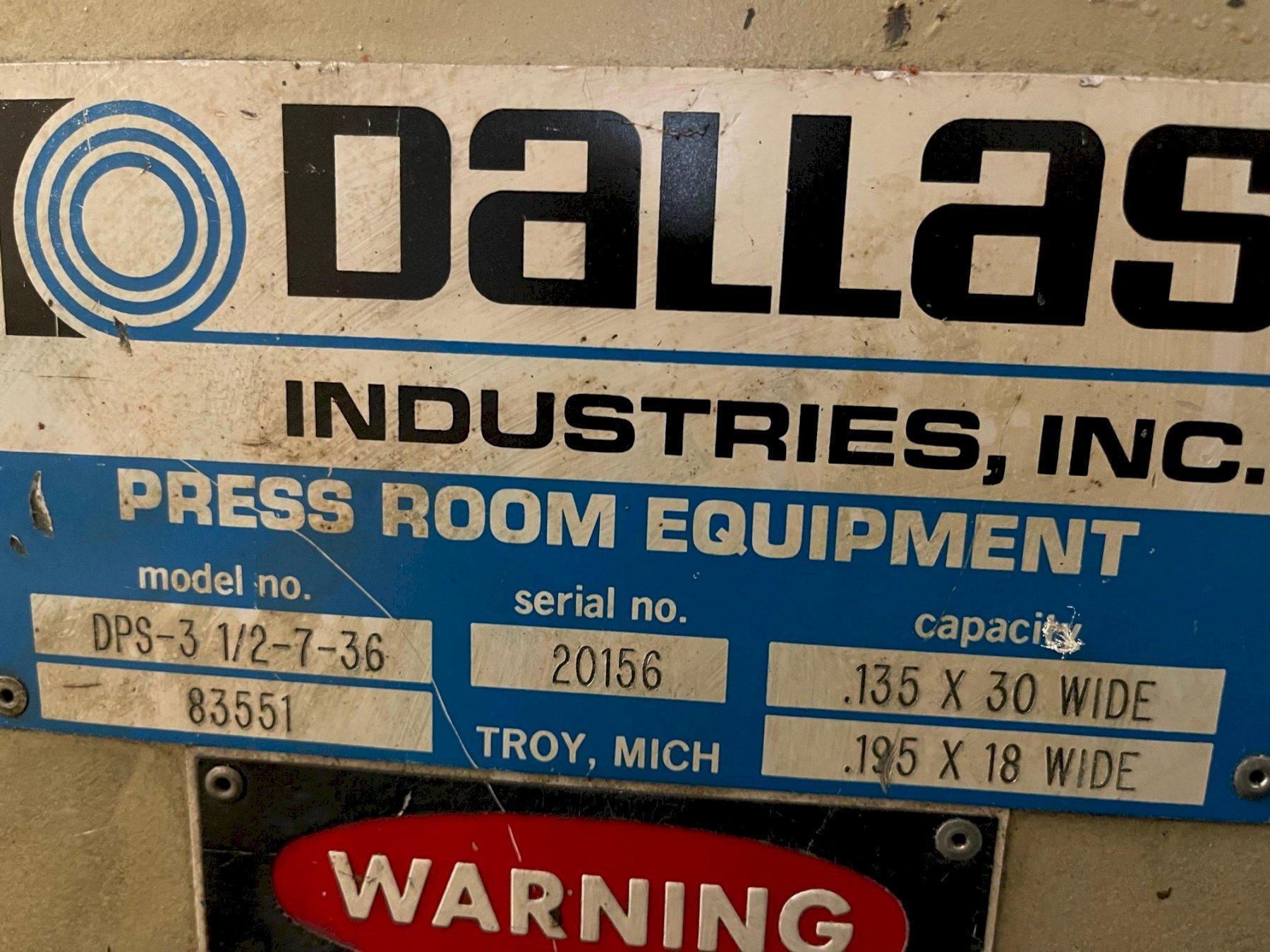

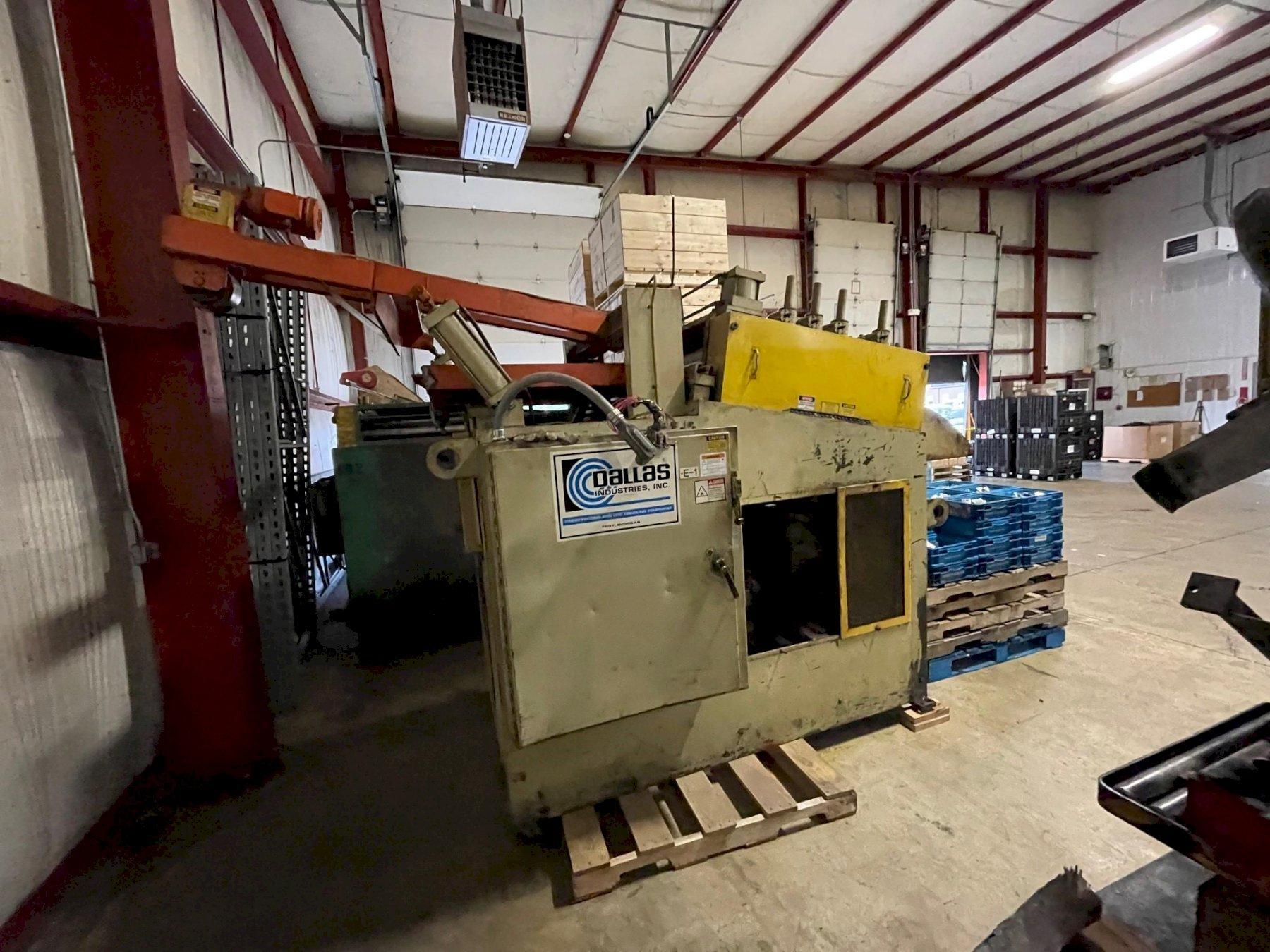

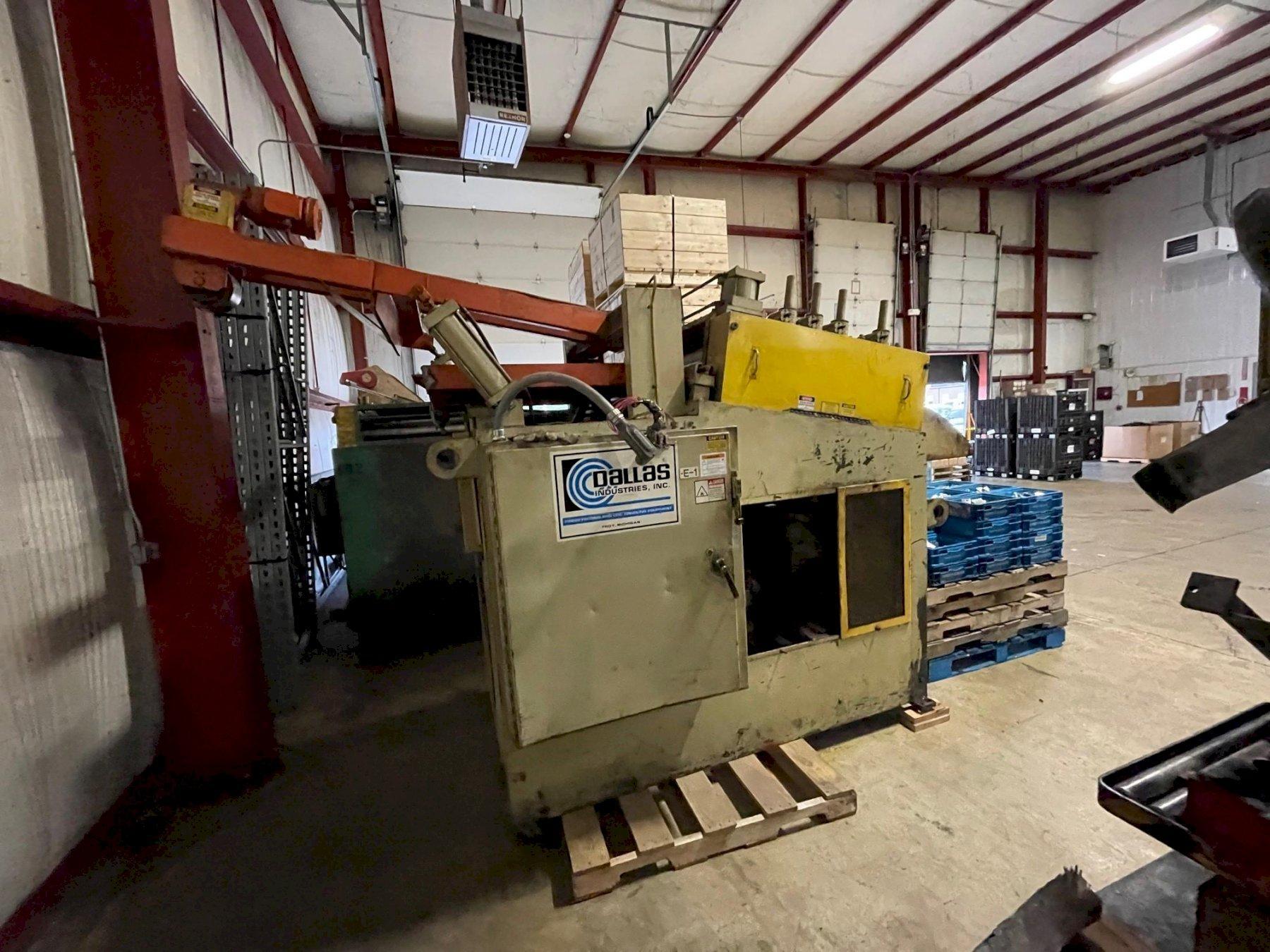

Dallas Industries Powered Coil Straightener Model# DPS-3 1/2-7-36
Seven Powered Coil Straightening Rolls x 3.5" Diameter
Entry Powered Coil Straightening Pinch Rolls with Air Operated Adjustment
Exit Powered Coil Straightening Pinch Rolls (Manual)
Individual Upper Powered Coil Straightener Roll Adjustments
Adjustable Stock Width Edge Guides
Coil Hold Down Arm with Motorized End Wheel
Stock Peeler Table with Spade Extension
Integrated Coil End De-Bender
