20,000 lbs x 72" Feed Lease Combination Coil Cradle Straightener - Coil Feed Equipment

Manufacturer

FEED LEASE

Category

Coil Processing Equipment

Type

COIL CRADLES & STRAIGHTENERS

Stock

2690

Model

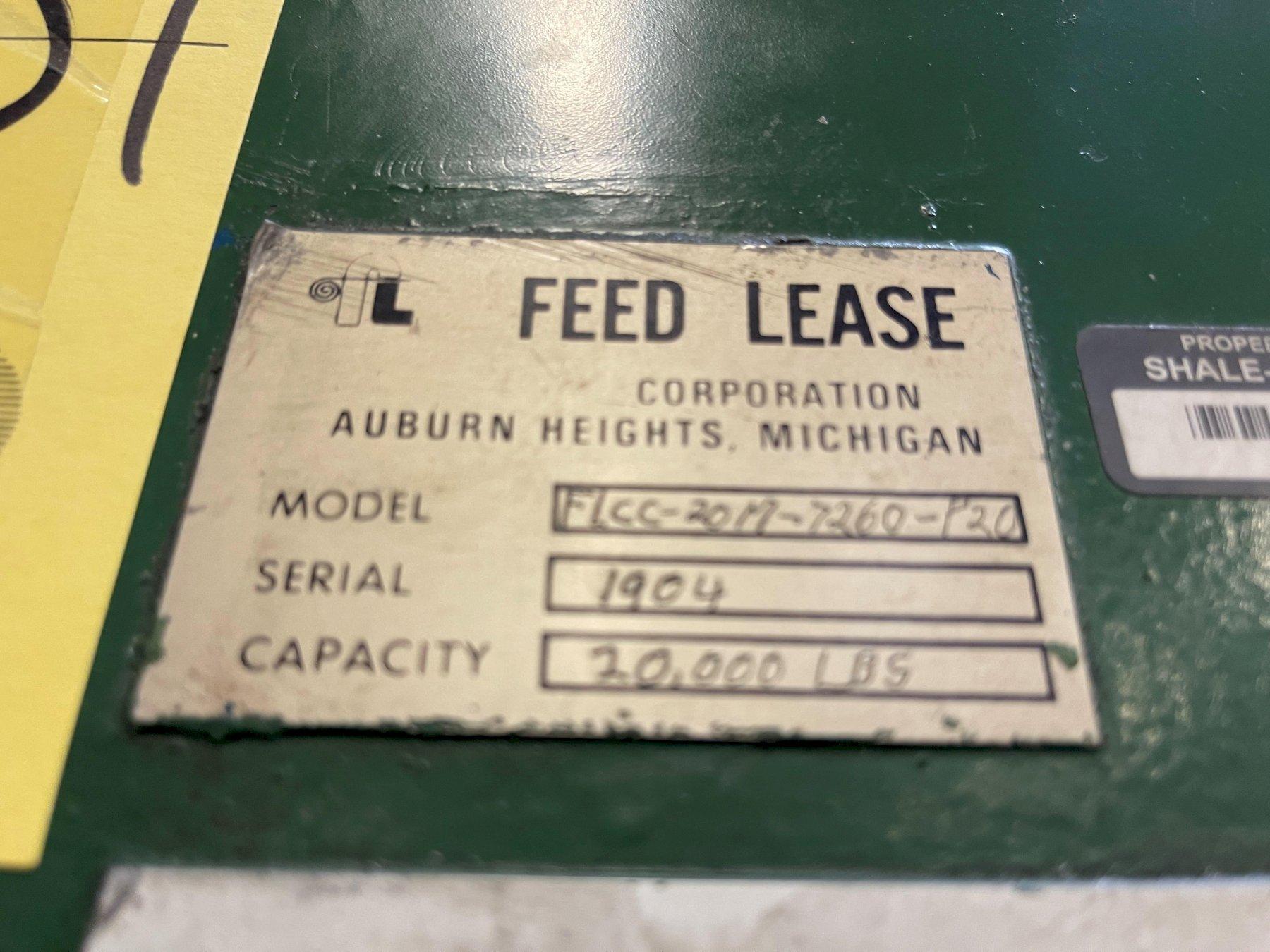

FLCC-2017-7260-P20

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Coil Weight - 20000 pounds
Coil Width - 72 inches
Coil Thickness - .156 inches


Feed Lease Coil Cradle Straightener Combination Uncoiler Specifications:
Coil weight capacity: 20,000 Lbs.
Coil width capacity: 72"
Stock thickness capacity: .156" x 72" Wide
Stock thickness capacity: .250" x 48" Wide
Coil OD capacity: 60"

Feed Lease Coil Cradle Straightener Combination Uncoiler Equipment and Features:
Coil cradle straightener entry and exit pinch rolls x 6.5" Diameter
Air operated adjustable coil cradle straightener entry and exit pinch rolls

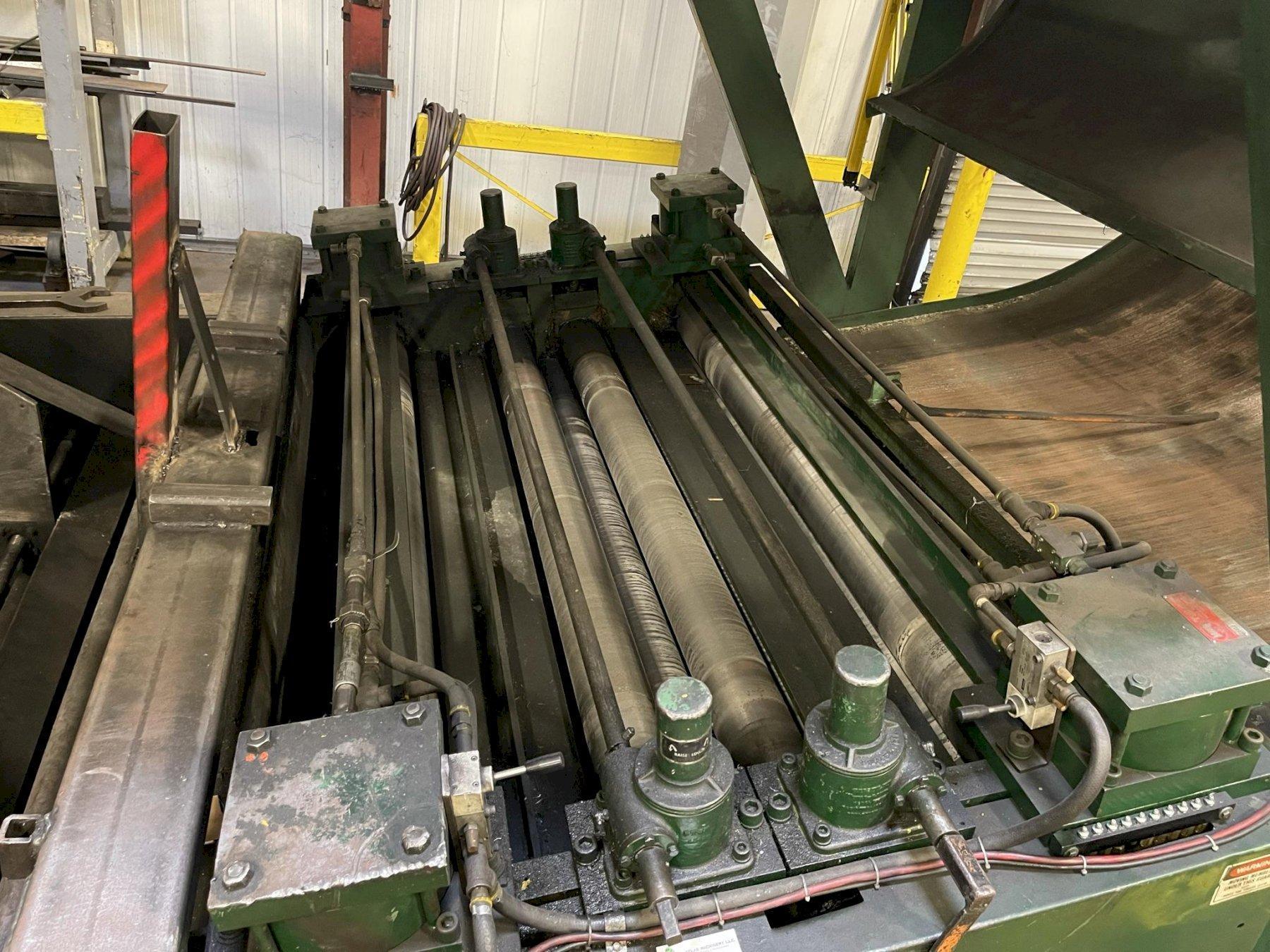

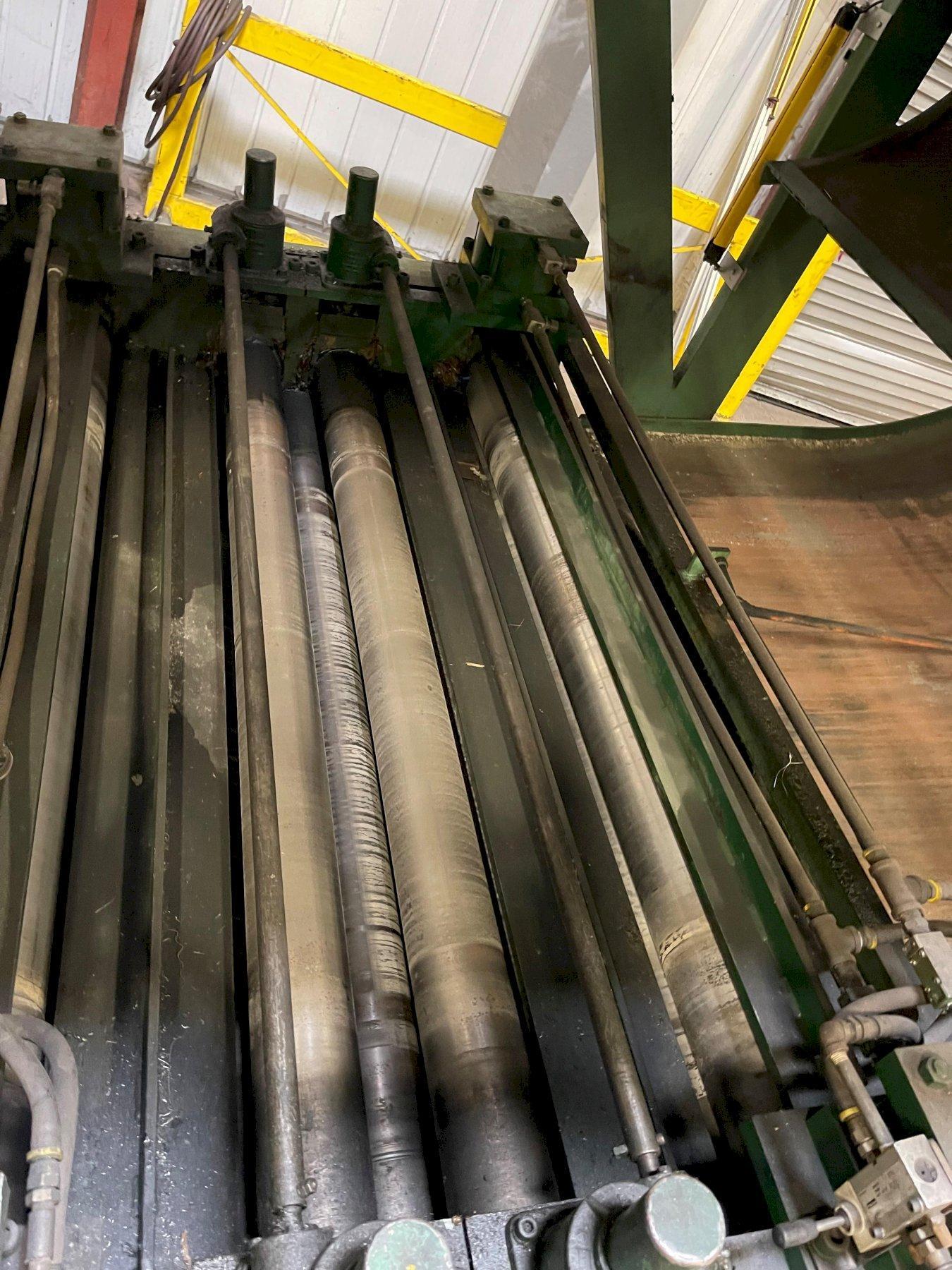

Five coil cradle straightener straightening rolls x 5" diameter
Hand crank upper coil cradle straightening roll adjustments via screw jacks
Inline (Floor Mounted) coil cradle straightener powered straightener
Stock peeler assembly
Dual adjustable coil cradle straightener side plates
Reverse loop stock deflector

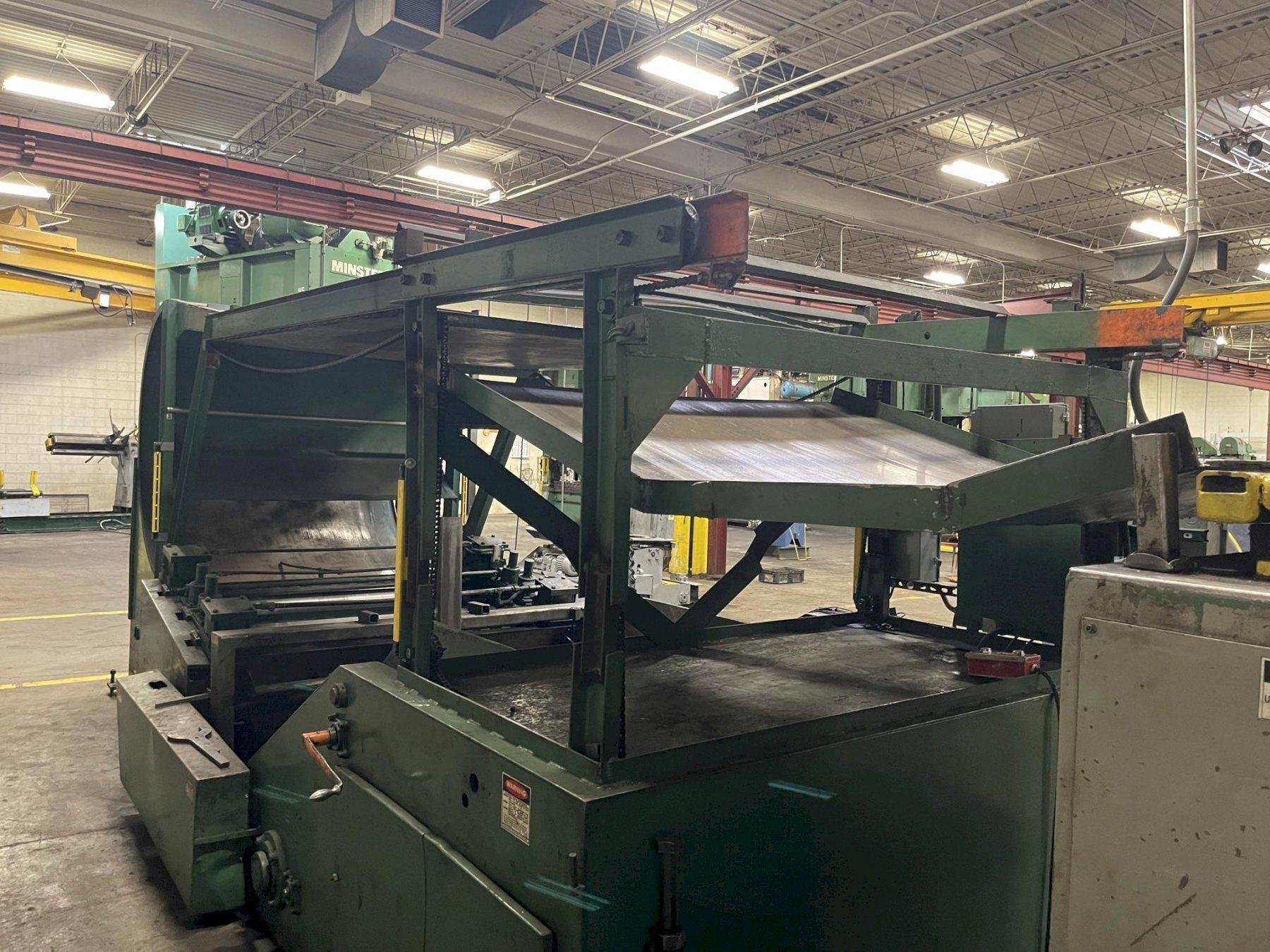

Over head guide chute (Motorized)
Chute extension
Variable speed drive system
Common operator's control console
Jog forward and reverse
Auto / Run cycle
Loop control

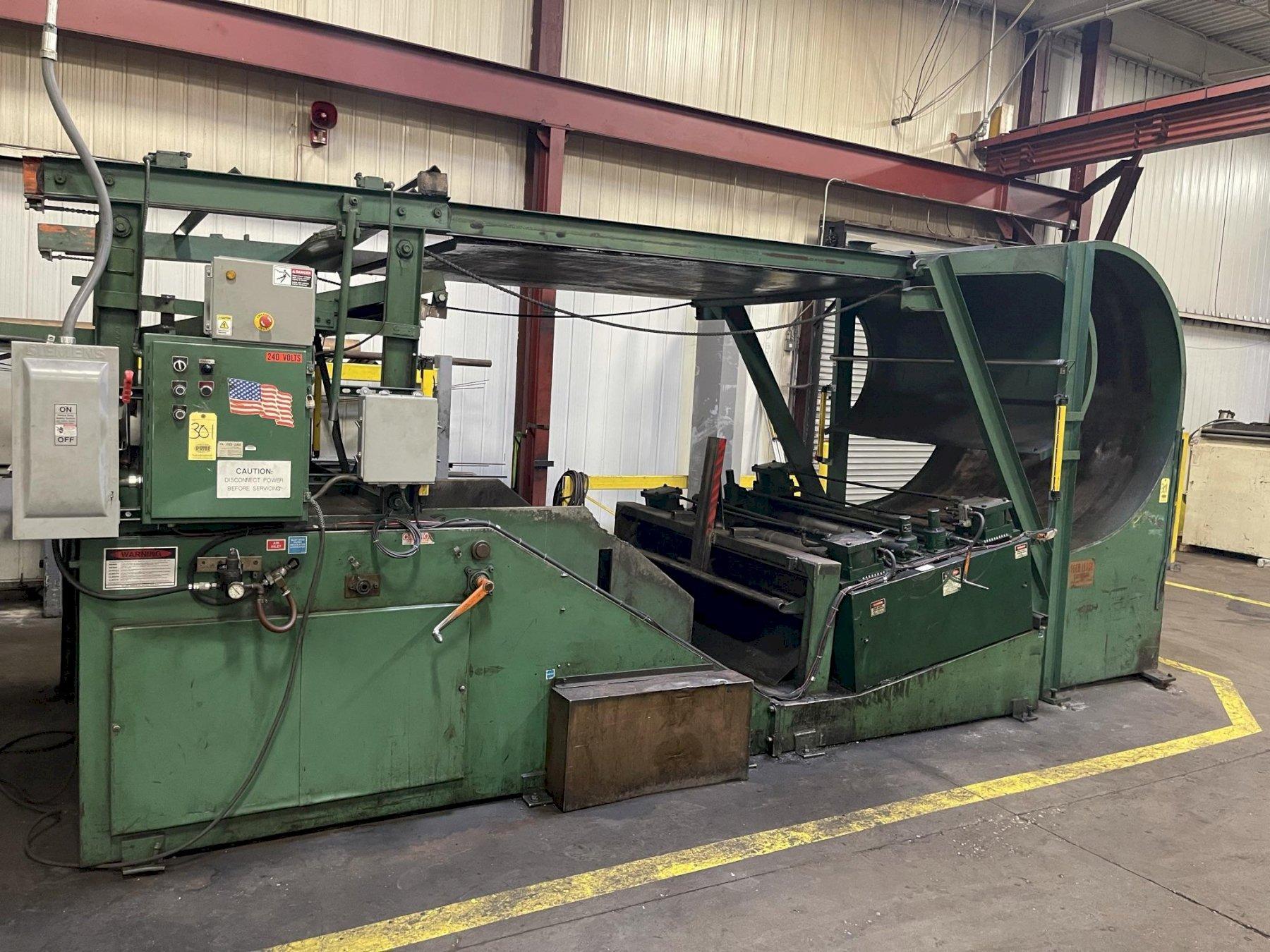

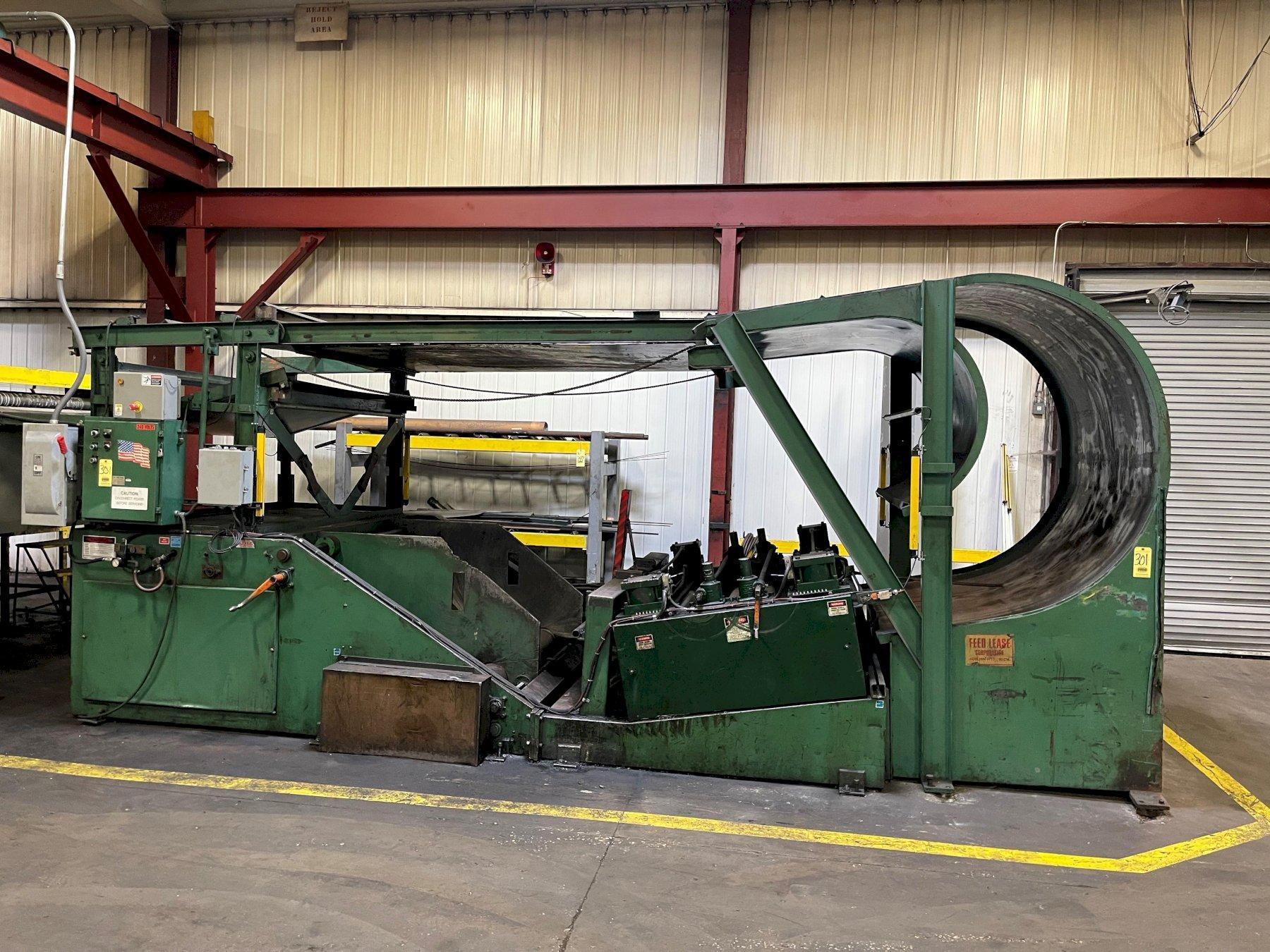

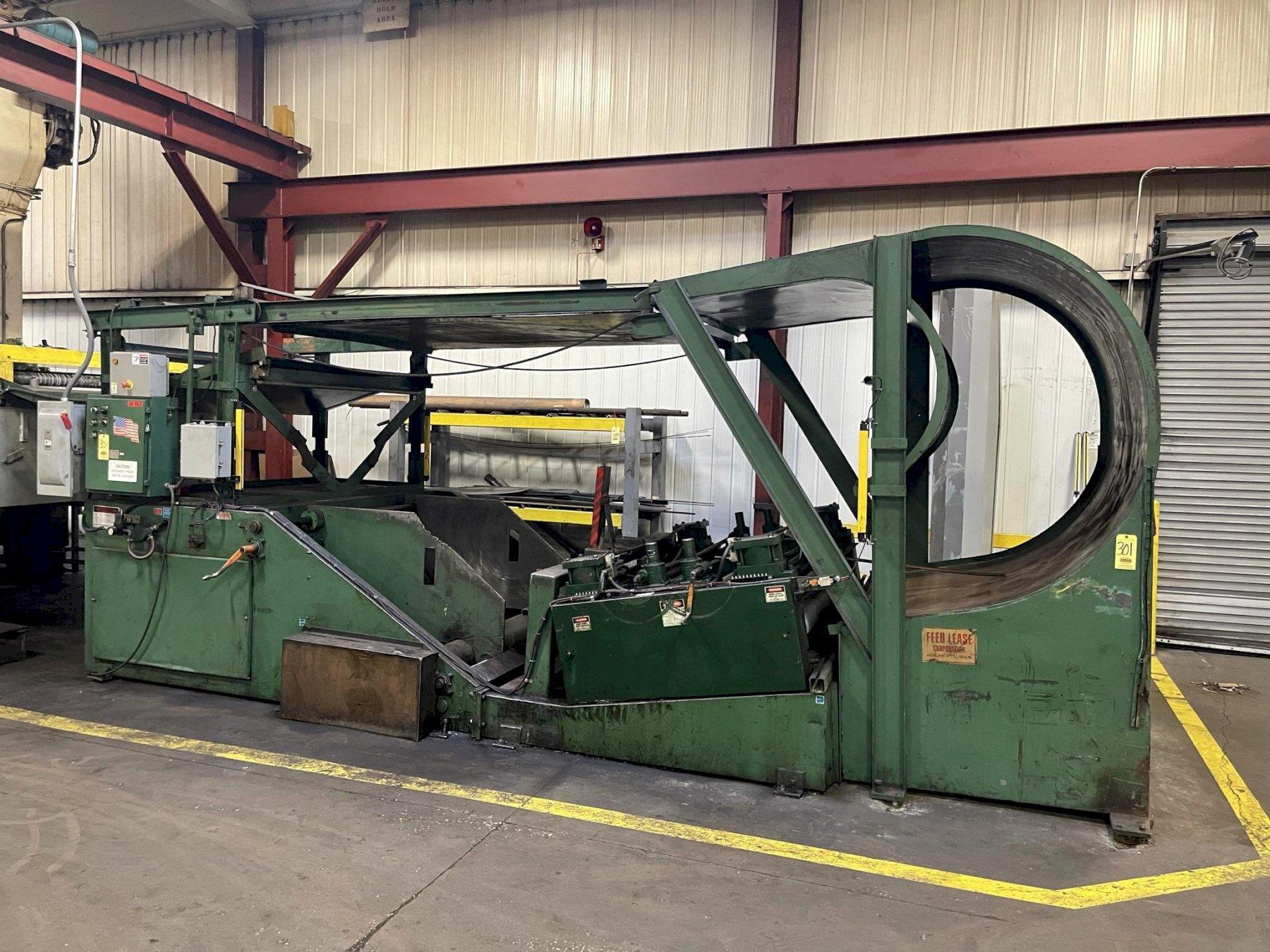

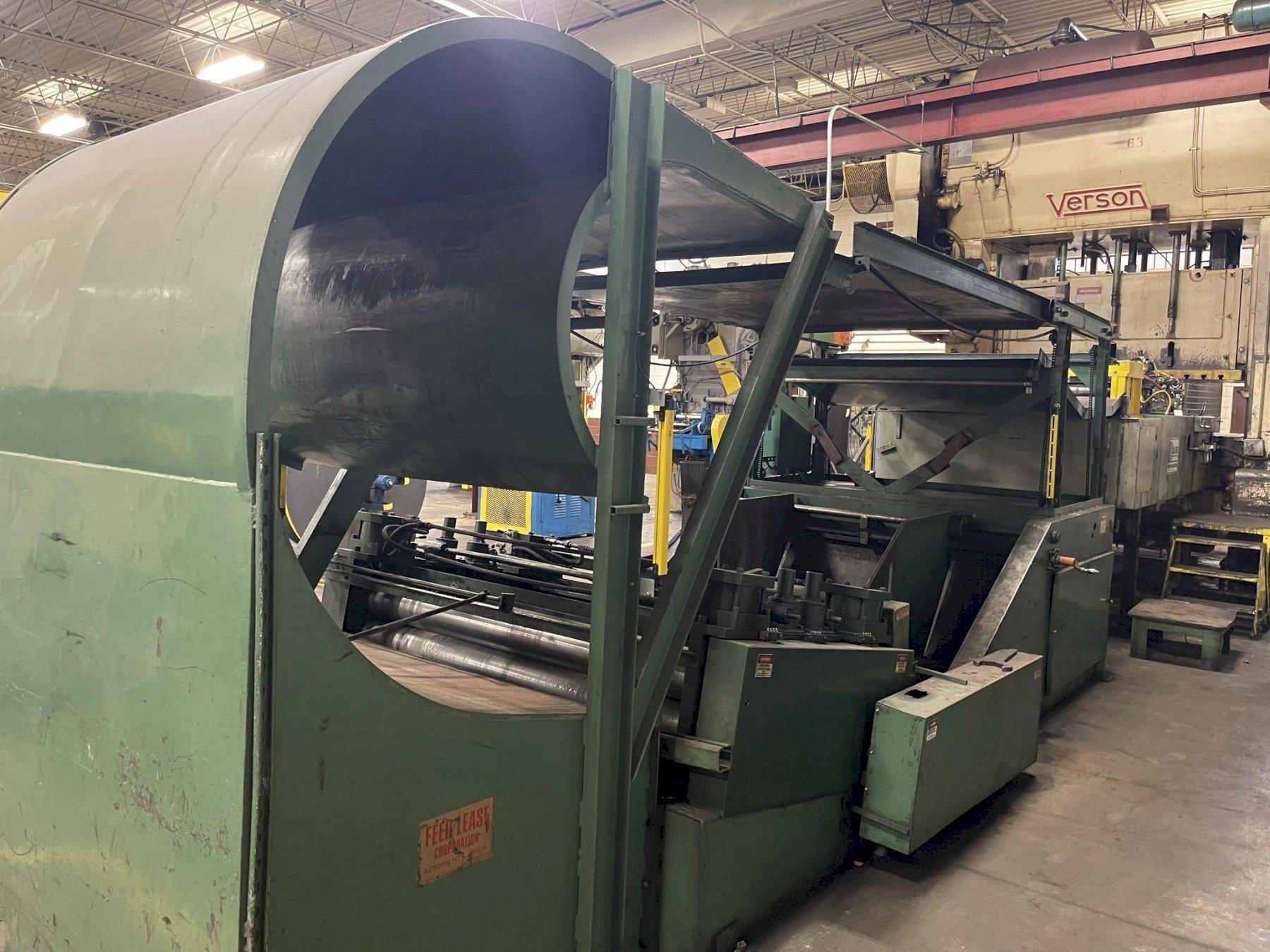

This Used Metal Stamping Feed Lease Coil Cradle Straightener can be seen under power in the S & G Press Warehouse!

Upgrade your press room with this heavy-duty Feed Lease Coil Cradle Straightener Combination, now available at S&G Press and Machinery. This high-capacity system features a 20,000 lbs. coil weight capacity and a 72" maximum width, handling stock thicknesses up to .156" at full width and .250" at 48".

The Feed Lease uncoiler is equipped with five 5" diameter straightening rolls, air-operated pinch rolls, and a motorized overhead guide chute for seamless material handling. Designed for efficiency, it includes a variable speed drive, stock peeler assembly, and integrated loop control.

This used metal stamping feed line is in excellent condition and can be inspected under power at our warehouse. Contact S&G Press today for reliable, production-ready coil processing solutions.
