10,000 LBS X 40" X .110" ROWE SERVO COIL FEED LINE

Manufacturer

ROWE

Stock

2692

Model

10040-DSJ / C3-40 / PM-FDC-053-240

Dealer Location

Michigan

Spec Sheet

Coil Weight - 10000
Coil Width - 40
Coil Thickness - .110


10,000 lbs Coil Capacity
40" Coil Width Capacity

40” wide x .110” thick material

19.5” – 24.5” Coil I.D. Range

60" Coil O.D.



Equipment and Features:

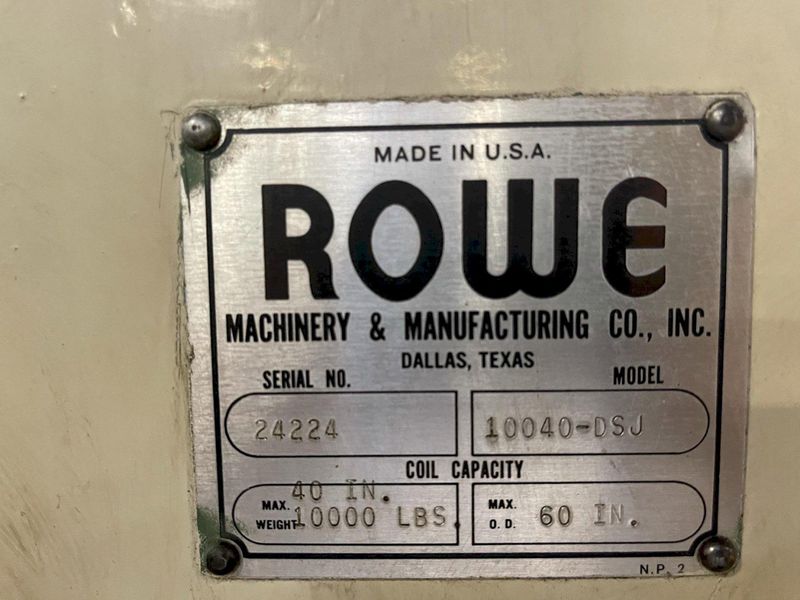

Rowe Non-Motorized Coil Reel

Model #: 10040-DSJ

Serial #: 24224

Hydraulically Actuated Hold Down Arm

Driven Spindle Jog Drive

Hydraulic Motor for Threading Material

Adjustable Air Brake

Pneumatic Brake w/ Regulator

Powered Thread Up Drive

4 Leaf Mandrel

60” OD Capacity

10,000 lbs Capacity Coil Car

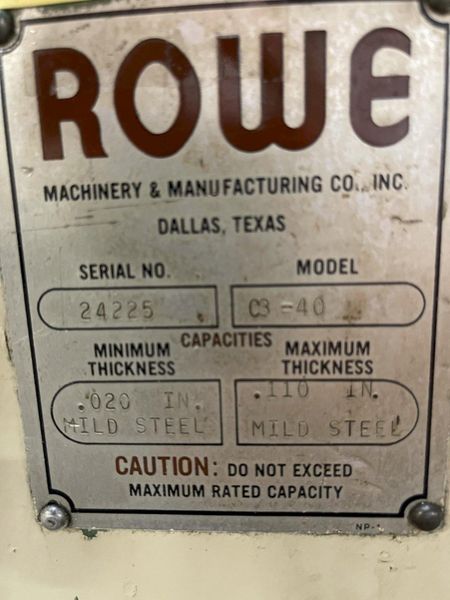

Rowe Powered Straightener

Model #: C3-40

Serial #: 24225

7 Roll Straightener

3” Diameter Straightening Rolls

4 Roll Coil Breaker Assembly

Capacity: 40” wide x 0.110” material
Peeler Threading Station
End of Stock De-bender

Entry and Exit Edge Guides

Exit Pinch Rolls

5 HP Motor

Exit Cascade Rolls

Rowe Bomb Bay Double Sided Thread Tables
Pneumatic Raise and Lower
Hand Valve Acuated

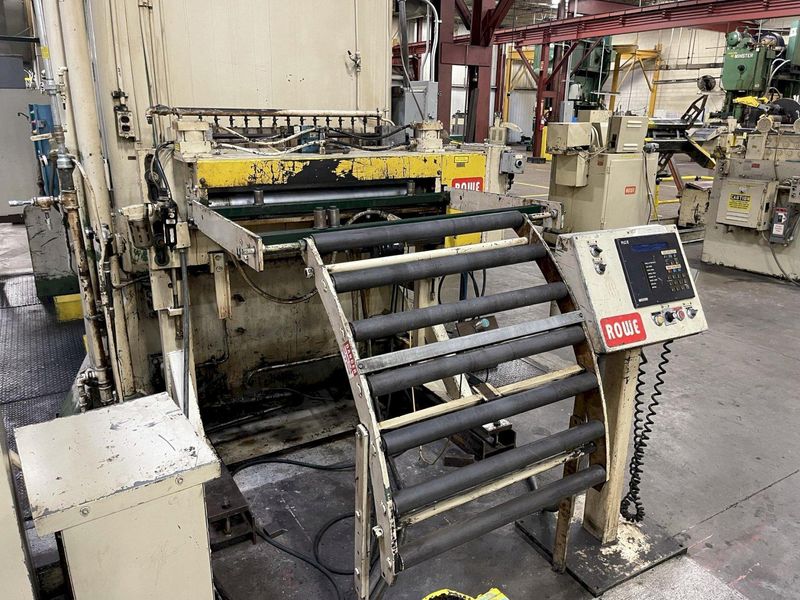

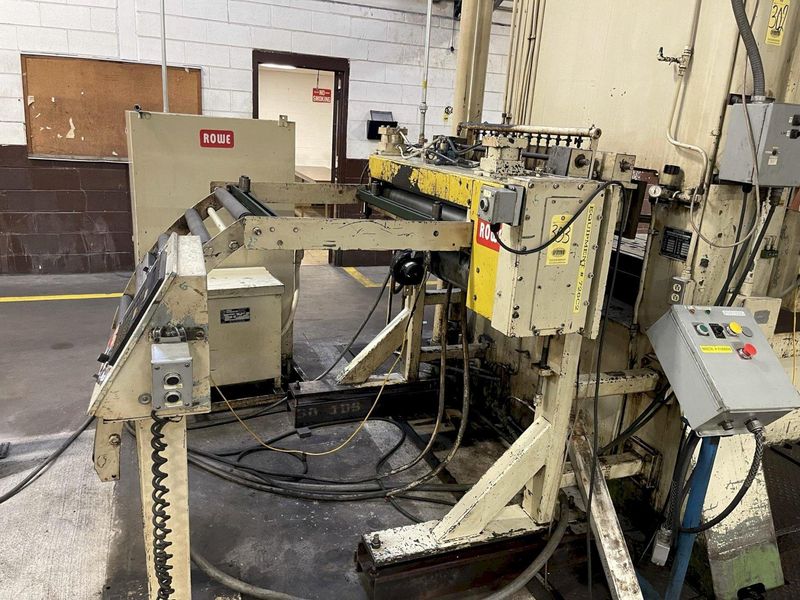

Rowe Cabinet Mounted Servo Feed

Model#: PM-FDC-053-240

Serial #: 27107

Entry Cascade Rolls

Pneumatic Pilot Release on Upper Feed Roll

Crank Adjustable Floor Mounted Pedestal (+/- 3)

Edge Guides

Loop Control
