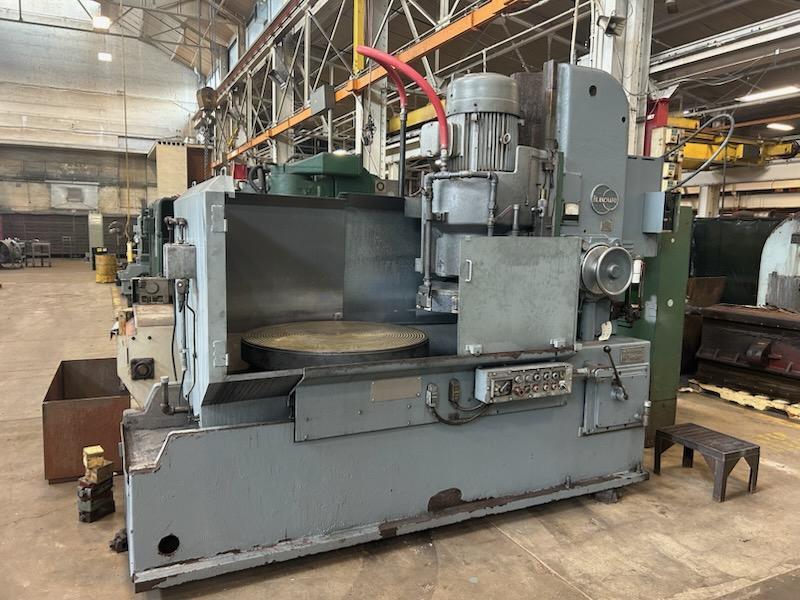

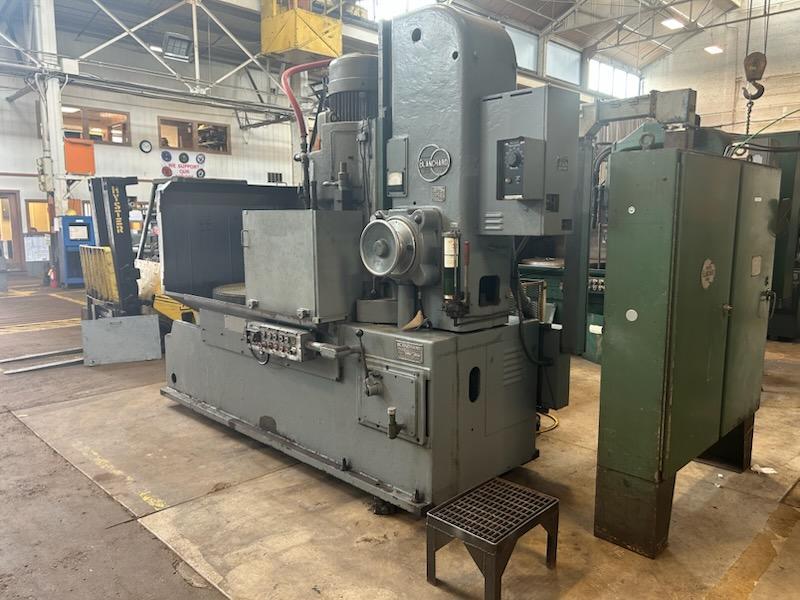

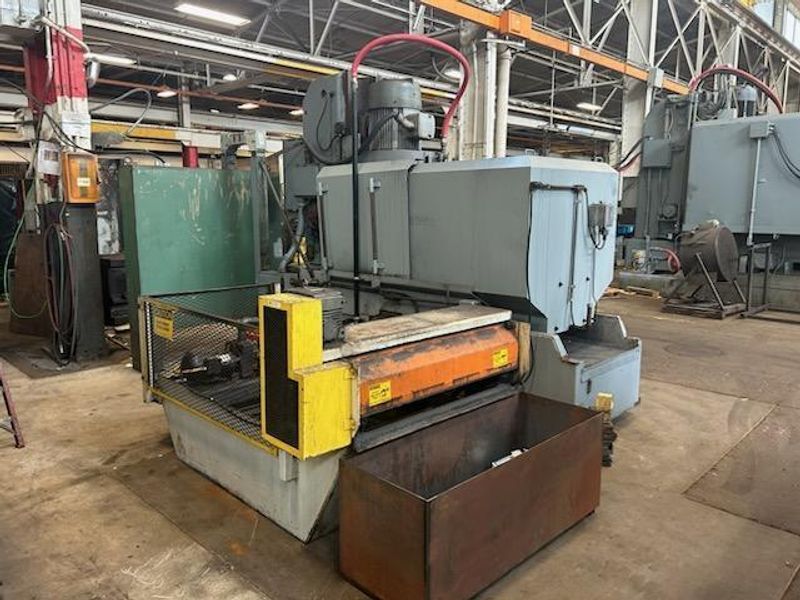

Blanchard #22HD-42, 42" Geared Head Vertical Spindle Rotary Surface Grinder "Certified", 1972

Manufacturer

BLANCHARD

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

17120

Model

22HD-42

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Chuck Dia. - 42
Spindle (Horz/Vert) - vertical
Grinding Wheel Dia. - 22


GEARED HEAD HIGH HP DESIGN
22" Grinding Wheel Diameter
42" Magnetic Chuck (7/16" Chuk Life)
48" Swing Inside Water Guards
24" Vertical Range(to be verified)
75 HP Geared Head Main Spindle
230/460 Volt, 1775 RPM, 224/112 Amp, Main Drive Motor
Pick-Feed Type of Down Feed System
.004-.080 IPM Down Feed Rates
6 to 33 RPM Chuck Rotation Speeds
Automatic Lube System
16,000 LBS. Approximate Base Weight

Machine is Being Sold as a Certified Machine

Scope of Work Performed: TBD
