71" x 118" Tru-Turn,,55" Over C/S, 315 RPM, Steady Rests, Inch/Metric Threading, 40 HP, BRAND NEW, #25029

Manufacturer

TRU TURN

Category

Lathes

Type

LATHES, ENGINE

Stock

25029

Model

1840/3M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #25029

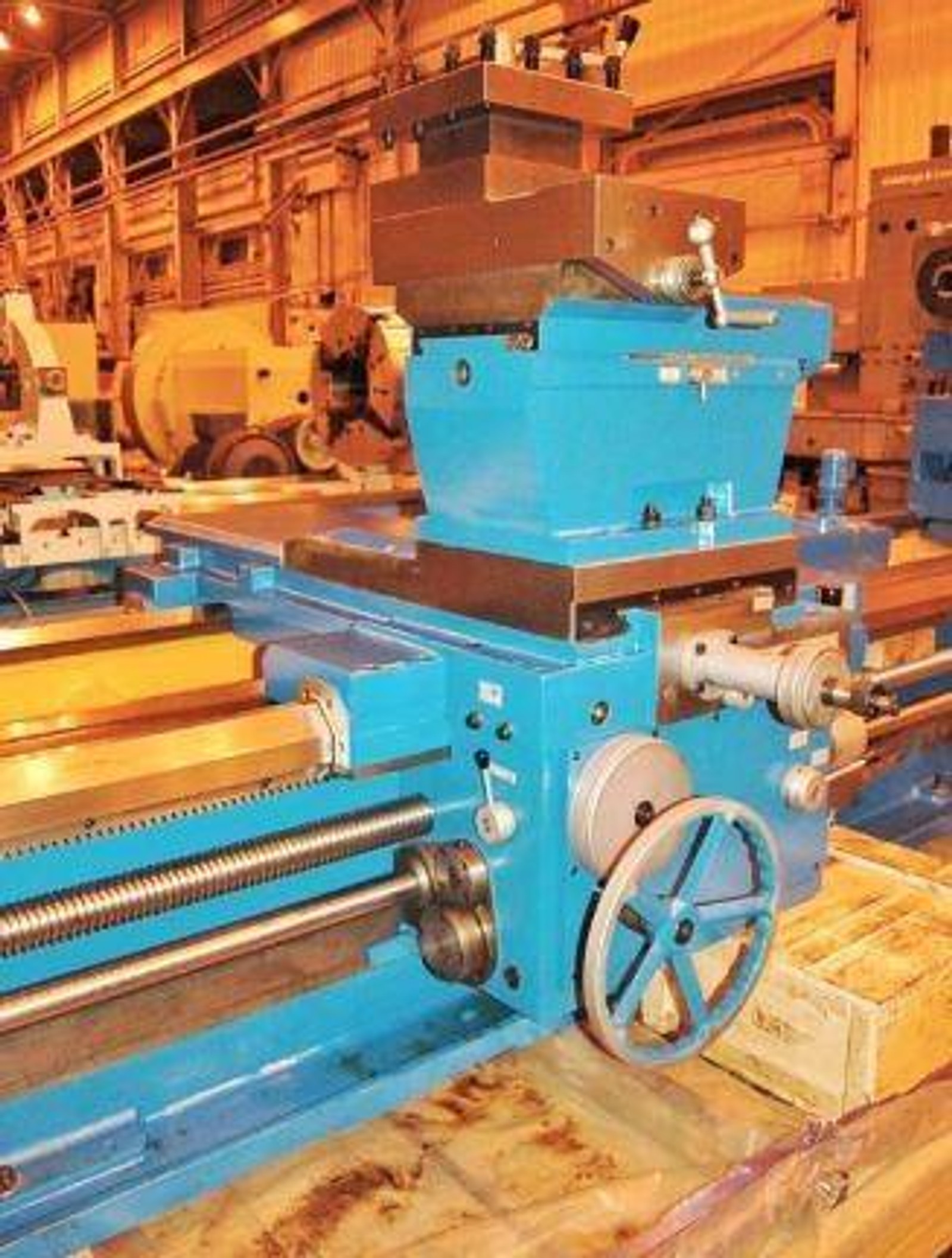

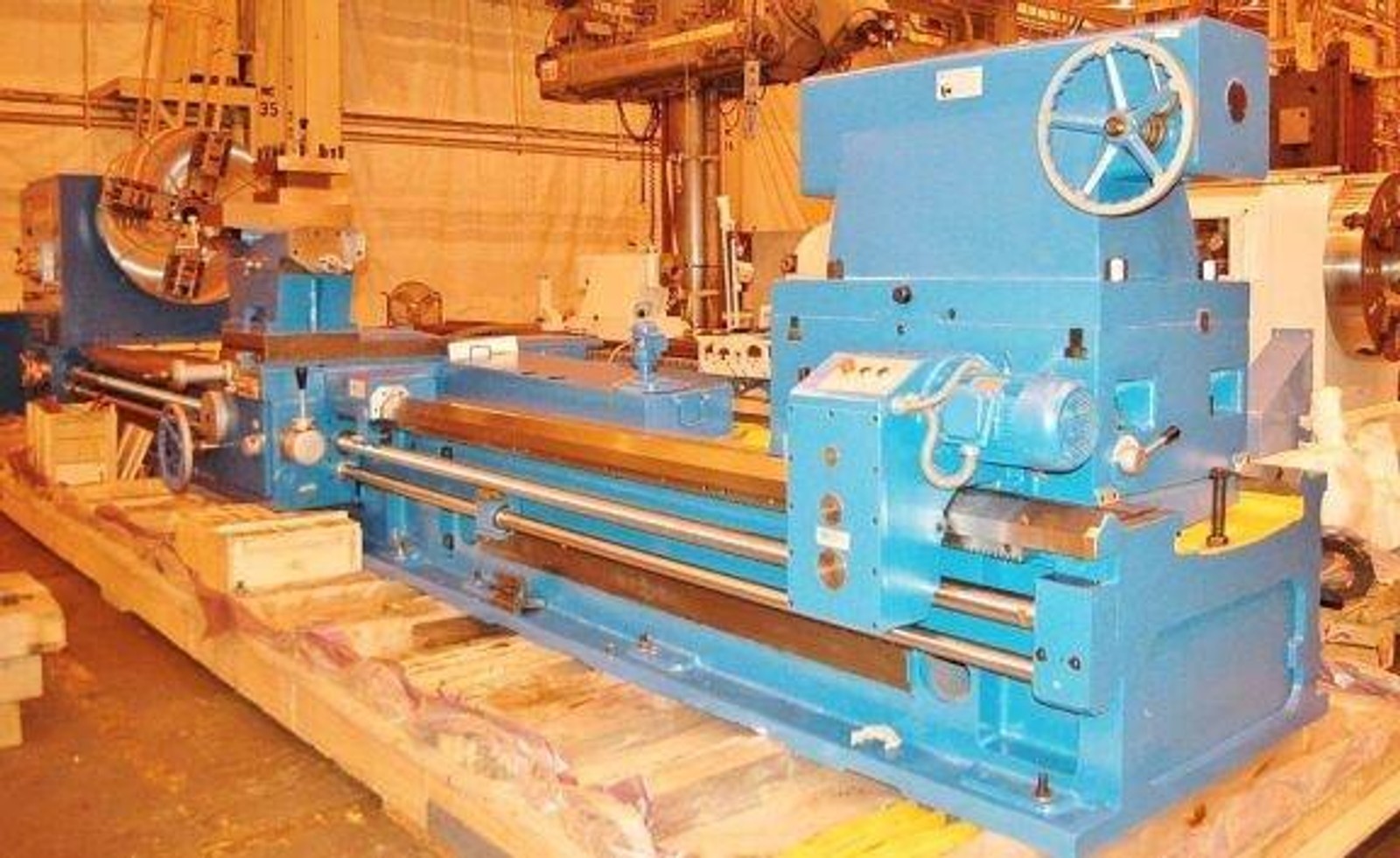

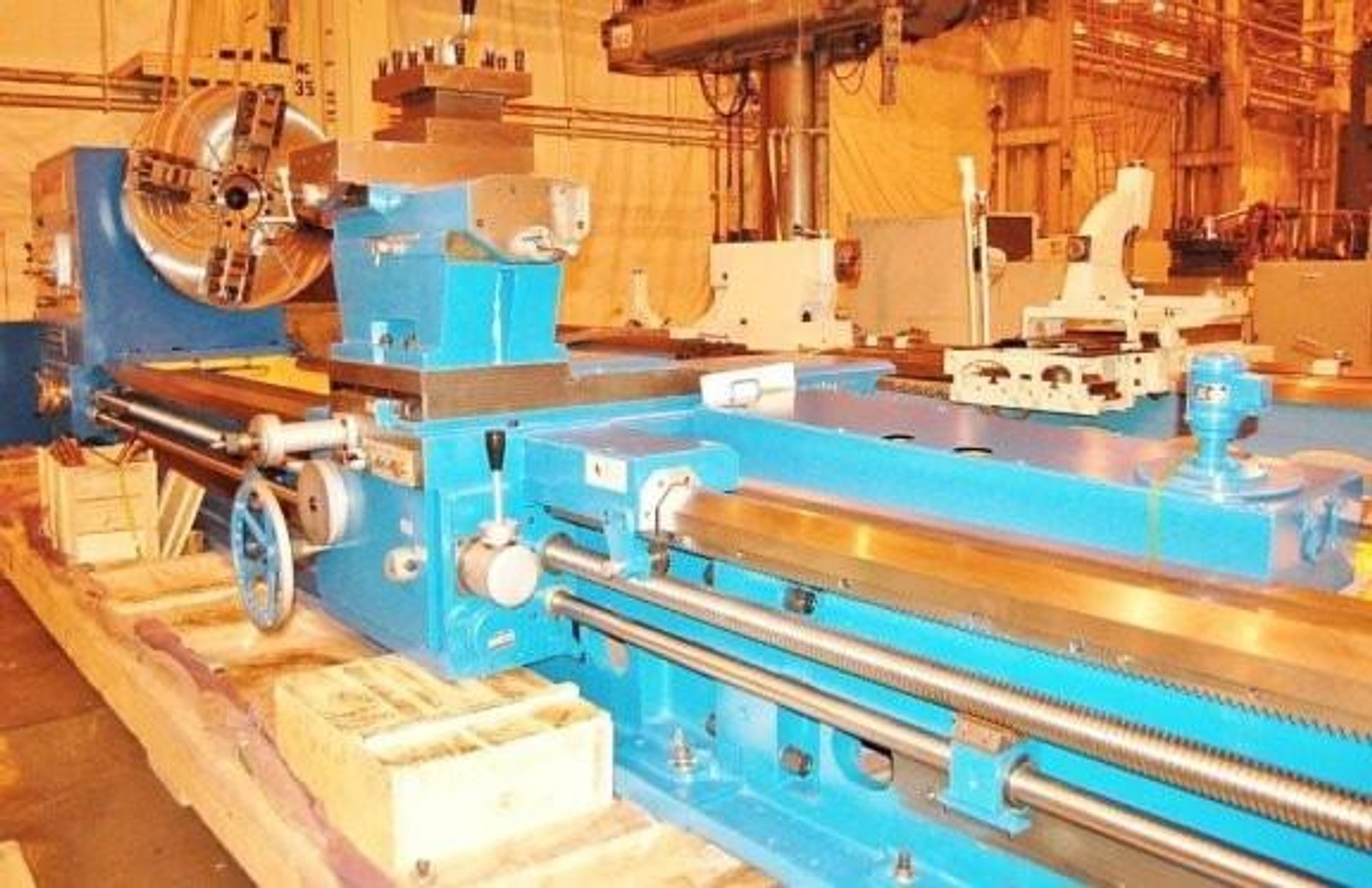

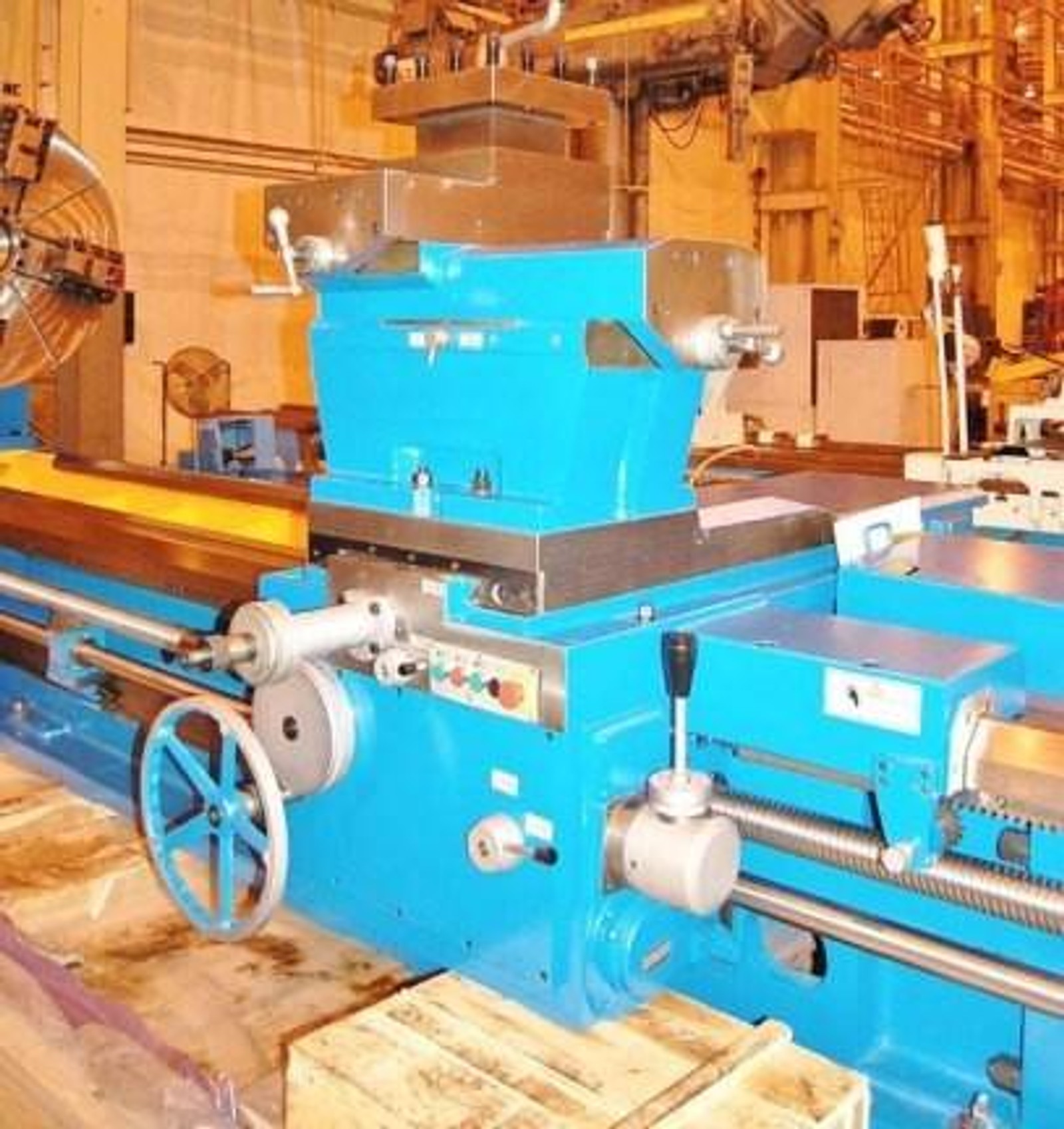

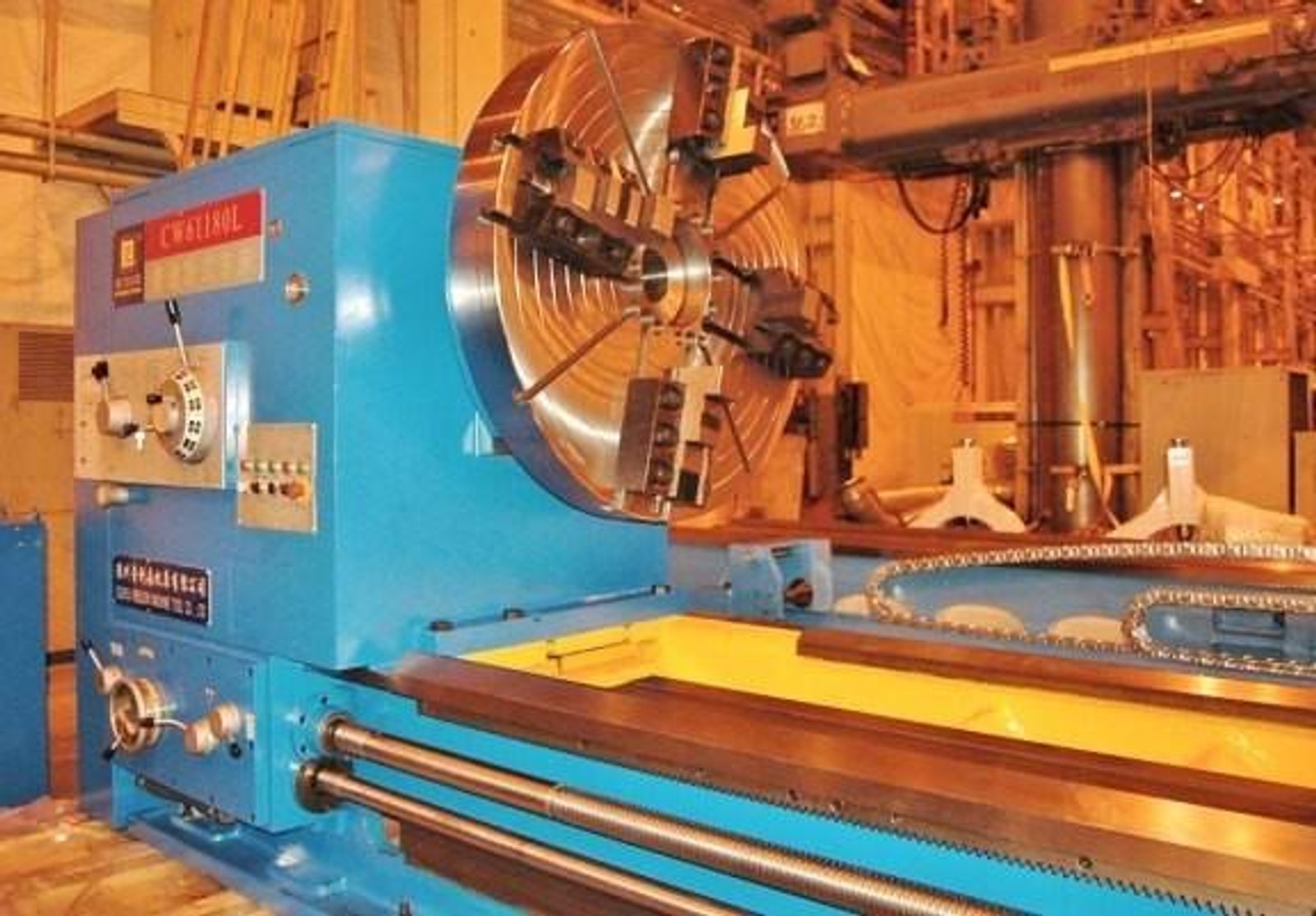

Tru Turn 1840/3M 72.44" x 118" Manual Lathe, Brand New

CAPACITY:
Swing Over Bed ....................... 72.44"
Swing Over Cross Slide ............... 57"
Width of Guide Way ................... 43.32"
Distance Between Centers ............. 118.11"
Spindle Hole ......................... 5.12"
Spindle Speeds (21 Speeds) ........... 3.15-315 RPM
Tailstock Diameter ................... 10.24"
Tailstock Travel ..................... 7.87"
Estimated Dimensions ................. 254" x 94" x 88"
Weight Capacity ...................... 24,200 Lbs
Machine Weight ....................... 47,500 Lbs

EQUIPPED WITH:

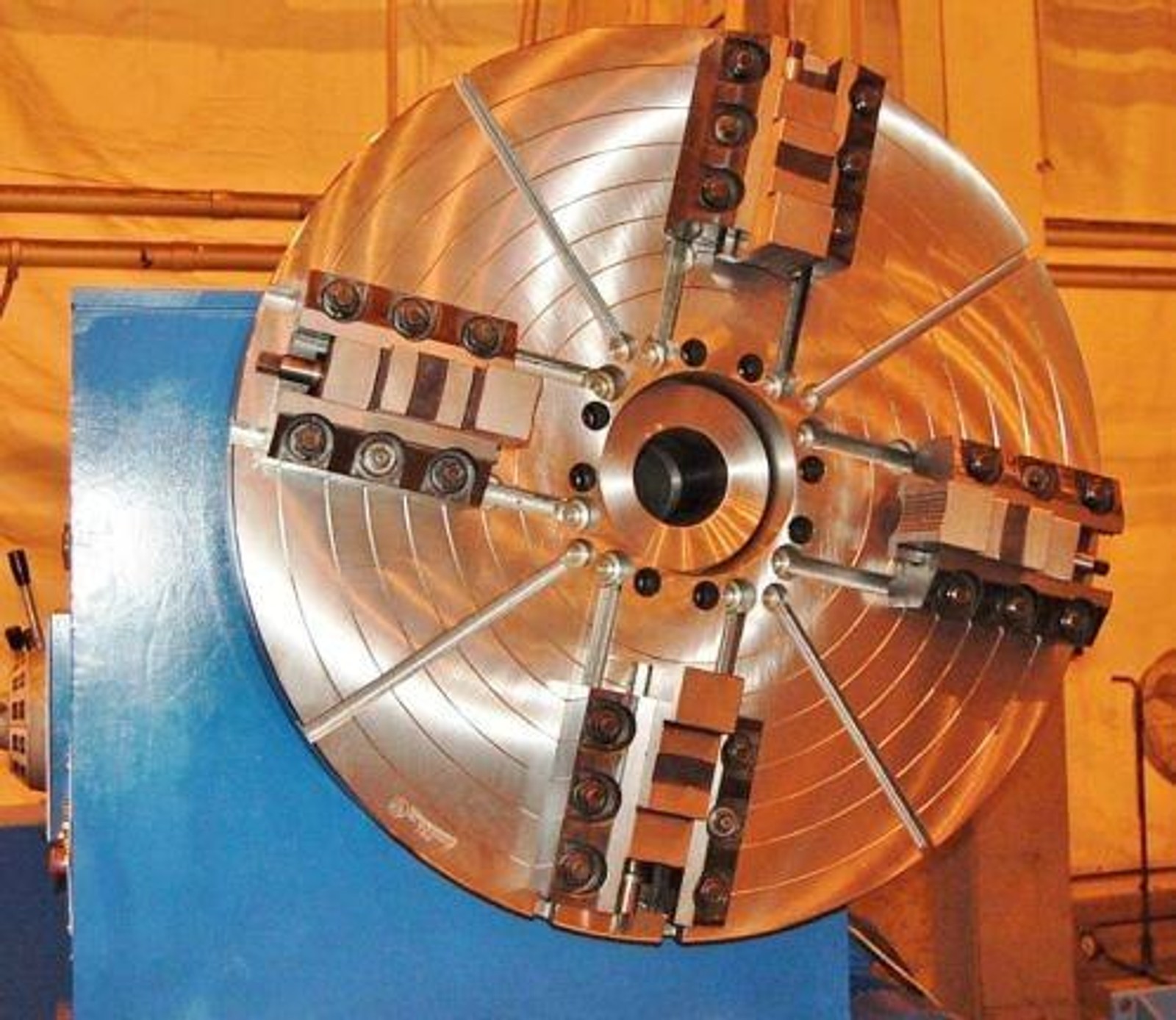

49.2" Diameter Face Plate with 4-Top Jaws
Flame Hardened Bed Ways

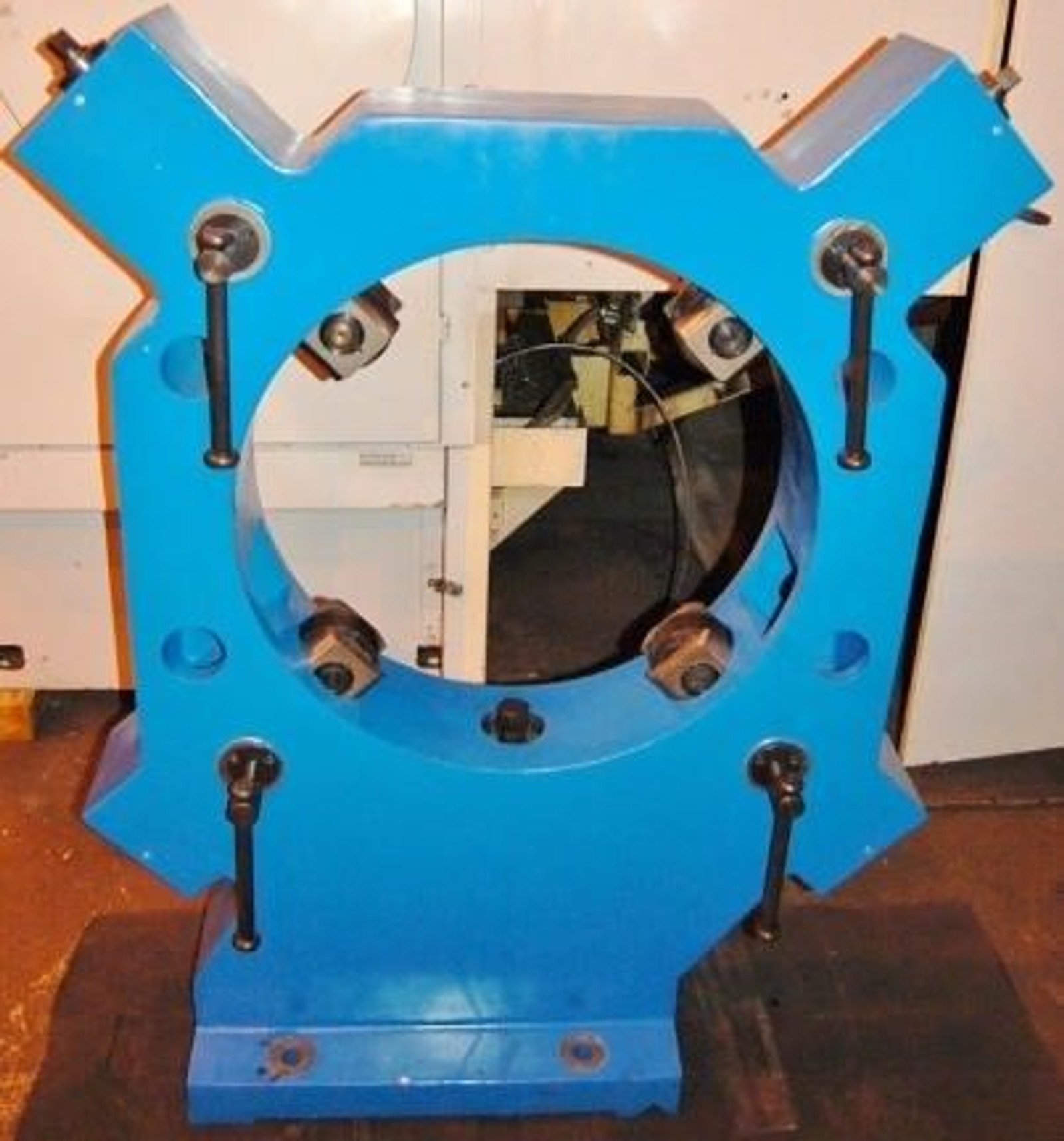

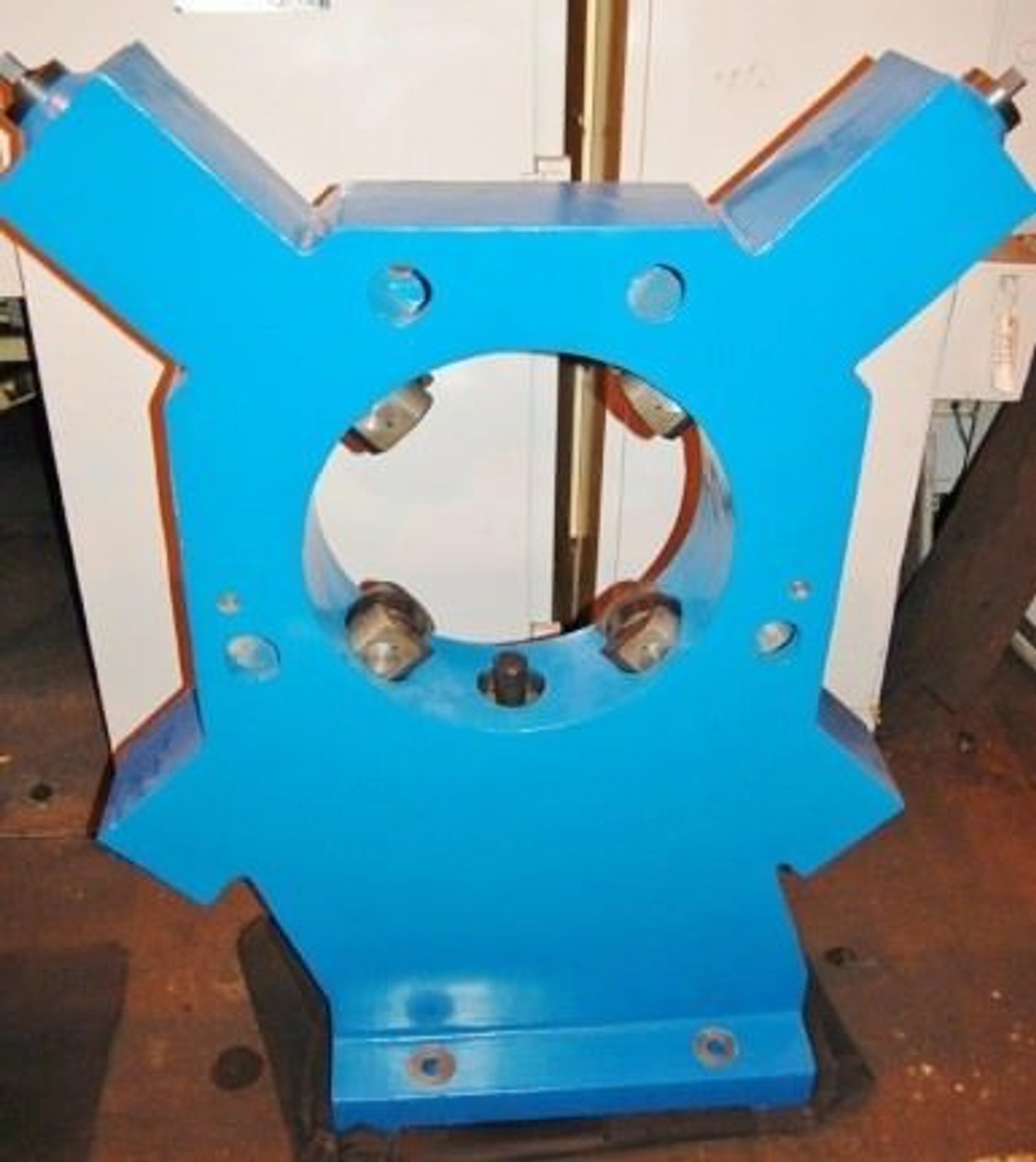

2-Roller Type Steady Rests: 27.5" & 17.71"
Power Drive To Top Slide For Conical Cutting

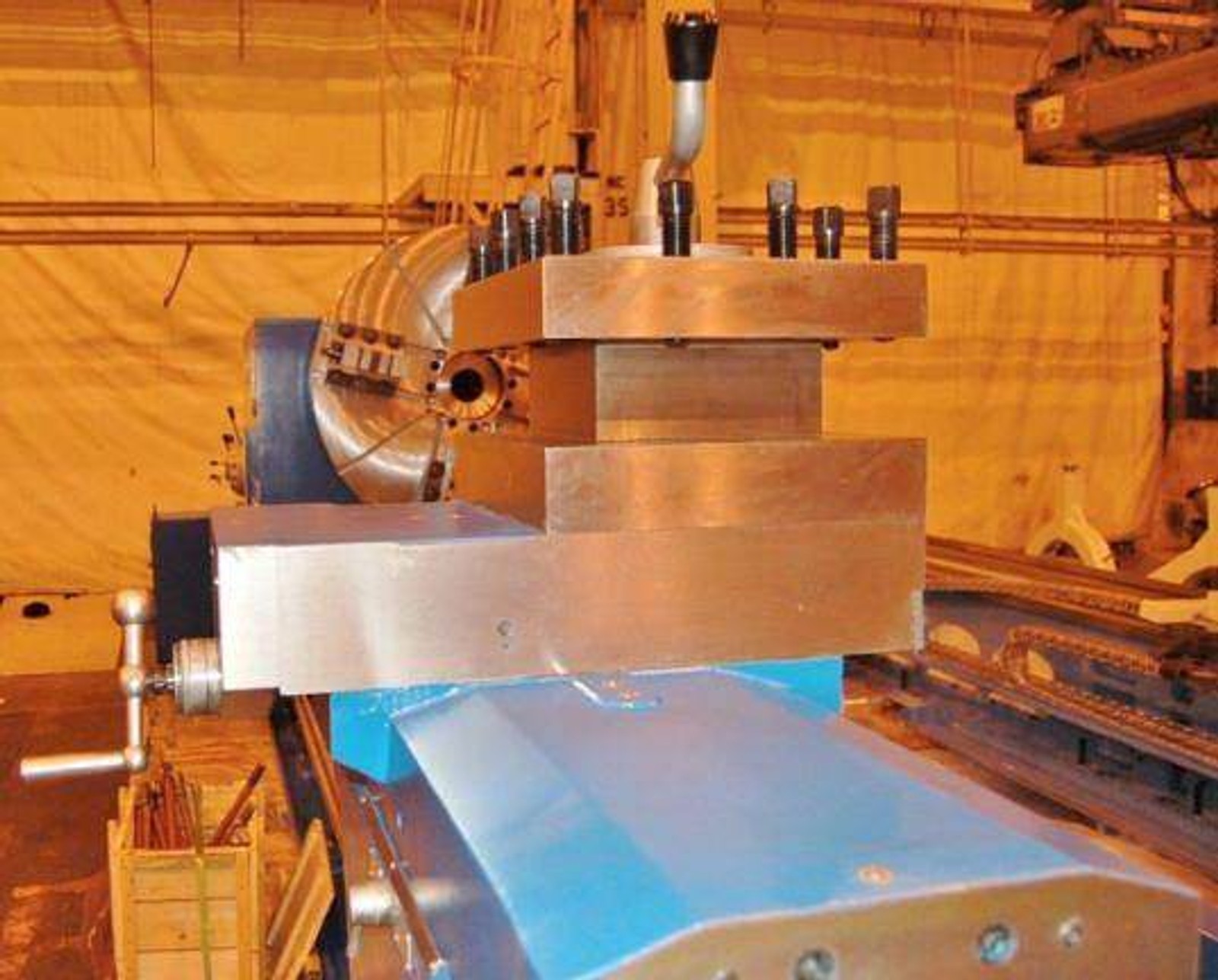

Swivel Compound & Tool Post
Inch / Metric Threading
Thread Dial
Center With Bushing
6-Way Power Rapid Traverse
Work Light
Pan Bed and Coolant System

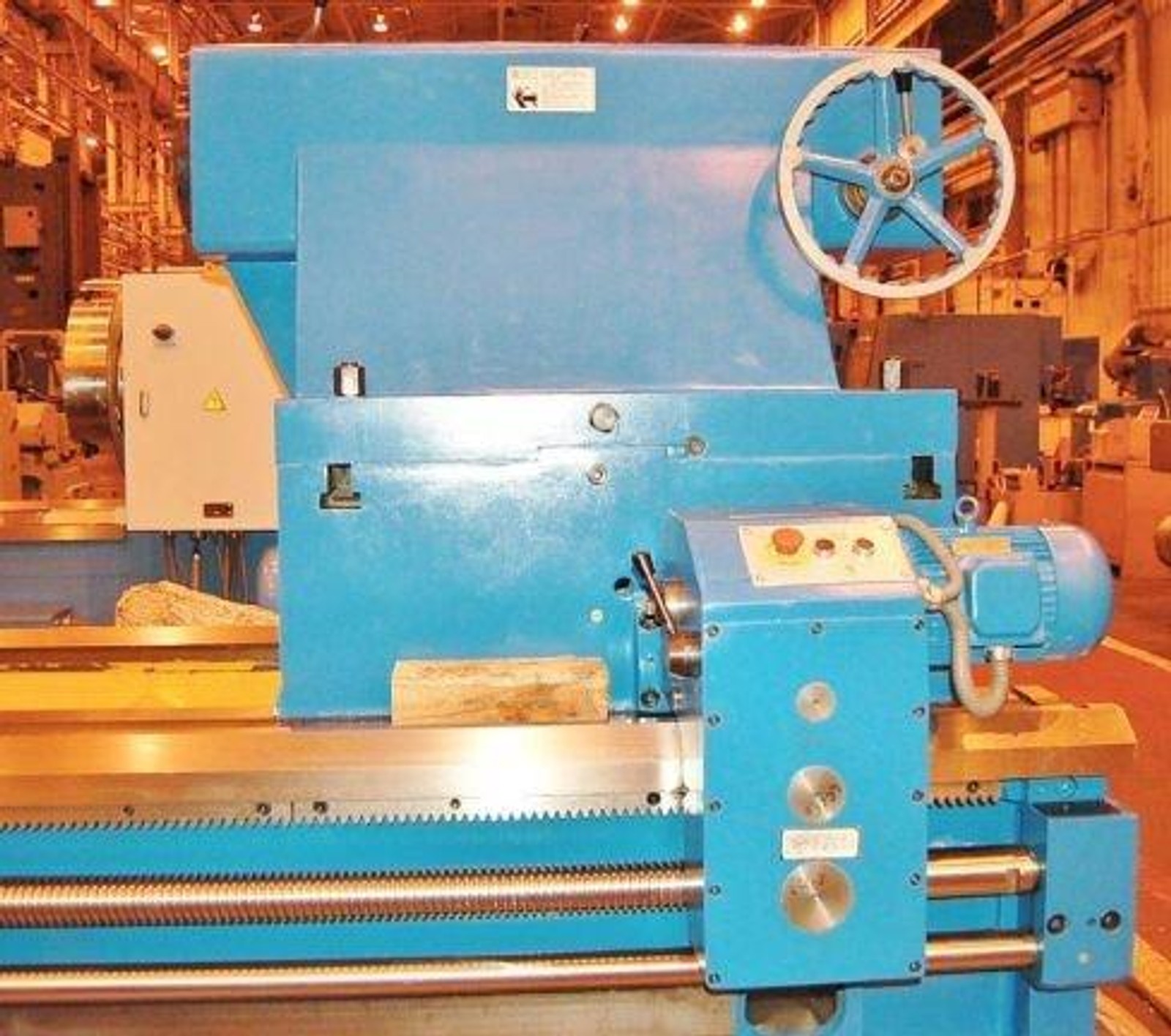

Motorized Tailstock
40 HP Drive Motor With Controls
3/60/440 Volt Electrics

DELIVERY:
5-Months From Order
