Handtmann PBZ DL 5-Axis CNC Profile Machining Center, X-78", Y-43", Z-27", 28000 RPM, Siemens 840D CNC'07 #24617

Manufacturer

HANDTMANN

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

24617

Model

PBZ DL 5

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #24617

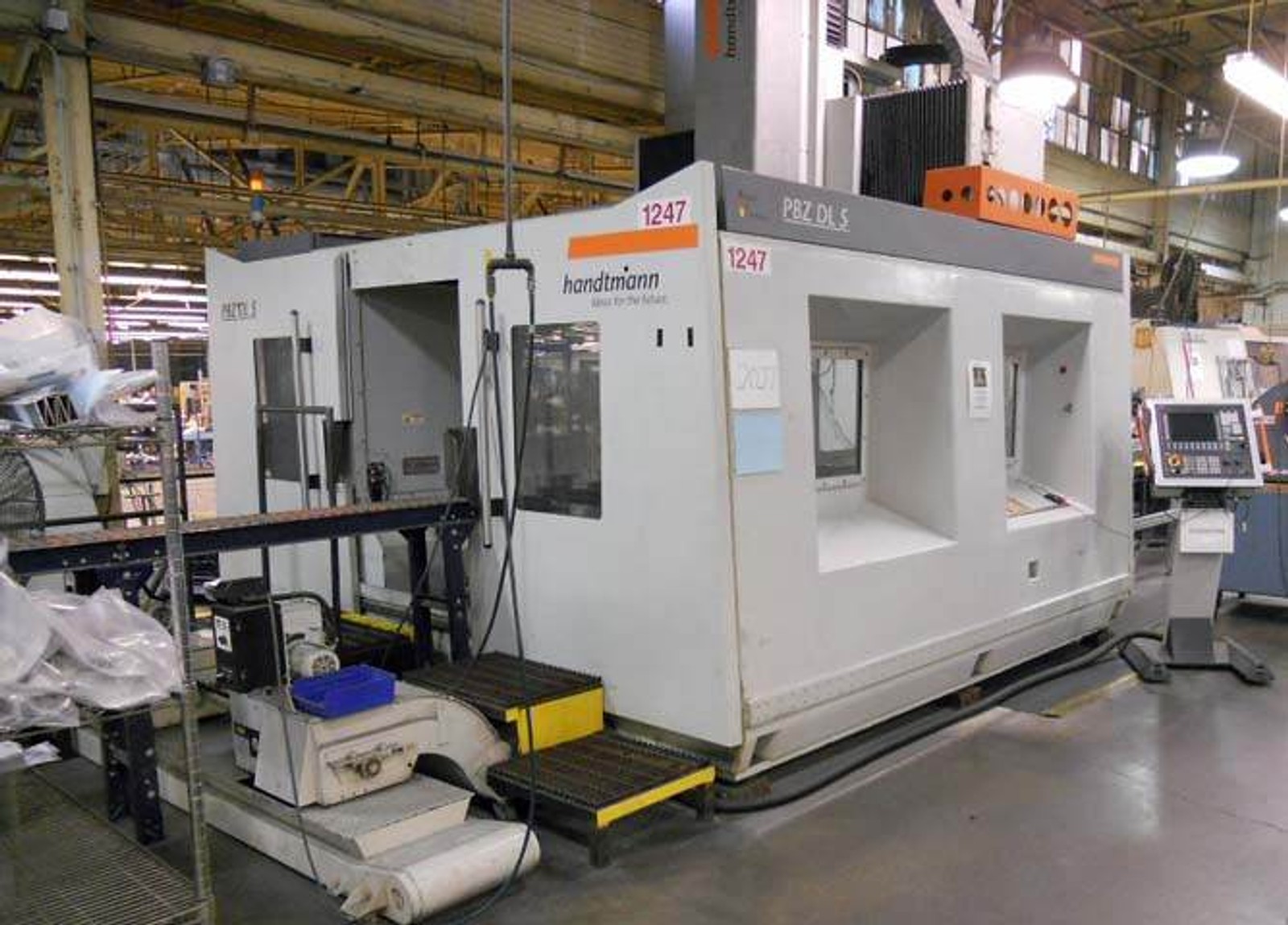

Handtmann PBZ DL5 5-Axis CNC Profile Machining Center

FEATURES:
Siemens 840D CNC Controls
36-Station Automatic Tool Changer
Fully Automated Profile Machining

SPECIFICATIONS:
X-Axis Travel ......................... 78"
Y-Axis Travel ......................... 43"
Z-Axis Travel ......................... 27"
A-Axis, Head Swivel ................... +/- 120 Degrees
C-Axis, Head Rotation ................. +/- 200 Degrees
Work Piece Length ..................... 300"
Profile Width ......................... 7.5"
Profile Height ........................ 12.5"
Spindle Speeds ........................ to 28,000 RPM
Rapid Traverse, Max ................... 2,150 IPM
Spindle Taper ......................... HSK 53-F
Spindle Output ........................ 19 HP
Tool Length, Max ...................... 8"
Tool Weight, Max ...................... 11 Lbs.
Saw Blade Max. Diameter ............... 20"
Approx. Machine Weight ................ 70,000 Lbs.

EQUIPPED WITH:

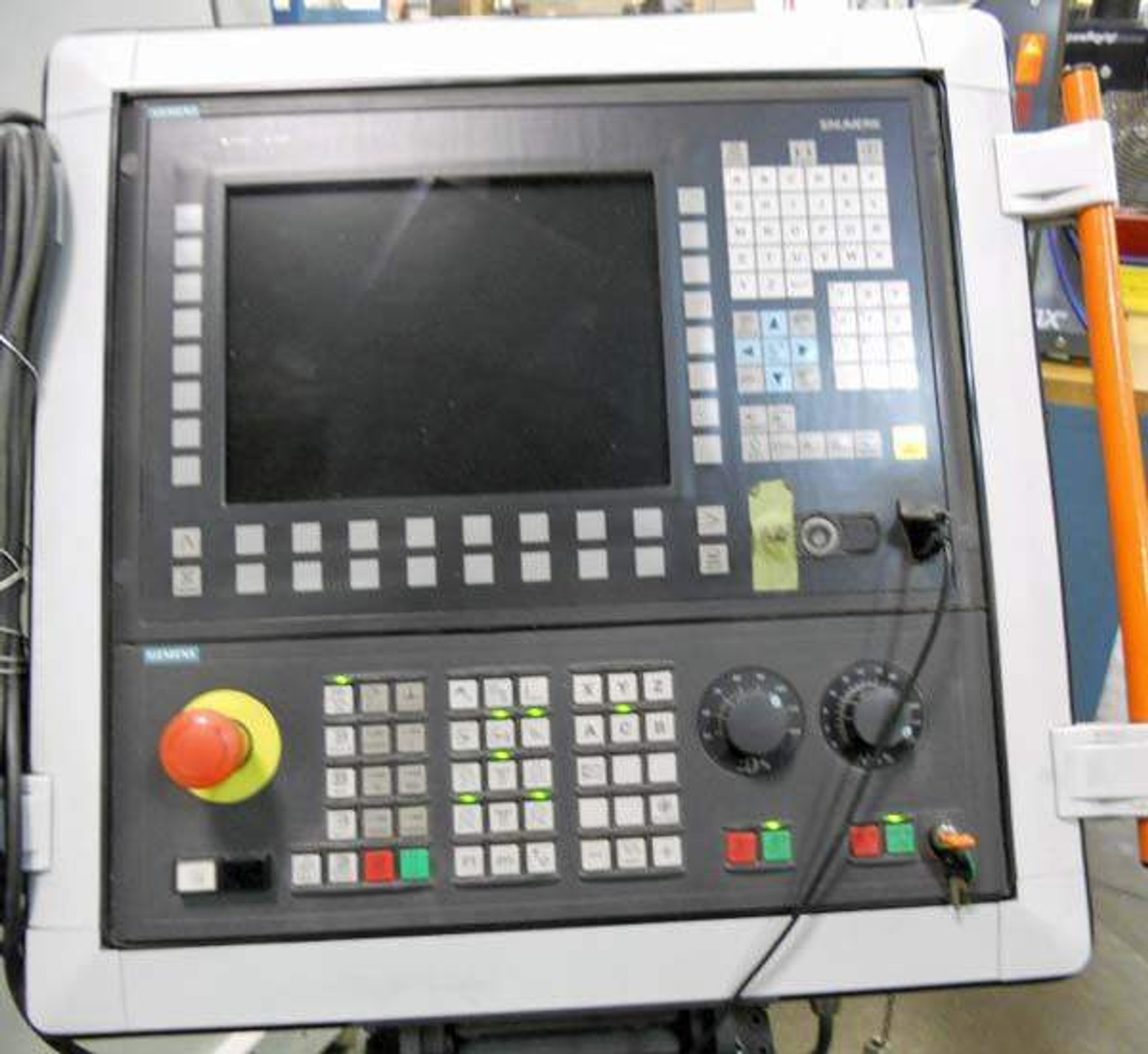

Siemens 840D CNC Control

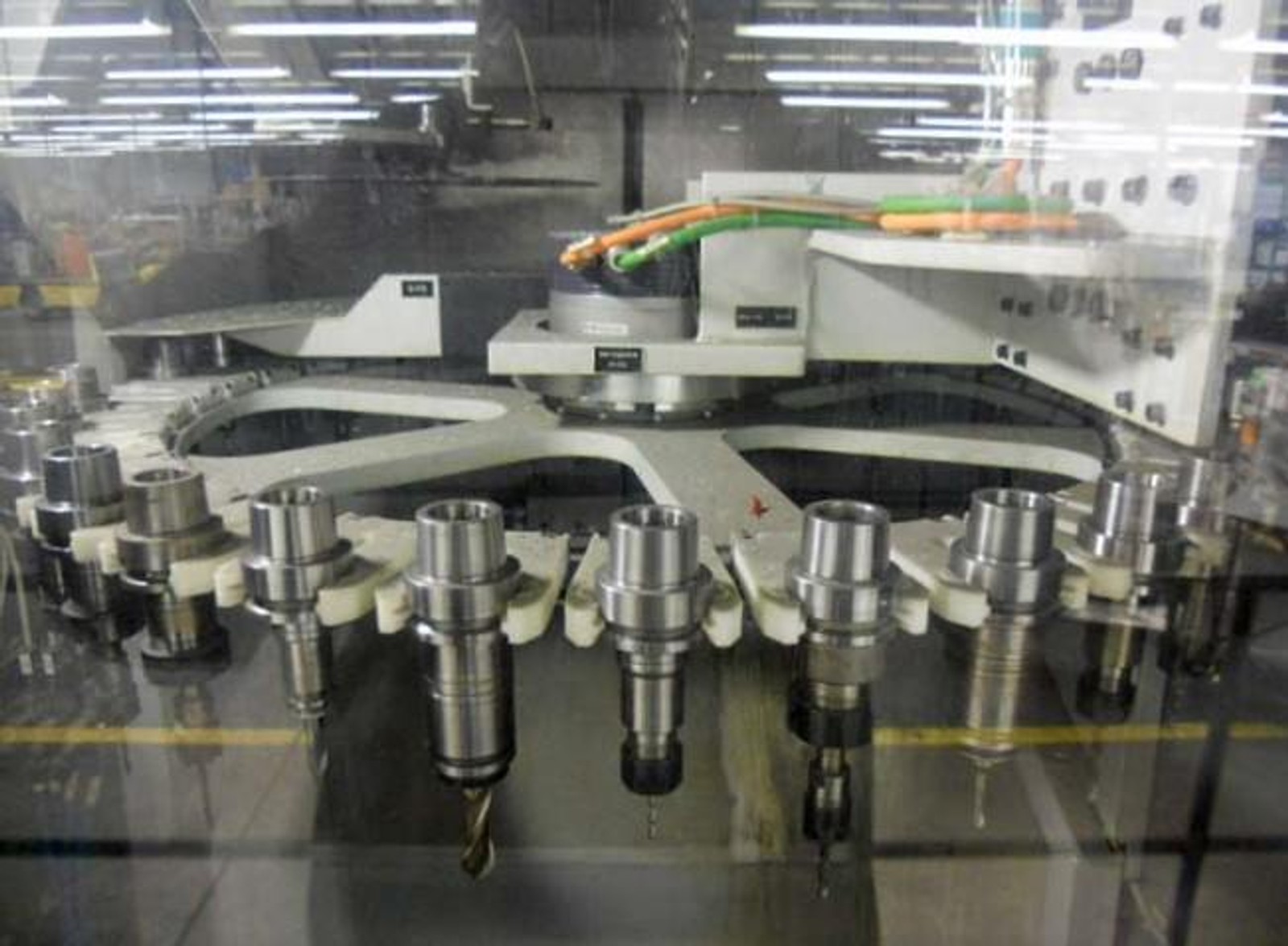

36-Station Automatic Tool Changer
Integrated Sawing Unit for Spatial Cuts

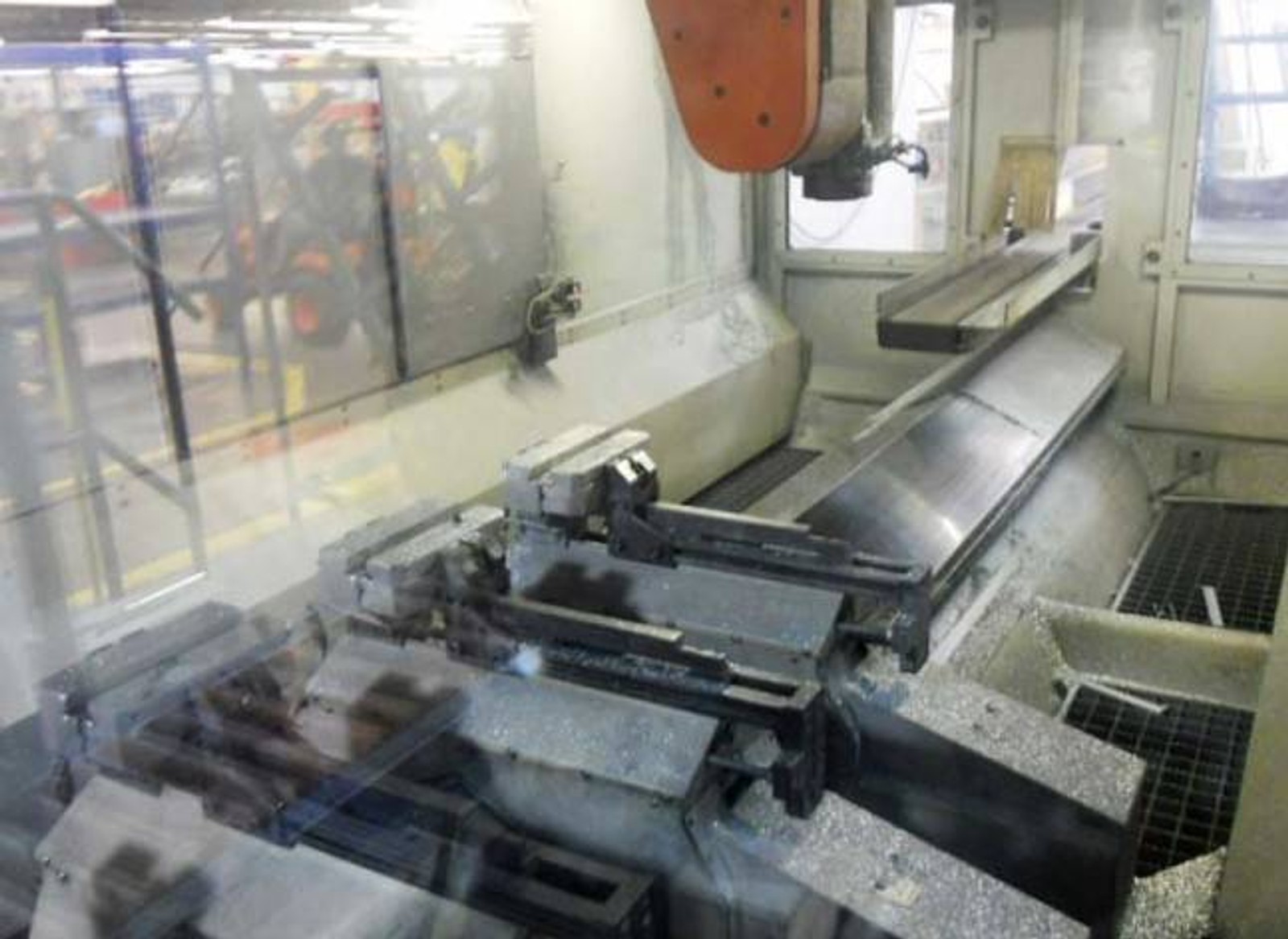

(4) Clamping Jaws
Chip Conveyor

NOTE:
Machine can be inspected in plant under power
