Monarch CNC Travelling Gantry, ATC, 72" x 192" Capacity 15 HP, 3200 RPM,'80 Fanuc 11M, #23737

Manufacturer

MONARCH

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

23737

Model

Travelling Gantry

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #23737

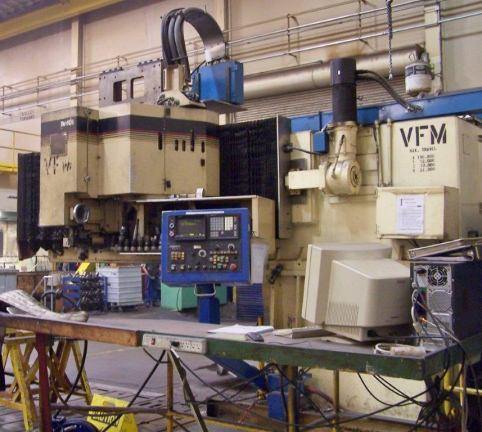

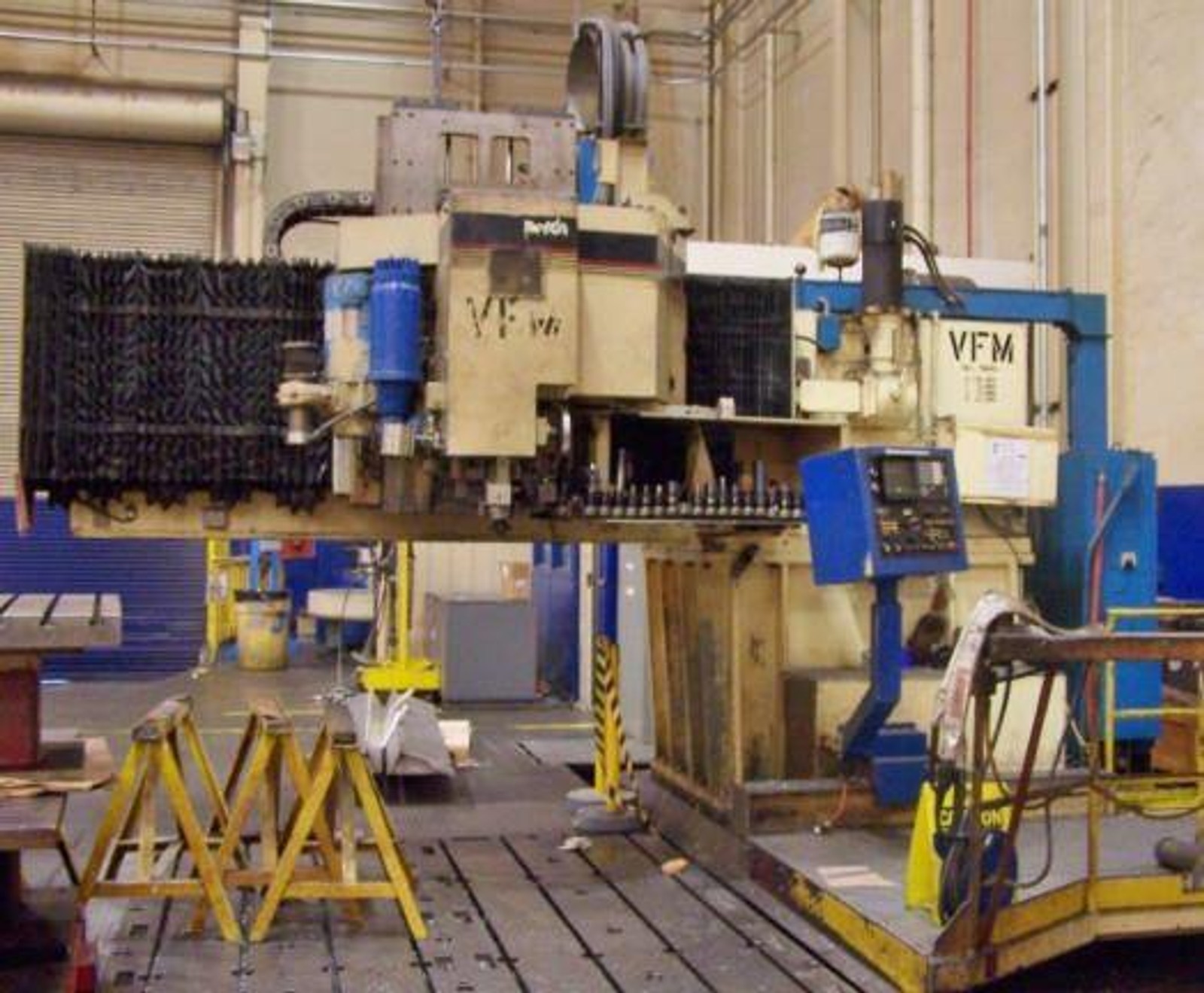

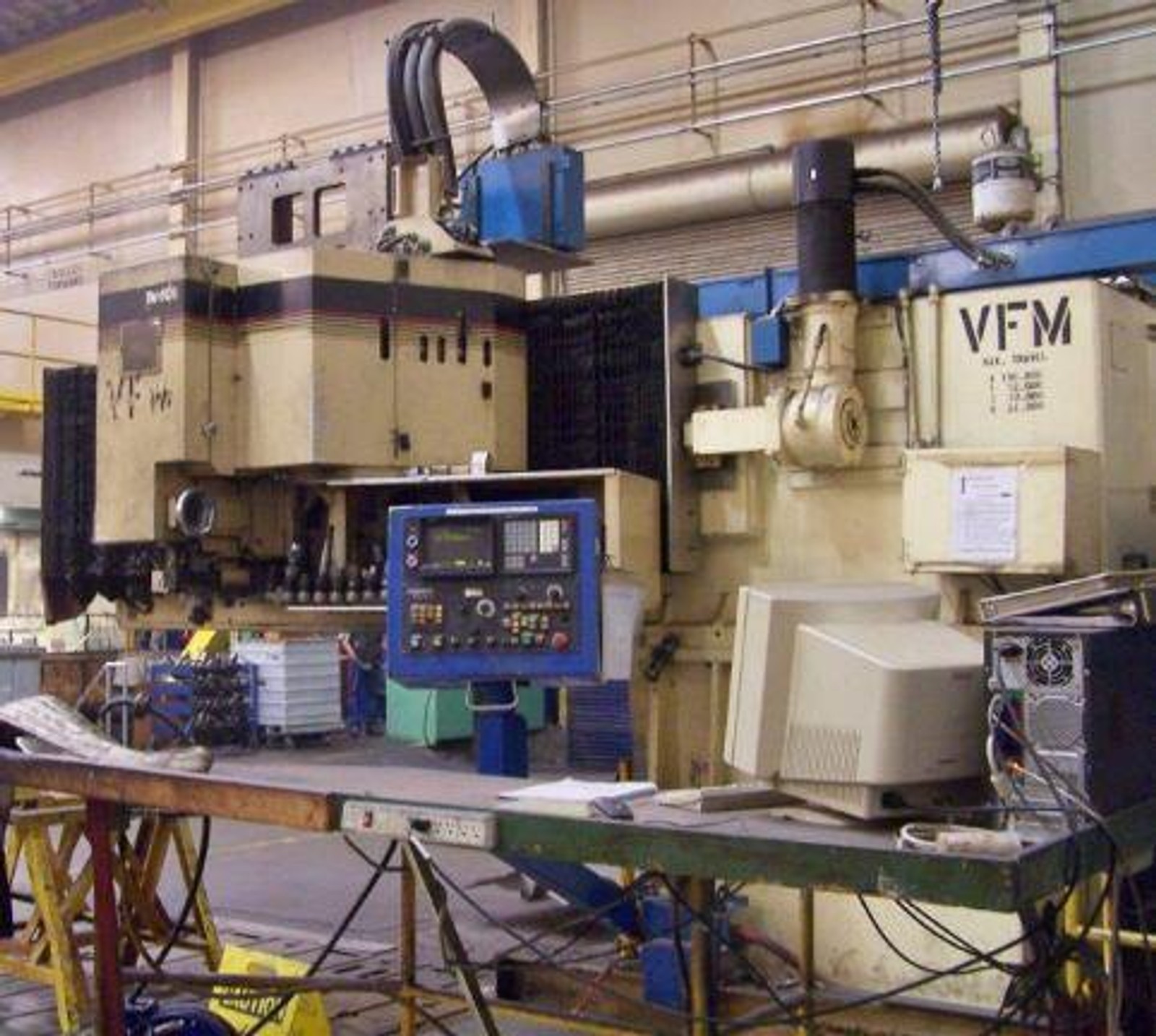

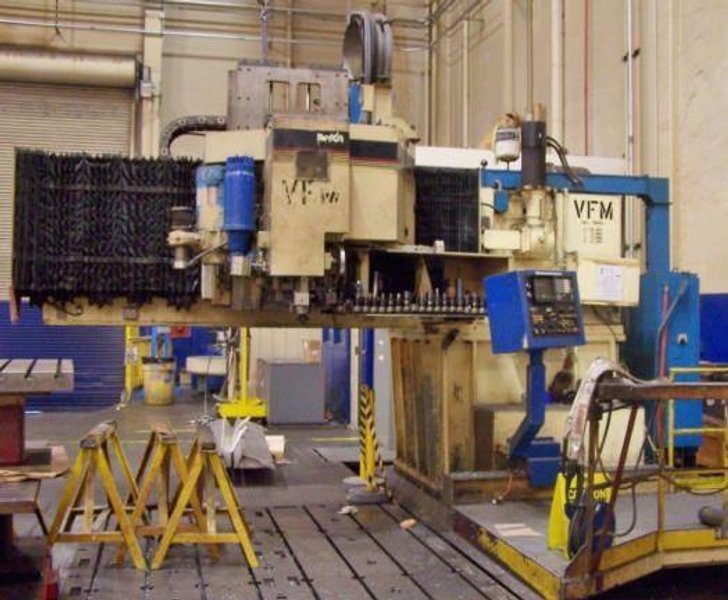

Monarch CNC Traveling Column Type Vertical Machining Center

FEATURES:
Fanuc 11M CNC New 1990
Openside
40 Station ATC

CAPACITY:
X-Axis Column Travel ................ 196"
Y-Axos Head Travel .................. 72"
Z-Axis Ram Travel ................... 10"
W-Axis Quill Travel ................. 10.5"
Spindle Speeds, (32) ................. 3200 RPM
Spindle Taper ........................ #50
Spindle Drive Motor .................. 15 HP
Rapids ............................... 150 IPM
Feeds ................................ 100 IPM

EQUIPPED WITH:

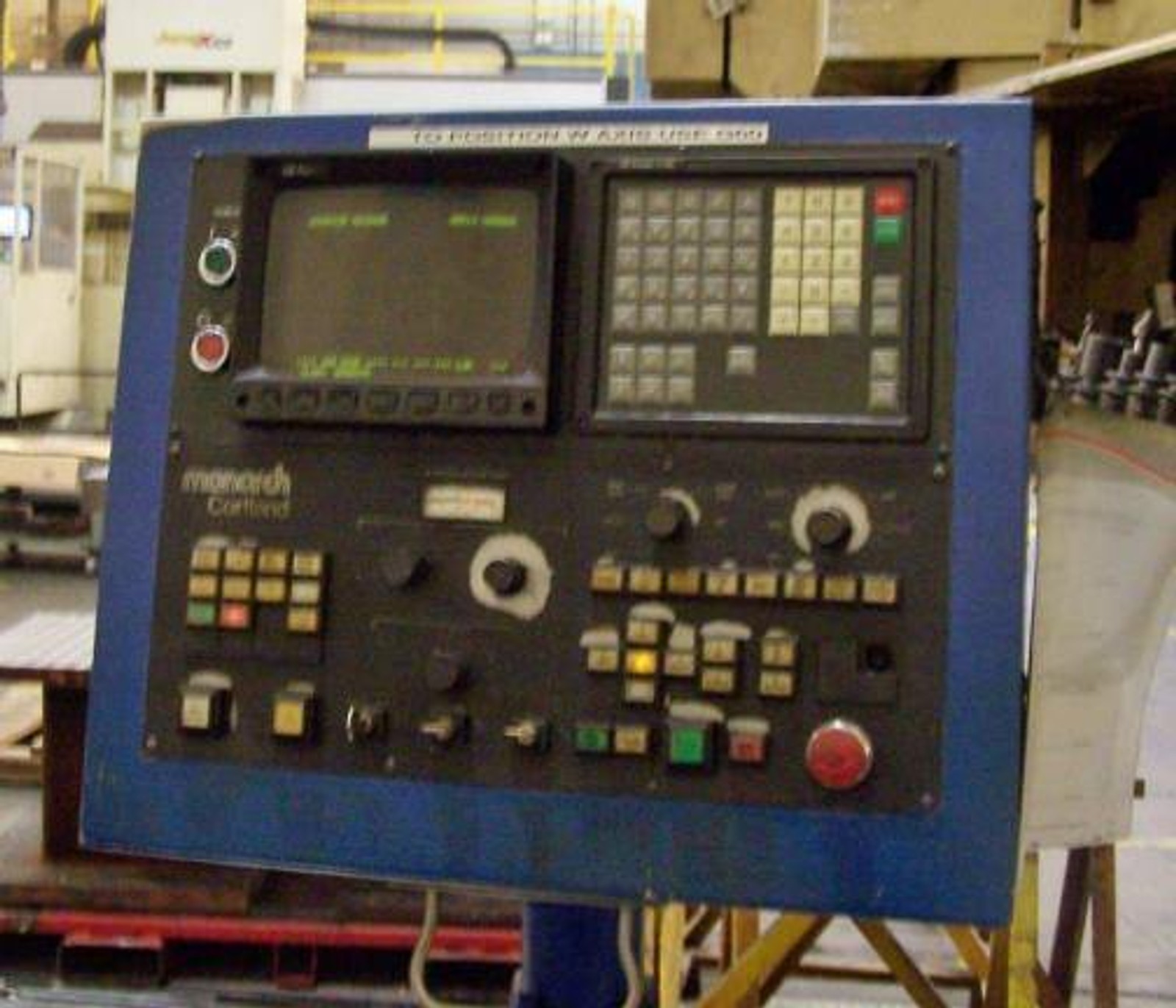

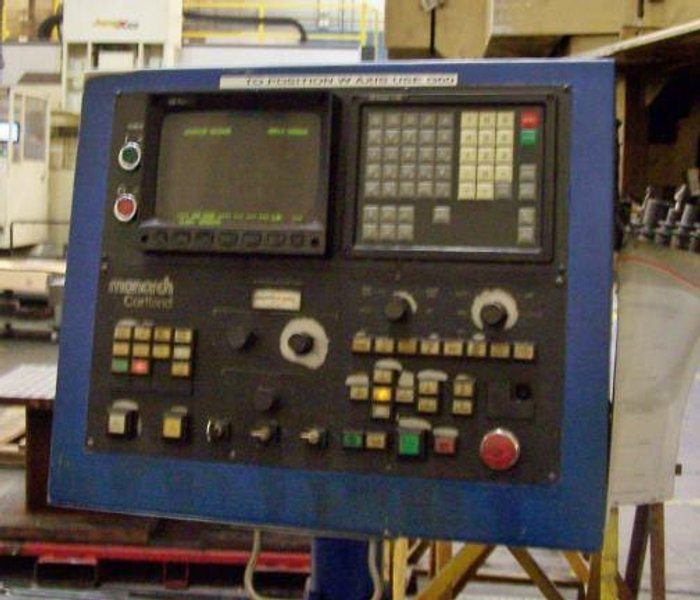

Fanuc 11 CNC Control
40 Station Automatic Tool Changer
96" x 200" T-Slotted Floor Plate
