120" Gray Series 200, 132" Swing, 88" Turning Height, (2) Swiveling Rams, Fanuc 15T CNC, #31750

Manufacturer

GRAY

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

31750

Model

Series 200

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31750

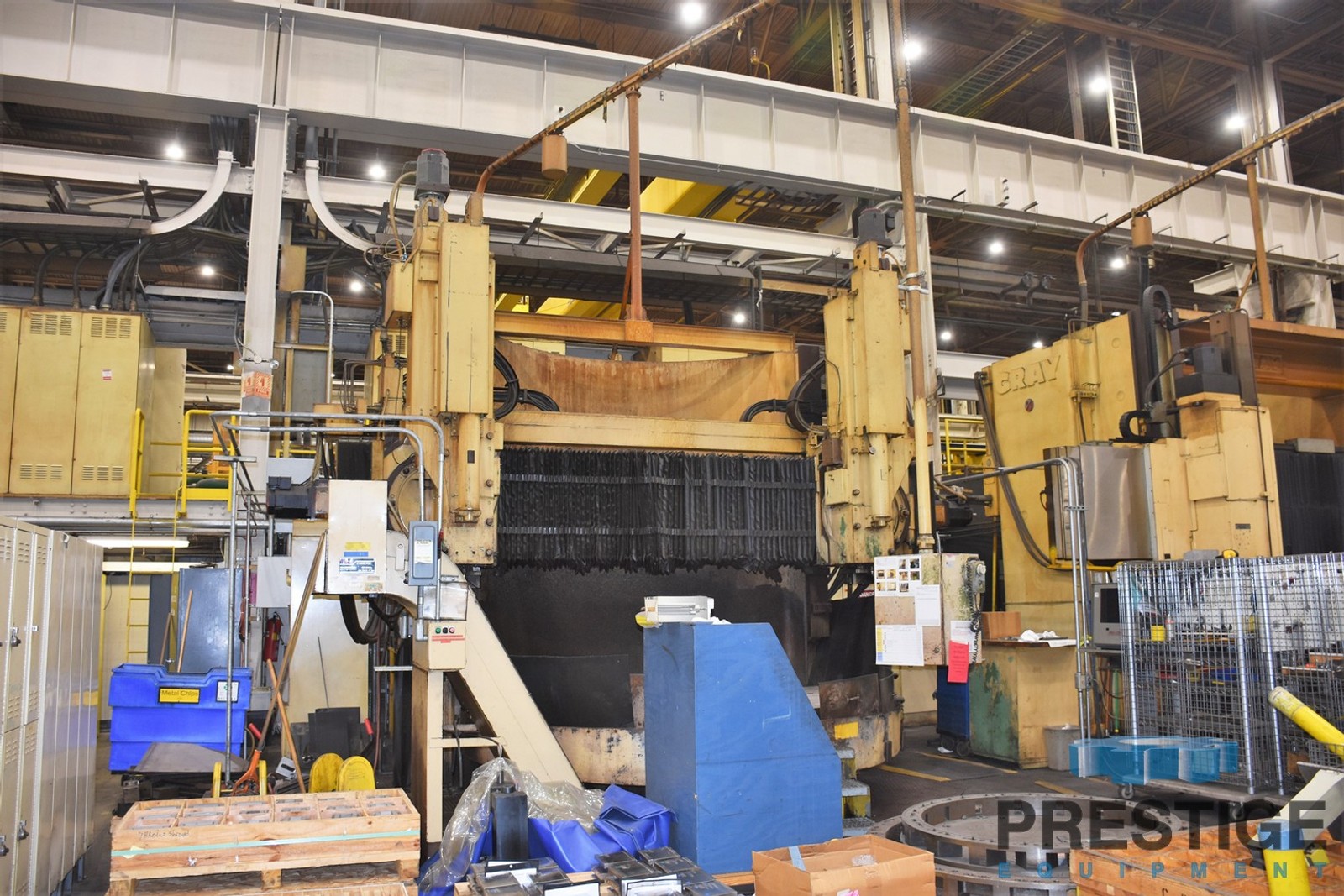

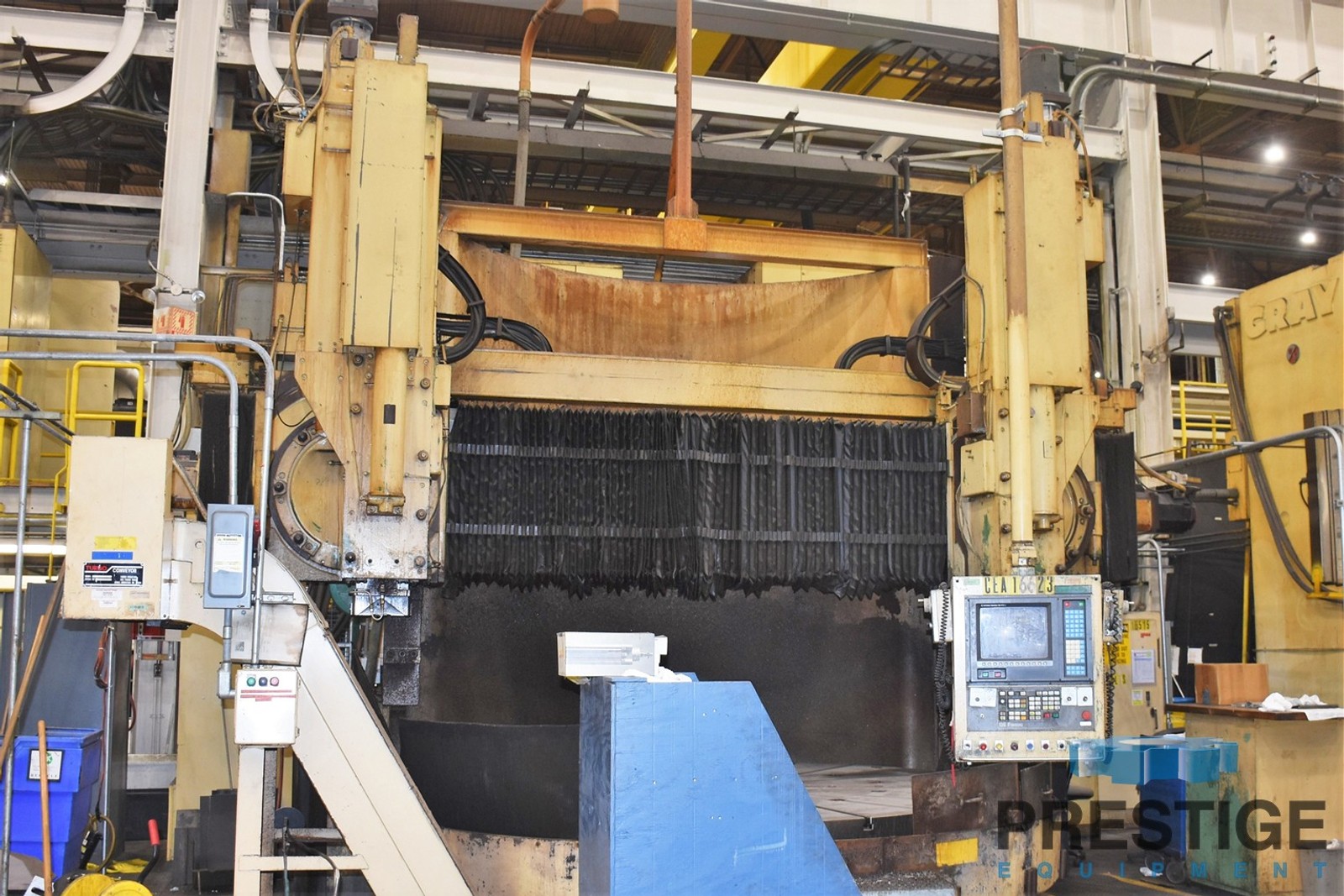

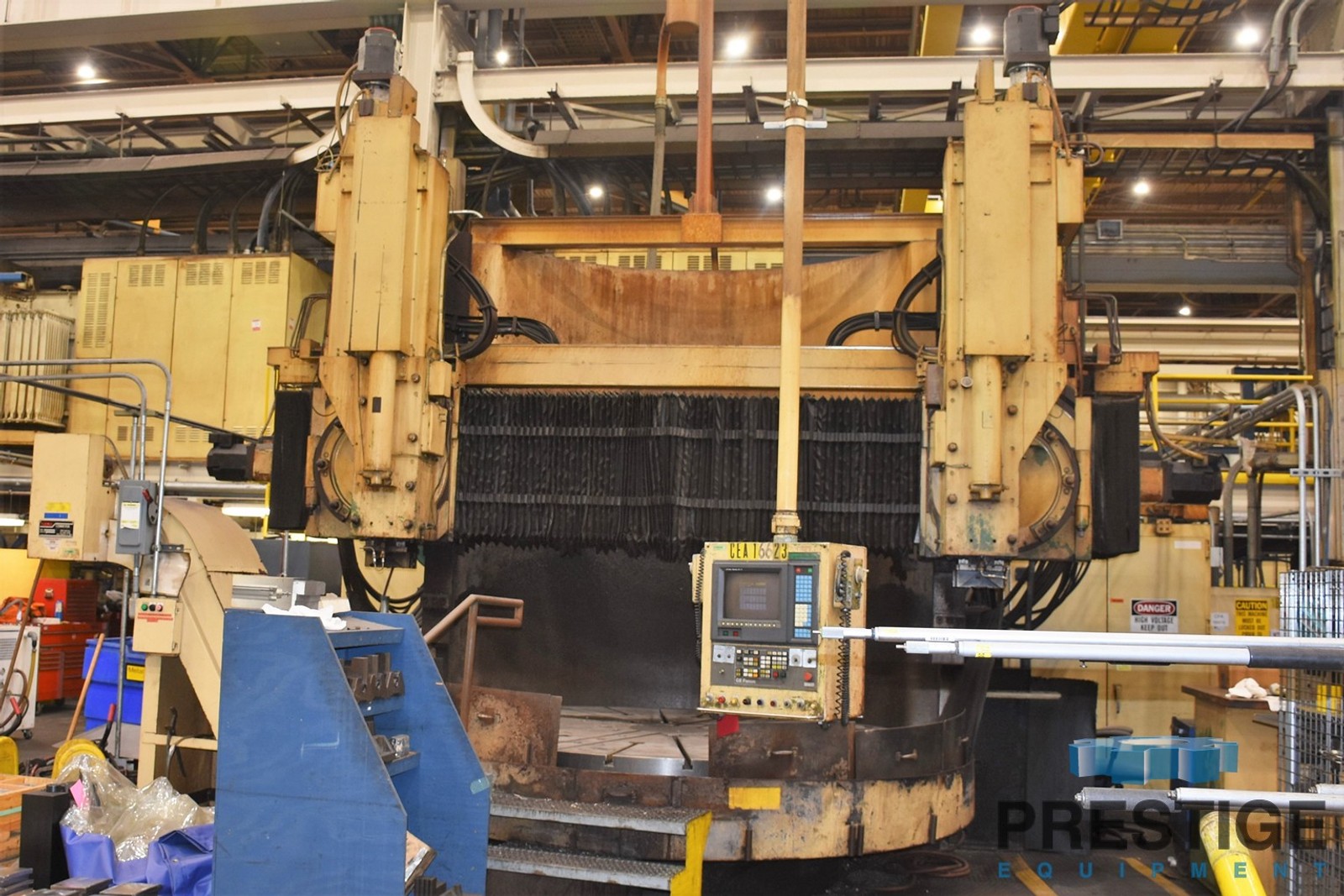

Gray 120" CNC Vertical Boring Mill

FEATURES:

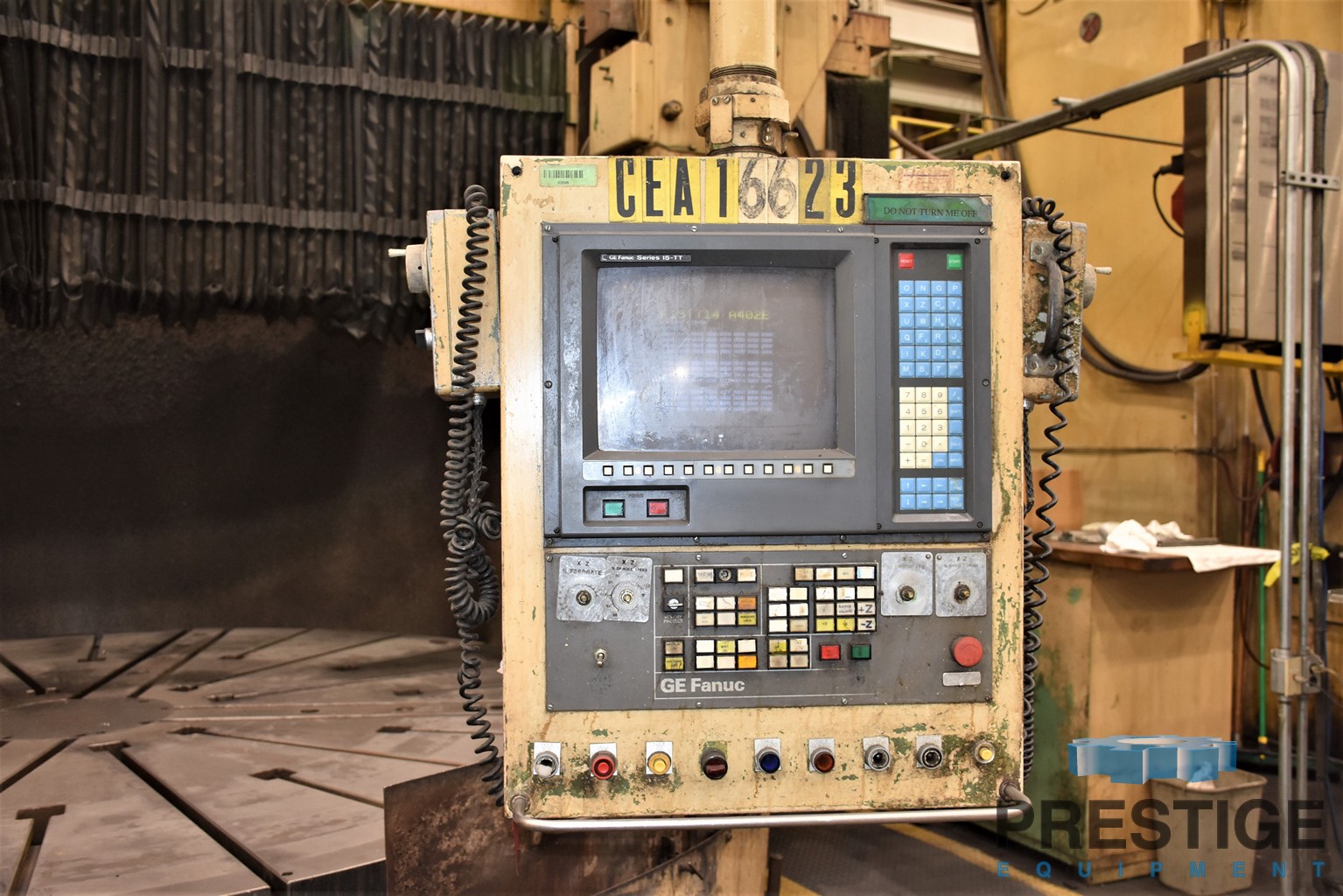

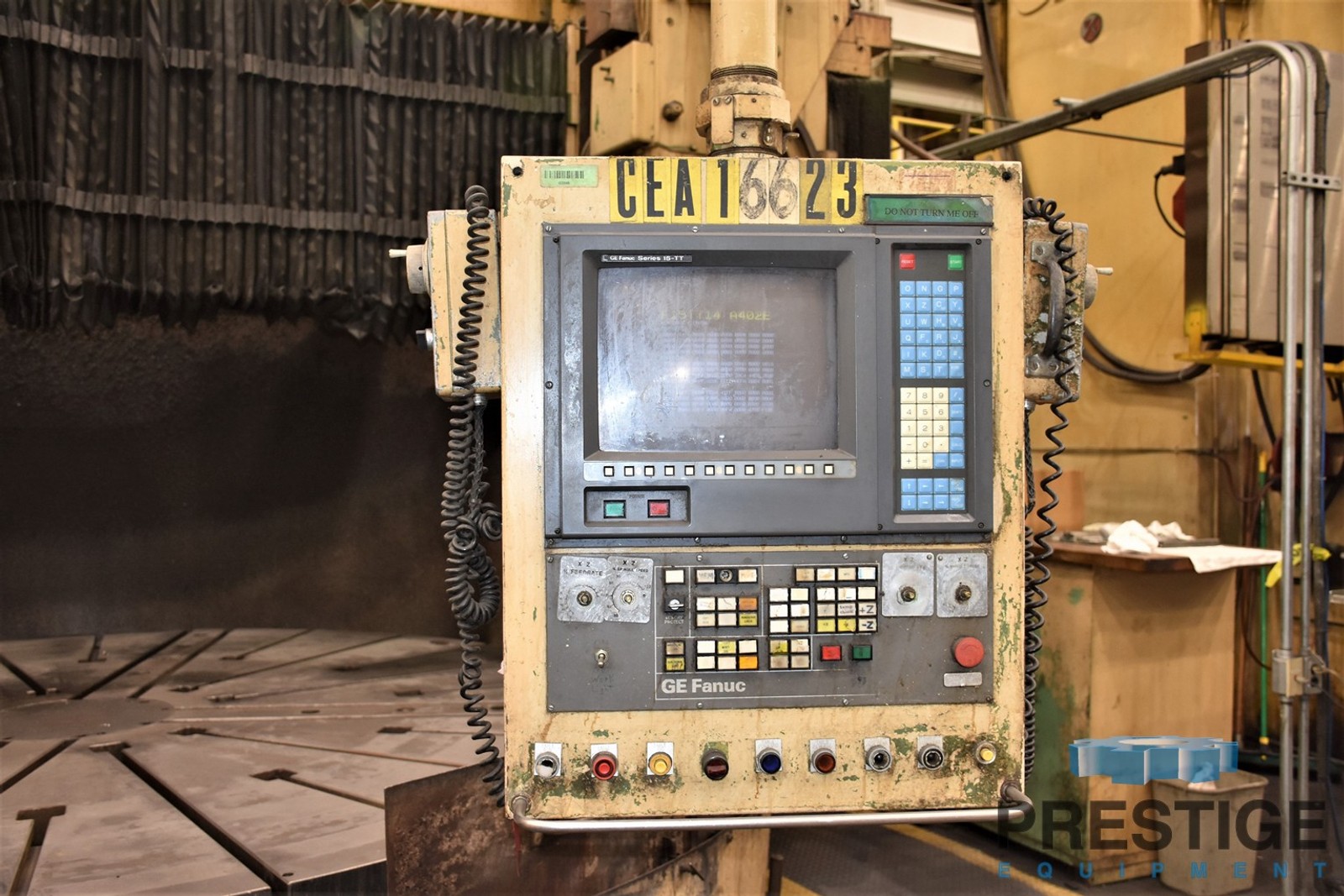

Fanuc 15T CNC Control

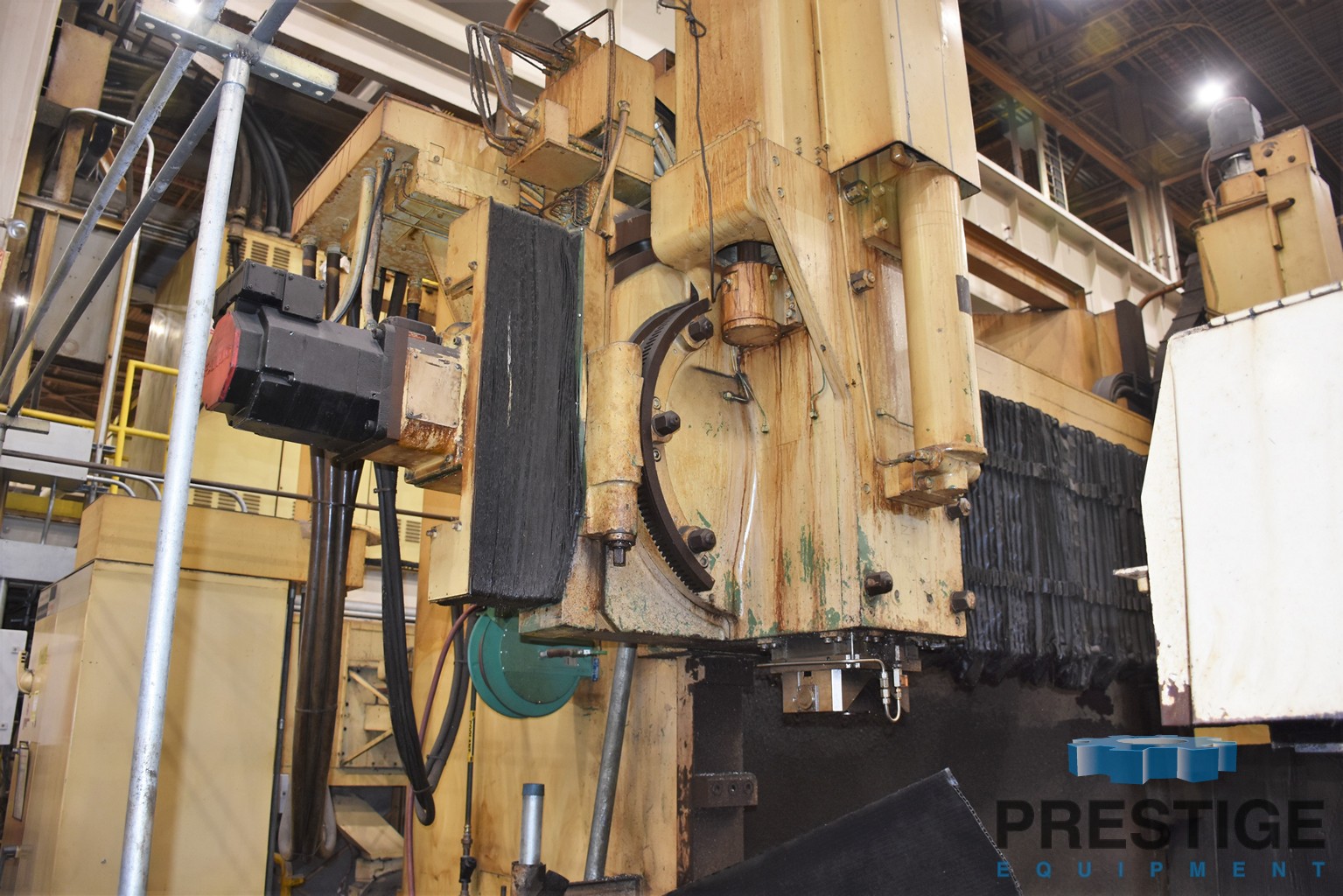

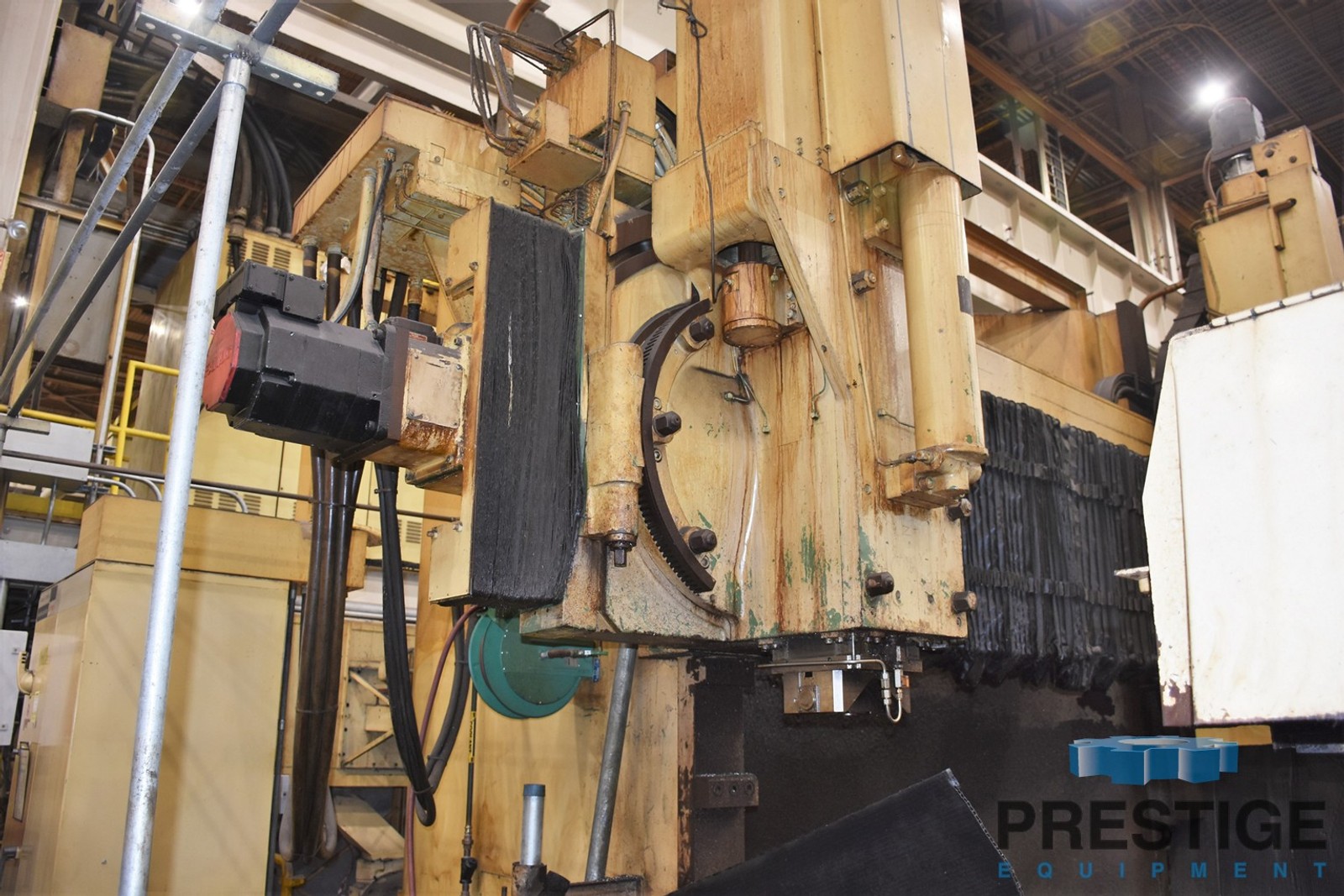

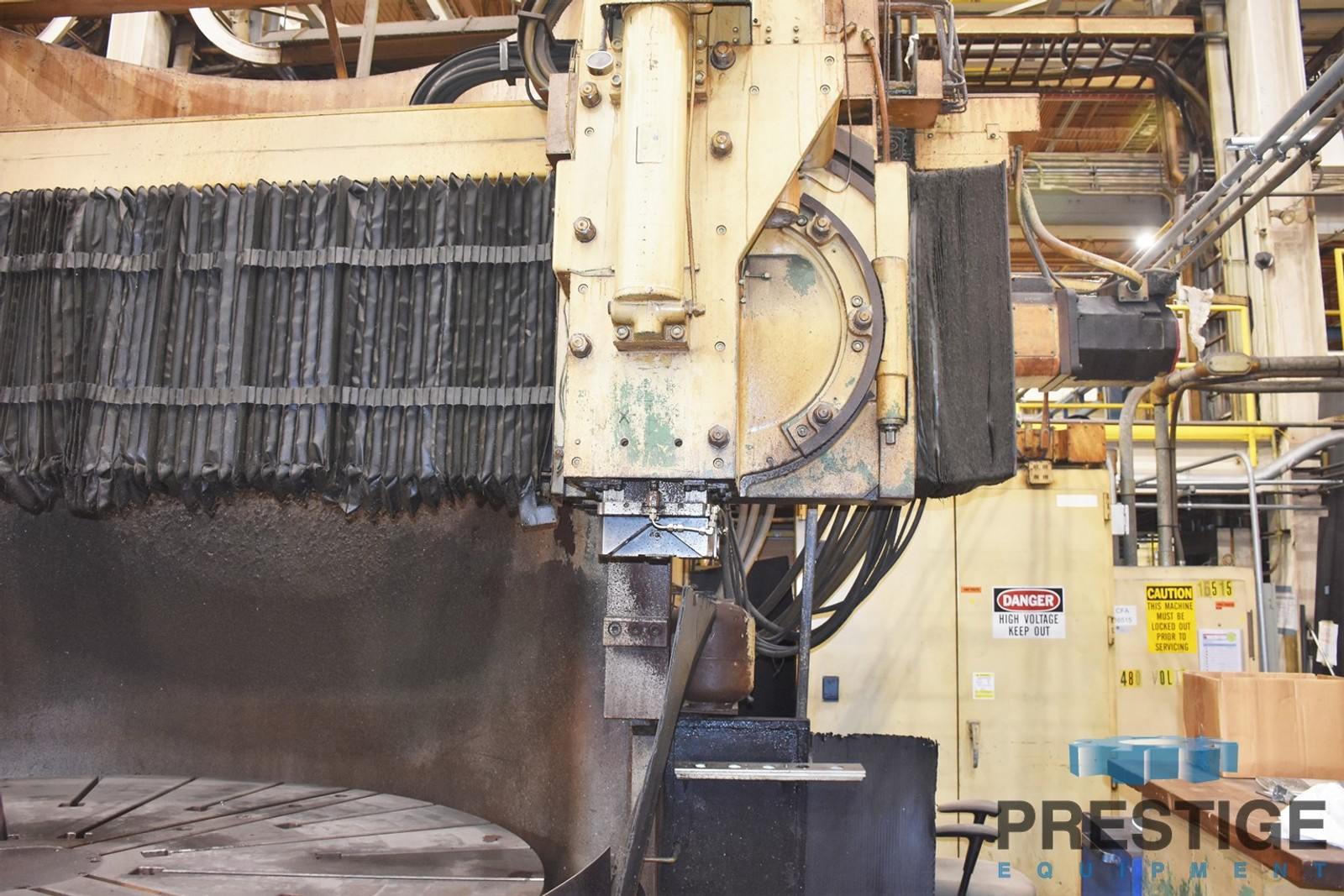

2-Vertical Rams w/ Power Index Tool Block

CAPACITY:
Table Diameter ........................ 120"
Maximum Swing ......................... 132"
Maximum Height Under Rail ............. 88"
Maximum Height Under Ram .............. 84"
Ram Travel Below Saddle ............... 40"
Ram Head Travel to Table Center ....... 71.5"
Table Speeds (2-Ranges) ............... 0.8-50 RPM
Table Motor ........................... 50 HP
Machien Electrics .................... 480/3/60

Equipped With:
Fanuc 15T CNC Control
2-Vertical Rams w/ Power Index Tool Block

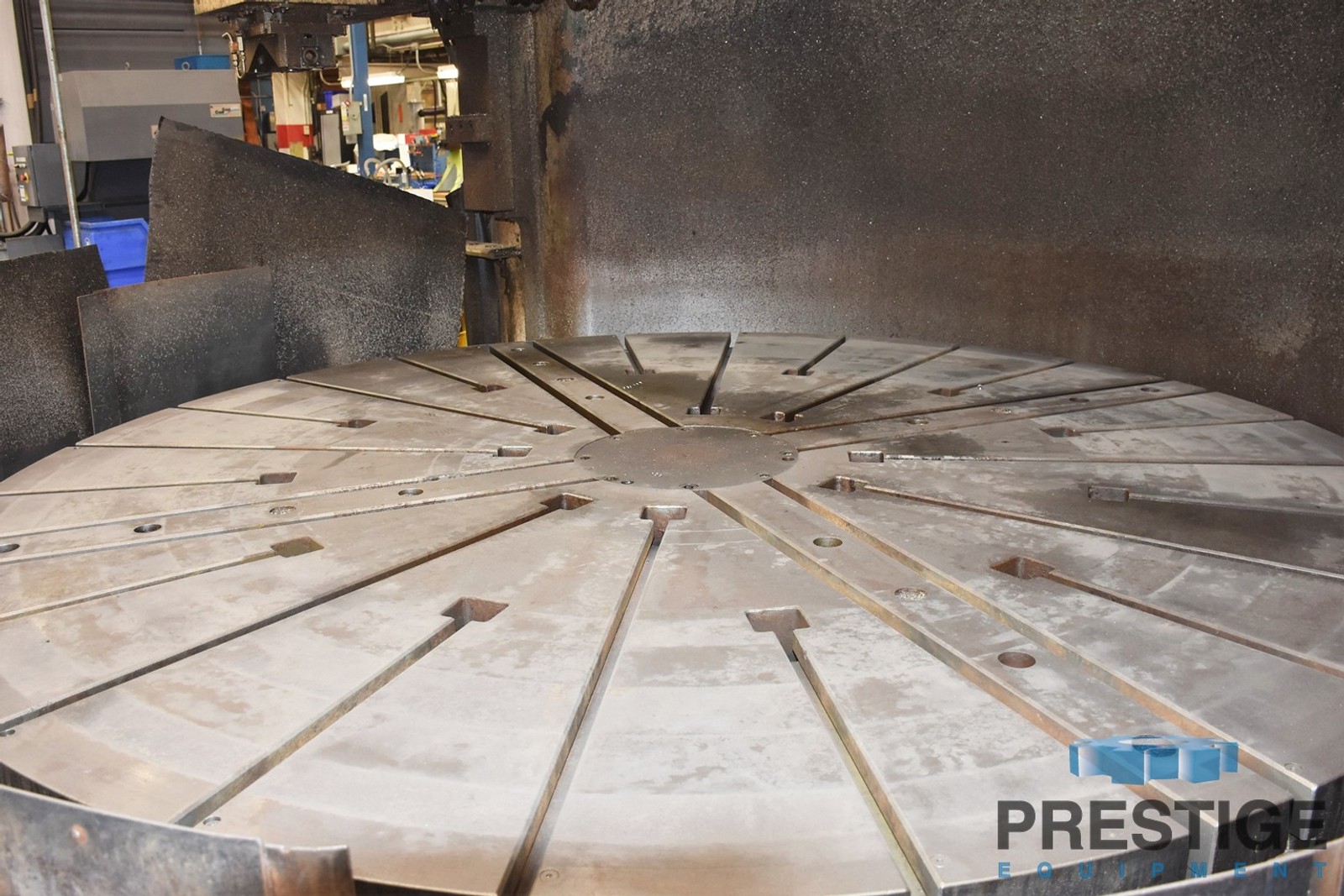

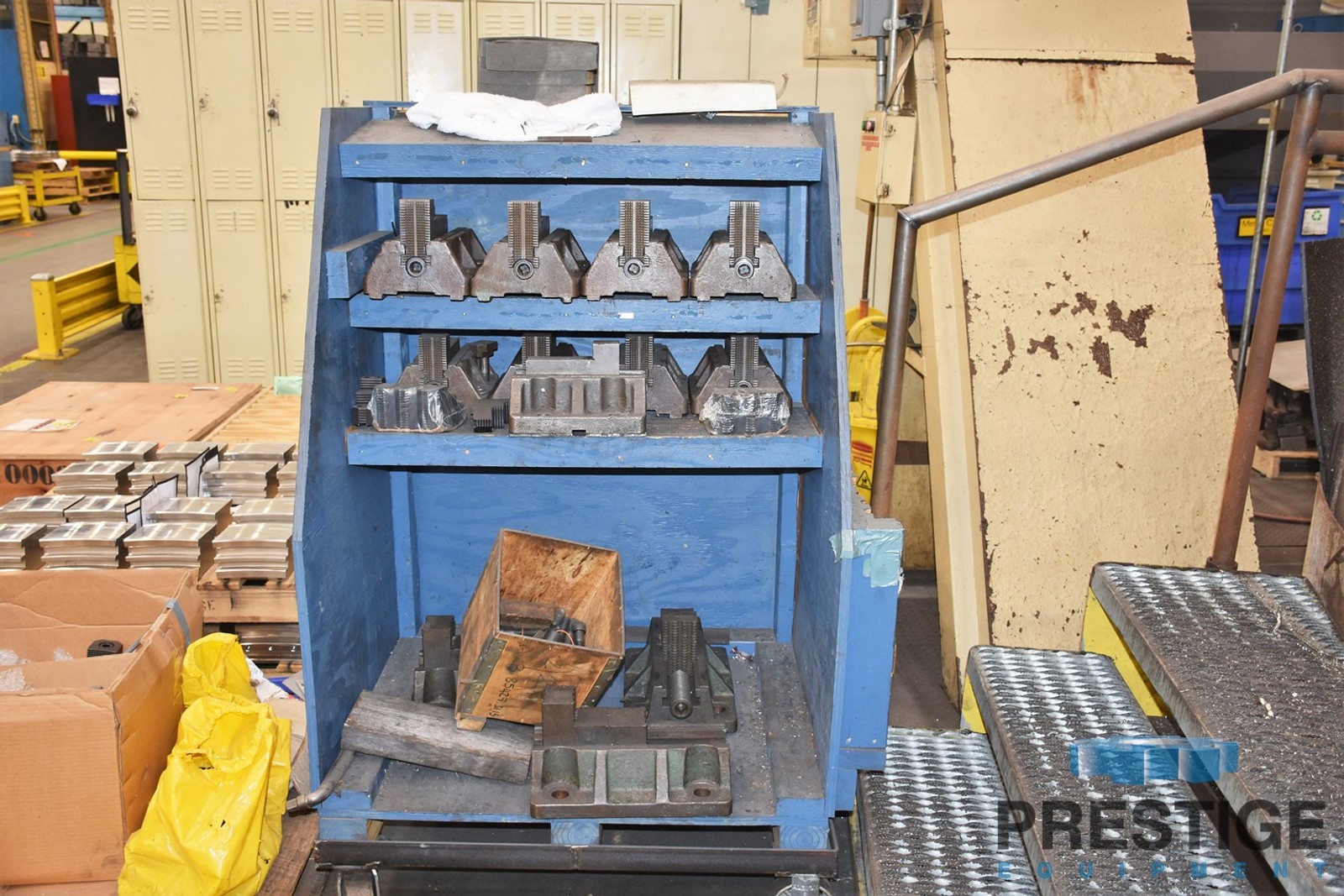

120" T-Slotted Table w/ 4-Top Jaws
Ball Screws & Fanuc Red Cap Drives
Hardened & Ground Ways

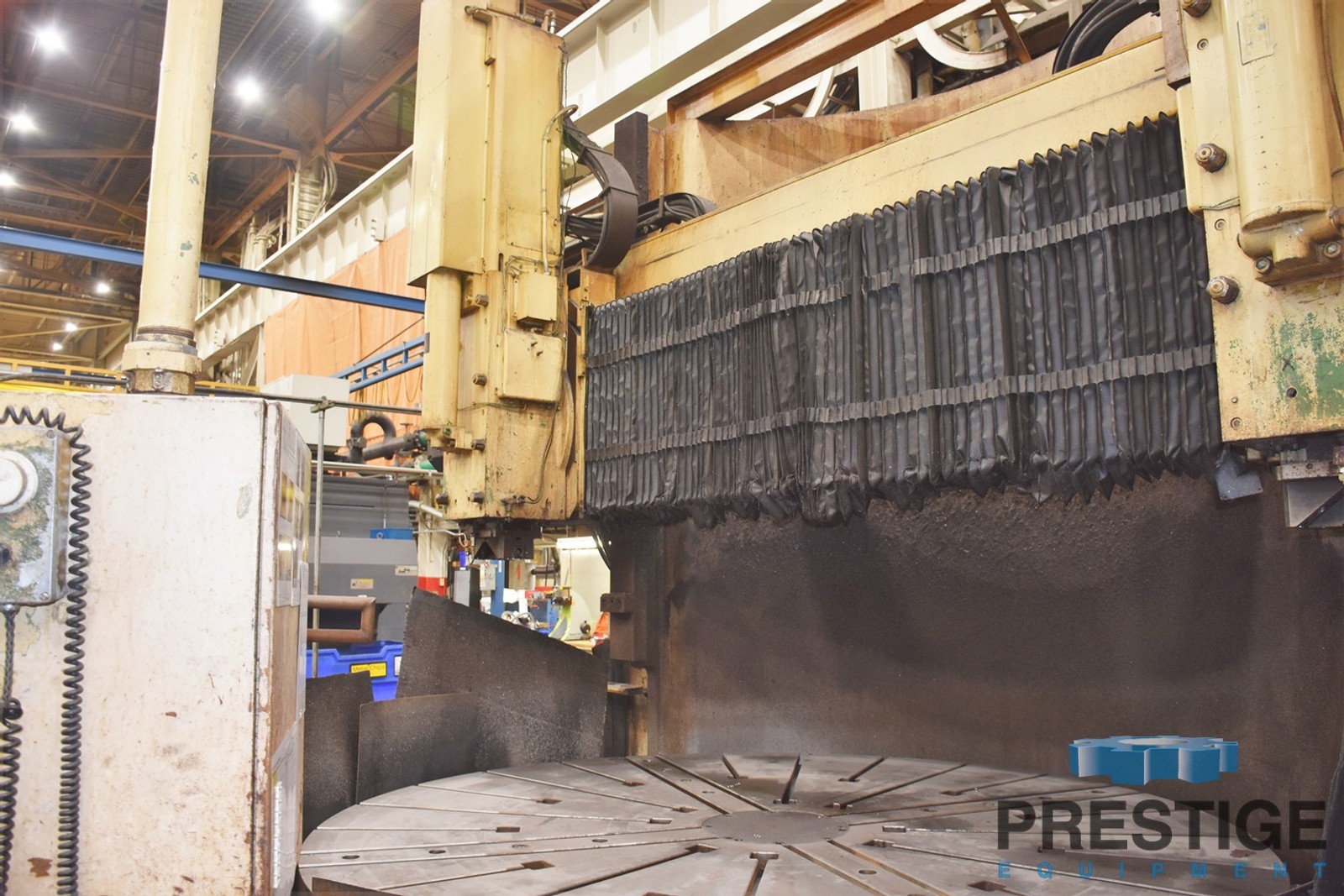

Way Covers on Cross Rail
Coolant System
