Dainichi W160R-200x600, 70" swing, 236" Centers, Fanuc 15T CNC, 12 Pos. Turret, Chip Conveyor, Steady Rest, #31570

Manufacturer

DAINICHI

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

31570

Model

W160R-200x600

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #31570

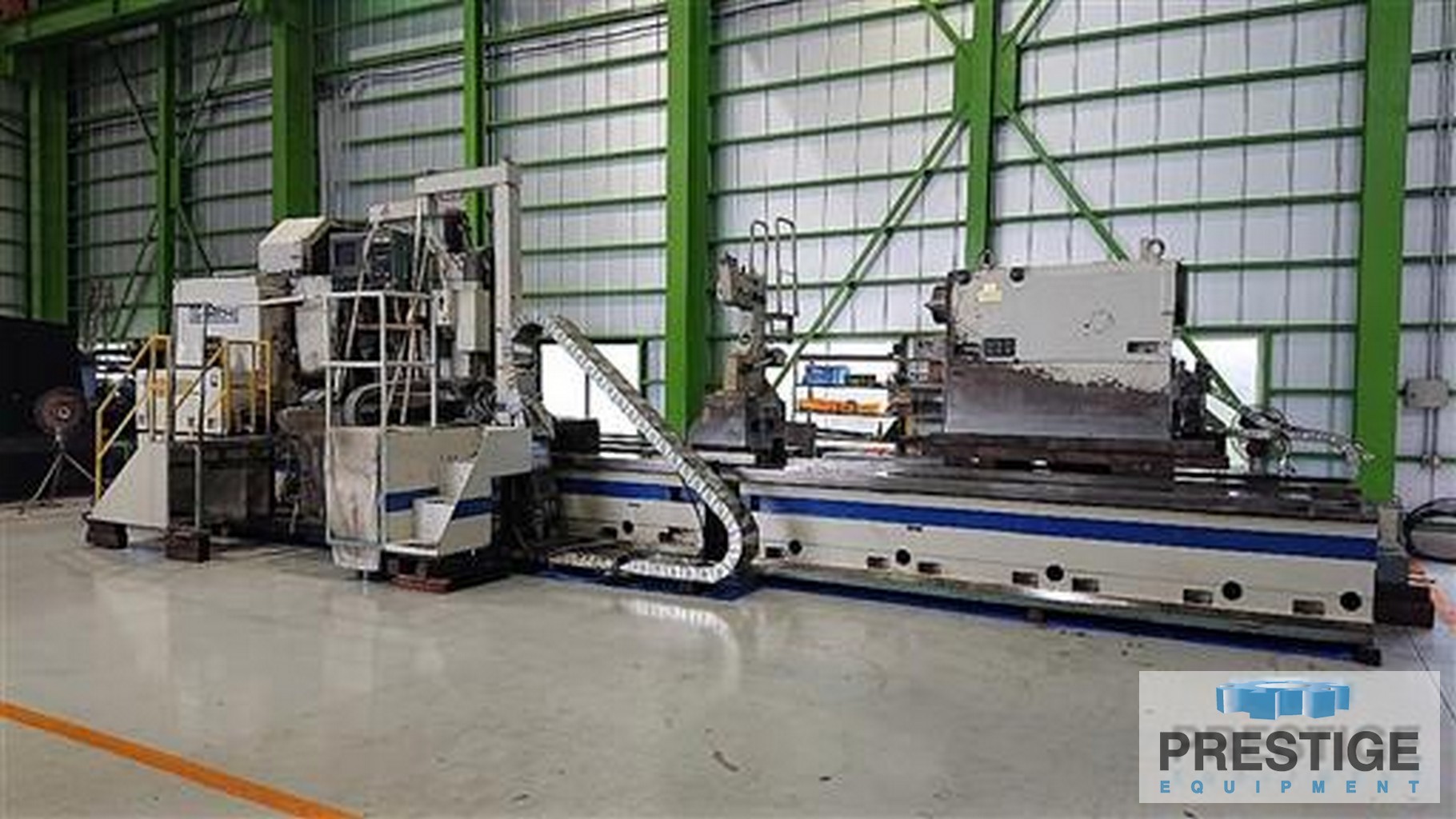

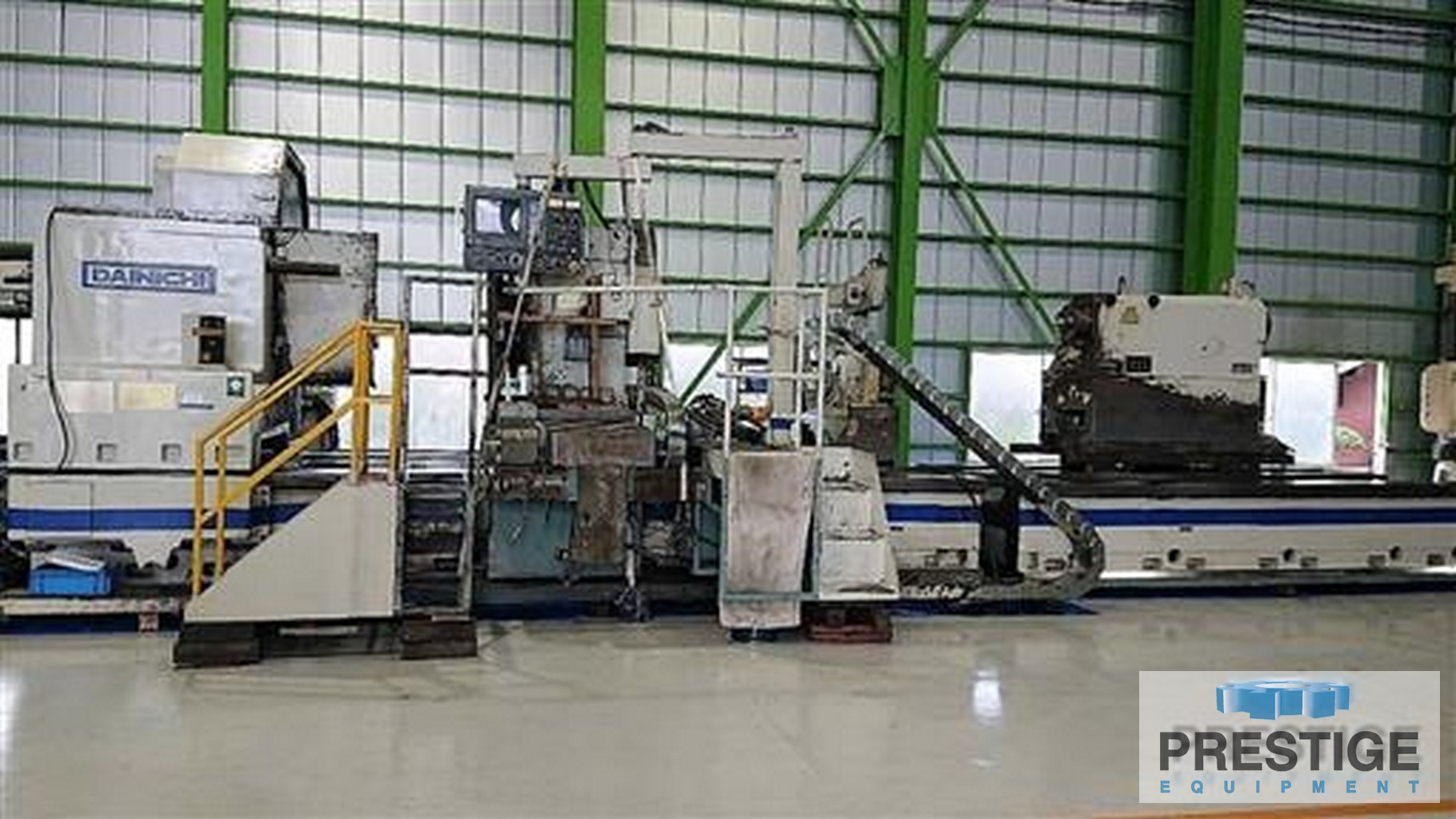

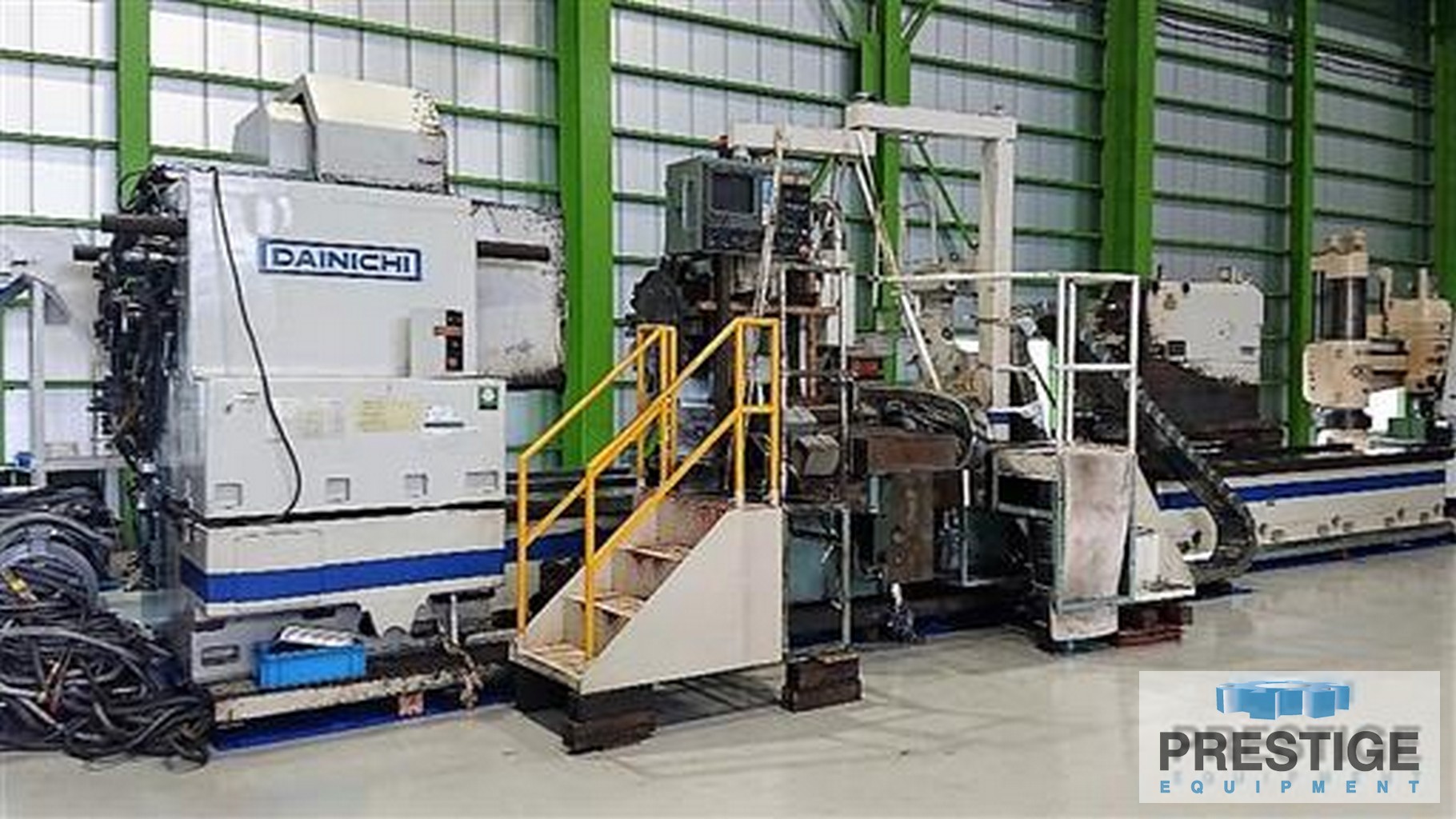

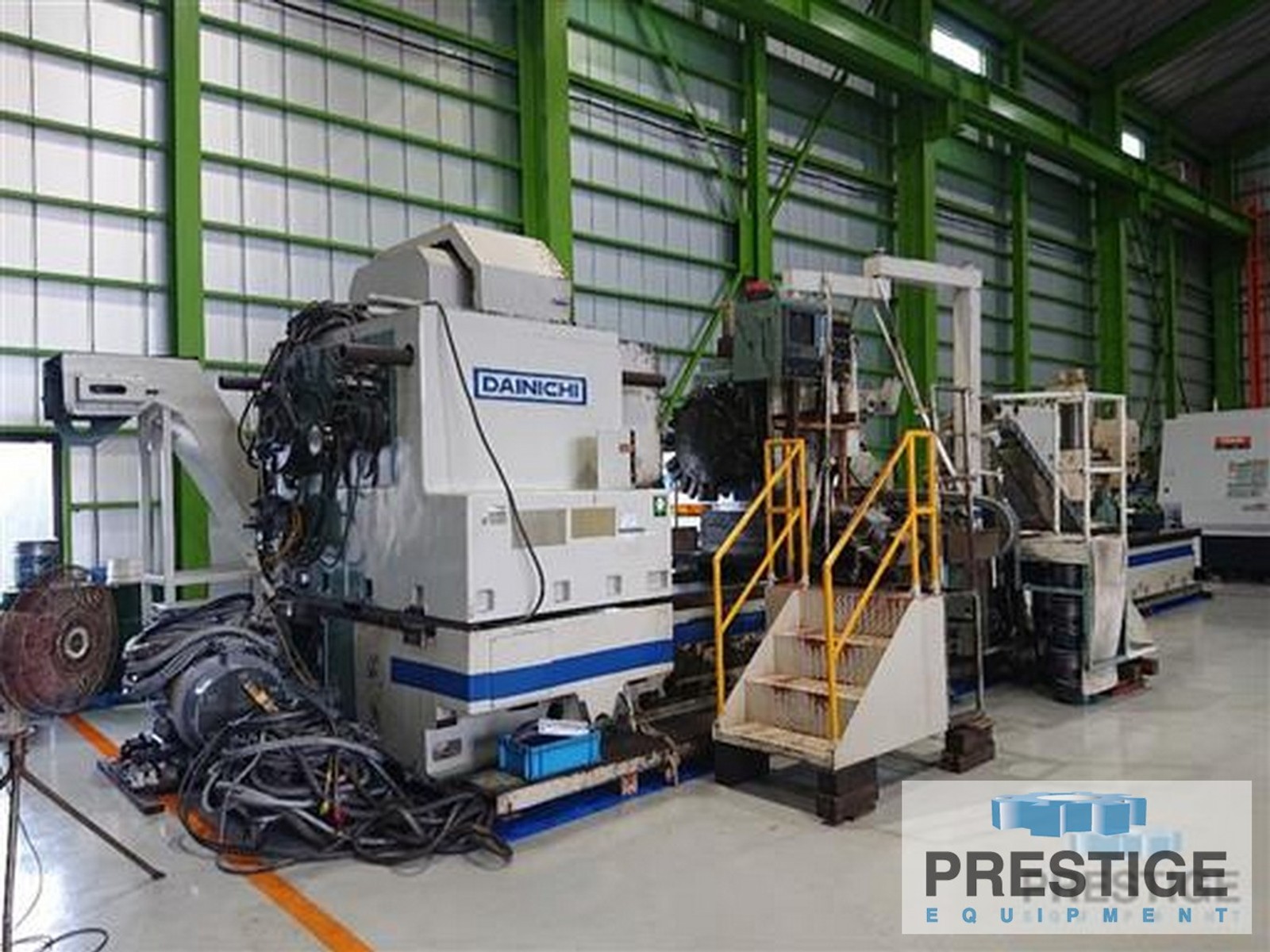

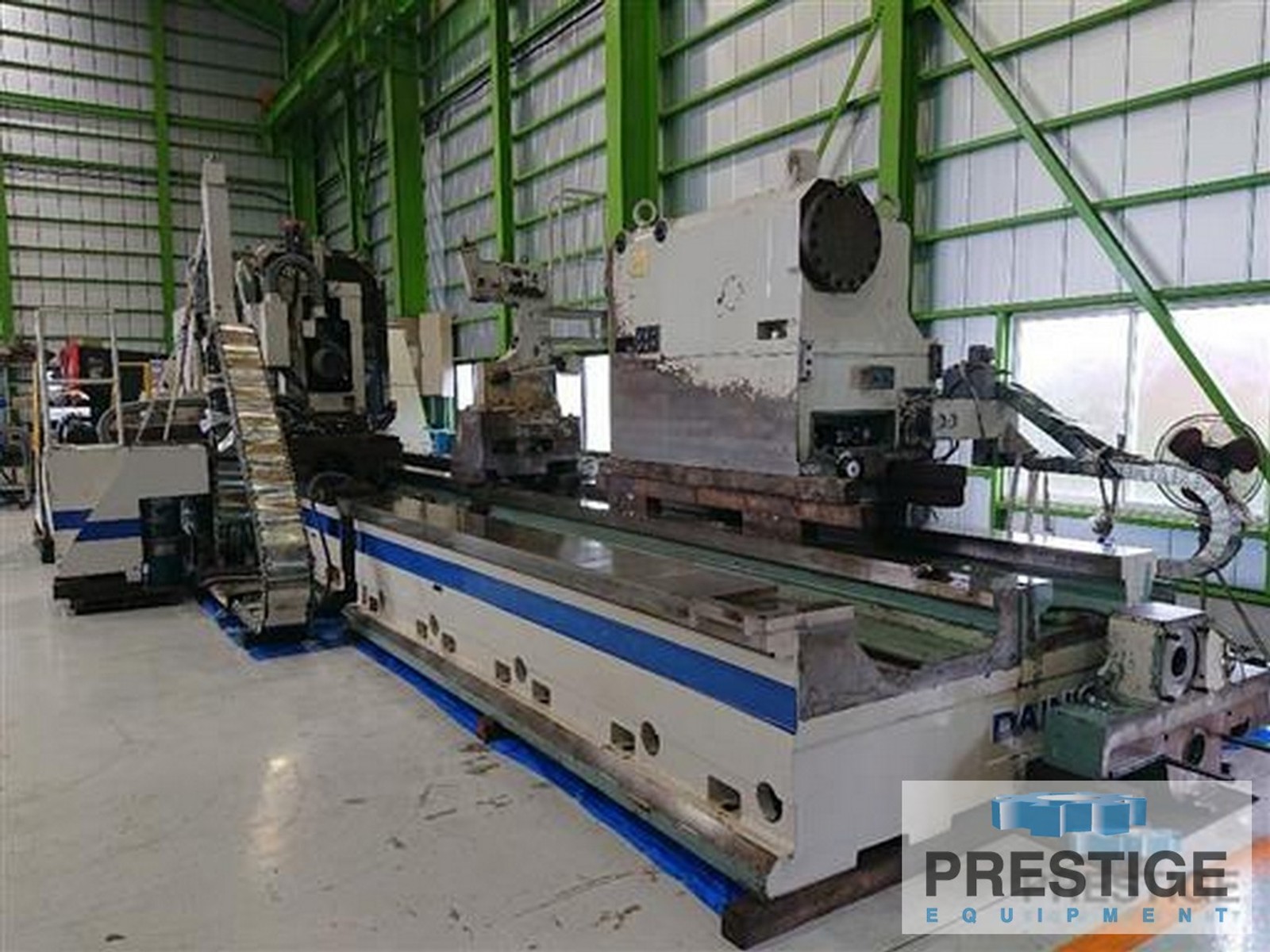

Dainichi W160R-200x600 70" x 236" CNC Lathe

FEATURES:

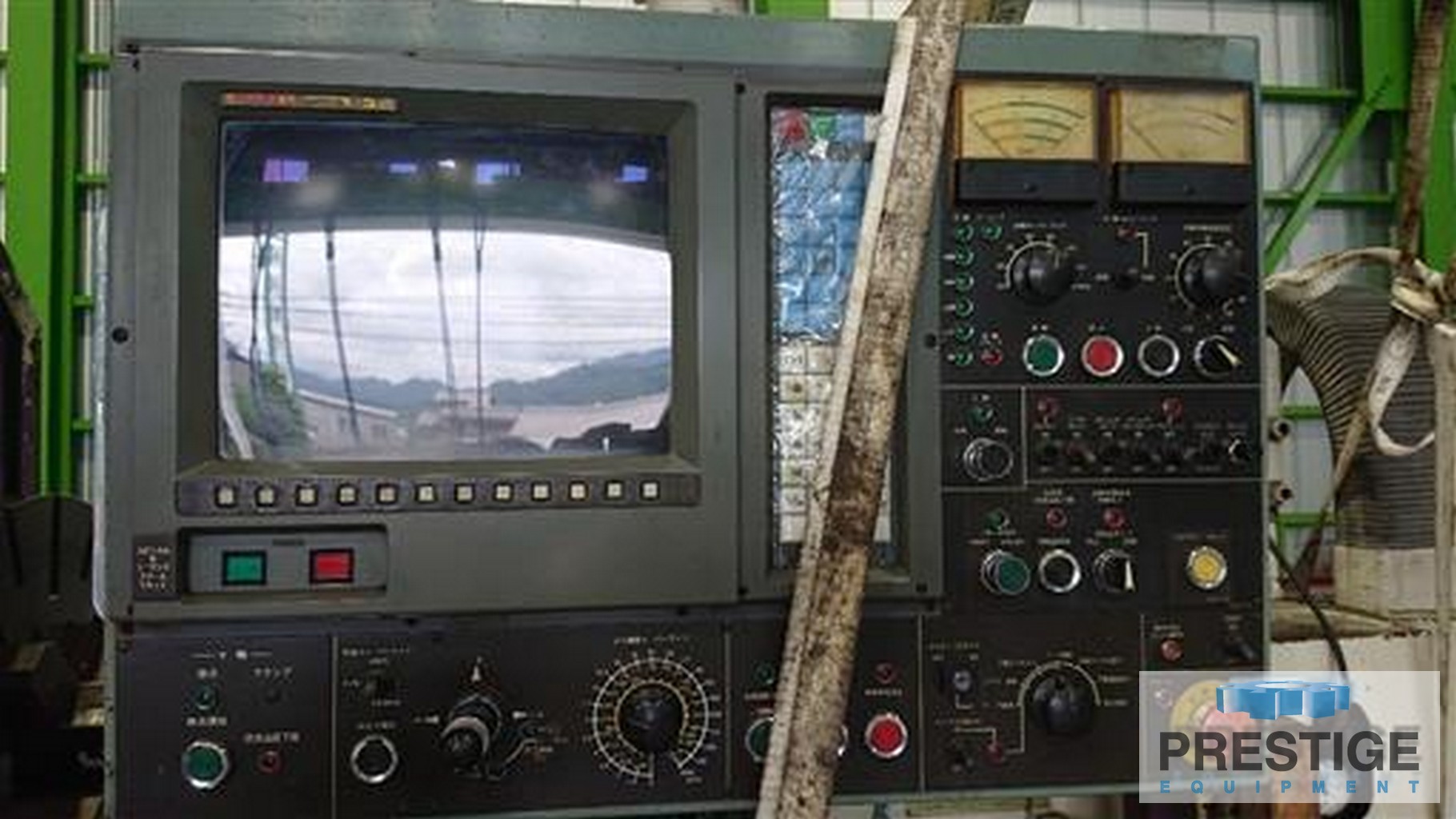

Fanuc 15-TF CNC Control
4-Jaw Chuck

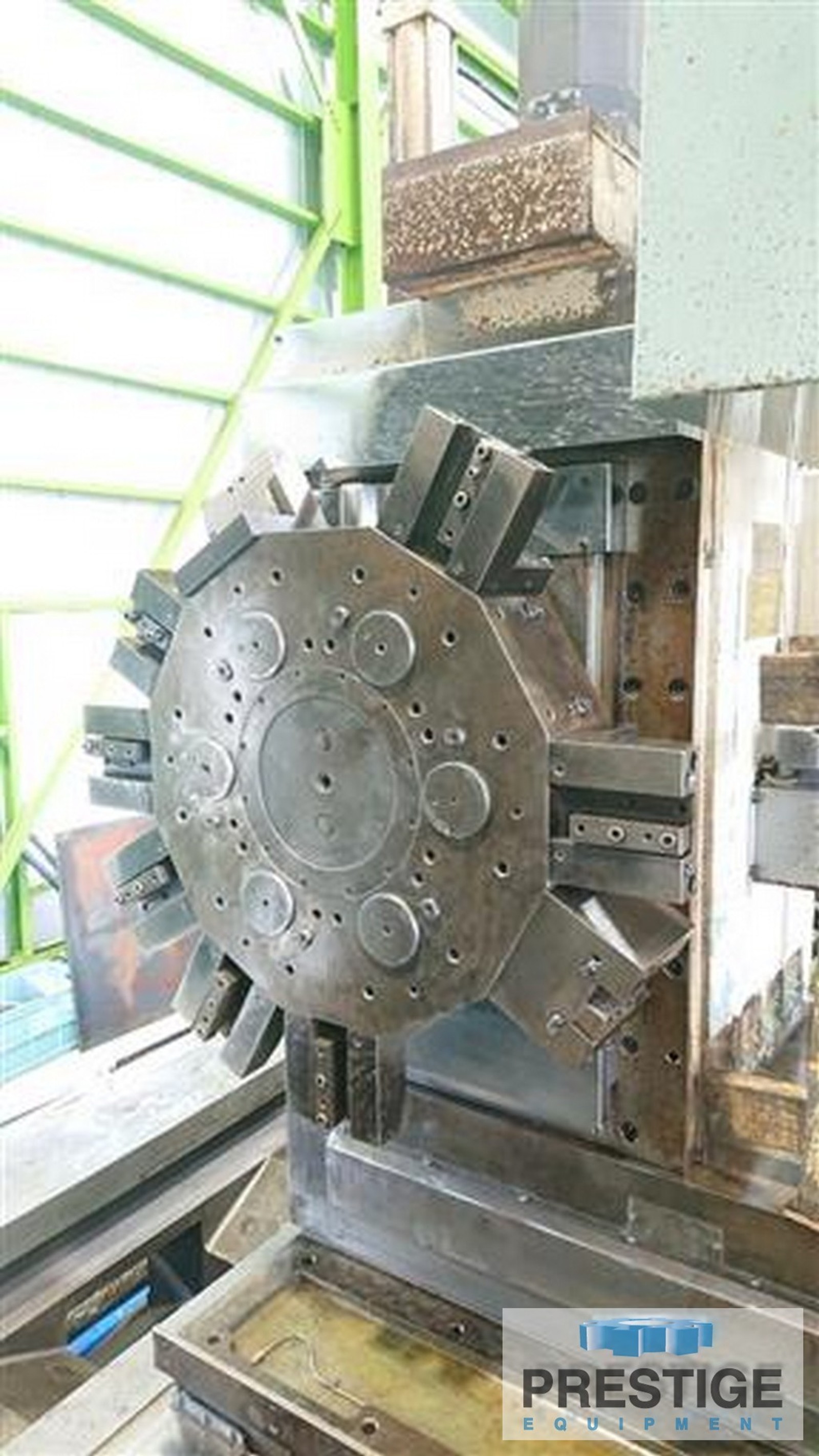

12 Station Turret

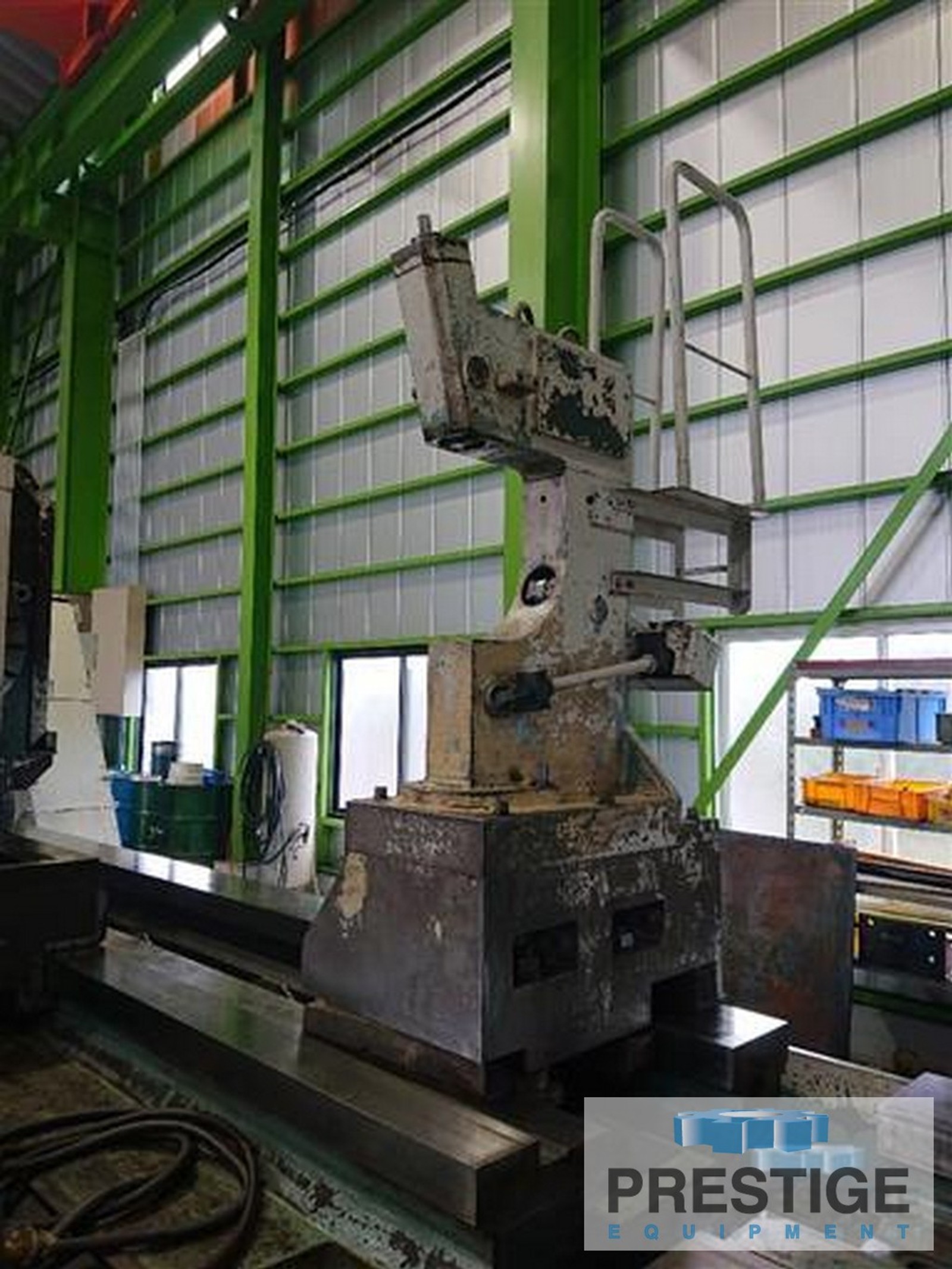

Steady Rest
Chip Conveyor

CAPACITIES:
Maximum Swing Over Bedways ............ 70.86"
Maximum Swing Over Carriage ........... 57.08"
Maximum Work Diameter ................. 51.18"
Distance Between Centers .............. 236.66"
Spindle Speeds (Inf. Variable) ........ 1.6-500 RPM
Spindle Bore .......................... 4.09"
Spindle Nose .......................... JIS A2-20

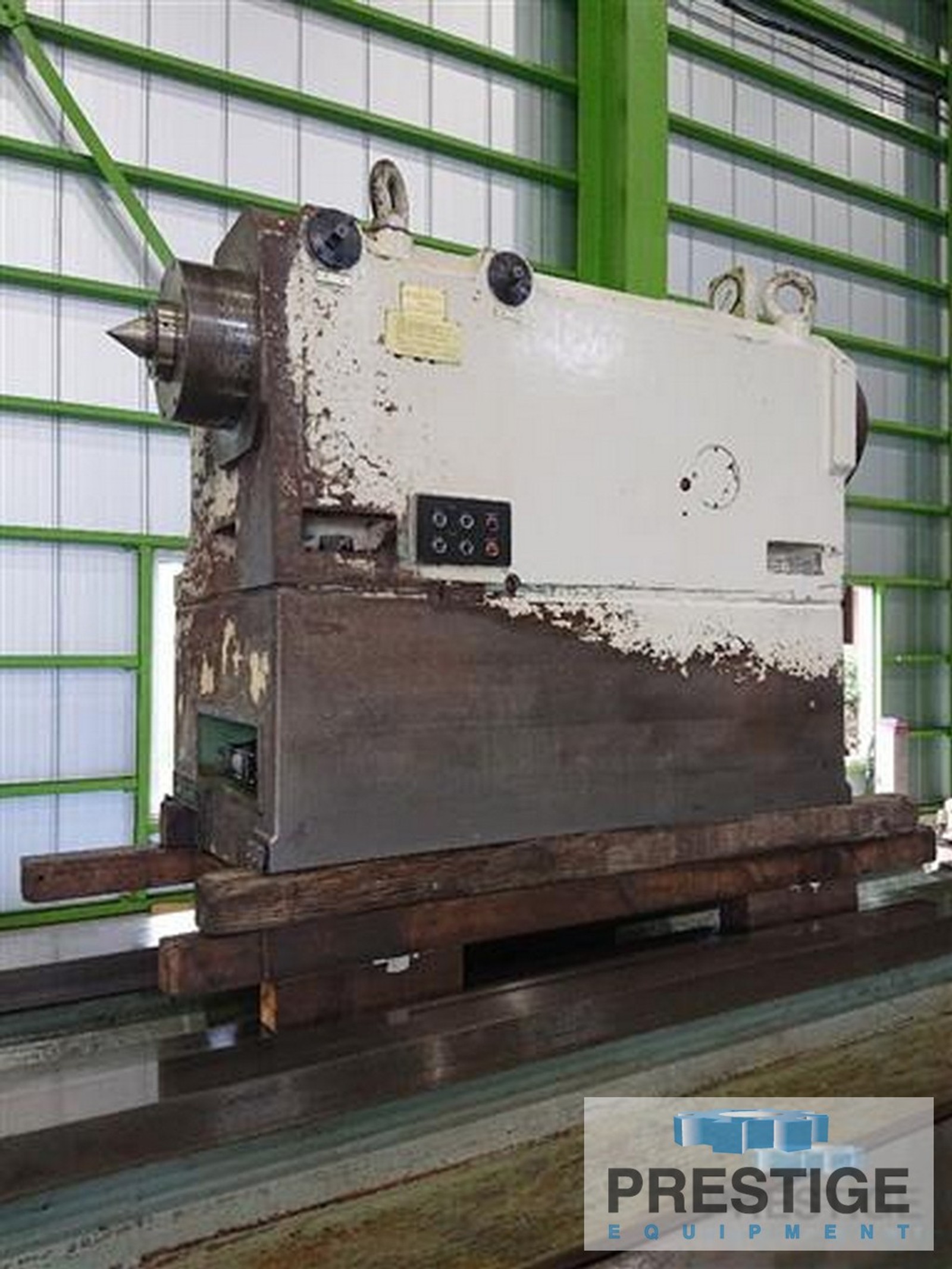

Tailstock Diameter .................... 12.40"
Weight Capacity Between Centers ....... 35,200 Lbs.
Bed Width/Bed Height................... 78.74"/30.70"
X-Axis Travel ......................... 33.46"
Z-Axis Travel ......................... 236.66"

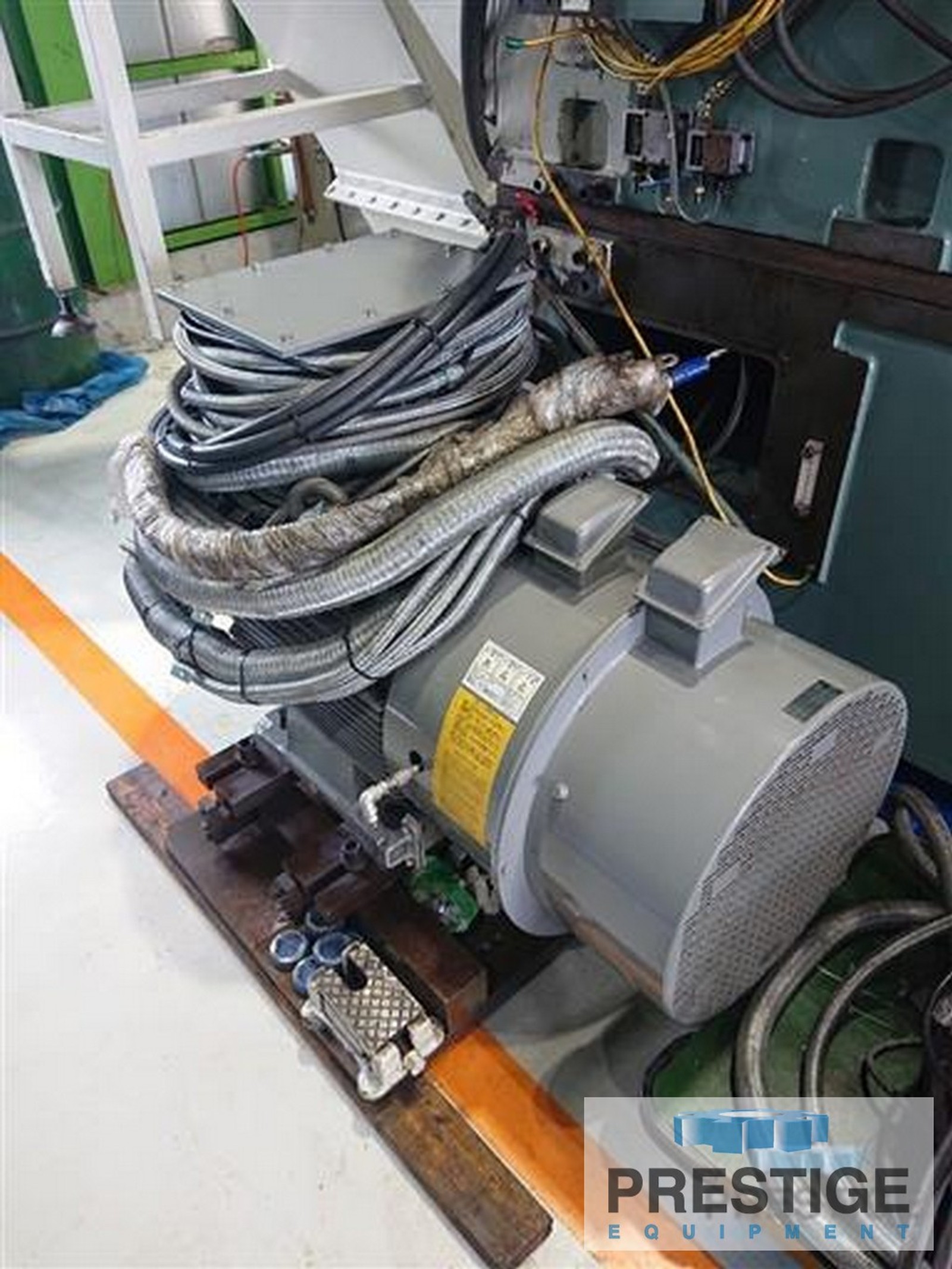

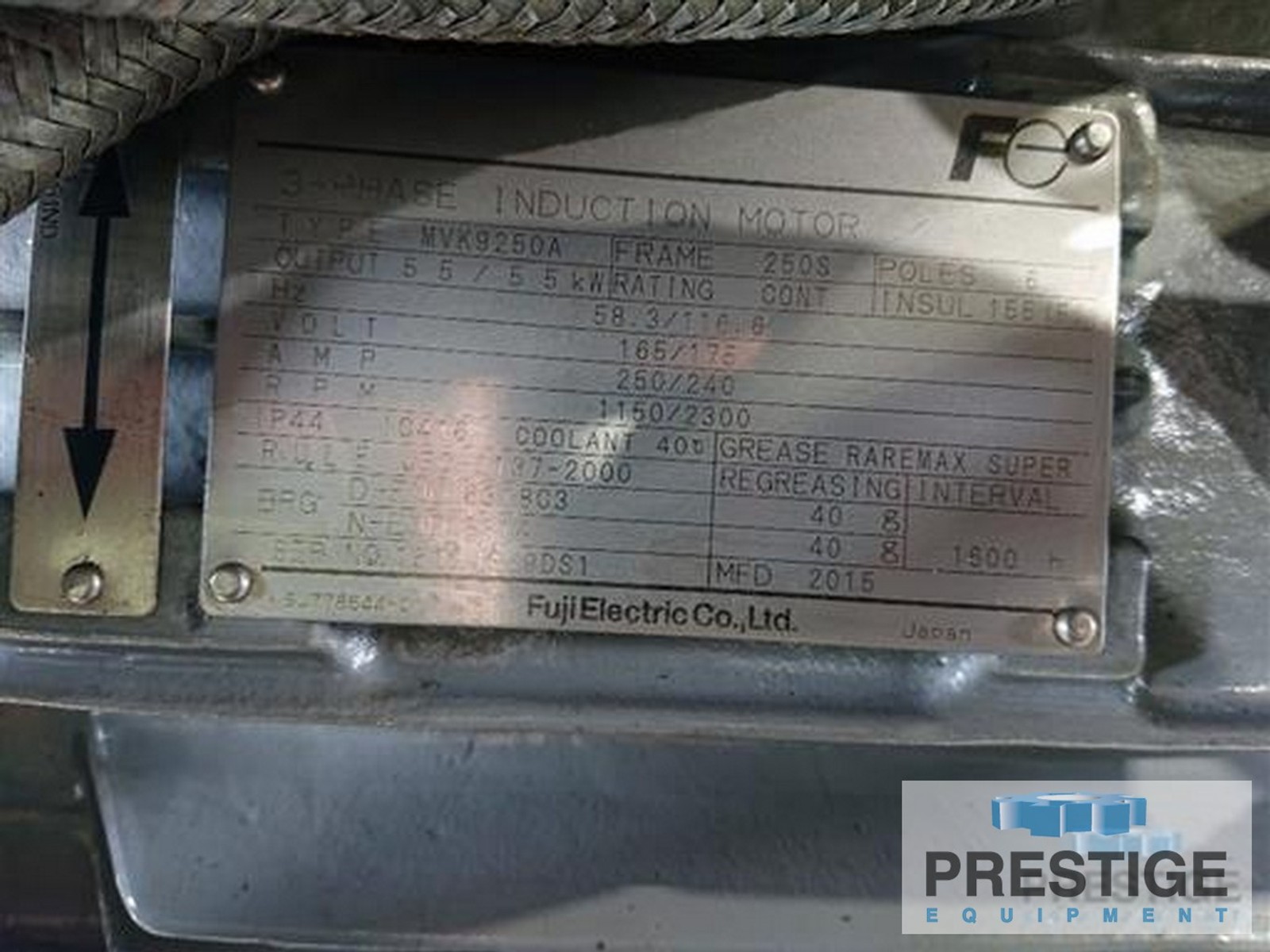

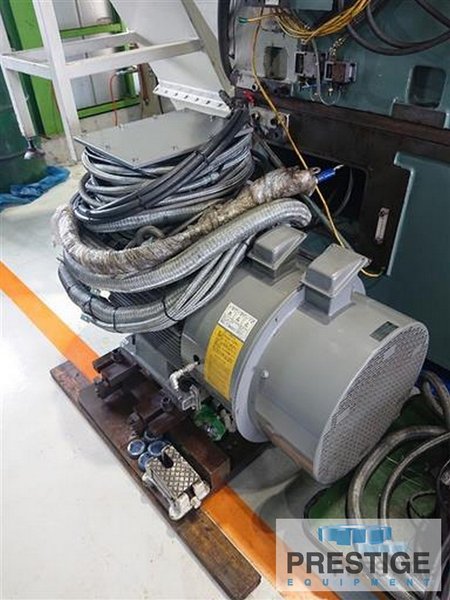

Spindle Motor ......................... 73 HP

EQUIPPED WITH:
Fanuc 15-TF CNC Control

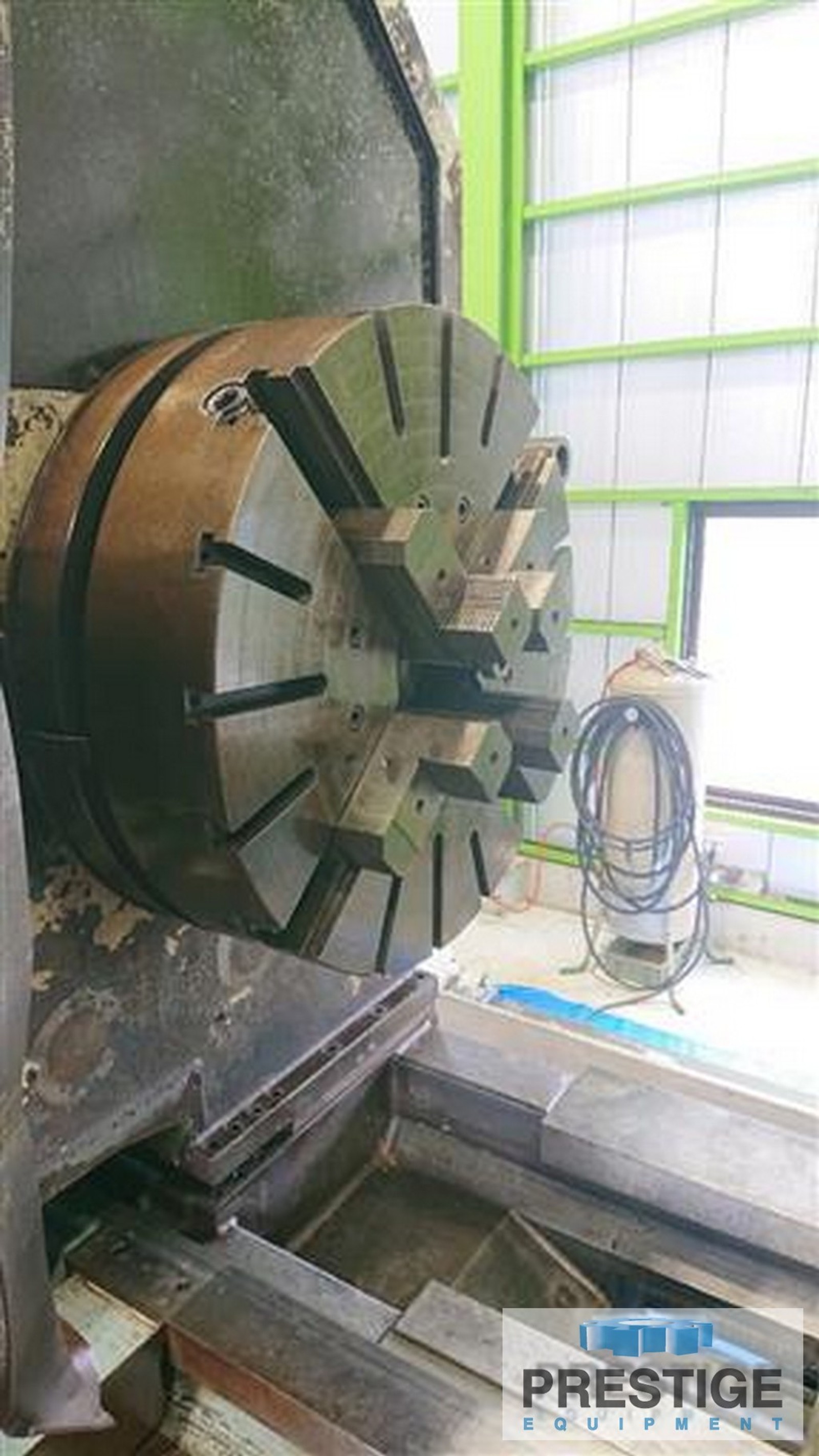

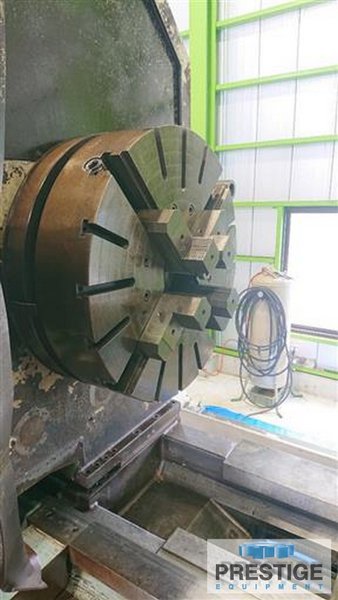

39" 4-Jaw Chuck
12 Station Turret
Steady Rest
Chip Conveyor
