Hankook Hanturn-75 x 6000, 30" x 236", Fanuc 32i CNC, 18" Chuck, (2) Steady Rests, Chip Conveyor, 2012, #31904

Manufacturer

HANKOOK

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

31904

Model

Hanturn 75 x 6M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31904
Hankook Hanturn-75 x 6000 CNC Lathe

FEATURES:

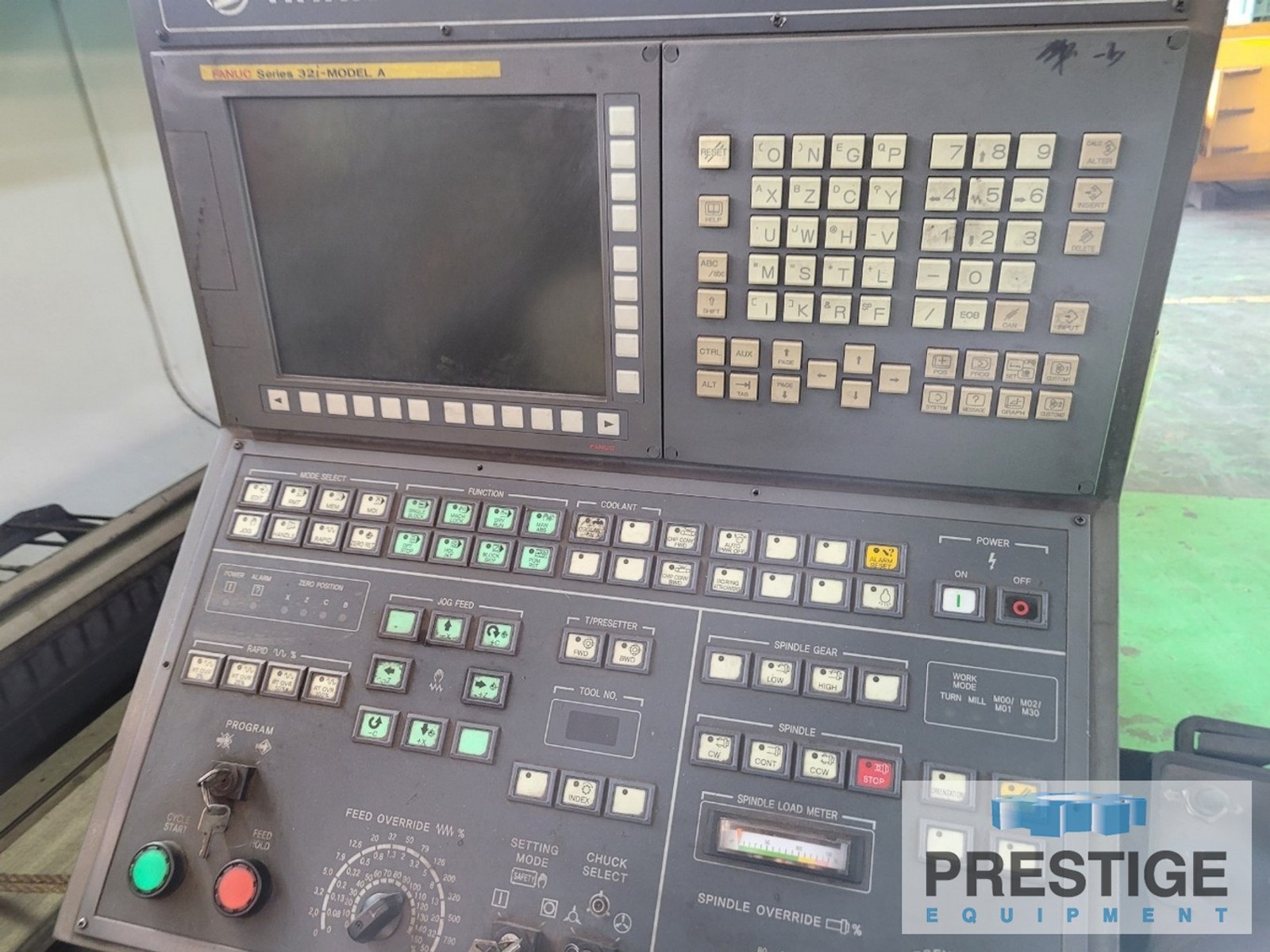

Fanuc 32i-TA CNC Control
(2) Steay Rests
Auto Square Tool Post

CAPACITIES:
Swing Over Bed ........................ 29.52"
Swing Over Carriage ................... 18.89"
Max. Turning Diameter ................. 29.52"
Distance Between Centers .............. 236.66"
Loading Capacity Between Centers ...... 8,800 Lbs.
Maximum Spindle Speed ................. 1,250 RPM
Spindle Nose .......................... A2-11
Spindle Bore .......................... 4.13"
Spindle Drive Motor ................... 24.8 HP
X-Axis Travel ......................... 16.73"
Z-Axis Travel ......................... 251.18"
Tailstock Quill Diameter .............. 4.40"
Tailstock Spindle Taper ............... MT-6
Tailstock Quill Travel ................ 7.87"
Approximate Machine Weight ............ 28,600

EQUIPPED WITH:
Fanuc 32i-TA CNC Control
18" 3-Chuck Manual Chuck
Automatic Square Tool Post
(2) Steady Rests
Tailstock
Chip Conveyor
