Mitsui Seiki HS3A 4-Axis, X-21.6", 15.7" Pallets, 6000 RPM, Fanuc 15M, 32 ATC, Chip Conveyor, #31949

Manufacturer

MITSUI SEIKI

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

31949

Model

HS3A

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31949

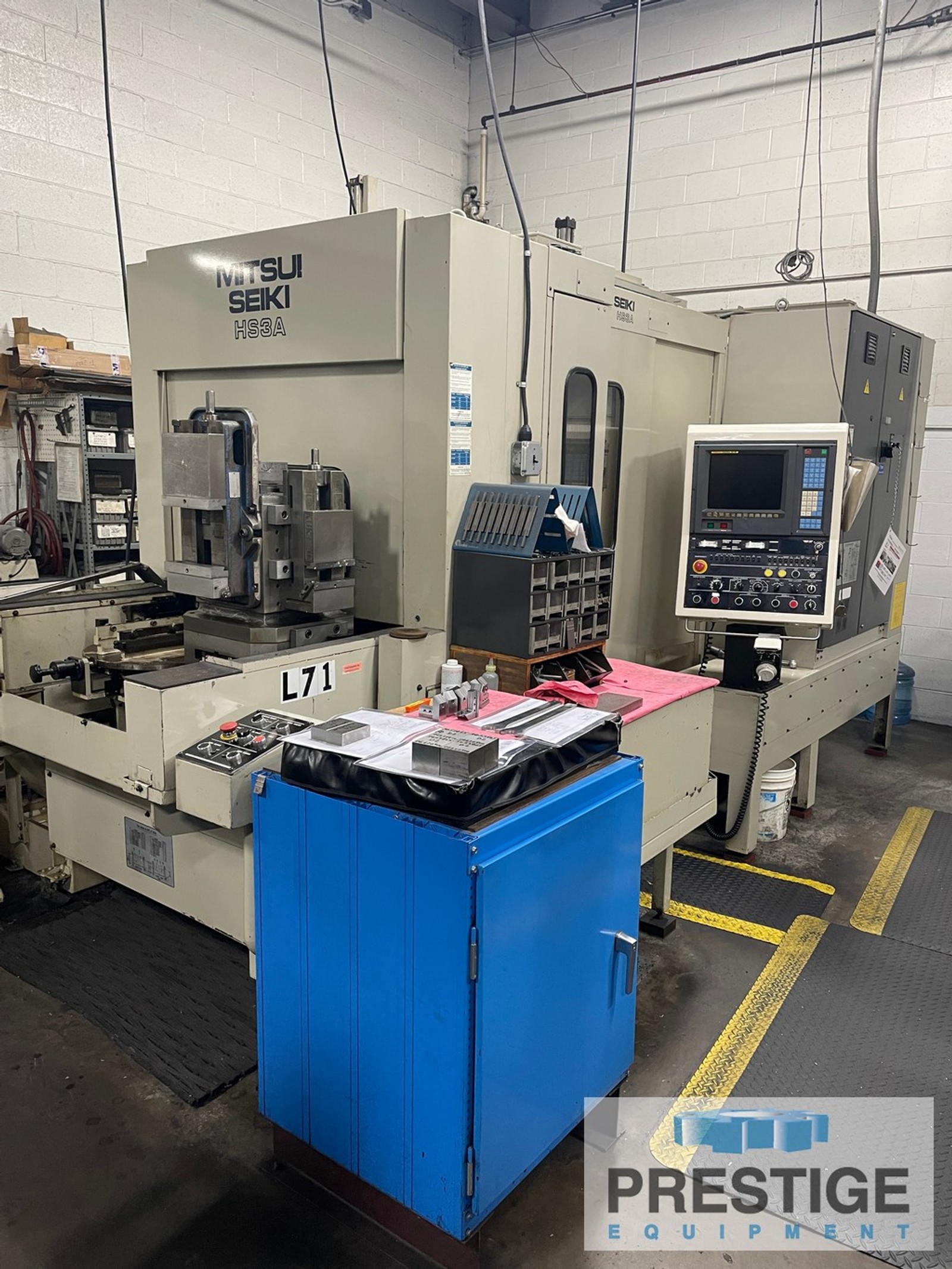

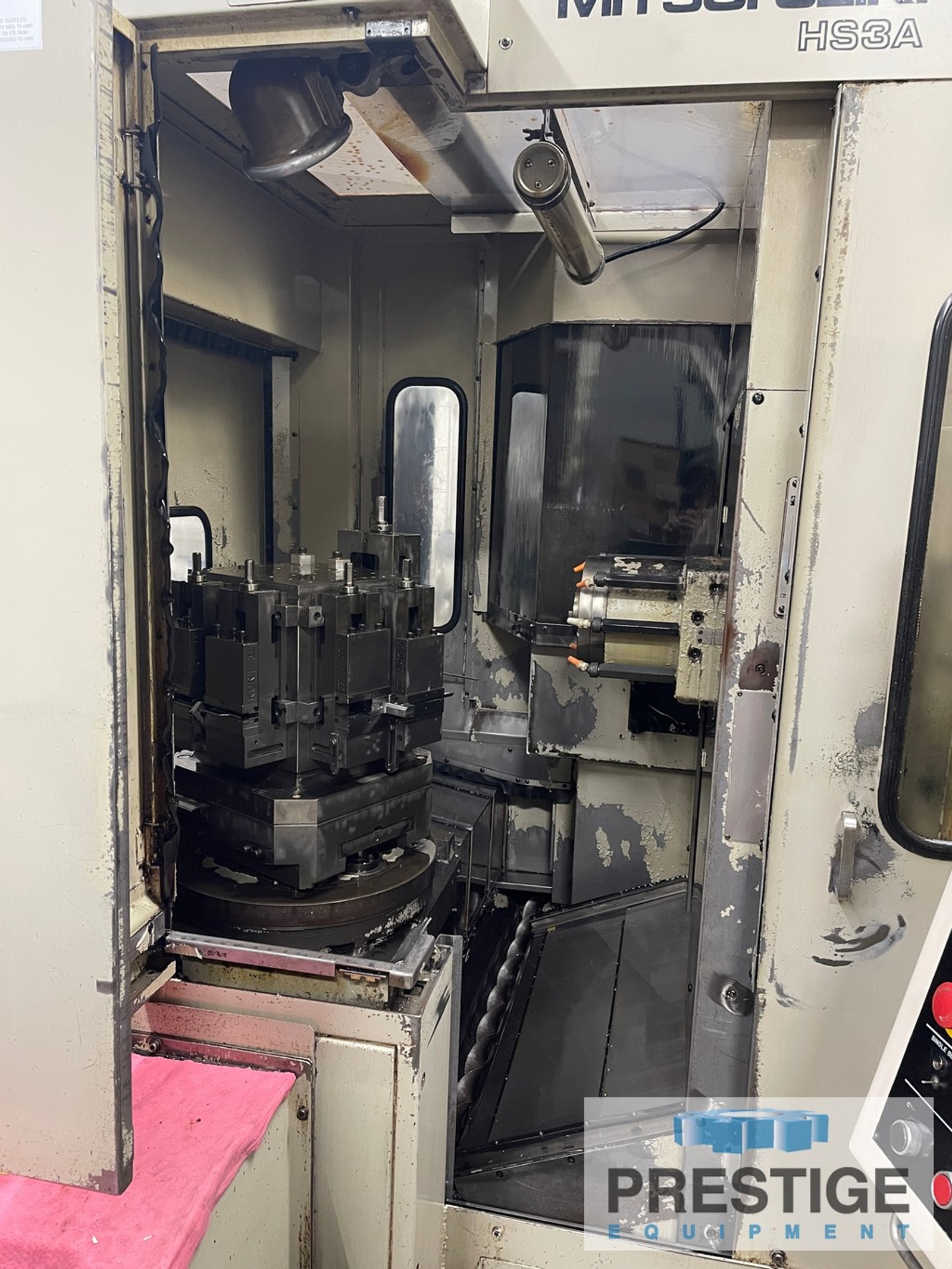

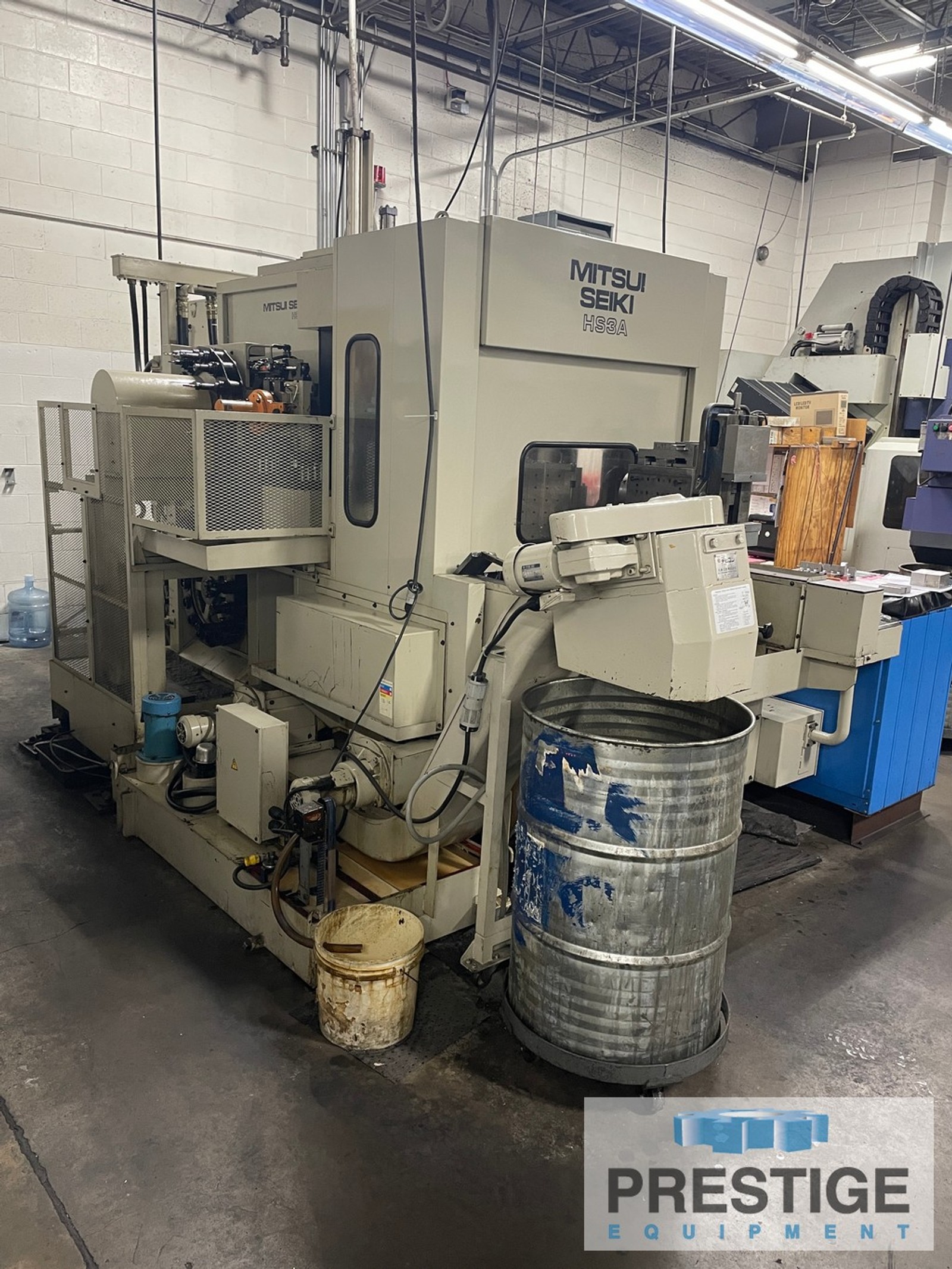

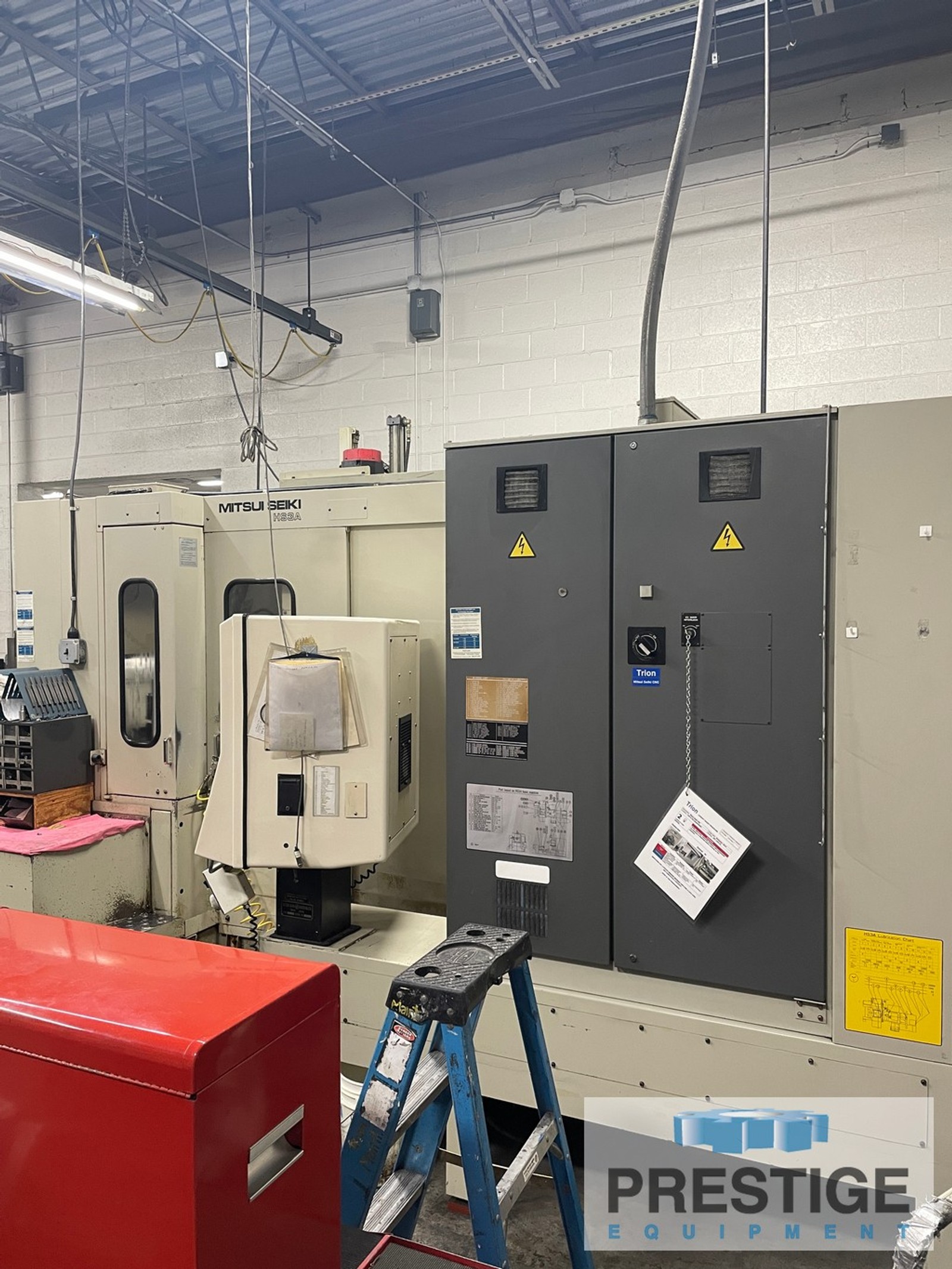

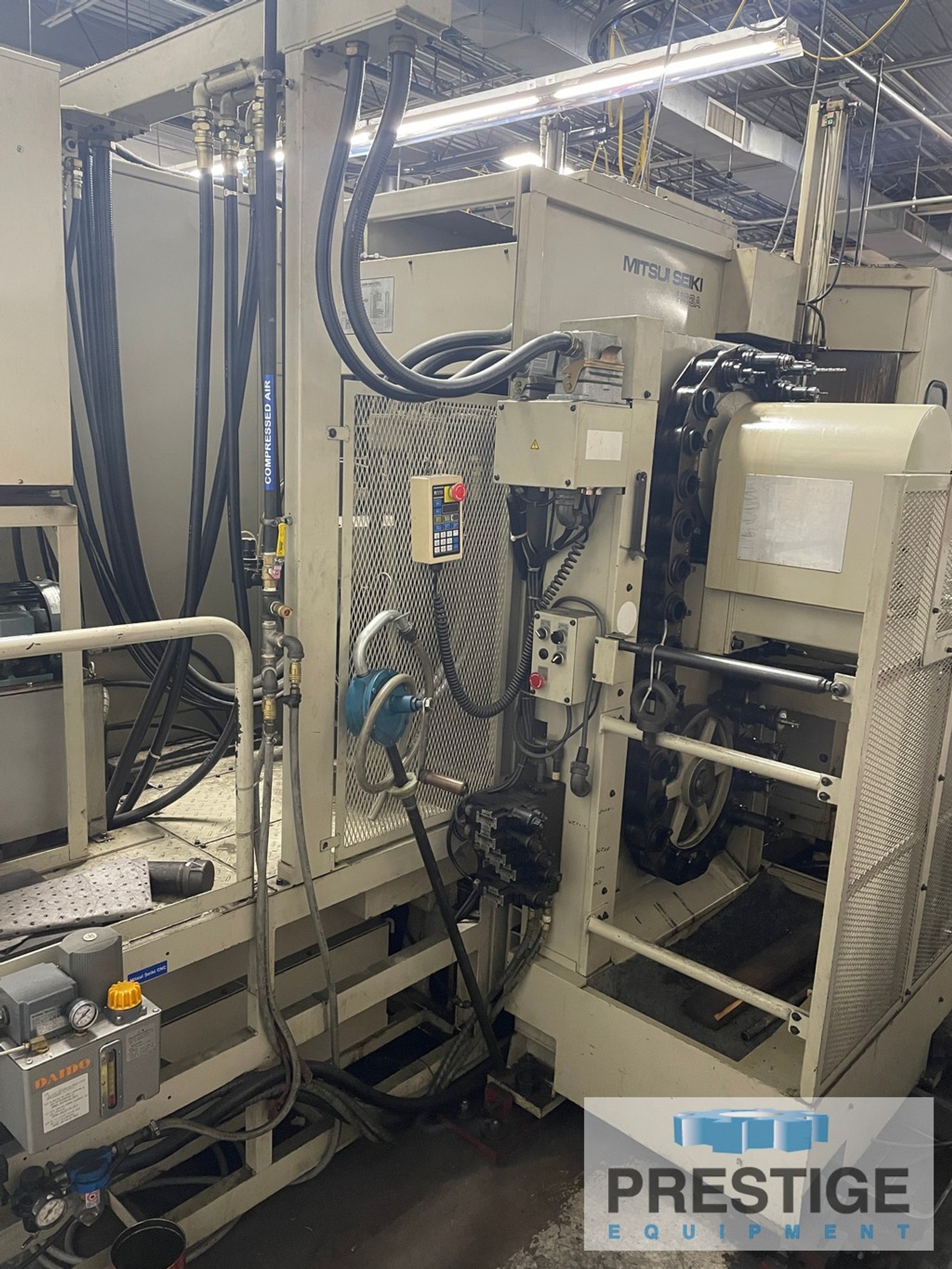

Mitsui Seiki HS3A 4-Axis CNC Horizontal Machining Center

FEATURES:

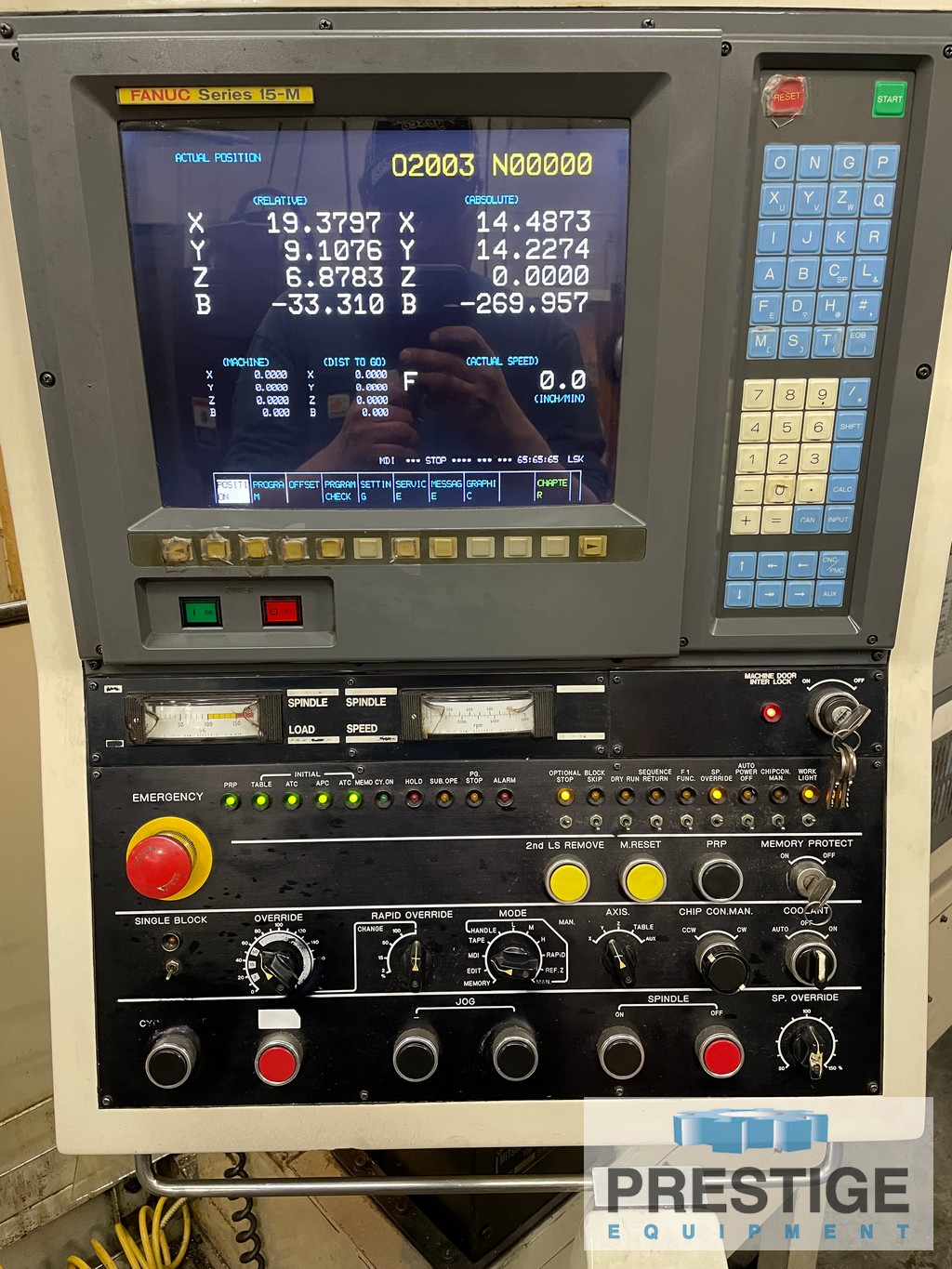

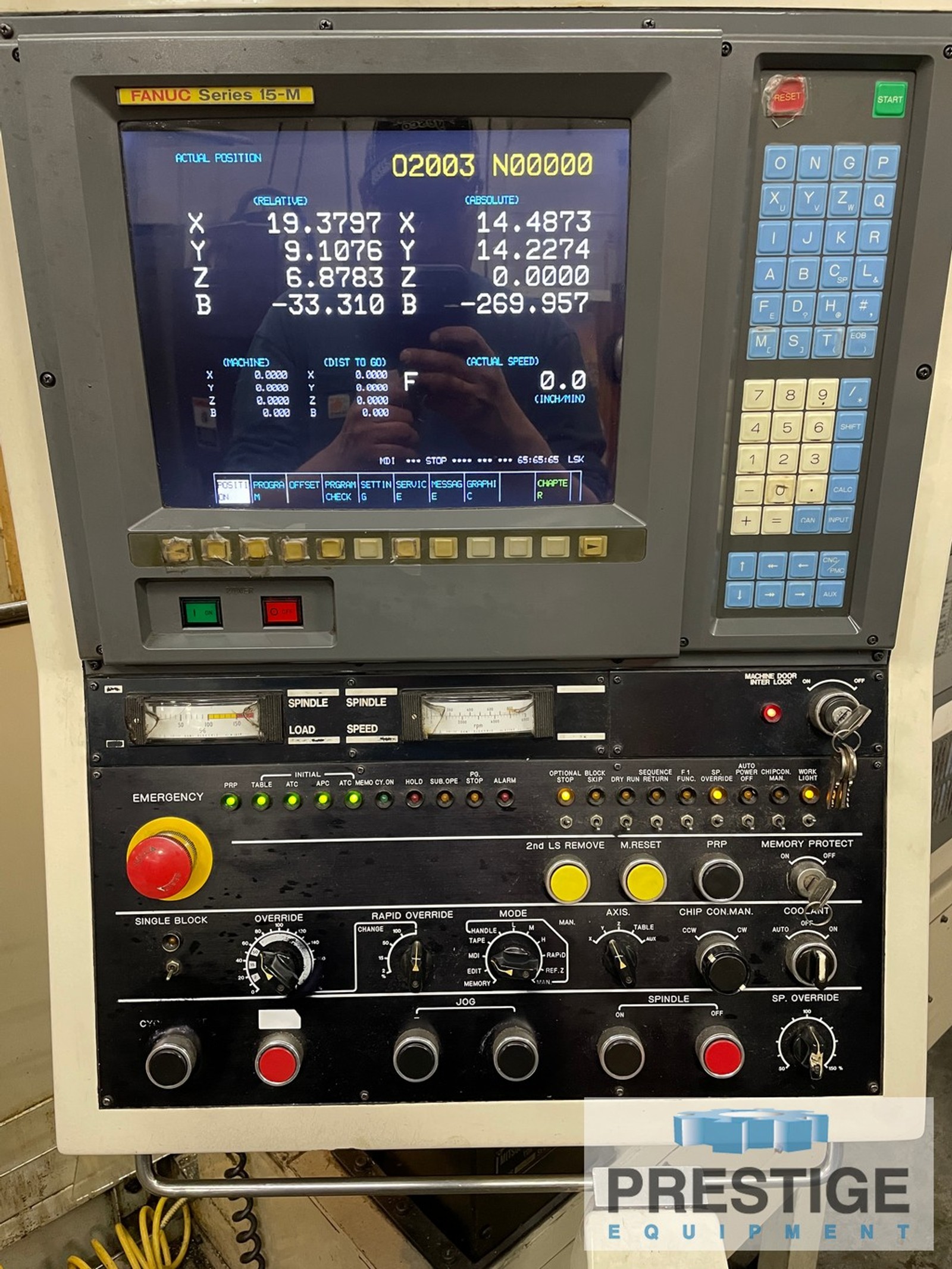

Fanuc 15M CNC Control
32 Station Tool Changer
Chip Conveyor

CAPACITY:
X-Axis Travel ......................... 21.6"
Y-Axis Travel ......................... 15.7"
Z-Axis Travel ......................... 19.7"
Distance from Spindle to Tbl Surface .. 5.9" x 21.6"
Distance Spindle Nose to Tbl Center ... 4.7"-24.4"
Pallet Size (2-Pallets) ............... 15.7" x 15.7"
B-Axis Indexing ....................... 1 Deg.
Pallet Load Capacity .................. 1,100 Lbs.
Spindle Speed Range ................... 6000 RPM
Spindle Taper ......................... CAT #40
Rapid Traverse (X,Y,Z) ................ 590 IPM
Cutting Feed Rate ..................... 0.004-157 IPM
Spindle Drive Motor ................... 10 HP
Approximate Dimensions ................ 180" x 109" x 107"
Approximate Weight .................... 24,000 Lbs.

EQUIPPED WITH:
Fanuc 15M CNC Control
32 Station Automatic Tool Changer
Chip Conveyor

NOTE:
Inspect Under Power in a Plant
