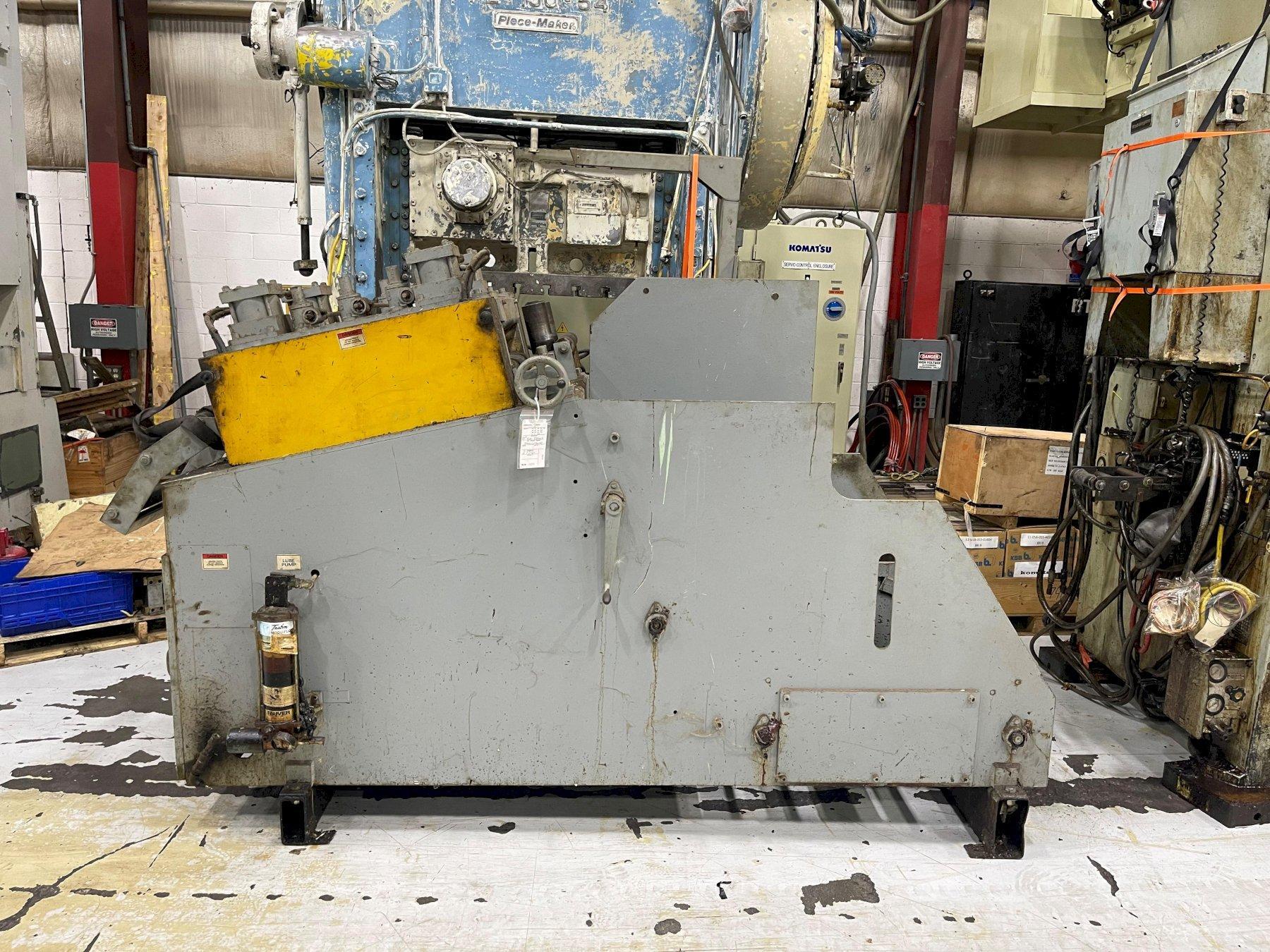

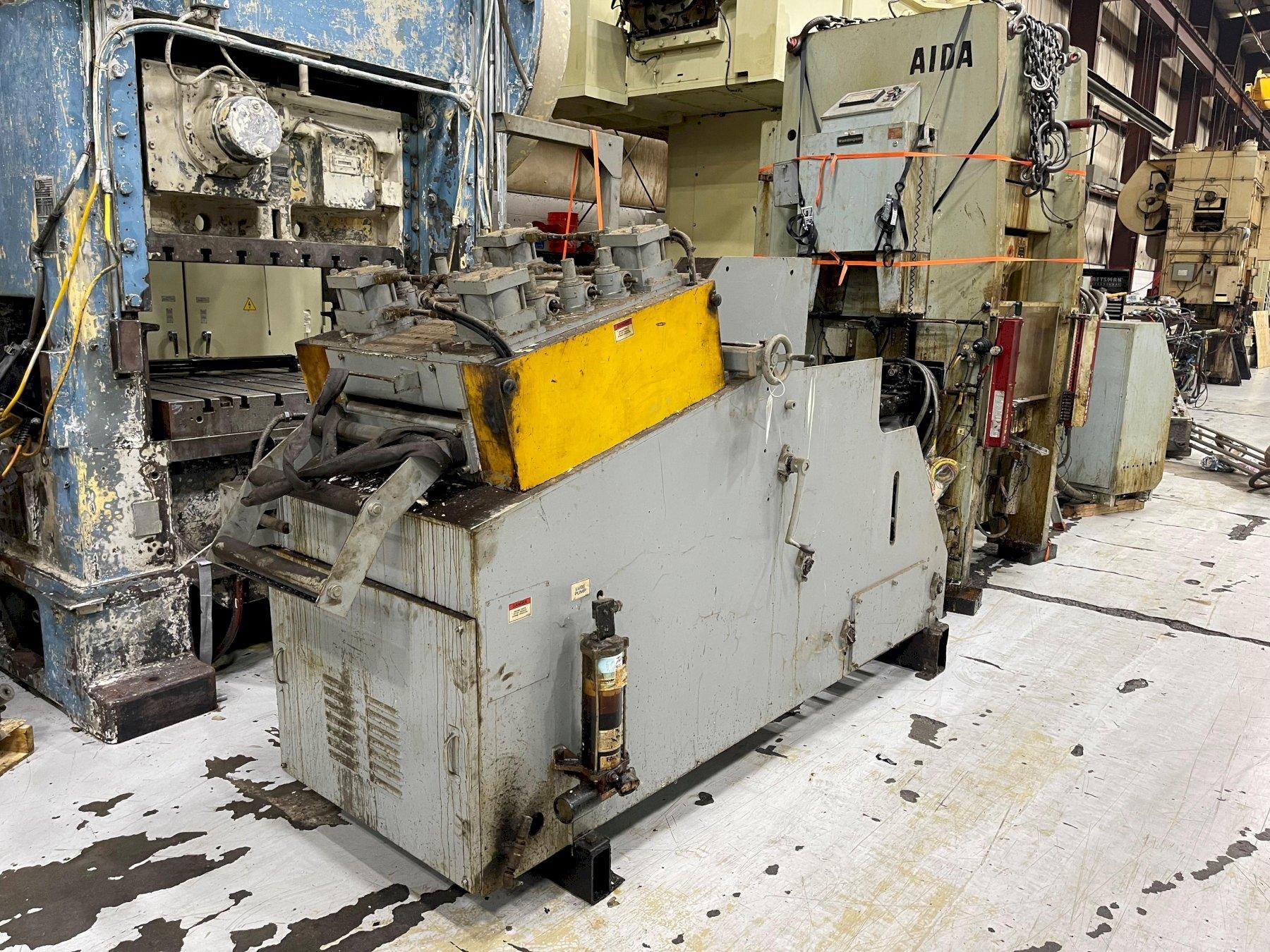

6,000 lbs x 18" Coe Press Equipment Cradle Straightener Model# CPCC-6018

Stock

2756

Model

CPCC-6018

Dealer Location

Michigan

Spec Sheet

Coil Weight - 10000 pounds
Coil Width - 18 inches
Coil Thickness - .125 inches


Coe Press Coil Cradle Straightener Combination Uncoiler Specifications:
Coil weight capacity: 10,000 Lbs.
Coil width capacity: 18"
Stock thickness capacity: .125" x 18" Wide
Stock thickness capacity: .187" x 06" Wide
Coil O.D. capacity: 60"

Coe Press Coil Cradle Straightener Combination Uncoiler Equipment and Features:
Coil cradle straightener entry and exit pinch rolls with air operated adjustments
Five coil cradle straightening rolls
Individual upper coil cradle straightening roll adjustments
Roll position indicators (Reference Scales)
Inclined coil cradle straightening head
Adjustable stock width edge guides
Exit cascade loop support rollers
Adjustable coil side plates
Outboard air pressure regulators and gauges
Variable speed drive
Operator's control console
Jog forward and reverse
Auto / Run cycle
Loop control

No Video Available
