SNK BFR-3500 RAm Type, 60 ATC, X-315", Y-137", Z-64.3", 6000 RPM, Rotary Tbl, 100 HP, Fanuc 31i-B, 2014 #31968

Manufacturer

SNK

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

31968

Model

BFR-3500 Ram Type

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #31968

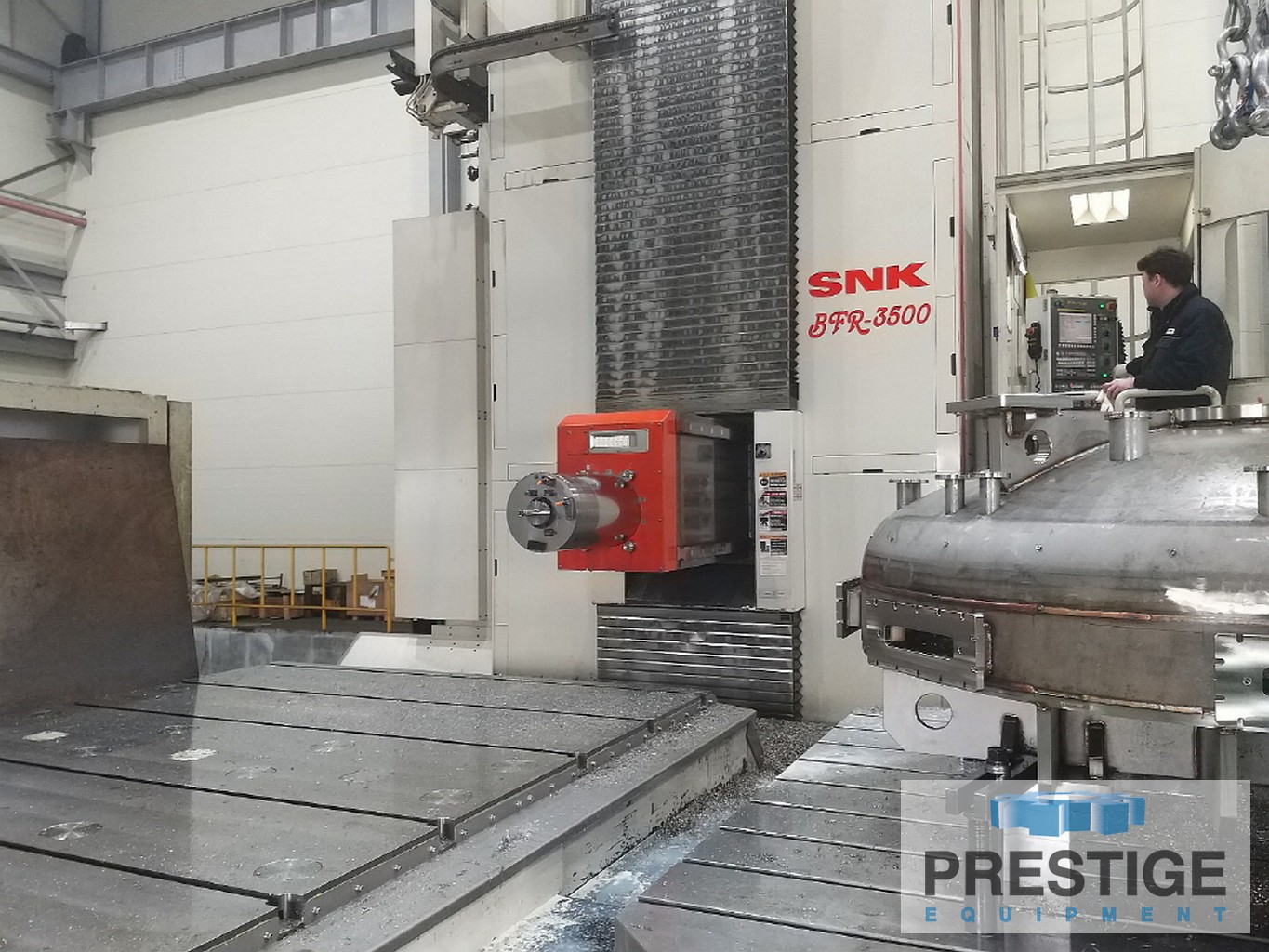

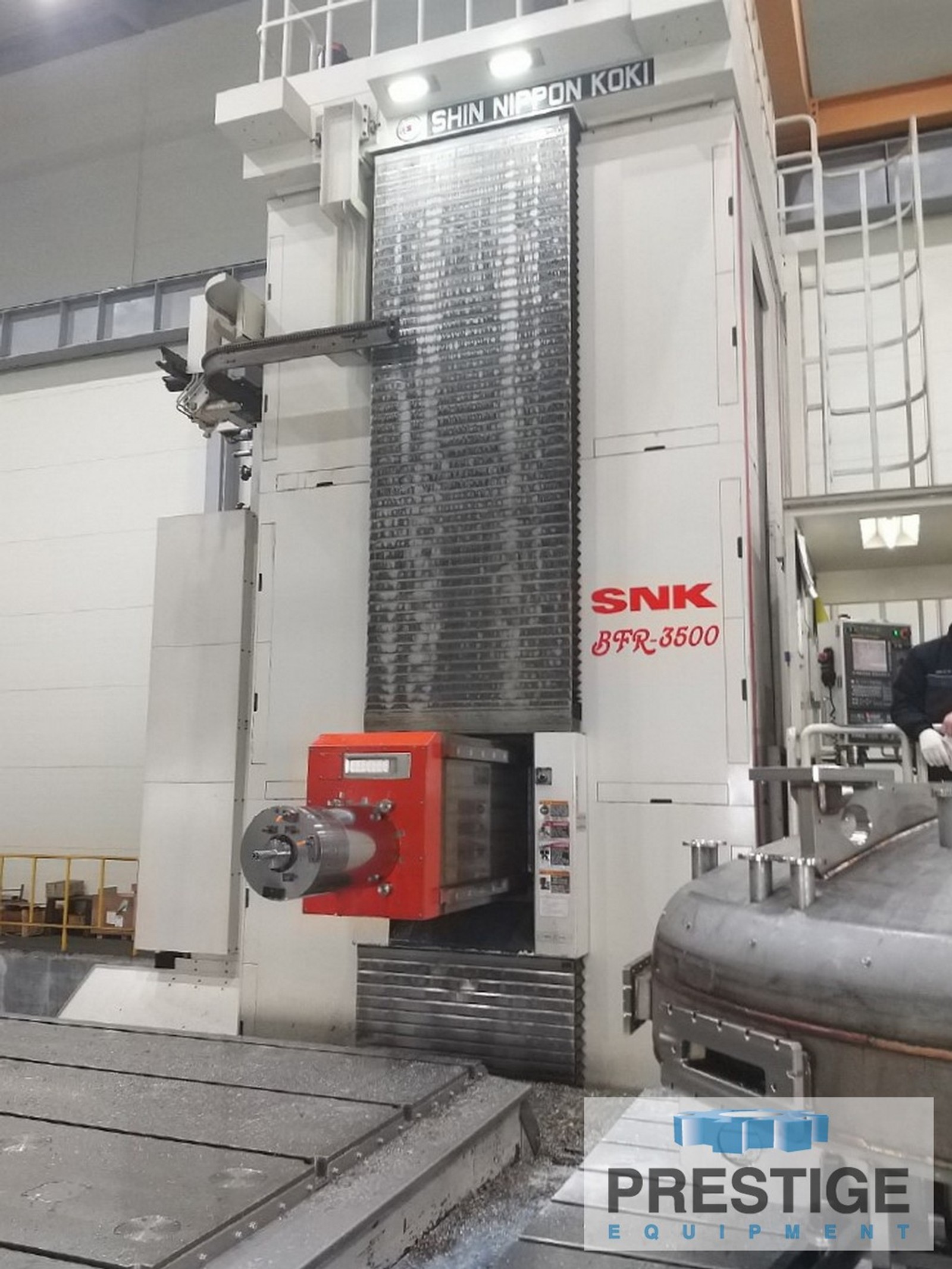

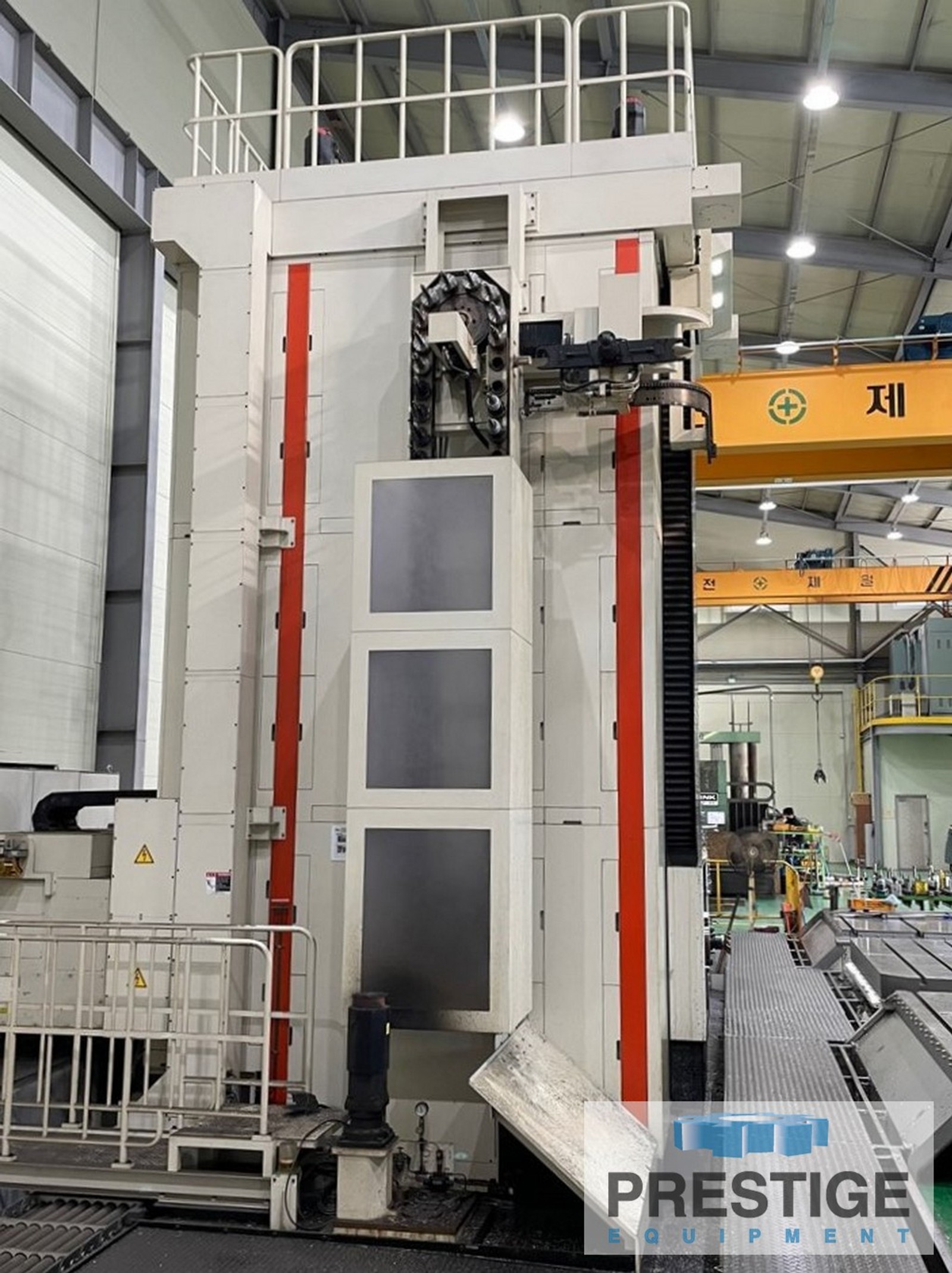

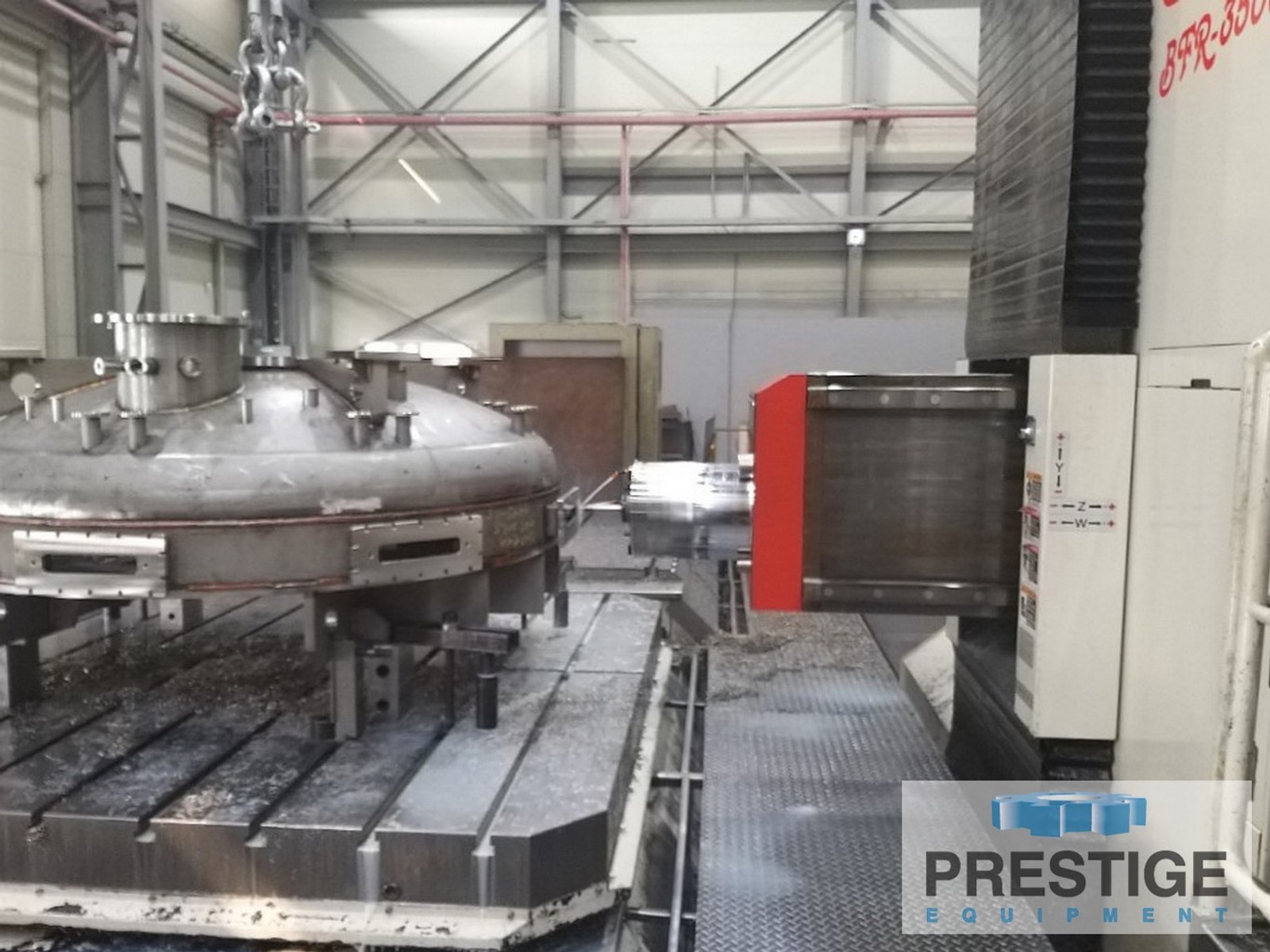

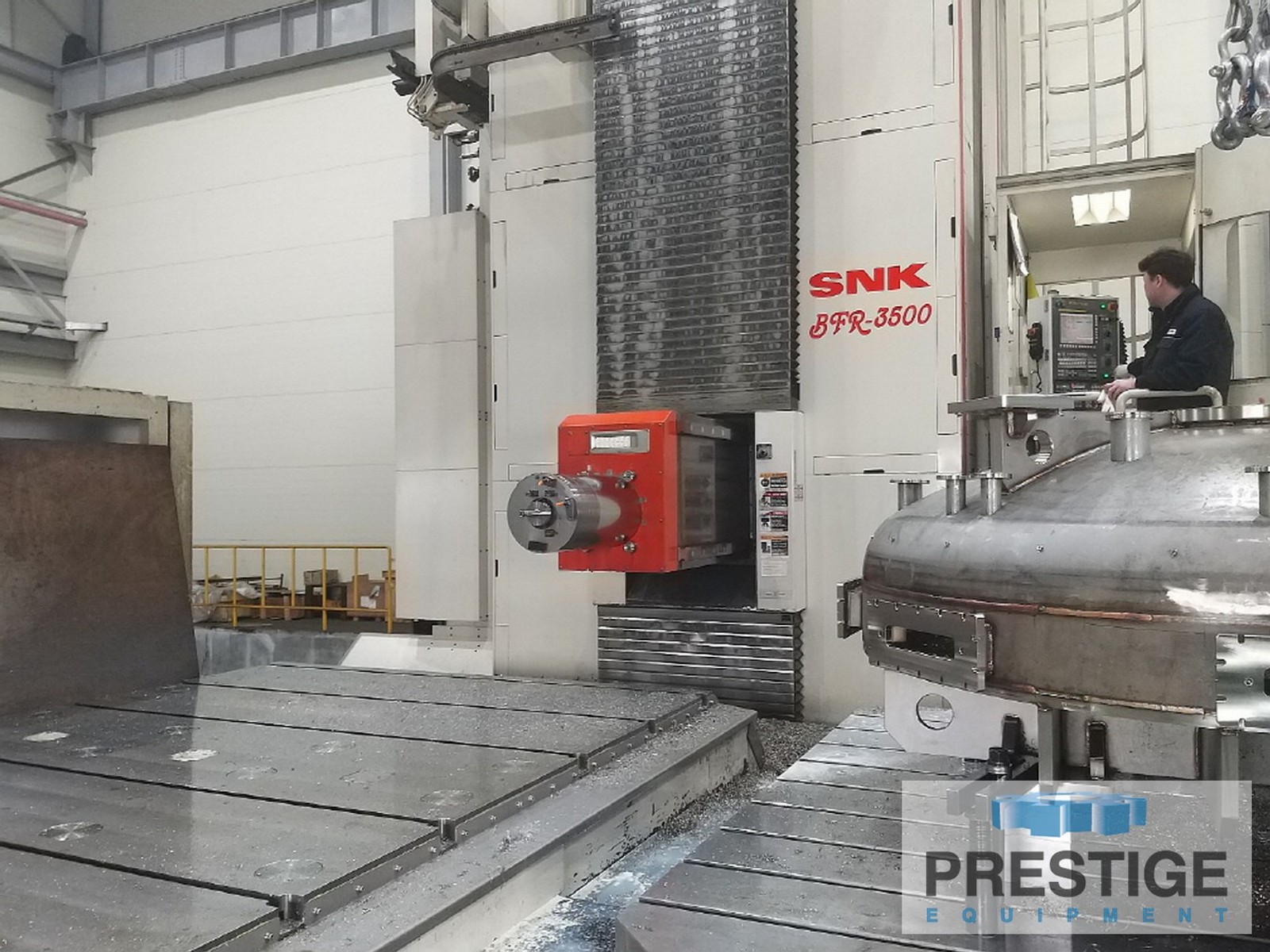

SNK BFR-3500 Ram Type CNC Traveling Column Horizontal Boring Mill

FEATURES:

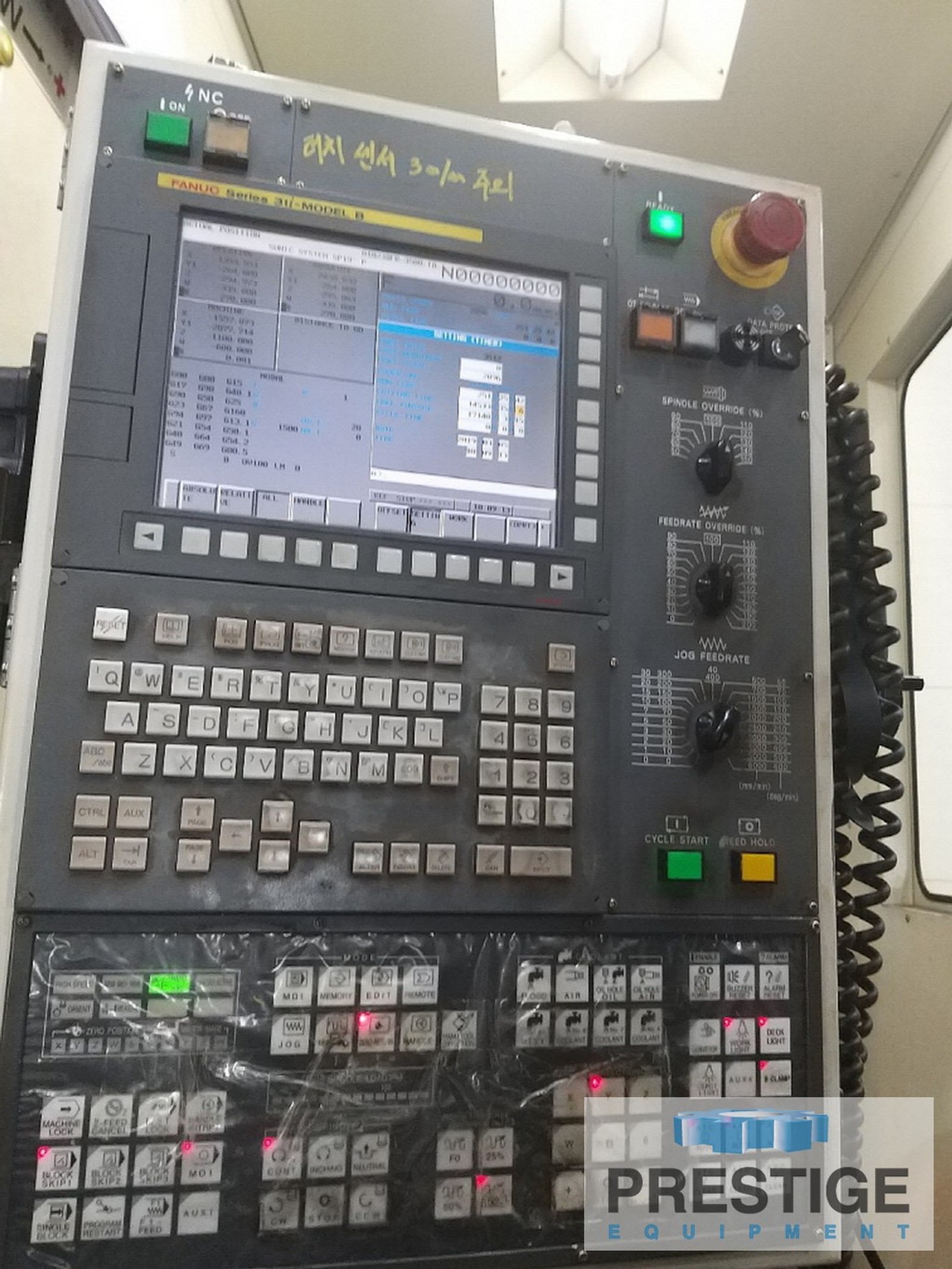

Fanuc 31i-B CNC Control w/ Hand Held Pendant
T-Slotted Floor Plates
CNC Rotary Table
90-Degree Angle Head

SPECIFICATIONS:
Quill Diameter ........................ 13"

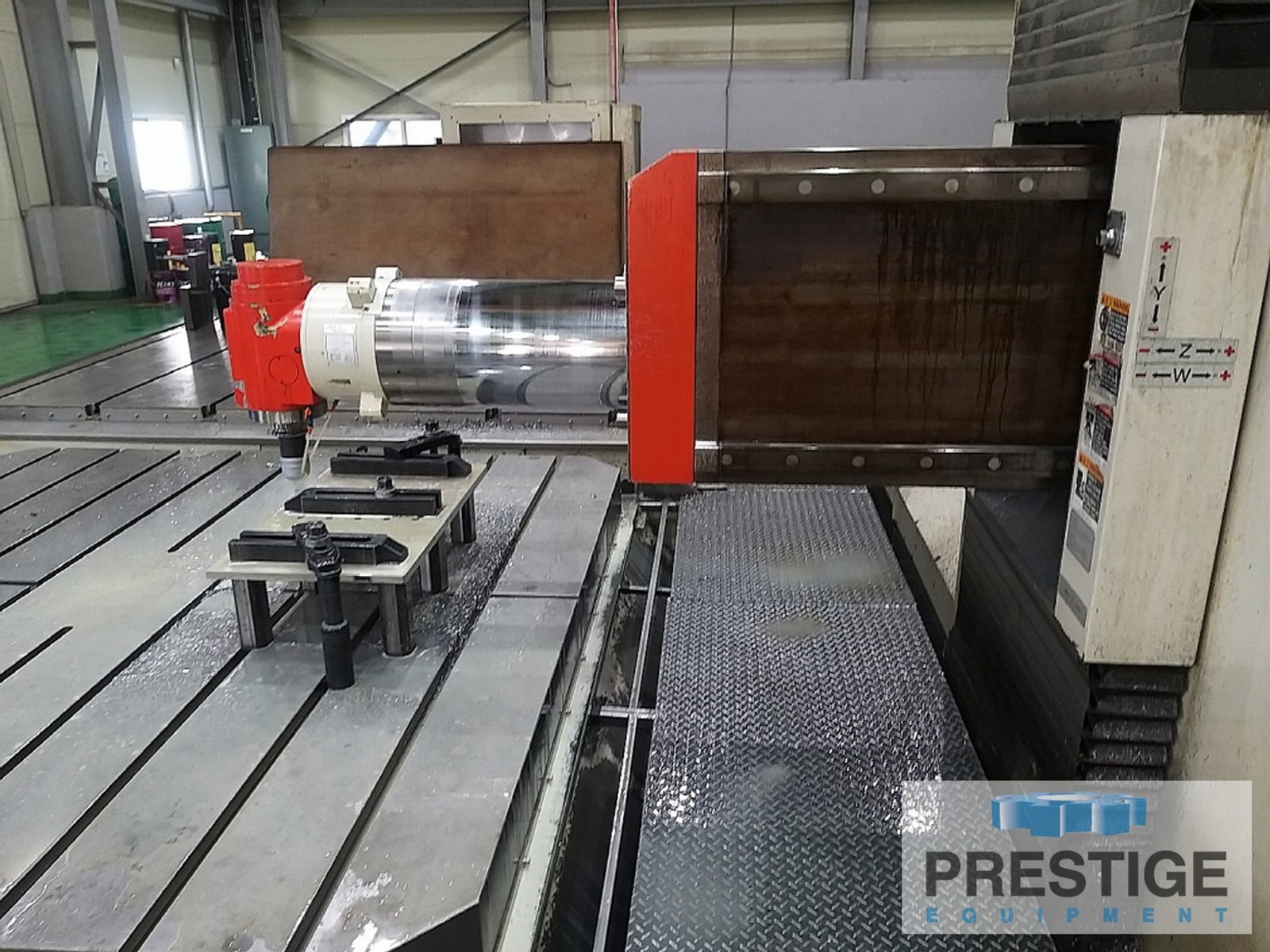

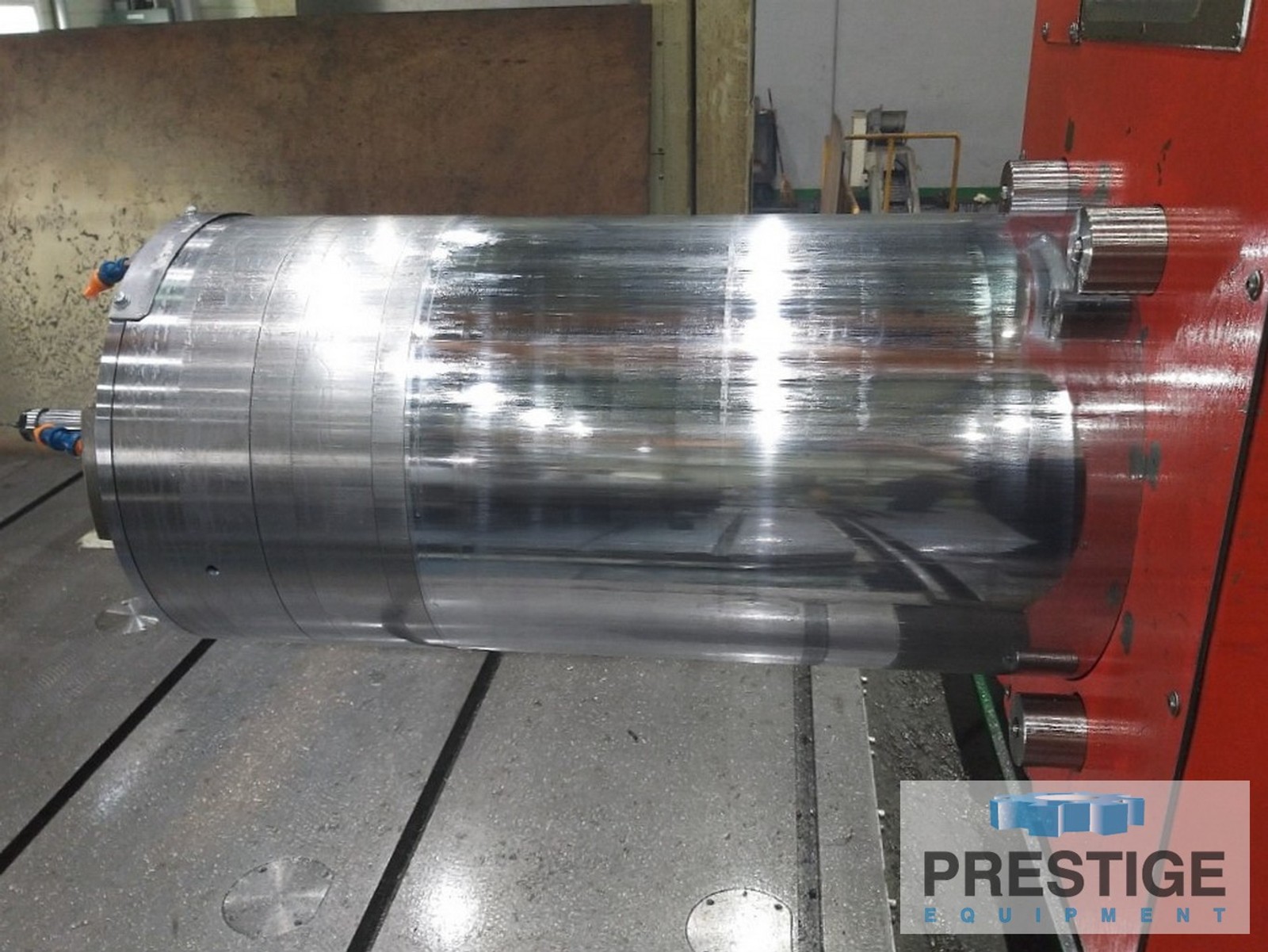

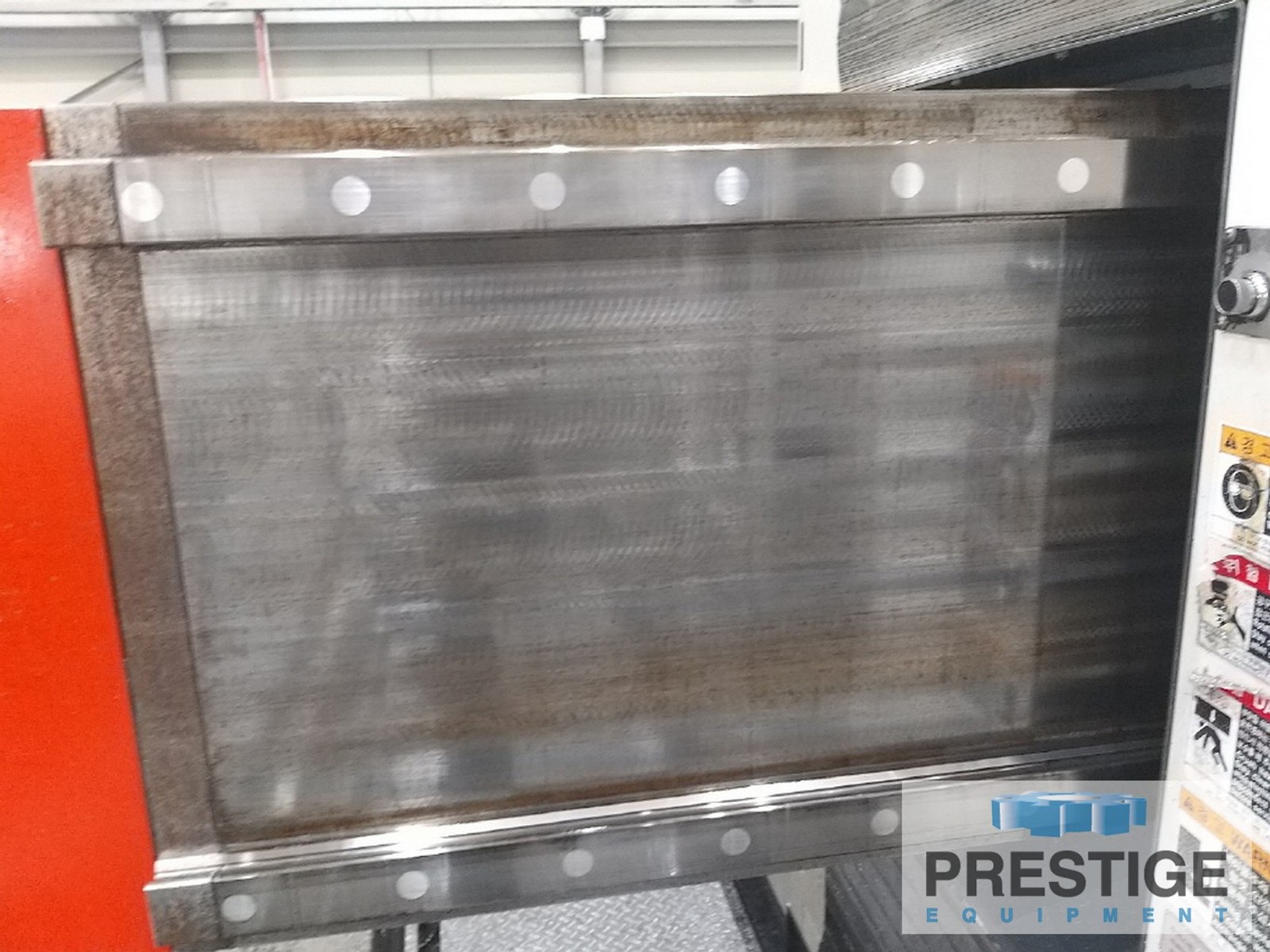

Ram Cross Section ..................... 21.65" x 29.52"
Vertical Headstock Travel, Y-Axis ..... 137.78"
Column Travel, X-Axis ................. 314.96"
Quill Travel, Z-2 Axis ................ 23.62"

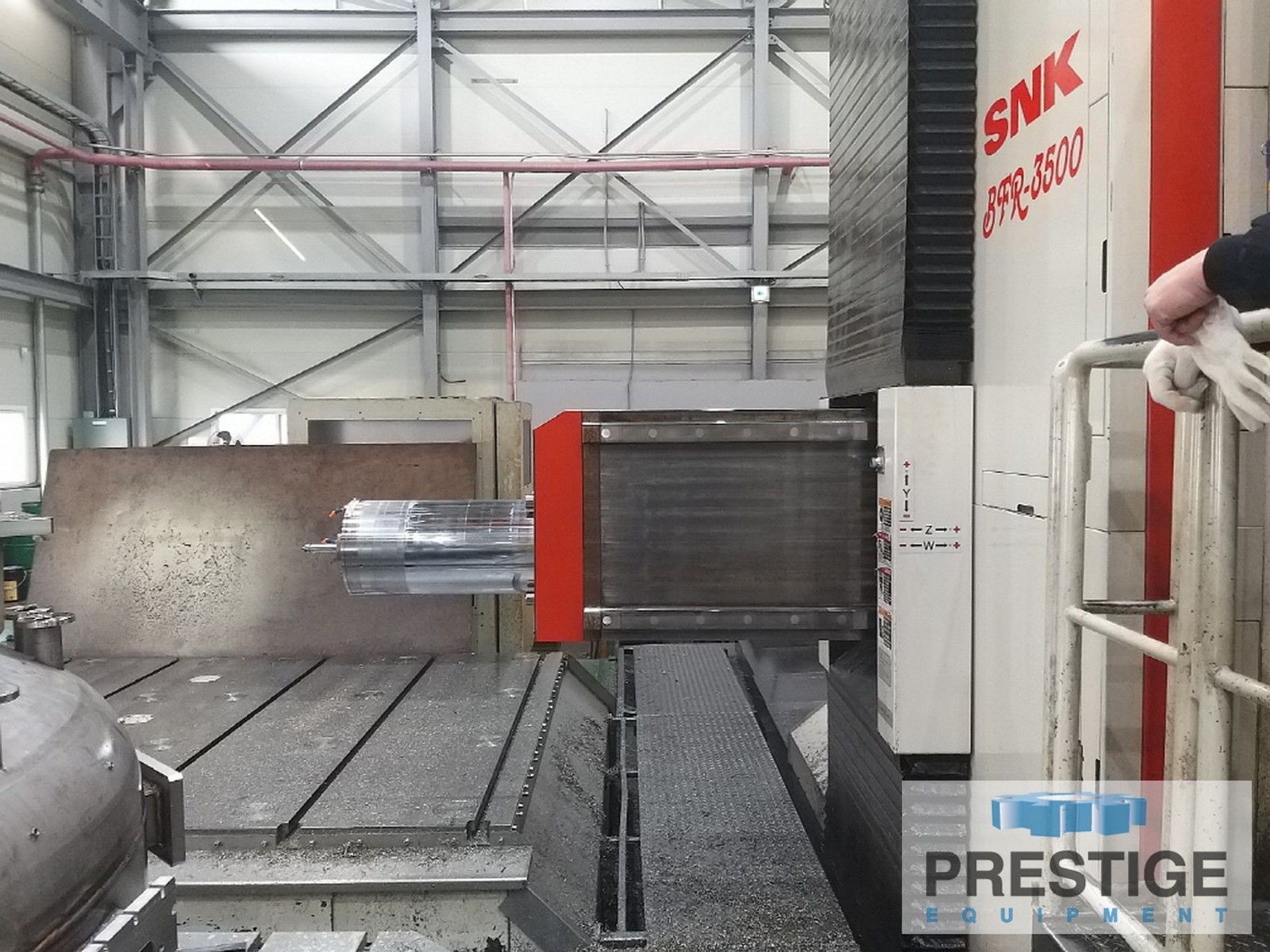

Ram Travel ............................ 43.3"
Spindle Speeds, Variable .............. 60 to 6,000 RPM
Spindle Taper ......................... NT 50
Spindle Motor ......................... 80 HP/ 100 HP

B-AXIS CNC ROTARY TABLE:
Table Size ............................ 98.42" x 98.42"
Table Weight Capacity ................. 66,000 LBS
Table Rotation B-Axis ................. 0.001 Degree

EQUIPPED WITH:
Fanuc 31i-B CNC Control
90 Degree Angle Head
(2) 94.5" x 125.98" T-Slotted Floor Plates
Scale Feedback
Way Covers
Coolant System

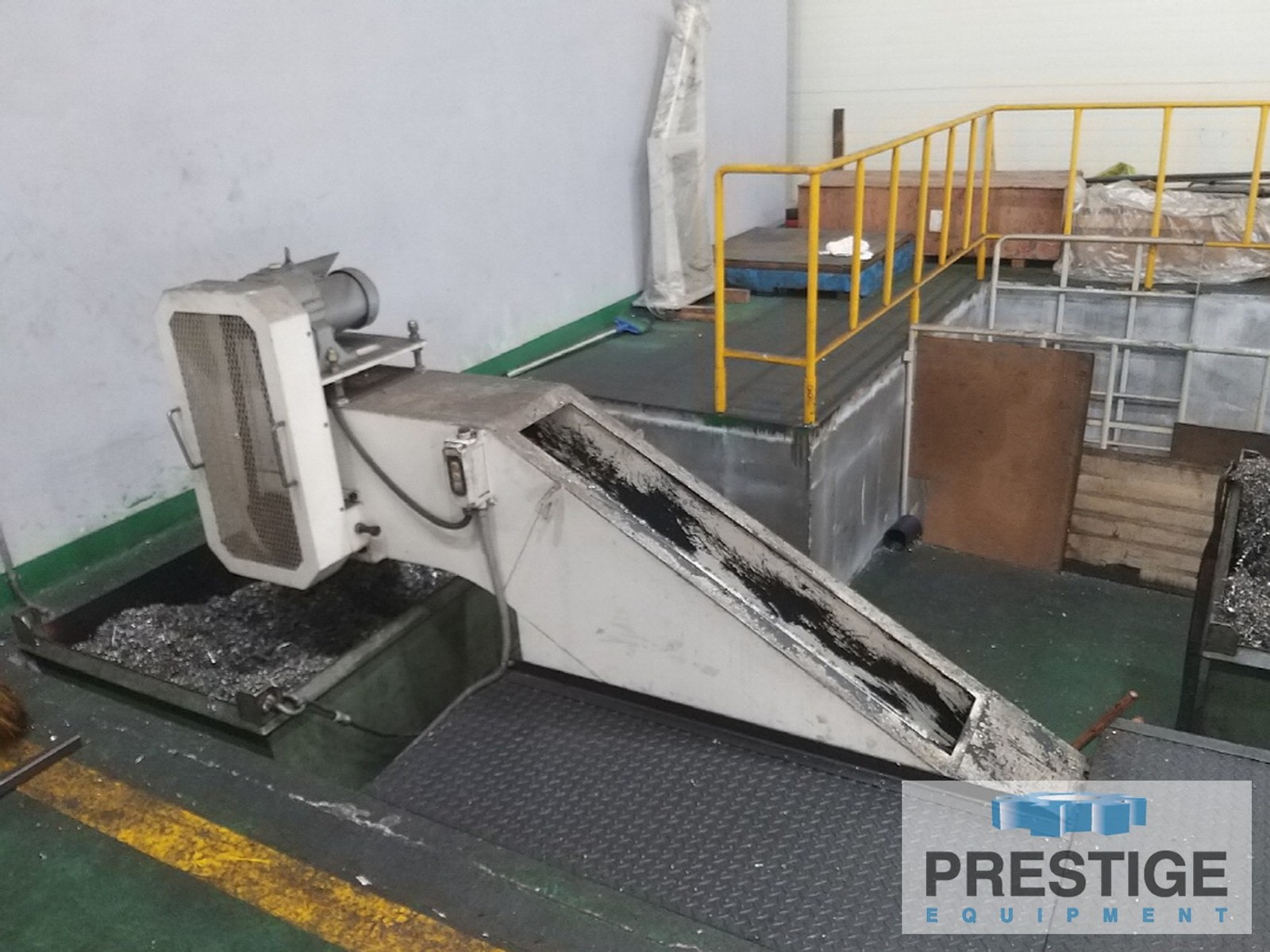

Chip Conveyor
