Parpas ML-130, Ram Type, 3 + 2 Universal Head, X-236", Y-98", Z-37", 3500 RPM, Heidenhain 415 CNC #31336

Manufacturer

PARPAS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

31336

Model

ML130

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #31336

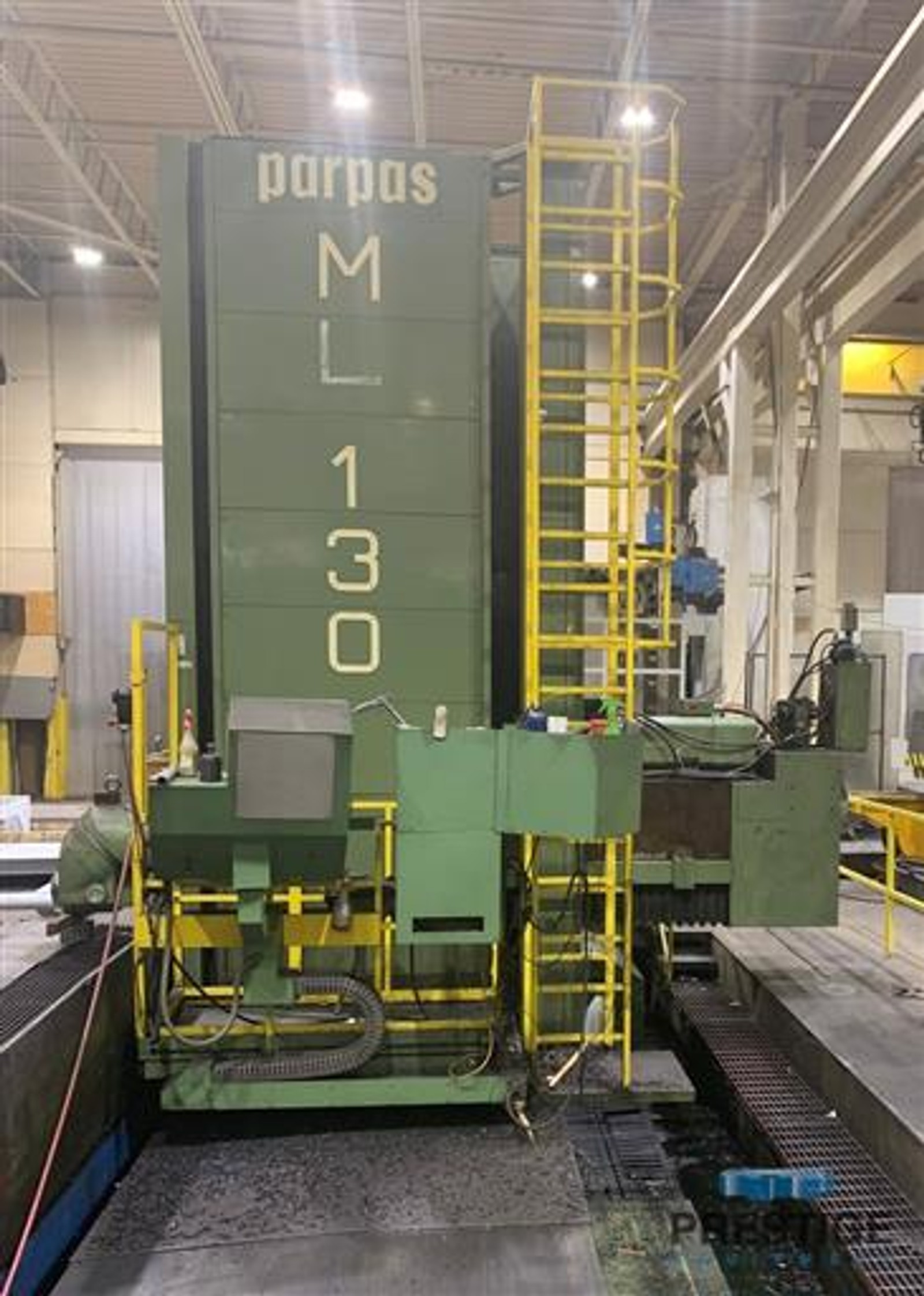

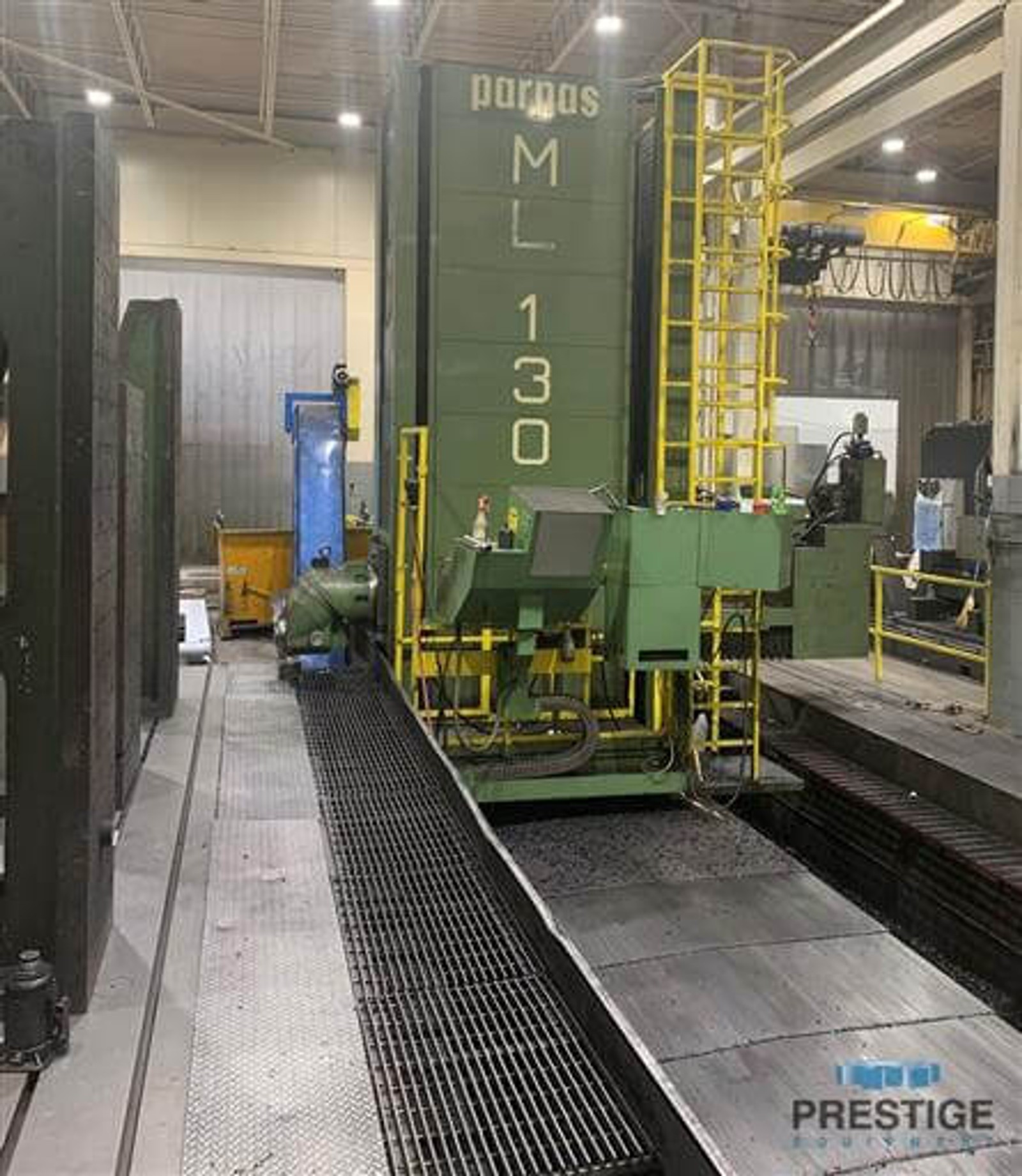

Parpas ML130 CNC Ram Type Travelling Column CNC Horizontal Boring Mill

EQUIPPED WITH:

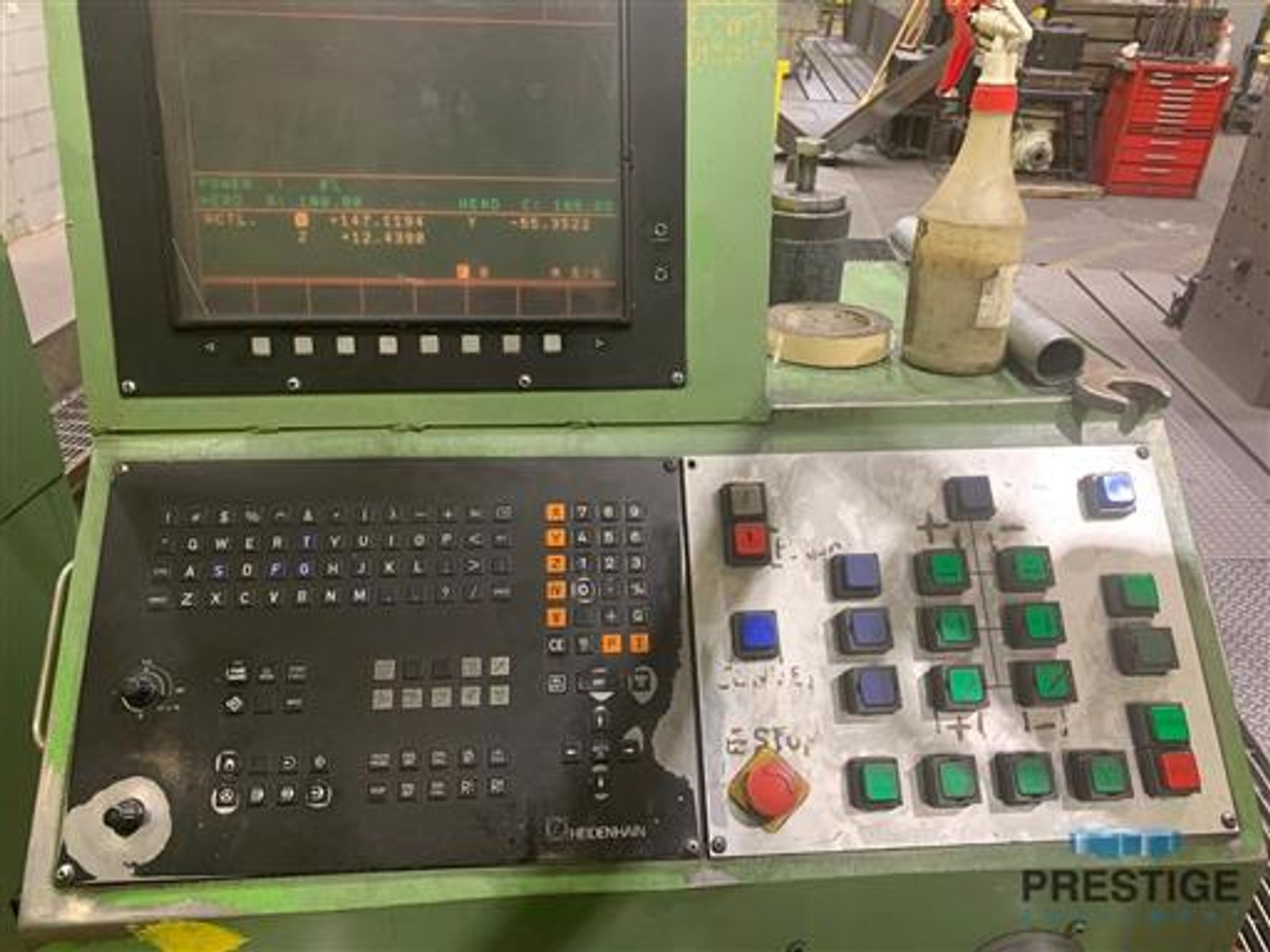

Heidenhein TNC 415B CNC Control

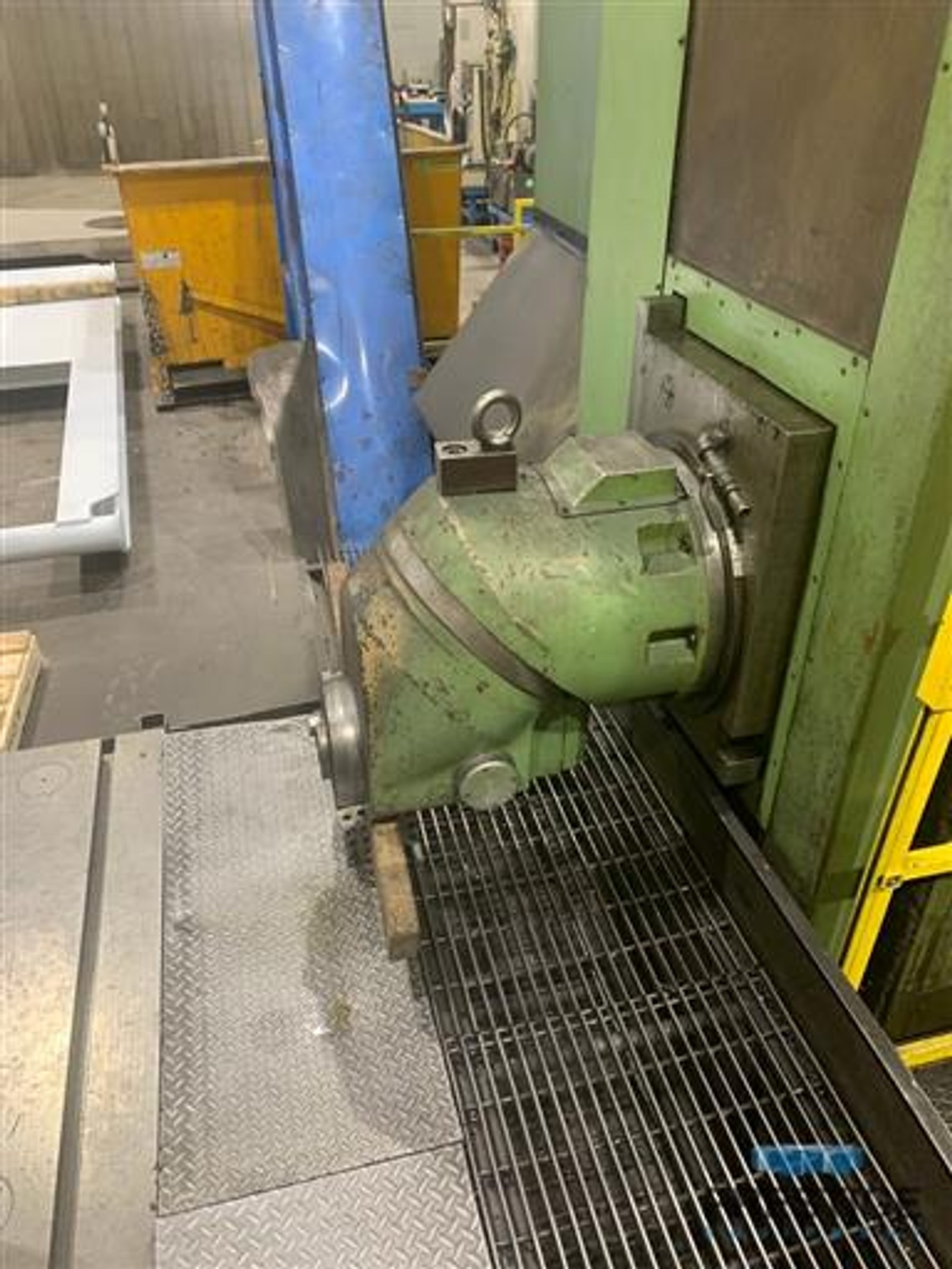

Universal 3 Plus 2 CNC Milling Head
79" x 274" T-Slotted Floor Plates
Telescopic Steel Sliding Way Covers on X-Axis
30 HP Main Motor

CAPACITY:
Vertical Head Travel, Y-Axis .......... 98.42"
Column Travel, X-Axis ................. 196.85"
Ram Travel, Z-Axis .................... 39.37"
Ram Cross Section ..................... 24" x 22"
Spindle Speeds ........................ 0-2500 RPM
Spindle Taper ......................... #50
Overall Height ........................ 231"

EQUIPPED WITH:
Heidenhein TNC 415B CNC Control
Universal 3 Plus 2 CNC Milling Head
Straight Head
T-Slotted Floor Plates
Telescopic Steel Sliding Way Covers on X-Axis
30 HP Main Motor
