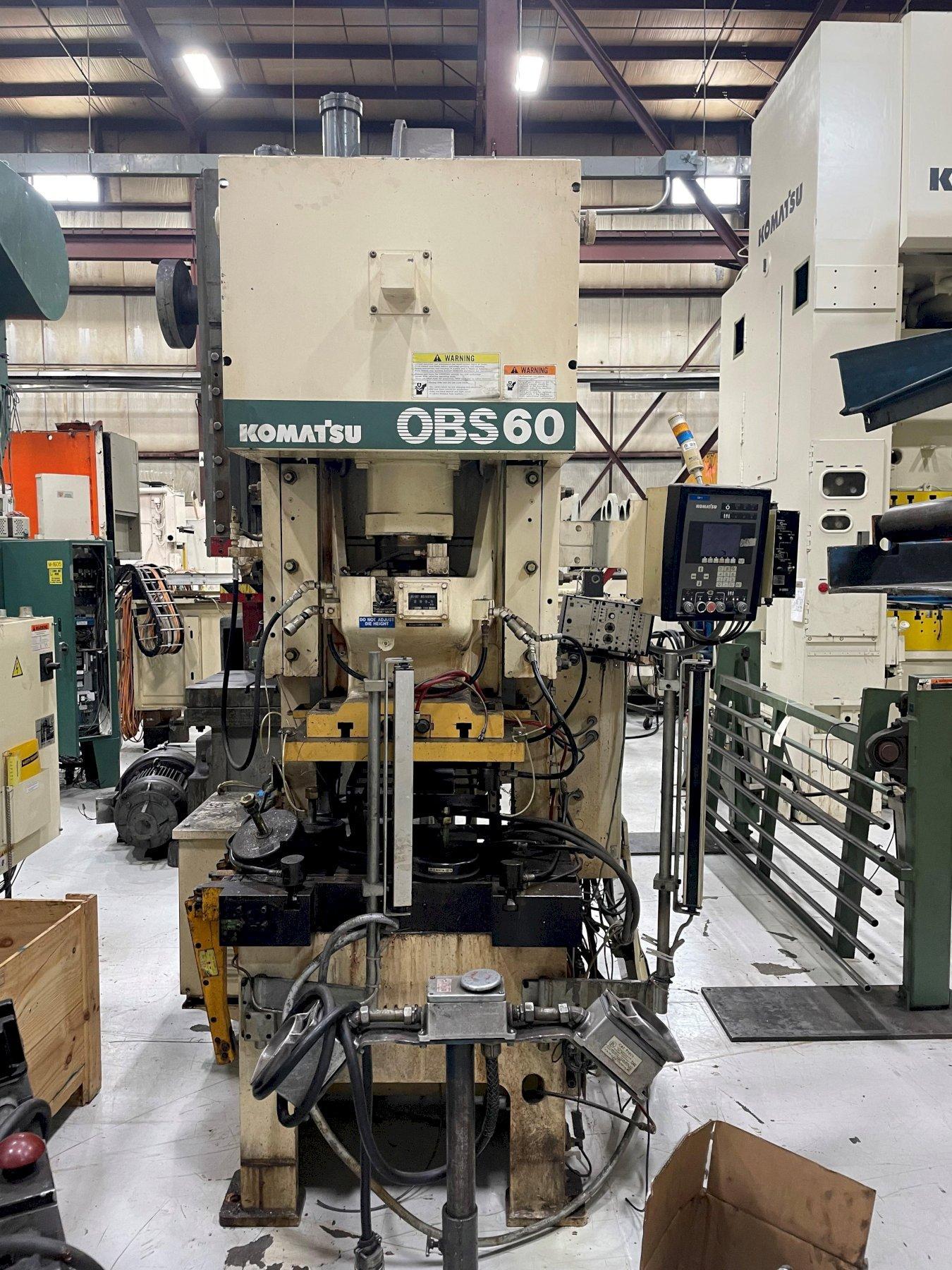

60 ton Komatsu OBS-60 Single Point Mechanical Metal Stamping Gap Frame Press For Sale, Year 2001

Manufacturer

KOMATSU

Category

Presses

Type

PRESSES, GAP FRAME, (Single Crank)

Stock

2759

Model

OBS-60 Single Crank Gap

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 60
Stroke - 4.72 inches
Shut Height - 14.2 inches
Adjustment - 2.76 inches
Bed Size - 35.4" x 21.7"
Ram Area - 19.7" x 15.7"
SPM - 60-120

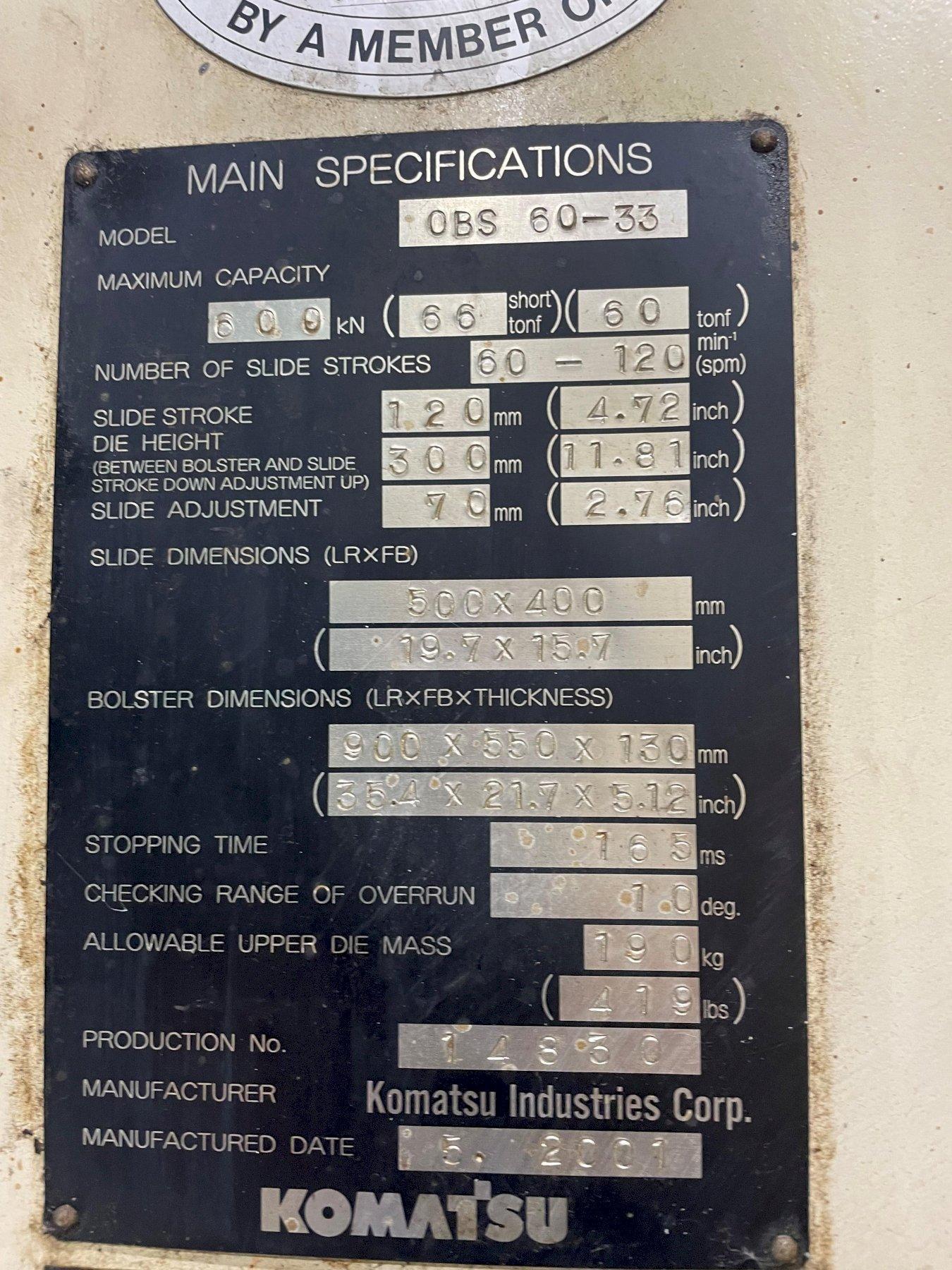

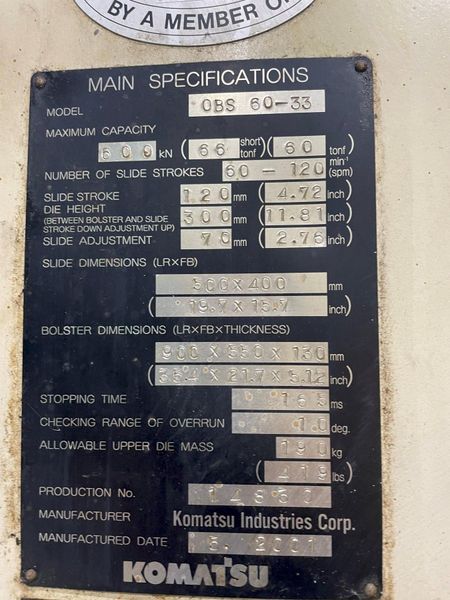

Standard Specifications
60 TON KOMATSU Model OBS-60
MECHANICAL METAL STAMPING GAP FRAME
60 Metric Ton Capacity
66 Short Ton Capacity
4.72" Stroke
16.93" Shut Height on Bed
11.81" Die Height on Bolster
2.76" Motorized Adjustment
35.4" LR x 21.7" FB Bed Area
19.7" LR x 15.7" FB Slide Area
60-120 Strokes Per Minute

Equipment and Features
Single Point
High Torque Wet Clutch and Brake
Pneumatic Counterbalances
Plunger Guided Design
T-Slotted Ram and Bolster
5.12" Thick Bolster
Hydraulic Overloads
Komatsu Press Controls
Heavy Plate, Rigid Frame Construction
Pendant Mounted Controls
Vibration Isolation Levelers
T-Stand Palm Buttons
Eccentric Shaft
Floor Standing

Dimensions
106" Tall
12,000 lbs. Approx. Weight

This used 60-ton Komatsu Mechanical Metal Stamping Press can be seen under power in the S&G Press Livonia Michigan Warehouse!

Click here to see more 60-ton Press Options

The Komatsu OBS60 gap press, with its 60-ton capacity, delivers world-class features standard. Its plunger-guided slide extends die life by at least 30%. Experience a virtually maintenance-free wet clutch and brake, keyless-splined eccentric main shafts, and precision helical gearing in oil. Komatsu's SIT-IV press control offers job memory and easy automation expansion. Built for superior reliability and consistency, the OBS series excels in progressive and manual die work. Expect superior deflection characteristics, increased bearing slide guiding, faster stopping times, higher production, and improved part quality and die life. High performance is standard with Komatsu.
