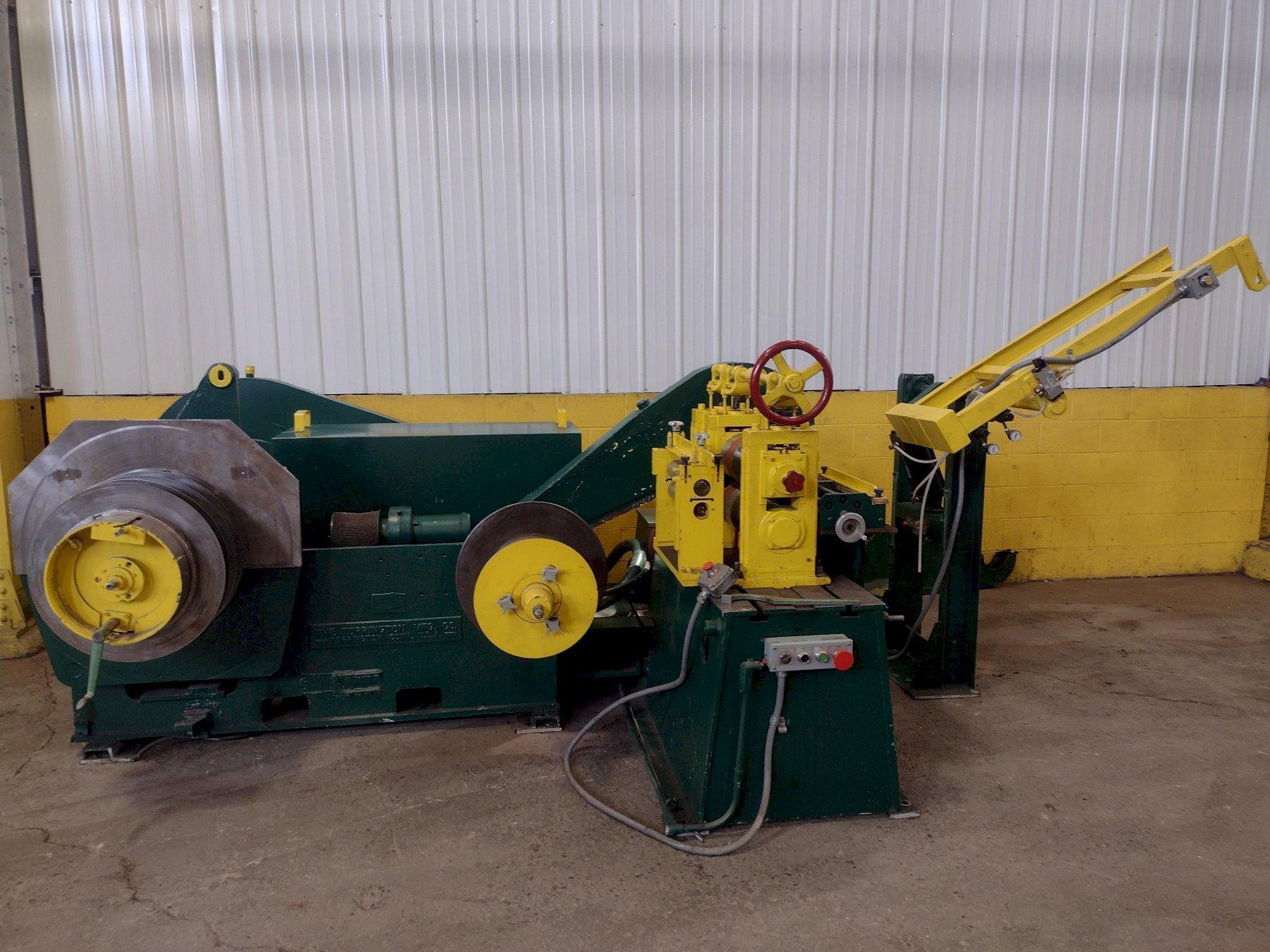

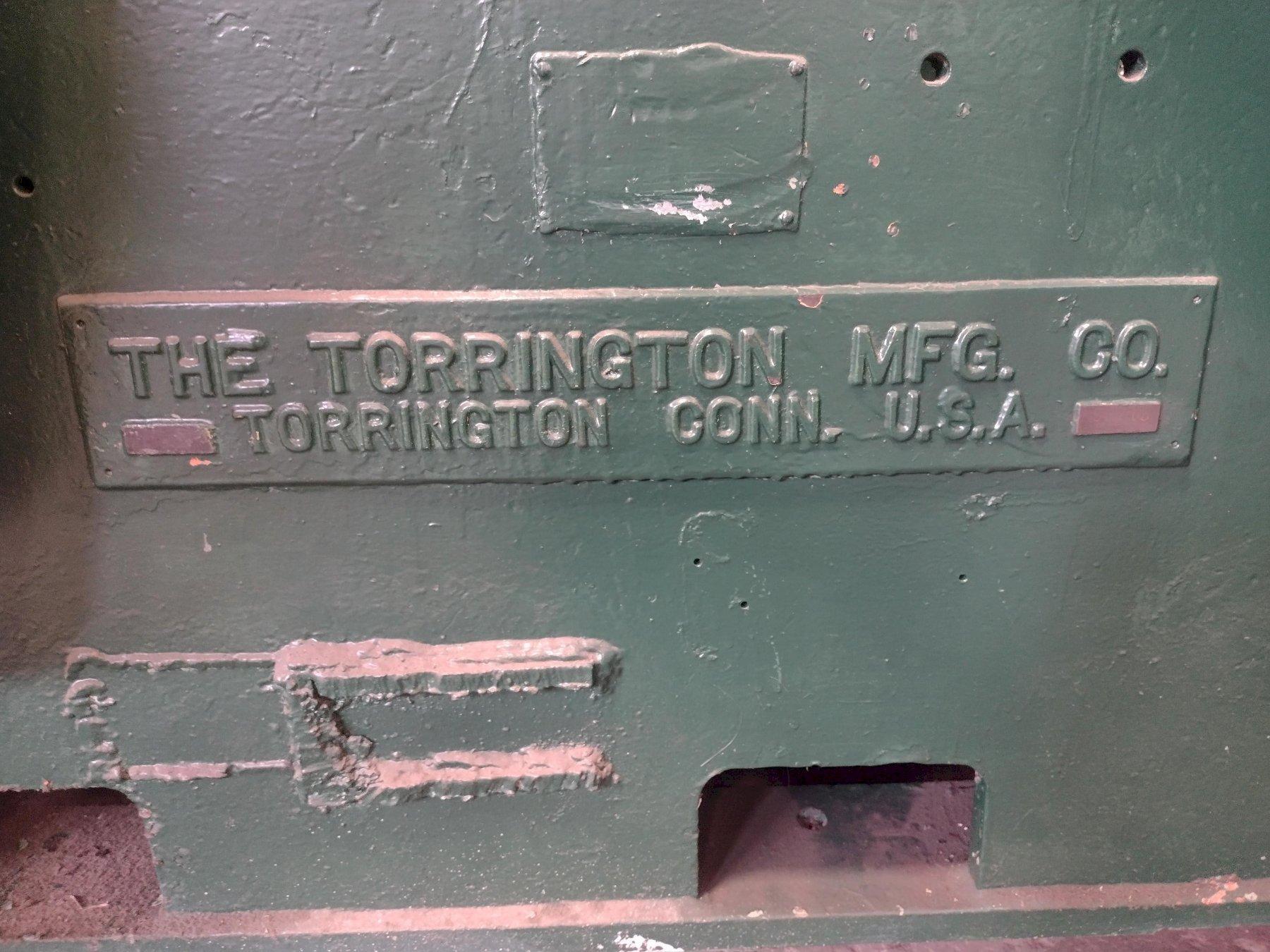

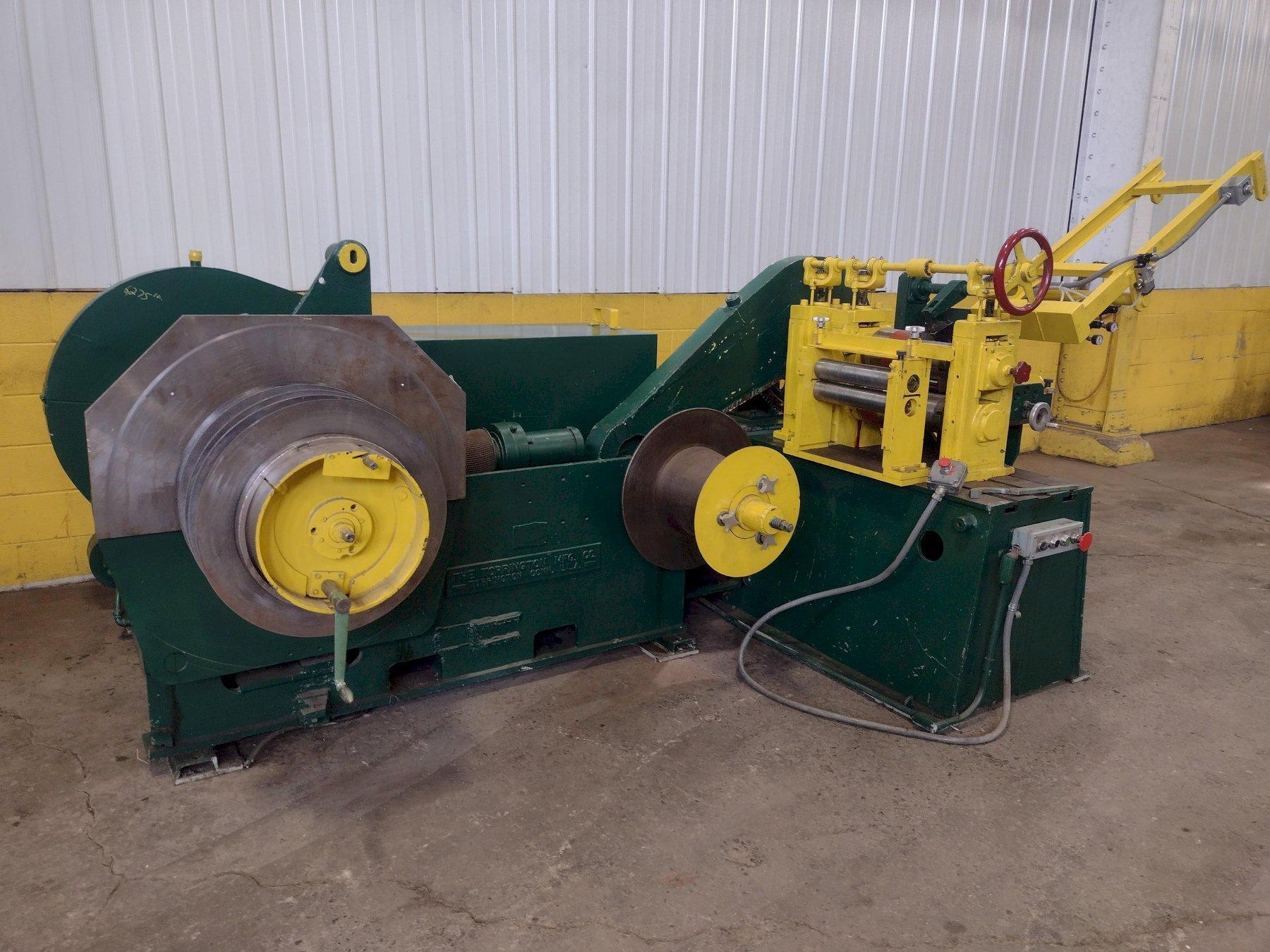

12" WIDE TORRINGTON 4" ARBOR PULL-THROUGH SLITTING LINE: STOCK #16504

Stock

16504

Model

None listed

Dealer Location

Ohio

Spec Sheet



GENERAL SPECIFICATIONS:

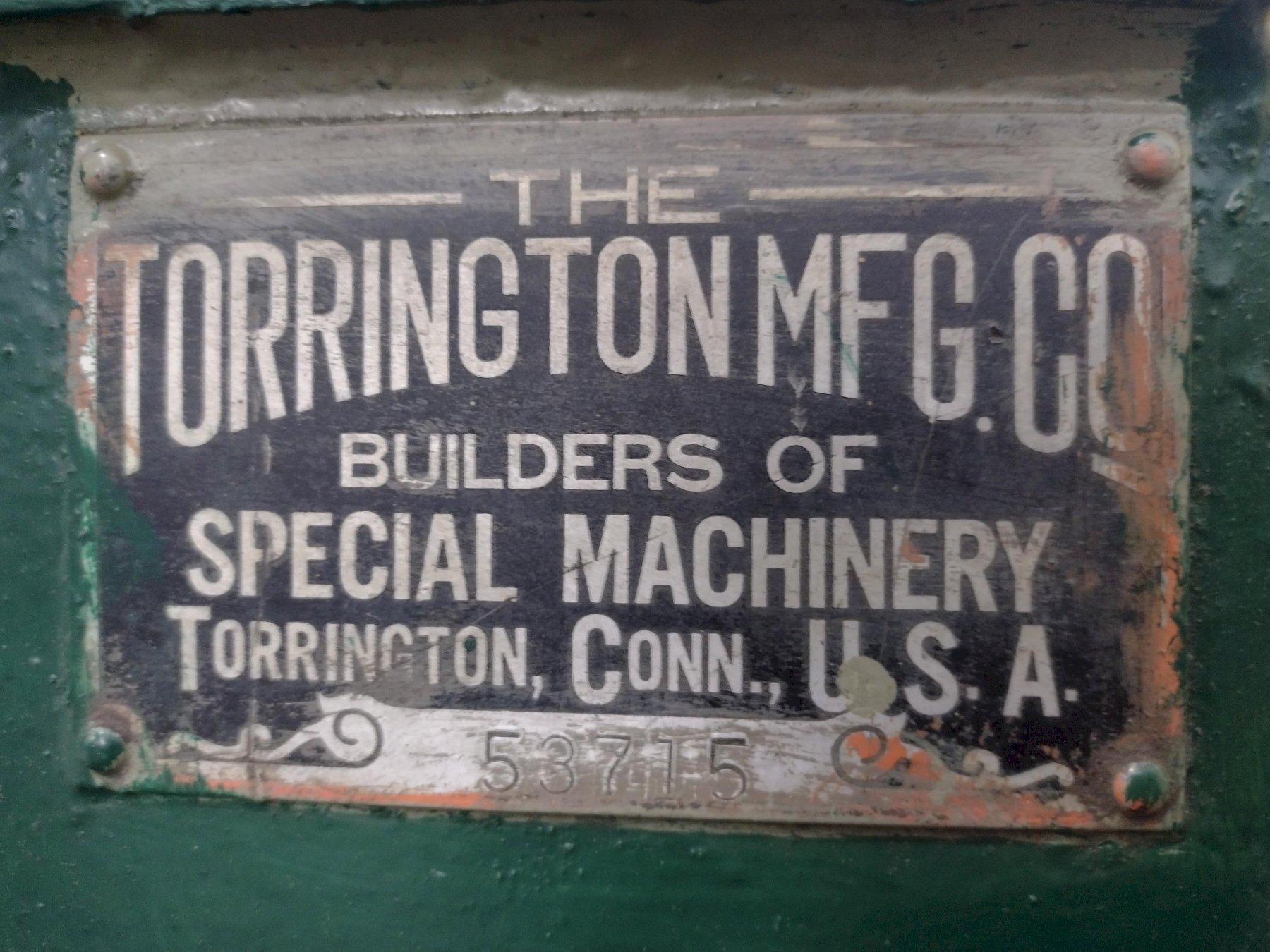

SERIAL ................... 53715
NOMINAL CAPACITY ......... 12" X 0.065"
COIL WEIGHT .............. 5000 LBS
LINE DIRECTION ........... RIGHT TO LEFT
"PULL OFF" OPERATION ..... YES
COMMON BASE & DRIVE ...... YES

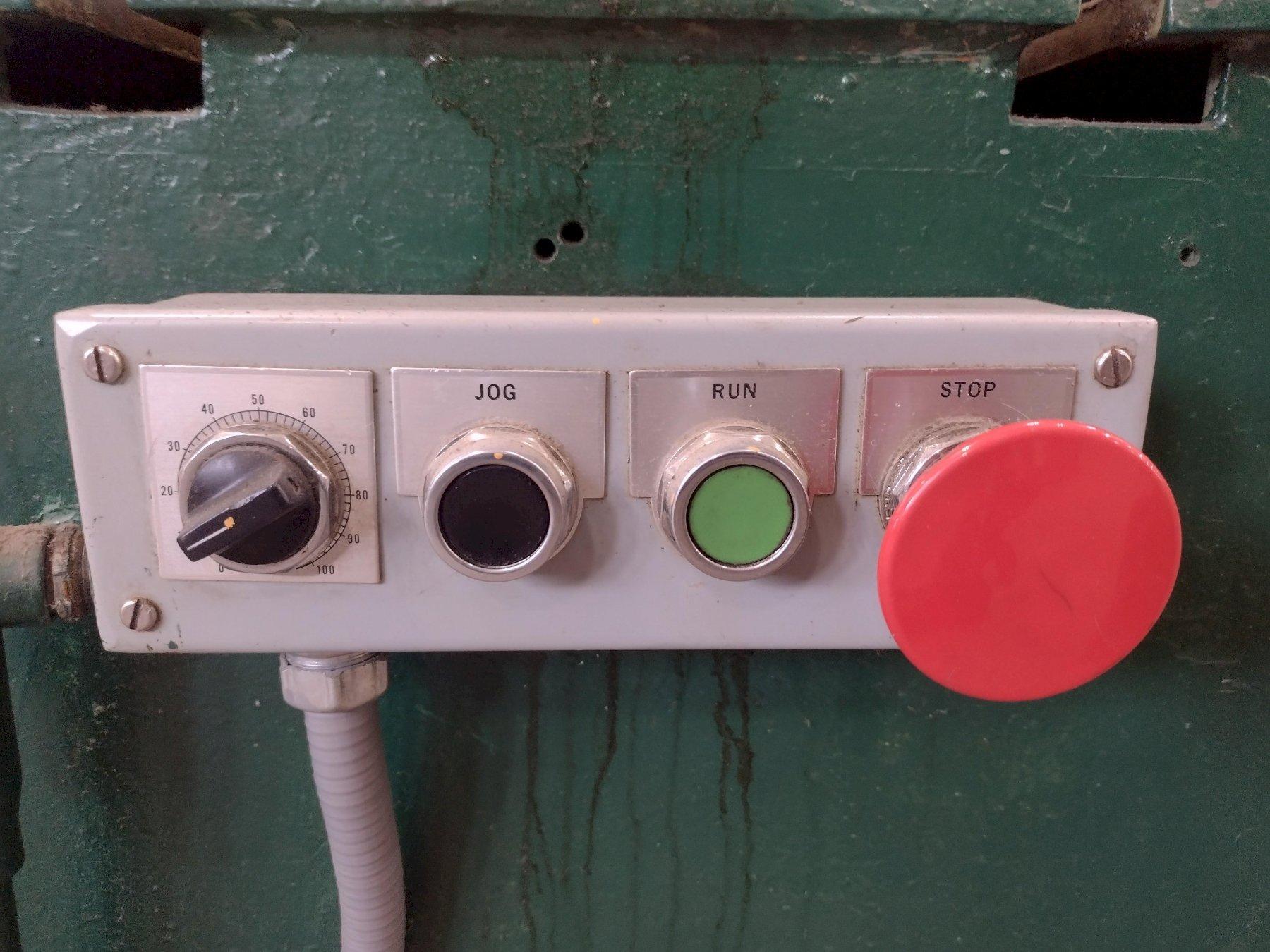

OPERATING MODES .......... RUN & JOG
LINE SPEED (VARIABLE) .... 20 TO 100 FPM
VARIABLE SPPED DRIVE ..... YES

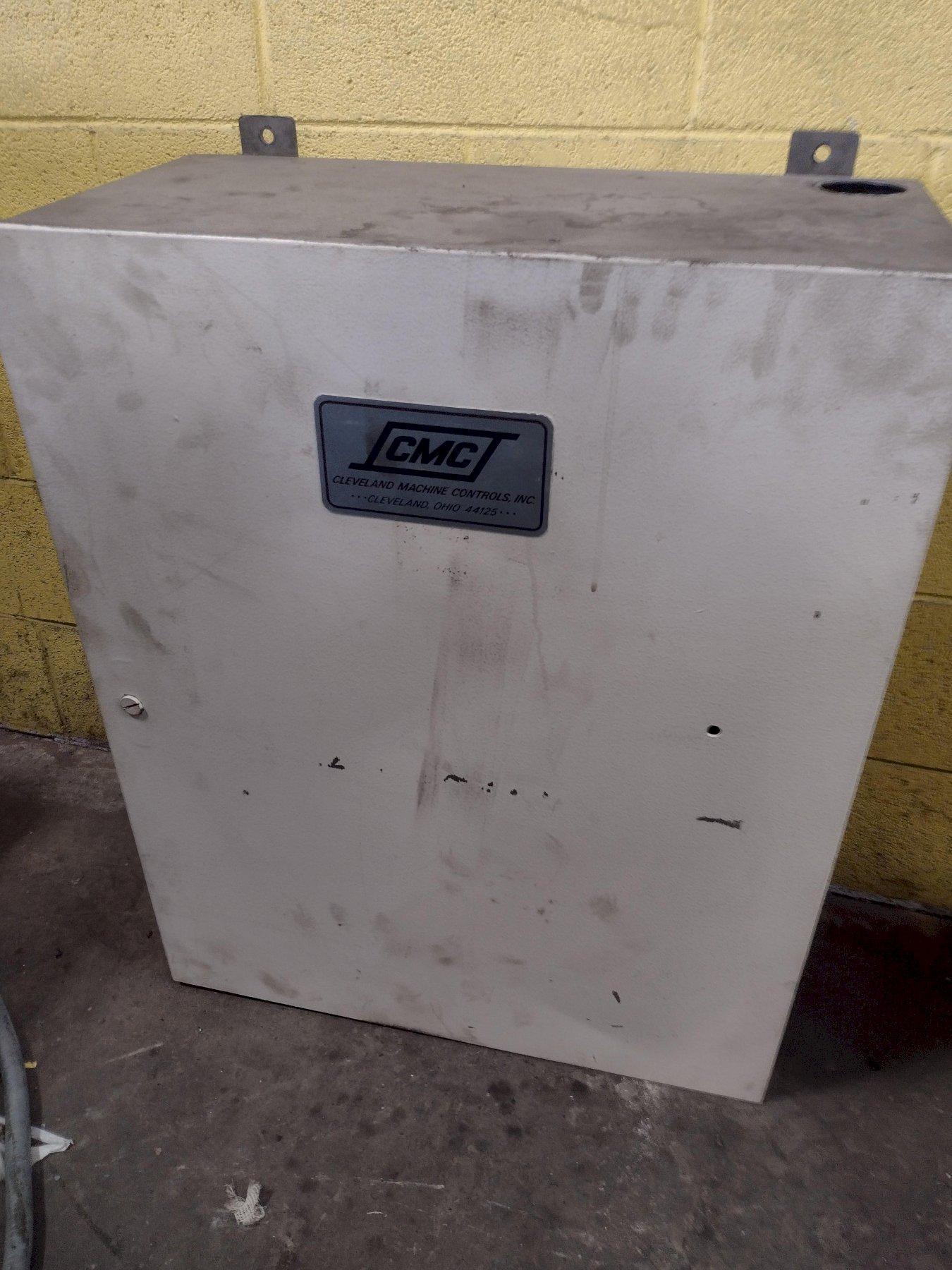

AC CONTROL CABINET ....... YES
E-STOP BUTTON ............ YES

MACHINE CONSISTING OF:

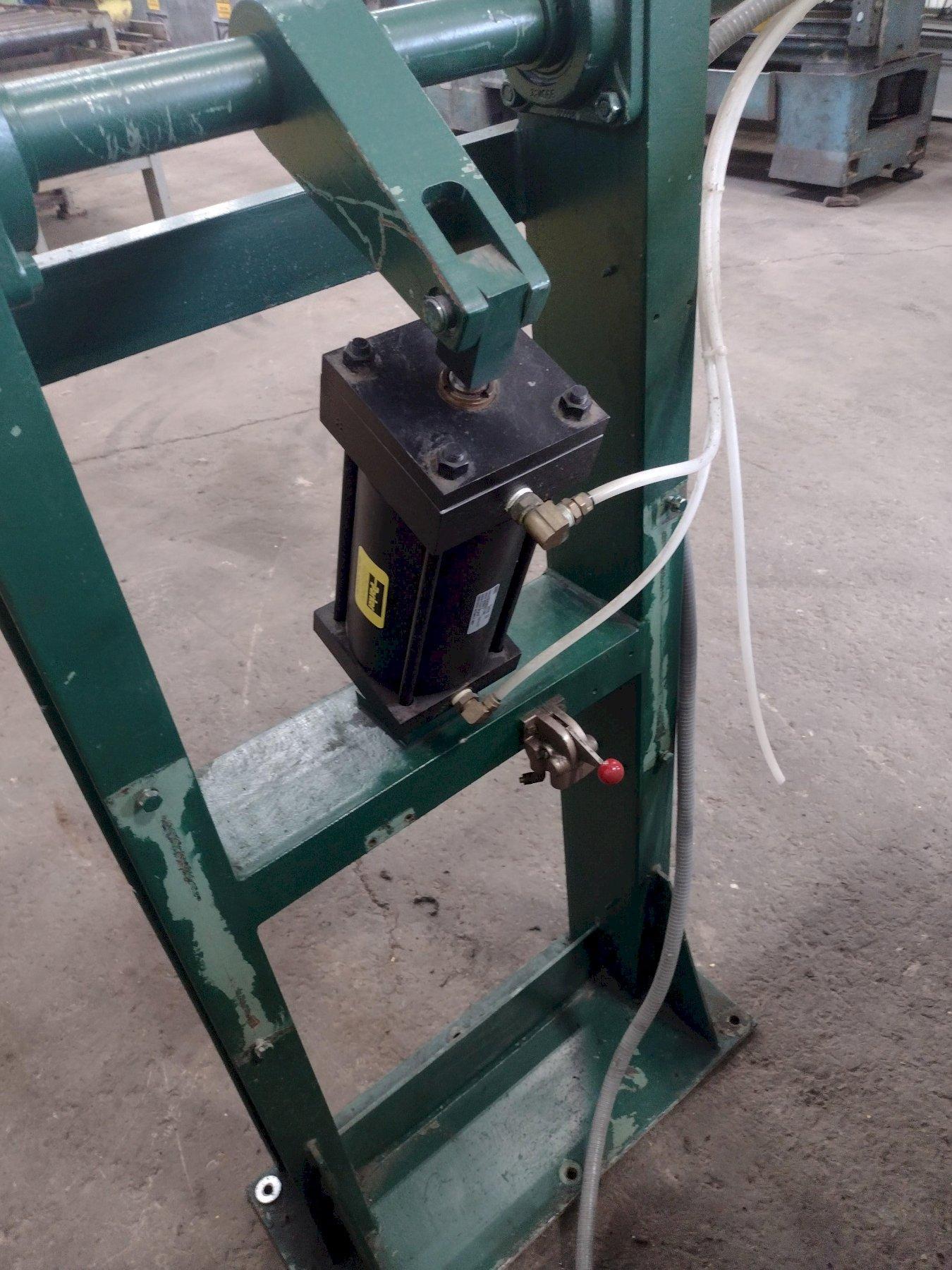

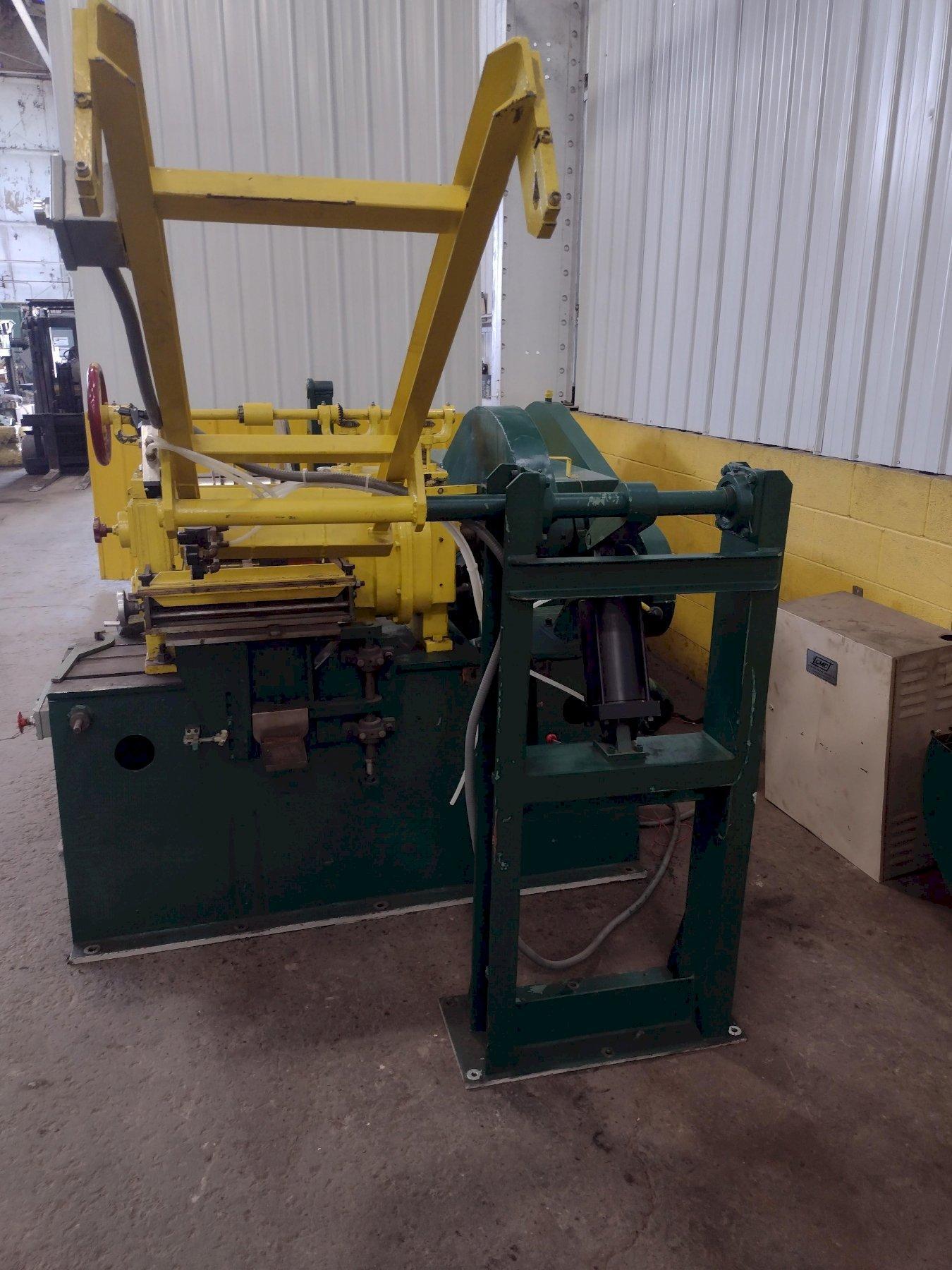

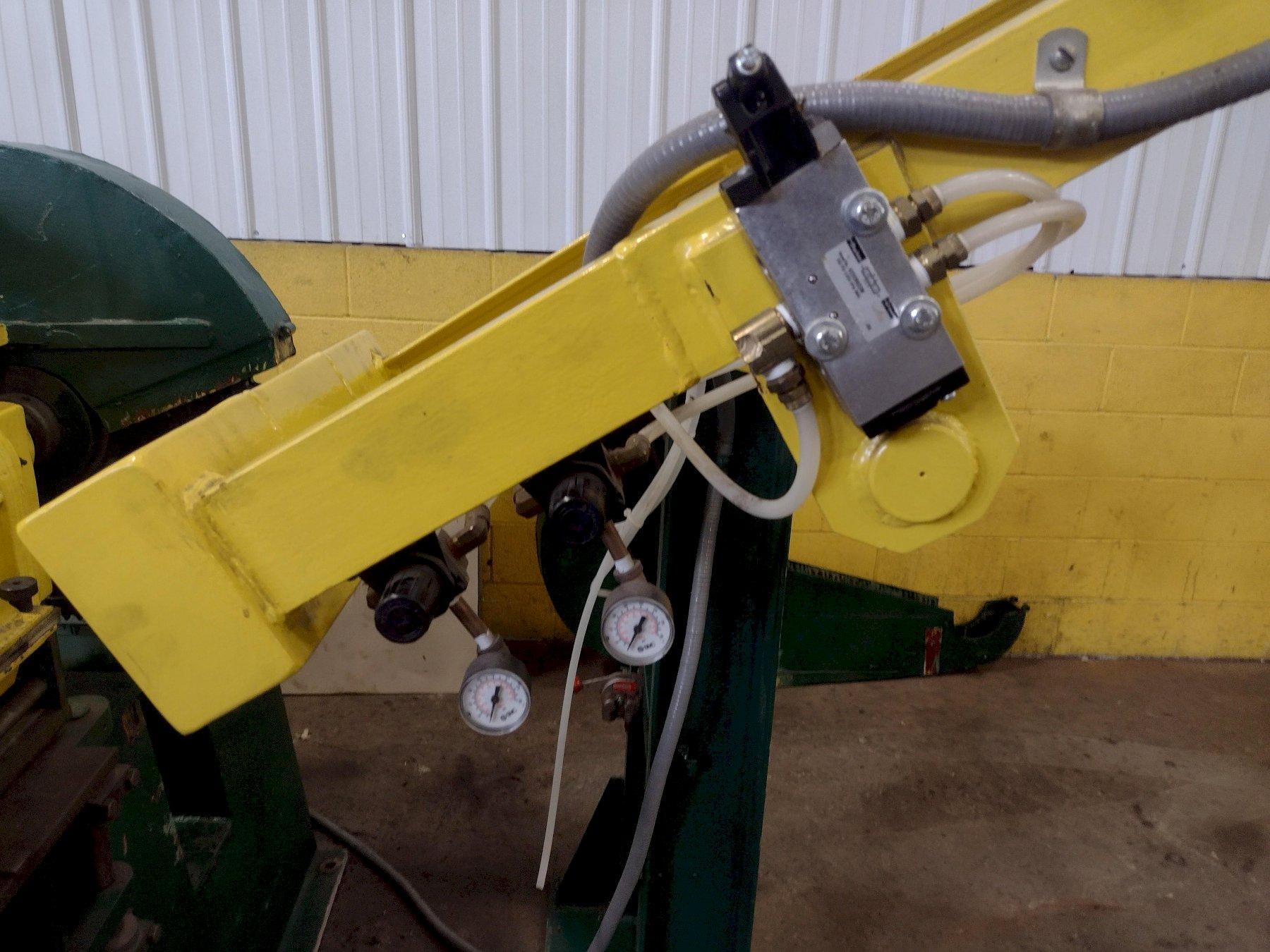

OVERARM HOLD DOWN:
AIR OPERATED ............. YES

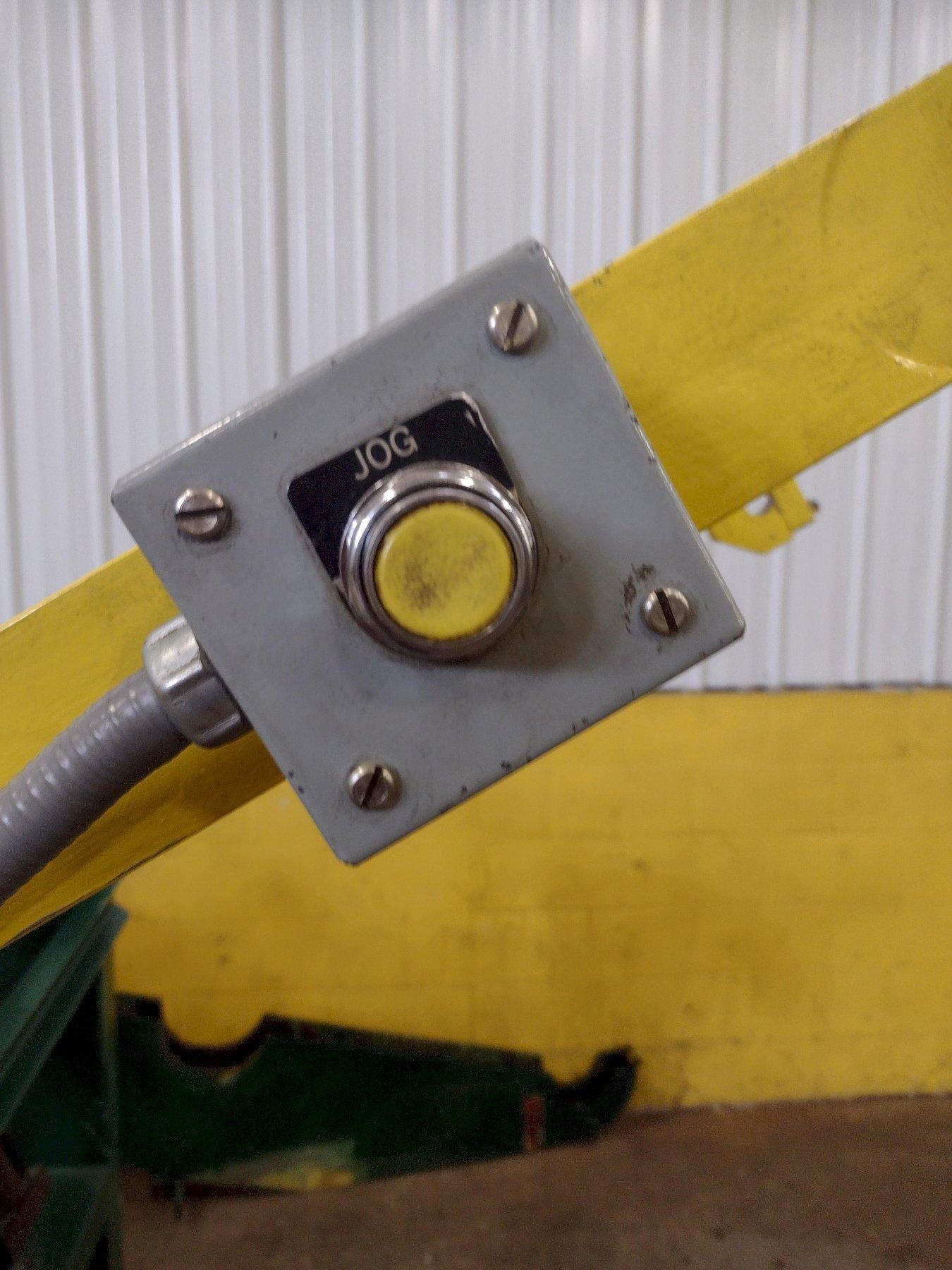

JOG MODE ................. YES

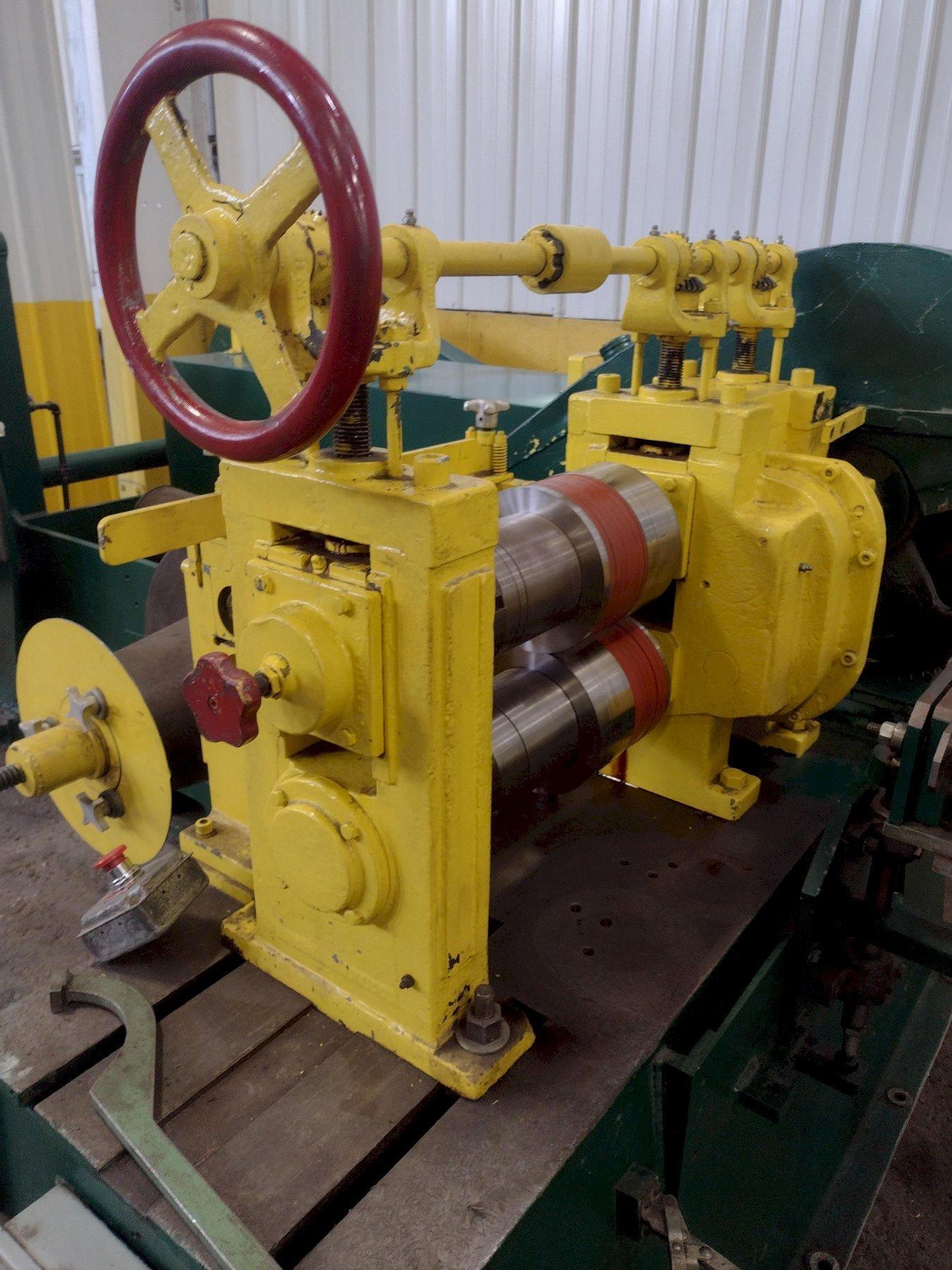

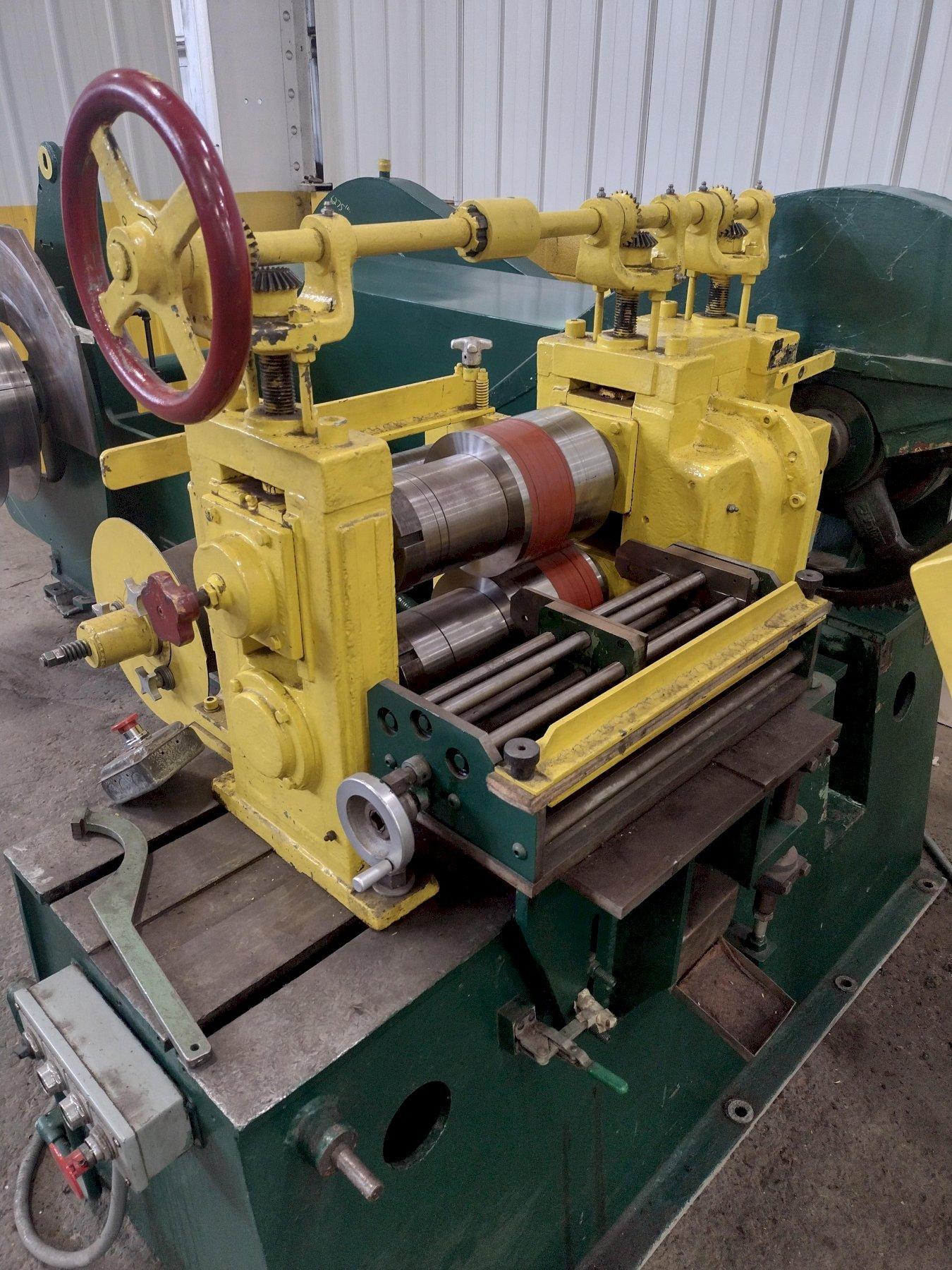

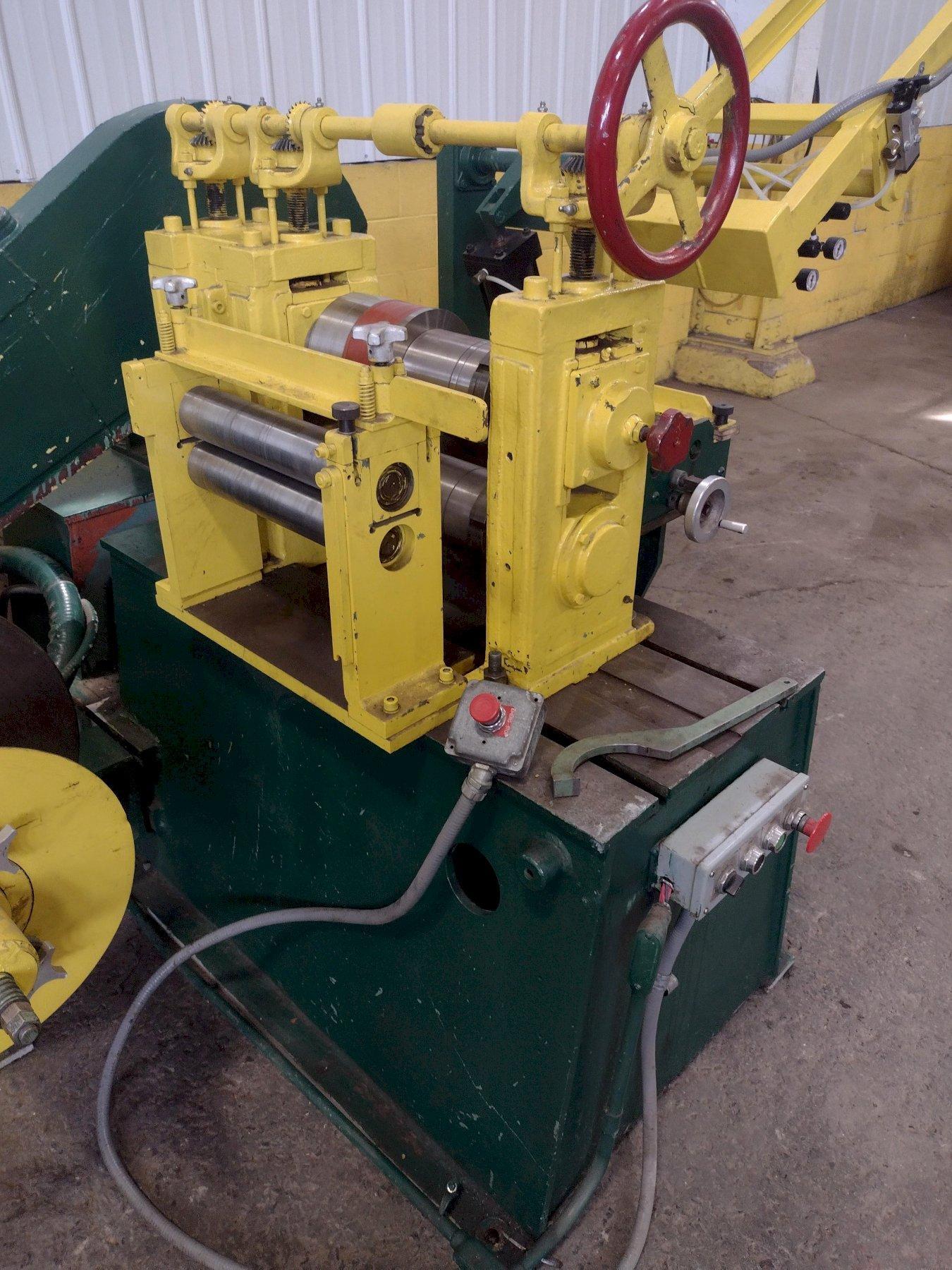

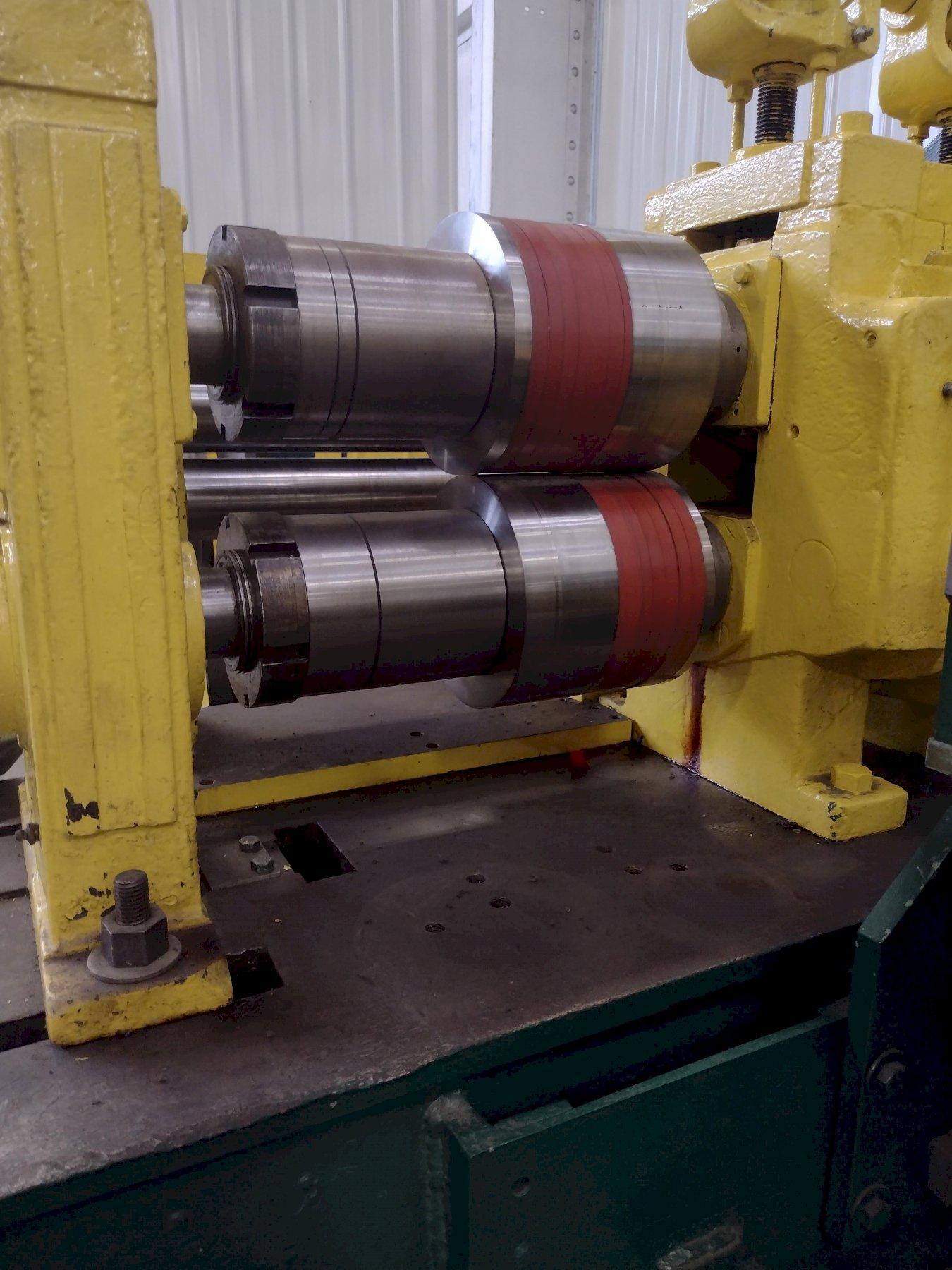

SLITTER HEAD:
SLITTING WIDTH CAPCAITY .. 12"
WIDTH OF ARBORS .......... 14"
PARRALLEL ADJUSTMENT ..... YES
OUTBOARD RETRACTION ...... YES

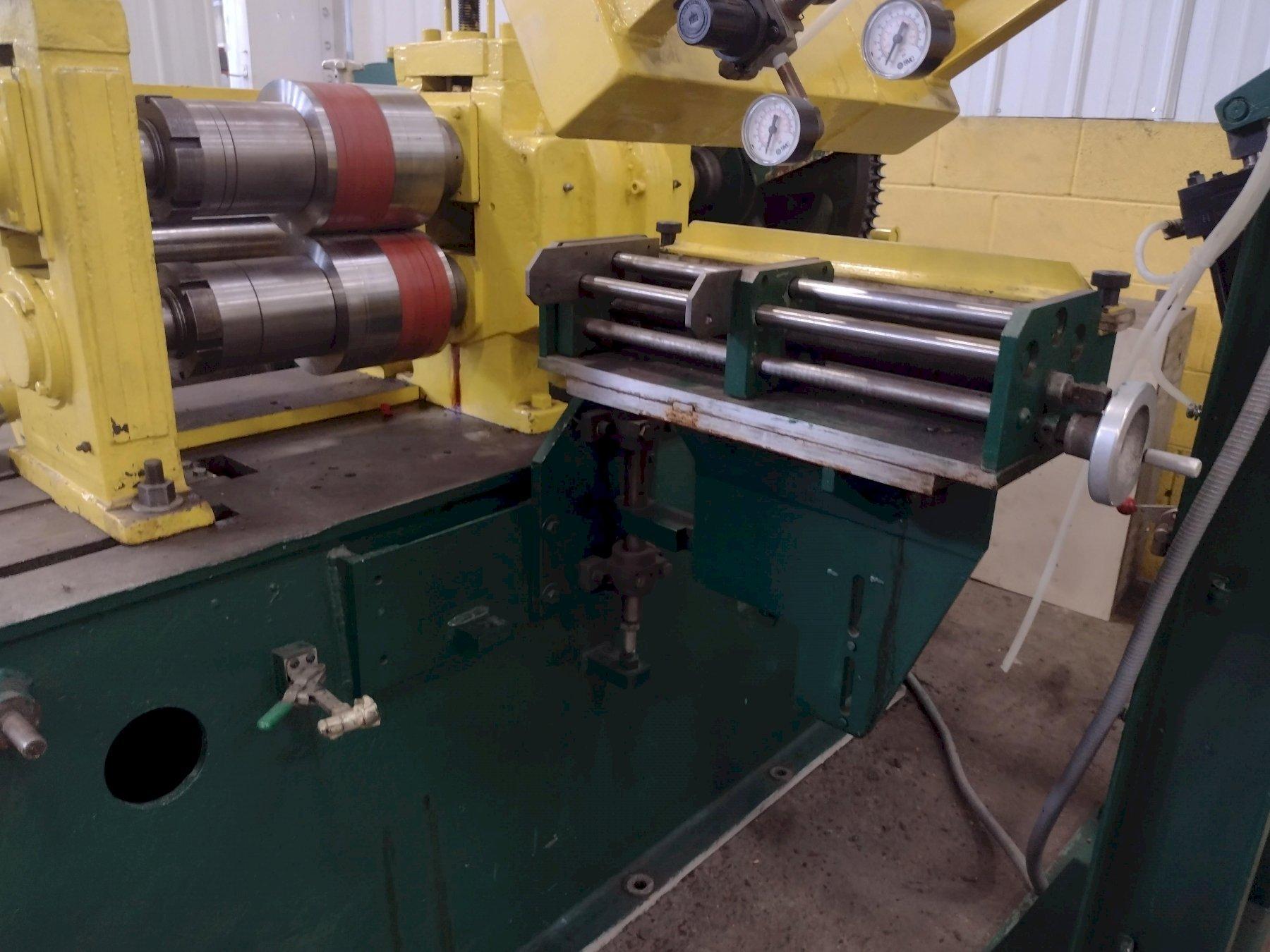

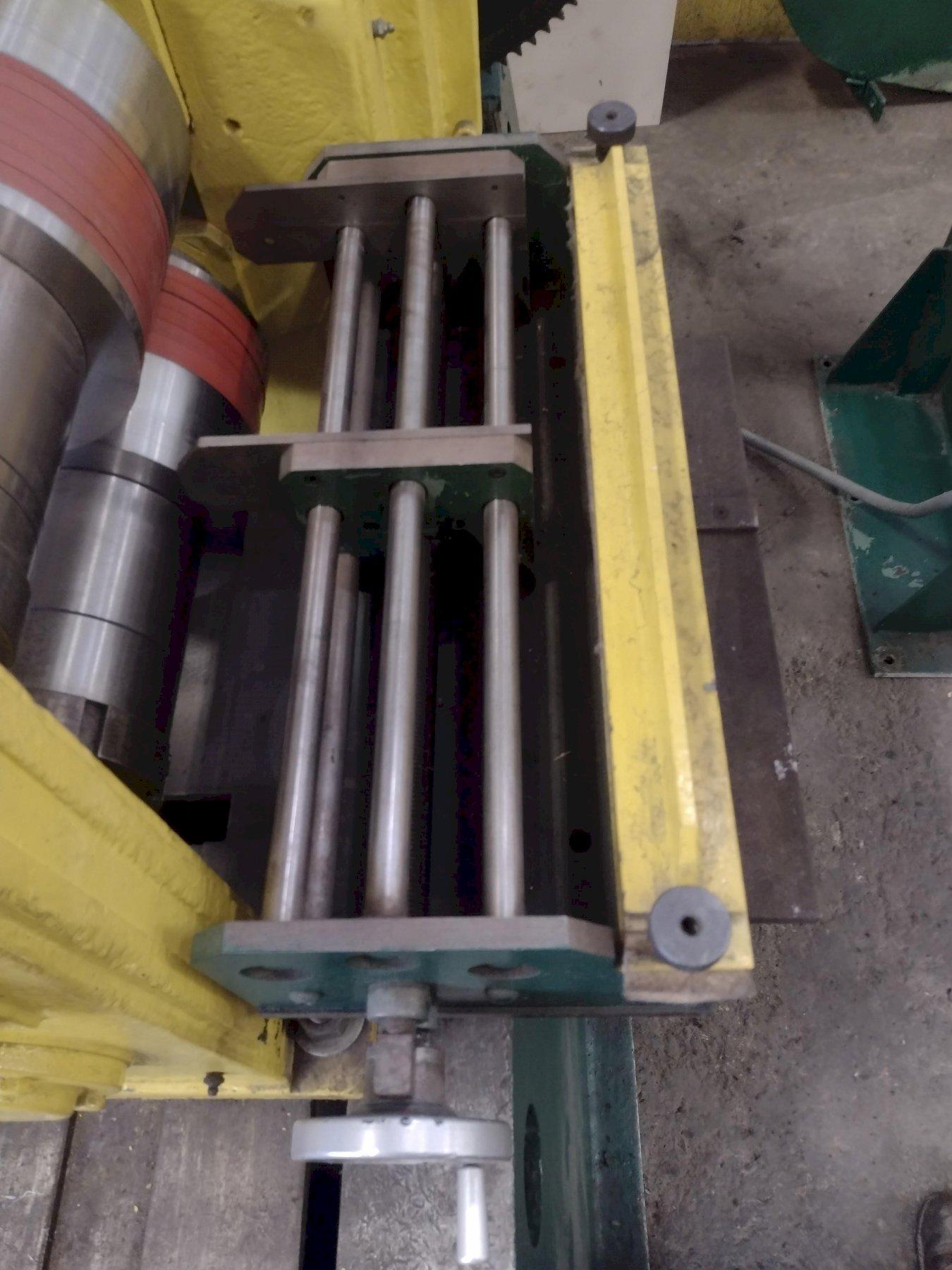

ENTRY EDGE GUIDES ........ ADJUSTABLE

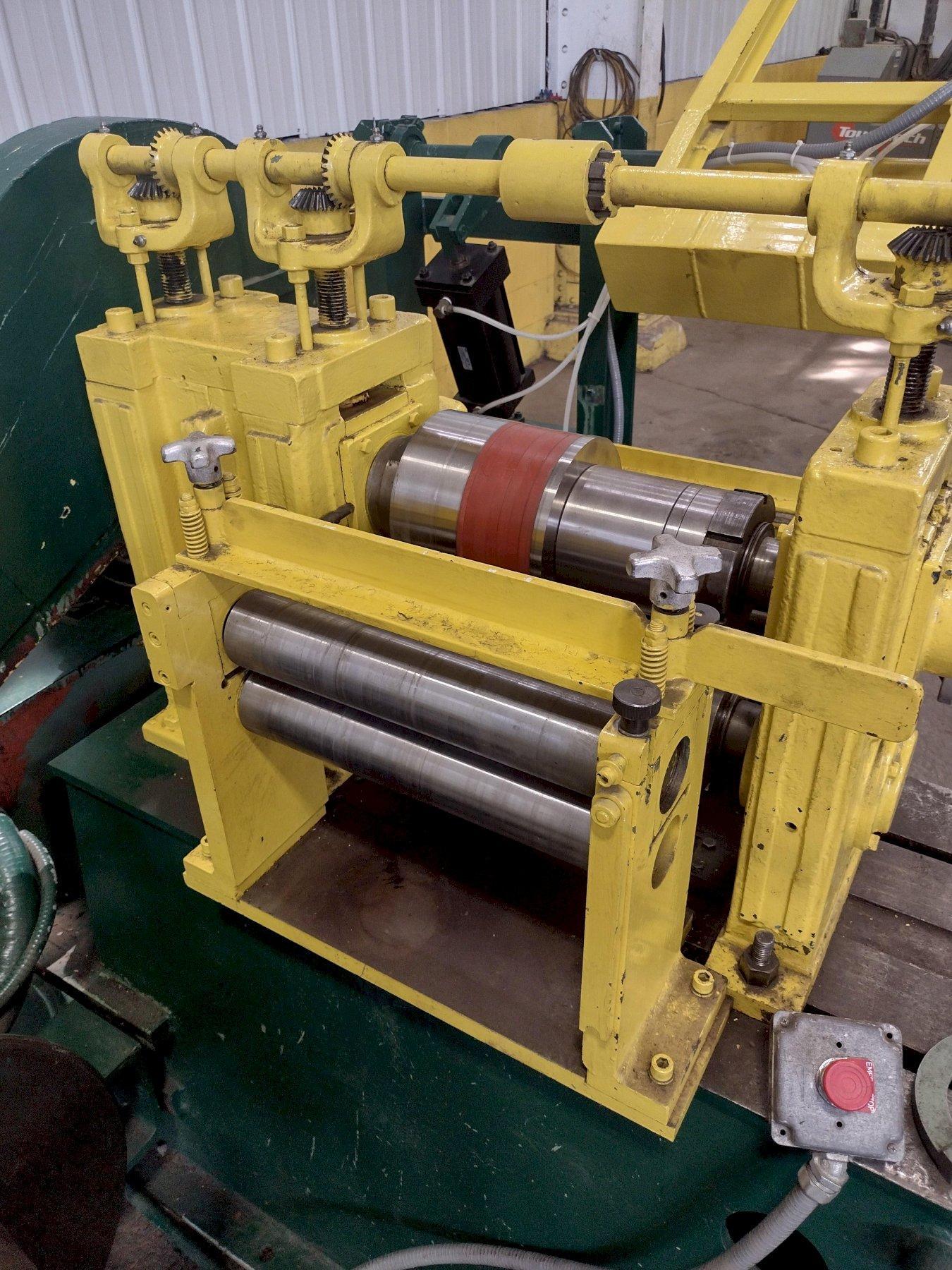

EXIT PINCH ROLLS ......... YES
MOTOR .................... 5 HP

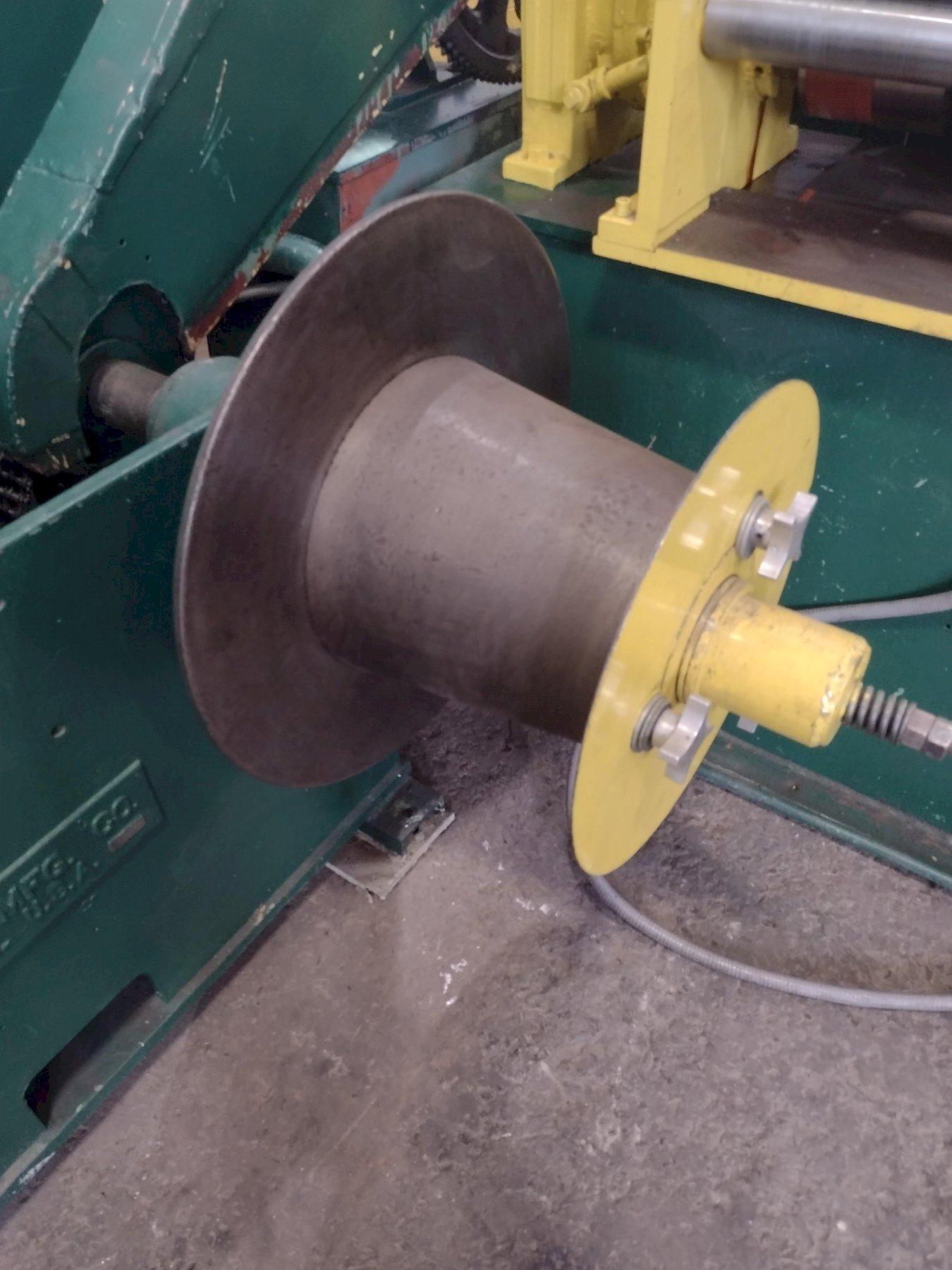

SCRAP WINDER ............. POWERED
WIDTH .................... 15"
DIAMETER SCRAP BALL ...... 30"

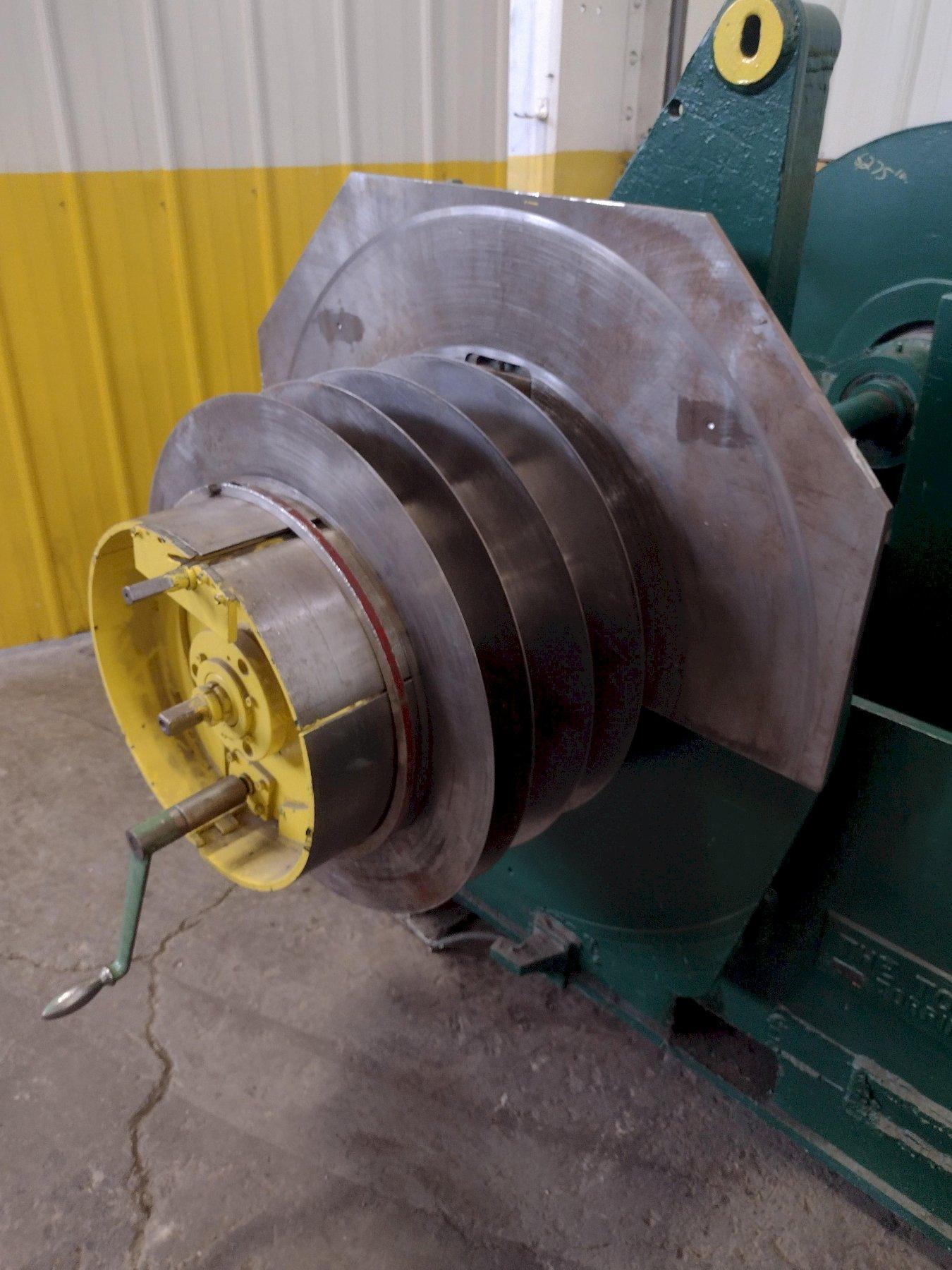

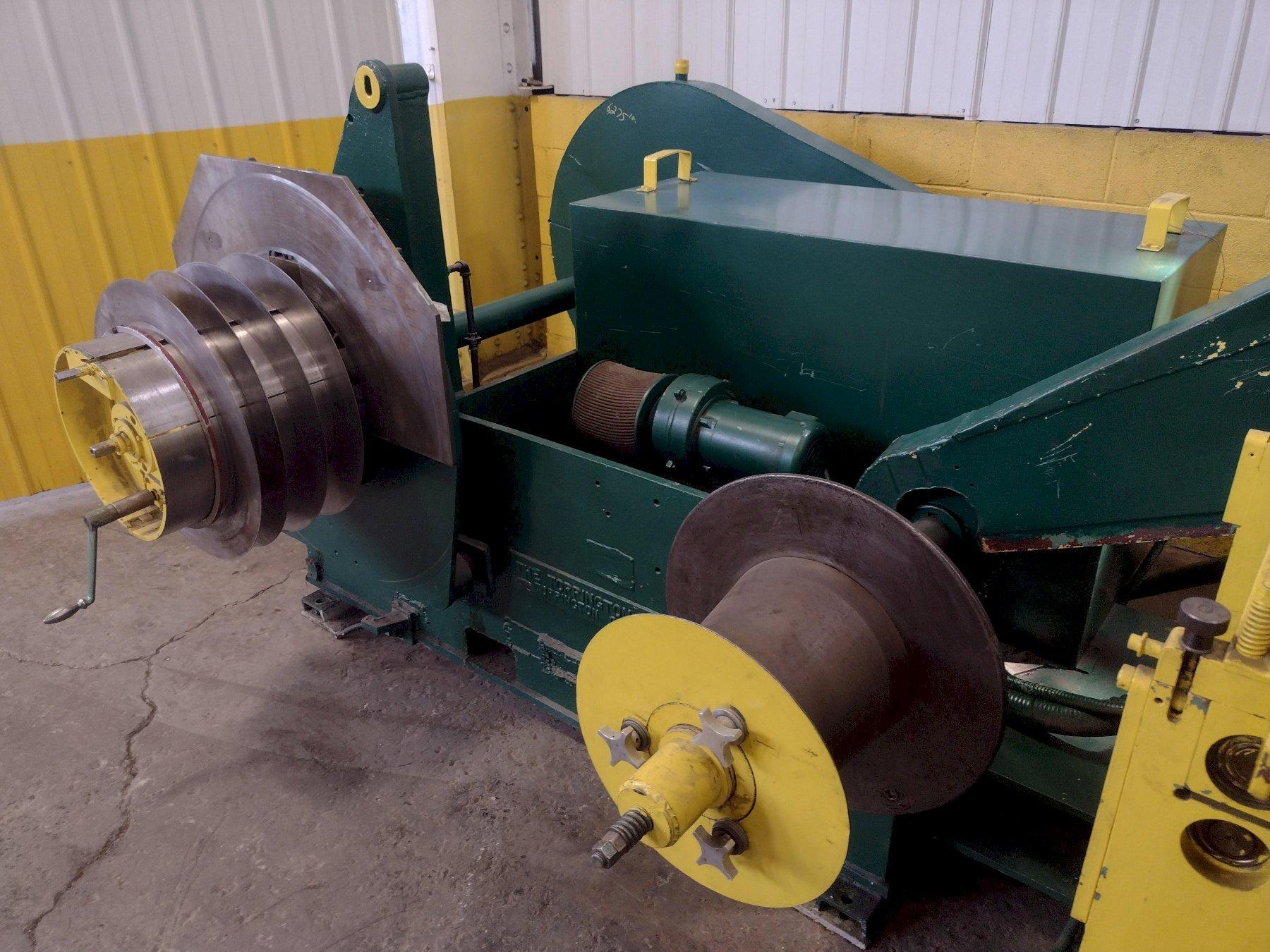

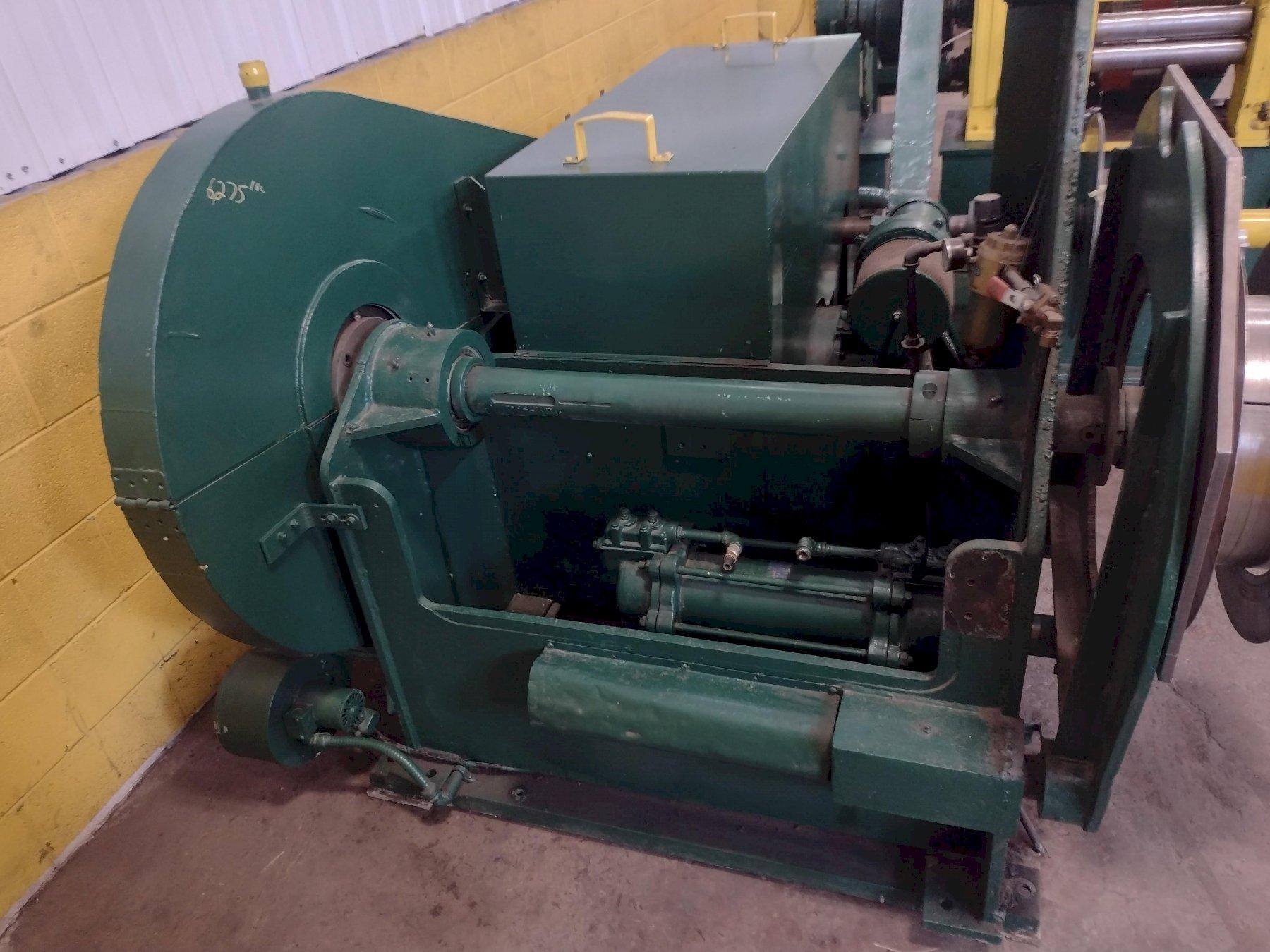

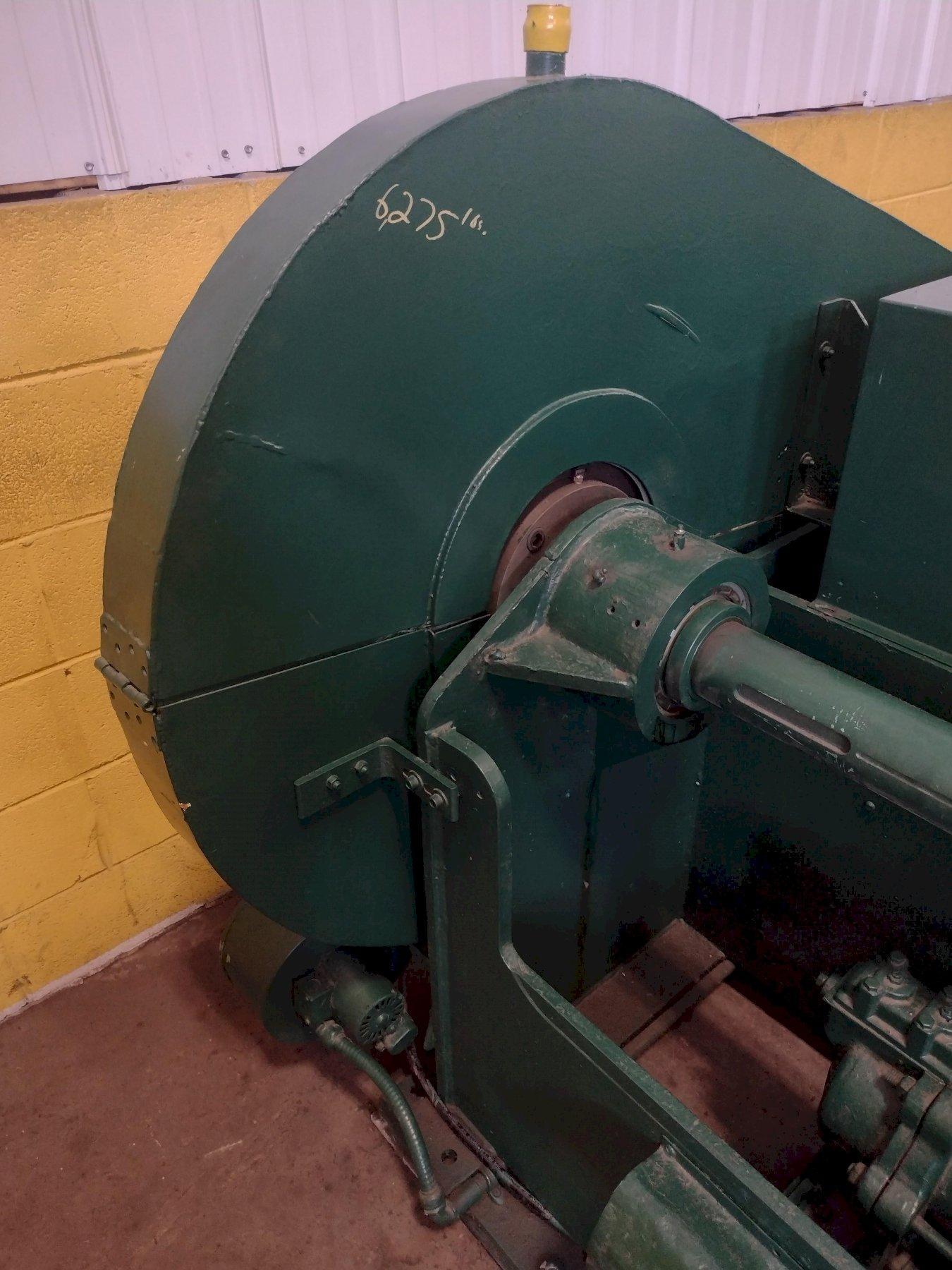

RECOILER:
MANDREL DRUM WIDTH ....... 16"
DRUM EXPANSION ........... 16" TO 20"
EXPANSION ................ MANUAL

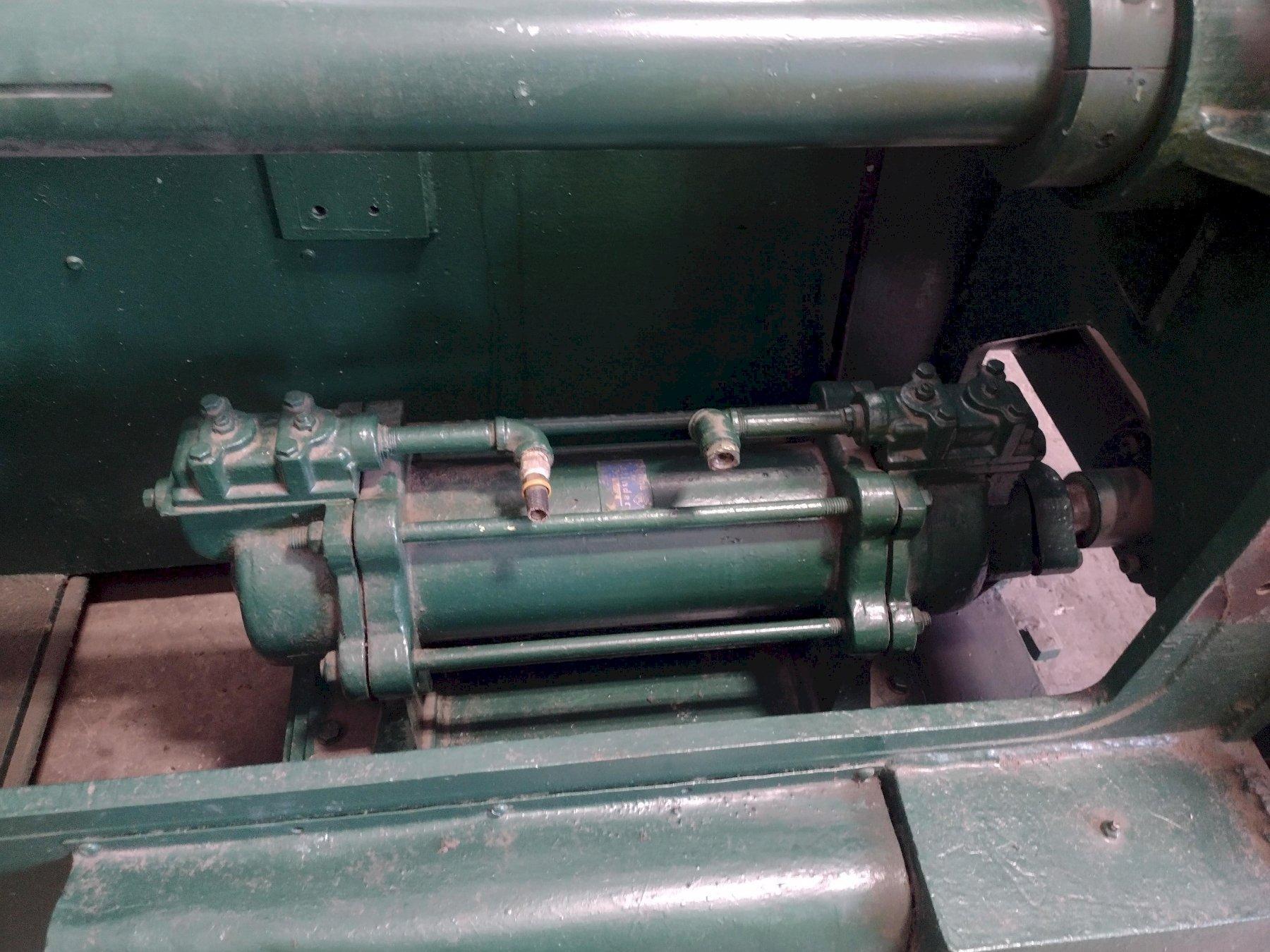

COIL PUSH OFF REMOVER .... YES, HYDRAULIC
COIL GRIPPER SLOT ........ YES

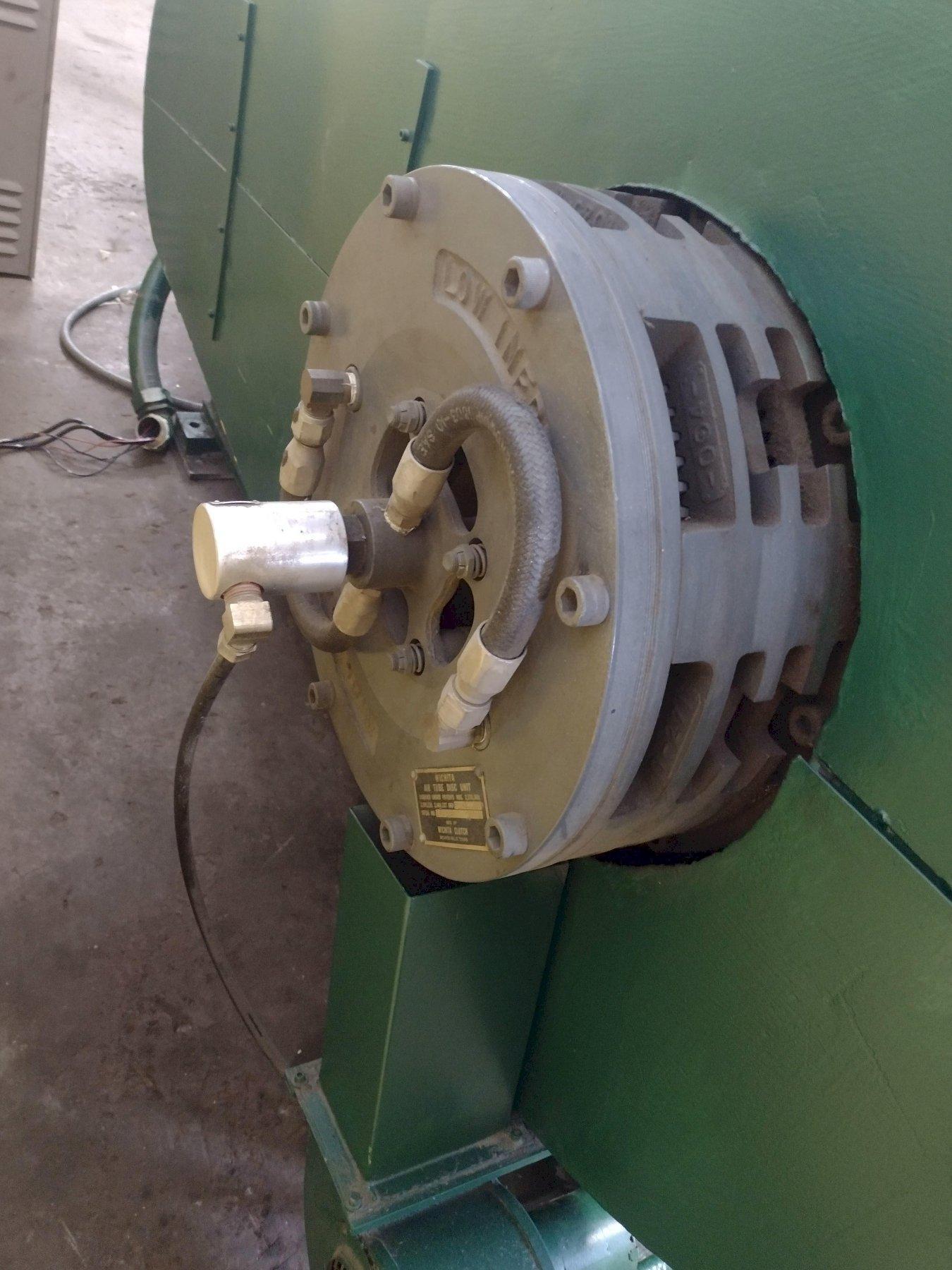

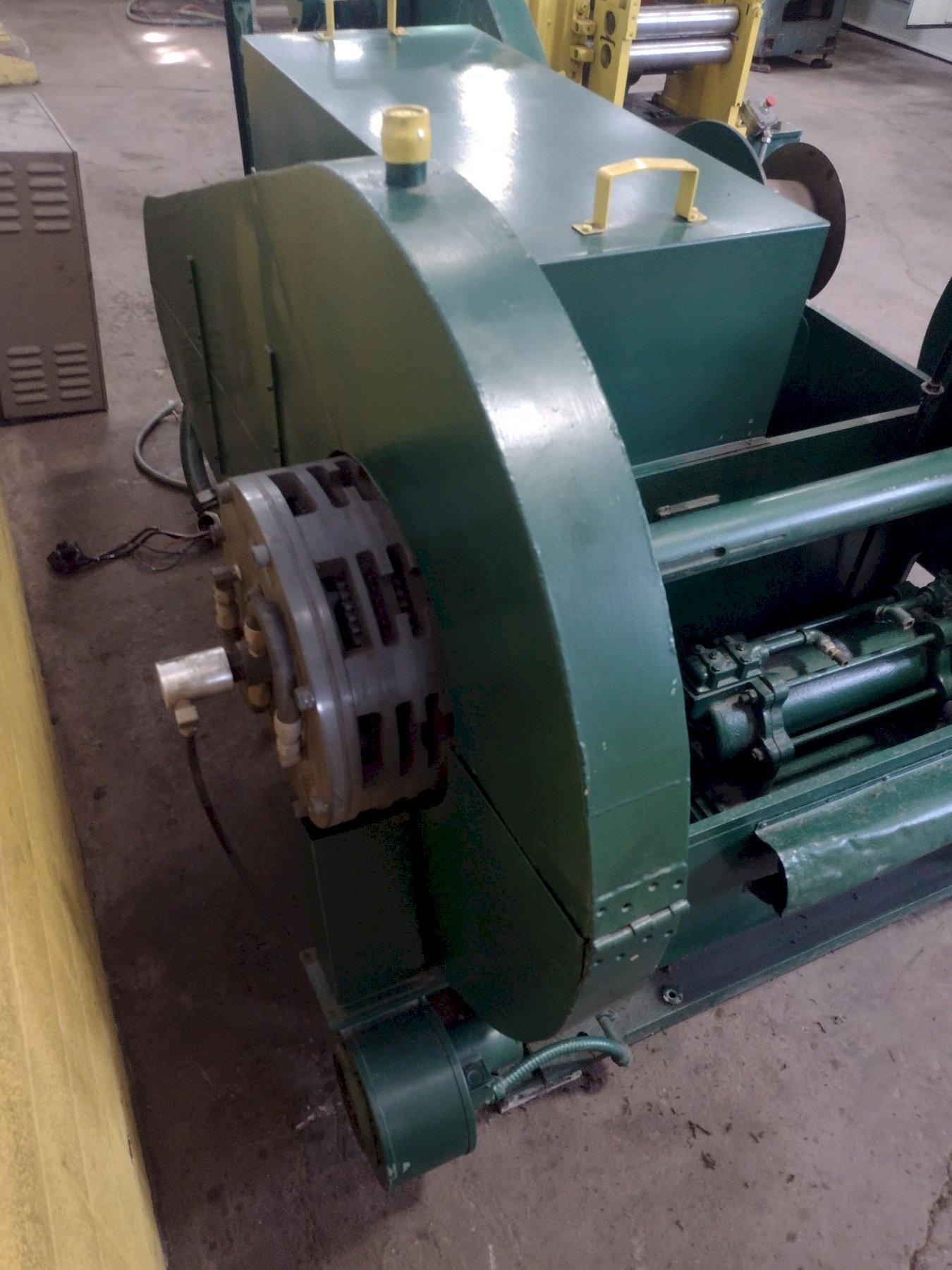

AIR CLUTCH ............... YES
MOTOR .................... 15 HP
