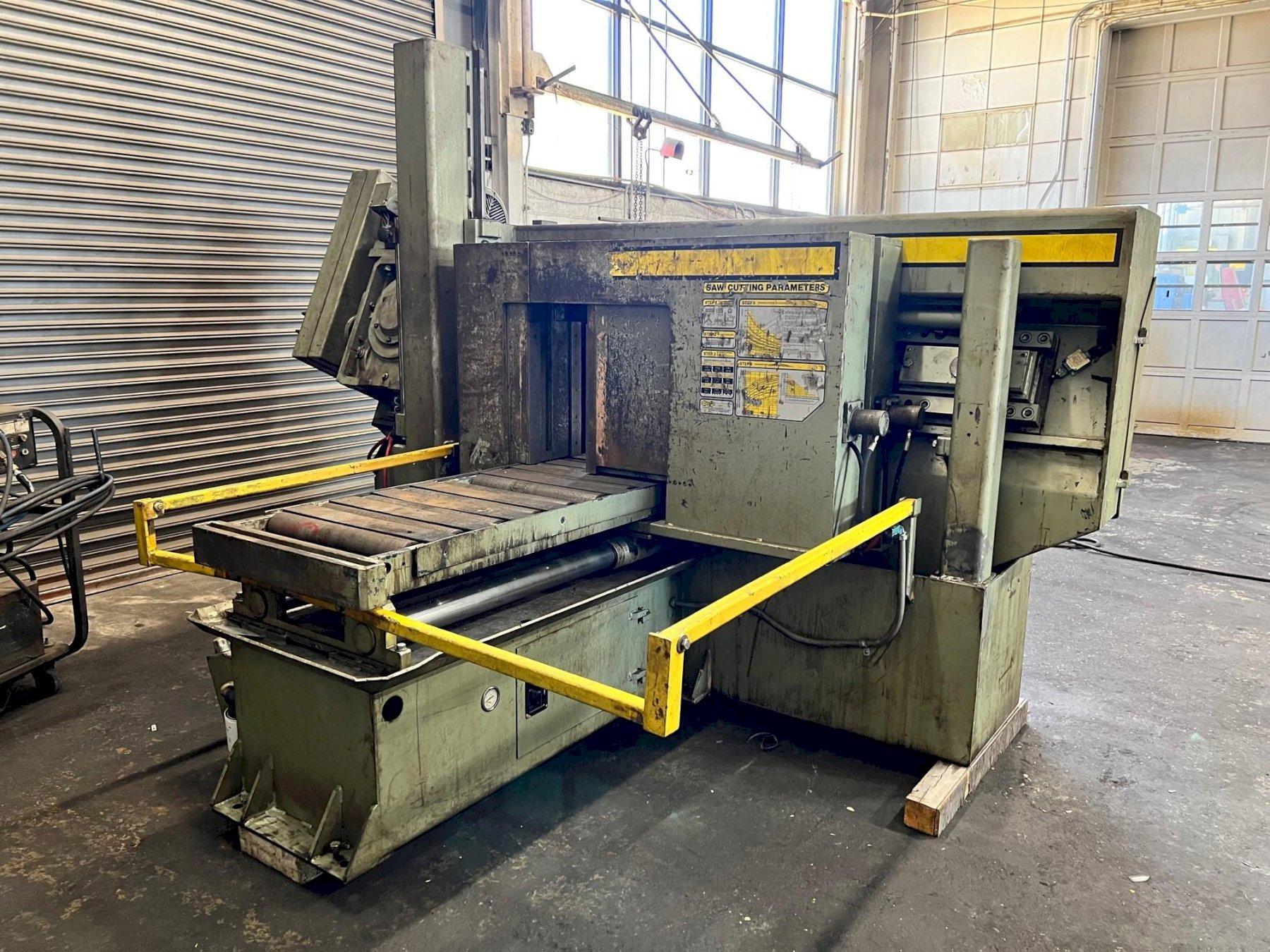

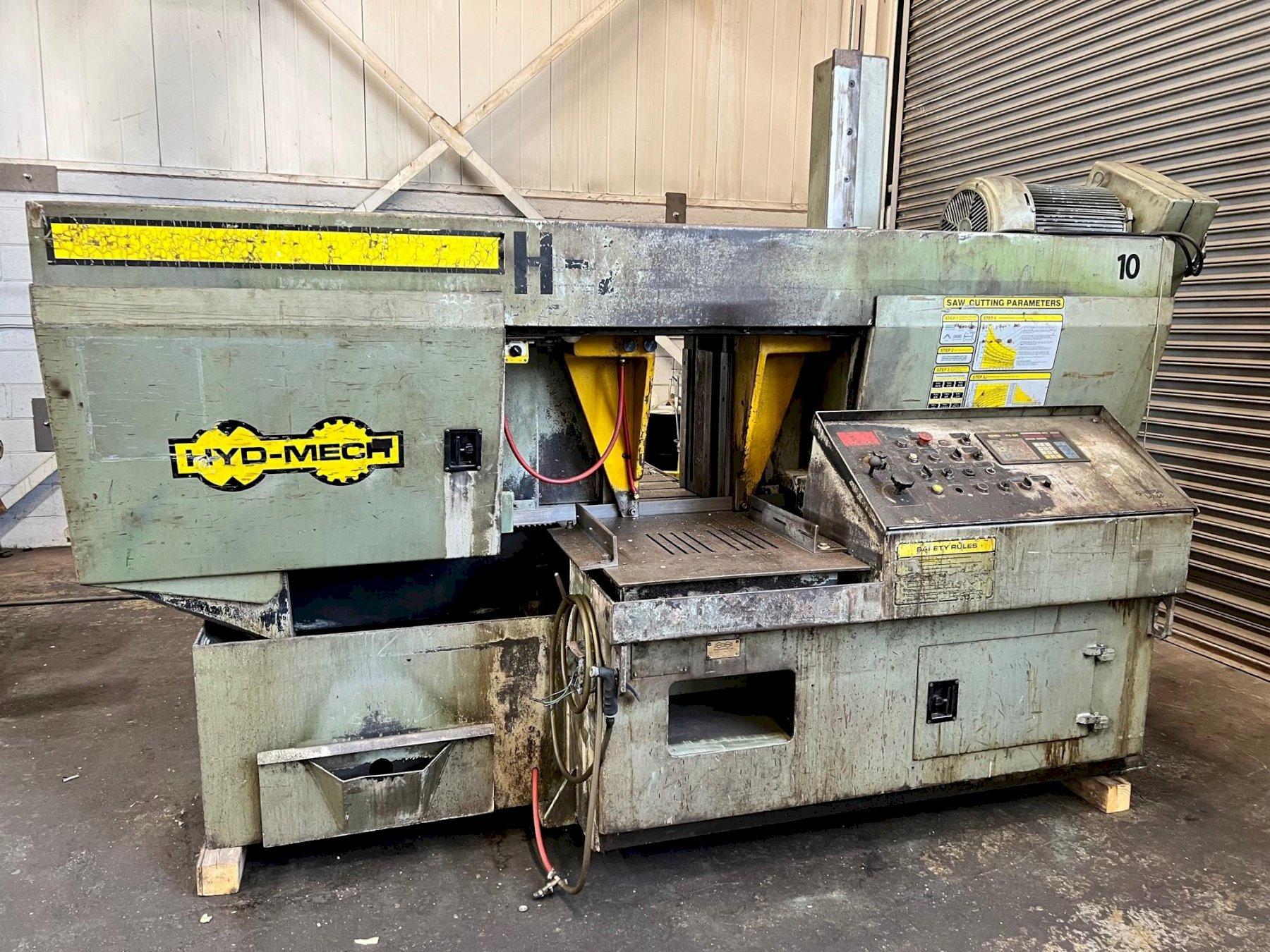

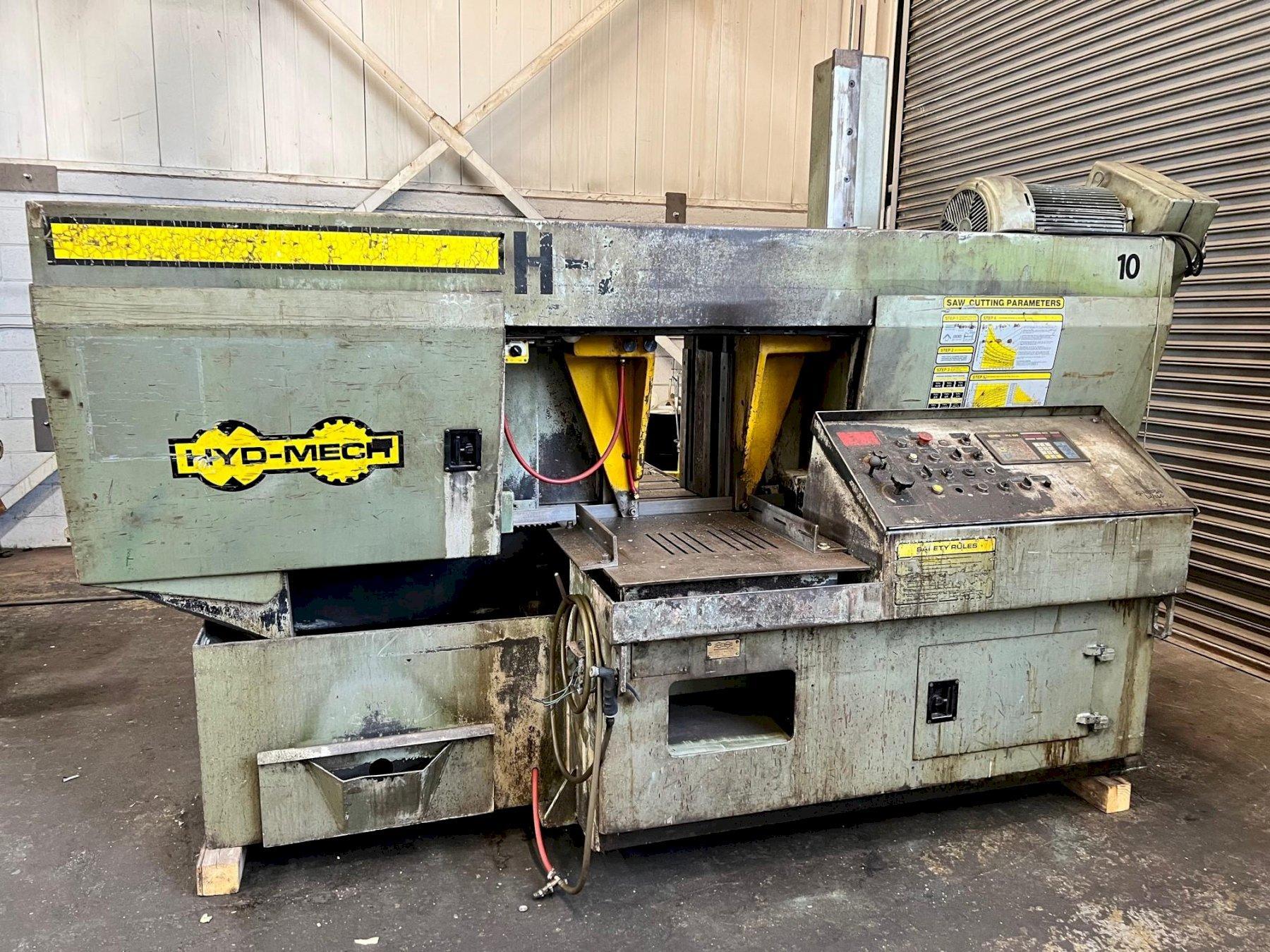

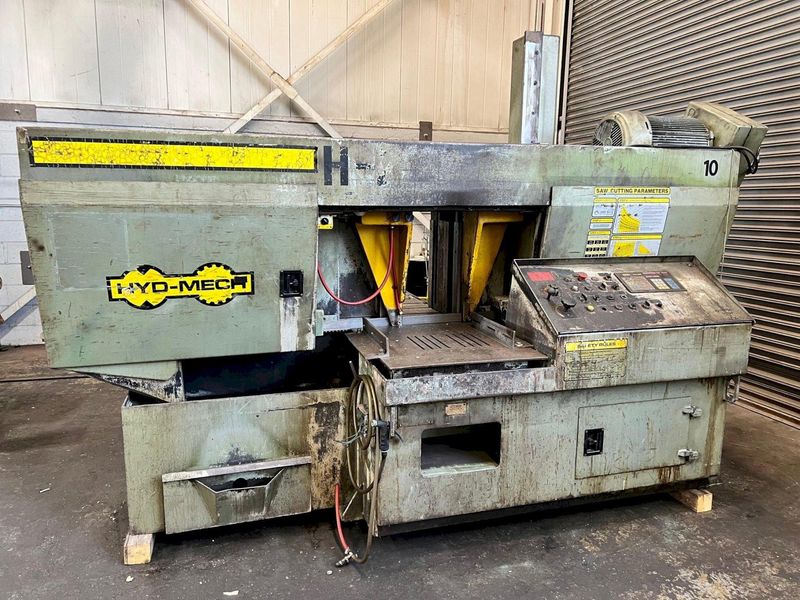

USED HYD-MECH MODEL H-20A 20" X 20" FULLY AUTOMATIC DUAL COLUMN BANDSAW, Stock# 10946, Year: 199

Manufacturer

HYD-MECH

Category

Saws

Type

SAWS, BAND, HORIZONTAL

Stock

10946

Model

H-20A

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Rect-Cap (H) - 20 inches
Rect-Cap (W) - 20 inches
Rounds-Cap - 20 inches
Power - 10 horsepower
Type (Auto, Manual, Semi) - automatic
Blade Width - 2 inches
Dimensions - 140" x 95" x 94"
Weight - 12500 pounds
Max Table Load - 15000 pounds


Brand: Hyd-Mech
Model: H-20A

Specifications:
Max. cutting cap. 90 deg, round: 20”
Max. cutting cap. 90 deg, square: 20” x 20”
Blade dimensions: 22’2” x 2” x .063
Blade guides: Carbide
Guide arm (manual / powered): Powered
Blade speeds: 40-300 FPM
Number of speeds: Infinite
Blade motor: 10 HP
Blade drive type: Motor to gearbox
Blade tension type: Powered
Blade wheel size: 27”
Hydraulic motor: 3 HP
Hydraulic Tank Capacity: 9 gallons
Coolant type: Flood
Coolant tank capacity: 10.5 gallons
Maximum feed length: 36”
Number of multi indexes: Infinite
Table height: 31”
Maximum weight load: 15,000 lbs
Vise type: Hydraulic
Voltage: 220 / 440 volt 3 phase
Dimensions: 140” x 95” x 94”
Weight: 12,500 lbs

Equipped with:
PLC100 Control - holds up to 29 jobs with length & piece counter and the ability to run up to 9 jobs in queue with blade speed readout
Manual / automatic mode
Head height limit switch setting
Blade break switch
Coolant wash down hose
Powered blade speed change
Carbide guides
Flood coolant
Powered blade chip brush
Hydraulic chip auger
Positive downfeed

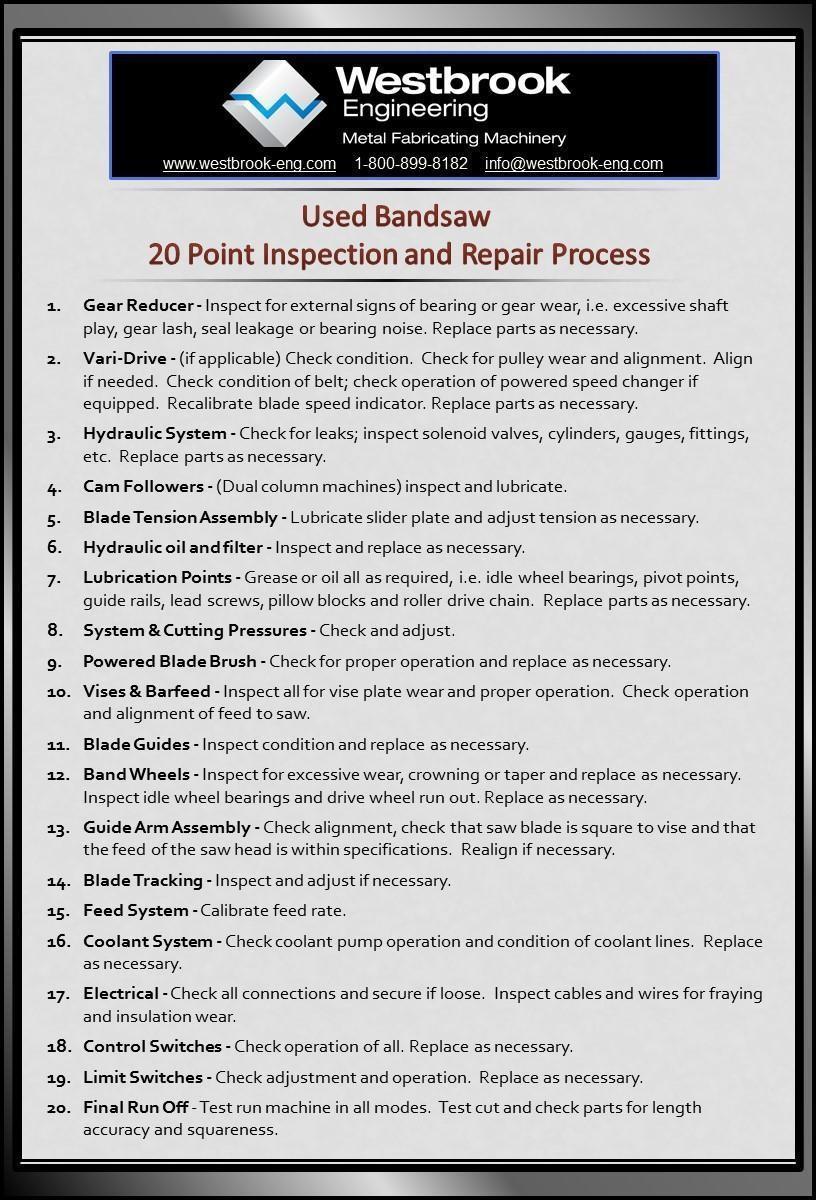

We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
