5.31" Nomura HBN-135QF , X-244", Y-157", Z-27.5", W-13.7", Z & W Cmb. 41.3", 60 HP, Rotary, Fanuc 31-iMB, 2019 #32090

Manufacturer

NOMURA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

32090

Model

HBN-135QF

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32090

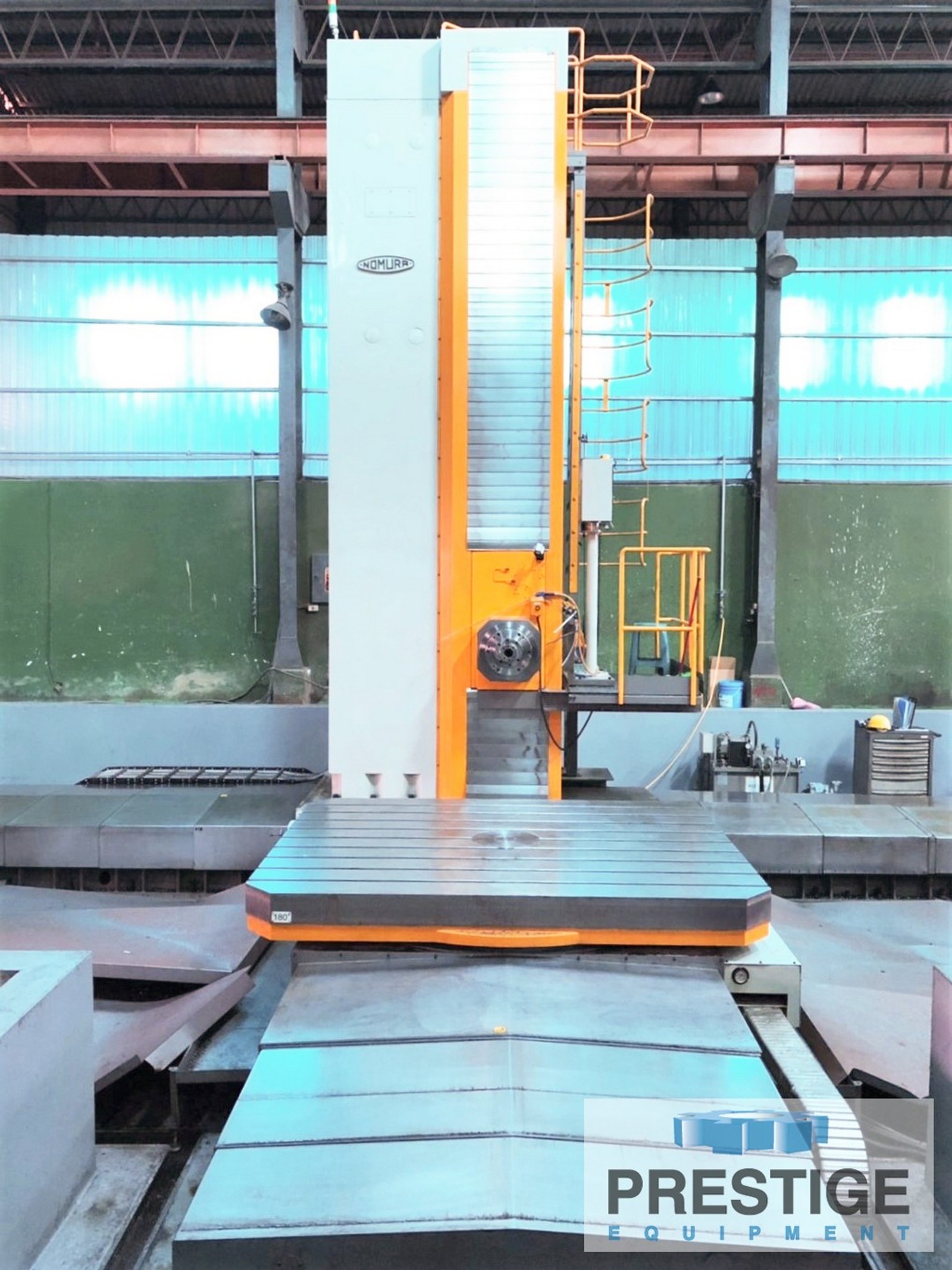

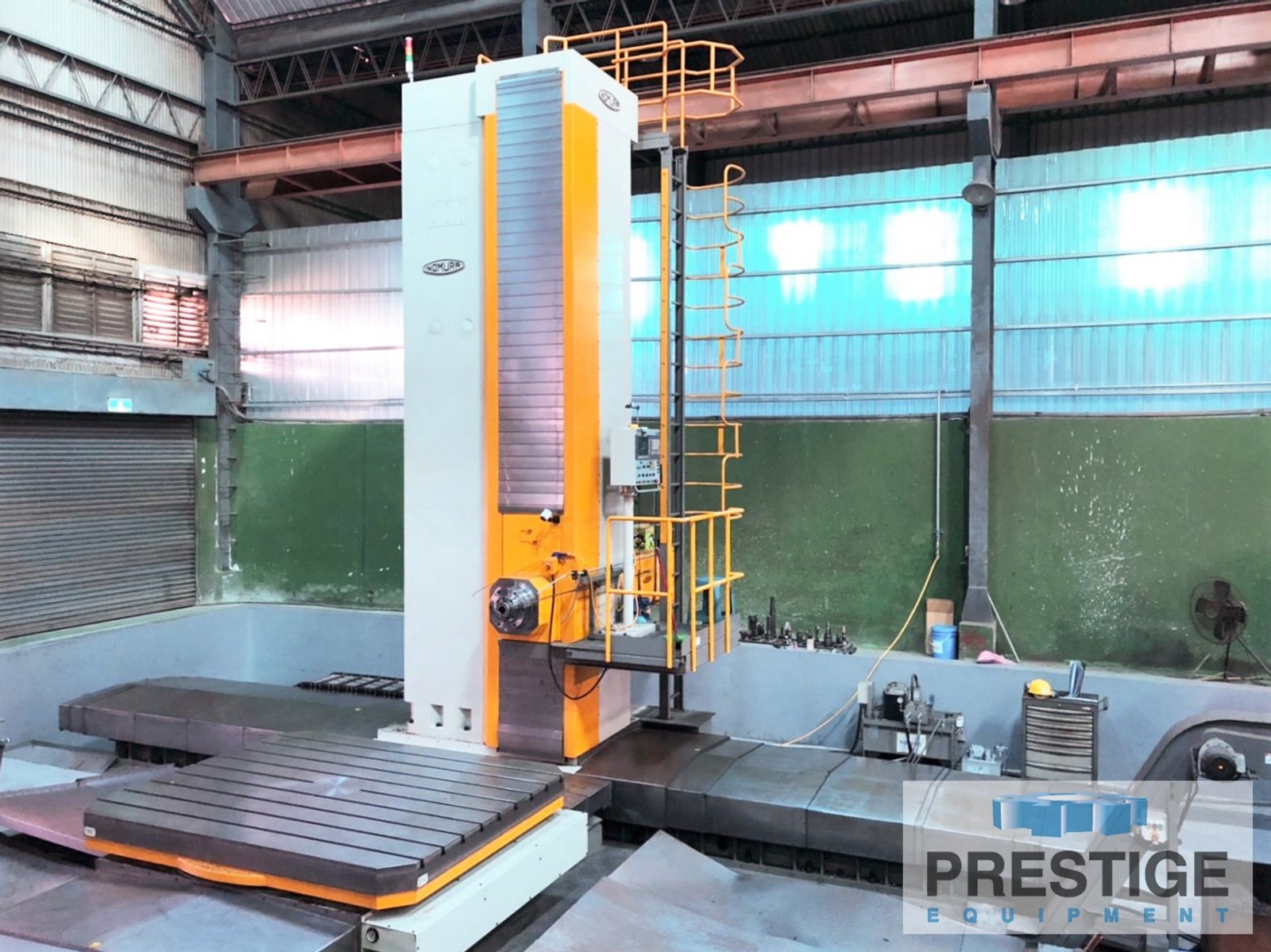

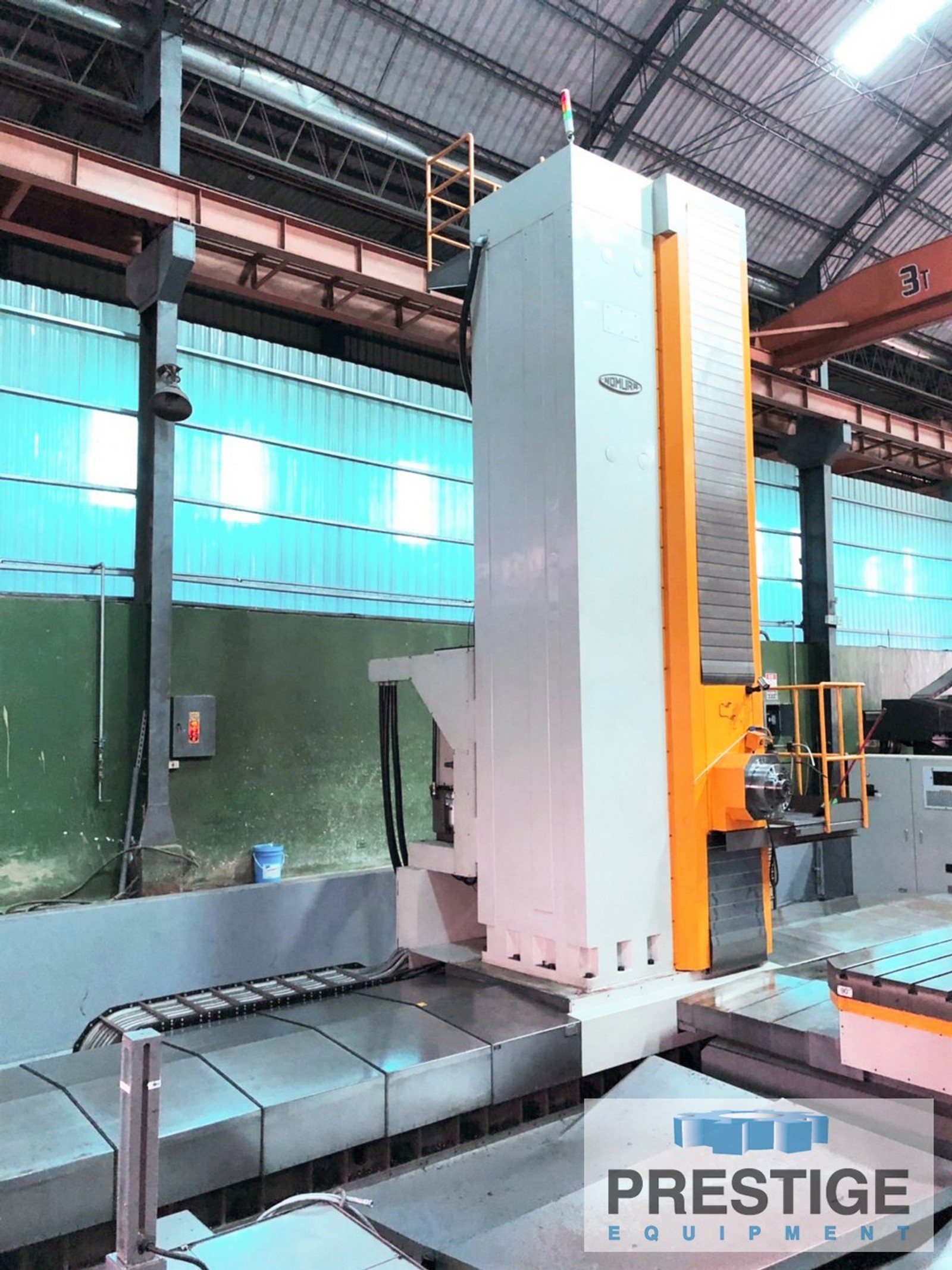

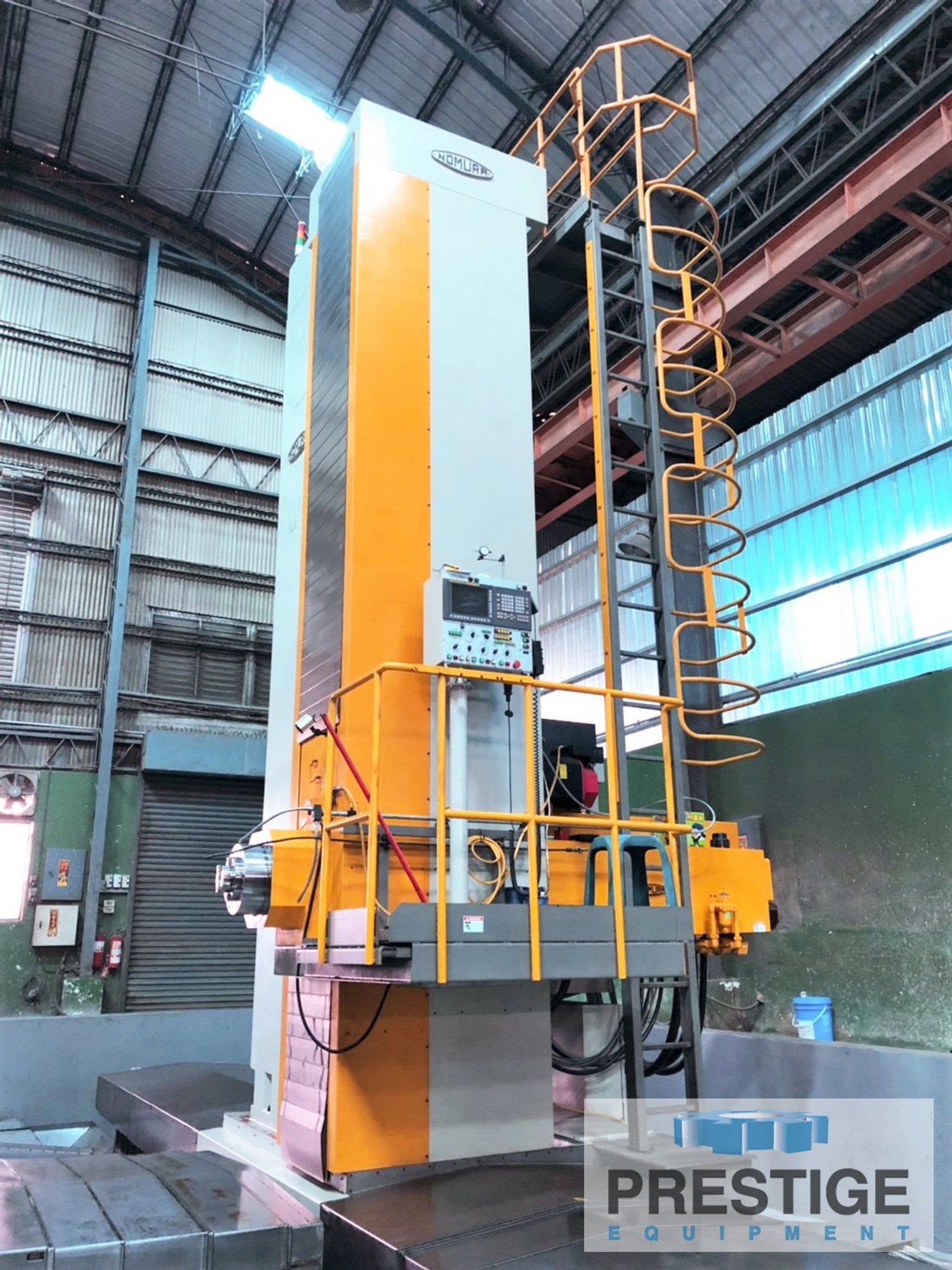

Nomura HBN-135QF CNC Floor Type Boring Mill

FEATURES:

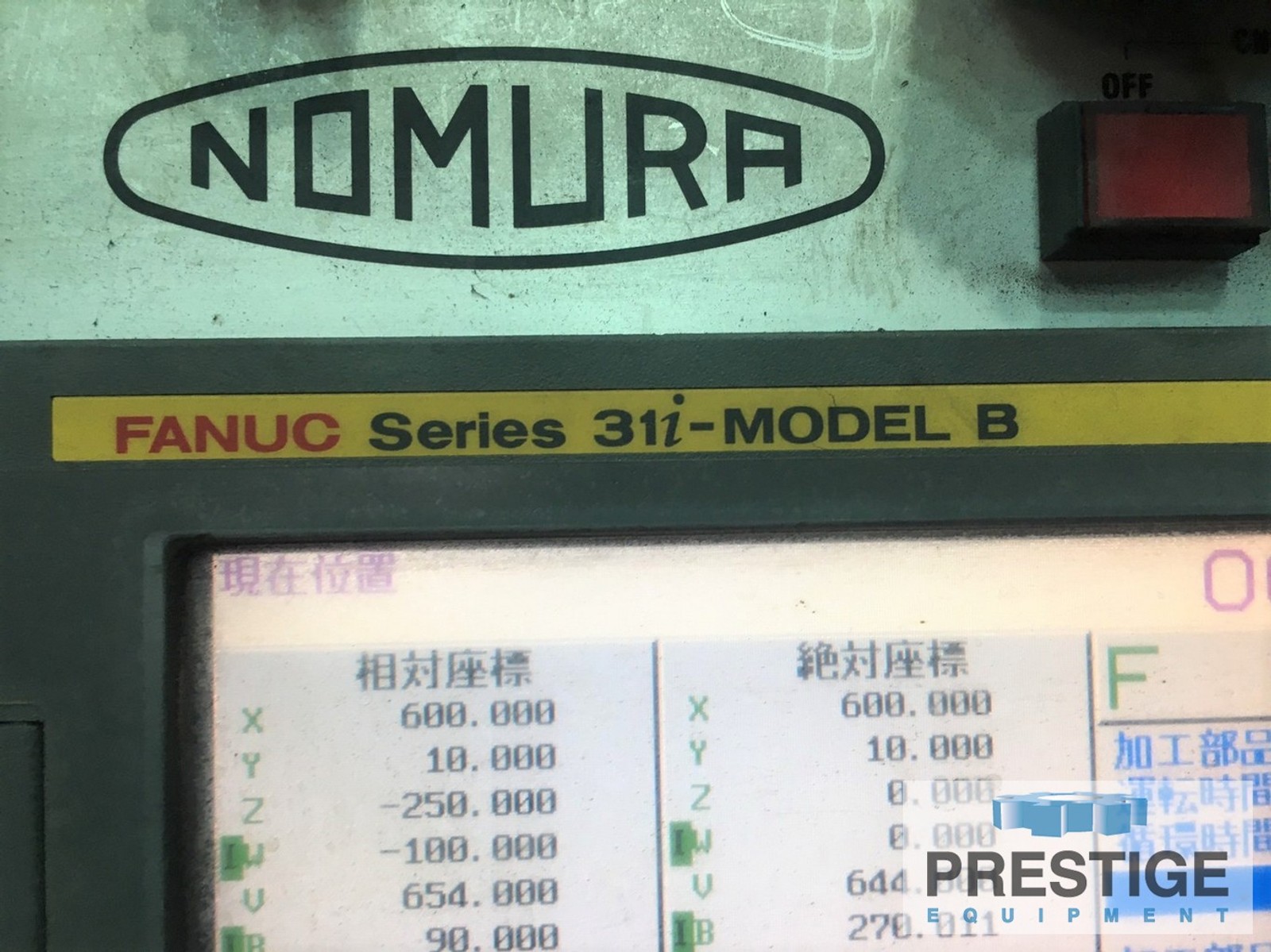

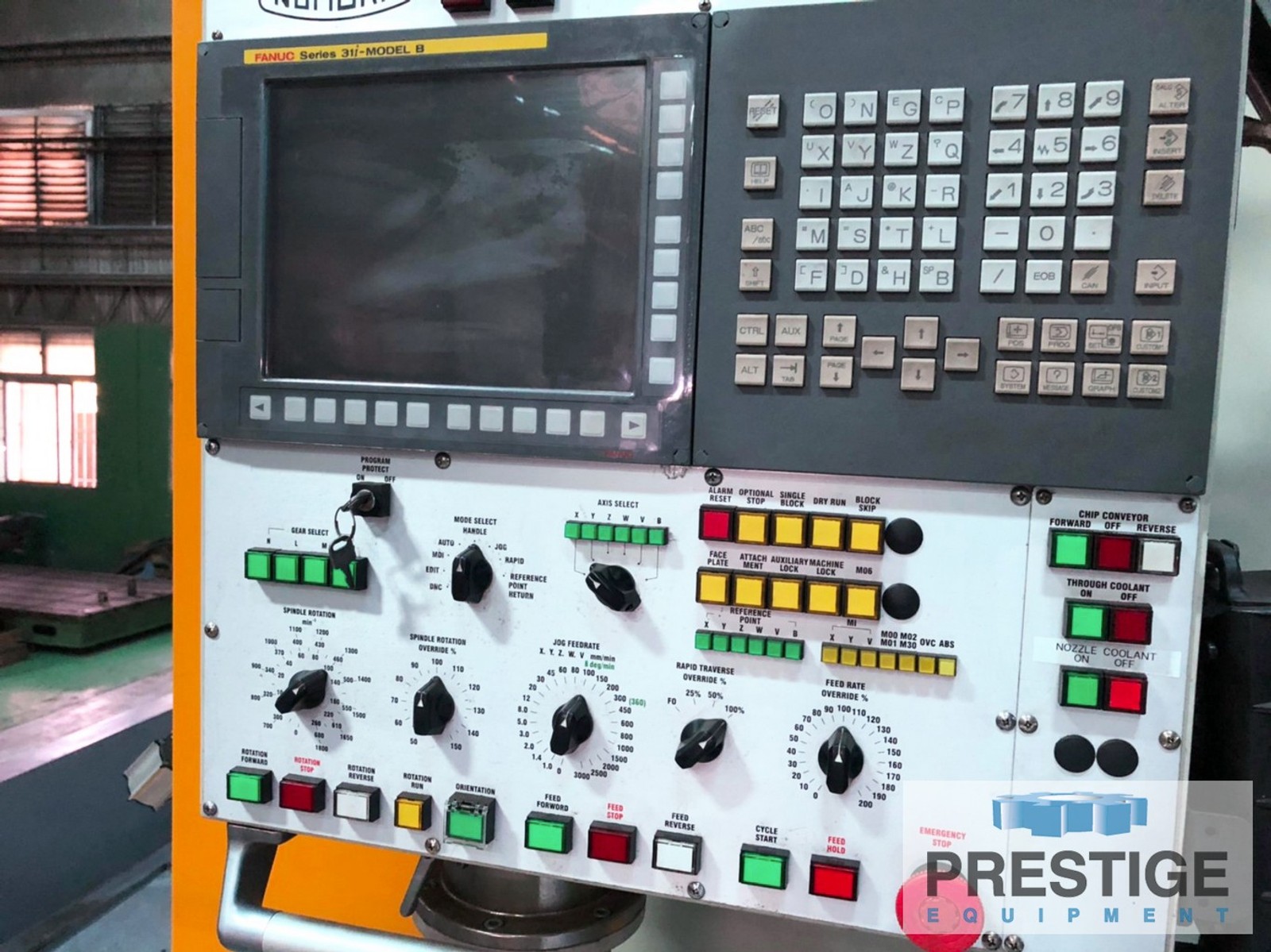

FANUC 31i-MB (10.4” LCD)CNC Control

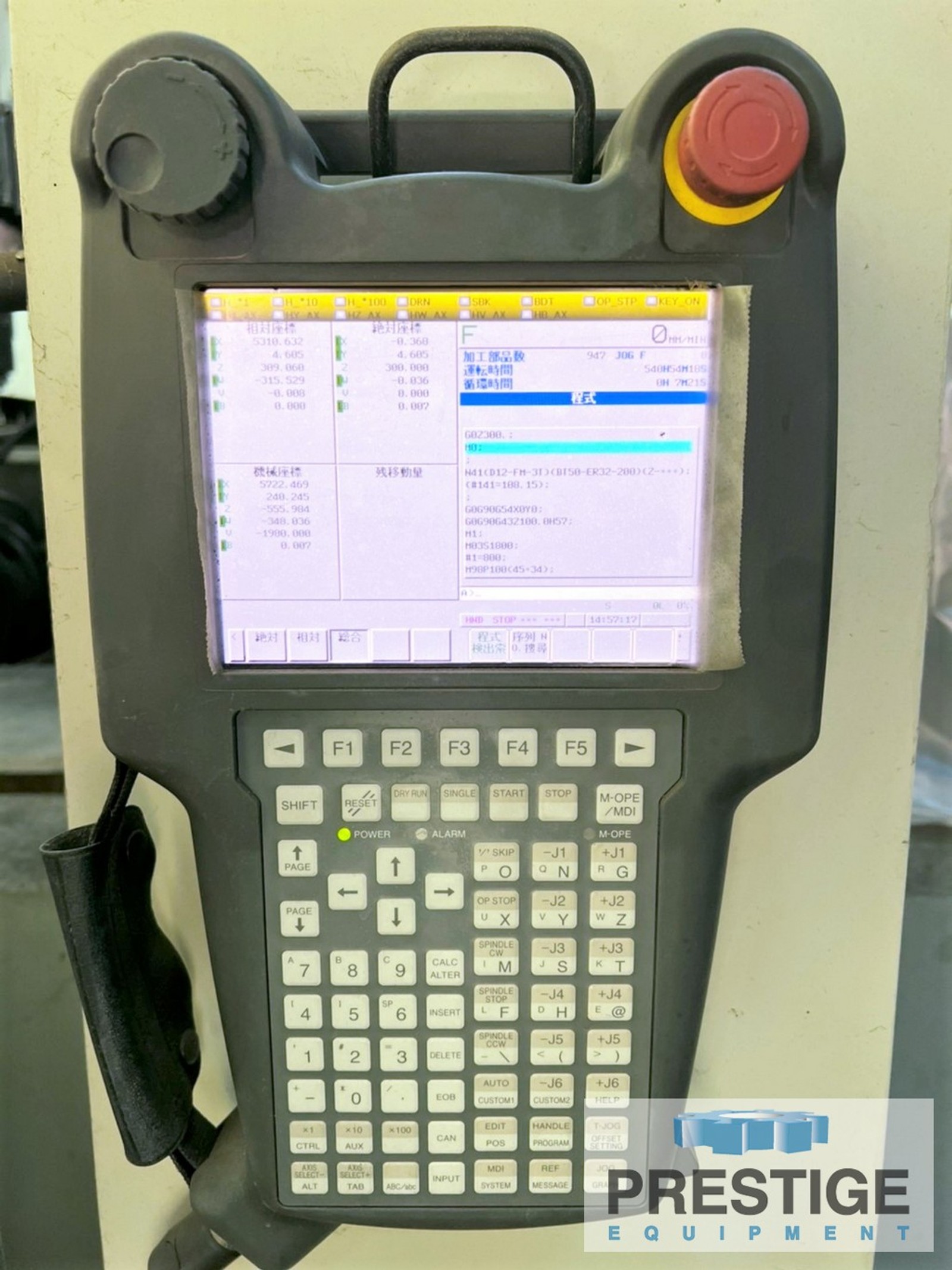

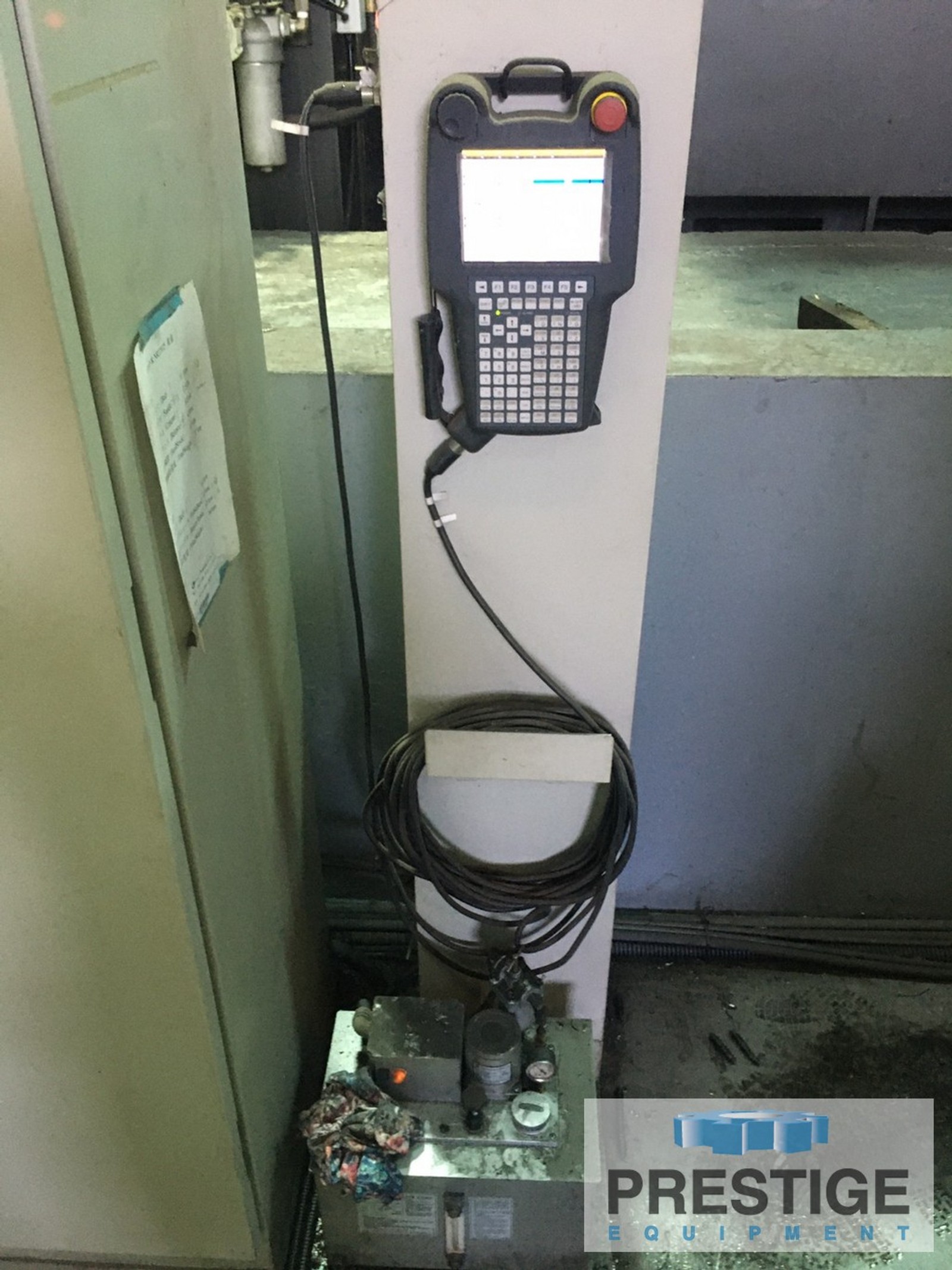

Portable Screen Control (iPendant)
Linear Scales
Coolant Through Spindle
Spindle Chiller
Chip Conveyer

CAPACITY:

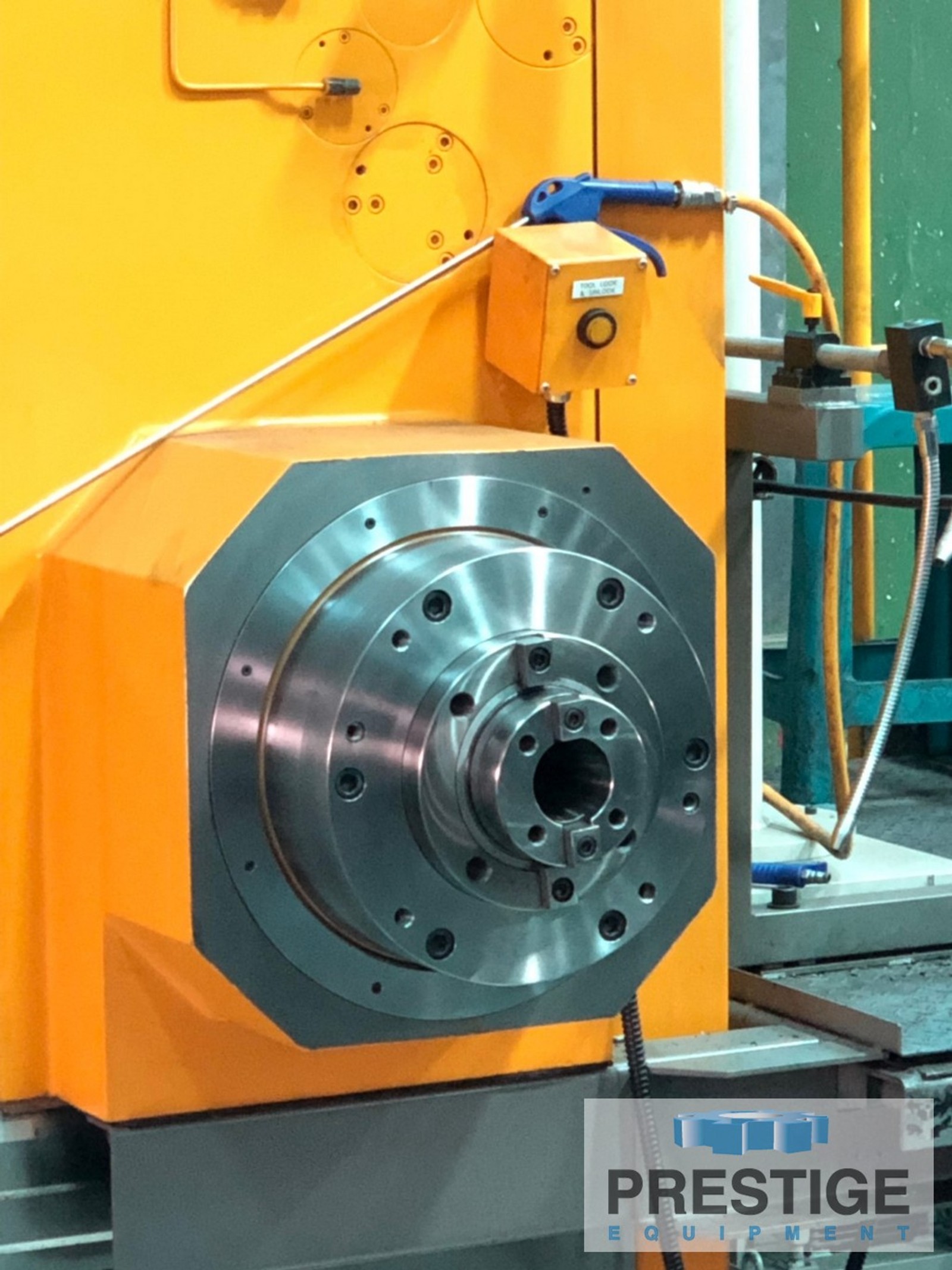

Spindle Diameter ...................... 5.31"
Spindle Taper ......................... #50 BT
Vertical Travel of Head, Y-Axis ....... 157.48"
Column Travel, X-Axis ................. 244.09"
Spindle Travel, Z-Axis ................ 27.55"
Ram Travel, W-Axis .................... 13.77"
Total Axial Travel, Ram & Spindle ..... 41.33"
Spindle Speeds: ....................... 6-1,800 RPM
Spindle Motor ........................ 60 HP / 50 HP
Machine Footprint ..................... 530" x 370" x 298"

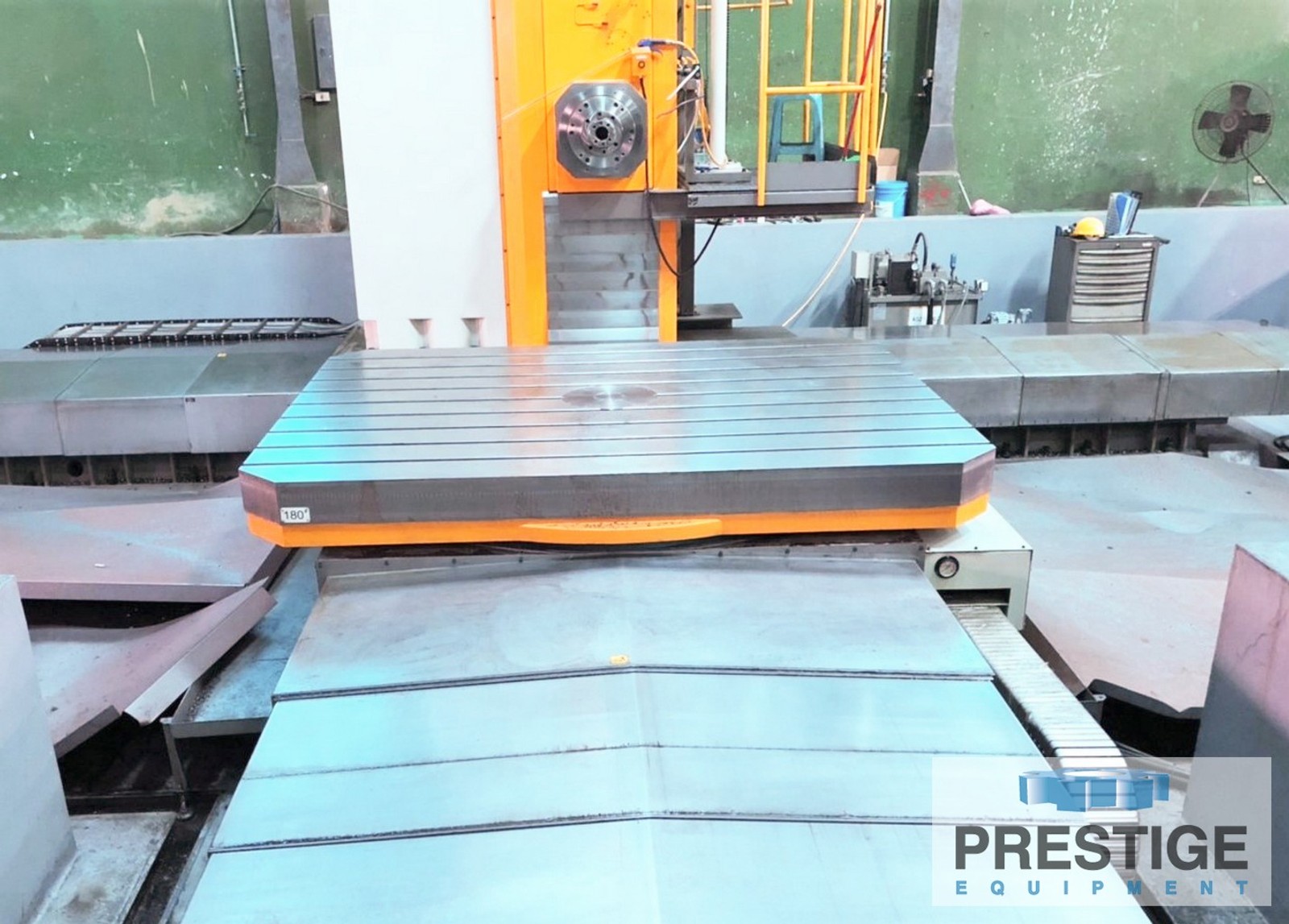

Rotary Table:
Model ................................. NRT-20/25B
Table Size ............................ 78.74" x 98.42"
Table Infeed ......................... 78.74"
Table Indexing, B-Axis ................ .001 degrees
Table Capacity ........................ 66,000 lbs


EQUIPPED WITH:
FANUC 31i-MB (10.4” LCD)CNC Control
Portable Screen Control (iPendant)
Linear Scales
Coolant Through Spindle
Spindle Chiller
Chip Conveyer
