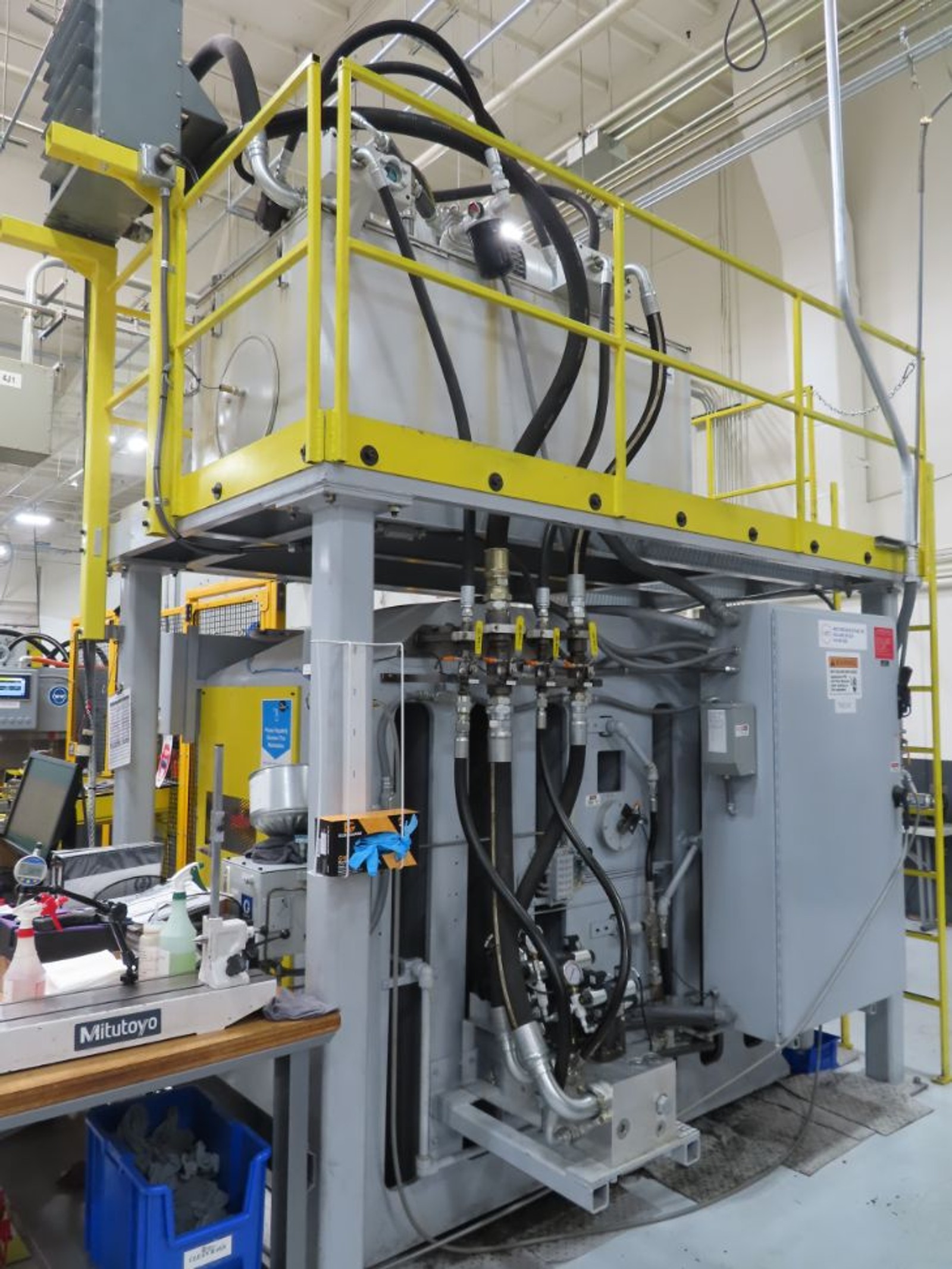

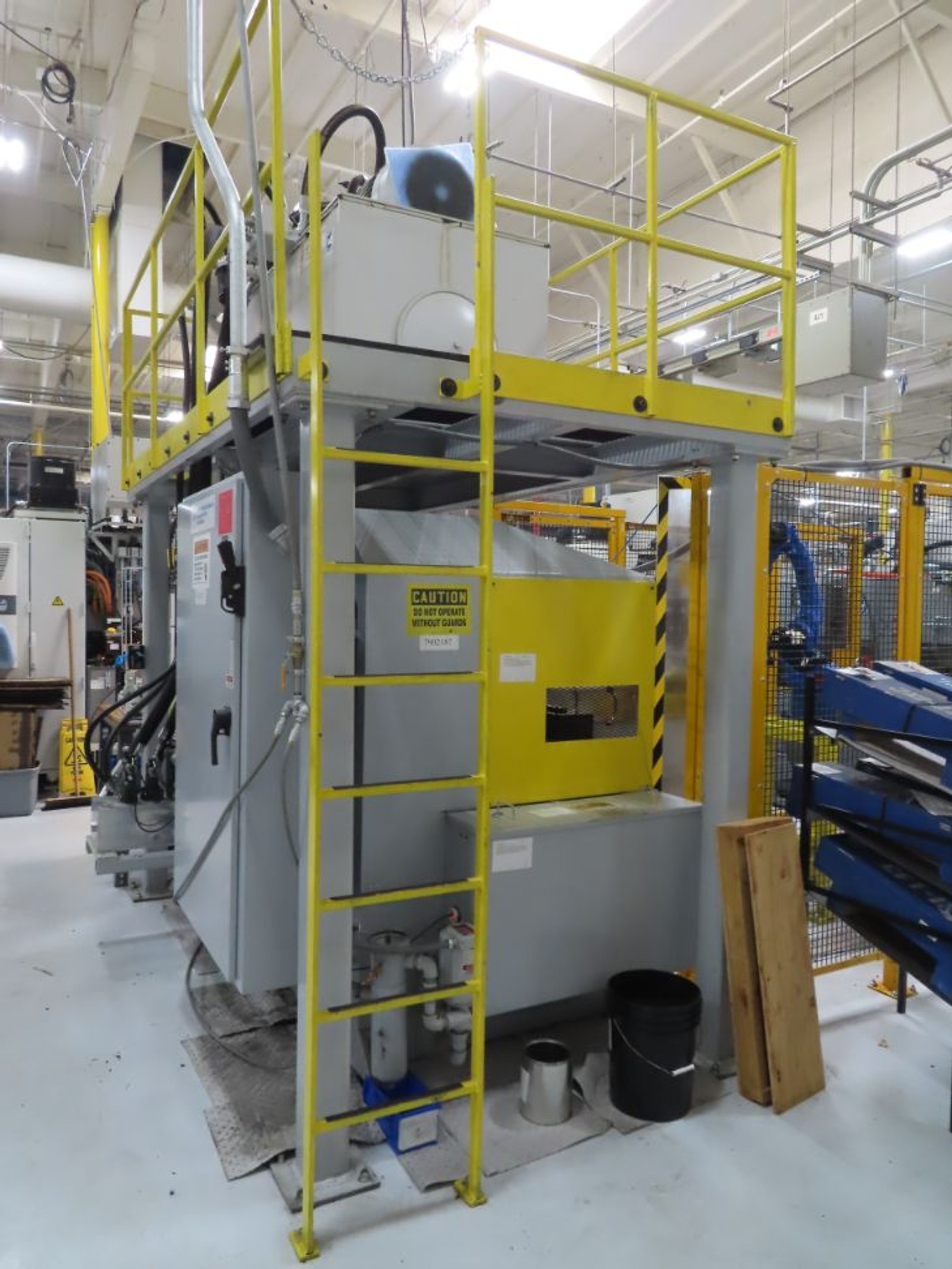

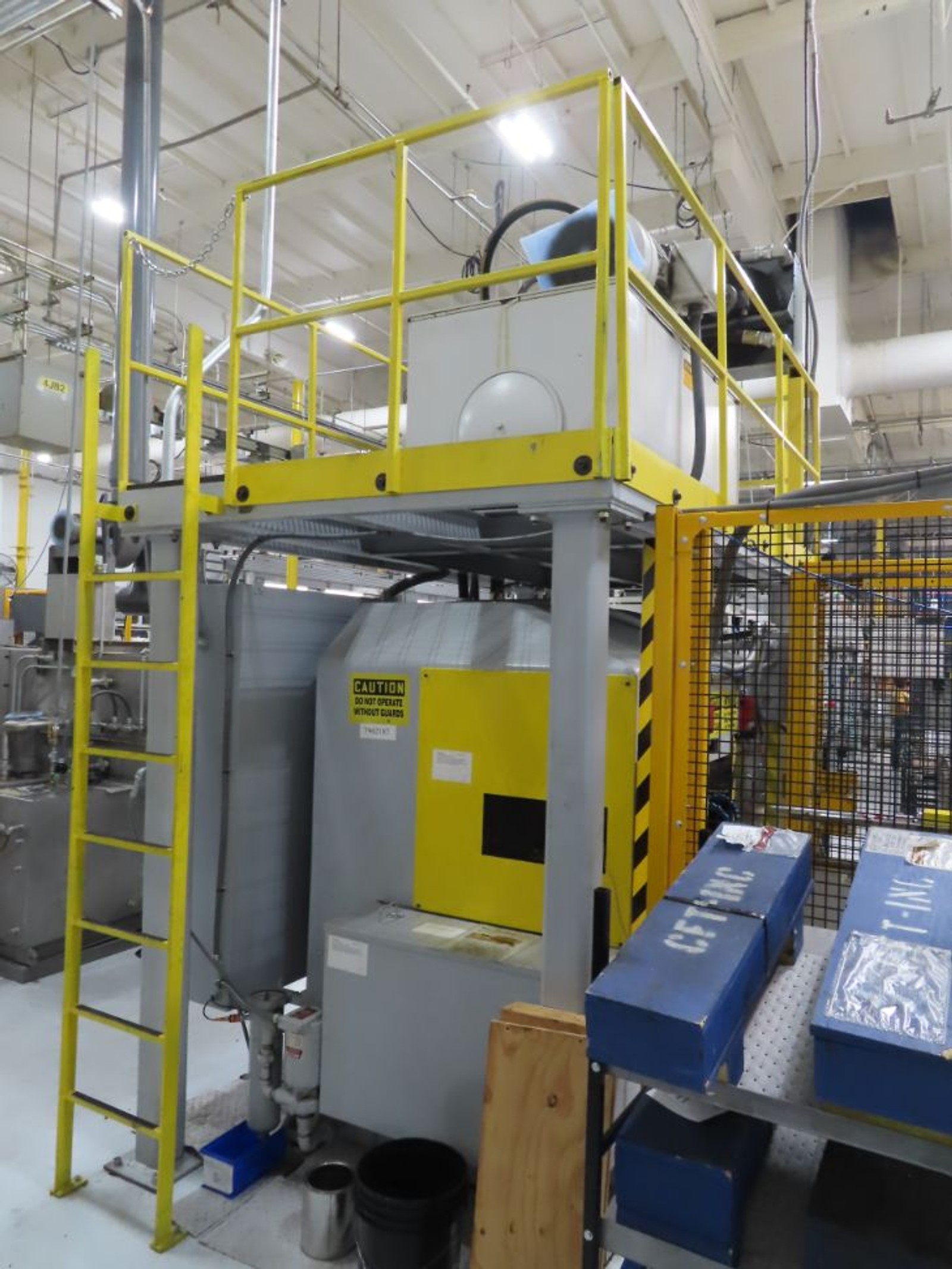

24” WEST MICHIGAN MODEL 24 SPLINE ROLLER, NEW 2018

Manufacturer

West Michigan Spline

Category

Gear Machines

Type

GEAR SPLINE ROLLERS

Stock

None

Model

24

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

24” WEST MICHIGAN MODEL 24 SPLINE ROLLER, NEW 2018

Catalog Features and Specifications:
…Rack Size: 24”
…OD: 1.5”
…Max Rack Box Depth: 5.0”
…Opening: 5.5”
…Under Arm Support with Tailstock
…One-Piece Welded Construction
…No Shimming Required for Straightness
…Runs Various Lengths w/ No Induced Taper
…Cold Form Splines and Threads w/o Tie Bars
…Coolant System

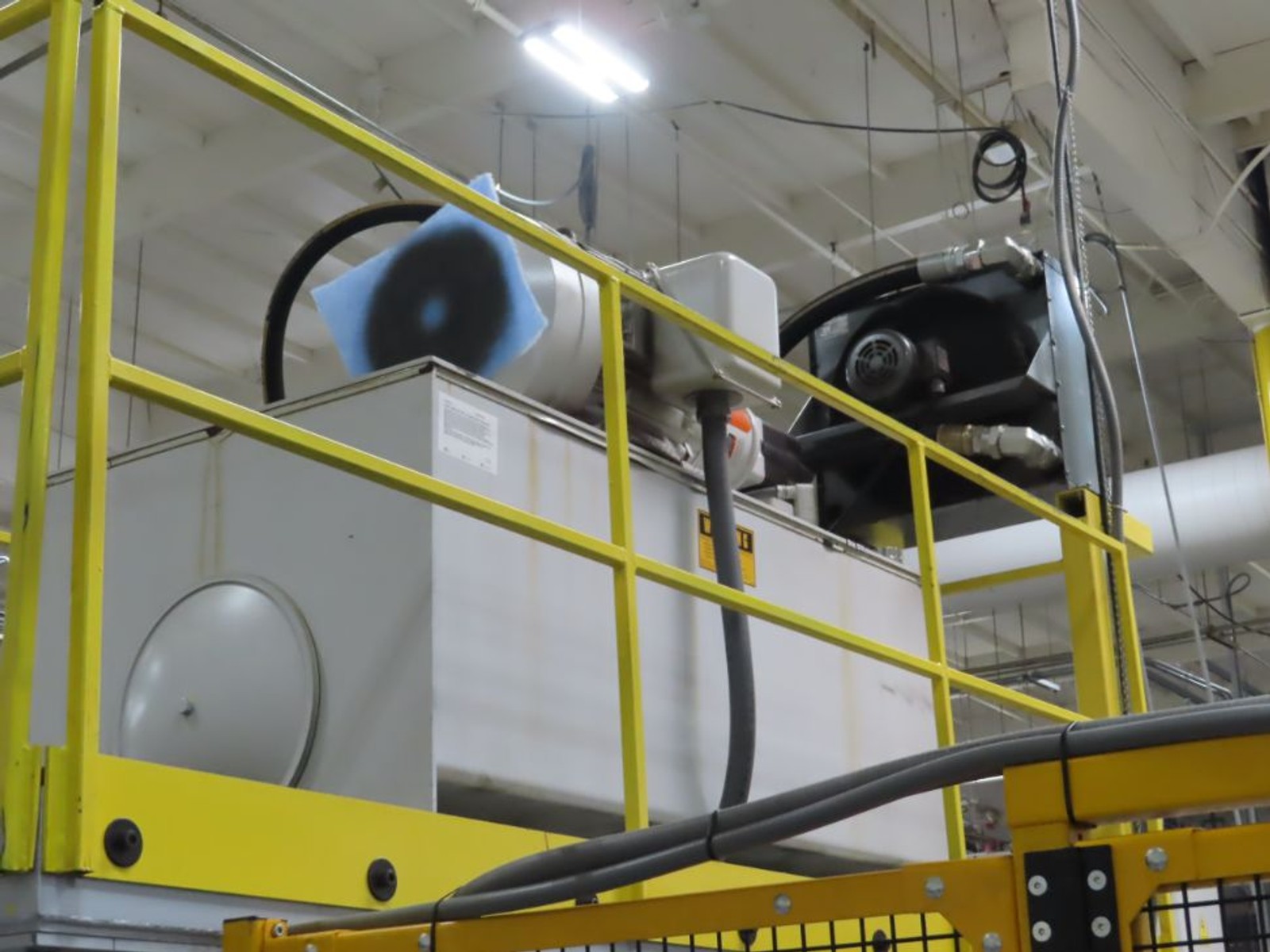

…Hydraulic Tank Reservoir: 50 Gallons

Overall Machine Dimensions (approx.): 120” x 72” x 161” Tall
System Weights (approximate):
…Machine Weight: 25,000 lbs.
…Hydraulic Tank & Stand Weight: 5,700 lbs.

OEM Brochure Website Link:
http://westmichiganspline.com/products/
