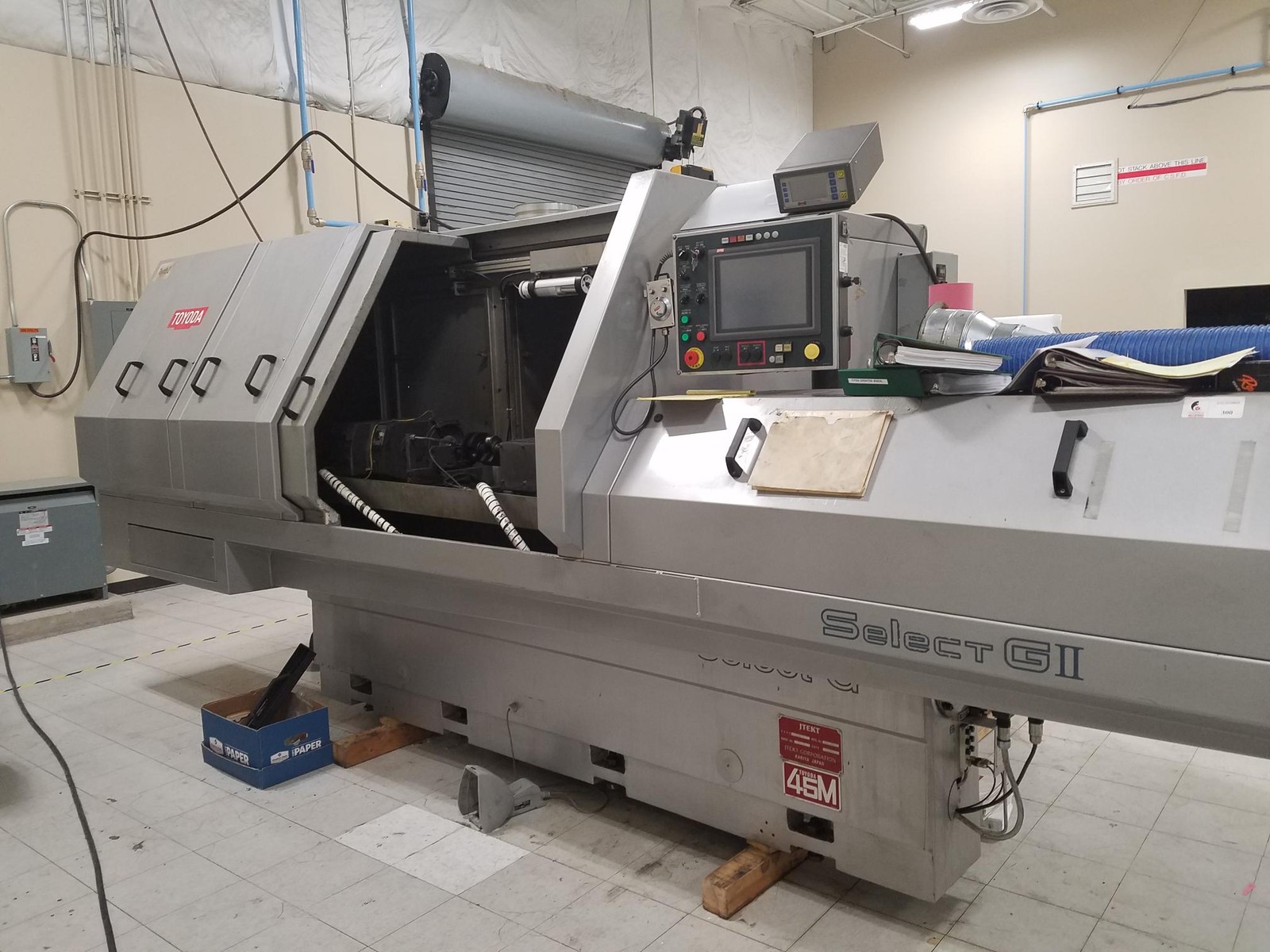

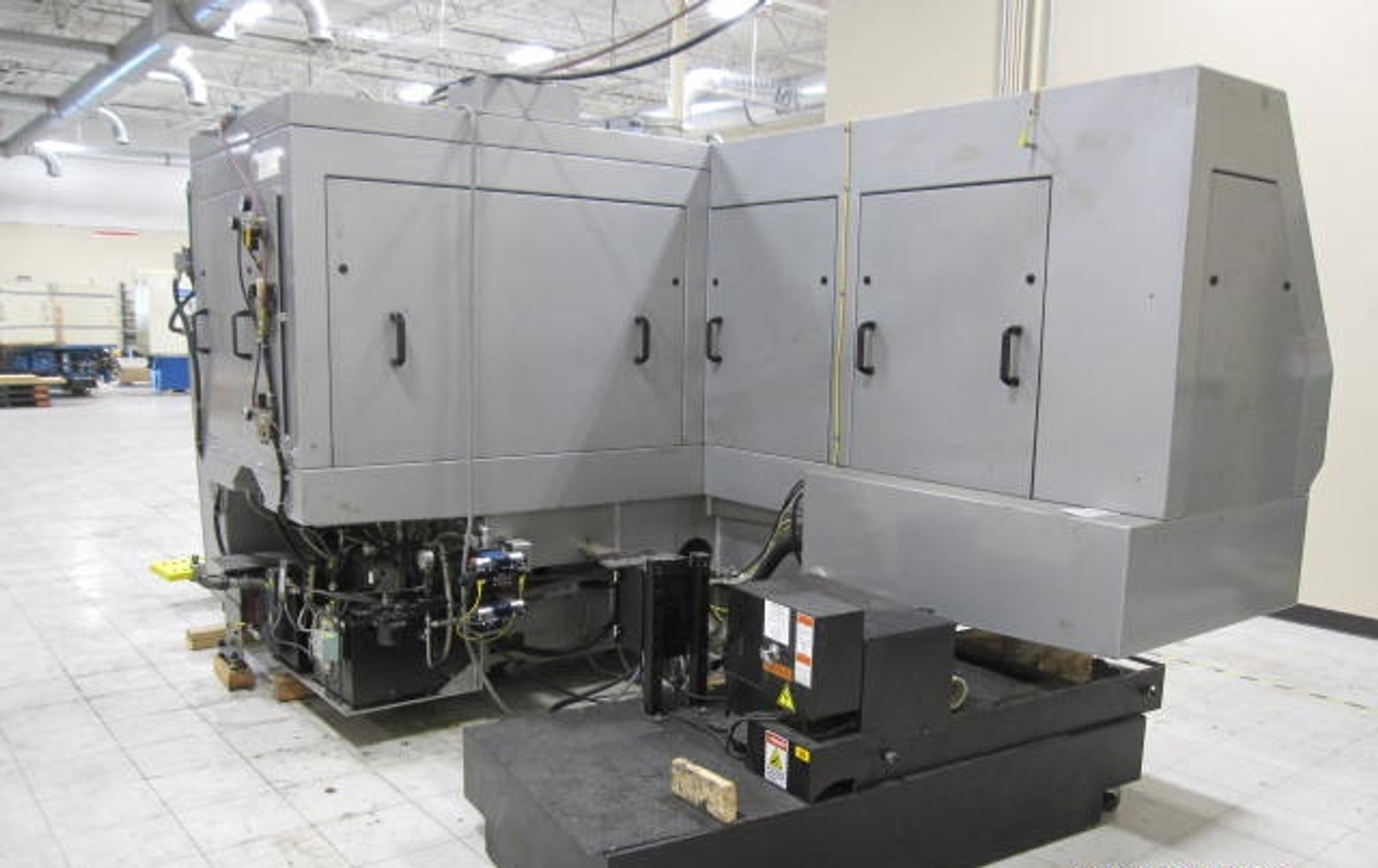

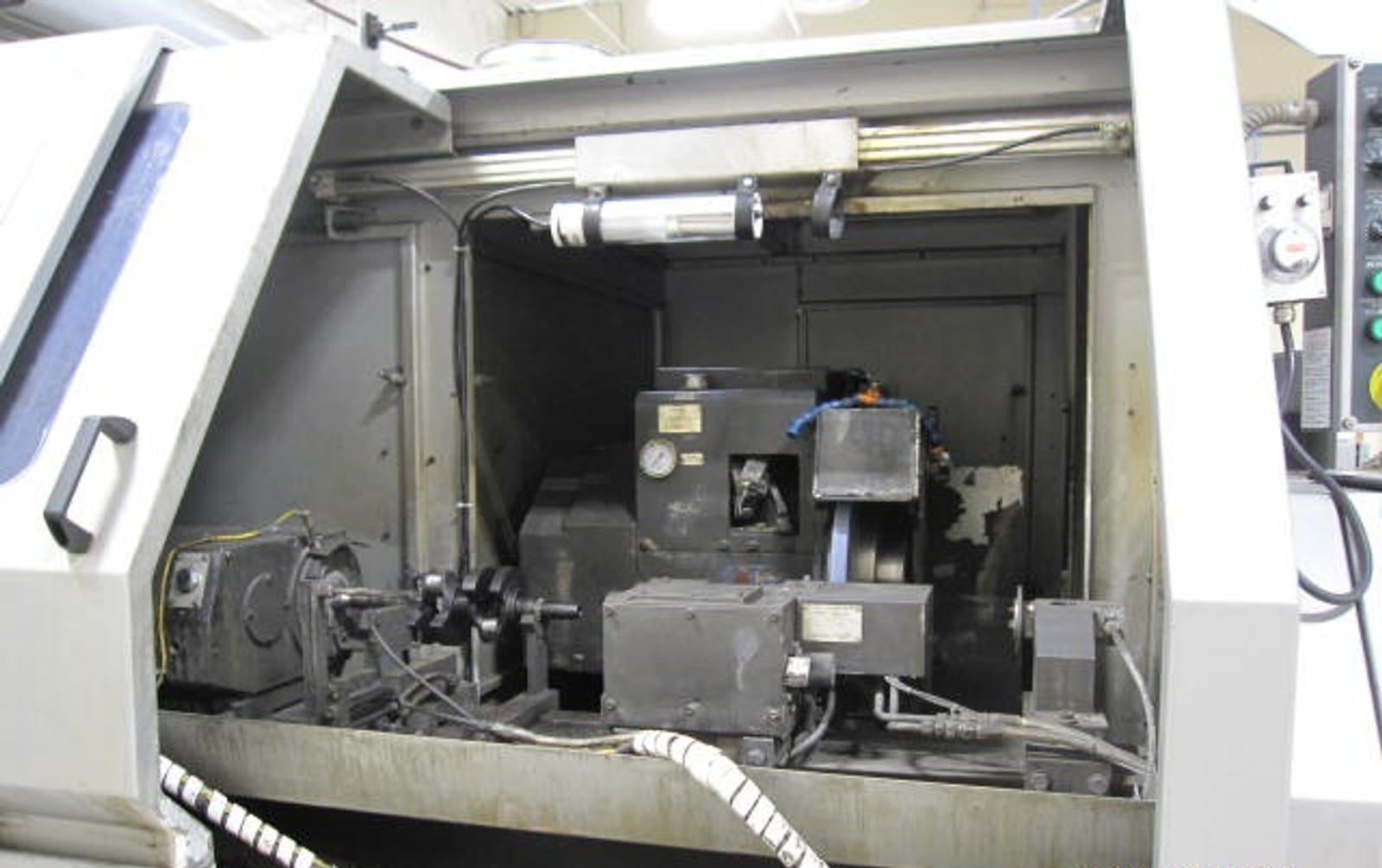

Toyoda Select G-100 CNC Cylindrical Grinder, New 2011, CAN BE USED AS EITHER A STRIAGHT OR ANGLHEAD GRINDER

Manufacturer

Toyoda

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, PLAIN (Angle Head), CNC

Stock

None

Model

Select G

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Toyoda Select G-100 CNC Cylindrical Grinder, New 2011, CAN BE USED AS EITHER A STRIAGHT OR ANGLHEAD GRINDER
Serial Number RCB-1197

CATALOG SPECIFICATIONS
Swing 12.59 in
Center Distance 39.37 in
Max Load Between Centers 330 lb
Workhead Taper MT No.4
Workhead Speed 500
Z-Axis Travel 50 in
X-Axis Travel 10.73 in
Wheel RPM 1230
Grinding Wheel Dia. 20 in
Gauging (Yes/No) yes

EQUIPPED WITH

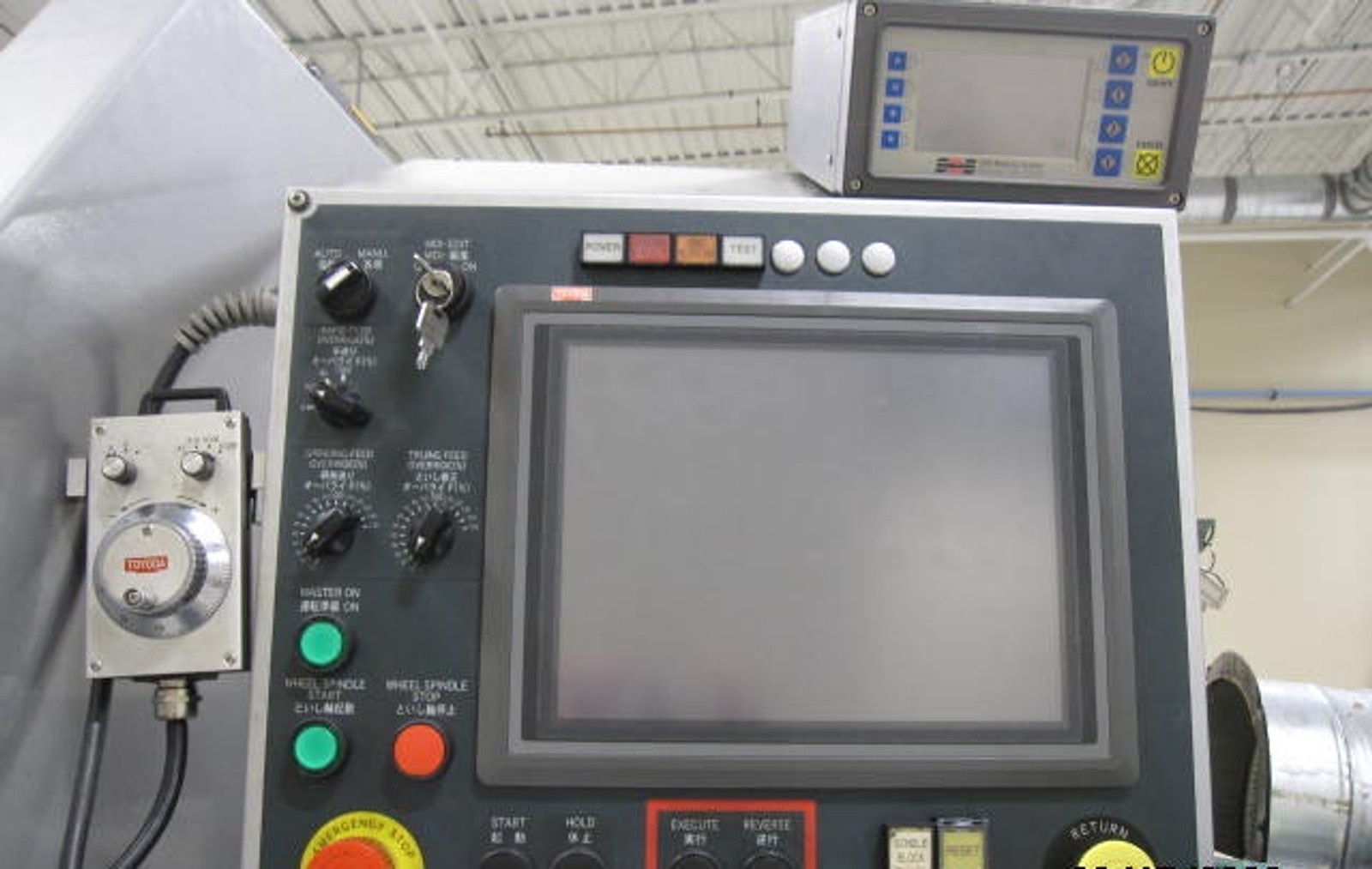

- Toyoda GC-50 Touchscreen Control
- Rotary Dresser
- In Process Sizing Gauging
- Shoulder (Lateral Locating) Gauge
- SBS Automatic Wheel Balancer
- Paper & Magnetic Coolant Filtration System
