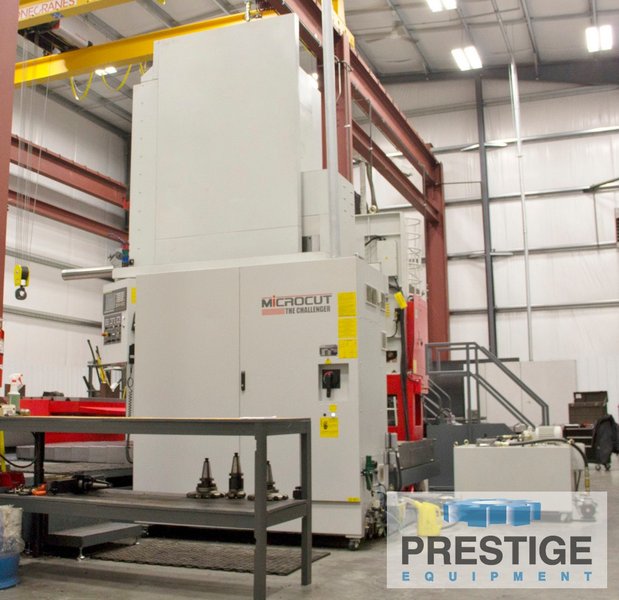

5.12" Microcut HBM, X-137", Y-125", Fanuc 32iMB, 60 ATC, 98" x 98" 20 Ton Table, New, #26748

Manufacturer

MICROCUT

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

26748

Model

HBM5T

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #26748

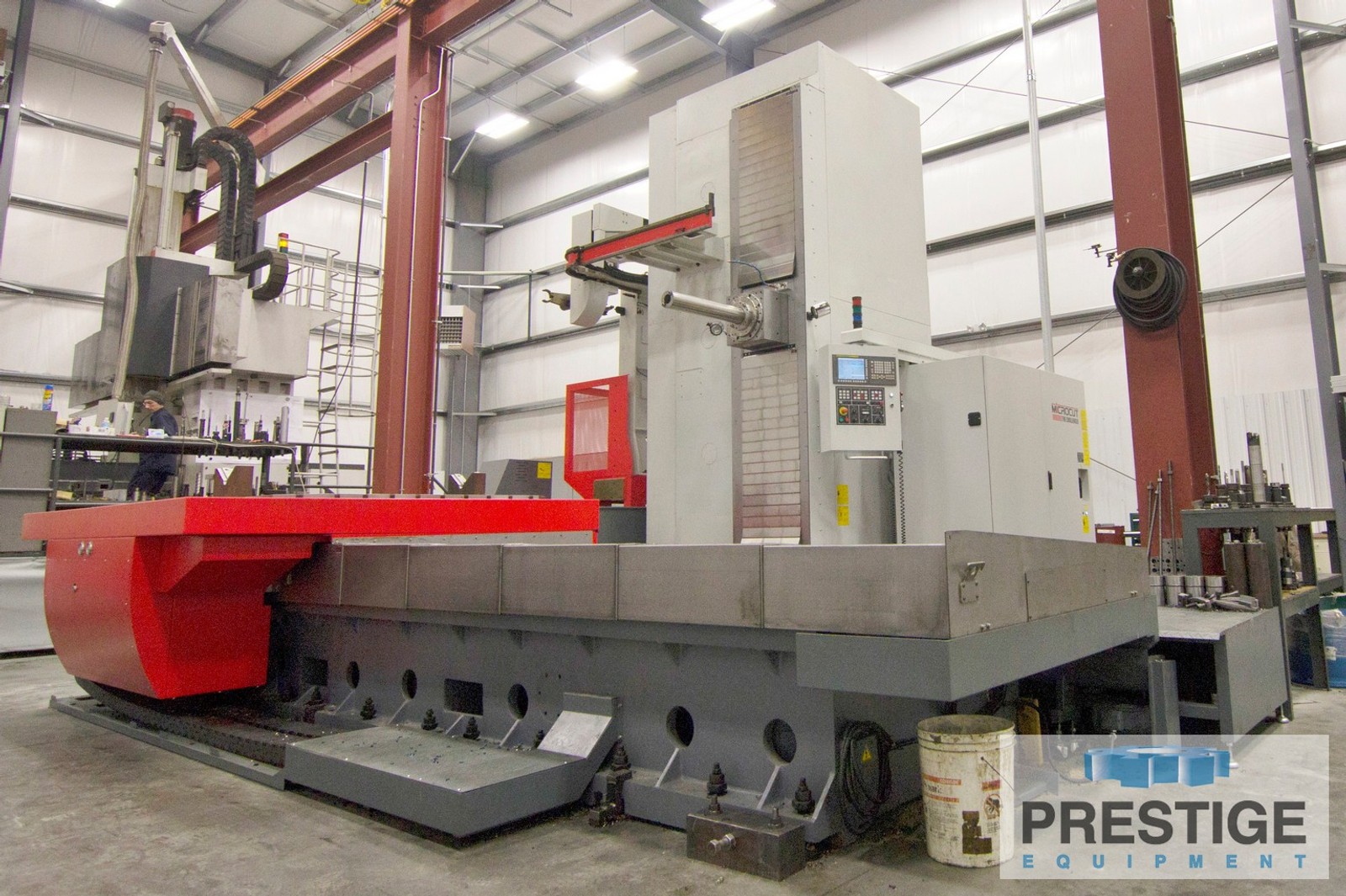

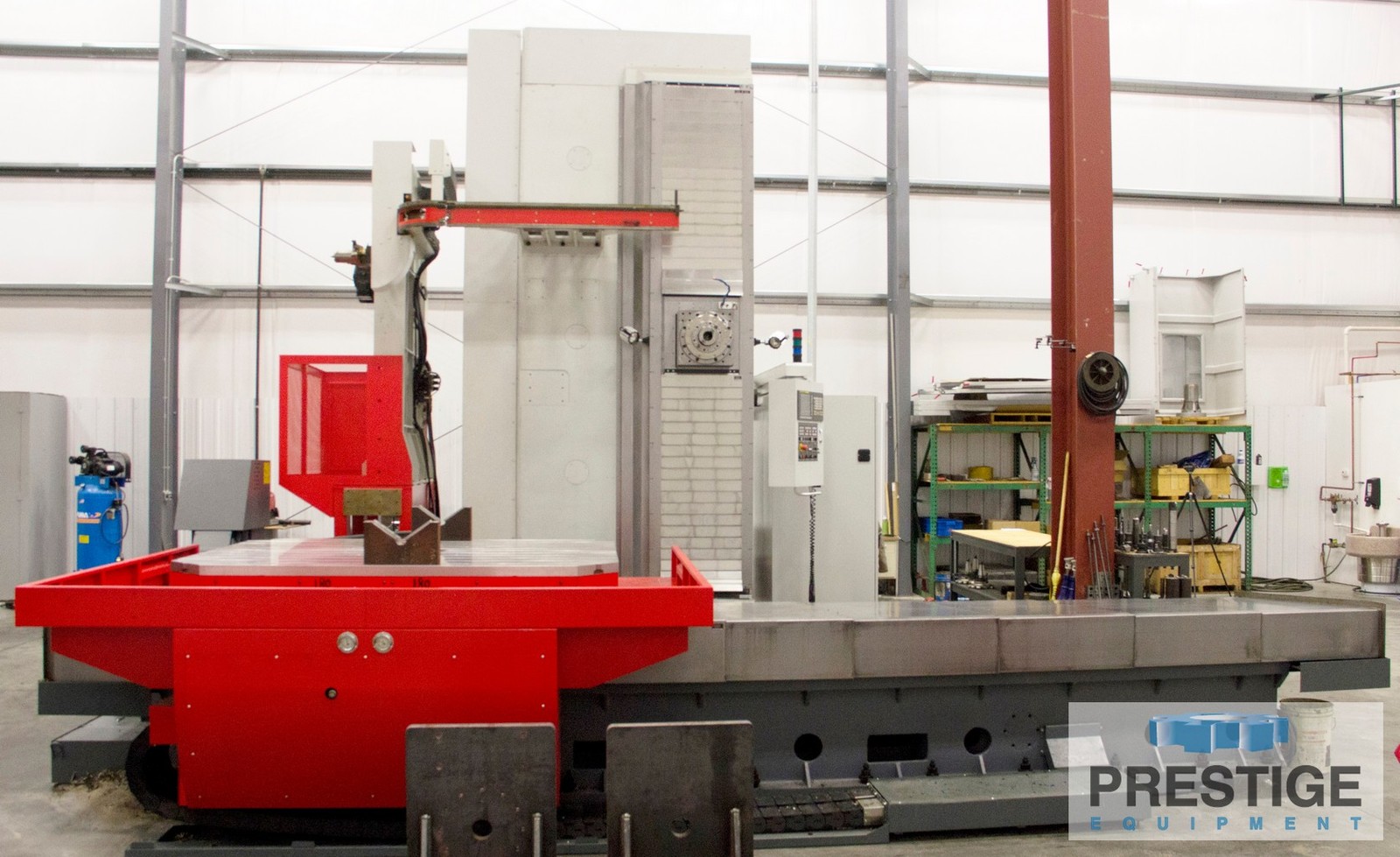

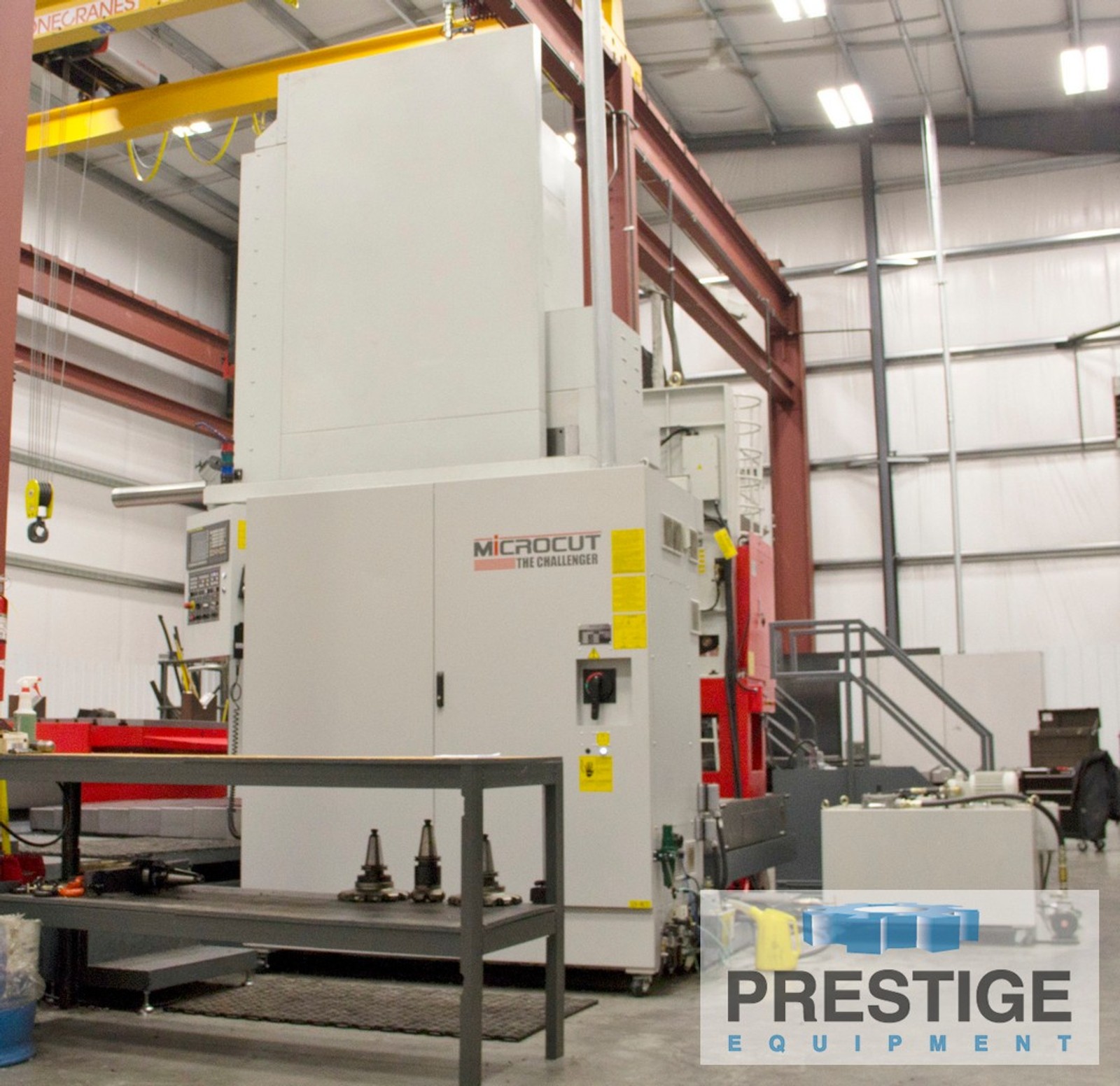

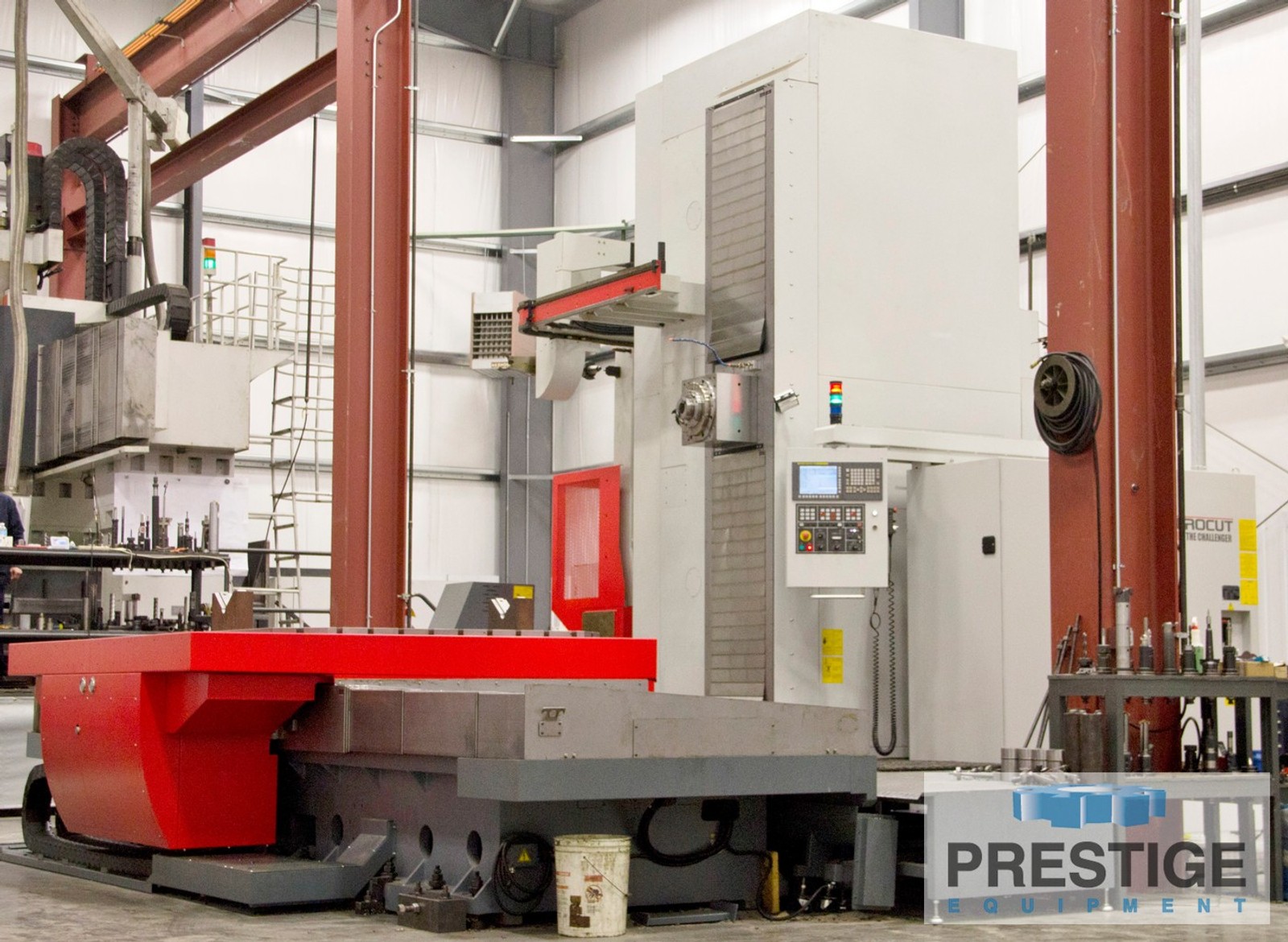

Microcut 5.12" CNC Table Type Horizontal Boring Mill

FEATURES:
FANUC 32iMB CNC Control
60 Station Automatic Tool Changer

CAPACITY:

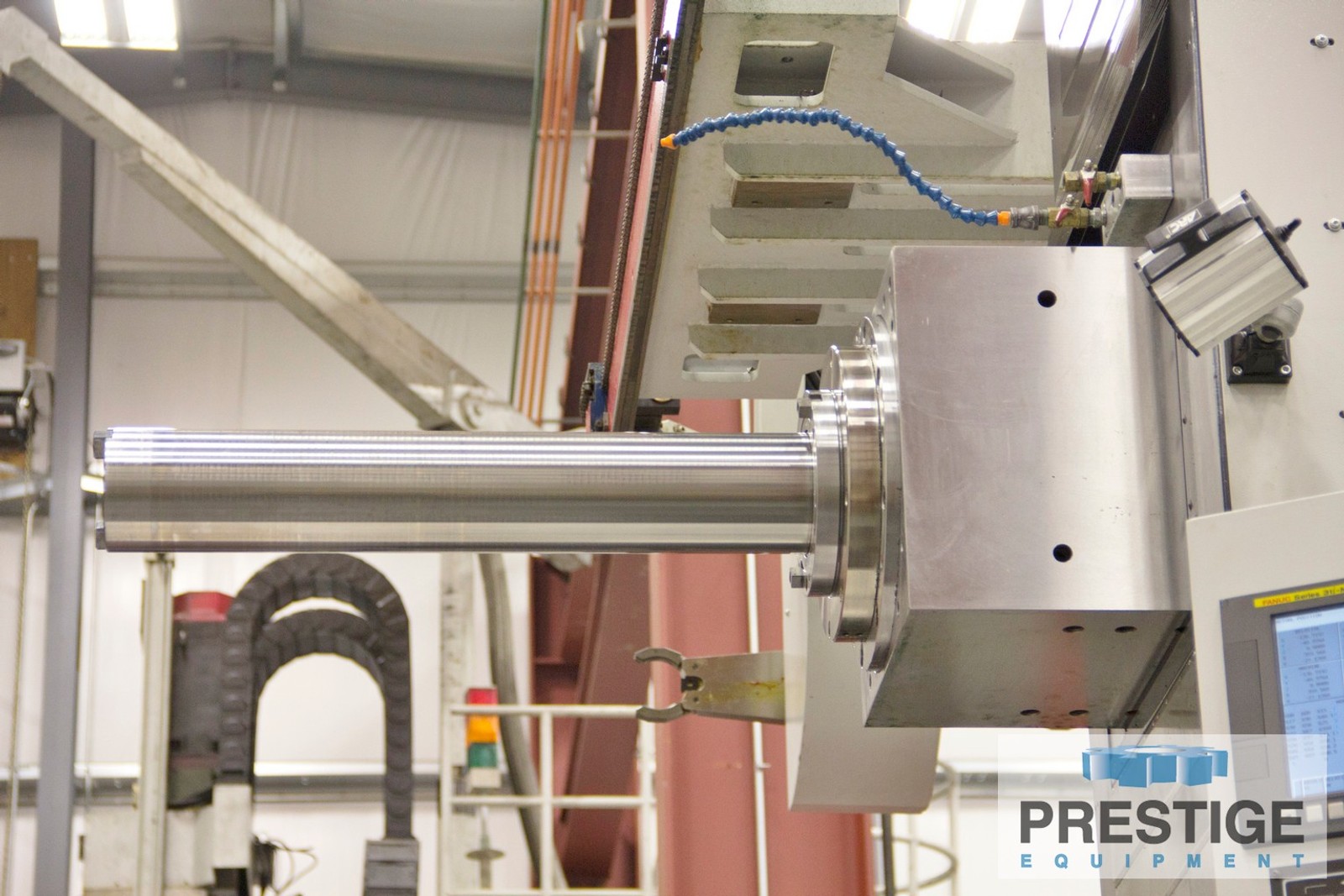

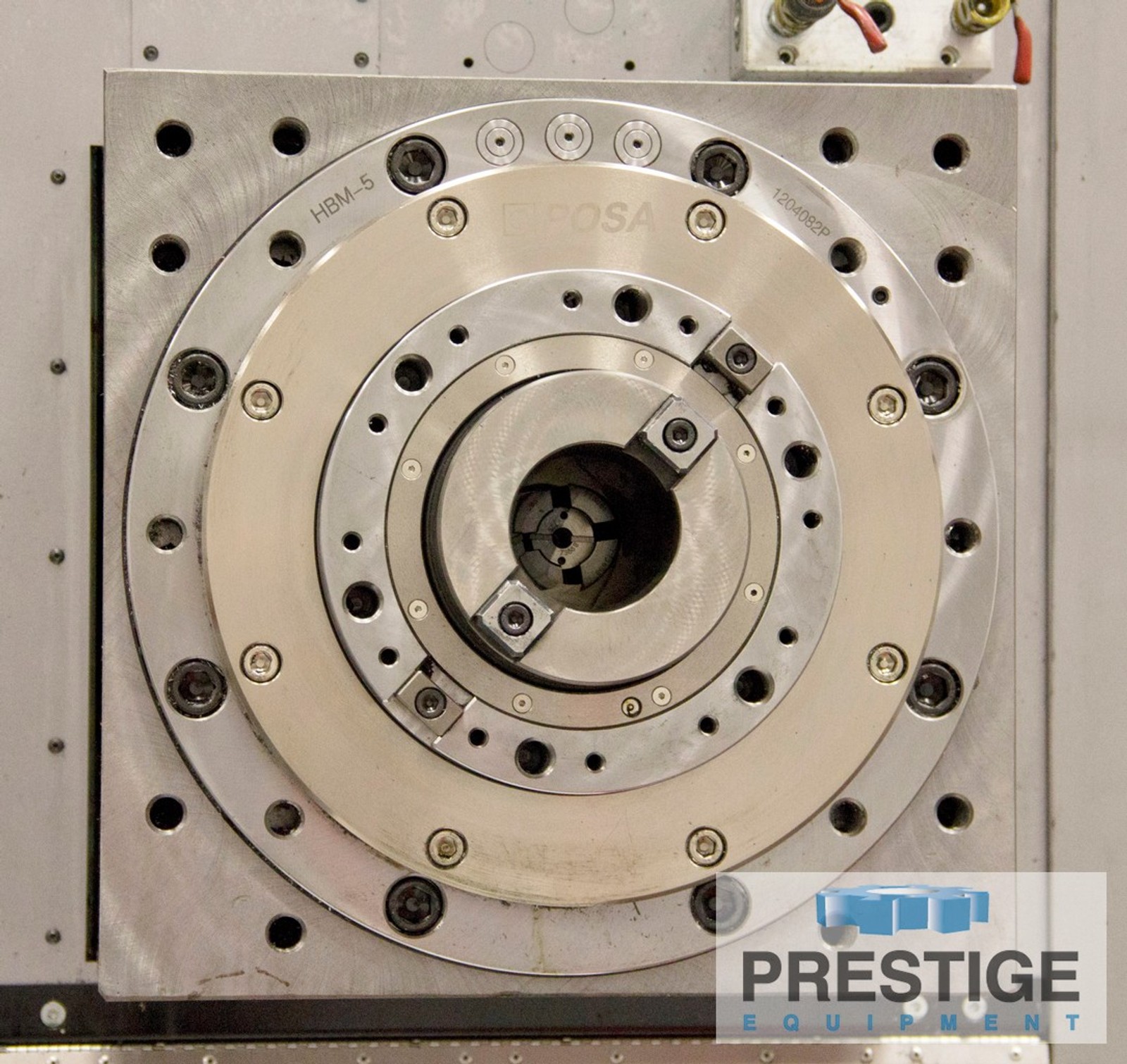

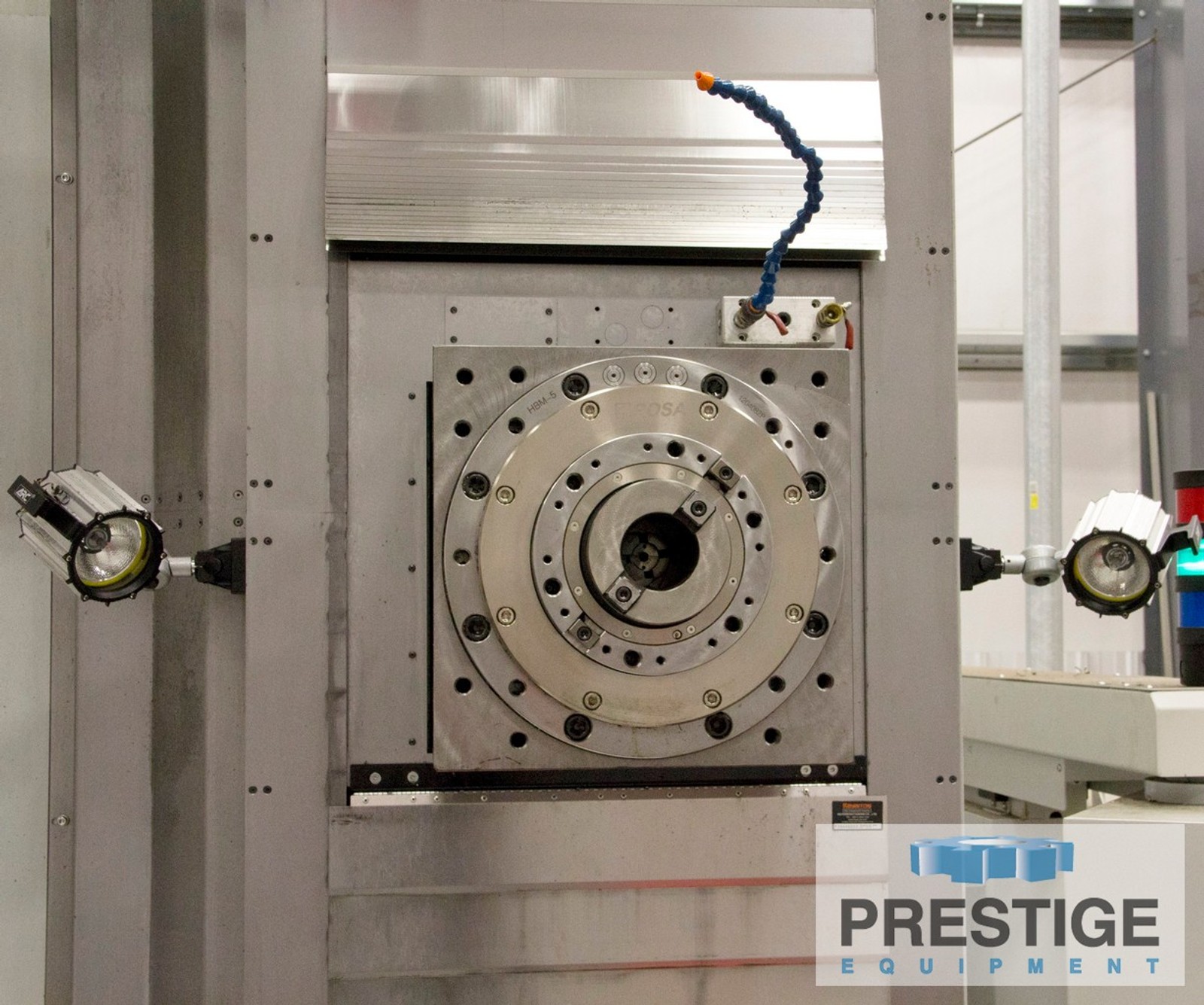

Spindle Diameter .................... 5.12"
Spindle Taper ....................... ISO #50
Cross Travel, X-Axis ................ 137.79"
Vertical Head Travel, Y-Axis ........ 125.98"
Column Longitudinal Travel, W-Axis .. 78.74"
Spindle Travel, Z-Axis .............. 27.55
Spindle Speeds, 2-Speed ............. 35-3000 RPM

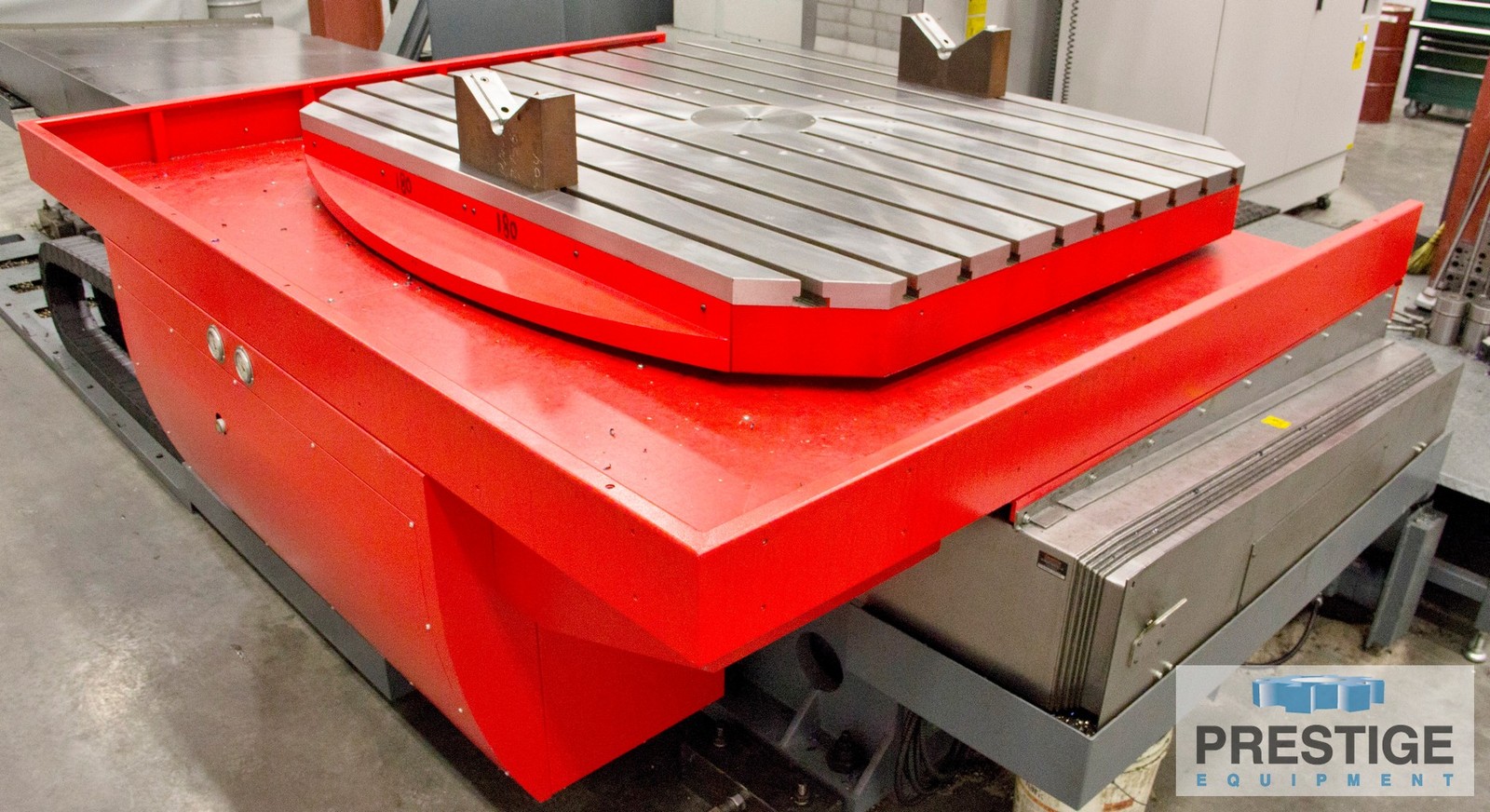

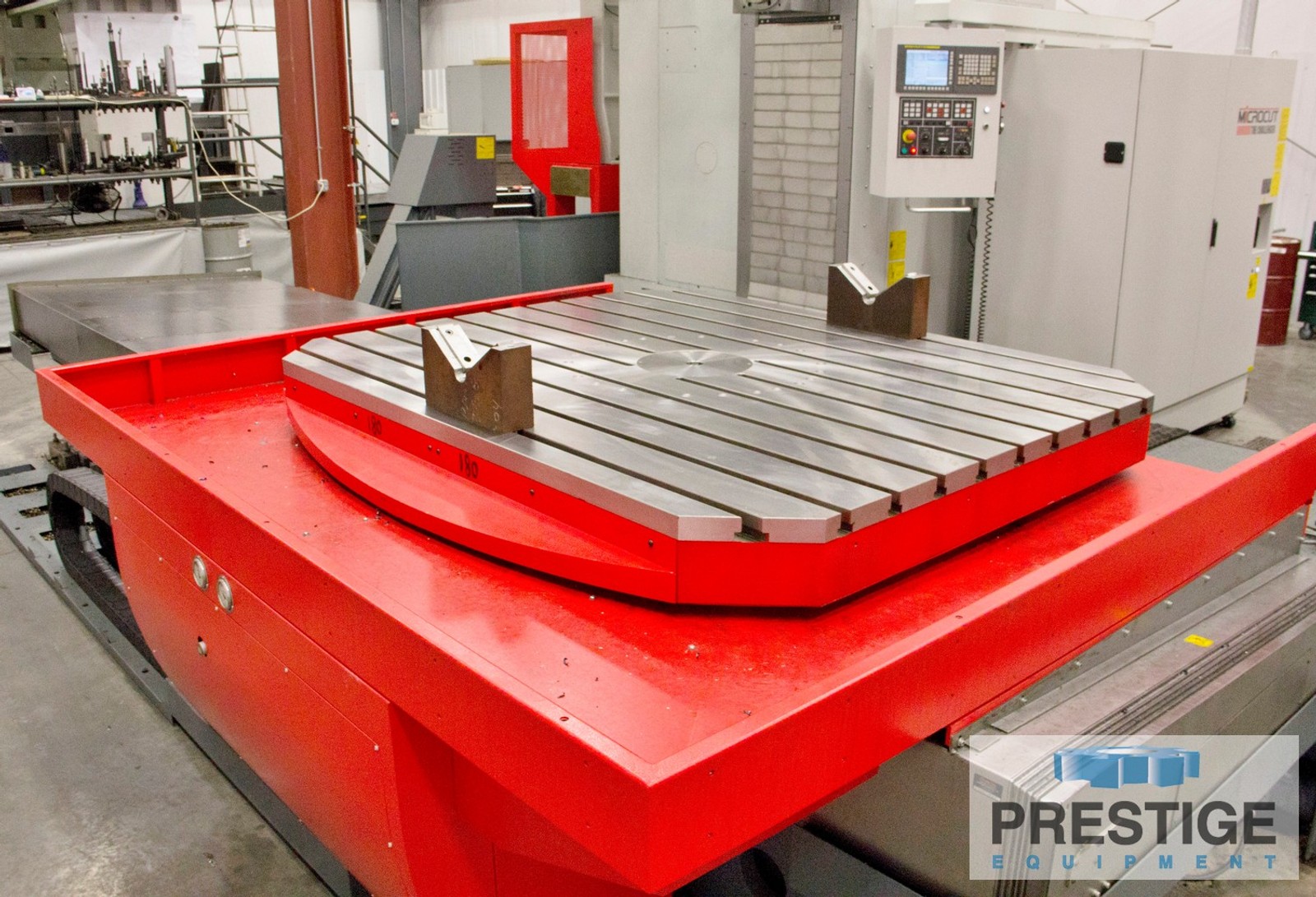

Built-In Rotary Table, B-Axis ....... 98.42" x 98.42"
Table Weight Capacity ............... 44,000 Lbs.
Rotary Table, Full B-Axis, .......... 0.001 Deg.

EQUIPPED WITH:

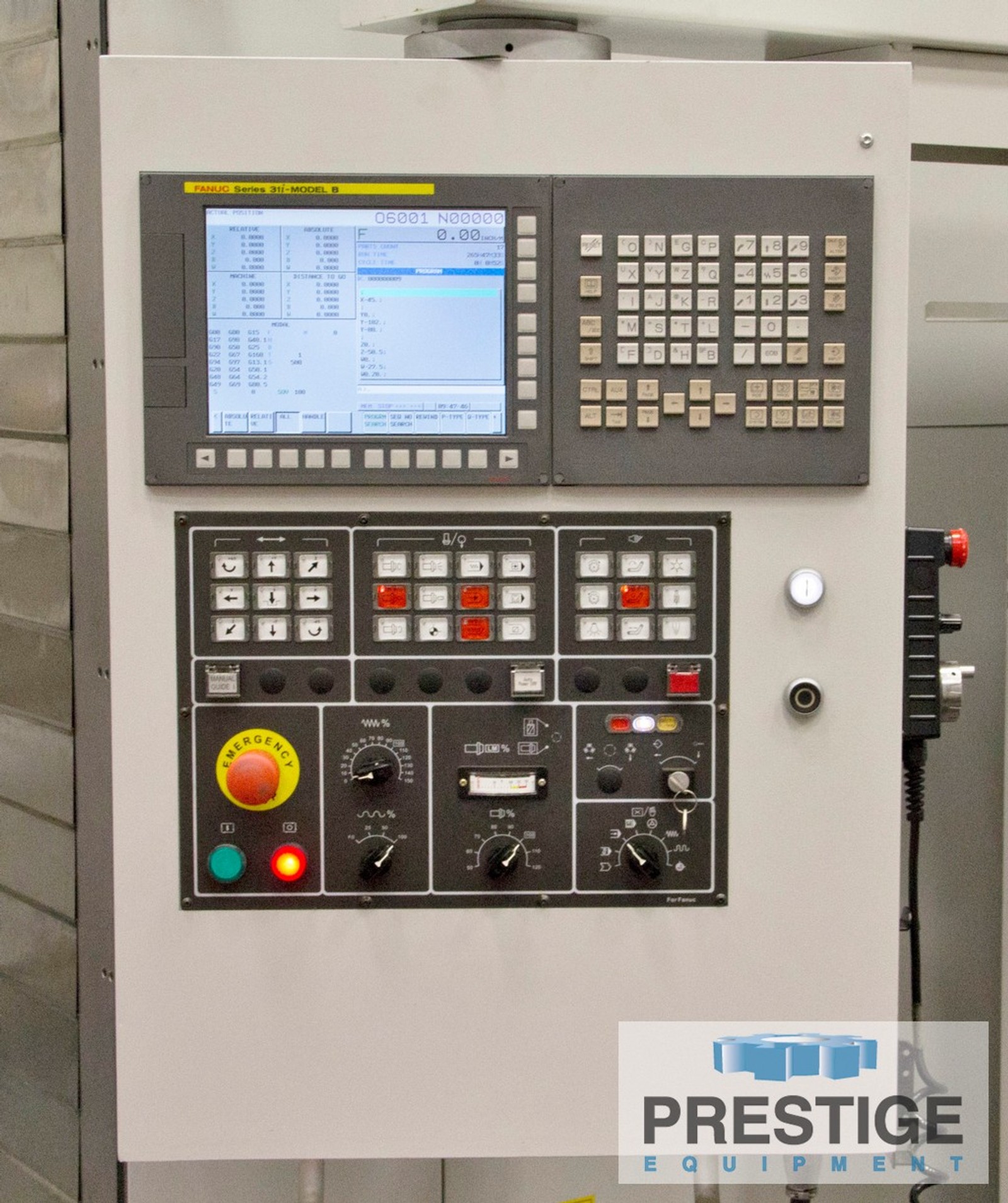

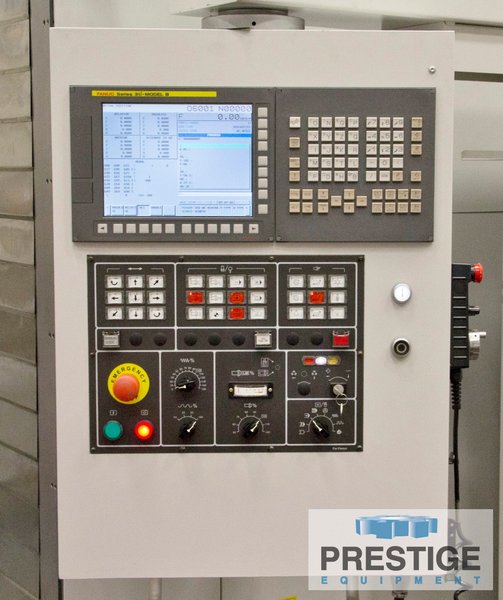

FANUC 32i MB CNC Control and 10.4" LCD Display
RS-232 Interface
Fanuc Spindle & Fanuc Axes Servo Motor Package
T-Type Construction, Infeeding Column
98.42" x 98.42 Built-In Rotary Table (360,000 Deg.)

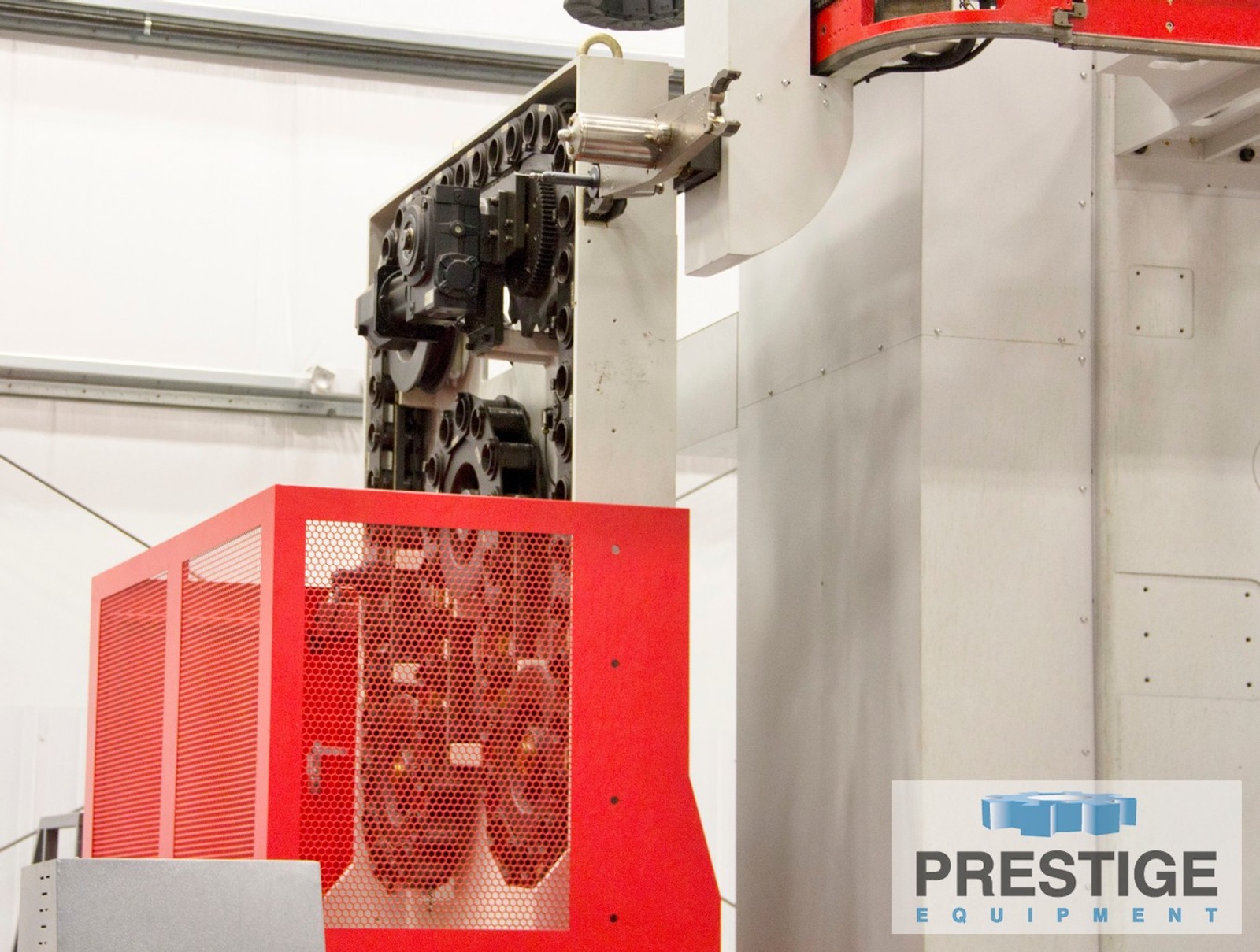

60 Position Automatic Tool Changer (CAT #50)
Linear Scale for X/Y/Z Axes

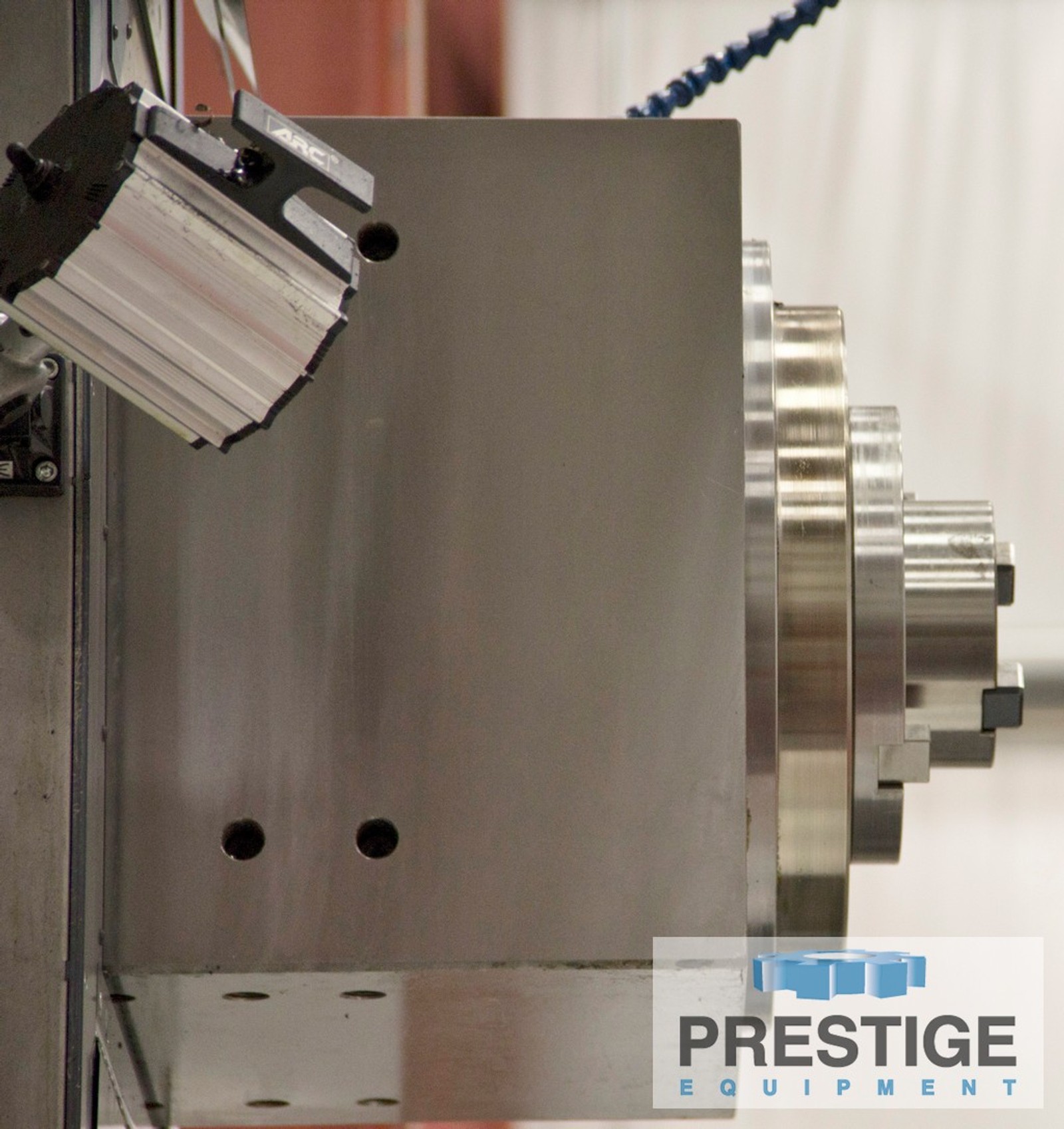

Spindle Extension Sleeve
Coolant Thru Spindle Preparation
Coolant System
Auto Lubrication System
49 HP/60 HP Spindle Drive Motor
1-Year Parts Warranty on Machine
2-Year Parts Warranty on CNC Control

NOTE:
Delivery 5-6 Months From Order
